◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#33778) — 15 parça

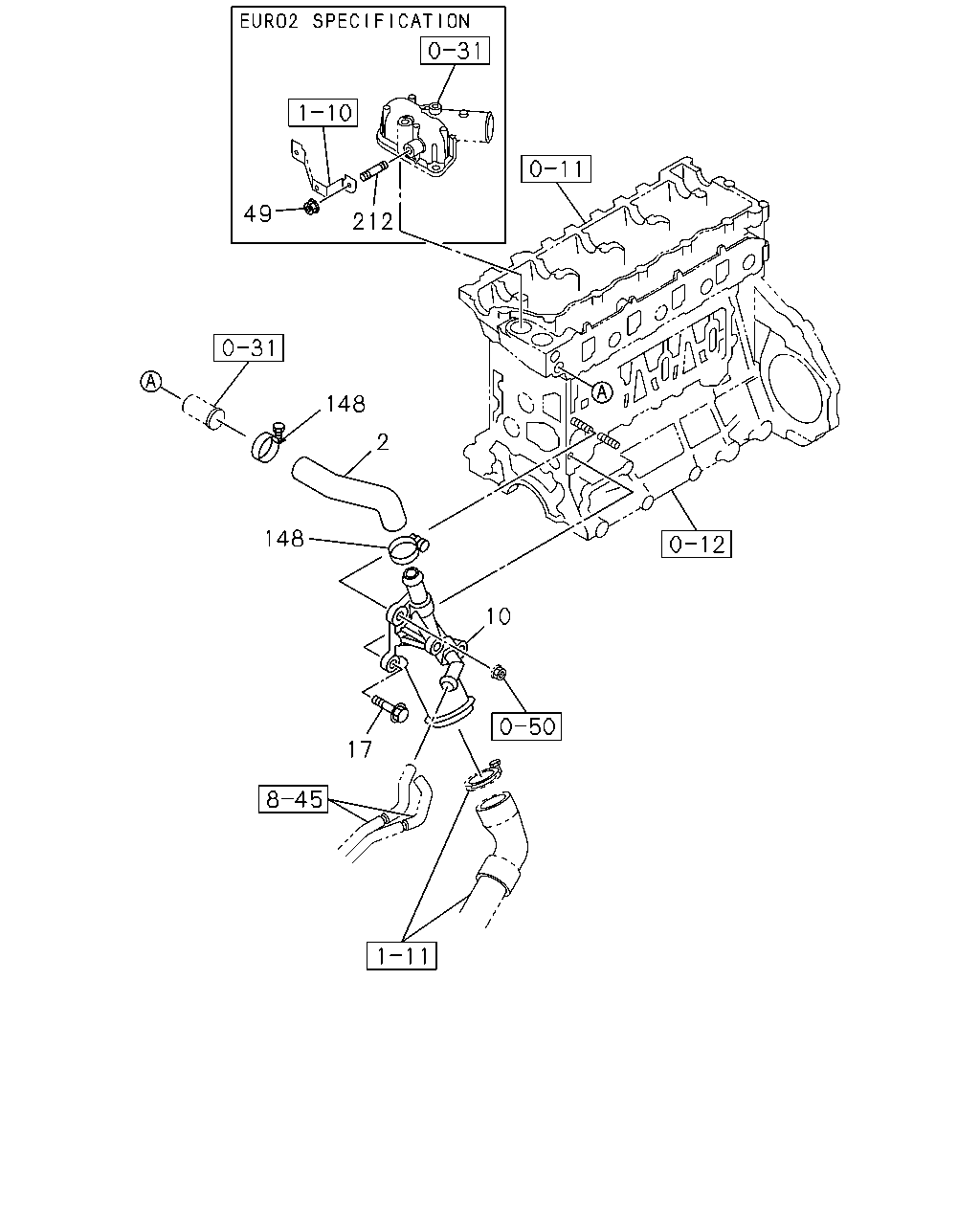

çizim 120754
10 17 148 148 2 212 49
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.097 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 0803- ● ●
10 01.153 PIPE; SUCTION 8-97371-775-1 01 1 0803-1010 ● ●
10 01.153 PIPE; SUCTION 8-98166-991-0 01 1 1011- ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0803- ● ●
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0803- ● ●
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 0803- ● ●

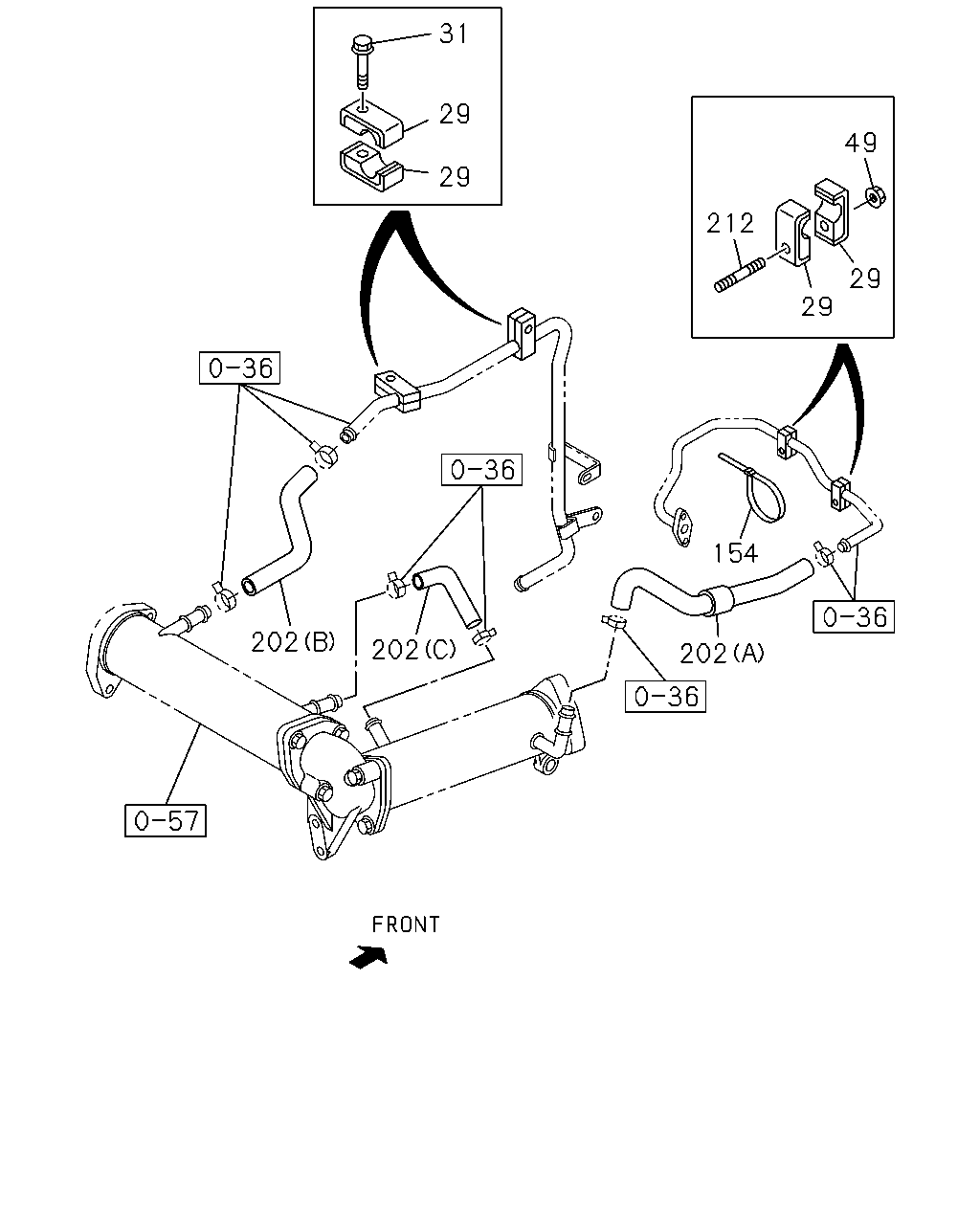

çizim 120756
202 202 29 29 31 202 154 212 49 29 29
BalonParca AdiParca NoAdetTipApplied Date A B
29 01.166 CLIP; PIPE
EURO4 SPECIFICATION(NT4) 		1-09701-284-0 08 1 0803- ● ●
31 01.159 BOLT; CLIP
EURO4 SPECIFICATION(NT4) 02.277 M8X40 FLANGE 		0-28050-840-0 02 1 0803- ● ●
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
154 01.153 CLIP; WATER HOSE
EURO4 SPECIFICATION(NT4) 02.559 L=170.3 		1-09987-182-0 01 1 0803- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (C) 		8-97386-585-0 01 1 0803- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (B) 		8-97386-586-1 01 1 0803- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (A) 		8-98032-268-0 01 1 0803- ● ●
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 0803- ● ●
