Isuzu WW
▶
TRUCKS
▶
NPR
▶
51156 - NPR BUS(LHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#33775) — 25 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
◀

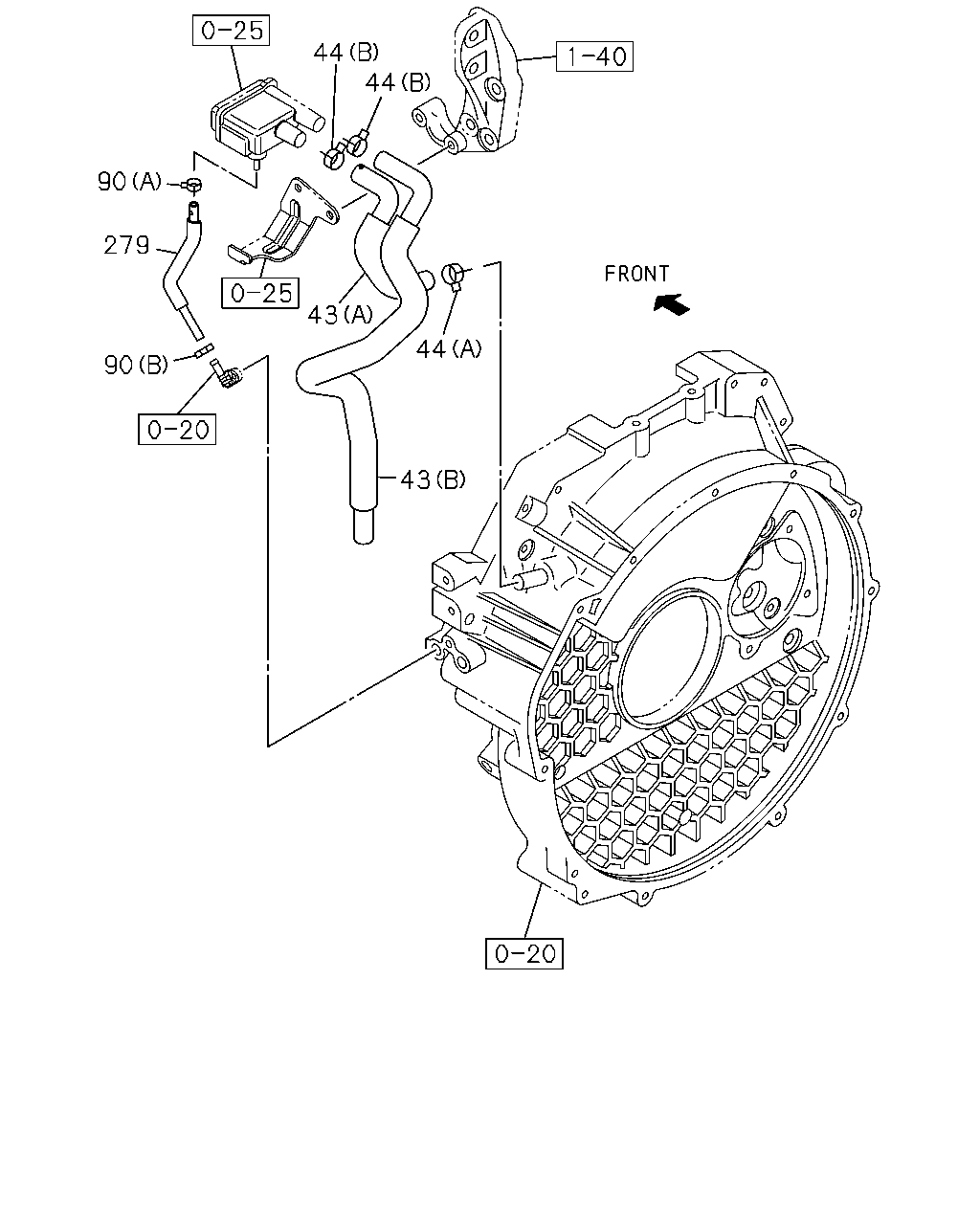

[028A] EURO2 SPECIFICATION (9 parça)

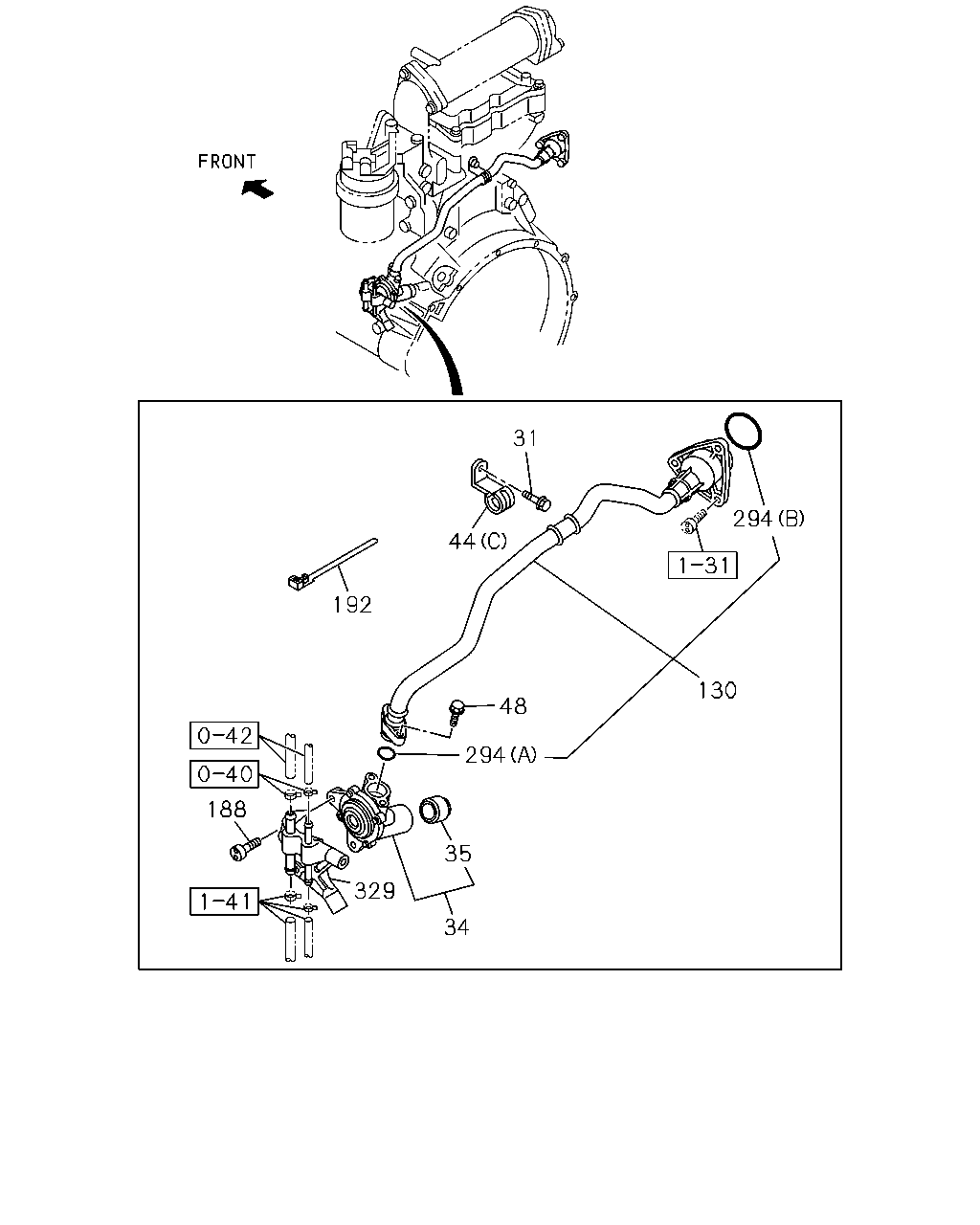

[028A] EURO4 SPECIFICATION (16 parça)
▶
44
44
90
279
43
44
90
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
43
03.278 HOSE; PCV
EURO2 SPECIFICATION(NT2) (A)
8-98075-187-2
01
1
0803-
●
43
03.278 HOSE; PCV
EURO2 SPECIFICATION(NT2) (B)
8-98089-567-2
01
1
0803-
●
44
03.278 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) 06.672 (A) ID=21
8-94242-034-0
01
1
0803-
●
44
03.278 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) 01.252 (B) ID=22.7
8-94466-382-0
02
1
0803-
●
44
03.278 CLIP; HOSE,PCV
EURO4 SPECIFICATION(NT4) 02.483 (C) ID=20 H=23 L=27
1-09700-861-0
01
1
0803-
●
●
90
03.358 CLIP; RUBBER HOSE
EURO2 SPECIFICATION(NT2) 03.163 (A) ID=11
8-94238-570-0
01
1
0803-
●
90
03.358 CLIP; RUBBER HOSE
EURO2 SPECIFICATION(NT2) 01.097 (B) ID=11
8-94238-925-0
02
1
0803-1007
●
90
03.358 CLIP; RUBBER HOSE
EURO2 SPECIFICATION(NT2) 03.162 (B) ID=11.5
8-97138-011-0
02
1
1008-
●
279
03.278 HOSE; RUBBER,OIL DRAIN
EURO2 SPECIFICATION(NT2)
8-98075-190-1
01
1
0803-
●
31
294
44
192
130
48
294
188
35
329
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
31
03.417 BOLT; HOSE CLIP
EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE
0-28050-812-0
01
1
0803-
●
●
34
03.415 VENTILATOR
EURO4 SPECIFICATION(NT4)
8-98036-808-1
01
1
0803-1310
●
●
34
03.415 VENTILATOR
EURO4 SPECIFICATION(NT4)
8-98245-392-0
01
1
1311-
●
●
35
03.415 GASKET; VENTILATOR
EURO4 SPECIFICATION(NT4)
8-98038-692-0
01
1
0803-
●
●
44
03.278 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) 06.672 (A) ID=21
8-94242-034-0
01
1
0803-
●
44
03.278 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) 01.252 (B) ID=22.7
8-94466-382-0
02
1
0803-
●
44
03.278 CLIP; HOSE,PCV
EURO4 SPECIFICATION(NT4) 02.483 (C) ID=20 H=23 L=27
1-09700-861-0
01
1
0803-
●
●
48
03.278 BOLT; PIPE
EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE
0-28050-620-0
02
1
0803-
●
●
130
03.278 PIPE; PCV
EURO4 SPECIFICATION(NT4)
8-98036-533-1
01
1
0803-
●
●
188
01.780 BOLT; BRKT
00.206 M8X30 FLANGE
0-28050-830-0
02
1
0803-
●
●
188
01.780 BOLT; BRKT
EURO4 SPECIFICATION(NT4) 00.206 M8X30 FLANGE
0-28050-830-0
02
1
0803-
●
●
192
03.280 CLIP; BAND
EURO4 SPECIFICATION(NT4) 03.162 L=140
5-09707-031-1
01
1
0803-
●
●
294
03.278 GASKET; PCV
EURO4 SPECIFICATION(NT4) 01.550 (A) ID=17.8
1-09623-588-0
01
1
0803-
●
●
294
03.278 GASKET; PCV
EURO4 SPECIFICATION(NT4) 01.097 (B) ID=43.7
9-09561-344-0
01
1
0803-
●
●
329
01.750 BRACKET; VENTILATOR
8-98036-160-0
01
1
0803-1009
●
●
329
01.750 BRACKET; VENTILATOR
8-98171-059-0
01
1
1010-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
