◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#33771) — 62 parça

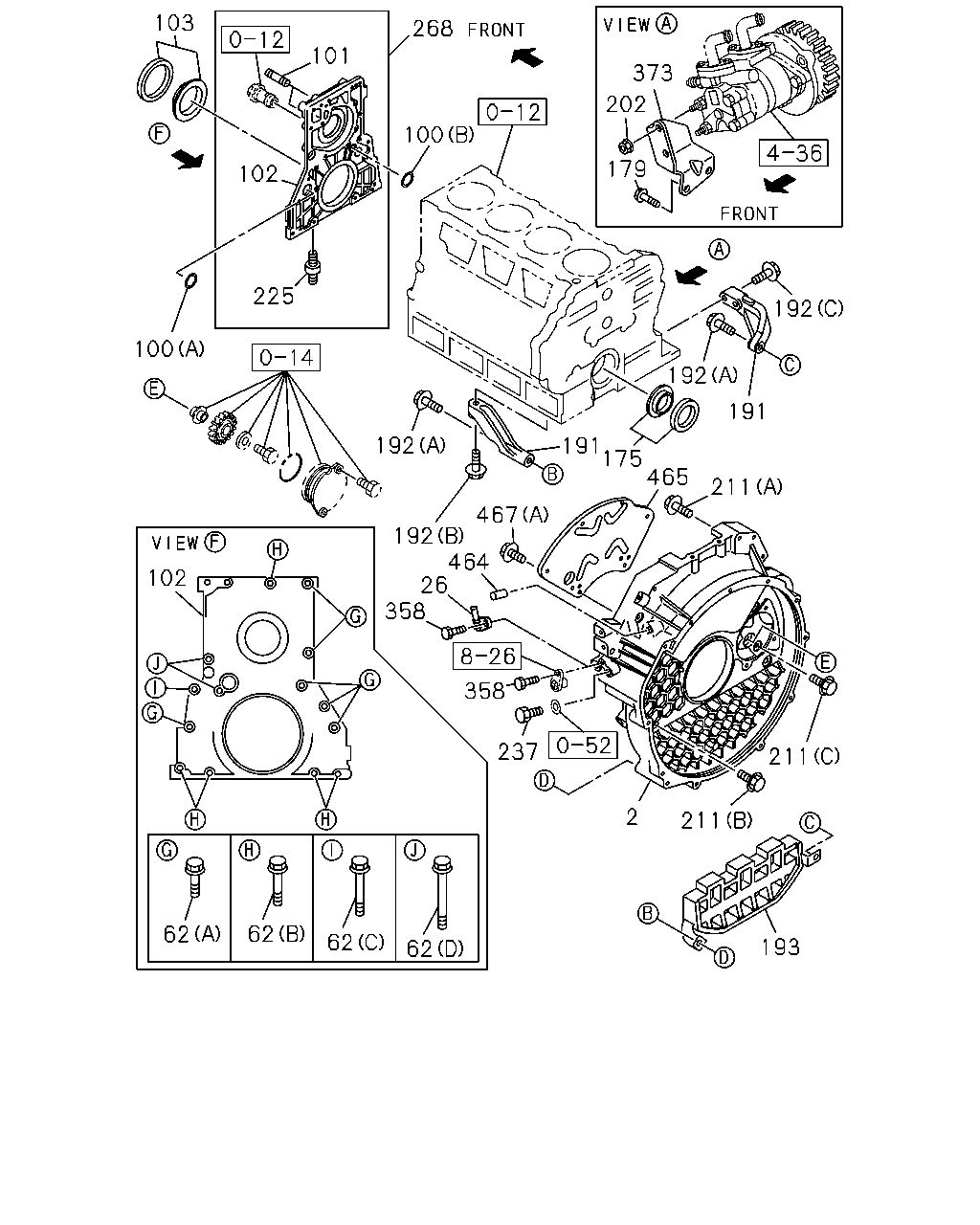

çizim 120764
103 101 102 100 225 102 100 268 373 202 179 192 191 192 211 465 175 191 467 192 192 464 26 358 358 237 211 211 2 62 62 62 62 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.683 HOUSING; FLYWHEEL 8-97364-901-5 01 1 0803- ● ●
26 03.306 ADAPTER
EURO2 SPECIFICATION(NT2) 		8-97354-819-0 01 1 0803- ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 0803- ● ●
62 00.206 BOLT; COVER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 0803- ● ●
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 0803- ● ●
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 0803- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0803- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0803- ● ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2) 01.428 M8X18 L=30 		0-41010-818-0 02 1 1201- ●
101 01.073 STUD; WATER PUMP
EURO2 SPECIFICATION(NT2) 00.206 M8X18 L=29 		8-97028-541-0 02 1 1201- ●
101 01.073 STUD; WATER PUMP
01.428 M8X18 L=30 		0-41010-818-0 01 1 0803-1112 ● ●
101 01.073 STUD; WATER PUMP
EURO4 SPECIFICATION(NT4) 01.428 M8X18 L=30 		0-41010-818-0 01 1 1201- ● ●
101 01.073 STUD; WATER PUMP
00.206 M8X18 L=29 		8-97028-541-0 01 1 0803-1112 ● ●
101 01.073 STUD; WATER PUMP
EURO4 SPECIFICATION(NT4) 00.206 M8X18 L=29 		8-97028-541-0 01 1 1201- ● ●
102 00.137 RETAINER; FRT
EURO2 SPECIFICATION(NT2) 		8-98039-932-2 02 1 1201- ●
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 0803-1112 ● ●
102 00.137 RETAINER; FRT
EURO4 SPECIFICATION(NT4) 		8-98039-932-2 01 1 1201- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97329-780-0 01 1 0803- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0803- ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.417 M10X20 FLANGE 		0-28151-020-0 02 1 0803- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0803- ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0803- ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 0803- ● ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 0803- ● ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 0803- ● ●
193 01.428 SPACER; STAY TO OIL,PAN 8-97259-536-0 01 1 0803-1010 ● ●
193 01.428 SPACER; STAY TO OIL,PAN
EURO4 SPECIFICATION(NT4) 		8-97259-536-0 01 1 1011- ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
211 00.669 BOLT; HSG
00.029 (A) M10X40 FLANGE 		0-28751-040-0 01 1 0803- ● ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0803-1102 ● ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ● ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 02 1 0803- ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0803-1012 ● ●
225 01.428 STUD; OIL PAN
EURO4 SPECIFICATION(NT4) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1101- ● ●
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 0803- ● ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2) 		8-97148-937-2 01 1 1101-1107 ●
268 00.206 COVER; FRT
EURO2 SPECIFICATION(NT2) 		8-97148-937-3 02 1 1108- ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 0803-1012 ● ●
268 00.206 COVER; FRT
EURO4 SPECIFICATION(NT4) 		8-98039-931-1 01 1 1101-1107 ● ●
268 00.206 COVER; FRT
EURO4 SPECIFICATION(NT4) 		8-98039-931-1 02 1 1108-1112 ● ●
268 00.206 COVER; FRT
EURO4 SPECIFICATION(NT4) 		8-98039-931-2 01 1 1201- ● ●
358 00.206 BOLT; ADAPTER
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0803- ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97149-333-0 01 1 0803- ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0803- ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0803- ● ●
467 00.686 BOLT; PLATE
05.815 (A) M6X10 		0-20800-610-0 06 1 0803-0805 ● ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 0806- ● ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 0803- ● ●

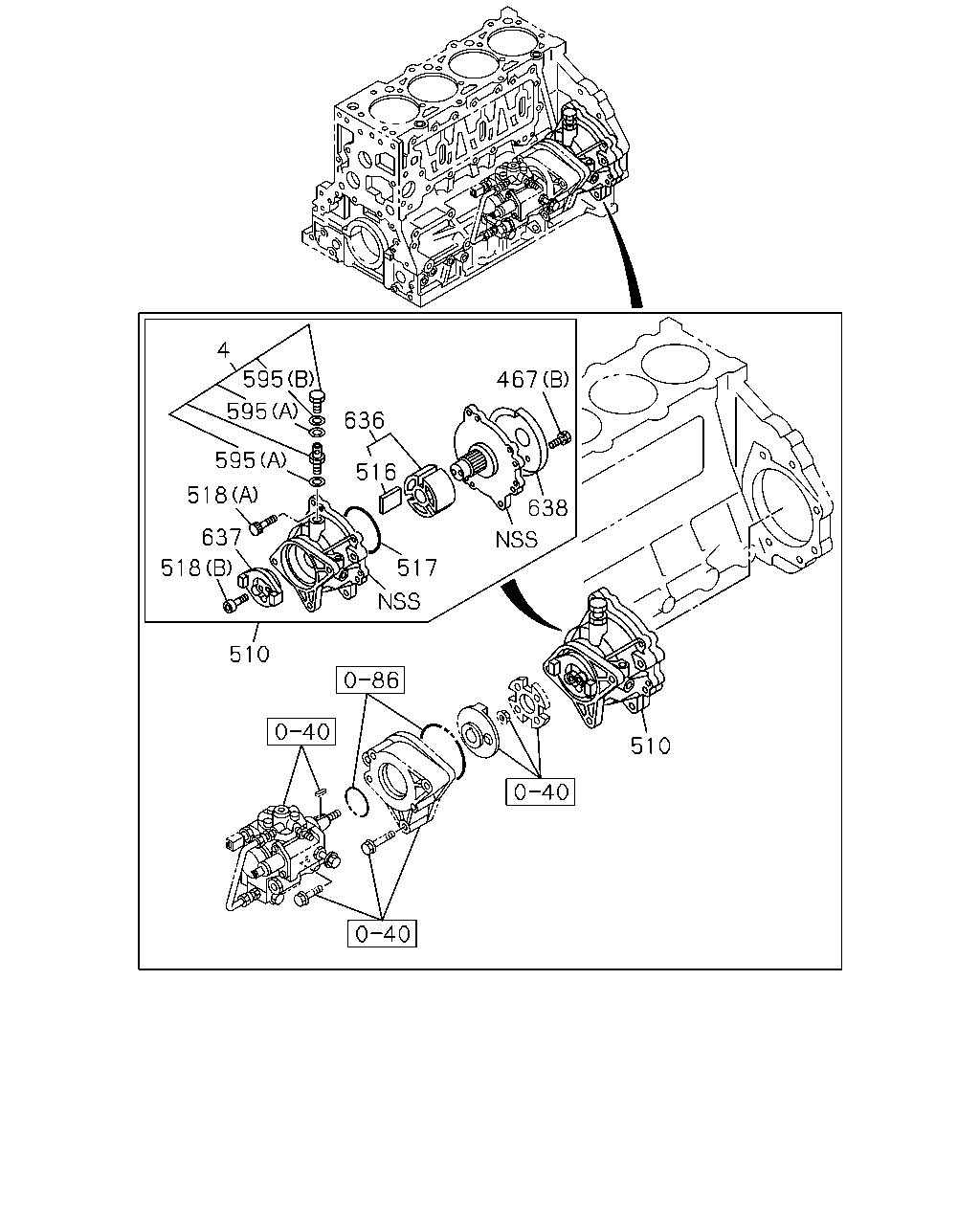

çizim 120770
4 636 595 595 595 518 518 510 517 516 638 467 510 637
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 0803- ● ●
467 00.686 BOLT; PLATE
05.815 (A) M6X10 		0-20800-610-0 06 1 0803-0805 ● ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 0806- ● ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 0803- ● ●
510 04.895 PUMP ASM; VACUUM
03.306 		8-97388-589-6 01 1 0803- ● ●
516 04.895 VANE; VAC PUMP 8-98051-279-0 03 1 0803- ● ●
517 04.895 GASKET; VAC PUMP 8-98051-280-0 01 1 0803- ● ●
518 04.895 BOLT; VAC PUMP
01.531 (A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 0803- ● ●
518 04.895 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 0803- ● ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 0803- ● ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 0803- ● ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 0803- ● ●
637 00.206 COUPLING; VAC PUMP 8-98051-278-0 01 1 0803- ● ●
638 00.206 PLATE KIT; VAC PUMP 8-98051-276-0 01 1 0803- ● ●
