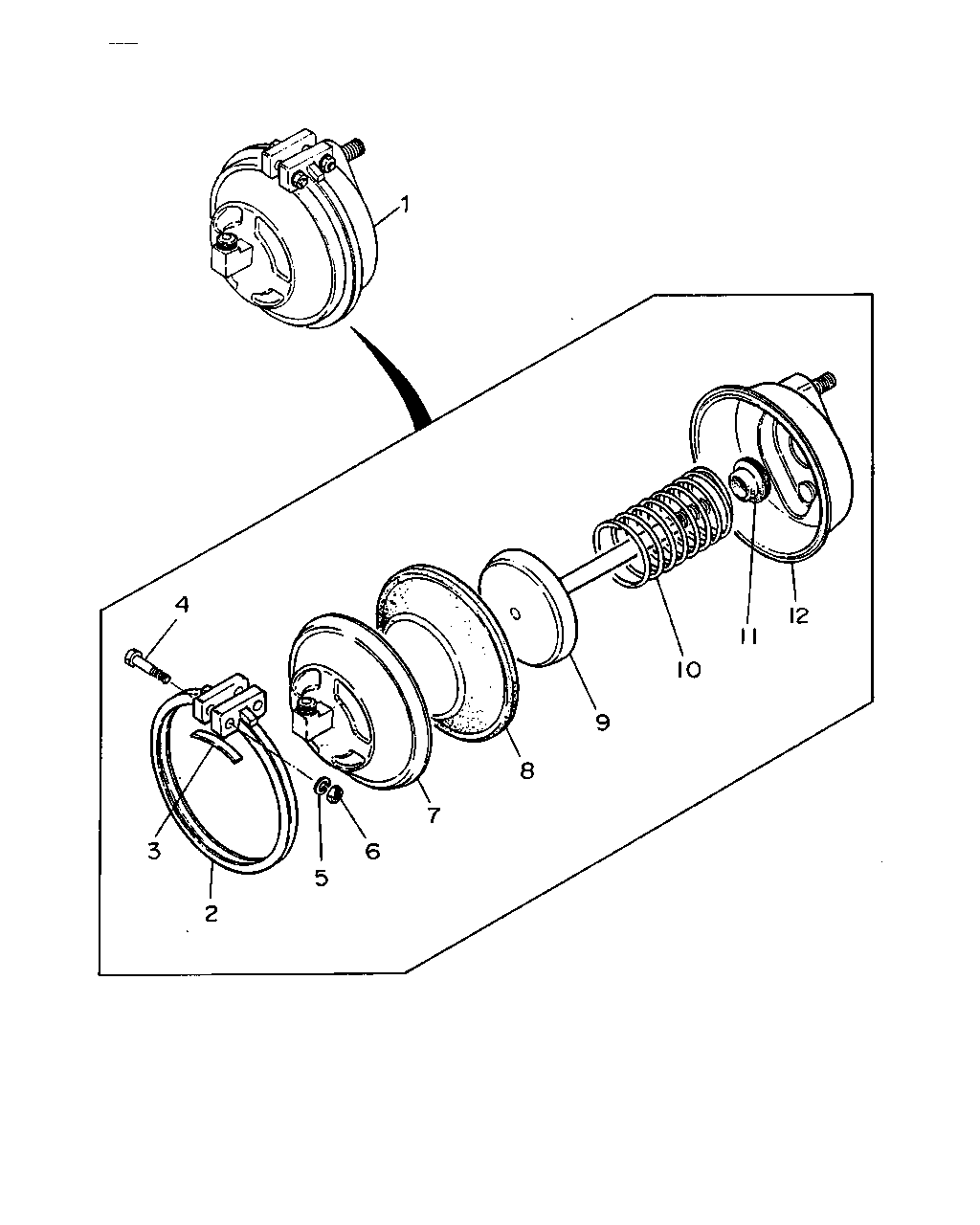

3-40 — FRONT BRAKE POWER CHAMBER (#3377) — 13 parça

1 4 3 2 5 7 6 8 9 10 11 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-062-1	02	1	9002-	●	●
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-001-0	02	1	9002-	●	●
3	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-016-0	02	1	9002-9306	●	●
3	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-48259-016-0	02	1	9307-	●	●
4	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-002-0	04	1	9002-	●	●
5	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	9-09150-510-0	04	1	9002-	●	●
6	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-010-0	04	1	9002-	●	●
7	COVER ASM; UPR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-002-0	02	1	9002-	●	●
8	DIAPHRAGM; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-006-0	02	1	9002-	●	●
9	PISTON; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-001-0	02	1	9002-	●	●
10	SPRING; PISTON,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-001-0	02	1	9002-	●	●
11	SEAL; PISTON,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-025-0	02	1	9002-	●	●
12	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-019-0	02	1	9002-	●	●
