3-34 — BRAKE VALVE; AIR (#3376) — 172 parça

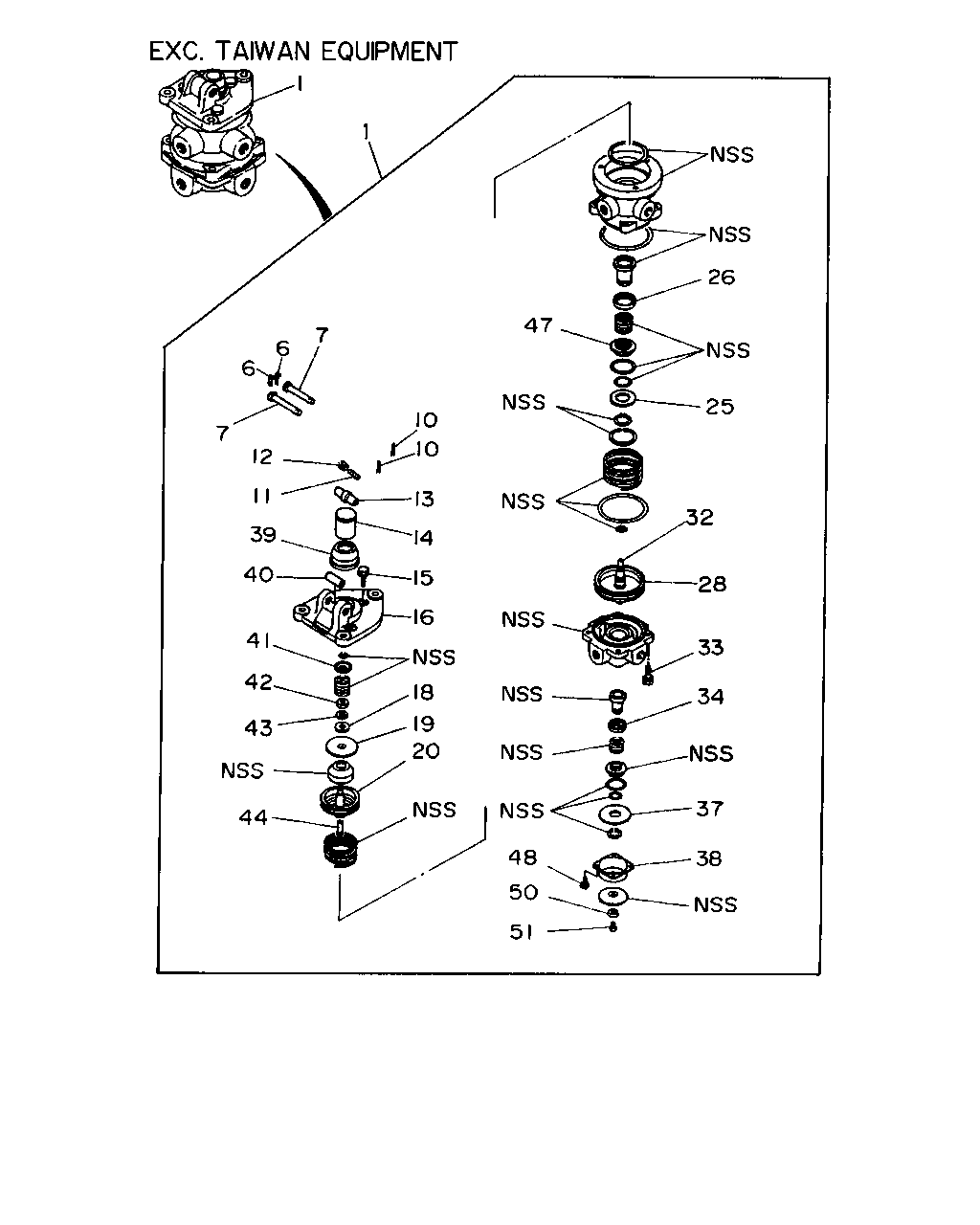

1 1 7 6 6 7 11 12 39 40 41 42 43 44 20 19 18 16 14 13 15 10 10 47 48 50 51 38 37 34 33 28 32 25 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-675-1	01	1	9002-9409	●	●	●
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-733-1	01	1	9410-	●	●	●
1	VALVE; BRK EXC. TAIWAN EQUIPMENT(WW5)	1-48100-604-1	01	1	9002-	●	●	●
6	PIN; PEDAL,SIDE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-103-0	01	1	9002-	●	●	●
6	PIN; PEDAL,SIDE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-083-0	02	1	9002-	●	●	●
7	PIN; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-244-0	02	1	9002-	●	●	●
7	PIN; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-082-0	02	1	9002-	●	●	●
10	PIN; SPLIT,BRK VLV TAIWAN EQUIPMENT(WW5) OD=2.8 L=18	9-08113-018-0	02	1	9002-	●	●	●
10	PIN; SPLIT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-087-0	02	1	9002-	●	●	●
11	SCREW; SET,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-245-0	01	1	9002-	●	●	●
11	SCREW; SET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-088-0	01	1	9002-	●	●	●
12	NUT; SCREW,PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	9-88510-123-0	01	1	9002-	●	●	●
12	NUT; SCREW,PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-089-0	01	1	9002-	●	●	●
13	ROLLER; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-243-0	01	1	9002-	●	●	●
13	ROLLER; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-257-0	01	1	9002-	●	●	●
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-306-0	01	1	9002-9409	●	●	●
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-345-0	01	1	9410-	●	●	●
14	PLUNGER; BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-220-0	01	1	9002-	●	●	●
15	BOLT; PLATE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48219-039-0	03	1	9002-	●	●	●
15	BOLT; PLATE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-232-0	03	1	9002-	●	●	●
16	PLATE; MTG,BRKT VLV TAIWAN EQUIPMENT(WW5)	1-48119-268-0	01	1	9002-	●	●	●
16	PLATE; MTG,BRKT VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-261-2	01	1	9002-	●	●	●
18	WASHER; LK,SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-155-0	01	1	9002-9306	●	●	●
18	WASHER; LK,SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-156-0	01	1	9307-	●	●	●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-058-0	01	1	9002-9409	●	●	●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-041-0	01	1	9410-	●	●	●
19	SEAT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-172-0	01	1	9002-	●	●	●
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-295-0	01	1	9002-9409	●	●	●
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-336-0	01	1	9410-	●	●	●
20	PISTON; UPR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-251-0	01	1	9002-	●	●	●
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-287-0	01	1	9002-9409	●	●	●
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-138-0	01	1	9410-	●	●	●
25	WASHER; PISTON,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-149-0	01	1	9002-	●	●	●
26	RETAINER; VLV,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48122-003-0	01	1	9002-	●	●	●
28	PISTON; LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-140-0	01	1	9002-	●	●	●
28	PISTON; LWR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-249-0	01	1	9002-	●	●	●
32	SCREW; BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48121-034-0	01	1	9002-	●	●	●
33	BOLT; BODY,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-213-0	04	1	9002-	●	●	●
33	BOLT; BODY,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-068-0	04	1	9002-	●	●	●
34	RETAINER; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-144-0	01	1	9002-	●	●	●
34	RETAINER; VLV,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48122-010-0	01	1	9002-	●	●	●
37	WASHER; VLV LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-080-0	01	1	9002-	●	●	●
37	WASHER; VLV LWR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-163-0	01	1	9002-	●	●	●
38	COVER; EXH,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-217-0	01	1	9002-	●	●	●
39	BOOT; PLUNGER,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-079-0	01	1	9002-	●	●	●
40	PIPE; PLATE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-086-0	01	1	9002-	●	●	●
41	PLATE; STEM,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-159-0	01	1	9002-	●	●	●
42	NUT; SPR SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-157-0	01	1	9002-	●	●	●
43	WASHER; SPR SEAT,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48419-002-0	01	1	9002-9409	●	●	●
43	WASHER; SPR SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-156-0	01	1	9002-9306	●	●	●
43	WASHER; SPR SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-170-0	01	1	9307-	●	●	●
44	SLEEVE; PISTON,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-154-0	01	1	9002-	●	●	●
47	RETAINER; GASKET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-147-0	01	1	9002-	●	●	●
48	BOLT; COVER,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-216-0	01	1	9002-	●	●	●
50	WASHER; RET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-112-0	01	1	9002-	●	●	●
51	SCREW; FORMING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-111-0	01	1	9002-	●	●	●

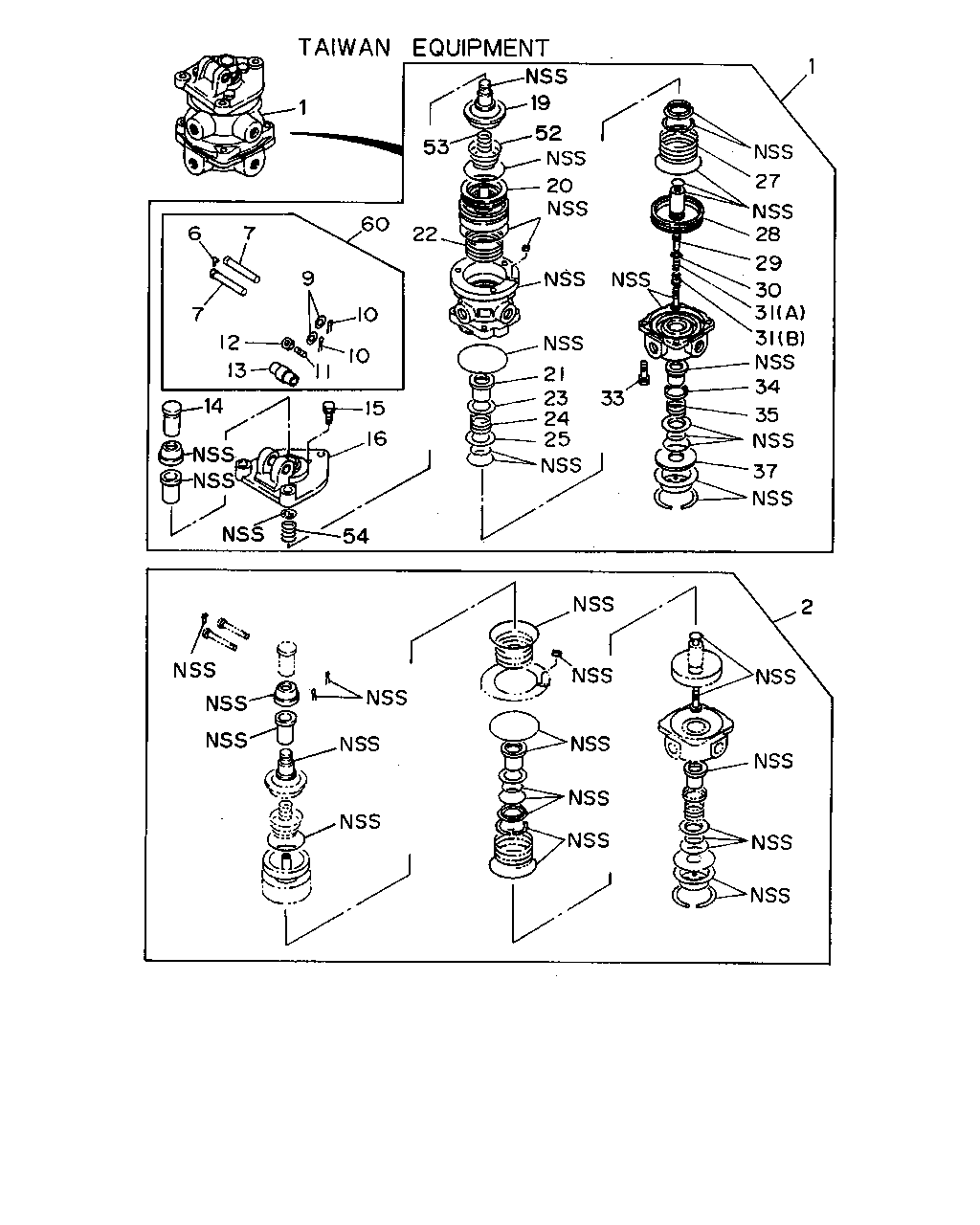

1 1 19 52 53 20 22 60 7 6 7 9 10 11 12 14 13 15 54 16 21 23 33 24 25 37 35 34 31 31 30 29 28 27 2 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-675-1	01	1	9002-9409	●	●	●
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-733-1	01	1	9410-	●	●	●
1	VALVE; BRK EXC. TAIWAN EQUIPMENT(WW5)	1-48100-604-1	01	1	9002-	●	●	●
2	REPAIR KIT; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-054-0	01	1	9002-9409	●	●	●
2	REPAIR KIT; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-147-0	01	1	9410-	●	●	●
6	PIN; PEDAL,SIDE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-103-0	01	1	9002-	●	●	●
6	PIN; PEDAL,SIDE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-083-0	02	1	9002-	●	●	●
7	PIN; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-244-0	02	1	9002-	●	●	●
7	PIN; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-082-0	02	1	9002-	●	●	●
9	WASHER; PIN,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-106-0	02	1	9002-	●	●	●
10	PIN; SPLIT,BRK VLV TAIWAN EQUIPMENT(WW5) OD=2.8 L=18	9-08113-018-0	02	1	9002-	●	●	●
10	PIN; SPLIT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-087-0	02	1	9002-	●	●	●
11	SCREW; SET,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-245-0	01	1	9002-	●	●	●
11	SCREW; SET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-088-0	01	1	9002-	●	●	●
12	NUT; SCREW,PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	9-88510-123-0	01	1	9002-	●	●	●
12	NUT; SCREW,PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-089-0	01	1	9002-	●	●	●
13	ROLLER; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-243-0	01	1	9002-	●	●	●
13	ROLLER; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-257-0	01	1	9002-	●	●	●
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-306-0	01	1	9002-9409	●	●	●
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-345-0	01	1	9410-	●	●	●
14	PLUNGER; BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-220-0	01	1	9002-	●	●	●
15	BOLT; PLATE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48219-039-0	03	1	9002-	●	●	●
15	BOLT; PLATE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-232-0	03	1	9002-	●	●	●
16	PLATE; MTG,BRKT VLV TAIWAN EQUIPMENT(WW5)	1-48119-268-0	01	1	9002-	●	●	●
16	PLATE; MTG,BRKT VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-261-2	01	1	9002-	●	●	●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-058-0	01	1	9002-9409	●	●	●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-041-0	01	1	9410-	●	●	●
19	SEAT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-172-0	01	1	9002-	●	●	●
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-295-0	01	1	9002-9409	●	●	●
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-336-0	01	1	9410-	●	●	●
20	PISTON; UPR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-251-0	01	1	9002-	●	●	●
21	BUSHING; UPR BODY TAIWAN EQUIPMENT(WW5)	1-48119-293-0	01	1	9002-	●	●	●
22	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48143-009-0	01	1	9002-	●	●	●
23	WASHER; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-145-0	01	1	9002-	●	●	●
24	SPRING; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-018-0	01	1	9002-	●	●	●
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-287-0	01	1	9002-9409	●	●	●
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-138-0	01	1	9410-	●	●	●
25	WASHER; PISTON,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-149-0	01	1	9002-	●	●	●
27	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-020-0	01	1	9002-9409	●	●	●
27	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-055-0	01	1	9410-	●	●	●
28	PISTON; LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-140-0	01	1	9002-	●	●	●
28	PISTON; LWR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-249-0	01	1	9002-	●	●	●
29	SLEEVE; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-083-1	01	1	9002-	●	●	●
30	WASHER; SLEEVE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-082-0	01	1	9002-	●	●	●
31	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (A)	1-48123-032-0	01	1	9002-	●	●	●
31	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (B)	1-48123-033-0	01	1	9002-	●	●	●
33	BOLT; BODY,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-213-0	04	1	9002-	●	●	●
33	BOLT; BODY,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-068-0	04	1	9002-	●	●	●
34	RETAINER; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-144-0	01	1	9002-	●	●	●
34	RETAINER; VLV,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48122-010-0	01	1	9002-	●	●	●
35	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-019-0	01	1	9002-	●	●	●
37	WASHER; VLV LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-080-0	01	1	9002-	●	●	●
37	WASHER; VLV LWR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-163-0	01	1	9002-	●	●	●
52	SPRING; PISTON,OUTER,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-040-0	01	1	9410-	●	●	●
53	SPRING; PISTON,INNER,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-068-0	01	1	9410-	●	●	●
54	SPRING; PISTON,UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-067-0	01	1	9410-	●	●	●
60	ROLLER & PIN SET; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-122-1	01	1	9002-	●	●	●

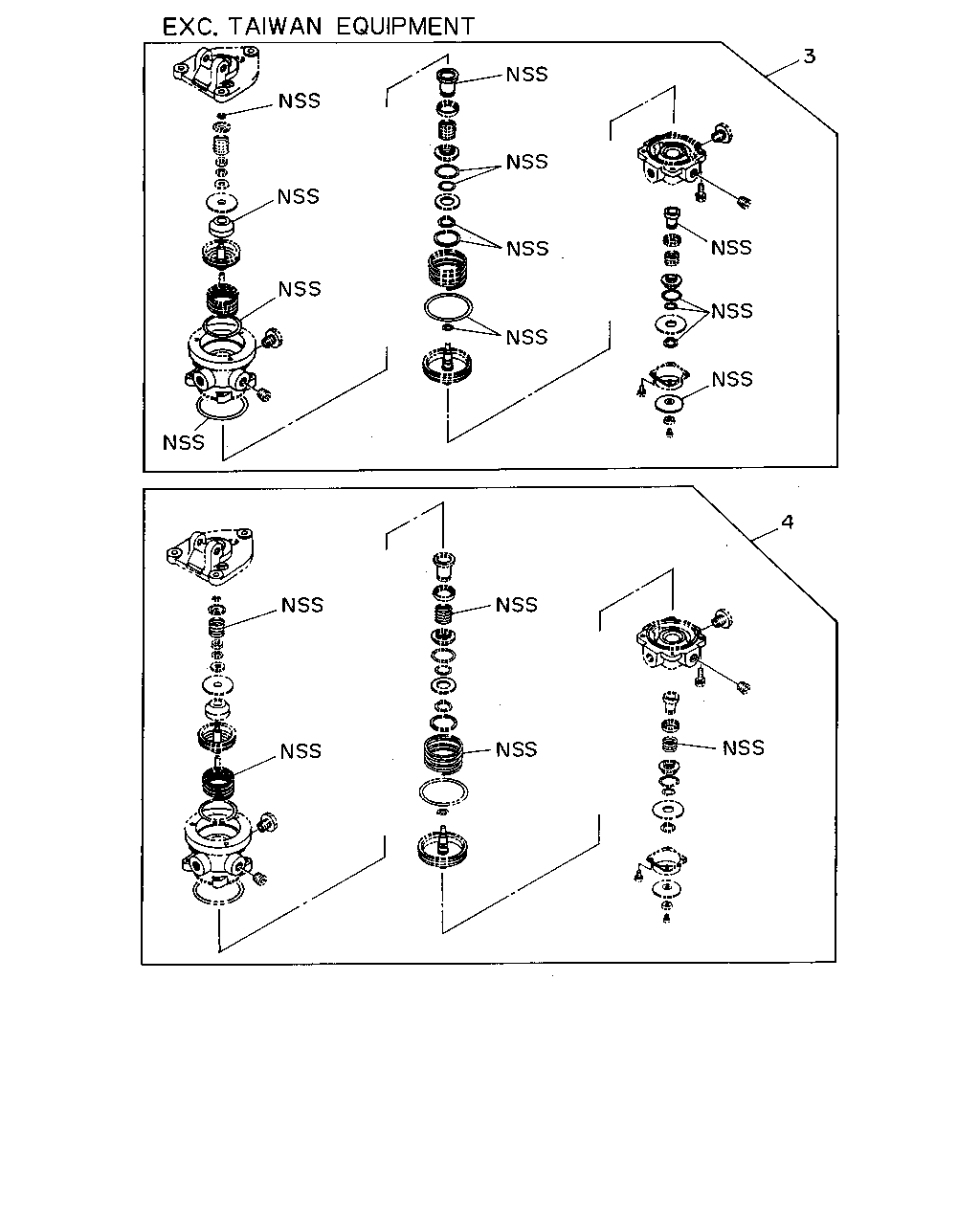

3 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	3	REPAIR KIT; RUBBER,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-87830-373-0	01	1	9002-	●	●	●
	4	REPAIR KIT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-87830-374-0	01	1	9002-	●	●	●

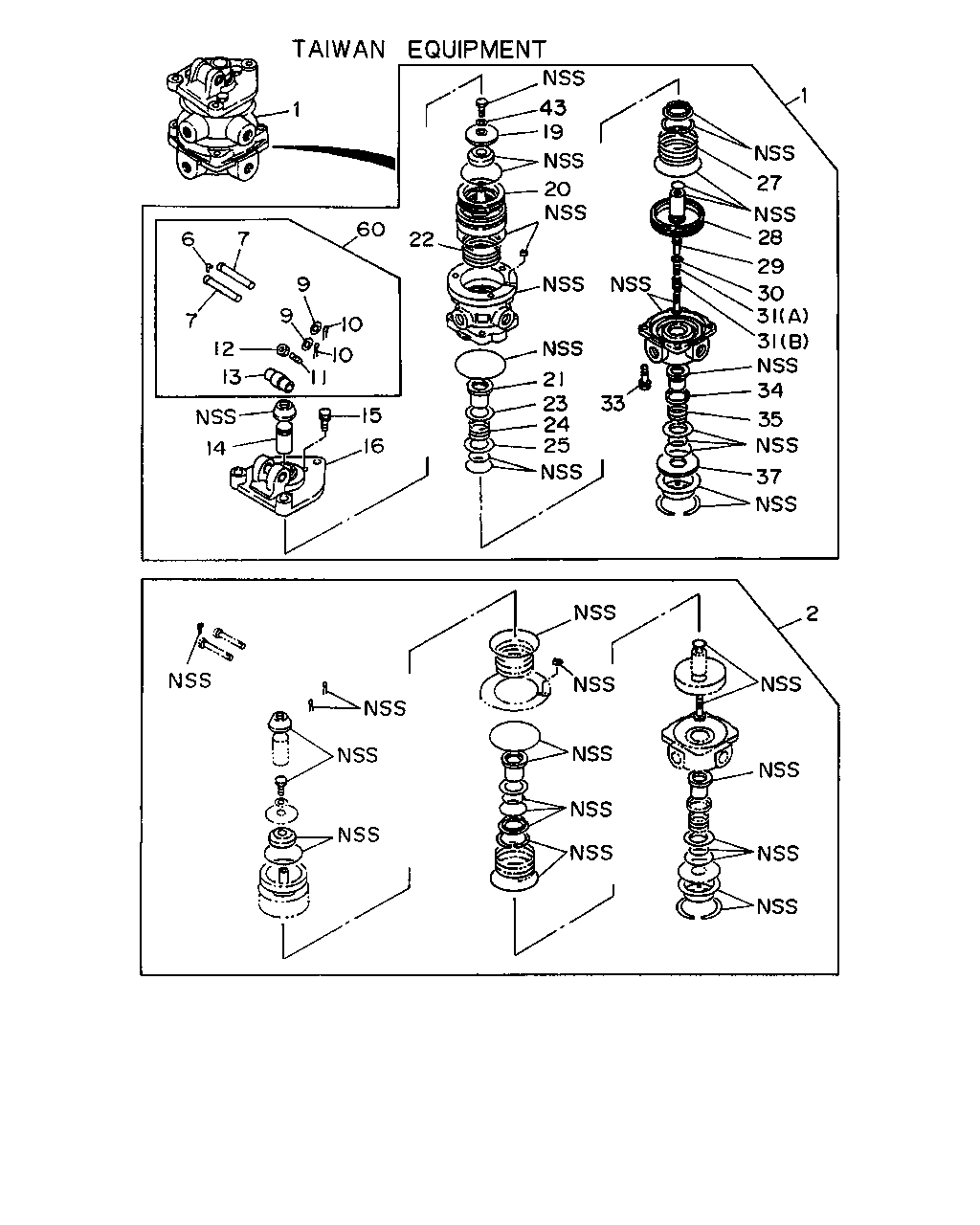

1 6 7 60 9 9 7 13 12 10 10 11 14 15 16 25 24 23 21 33 22 20 19 43 1 27 28 29 30 34 31 31 35 37 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-675-1	01	1	9002-9409	●	●	●
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-733-1	01	1	9410-	●	●	●
1	VALVE; BRK EXC. TAIWAN EQUIPMENT(WW5)	1-48100-604-1	01	1	9002-	●	●	●
2	REPAIR KIT; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-054-0	01	1	9002-9409	●	●	●
2	REPAIR KIT; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-147-0	01	1	9410-	●	●	●
6	PIN; PEDAL,SIDE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-103-0	01	1	9002-	●	●	●
6	PIN; PEDAL,SIDE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-083-0	02	1	9002-	●	●	●
7	PIN; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-244-0	02	1	9002-	●	●	●
7	PIN; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-082-0	02	1	9002-	●	●	●
9	WASHER; PIN,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-106-0	02	1	9002-	●	●	●
10	PIN; SPLIT,BRK VLV TAIWAN EQUIPMENT(WW5) OD=2.8 L=18	9-08113-018-0	02	1	9002-	●	●	●
10	PIN; SPLIT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-087-0	02	1	9002-	●	●	●
11	SCREW; SET,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-245-0	01	1	9002-	●	●	●
11	SCREW; SET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-088-0	01	1	9002-	●	●	●
12	NUT; SCREW,PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	9-88510-123-0	01	1	9002-	●	●	●
12	NUT; SCREW,PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-089-0	01	1	9002-	●	●	●
13	ROLLER; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-243-0	01	1	9002-	●	●	●
13	ROLLER; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-257-0	01	1	9002-	●	●	●
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-306-0	01	1	9002-9409	●	●	●
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-345-0	01	1	9410-	●	●	●
14	PLUNGER; BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-220-0	01	1	9002-	●	●	●
15	BOLT; PLATE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48219-039-0	03	1	9002-	●	●	●
15	BOLT; PLATE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-232-0	03	1	9002-	●	●	●
16	PLATE; MTG,BRKT VLV TAIWAN EQUIPMENT(WW5)	1-48119-268-0	01	1	9002-	●	●	●
16	PLATE; MTG,BRKT VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-261-2	01	1	9002-	●	●	●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-058-0	01	1	9002-9409	●	●	●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-041-0	01	1	9410-	●	●	●
19	SEAT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-172-0	01	1	9002-	●	●	●
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-295-0	01	1	9002-9409	●	●	●
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-336-0	01	1	9410-	●	●	●
20	PISTON; UPR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-251-0	01	1	9002-	●	●	●
21	BUSHING; UPR BODY TAIWAN EQUIPMENT(WW5)	1-48119-293-0	01	1	9002-	●	●	●
22	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48143-009-0	01	1	9002-	●	●	●
23	WASHER; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-145-0	01	1	9002-	●	●	●
24	SPRING; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-018-0	01	1	9002-	●	●	●
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-287-0	01	1	9002-9409	●	●	●
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-138-0	01	1	9410-	●	●	●
25	WASHER; PISTON,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-149-0	01	1	9002-	●	●	●
27	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-020-0	01	1	9002-9409	●	●	●
27	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-055-0	01	1	9410-	●	●	●
28	PISTON; LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-140-0	01	1	9002-	●	●	●
28	PISTON; LWR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-249-0	01	1	9002-	●	●	●
29	SLEEVE; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-083-1	01	1	9002-	●	●	●
30	WASHER; SLEEVE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-082-0	01	1	9002-	●	●	●
31	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (A)	1-48123-032-0	01	1	9002-	●	●	●
31	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (B)	1-48123-033-0	01	1	9002-	●	●	●
33	BOLT; BODY,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-213-0	04	1	9002-	●	●	●
33	BOLT; BODY,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-068-0	04	1	9002-	●	●	●
34	RETAINER; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-144-0	01	1	9002-	●	●	●
34	RETAINER; VLV,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48122-010-0	01	1	9002-	●	●	●
35	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-019-0	01	1	9002-	●	●	●
37	WASHER; VLV LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-080-0	01	1	9002-	●	●	●
37	WASHER; VLV LWR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-163-0	01	1	9002-	●	●	●
43	WASHER; SPR SEAT,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48419-002-0	01	1	9002-9409	●	●	●
43	WASHER; SPR SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-156-0	01	1	9002-9306	●	●	●
43	WASHER; SPR SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-170-0	01	1	9307-	●	●	●
60	ROLLER & PIN SET; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-122-1	01	1	9002-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
