Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#33752) — 368 parça

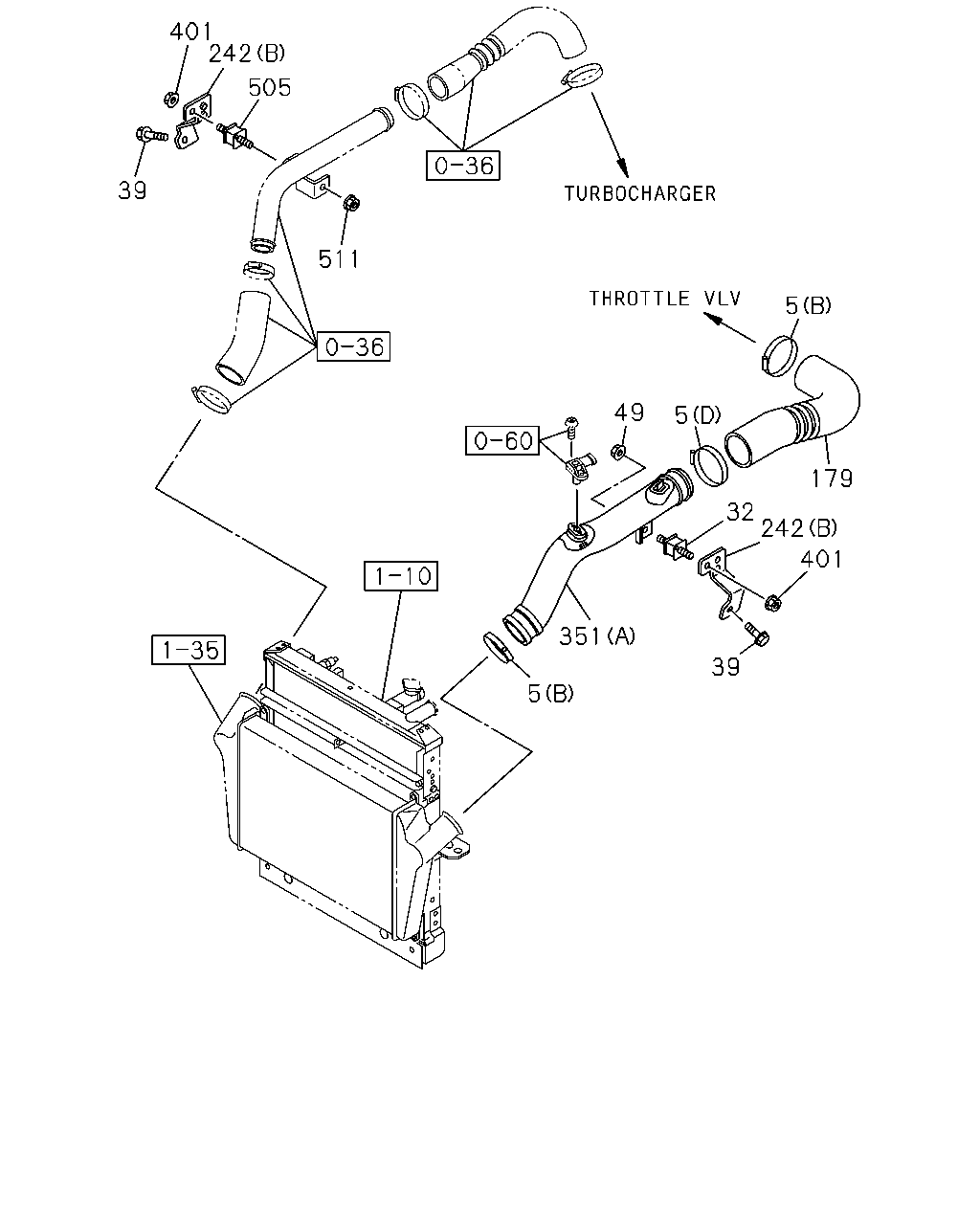

401 242 505 39 511 5 49 5 179 32 242 401 351 39 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0710-0710	●	●
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	0710-		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0710-0711	●	●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0710-0711		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	02	1	0712-0810	●	●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	0811-0812	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (D) ID=75-95	8-98133-357-0	02	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0710-0711	●	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0710-0711		●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	01	1	0712-0810	●	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	0811-0812	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (B) ID=65-85	8-98133-350-0	01	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0801-	●	●
5	03.407 CLIP; AIR DUCT 03.417 (A)	9-09915-504-1	01	1	0710-0802	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0803-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0712-0810		●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	02	1	0811-0812		●
5	03.407 CLIP; AIR DUCT (B) ID=77-99	1-09707-141-0	01	1	0901-		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0712-0810		●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	01	1	0811-0812		●
5	03.407 CLIP; AIR DUCT (D) ID=70-90	8-98122-372-0	02	1	0901-		●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (D) ID=77-99	1-09707-141-0	02	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	0901-1001		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1002-	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90	8-98122-372-0	01	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	0901-1001		●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	1002-	●	●
32	03.417 RUBBER; AIR DUCT MTG	8-98036-826-0	01	1	0710-1106	●	●
32	03.417 RUBBER; AIR DUCT MTG	8-97081-886-0	01	1	1107-	●	●
39	03.417 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
179	03.417 HOSE; AIR INT	8-98019-957-1	01	1	0710-0712	●	●
179	03.417 HOSE; AIR INT	8-98106-255-0	01	1	0801-0802	●	●
179	03.417 HOSE; AIR INT	8-98114-719-0	01	1	0803-	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	0710-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	0710-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98049-012-1	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-243-1	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-246-2	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	0710-		●
351	03.407 DUCT; AIR 03.417 (A)	8-98059-995-2	01	1	0710-	●	●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	0710-		●
351	03.407 DUCT; AIR (C)	8-98070-862-1	01	1	0710-1002		●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1003-		●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (D)	8-98021-485-1	01	1	1003-		●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
505	03.406 RUBBER; MTG 03.417	8-98036-826-0	01	1	0710-1106	●	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1107-	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●

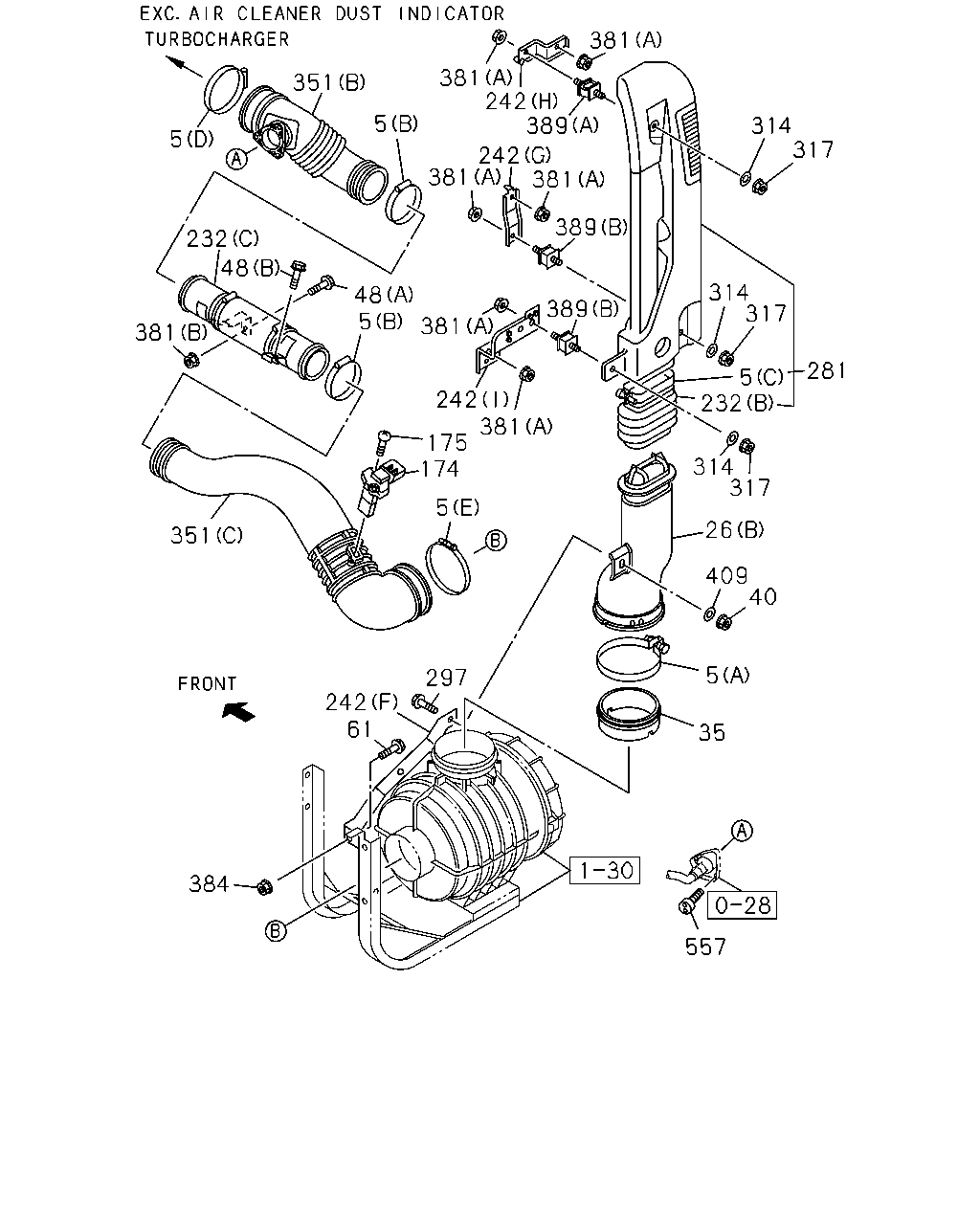

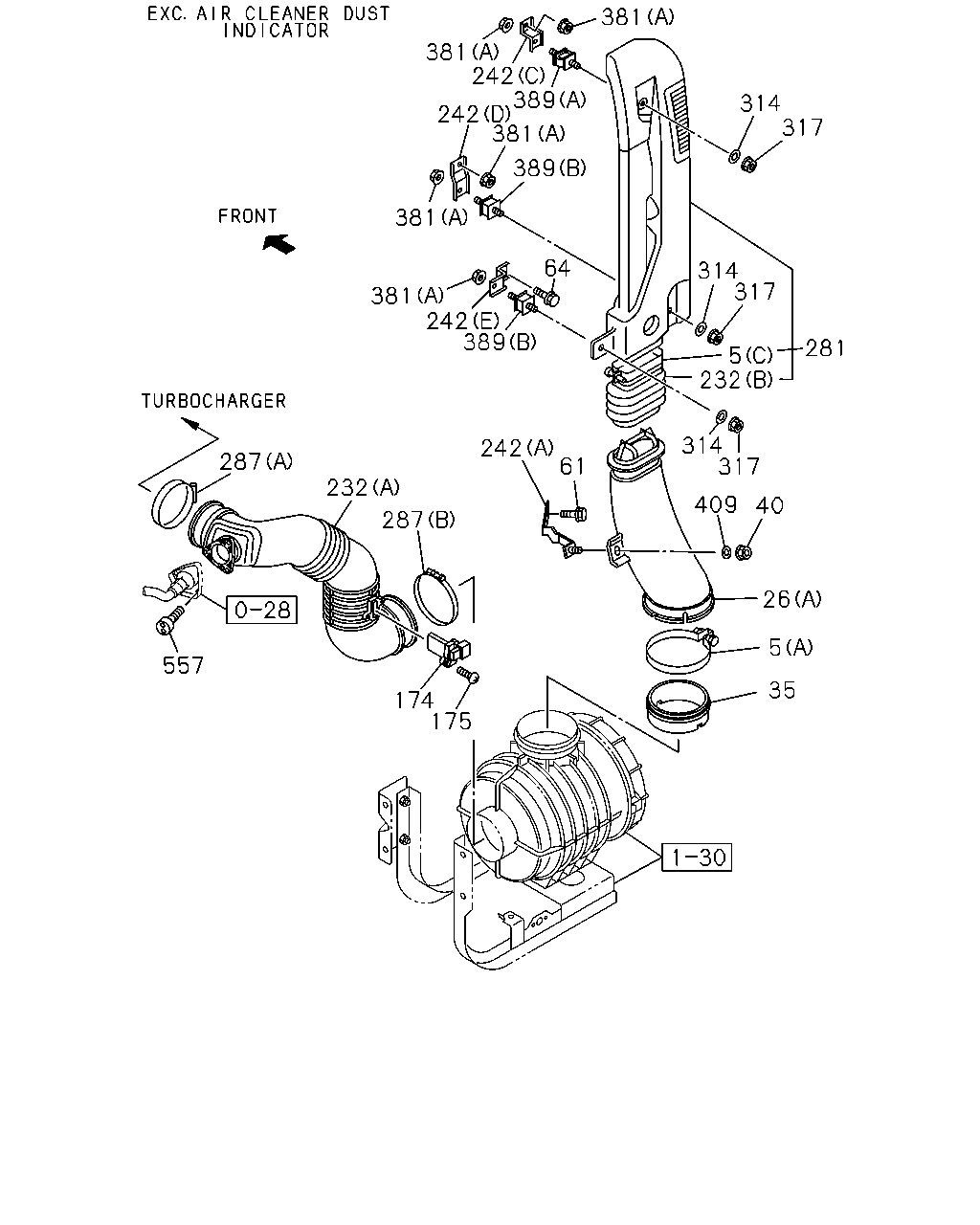

381 381 242 389 242 381 314 317 389 381 64 314 317 381 242 389 5 232 281 314 317 242 61 287 232 409 40 287 26 5 557 35 174 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0710-0710	●	●
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	0710-		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0710-0711	●	●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0710-0711		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	02	1	0712-0810	●	●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	0811-0812	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (D) ID=75-95	8-98133-357-0	02	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0710-0711	●	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0710-0711		●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	01	1	0712-0810	●	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	0811-0812	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (B) ID=65-85	8-98133-350-0	01	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0801-	●	●
5	03.407 CLIP; AIR DUCT 03.417 (A)	9-09915-504-1	01	1	0710-0802	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0803-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0712-0810		●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	02	1	0811-0812		●
5	03.407 CLIP; AIR DUCT (B) ID=77-99	1-09707-141-0	01	1	0901-		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0712-0810		●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	01	1	0811-0812		●
5	03.407 CLIP; AIR DUCT (D) ID=70-90	8-98122-372-0	02	1	0901-		●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (D) ID=77-99	1-09707-141-0	02	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	0901-1001		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1002-	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90	8-98122-372-0	01	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	0901-1001		●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	1002-	●	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	0710-	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	0710-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0710-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0710-		●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	0710-	●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0710-	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0710	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0804	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0804	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0805-	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0710-0710	●	●
232	03.417 HOSE; CONN (C)	8-98094-582-2	01	1	0710-		●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0801-	●	●
232	03.417 HOSE; CONN (A)	8-98059-989-2	01	1	0710-1002	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (A)	8-98059-989-2	01	1	1003-	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (D)	8-98000-233-3	01	1	1003-	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	0710-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	0710-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98049-012-1	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-243-1	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-246-2	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	0710-		●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-1	01	1	0710-	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-1	01	1	0710-		●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=112	9-09915-074-1	01	1	0710-	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=77-95	1-09707-198-0	01	1	0710-0810	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=75-95	8-98133-357-0	01	1	0811-0812	●
287	03.417 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> 03.407 (A) ID=75-95	8-98133-357-0	01	1	0901-1001	●
287	03.417 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> 03.407 (A) ID=77-99	1-09707-141-0	01	1	0901-1001	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=77-99	1-09707-141-0	01	1	1002-	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0710-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0710-	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	0710-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	0710-	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	0710-		●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0710-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0710-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0710-	●	●
557	03.403 BOLT; HOSE CLIP 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0710-0710	●	●
557	03.403 BOLT; HOSE CLIP 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0710-0810	●	●
557	03.403 BOLT; HOSE CLIP 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0811-	●

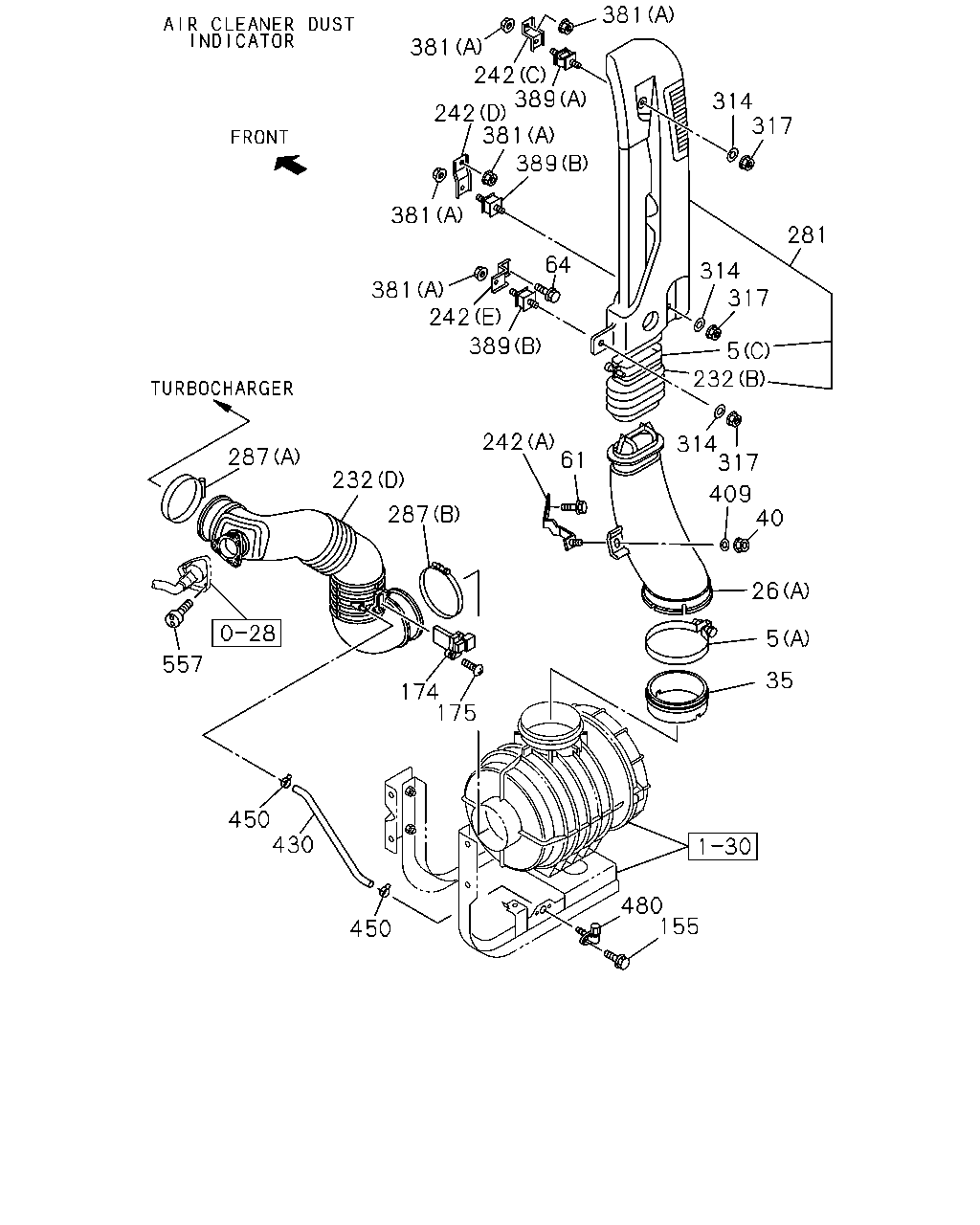

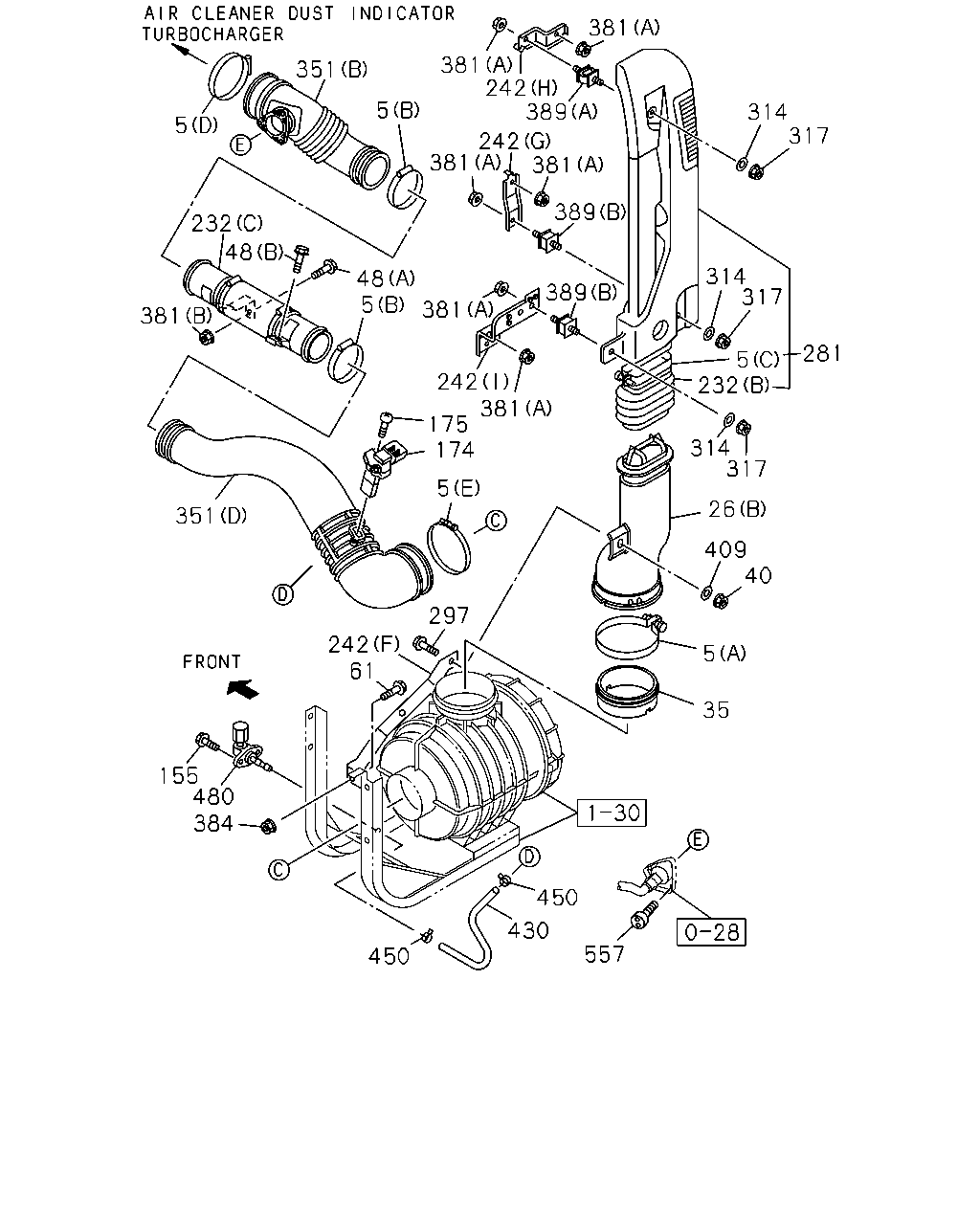

381 381 242 389 242 381 389 314 317 381 281 64 314 317 381 242 5 232 389 242 61 314 317 287 232 409 40 287 26 5 557 35 174 175 450 430 480 155 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0710-0710	●	●
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	0710-		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0710-0711	●	●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0710-0711		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	02	1	0712-0810	●	●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	0811-0812	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (D) ID=75-95	8-98133-357-0	02	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0710-0711	●	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0710-0711		●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	01	1	0712-0810	●	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	0811-0812	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (B) ID=65-85	8-98133-350-0	01	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0801-	●	●
5	03.407 CLIP; AIR DUCT 03.417 (A)	9-09915-504-1	01	1	0710-0802	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0803-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0712-0810		●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	02	1	0811-0812		●
5	03.407 CLIP; AIR DUCT (B) ID=77-99	1-09707-141-0	01	1	0901-		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0712-0810		●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	01	1	0811-0812		●
5	03.407 CLIP; AIR DUCT (D) ID=70-90	8-98122-372-0	02	1	0901-		●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (D) ID=77-99	1-09707-141-0	02	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	0901-1001		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1002-	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90	8-98122-372-0	01	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	0901-1001		●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	1002-	●	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	0710-	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	0710-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0710-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0710-		●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	0710-	●
155	03.417 BOLT; BRKT AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1003-	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0710-	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0710	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0804	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0804	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0805-	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0710-0710	●	●
232	03.417 HOSE; CONN (C)	8-98094-582-2	01	1	0710-		●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0801-	●	●
232	03.417 HOSE; CONN (A)	8-98059-989-2	01	1	0710-1002	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (A)	8-98059-989-2	01	1	1003-	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (D)	8-98000-233-3	01	1	1003-	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	0710-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	0710-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98049-012-1	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-243-1	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-246-2	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	0710-		●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-1	01	1	0710-	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-1	01	1	0710-		●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=112	9-09915-074-1	01	1	0710-	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=77-95	1-09707-198-0	01	1	0710-0810	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=75-95	8-98133-357-0	01	1	0811-0812	●
287	03.417 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> 03.407 (A) ID=75-95	8-98133-357-0	01	1	0901-1001	●
287	03.417 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> 03.407 (A) ID=77-99	1-09707-141-0	01	1	0901-1001	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=77-99	1-09707-141-0	01	1	1002-	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0710-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0710-	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	0710-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	0710-	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	0710-		●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0710-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0710-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0710-	●	●
430	03.417 HOSE; INDICATOR AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000	0-04770-300-0	01	1	1003-	●
430	03.417 HOSE; INDICATOR AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000	0-04770-300-0	01	1	1003-		●
450	03.417 CLAMP; HOSE AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12	8-98150-358-0	02	1	1003-	●	●
480	03.417 ADAPTER AIR CLEANER DUST INDICATOR<YD1>	8-98013-425-0	01	1	1003-	●	●
557	03.403 BOLT; HOSE CLIP 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0710-0710	●	●
557	03.403 BOLT; HOSE CLIP 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0710-0810	●	●
557	03.403 BOLT; HOSE CLIP 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0811-	●

381 381 242 389 351 5 314 317 5 242 381 381 389 232 48 314 317 48 5 389 381 381 5 232 281 242 381 175 174 314 317 5 26 351 409 40 5 297 242 61 35 384 557

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0710-0710	●	●
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	0710-		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0710-0711	●	●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0710-0711		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	02	1	0712-0810	●	●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	0811-0812	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (D) ID=75-95	8-98133-357-0	02	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0710-0711	●	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0710-0711		●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	01	1	0712-0810	●	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	0811-0812	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (B) ID=65-85	8-98133-350-0	01	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0801-	●	●
5	03.407 CLIP; AIR DUCT 03.417 (A)	9-09915-504-1	01	1	0710-0802	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0803-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0712-0810		●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	02	1	0811-0812		●
5	03.407 CLIP; AIR DUCT (B) ID=77-99	1-09707-141-0	01	1	0901-		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0712-0810		●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	01	1	0811-0812		●
5	03.407 CLIP; AIR DUCT (D) ID=70-90	8-98122-372-0	02	1	0901-		●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (D) ID=77-99	1-09707-141-0	02	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	0901-1001		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1002-	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90	8-98122-372-0	01	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	0901-1001		●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	1002-	●	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	0710-	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	0710-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0710-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
48	03.417 BOLT; AIR DUCT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-		●
48	03.417 BOLT; AIR DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	0710-		●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0710-		●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0710-	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0710	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0804	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0804	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0805-	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0710-0710	●	●
232	03.417 HOSE; CONN (C)	8-98094-582-2	01	1	0710-		●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0801-	●	●
232	03.417 HOSE; CONN (A)	8-98059-989-2	01	1	0710-1002	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (A)	8-98059-989-2	01	1	1003-	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (D)	8-98000-233-3	01	1	1003-	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	0710-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	0710-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98049-012-1	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-243-1	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-246-2	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	0710-		●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-1	01	1	0710-	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-1	01	1	0710-		●
297	03.417 BOLT; DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0710-		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0710-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0710-	●	●
351	03.407 DUCT; AIR 03.417 (A)	8-98059-995-2	01	1	0710-	●	●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	0710-		●
351	03.407 DUCT; AIR (C)	8-98070-862-1	01	1	0710-1002		●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1003-		●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (D)	8-98021-485-1	01	1	1003-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	0710-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	0710-	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	0710-		●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-		●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0710-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0710-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0710-	●	●
557	03.403 BOLT; HOSE CLIP 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0710-0710	●	●
557	03.403 BOLT; HOSE CLIP 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0710-0810	●	●
557	03.403 BOLT; HOSE CLIP 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0811-	●

381 381 242 389 351 5 314 317 5 242 381 381 389 232 48 314 317 48 5 389 381 381 5 232 281 242 381 175 174 314 317 5 26 351 409 40 297 242 61 5 35 155 480 384 450 430 557 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0710-0710	●	●
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	0710-		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0710-0711	●	●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0710-0711		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	02	1	0712-0810	●	●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	0811-0812	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (D) ID=75-95	8-98133-357-0	02	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0710-0711	●	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0710-0711		●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	01	1	0712-0810	●	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	0811-0812	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (B) ID=65-85	8-98133-350-0	01	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0801-	●	●
5	03.407 CLIP; AIR DUCT 03.417 (A)	9-09915-504-1	01	1	0710-0802	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0803-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=68-85	1-09707-202-0	02	1	0712-0810		●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	02	1	0811-0812		●
5	03.407 CLIP; AIR DUCT (B) ID=77-99	1-09707-141-0	01	1	0901-		●
5	03.407 CLIP; AIR DUCT (D) ID=77-95	1-09707-198-0	01	1	0712-0810		●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	01	1	0811-0812		●
5	03.407 CLIP; AIR DUCT (D) ID=70-90	8-98122-372-0	02	1	0901-		●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (D) ID=77-99	1-09707-141-0	02	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	0901-1001		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1002-	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (B) ID=70-90	8-98122-372-0	01	1	0901-1001	●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	0901-1001		●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	1002-	●	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	0710-	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	0710-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0710-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
48	03.417 BOLT; AIR DUCT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-		●
48	03.417 BOLT; AIR DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	0710-		●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0710-		●
155	03.417 BOLT; BRKT AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1003-	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0710-	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0710	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0804	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0804	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0805-	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0710-0710	●	●
232	03.417 HOSE; CONN (C)	8-98094-582-2	01	1	0710-		●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0801-	●	●
232	03.417 HOSE; CONN (A)	8-98059-989-2	01	1	0710-1002	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (A)	8-98059-989-2	01	1	1003-	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (D)	8-98000-233-3	01	1	1003-	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	0710-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	0710-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	0710-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98049-012-1	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-243-1	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-246-2	01	1	0710-		●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	0710-		●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-1	01	1	0710-	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-1	01	1	0710-		●
297	03.417 BOLT; DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0710-		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0710-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0710-	●	●
351	03.407 DUCT; AIR 03.417 (A)	8-98059-995-2	01	1	0710-	●	●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	0710-		●
351	03.407 DUCT; AIR (C)	8-98070-862-1	01	1	0710-1002		●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1003-		●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (D)	8-98021-485-1	01	1	1003-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	0710-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	0710-	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	0710-		●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-		●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0710-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0710-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0710-	●	●
430	03.417 HOSE; INDICATOR AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000	0-04770-300-0	01	1	1003-	●
430	03.417 HOSE; INDICATOR AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000	0-04770-300-0	01	1	1003-		●
450	03.417 CLAMP; HOSE AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12	8-98150-358-0	02	1	1003-	●	●
480	03.417 ADAPTER AIR CLEANER DUST INDICATOR<YD1>	8-98013-425-0	01	1	1003-	●	●
557	03.403 BOLT; HOSE CLIP 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0710-0710	●	●
557	03.403 BOLT; HOSE CLIP 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0710-0810	●	●
557	03.403 BOLT; HOSE CLIP 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0811-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
