Sayfa 3-33 - Isuzu EPC

3-33 — AIR MASTER (#3375) — 106 parça

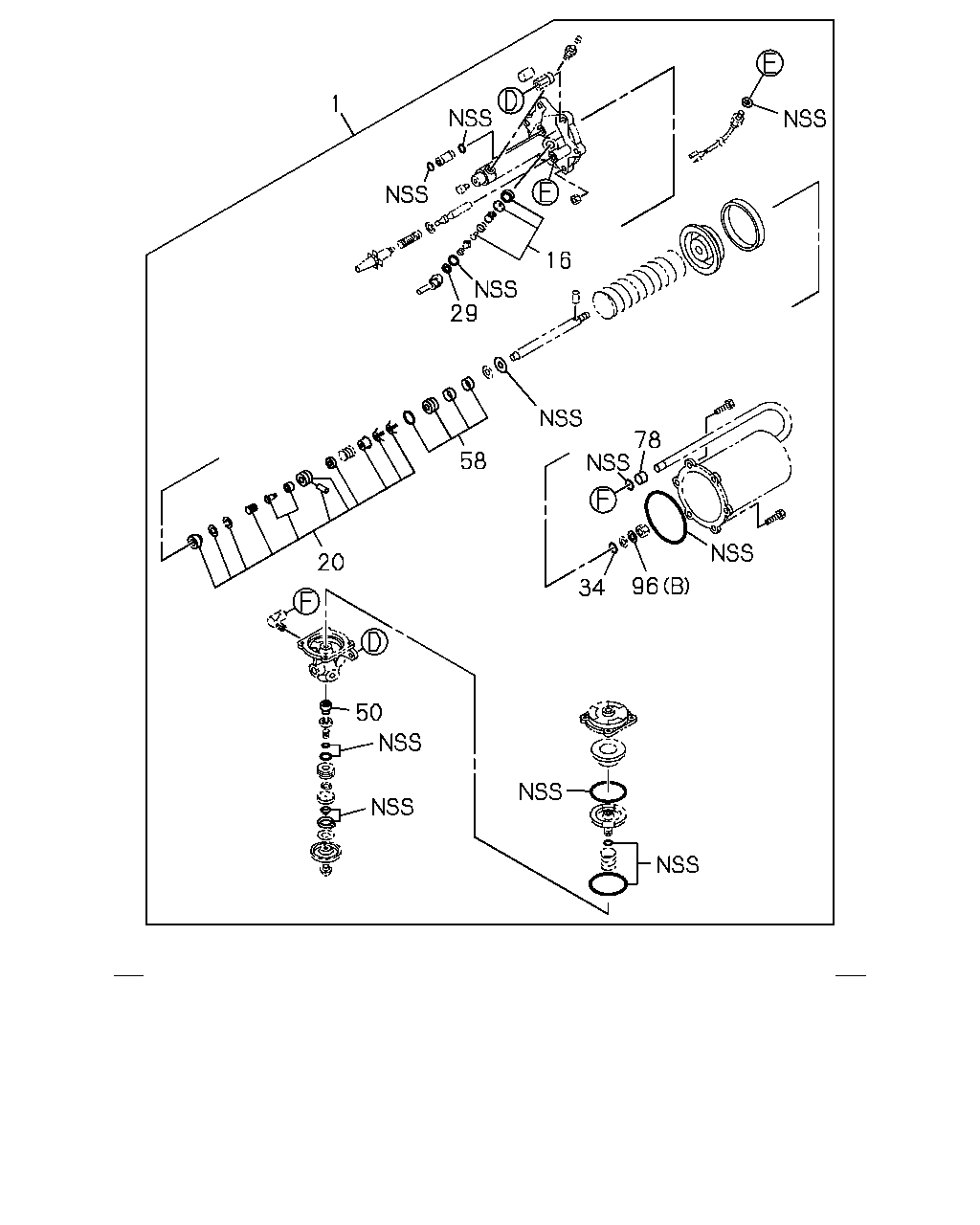

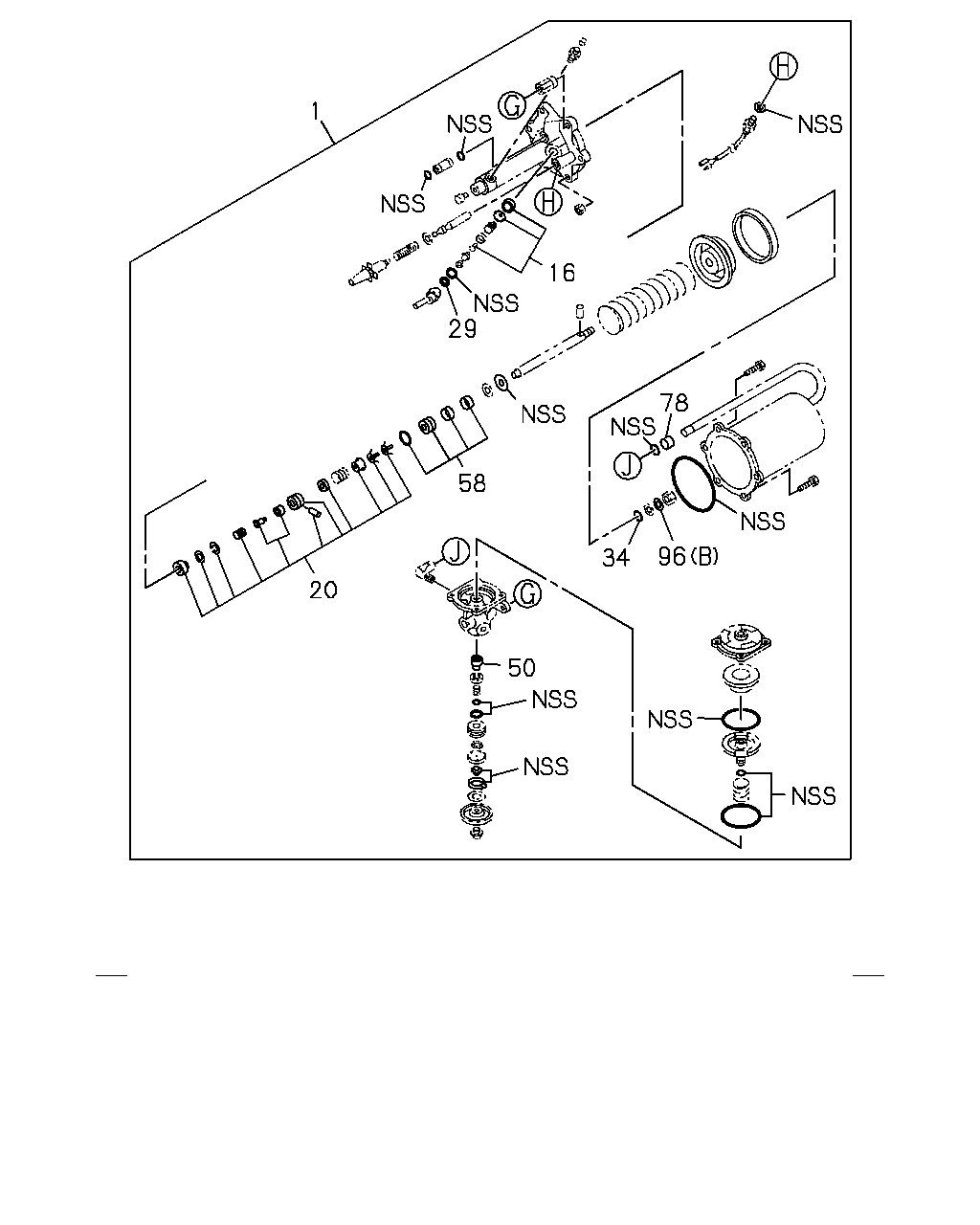

16 29 1 78 96 34 58 20 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: E = 1-47800-464-2, F = 1-47800-466-2	1-85579-051-0	01	1	9309-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2	1-87520-204-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2	1-87520-205-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: E = 1-47800-464-2, F = 1-47800-466-2	1-87520-208-0	01	1	-9308
16	VALVE ASM ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47821-021-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-057-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	9-09561-111-0	01	1	-
50	RETAINER; VALVE,INL,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-48213-002-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-056-0	01	1	-
78	COLLAR; AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-051-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-053-0	01	1	-

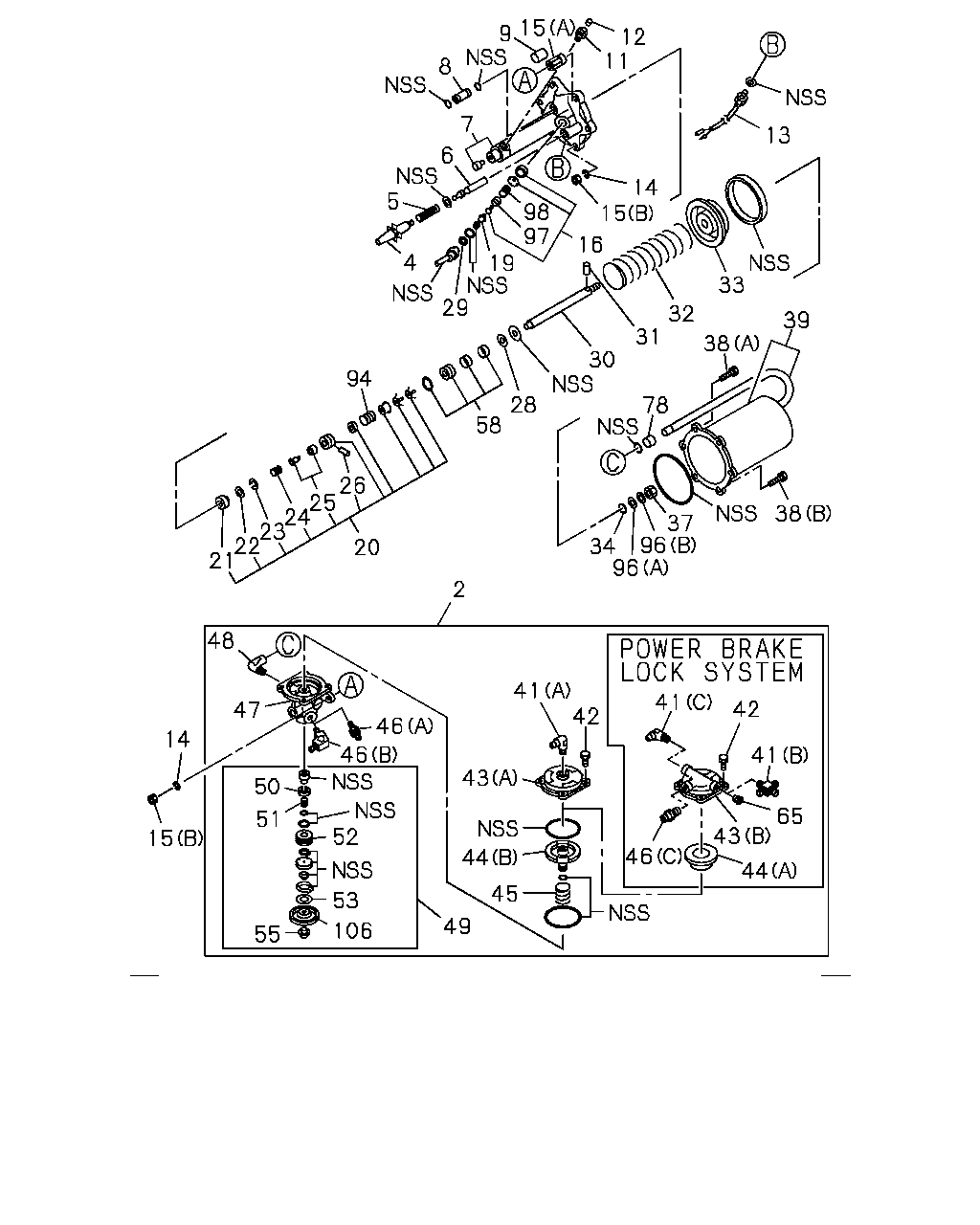

8 9 15 12 13 11 14 7 6 5 98 15 19 4 16 29 33 39 32 38 31 78 30 58 28 94 20 26 25 24 23 22 21 2 34 96 96 37 38 48 14 15 47 50 51 55 106 52 53 49 46 41 46 43 44 45 42 46 41 42 41 65 43 44 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY,AIR MASTER ASM PART: A = 1-47800-428-2, D = 1-47800-459-2	1-47841-056-0	01	1	-
2	VALVE; RELAY,AIR MASTER ASM PART: E = 1-47800-464-2	1-47841-057-0	01	1	-
2	VALVE; RELAY,AIR MASTER ASM PART: B = 1-47800-429-2, C = 1-47800-454-2	1-47841-060-0	01	1	-
2	VALVE; RELAY,AIR MASTER ASM PART: F = 1-47800-466-2	1-47841-060-0	01	1	9309-
2	VALVE; RELAY,AIR MASTER ASM PART: F = 1-47800-466-2	1-47841-061-0	01	1	-9308
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-052-0	01	1	9309-
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-063-0	01	1	-9308
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: C = 1-47800-454-2	1-47824-021-0	01	1	-9308
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: C = 1-47800-454-2	1-47824-026-0	01	1	9309-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47824-026-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-428-2, D = 1-47800-459-2, E = 1-47800-464-2	1-47825-023-0	01	1	9309-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-428-2, D = 1-47800-459-2, E = 1-47800-464-2	1-47825-027-0	01	1	-9308
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: B = 1-47800-429-2, C = 1-47800-454-2, F = 1-47800-466-2	1-47825-028-0	01	1	-9308
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: B = 1-47800-429-2, C = 1-47800-454-2, F = 1-47800-466-2	1-47829-048-0	01	1	9309-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-428-2, D = 1-47800-459-2, E = 1-47800-464-2	1-47813-052-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-429-2, C = 1-47800-454-2, F = 1-47800-466-2	1-47813-053-0	01	1	-
8	PIPE; END PLATE,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47819-153-0	01	1	-
9	PROTECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-44569-165-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47819-168-0	01	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	9-09150-510-0	06	1	-9308
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47819-182-0	06	1	9309-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	9-83315-080-0	06	1	-9308
16	VALVE ASM ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: F = 1-47800-466-2	1-47819-156-0	02	1	-9308
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: F = 1-47800-466-2	1-47819-156-0	01	1	9309-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2	1-47819-156-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47821-021-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47821-009-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-011-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47824-017-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47821-024-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-039-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47819-164-0	01	1	-9308
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47819-183-0	01	1	9309-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: B = 1-47800-429-2, C = 1-47800-454-2, F = 1-47800-466-2	1-47825-022-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-428-2, D = 1-47800-459-2, E = 1-47800-464-2	1-47825-025-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-054-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: B = 1-47800-429-2, C = 1-47800-454-2, F = 1-47800-466-2	1-47824-020-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-428-2, D = 1-47800-459-2, E = 1-47800-464-2	1-47824-022-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47822-006-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	9-83315-078-0	04	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-428-2, D = 1-47800-459-2, E = 1-47800-464-2	1-47811-098-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: B = 1-47800-429-2, C = 1-47800-454-2, F = 1-47800-466-2	1-47811-099-0	01	1	-
41	CONNECTOR; ELBOW,RELAY VLV,AIR MASTER (C), M12X2 & PT1/4 3WAY ASM PART: F = 1-47800-466-2	1-09656-230-1	01	1	-
41	CONNECTOR; ELBOW,RELAY VLV,AIR MASTER (B) ASM PART: E = 1-47800-464-2	1-47815-014-1	01	1	-
41	CONNECTOR; ELBOW,RELAY VLV,AIR MASTER (A) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2	1-47815-021-1	01	1	-
42	SCREW; RELAY VLV COVER,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47849-015-0	04	1	-
42	SCREW; RELAY VLV COVER,AIR MASTER ASM PART: C = 1-47800-454-2	1-47849-015-0	01	1	-9308
42	SCREW; RELAY VLV COVER,AIR MASTER ASM PART: C = 1-47800-454-2	1-47849-015-0	04	1	9309-
43	COVER; RELAY VLV,AIR MASTER (A) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2	1-48219-070-0	01	1	-
43	COVER; RELAY VLV,AIR MASTER (B) ASM PART: E = 1-47800-464-2, F = 1-47800-466-2	1-48219-072-0	01	1	-
44	PISTON; RELAY VLV,AIR MASTER (A) ASM PART: E = 1-47800-464-2, F = 1-47800-466-2	1-48219-068-0	01	1	-9308
44	PISTON; RELAY VLV,AIR MASTER (B) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-48219-071-0	01	1	-
45	SPRING; PISTON,RELAY VLV,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47819-090-0	01	1	-
46	CONNECTOR; RELAY VLV,AIR MASTER (A) ASM PART: A = 1-47800-428-2, D = 1-47800-459-2, E = 1-47800-464-2	1-47815-022-1	01	1	-
46	CONNECTOR; RELAY VLV,AIR MASTER (B) ASM PART: B = 1-47800-429-2, C = 1-47800-454-2, F = 1-47800-466-2	1-47815-023-1	01	1	-
46	CONNECTOR; RELAY VLV,AIR MASTER (C) ASM PART: E = 1-47800-464-2, F = 1-47800-466-2	1-47815-029-1	01	1	-
47	BODY; RELAY VLV,AIR MASTER ASM PART: A = 1-47800-428-2, D = 1-47800-459-2, E = 1-47800-464-2	1-47841-066-0	01	1	-
47	BODY; RELAY VLV,AIR MASTER ASM PART: B = 1-47800-429-2, C = 1-47800-454-2, F = 1-47800-466-2	1-47841-067-0	01	1	-
48	CONNECTOR; VLV TO SHELL ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47815-026-0	01	1	-
49	VALVE; INL,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47842-010-0	01	1	-
50	RETAINER; VALVE,INL,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-48213-002-0	01	1	-
51	SPRING; INL VLV,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47819-089-0	01	1	-
52	VALVE; GUIDE,INL,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-48129-014-0	01	1	-
53	SEAT; GUIDE VALVE,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47819-133-0	01	1	-
55	SCREW; EXH COVER FIX ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47819-131-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-056-0	01	1	-
65	PLUG; TAPER,VLV ASM PART: F = 1-47800-466-2	1-48119-094-0	01	1	-9308
65	PLUG; TAPER,VLV ASM PART: F = 1-47800-466-2	1-89965-923-4	01	1	9309-
78	COLLAR; AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-051-0	01	1	-
94	SPRING; PISTON ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-059-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-053-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47843-006-0	01	1	-
106	COVER; RELAY VLV,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47819-130-0	01	1	-

16 78 29 58 20 50 34 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	VALVE ASM ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47821-021-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-057-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	9-09561-111-0	01	1	-
50	RETAINER; VALVE,INL,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-48213-002-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-056-0	01	1	-
78	COLLAR; AIR MASTER ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-051-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-428-2, B = 1-47800-429-2, C = 1-47800-454-2, D = 1-47800-459-2, E = 1-47800-464-2, F = 1-47800-466-2	1-47829-053-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
