Sayfa 0-33 - Isuzu EPC

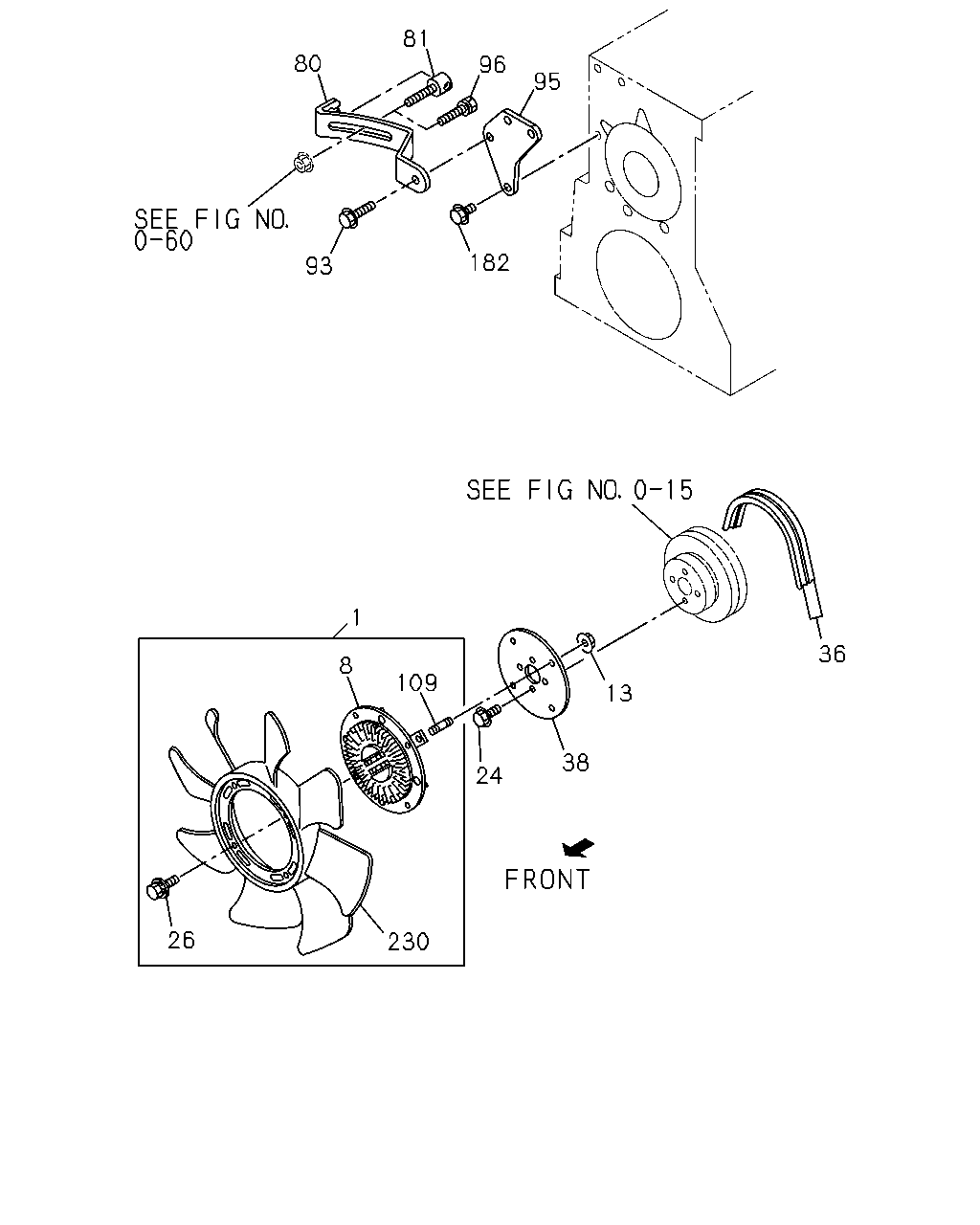

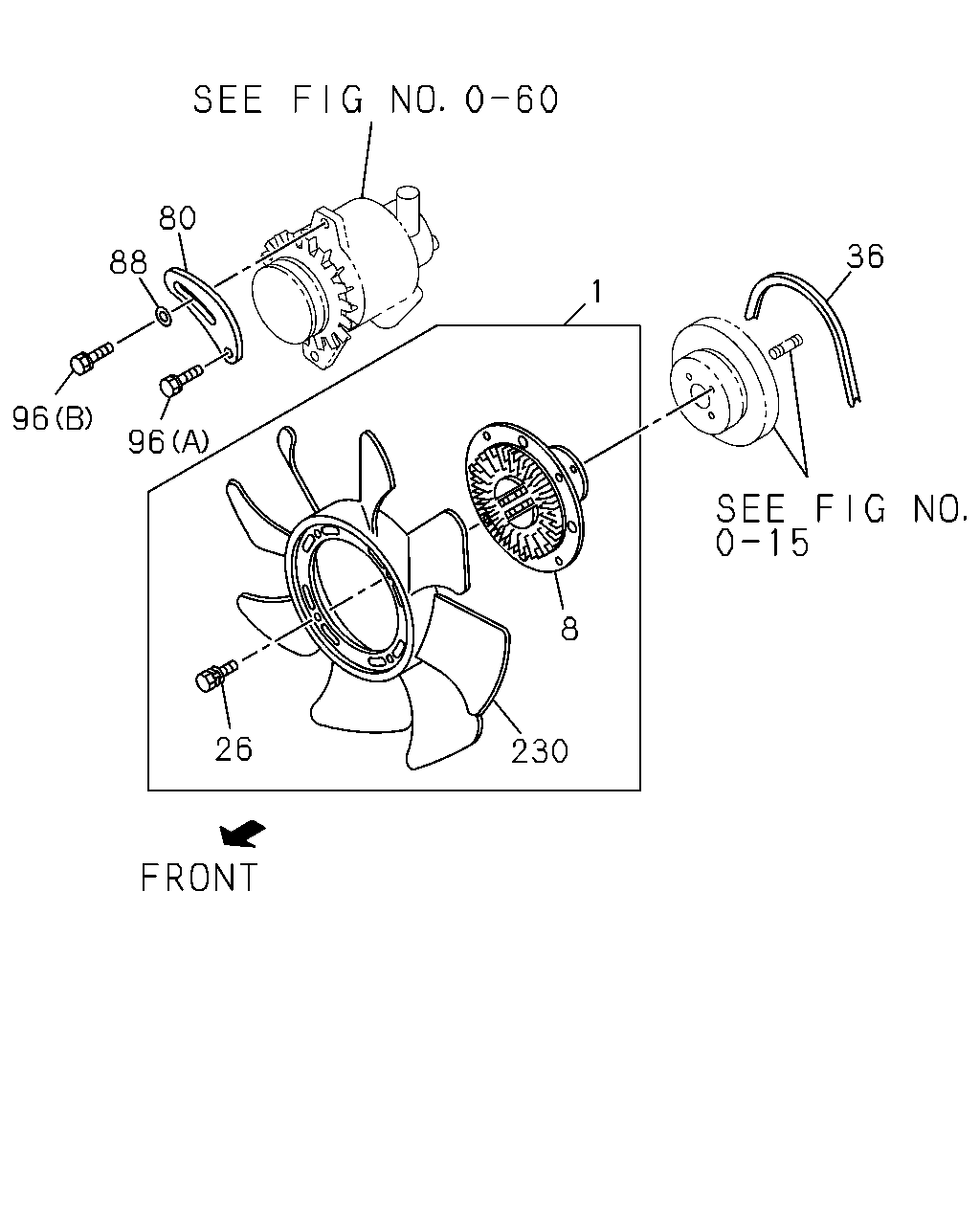

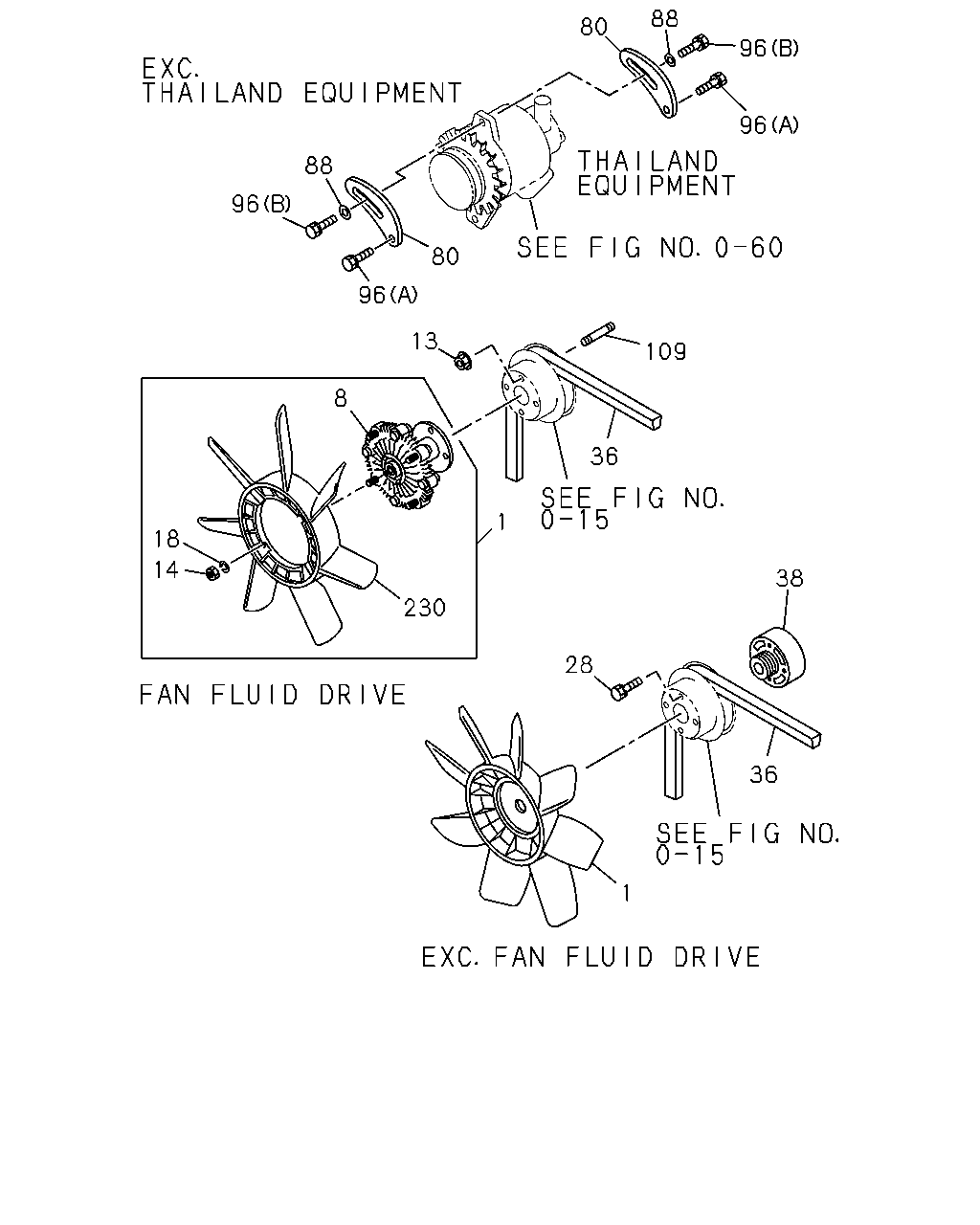

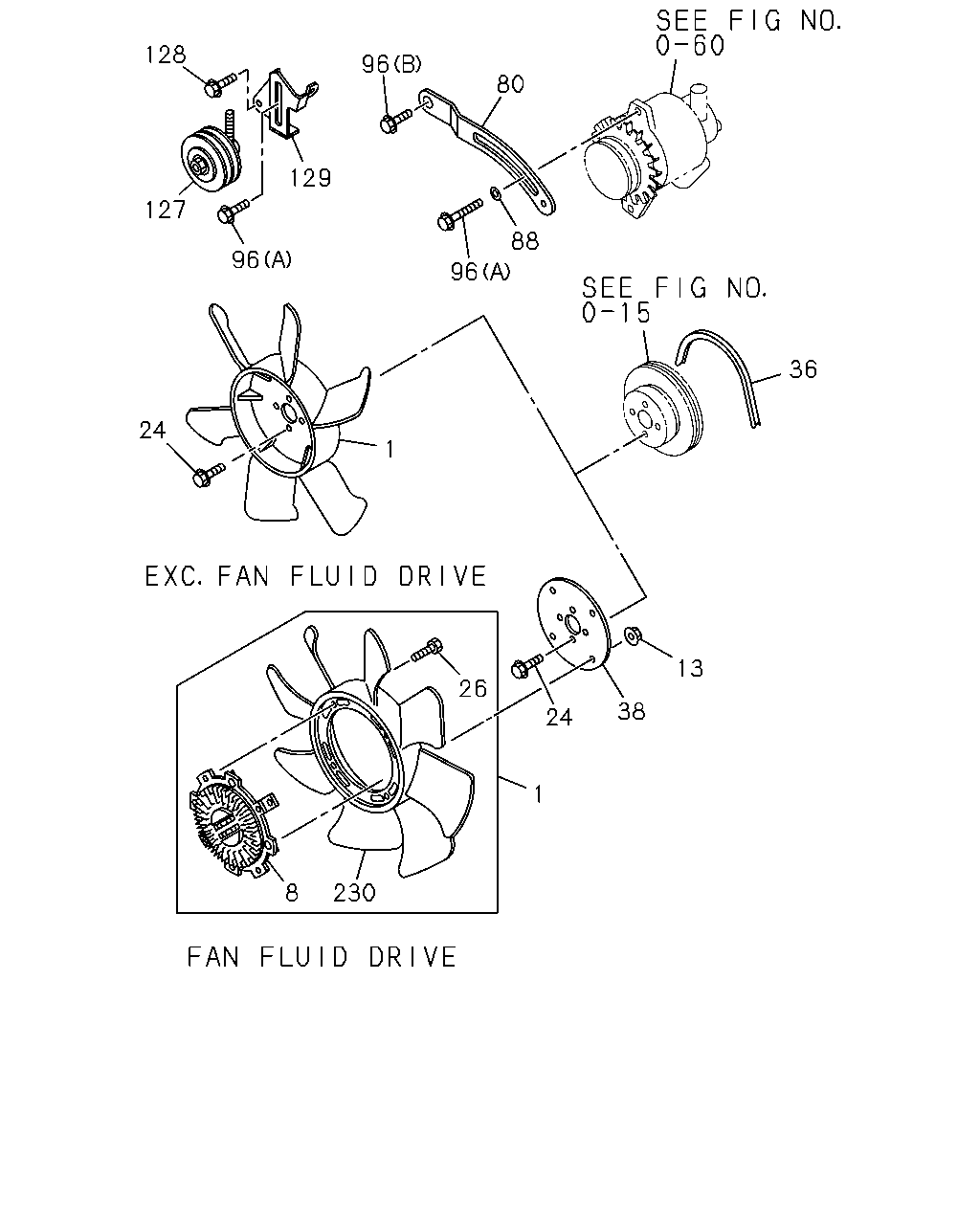

0-33 — FAN AND FAN BELT (#33749) — 557 parça

80 36 88 1 96 96 8 26 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> OD=390	8-94239-651-0	01	1	9312-9711	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390	8-94239-651-0	01	1	9712-	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	5-13660-285-0	01	1	9312-9711	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51>	5-13660-285-0	01	1	9712-	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3>	8-97118-158-0	01	1	9312-		●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	8-94367-363-1	01	1	9312-		●
1	01.064 FAN; COOLING	8-97088-813-1	01	1	9312-9411			●
1	01.064 FAN; COOLING	8-97123-906-0	01	1	9412-9503			●
1	01.064 FAN; COOLING	8-97129-772-1	01	1	9504-			●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9507-9711				●
1	01.064 FAN; COOLING TURBOCHARGER<K51> FAN FLUID DRIVE<KA3> OD=410	8-97129-769-0	01	1	9712-	●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9712-				●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-94244-409-0	01	1	9312-9711	●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-97095-204-0	01	1	9312-9406		●
8	01.064 CLUTCH; COOLING FAN	8-97088-803-0	01	1	9312-9411			●
8	01.064 CLUTCH; COOLING FAN	8-97123-948-0	01	1	9412-9503			●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	9504-			●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9507-9711				●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51> FAN FLUID DRIVE<KA3>	8-97129-735-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9712-				●
26	01.062 BOLT; FAN TO CLU FAN FLUID DRIVE<KA3>	8-94389-764-0	04	1	9312-9406		●
26	01.062 BOLT; FAN TO CLU 03.670 M6X20 FLANGE	0-28080-620-0	04	1	9312-9503			●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9504-9506			●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9507-9711			●	●
26	01.062 BOLT; FAN TO CLU TURBOCHARGER<K51>	8-94389-764-0	04	1	9712-	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9712-			●	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9312-9510	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9607-9708	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1051	8-94161-841-0	01	1	9709-9711	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9712-	●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9312-9506	●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9507-9511	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97043-551-0	01	1	9507-9511				●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9512-9701	●
36	01.066 BELT; COOLING FAN EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9512-9701				●
36	01.066 BELT; COOLING FAN FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9312-9312		●
36	01.066 BELT; COOLING FAN REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9401-9510		●
36	01.066 BELT; COOLING FAN FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9401-9510		●
36	01.066 BELT; COOLING FAN REFRIGERATOR CHASSIS(V4R) L=1221	8-97062-480-0	01	1	9511-9711		●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP) L=1225	1-13671-141-0	01	1	9312-9711		●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1225	1-13671-141-0	01	1	9712-		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) L=1196	1-13671-216-1	01	1	9312-9406		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) L=1196	1-13671-216-1	01	1	9407-9510		●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R) L=1196	1-13671-216-1	01	1	9511-9711		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1196	1-13671-216-1	01	1	9712-		●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8970147011)	8-97014-252-1	01	1	9312-9409			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8970944470)	8-97094-446-2	01	1	9410-9706			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-0	01	1	9707-			●
36	01.066 BELT; COOLING FAN UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9512-9606				●
36	01.066 BELT; COOLING FAN HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9607-9701				●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-				●
36	01.066 BELT; COOLING FAN INDONESIA EQUIPMENT(S4S) L=1175	5-13671-045-0	01	1	9312-9406		●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-94428-297-0	01	1	9312-9407	●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-97117-938-0	01	1	9408-	●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9)	8-97080-556-1	01	1	9312-9506	●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9)	8-97080-556-1	01	1	9507-	●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9507-				●
80	02.317 PLATE; ADJ INDONESIA EQUIPMENT(S4S)	5-13674-032-0	01	1	9312-9406		●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP)	8-94157-836-1	01	1	9312-9510		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS (V4R)	8-94157-836-1	01	1	9312-9510		●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP)	8-94157-836-1	01	1	9511-9711		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN) EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R)	8-94157-836-1	01	1	9511-9711		●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-94157-836-1	01	1	9712-		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN)	8-94157-836-1	01	1	9712-		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),GENERATO R 24V40A(6MN),FRT INDEPENDENT SUSPENSION(6PP)	8-94129-602-0	01	1	9312-9406		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN),FRT INDEPEN DENT SUSPENSION(6PP)	8-94129-602-0	01	1	9407-9510		●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN)	8-94129-602-0	01	1	9511-9711		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),GENERATOR 24V40A(6MN)	8-94129-602-0	01	1	9712-		●
80	02.317 PLATE; ADJ	8-97061-466-1	01	1	9312-9702			●
80	02.317 PLATE; ADJ	8-97172-415-0	01	1	9703-			●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-9506	●
88	02.317 WASHER; PL,ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-9506		●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9507-9708	●			●
88	02.317 WASHER; PL,ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9507-9708		●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9709-	●	●		●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9312-9506	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9507-	●			●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9312-9506	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9507-	●			●
96	02.317 BOLT; ADJ PLATE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9312-		●
96	02.317 BOLT; ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9312-9510		●
96	02.317 BOLT; ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9511-9711		●
96	02.317 BOLT; ADJ PLATE 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9712-		●
96	02.317 BOLT; ADJ PLATE M8X40 W/WASHER	8-97011-792-4	01	1	9312-9502			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X120 FLANGE	8-97062-091-1	01	1	9503-9605			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 01.073 M8X120 FLANGE	8-97062-091-1	01	1	9606-9701			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE	8-97172-720-1	01	1	9702-			●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> 01.064	5-13660-300-0	01	1	9312-9711	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064	5-13660-300-0	01	1	9712-	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3>	8-97077-619-0	01	1	9312-9406		●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	9312-			●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9507-9711				●
230	01.055 FAN; COOLING TURBOCHARGER<K51> FAN FLUID DRIVE<KA3> 01.064	8-97094-660-0	01	1	9712-	●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9712-				●

80 36 88 1 96 96 8 26 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> OD=390	8-94239-651-0	01	1	9312-9711	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390	8-94239-651-0	01	1	9712-	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	5-13660-285-0	01	1	9312-9711	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51>	5-13660-285-0	01	1	9712-	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3>	8-97118-158-0	01	1	9312-		●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	8-94367-363-1	01	1	9312-		●
1	01.064 FAN; COOLING	8-97088-813-1	01	1	9312-9411			●
1	01.064 FAN; COOLING	8-97123-906-0	01	1	9412-9503			●
1	01.064 FAN; COOLING	8-97129-772-1	01	1	9504-			●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9507-9711				●
1	01.064 FAN; COOLING TURBOCHARGER<K51> FAN FLUID DRIVE<KA3> OD=410	8-97129-769-0	01	1	9712-	●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9712-				●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-94244-409-0	01	1	9312-9711	●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-97095-204-0	01	1	9312-9406		●
8	01.064 CLUTCH; COOLING FAN	8-97088-803-0	01	1	9312-9411			●
8	01.064 CLUTCH; COOLING FAN	8-97123-948-0	01	1	9412-9503			●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	9504-			●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9507-9711				●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51> FAN FLUID DRIVE<KA3>	8-97129-735-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9712-				●
26	01.062 BOLT; FAN TO CLU FAN FLUID DRIVE<KA3>	8-94389-764-0	04	1	9312-9406		●
26	01.062 BOLT; FAN TO CLU 03.670 M6X20 FLANGE	0-28080-620-0	04	1	9312-9503			●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9504-9506			●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9507-9711			●	●
26	01.062 BOLT; FAN TO CLU TURBOCHARGER<K51>	8-94389-764-0	04	1	9712-	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9712-			●	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9312-9510	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9607-9708	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1051	8-94161-841-0	01	1	9709-9711	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9712-	●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9312-9506	●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9507-9511	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97043-551-0	01	1	9507-9511				●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9512-9701	●
36	01.066 BELT; COOLING FAN EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9512-9701				●
36	01.066 BELT; COOLING FAN FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9312-9312		●
36	01.066 BELT; COOLING FAN REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9401-9510		●
36	01.066 BELT; COOLING FAN FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9401-9510		●
36	01.066 BELT; COOLING FAN REFRIGERATOR CHASSIS(V4R) L=1221	8-97062-480-0	01	1	9511-9711		●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP) L=1225	1-13671-141-0	01	1	9312-9711		●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1225	1-13671-141-0	01	1	9712-		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) L=1196	1-13671-216-1	01	1	9312-9406		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) L=1196	1-13671-216-1	01	1	9407-9510		●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R) L=1196	1-13671-216-1	01	1	9511-9711		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1196	1-13671-216-1	01	1	9712-		●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8970147011)	8-97014-252-1	01	1	9312-9409			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8970944470)	8-97094-446-2	01	1	9410-9706			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-0	01	1	9707-			●
36	01.066 BELT; COOLING FAN UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9512-9606				●
36	01.066 BELT; COOLING FAN HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9607-9701				●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-				●
36	01.066 BELT; COOLING FAN INDONESIA EQUIPMENT(S4S) L=1175	5-13671-045-0	01	1	9312-9406		●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-94428-297-0	01	1	9312-9407	●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-97117-938-0	01	1	9408-	●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9)	8-97080-556-1	01	1	9312-9506	●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9)	8-97080-556-1	01	1	9507-	●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9507-				●
80	02.317 PLATE; ADJ INDONESIA EQUIPMENT(S4S)	5-13674-032-0	01	1	9312-9406		●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP)	8-94157-836-1	01	1	9312-9510		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS (V4R)	8-94157-836-1	01	1	9312-9510		●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP)	8-94157-836-1	01	1	9511-9711		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN) EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R)	8-94157-836-1	01	1	9511-9711		●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-94157-836-1	01	1	9712-		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN)	8-94157-836-1	01	1	9712-		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),GENERATO R 24V40A(6MN),FRT INDEPENDENT SUSPENSION(6PP)	8-94129-602-0	01	1	9312-9406		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN),FRT INDEPEN DENT SUSPENSION(6PP)	8-94129-602-0	01	1	9407-9510		●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN)	8-94129-602-0	01	1	9511-9711		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),GENERATOR 24V40A(6MN)	8-94129-602-0	01	1	9712-		●
80	02.317 PLATE; ADJ	8-97061-466-1	01	1	9312-9702			●
80	02.317 PLATE; ADJ	8-97172-415-0	01	1	9703-			●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-9506	●
88	02.317 WASHER; PL,ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-9506		●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9507-9708	●			●
88	02.317 WASHER; PL,ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9507-9708		●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9709-	●	●		●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9312-9506	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9507-	●			●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9312-9506	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9507-	●			●
96	02.317 BOLT; ADJ PLATE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9312-		●
96	02.317 BOLT; ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9312-9510		●
96	02.317 BOLT; ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9511-9711		●
96	02.317 BOLT; ADJ PLATE 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9712-		●
96	02.317 BOLT; ADJ PLATE M8X40 W/WASHER	8-97011-792-4	01	1	9312-9502			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X120 FLANGE	8-97062-091-1	01	1	9503-9605			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 01.073 M8X120 FLANGE	8-97062-091-1	01	1	9606-9701			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE	8-97172-720-1	01	1	9702-			●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> 01.064	5-13660-300-0	01	1	9312-9711	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064	5-13660-300-0	01	1	9712-	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3>	8-97077-619-0	01	1	9312-9406		●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	9312-			●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9507-9711				●
230	01.055 FAN; COOLING TURBOCHARGER<K51> FAN FLUID DRIVE<KA3> 01.064	8-97094-660-0	01	1	9712-	●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9712-				●

128 96 80 129 127 88 96 96 36 24 1 13 26 38 24 1 8 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> OD=390	8-94239-651-0	01	1	9312-9711	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390	8-94239-651-0	01	1	9712-	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	5-13660-285-0	01	1	9312-9711	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51>	5-13660-285-0	01	1	9712-	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3>	8-97118-158-0	01	1	9312-		●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	8-94367-363-1	01	1	9312-		●
1	01.064 FAN; COOLING	8-97088-813-1	01	1	9312-9411			●
1	01.064 FAN; COOLING	8-97123-906-0	01	1	9412-9503			●
1	01.064 FAN; COOLING	8-97129-772-1	01	1	9504-			●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9507-9711				●
1	01.064 FAN; COOLING TURBOCHARGER<K51> FAN FLUID DRIVE<KA3> OD=410	8-97129-769-0	01	1	9712-	●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9712-				●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-94244-409-0	01	1	9312-9711	●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-97095-204-0	01	1	9312-9406		●
8	01.064 CLUTCH; COOLING FAN	8-97088-803-0	01	1	9312-9411			●
8	01.064 CLUTCH; COOLING FAN	8-97123-948-0	01	1	9412-9503			●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	9504-			●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9507-9711				●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51> FAN FLUID DRIVE<KA3>	8-97129-735-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9712-				●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE	5-09440-004-0	04	1	9312-9510	●
13	01.062 NUT; COOLING FAN EURO1 SPECIFICATION<6YW> 07.829 M6 FLANGE	5-09440-004-0	04	1	9511-9711	●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE	5-09440-004-0	04	1	9712-	●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-		●
13	01.062 NUT; COOLING FAN 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-			●
24	01.062 BOLT; FAN FAN FLUID DRIVE<KA3> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9312-		●
24	01.062 BOLT; FAN EXC. FAN FLUID DRIVE<KA3> 03.704 M8X16 W/LK WASHER	0-50040-816-0	04	1	9312-9711		●
24	01.062 BOLT; FAN EXC. FAN FLUID DRIVE<KA3> M8X16 FLANGE	0-28080-816-0	04	1	9712-		●
24	01.062 BOLT; FAN 08.900 M8X18 FLANGE	0-28080-818-0	04	1	9312-			●
26	01.062 BOLT; FAN TO CLU FAN FLUID DRIVE<KA3>	8-94389-764-0	04	1	9312-9406		●
26	01.062 BOLT; FAN TO CLU 03.670 M6X20 FLANGE	0-28080-620-0	04	1	9312-9503			●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9504-9506			●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9507-9711			●	●
26	01.062 BOLT; FAN TO CLU TURBOCHARGER<K51>	8-94389-764-0	04	1	9712-	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9712-			●	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9312-9510	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9607-9708	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1051	8-94161-841-0	01	1	9709-9711	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9712-	●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9312-9506	●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9507-9511	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97043-551-0	01	1	9507-9511				●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9512-9701	●
36	01.066 BELT; COOLING FAN EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9512-9701				●
36	01.066 BELT; COOLING FAN FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9312-9312		●
36	01.066 BELT; COOLING FAN REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9401-9510		●
36	01.066 BELT; COOLING FAN FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9401-9510		●
36	01.066 BELT; COOLING FAN REFRIGERATOR CHASSIS(V4R) L=1221	8-97062-480-0	01	1	9511-9711		●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP) L=1225	1-13671-141-0	01	1	9312-9711		●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1225	1-13671-141-0	01	1	9712-		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) L=1196	1-13671-216-1	01	1	9312-9406		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) L=1196	1-13671-216-1	01	1	9407-9510		●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R) L=1196	1-13671-216-1	01	1	9511-9711		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1196	1-13671-216-1	01	1	9712-		●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8970147011)	8-97014-252-1	01	1	9312-9409			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8970944470)	8-97094-446-2	01	1	9410-9706			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-0	01	1	9707-			●
36	01.066 BELT; COOLING FAN UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9512-9606				●
36	01.066 BELT; COOLING FAN HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9607-9701				●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-				●
36	01.066 BELT; COOLING FAN INDONESIA EQUIPMENT(S4S) L=1175	5-13671-045-0	01	1	9312-9406		●
38	01.062 SPACER; FAN EXC. FAN FLUID DRIVE<KA3> 01.064	9-13642-078-0	01	1	9312-9510	●
38	01.062 SPACER; FAN EXC. EURO1 SPECIFICATION<6YW> 01.064	9-13642-078-0	01	1	9511-9711	●
38	01.062 SPACER; FAN EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> 01.064	9-13642-078-0	01	1	9712-	●
38	01.062 SPACER; FAN FAN FLUID DRIVE<KA3>	5-13642-078-0	01	1	9312-9405		●
38	01.062 SPACER; FAN	5-13642-078-0	01	1	9312-9405			●
38	01.062 SPACER; FAN FAN FLUID DRIVE<KA3>	5-13642-078-0	01	1	9406-9407		●
38	01.062 SPACER; FAN FAN FLUID DRIVE<KA3>	8-97108-643-0	01	1	9408-9502		●
38	01.062 SPACER; FAN FAN FLUID DRIVE<KA3>	8-97108-643-0	01	1	9503-		●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	9503-			●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	9406-9502			●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-94428-297-0	01	1	9312-9407	●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-97117-938-0	01	1	9408-	●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9)	8-97080-556-1	01	1	9312-9506	●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9)	8-97080-556-1	01	1	9507-	●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9507-				●
80	02.317 PLATE; ADJ INDONESIA EQUIPMENT(S4S)	5-13674-032-0	01	1	9312-9406		●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP)	8-94157-836-1	01	1	9312-9510		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS (V4R)	8-94157-836-1	01	1	9312-9510		●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP)	8-94157-836-1	01	1	9511-9711		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN) EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R)	8-94157-836-1	01	1	9511-9711		●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-94157-836-1	01	1	9712-		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN)	8-94157-836-1	01	1	9712-		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),GENERATO R 24V40A(6MN),FRT INDEPENDENT SUSPENSION(6PP)	8-94129-602-0	01	1	9312-9406		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN),FRT INDEPEN DENT SUSPENSION(6PP)	8-94129-602-0	01	1	9407-9510		●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN)	8-94129-602-0	01	1	9511-9711		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),GENERATOR 24V40A(6MN)	8-94129-602-0	01	1	9712-		●
80	02.317 PLATE; ADJ	8-97061-466-1	01	1	9312-9702			●
80	02.317 PLATE; ADJ	8-97172-415-0	01	1	9703-			●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-9506	●
88	02.317 WASHER; PL,ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-9506		●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9507-9708	●			●
88	02.317 WASHER; PL,ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9507-9708		●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9709-	●	●		●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9312-9506	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9507-	●			●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9312-9506	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9507-	●			●
96	02.317 BOLT; ADJ PLATE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9312-		●
96	02.317 BOLT; ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9312-9510		●
96	02.317 BOLT; ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9511-9711		●
96	02.317 BOLT; ADJ PLATE 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9712-		●
96	02.317 BOLT; ADJ PLATE M8X40 W/WASHER	8-97011-792-4	01	1	9312-9502			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X120 FLANGE	8-97062-091-1	01	1	9503-9605			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 01.073 M8X120 FLANGE	8-97062-091-1	01	1	9606-9701			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE	8-97172-720-1	01	1	9702-			●
127	01.062 PULLEY ASM; IDLE,FAN FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97061-045-0	01	1	9312-9312		●
127	01.062 PULLEY ASM; IDLE,FAN REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97061-045-0	01	1	9401-9510		●
127	01.062 PULLEY ASM; IDLE,FAN FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97061-045-0	01	1	9401-9510		●
127	01.062 PULLEY ASM; IDLE,FAN REFRIGERATOR CHASSIS(V4R) 2-GROOVE	8-97061-045-0	01	1	9511-9711		●
128	01.062 BOLT; BRKT TO GEAR CASE FRT INDEPENDENT SUSPENSION(6PP) 11.377 M10X20 W/LK WASHER	0-50041-020-0	02	1	9312-9312		●
128	01.062 BOLT; BRKT TO GEAR CASE REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) 11.377 M10X20 W/LK WASHER	0-50041-020-0	02	1	9401-9510		●
128	01.062 BOLT; BRKT TO GEAR CASE FRT INDEPENDENT SUSPENSION(6PP) 11.377 M10X20 W/LK WASHER	0-50041-020-0	02	1	9401-9510		●
128	01.062 BOLT; BRKT TO GEAR CASE REFRIGERATOR CHASSIS(V4R) 11.377 M10X20 W/LK WASHER	0-50041-020-0	02	1	9511-9711		●
129	01.060 BRACKET; IDLE PULLEY,FAN FRT INDEPENDENT SUSPENSION(6PP)	8-94413-330-0	01	1	9312-9312		●
129	01.060 BRACKET; IDLE PULLEY,FAN REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94413-330-0	01	1	9401-9510		●
129	01.060 BRACKET; IDLE PULLEY,FAN FRT INDEPENDENT SUSPENSION(6PP)	8-94413-330-0	01	1	9401-9510		●
129	01.060 BRACKET; IDLE PULLEY,FAN REFRIGERATOR CHASSIS(V4R)	8-94413-330-0	01	1	9511-9711		●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> 01.064	5-13660-300-0	01	1	9312-9711	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064	5-13660-300-0	01	1	9712-	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3>	8-97077-619-0	01	1	9312-9406		●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	9312-			●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9507-9711				●
230	01.055 FAN; COOLING TURBOCHARGER<K51> FAN FLUID DRIVE<KA3> 01.064	8-97094-660-0	01	1	9712-	●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9712-				●

81 80 96 95 182 93 1 36 8 109 13 38 24 26 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> OD=390	8-94239-651-0	01	1	9312-9711	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390	8-94239-651-0	01	1	9712-	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	5-13660-285-0	01	1	9312-9711	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51>	5-13660-285-0	01	1	9712-	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3>	8-97118-158-0	01	1	9312-		●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	8-94367-363-1	01	1	9312-		●
1	01.064 FAN; COOLING	8-97088-813-1	01	1	9312-9411			●
1	01.064 FAN; COOLING	8-97123-906-0	01	1	9412-9503			●
1	01.064 FAN; COOLING	8-97129-772-1	01	1	9504-			●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9507-9711				●
1	01.064 FAN; COOLING TURBOCHARGER<K51> FAN FLUID DRIVE<KA3> OD=410	8-97129-769-0	01	1	9712-	●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9712-				●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-94244-409-0	01	1	9312-9711	●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-97095-204-0	01	1	9312-9406		●
8	01.064 CLUTCH; COOLING FAN	8-97088-803-0	01	1	9312-9411			●
8	01.064 CLUTCH; COOLING FAN	8-97123-948-0	01	1	9412-9503			●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	9504-			●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9507-9711				●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51> FAN FLUID DRIVE<KA3>	8-97129-735-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9712-				●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE	5-09440-004-0	04	1	9312-9510	●
13	01.062 NUT; COOLING FAN EURO1 SPECIFICATION<6YW> 07.829 M6 FLANGE	5-09440-004-0	04	1	9511-9711	●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE	5-09440-004-0	04	1	9712-	●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-		●
13	01.062 NUT; COOLING FAN 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-			●
24	01.062 BOLT; FAN FAN FLUID DRIVE<KA3> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9312-		●
24	01.062 BOLT; FAN EXC. FAN FLUID DRIVE<KA3> 03.704 M8X16 W/LK WASHER	0-50040-816-0	04	1	9312-9711		●
24	01.062 BOLT; FAN EXC. FAN FLUID DRIVE<KA3> M8X16 FLANGE	0-28080-816-0	04	1	9712-		●
24	01.062 BOLT; FAN 08.900 M8X18 FLANGE	0-28080-818-0	04	1	9312-			●
26	01.062 BOLT; FAN TO CLU FAN FLUID DRIVE<KA3>	8-94389-764-0	04	1	9312-9406		●
26	01.062 BOLT; FAN TO CLU 03.670 M6X20 FLANGE	0-28080-620-0	04	1	9312-9503			●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9504-9506			●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9507-9711			●	●
26	01.062 BOLT; FAN TO CLU TURBOCHARGER<K51>	8-94389-764-0	04	1	9712-	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9712-			●	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9312-9510	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9607-9708	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1051	8-94161-841-0	01	1	9709-9711	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9712-	●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9312-9506	●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9507-9511	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97043-551-0	01	1	9507-9511				●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9512-9701	●
36	01.066 BELT; COOLING FAN EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9512-9701				●
36	01.066 BELT; COOLING FAN FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9312-9312		●
36	01.066 BELT; COOLING FAN REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9401-9510		●
36	01.066 BELT; COOLING FAN FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9401-9510		●
36	01.066 BELT; COOLING FAN REFRIGERATOR CHASSIS(V4R) L=1221	8-97062-480-0	01	1	9511-9711		●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP) L=1225	1-13671-141-0	01	1	9312-9711		●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1225	1-13671-141-0	01	1	9712-		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) L=1196	1-13671-216-1	01	1	9312-9406		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) L=1196	1-13671-216-1	01	1	9407-9510		●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R) L=1196	1-13671-216-1	01	1	9511-9711		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1196	1-13671-216-1	01	1	9712-		●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8970147011)	8-97014-252-1	01	1	9312-9409			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8970944470)	8-97094-446-2	01	1	9410-9706			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-0	01	1	9707-			●
36	01.066 BELT; COOLING FAN UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9512-9606				●
36	01.066 BELT; COOLING FAN HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9607-9701				●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-				●
36	01.066 BELT; COOLING FAN INDONESIA EQUIPMENT(S4S) L=1175	5-13671-045-0	01	1	9312-9406		●
38	01.062 SPACER; FAN EXC. FAN FLUID DRIVE<KA3> 01.064	9-13642-078-0	01	1	9312-9510	●
38	01.062 SPACER; FAN EXC. EURO1 SPECIFICATION<6YW> 01.064	9-13642-078-0	01	1	9511-9711	●
38	01.062 SPACER; FAN EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> 01.064	9-13642-078-0	01	1	9712-	●
38	01.062 SPACER; FAN FAN FLUID DRIVE<KA3>	5-13642-078-0	01	1	9312-9405		●
38	01.062 SPACER; FAN	5-13642-078-0	01	1	9312-9405			●
38	01.062 SPACER; FAN FAN FLUID DRIVE<KA3>	5-13642-078-0	01	1	9406-9407		●
38	01.062 SPACER; FAN FAN FLUID DRIVE<KA3>	8-97108-643-0	01	1	9408-9502		●
38	01.062 SPACER; FAN FAN FLUID DRIVE<KA3>	8-97108-643-0	01	1	9503-		●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	9503-			●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	9406-9502			●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-94428-297-0	01	1	9312-9407	●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-97117-938-0	01	1	9408-	●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9)	8-97080-556-1	01	1	9312-9506	●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9)	8-97080-556-1	01	1	9507-	●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9507-				●
80	02.317 PLATE; ADJ INDONESIA EQUIPMENT(S4S)	5-13674-032-0	01	1	9312-9406		●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP)	8-94157-836-1	01	1	9312-9510		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS (V4R)	8-94157-836-1	01	1	9312-9510		●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP)	8-94157-836-1	01	1	9511-9711		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN) EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R)	8-94157-836-1	01	1	9511-9711		●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-94157-836-1	01	1	9712-		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN)	8-94157-836-1	01	1	9712-		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),GENERATO R 24V40A(6MN),FRT INDEPENDENT SUSPENSION(6PP)	8-94129-602-0	01	1	9312-9406		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN),FRT INDEPEN DENT SUSPENSION(6PP)	8-94129-602-0	01	1	9407-9510		●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN)	8-94129-602-0	01	1	9511-9711		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),GENERATOR 24V40A(6MN)	8-94129-602-0	01	1	9712-		●
80	02.317 PLATE; ADJ	8-97061-466-1	01	1	9312-9702			●
80	02.317 PLATE; ADJ	8-97172-415-0	01	1	9703-			●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60)	8-97086-228-1	01	1	9503-9605			●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH)	8-97086-228-1	01	1	9606-			●
93	02.317 BOLT; ADJ PLATE BRKT 03.417 M10X25 FLANGE	0-28081-025-0	01	1	9312-9606			●
93	02.317 BOLT; ADJ PLATE BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9607-			●
95	02.317 BRACKET; ADJ PLATE	8-97037-510-0	01	1	9312-			●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9312-9506	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9507-	●			●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9312-9506	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9507-	●			●
96	02.317 BOLT; ADJ PLATE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9312-		●
96	02.317 BOLT; ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9312-9510		●
96	02.317 BOLT; ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9511-9711		●
96	02.317 BOLT; ADJ PLATE 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9712-		●
96	02.317 BOLT; ADJ PLATE M8X40 W/WASHER	8-97011-792-4	01	1	9312-9502			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X120 FLANGE	8-97062-091-1	01	1	9503-9605			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 01.073 M8X120 FLANGE	8-97062-091-1	01	1	9606-9701			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE	8-97172-720-1	01	1	9702-			●
109	01.062 STUD; FAN CLU FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27	9-04110-618-0	04	1	9312-9510	●
109	01.062 STUD; FAN CLU EURO1 SPECIFICATION<6YW> 01.073 M6X18 L=27	9-04110-618-0	04	1	9511-9711	●
109	01.062 STUD; FAN CLU FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27	9-04110-618-0	04	1	9712-	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	9407-			●
182	01.062 BOLT; BRKT 00.004 M8X32 FLANGE	0-28080-832-0	03	1	9312-9510			●
182	01.062 BOLT; BRKT 02.183 M8X35 FLANGE	0-28680-835-0	03	1	9511-			●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> 01.064	5-13660-300-0	01	1	9312-9711	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064	5-13660-300-0	01	1	9712-	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3>	8-97077-619-0	01	1	9312-9406		●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	9312-			●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9507-9711				●
230	01.055 FAN; COOLING TURBOCHARGER<K51> FAN FLUID DRIVE<KA3> 01.064	8-97094-660-0	01	1	9712-	●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9712-				●

88 80 96 96 88 96 80 96 13 109 8 36 1 18 14 38 230 28 36 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> OD=390	8-94239-651-0	01	1	9312-9711	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390	8-94239-651-0	01	1	9712-	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	5-13660-285-0	01	1	9312-9711	●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51>	5-13660-285-0	01	1	9712-	●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3>	8-97118-158-0	01	1	9312-		●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>	8-94367-363-1	01	1	9312-		●
1	01.064 FAN; COOLING	8-97088-813-1	01	1	9312-9411			●
1	01.064 FAN; COOLING	8-97123-906-0	01	1	9412-9503			●
1	01.064 FAN; COOLING	8-97129-772-1	01	1	9504-			●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9507-9711				●
1	01.064 FAN; COOLING TURBOCHARGER<K51> FAN FLUID DRIVE<KA3> OD=410	8-97129-769-0	01	1	9712-	●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9712-				●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-94244-409-0	01	1	9312-9711	●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3>	8-97095-204-0	01	1	9312-9406		●
8	01.064 CLUTCH; COOLING FAN	8-97088-803-0	01	1	9312-9411			●
8	01.064 CLUTCH; COOLING FAN	8-97123-948-0	01	1	9412-9503			●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	9504-			●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9507-9711				●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51> FAN FLUID DRIVE<KA3>	8-97129-735-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9712-				●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE	5-09440-004-0	04	1	9312-9510	●
13	01.062 NUT; COOLING FAN EURO1 SPECIFICATION<6YW> 07.829 M6 FLANGE	5-09440-004-0	04	1	9511-9711	●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE	5-09440-004-0	04	1	9712-	●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-		●
13	01.062 NUT; COOLING FAN 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-			●
14	01.062 NUT; FAN TO CLU FAN FLUID DRIVE<KA3> 00.413 M6	9-09110-506-0	04	1	9312-9711	●
14	01.062 NUT; FAN TO CLU FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 00.413 M6	9-09110-506-0	04	1	9712-	●
18	01.062 WASHER; FAN TO CLU FAN FLUID DRIVE<KA3> 00.206 ID=6.1	9-09150-506-0	04	1	9312-9711	●
18	01.062 WASHER; FAN TO CLU FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 00.206 ID=6.1	9-09150-506-0	04	1	9712-	●
28	01.062 BOLT; COOLING FAN EXC. FAN FLUID DRIVE<KA3> M6X45 W/LK WASHER	0-50040-645-0	04	1	9312-9510	●
28	01.062 BOLT; COOLING FAN EXC. EURO1 SPECIFICATION<6YW> M6X45 W/LK WASHER	0-50040-645-0	04	1	9511-9711	●
28	01.062 BOLT; COOLING FAN EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> M6X45 W/LK WASHER	0-50040-645-0	04	1	9712-	●
28	01.062 BOLT; COOLING FAN EXC. FAN FLUID DRIVE<KA3> M8X16 FLANGE	0-28080-816-0	04	1	9801-9804		●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9312-9510	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9607-9708	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1051	8-94161-841-0	01	1	9709-9711	●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1065	8-94240-372-0	01	1	9712-	●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9312-9506	●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9507-9511	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97043-551-0	01	1	9507-9511				●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9512-9701	●
36	01.066 BELT; COOLING FAN EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9512-9701				●
36	01.066 BELT; COOLING FAN FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9312-9312		●
36	01.066 BELT; COOLING FAN REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9401-9510		●
36	01.066 BELT; COOLING FAN FRT INDEPENDENT SUSPENSION(6PP) L=1221	8-97062-480-0	01	1	9401-9510		●
36	01.066 BELT; COOLING FAN REFRIGERATOR CHASSIS(V4R) L=1221	8-97062-480-0	01	1	9511-9711		●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP) L=1225	1-13671-141-0	01	1	9312-9711		●
36	01.066 BELT; COOLING FAN THAILAND EQUIPMENT(PM9) L=1225	1-13671-141-0	01	1	9712-		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) L=1196	1-13671-216-1	01	1	9312-9406		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) L=1196	1-13671-216-1	01	1	9407-9510		●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R) L=1196	1-13671-216-1	01	1	9511-9711		●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1196	1-13671-216-1	01	1	9712-		●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8970147011)	8-97014-252-1	01	1	9312-9409			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8970944470)	8-97094-446-2	01	1	9410-9706			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-0	01	1	9707-			●
36	01.066 BELT; COOLING FAN UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9512-9606				●
36	01.066 BELT; COOLING FAN HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9607-9701				●
36	01.066 BELT; COOLING FAN EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-				●
36	01.066 BELT; COOLING FAN INDONESIA EQUIPMENT(S4S) L=1175	5-13671-045-0	01	1	9312-9406		●
38	01.062 SPACER; FAN EXC. FAN FLUID DRIVE<KA3> 01.064	9-13642-078-0	01	1	9312-9510	●
38	01.062 SPACER; FAN EXC. EURO1 SPECIFICATION<6YW> 01.064	9-13642-078-0	01	1	9511-9711	●
38	01.062 SPACER; FAN EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> 01.064	9-13642-078-0	01	1	9712-	●
38	01.062 SPACER; FAN FAN FLUID DRIVE<KA3>	5-13642-078-0	01	1	9312-9405		●
38	01.062 SPACER; FAN	5-13642-078-0	01	1	9312-9405			●
38	01.062 SPACER; FAN FAN FLUID DRIVE<KA3>	5-13642-078-0	01	1	9406-9407		●
38	01.062 SPACER; FAN FAN FLUID DRIVE<KA3>	8-97108-643-0	01	1	9408-9502		●
38	01.062 SPACER; FAN FAN FLUID DRIVE<KA3>	8-97108-643-0	01	1	9503-		●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	9503-			●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	9406-9502			●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-94428-297-0	01	1	9312-9407	●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-97117-938-0	01	1	9408-	●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9)	8-97080-556-1	01	1	9312-9506	●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9)	8-97080-556-1	01	1	9507-	●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9507-				●
80	02.317 PLATE; ADJ INDONESIA EQUIPMENT(S4S)	5-13674-032-0	01	1	9312-9406		●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP)	8-94157-836-1	01	1	9312-9510		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS (V4R)	8-94157-836-1	01	1	9312-9510		●
80	02.317 PLATE; ADJ WEST MALAYSIA EQUIPMENT(RWP)	8-94157-836-1	01	1	9511-9711		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN) EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R)	8-94157-836-1	01	1	9511-9711		●
80	02.317 PLATE; ADJ THAILAND EQUIPMENT(PM9)	8-94157-836-1	01	1	9712-		●
80	02.317 PLATE; ADJ GENERATOR 24V40A(6MN)	8-94157-836-1	01	1	9712-		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S),REFRIGERATOR CHASSIS(V4R),GENERATO R 24V40A(6MN),FRT INDEPENDENT SUSPENSION(6PP)	8-94129-602-0	01	1	9312-9406		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN),FRT INDEPEN DENT SUSPENSION(6PP)	8-94129-602-0	01	1	9407-9510		●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(RWP), REFRIGERATOR CHASSIS(V4R),GENERATOR 24V40A(6MN)	8-94129-602-0	01	1	9511-9711		●
80	02.317 PLATE; ADJ EXC. THAILAND EQUIPMENT(PM9),GENERATOR 24V40A(6MN)	8-94129-602-0	01	1	9712-		●
80	02.317 PLATE; ADJ	8-97061-466-1	01	1	9312-9702			●
80	02.317 PLATE; ADJ	8-97172-415-0	01	1	9703-			●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-9506	●
88	02.317 WASHER; PL,ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-9506		●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9507-9708	●			●
88	02.317 WASHER; PL,ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9507-9708		●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9709-	●	●		●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9312-9506	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9507-	●			●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9312-9506	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9507-	●			●
96	02.317 BOLT; ADJ PLATE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9312-		●
96	02.317 BOLT; ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9312-9510		●
96	02.317 BOLT; ADJ PLATE EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9511-9711		●
96	02.317 BOLT; ADJ PLATE 03.613 (B) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9712-		●
96	02.317 BOLT; ADJ PLATE M8X40 W/WASHER	8-97011-792-4	01	1	9312-9502			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X120 FLANGE	8-97062-091-1	01	1	9503-9605			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 01.073 M8X120 FLANGE	8-97062-091-1	01	1	9606-9701			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE	8-97172-720-1	01	1	9702-			●
109	01.062 STUD; FAN CLU FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27	9-04110-618-0	04	1	9312-9510	●
109	01.062 STUD; FAN CLU EURO1 SPECIFICATION<6YW> 01.073 M6X18 L=27	9-04110-618-0	04	1	9511-9711	●
109	01.062 STUD; FAN CLU FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27	9-04110-618-0	04	1	9712-	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	9407-			●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> 01.064	5-13660-300-0	01	1	9312-9711	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064	5-13660-300-0	01	1	9712-	●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3>	8-97077-619-0	01	1	9312-9406		●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	9312-			●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9507-9711				●
230	01.055 FAN; COOLING TURBOCHARGER<K51> FAN FLUID DRIVE<KA3> 01.064	8-97094-660-0	01	1	9712-	●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9712-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
