0-30 — WATER PUMP AND CORROSION RESISTOR (#33746) — 65 parça

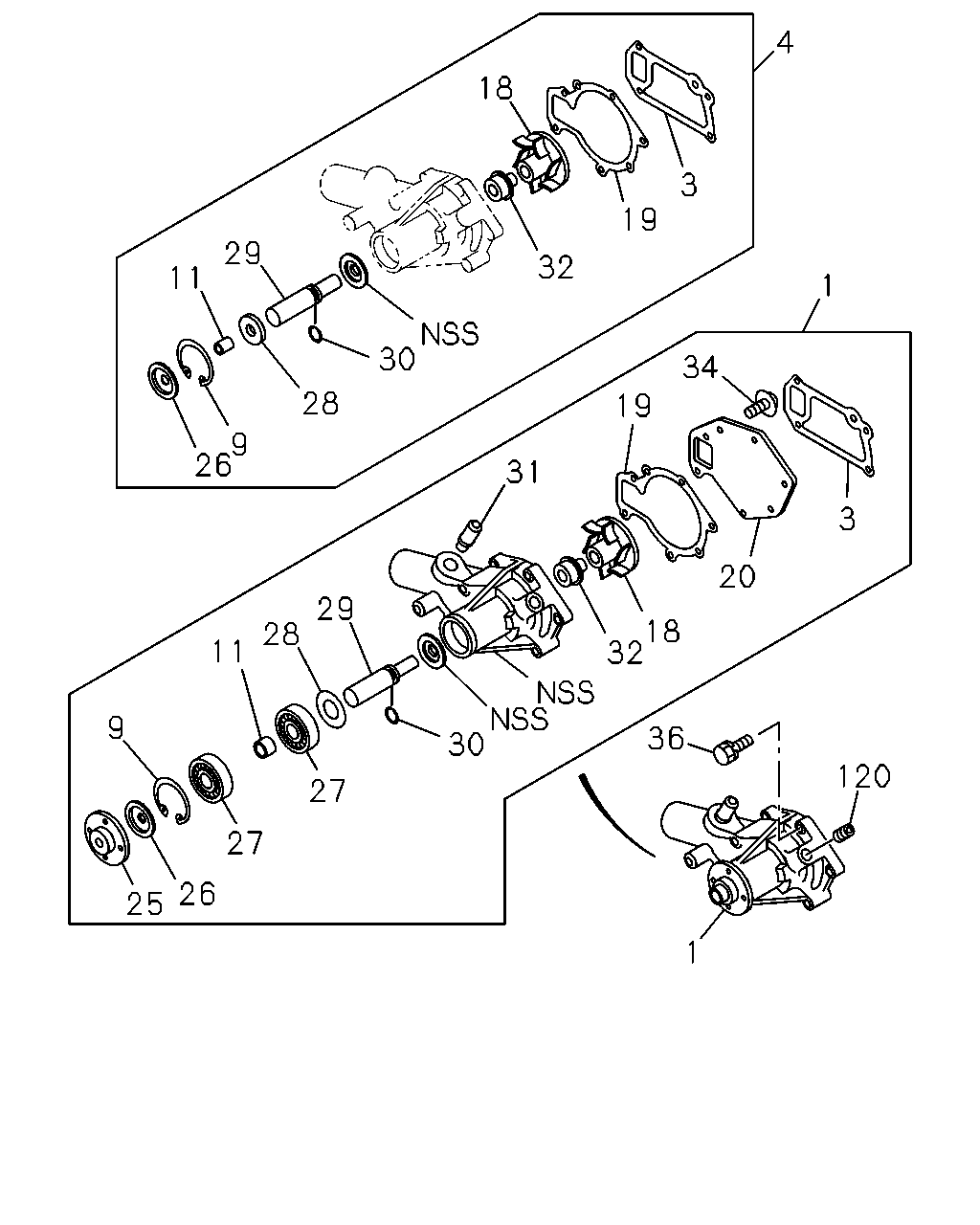

4 18 3 19 29 32 11 1 30 34 28 19 9 26 31 3 20 29 18 32 28 11 30 9 36 120 27 27 26 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.069 PUMP ASM; WATER,W/GASKET	8-97062-796-0	01	1	9312-9410	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97123-330-0	01	1	9411-9506	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97123-330-0	01	1	9507-	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-171-1	01	1	9312-			●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9312-9506	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9507-	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-661-0	01	1	9312-			●
4	01.123 REPAIR KIT; WATER PUMP	8-97020-775-0	01	1	9312-			●
9	01.123 RING; SNAP,WATER PUMP 04.412 OD=50.5	9-09180-147-0	01	1	9312-			●
11	01.123 SPACER; BRG,WATER PUMP	5-13642-071-0	01	1	9312-			●
18	01.109 IMPELLER; WATER PUMP	8-97011-041-0	01	1	9312-			●
19	01.079 GASKET; COVER TO BODY	8-94472-878-0	01	1	9312-			●
20	01.079 COVER; WATER PUMP 01.113	5-13612-010-0	01	1	9312-			●
25	01.123 CENTER; WATER PUMP 01.062	5-13642-076-1	01	1	9312-			●
26	01.073 COVER; DUST,WATER PUMP	5-13639-002-0	01	1	9312-			●
27	01.105 BEARING; WATER PUMP	5-09800-052-0	02	1	9312-			●
28	01.105 WASHER; WATER PUMP 01.123	8-97011-065-0	01	1	9312-			●
29	01.105 SHAFT; WATER PUMP	8-97011-042-0	01	1	9312-			●
30	01.105 RING; SNAP,WATER PUMP SHAFT 01.152	9-09952-103-0	01	1	9312-			●
31	01.097 PIPE; SUCTION,INL	8-94329-912-0	01	1	9312-			●
32	01.123 SEAL UNIT; WATER PUMP	8-97011-040-0	01	1	9312-			●
34	01.079 SCREW; COVER TO BODY,WATER PUMP 01.073 M8X20	9-03065-820-0	03	1	9312-			●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9312-9506	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9507-	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9312-			●
36	00.386 BOLT; WATER PUMP TO C/BL M10X50 W/LK WASHER	0-50041-050-0	01	1	9312-			●
36	00.386 BOLT; WATER PUMP TO C/BL M10X75 W/LK WASHER	5-09030-010-1	02	1	9312-			●
36	00.386 BOLT; WATER PUMP TO C/BL 01.271 M8X40 FLANGE	0-28080-840-0	06	1	9312-9606				●
36	00.386 BOLT; WATER PUMP TO C/BL 03.704 M8X40 FLANGE	0-28680-840-0	06	1	9607-				●
120	01.073 PLUG; HTR,WATER PUMP EXC. HEATER & DEFROSTER(C41) PT3/8	5-09605-005-0	01	1	9312-			●

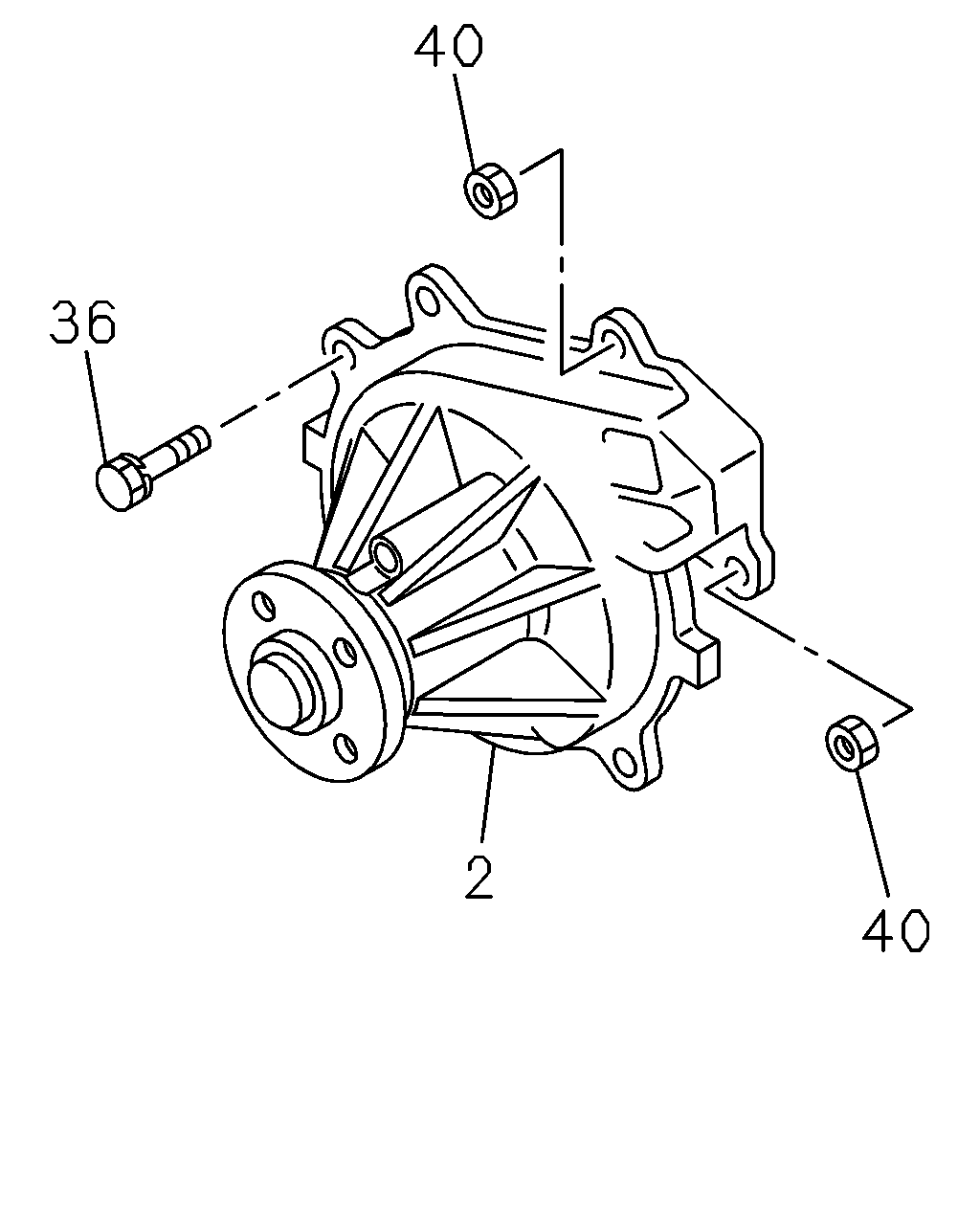

40 36 2 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.069 PUMP ASM; WATER	8-97073-951-0	01	1	9312-9404				●
2	01.069 PUMP ASM; WATER	8-97109-676-1	01	1	9405-				●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9312-9506	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9507-	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9312-			●
36	00.386 BOLT; WATER PUMP TO C/BL M10X50 W/LK WASHER	0-50041-050-0	01	1	9312-			●
36	00.386 BOLT; WATER PUMP TO C/BL M10X75 W/LK WASHER	5-09030-010-1	02	1	9312-			●
36	00.386 BOLT; WATER PUMP TO C/BL 01.271 M8X40 FLANGE	0-28080-840-0	06	1	9312-9606				●
36	00.386 BOLT; WATER PUMP TO C/BL 03.704 M8X40 FLANGE	0-28680-840-0	06	1	9607-				●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9406	●			●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9407-9502	●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9503-9506	●			●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9507-	●	●		●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9407-9502				●

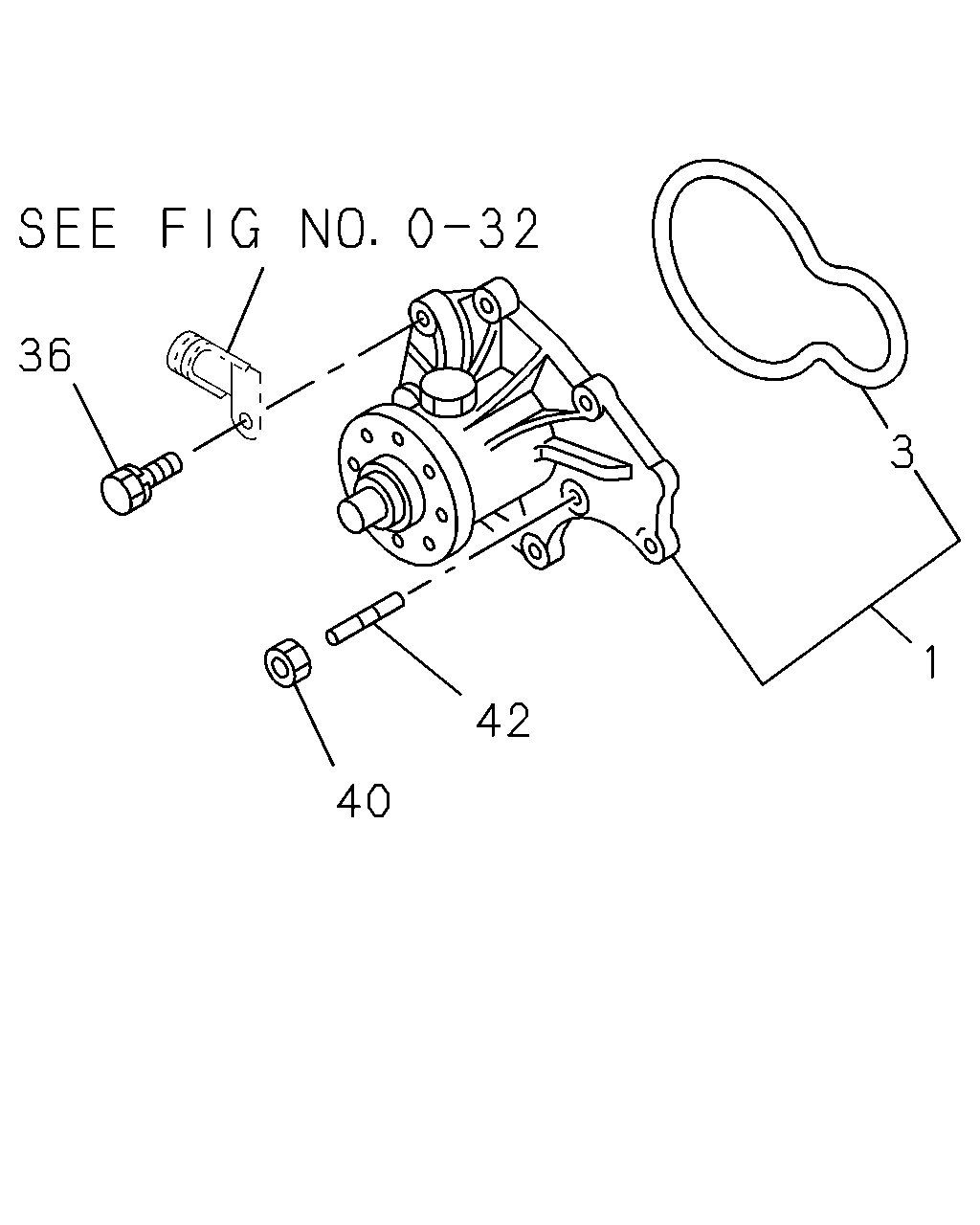

36 3 1 42 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.069 PUMP ASM; WATER,W/GASKET	8-97062-796-0	01	1	9312-9410	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97123-330-0	01	1	9411-9506	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97123-330-0	01	1	9507-	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-171-1	01	1	9312-			●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9312-9506	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9507-	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-661-0	01	1	9312-			●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9312-9506	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9507-	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9312-			●
36	00.386 BOLT; WATER PUMP TO C/BL M10X50 W/LK WASHER	0-50041-050-0	01	1	9312-			●
36	00.386 BOLT; WATER PUMP TO C/BL M10X75 W/LK WASHER	5-09030-010-1	02	1	9312-			●
36	00.386 BOLT; WATER PUMP TO C/BL 01.271 M8X40 FLANGE	0-28080-840-0	06	1	9312-9606				●
36	00.386 BOLT; WATER PUMP TO C/BL 03.704 M8X40 FLANGE	0-28680-840-0	06	1	9607-				●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9406	●			●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9407-9502	●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9503-9506	●			●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9507-	●	●		●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9407-9502				●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9312-9506	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9507-	●	●
