Sayfa 0-20 - Isuzu EPC

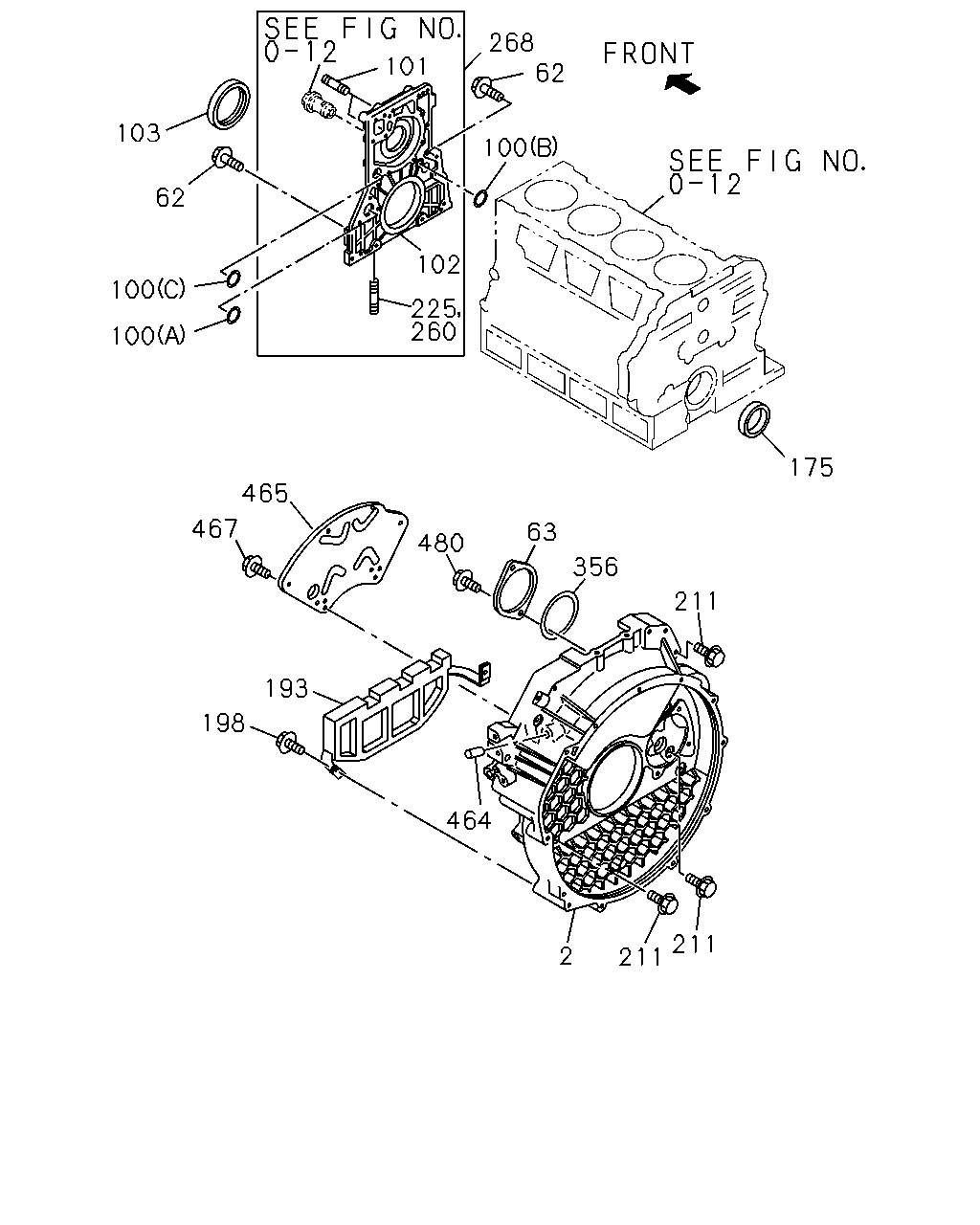

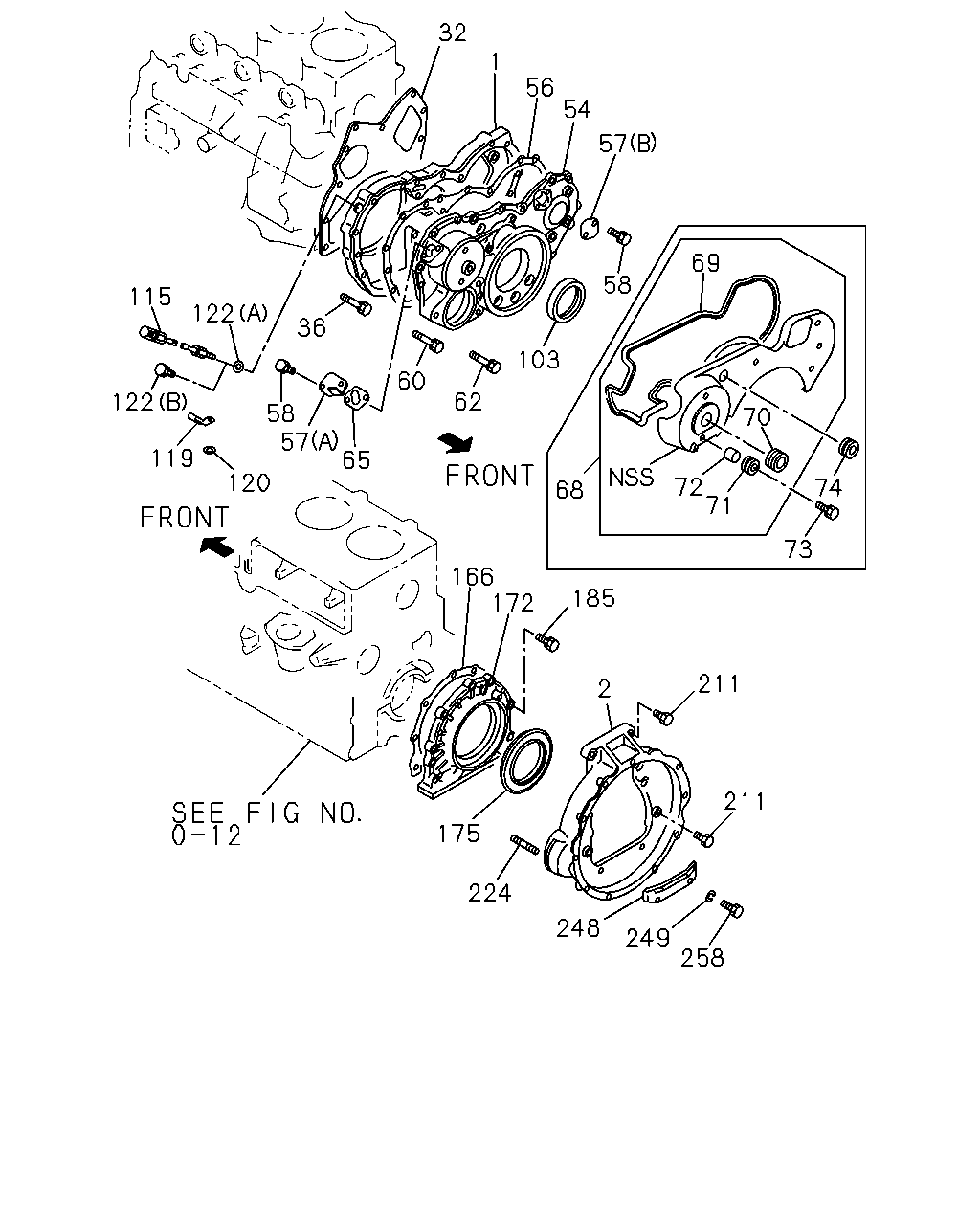

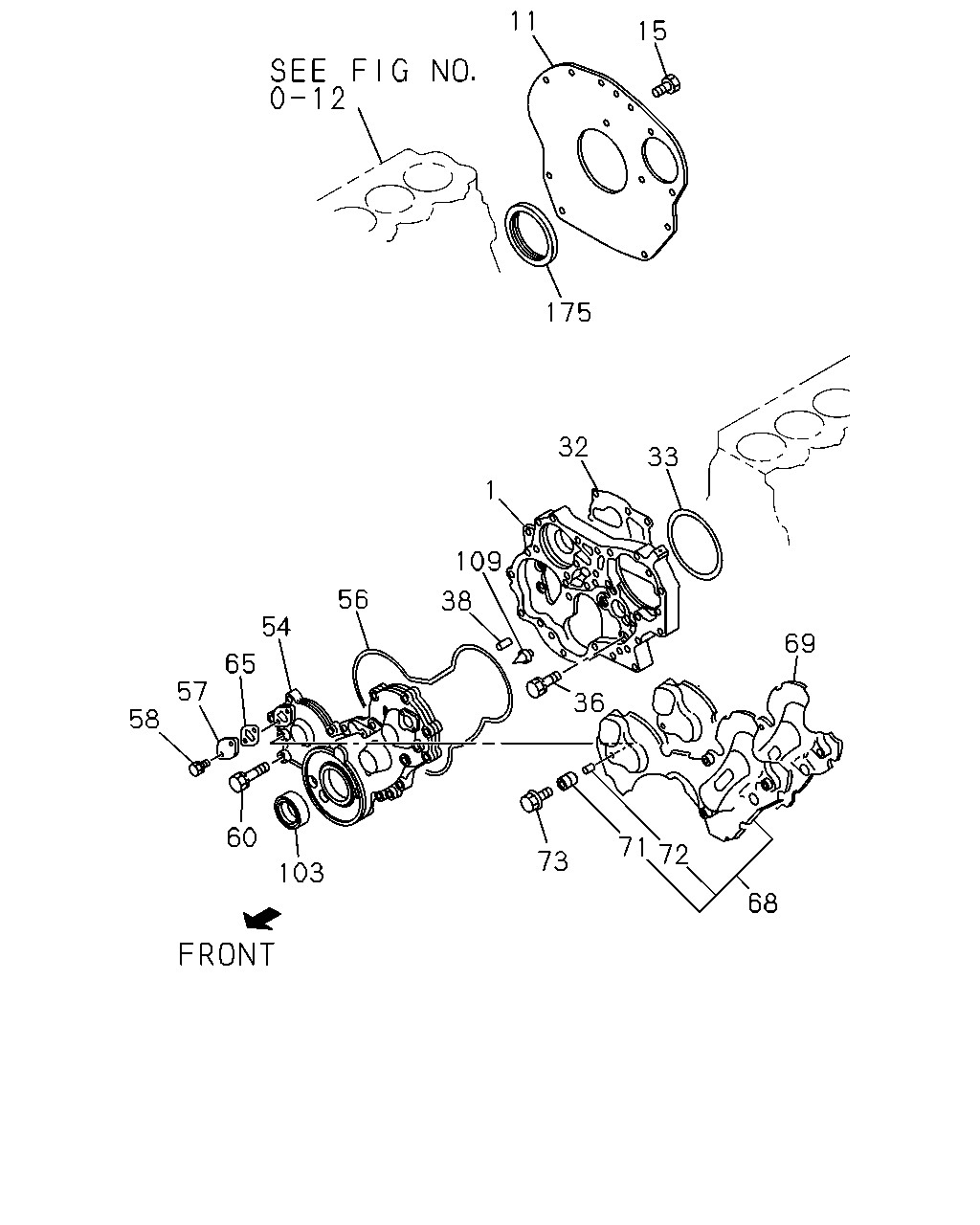

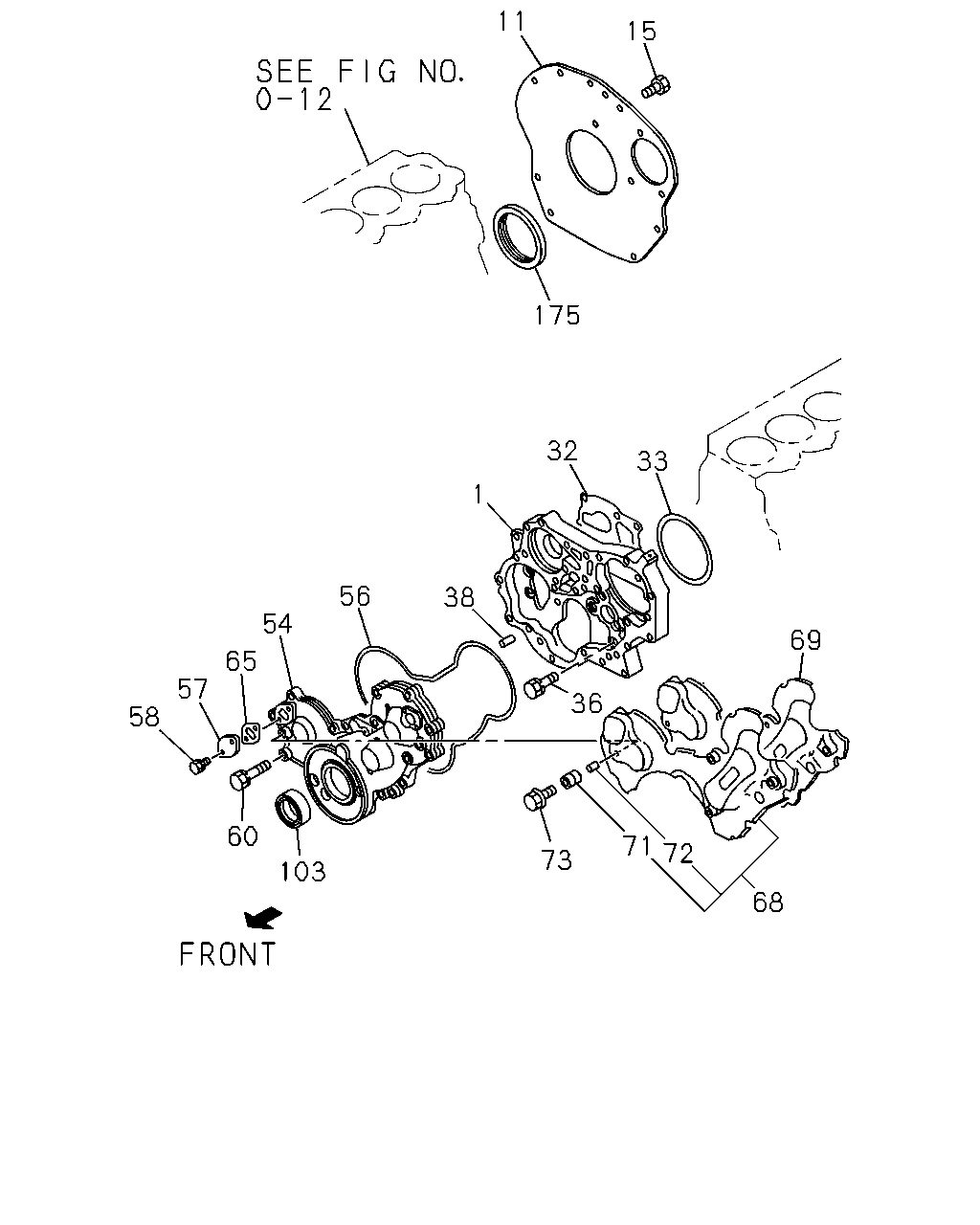

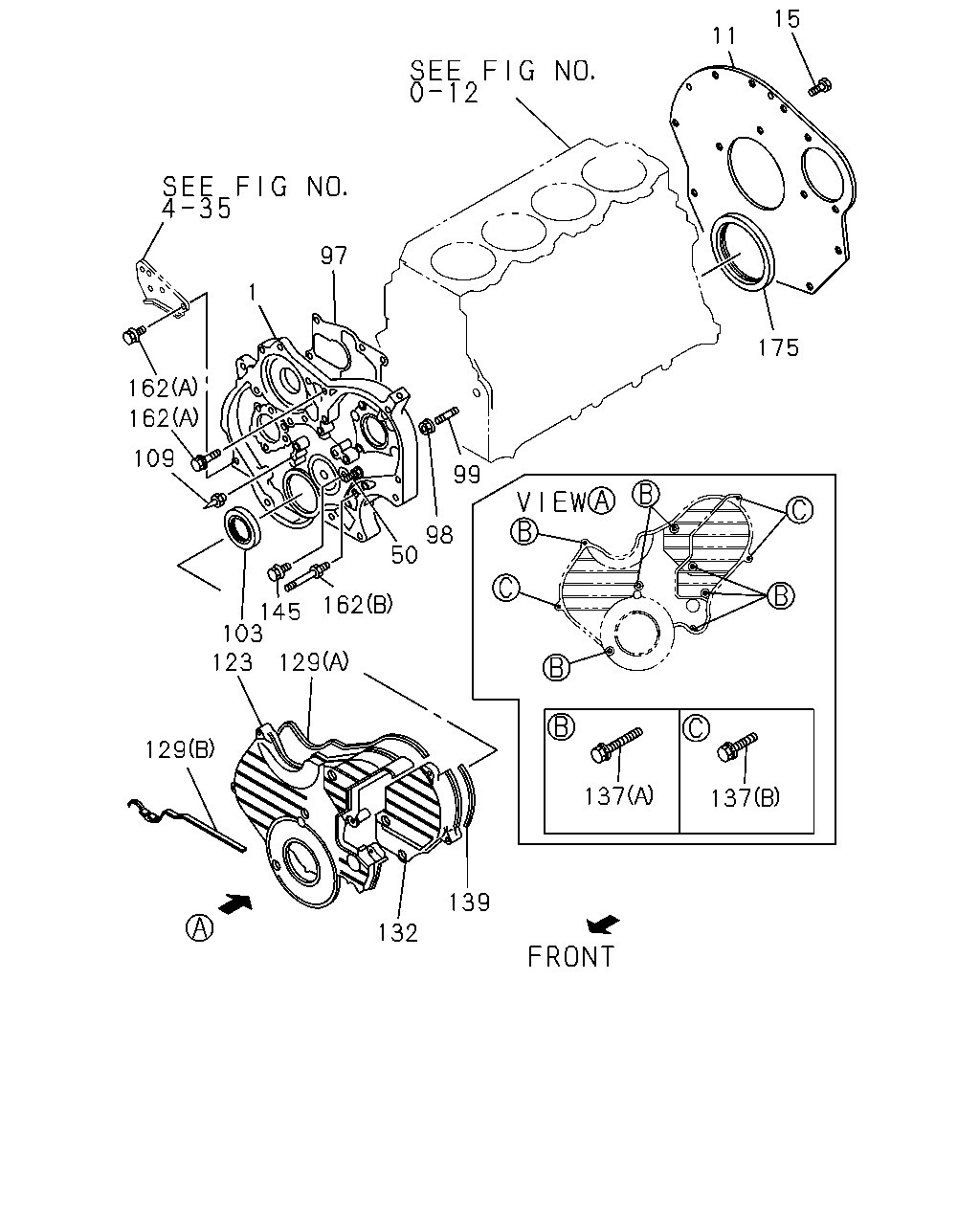

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#33741) — 633 parça

32 1 56 54 57 69 58 115 122 36 103 60 122 62 58 57 70 119 65 120 72 71 74 68 73 166 172 185 211 2 211 175 224 248 249 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR	8-94155-361-3	01	1	9312-9506	●
1	00.206 CASE; TIMING GEAR	8-97129-982-0	01	1	9507-9510	●
1	00.206 CASE; TIMING GEAR	8-97129-982-1	01	1	9511-9711	●
1	00.206 CASE; TIMING GEAR AUSTRALIA EQUIPMENT(RR3)	8-97129-982-1	01	1	9511-9711		●
1	00.206 CASE; TIMING GEAR	8-97129-982-2	01	1	9712-	●
1	00.206 CASE; TIMING GEAR	8-94457-910-2	01	1	9312-9608			●
1	00.206 CASE; TIMING GEAR TACHOMETER<U16>	8-94457-910-2	01	1	9609-			●
1	00.206 CASE; TIMING GEAR EXC. TACHOMETER<U16>	8-94450-975-2	01	1	9609-			●
1	00.206 CASE; TIMING GEAR	8-97115-133-0	01	1	9507-9510		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA)	8-97115-133-0	01	1	9511-9511		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF>	8-97115-133-0	01	1	9512-9606		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF>	8-97160-960-0	01	1	9607-9711		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97141-532-1	01	1	9512-9606		●
1	00.206 CASE; TIMING GEAR HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97141-532-1	01	1	9607-9711		●
1	00.206 CASE; TIMING GEAR	8-97141-532-1	01	1	9712-		●
2	00.683 HOUSING; FLYWHEEL	8-94327-481-1	01	1	9312-9605			●
2	00.683 HOUSING; FLYWHEEL	8-97146-428-0	01	1	9606-			●
2	00.683 HOUSING; FLYWHEEL	8-97071-848-5	01	1	9312-9407				●
2	00.683 HOUSING; FLYWHEEL	8-97112-139-5	01	1	9408-				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97046-469-0	01	1	9312-9409	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO1 SPECIFICATION<6YW>	8-97046-469-0	01	1	9410-9411	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97046-469-1	01	1	9412-9507	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9508-9609	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9610-9711	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97129-427-0	01	1	9610-9711		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9712-	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-671-0	01	1	9312-			●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9312-9609	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9610-9711	●
36	00.206 BOLT; GEAR CASE AUSTRALIA EQUIPMENT(RR3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9610-9711		●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9712-	●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9312-9609	●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9610-9711	●
36	00.206 BOLT; GEAR CASE AUSTRALIA EQUIPMENT(RR3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9610-9711		●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9712-9802	●
36	00.206 BOLT; GEAR CASE TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41),POWER STEERING<N40>,TACHOMETER<U16> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9712-9802	●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9803-	●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9312-9609	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9312-9609			●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9610-9711	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9610-9711			●
36	00.206 BOLT; GEAR CASE AUSTRALIA EQUIPMENT(RR3) EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9610-9711		●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9712-	●
36	00.206 BOLT; GEAR CASE TURBOCHARGER<K51> EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9712-	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9712-			●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9312-			●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9312-9609	●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9610-9711	●
54	00.206 COVER; GEAR CASE AUSTRALIA EQUIPMENT(RR3)	8-94155-360-2	01	1	9610-9711		●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9712-	●
54	00.206 COVER; GEAR CASE POWER STEERING<N40>	8-94371-853-2	01	1	9312-			●
54	00.206 COVER; GEAR CASE EXC. POWER STEERING<N40>	8-94465-434-2	01	1	9312-			●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9312-9609	●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9610-9711	●
56	00.207 GASKET; GEAR CASE TO COVER AUSTRALIA EQUIPMENT(RR3)	8-94140-117-1	01	1	9610-9711		●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9712-	●
56	00.207 GASKET; GEAR CASE TO COVER	8-94370-672-0	01	1	9312-			●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9312-9609	●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9610-9711	●
57	00.206 COVER; TIMING CHECK HOLE AUSTRALIA EQUIPMENT(RR3)	5-11321-009-0	02	1	9610-9711		●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9712-	●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	01	1	9312-			●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-94250-086-1	01	1	9312-			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9312-9609	●
58	00.206 BOLT; CHECK HOLE COVER EXC. POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	04	1	9312-9609			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9610-9711	●
58	00.206 BOLT; CHECK HOLE COVER EXC. POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	04	1	9610-9711			●
58	00.206 BOLT; CHECK HOLE COVER AUSTRALIA EQUIPMENT(RR3) M6X14 W/LK WASHER	0-50040-614-0	04	1	9610-9711		●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9712-	●
58	00.206 BOLT; CHECK HOLE COVER EXC. POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	04	1	9712-			●
58	00.206 BOLT; CHECK HOLE COVER POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	03	1	9312-			●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9312-9609	●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9610-9711	●
60	00.206 BOLT; COVER TO CASE AUSTRALIA EQUIPMENT(RR3) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9610-9711		●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9712-	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9312-9609	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9610-9711	●
60	00.206 BOLT; COVER TO CASE AUSTRALIA EQUIPMENT(RR3) 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9610-9711		●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9712-	●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9312-9609	●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9610-9711	●
60	00.206 BOLT; COVER TO CASE AUSTRALIA EQUIPMENT(RR3) M8X65 W/LK WASHER	8-94205-986-1	06	1	9610-9711		●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9712-	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9312-9609	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9610-9711	●
60	00.206 BOLT; COVER TO CASE AUSTRALIA EQUIPMENT(RR3) M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9610-9711		●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9712-	●
60	00.206 BOLT; COVER TO CASE 01.073 M8X25 W/LK WASHER	0-50040-825-0	08	1	9312-			●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	04	1	9312-			●
60	00.206 BOLT; COVER TO CASE M8X80 W/LK WASHER	0-50040-880-0	01	1	9312-			●
62	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.386 M10X50 W/LK WASHER	0-50041-050-0	03	1	9312-			●
62	00.206 BOLT; COVER 08.900 M8X22 FLANGE	0-28080-822-0	07	1	9312-9510				●
62	00.206 BOLT; COVER 08.900 M8X22 FLANGE	0-28080-822-0	01	1	9511-9511				●
62	00.206 BOLT; COVER 00.004 M8X32 FLANGE	0-28080-832-0	05	1	9312-9510				●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	9512-				●
62	00.206 BOLT; COVER 00.349 M8X65	8-94158-393-1	03	1	9312-9402				●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	9403-				●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	9512-				●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EURO1 SPECIFICATION<6YW>	8-97118-698-0	02	1	9410-9412	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9501-9609	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9610-9711	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE AUSTRALIA EQUIPMENT(RR3)	8-97118-698-0	02	1	9610-9711		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9712-	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9312-9409	●		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EXC. HONG KONG EQUIPMENT(PQ1)	8-97045-362-1	02	1	9410-9412	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9410-9412			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9501-			●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9312-9609	●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9610-9711	●
68	00.206 COVER ASM; GEAR CASE COVER AUSTRALIA EQUIPMENT(RR3)	8-94155-721-1	01	1	9610-9711		●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9712-	●
68	00.206 COVER ASM; GEAR CASE COVER	5-19380-023-2	01	1	9312-			●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	9312-9609	●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	9610-9711	●
69	00.206 SEAL; RUBBER,COVER TO COVER AUSTRALIA EQUIPMENT(RR3)	8-94155-722-3	01	1	9610-9711		●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	9712-	●
69	00.206 SEAL; RUBBER,COVER TO COVER	5-19387-005-1	01	1	9312-			●
70	01.531 GROMMET; OIL PIPE SEAL 00.413	1-19389-004-0	01	1	9312-			●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9312-9609	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9610-9711	●
71	00.206 RUBBER; MTG,COVER AUSTRALIA EQUIPMENT(RR3)	5-19389-002-0	04	1	9610-9711		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9712-	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	07	1	9312-			●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9312-9609	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9610-9711	●
72	00.206 BUSHING; SPACER,COVER TO COVER AUSTRALIA EQUIPMENT(RR3)	5-19389-009-0	04	1	9610-9711		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9712-	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	07	1	9312-			●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9312-9609	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9610-9711	●
73	00.206 BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3) 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9610-9711		●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9712-	●
73	00.206 BOLT; COVER FIX 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	07	1	9312-			●
74	00.206 GROMMET; BOX COVER	8-94222-309-1	01	1	9407-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9312-9609	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9610-9711	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97049-145-0	01	1	9610-9711		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9712-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9312-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9312-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9507-9510		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(6AA)	8-97071-560-1	01	1	9511-9606		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97071-560-1	01	1	9607-9711		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9712-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97049-145-0	01	1	9511-9609		●
115	09.761 SENSOR; REVOLUTION,ENG SPD TACHOMETER<U16>	8-97021-162-1	01	1	9312-			●
119	09.762 CLIP; HARNESS,ENG SPD SENSOR TACHOMETER<U16> 01.152 ID=8.5	5-09700-275-0	01	1	9312-			●
120	09.762 WASHER; PL,CLIP TACHOMETER<U16> EXC. POWER STEERING<N40> 00.206 ID=8.4	9-09164-508-0	01	1	9312-			●
122	09.762 GASKET; ENG SPD SENSOR 01.252 (A) ID=16.2 OD=24	9-09571-416-0	01	1	9312-9608			●
122	09.762 GASKET; ENG SPD SENSOR TACHOMETER<U16> 01.252 (A) ID=16.2 OD=24	9-09571-416-0	01	1	9609-			●
122	09.762 GASKET; ENG SPD SENSOR EXC. TACHOMETER<U16> (B)	1-09009-119-0	01	1	9312-9608			●
166	00.207 GASKET; RET TO C/BL	8-94370-664-0	01	1	9312-			●
172	00.137 RETAINER; CR/SHF	8-97079-520-0	01	1	9312-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9312-9506	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9507-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9312-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9312-				●
185	00.727 BOLT; RET TO C/BL M8X22 W/LK WASHER	0-50040-822-0	07	1	9312-			●
211	00.669 BOLT; HSG M14X50	0-50041-450-0	04	1	9312-			●
211	00.669 BOLT; HSG M14X45	8-94341-374-1	02	1	9312-			●
211	00.669 BOLT; HSG M14X65	8-94341-376-1	02	1	9312-			●
211	00.669 BOLT; HSG 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9312-9403				●
211	00.669 BOLT; HSG 00.002 M12X30 FLANGE	8-94343-919-0	01	1	9312-9511				●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	9512-				●
211	00.669 BOLT; HSG M8X65 W/PL WASHER	8-94388-781-0	02	1	9312-				●
211	00.669 BOLT; HSG M12X70	8-94388-783-1	09	1	9312-9404				●
211	00.669 BOLT; HSG 04.510 M10X40 FLANGE	0-28181-040-0	01	1	9404-9606				●
211	00.669 BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	9607-				●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9405-				●
211	00.669 BOLT; HSG M14X35 FLANGE	0-28791-435-0	01	1	9410-9510				●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28791-435-0	01	1	9511-				●
224	02.042 STUD; STARTER M12X45 L=63	8-94139-529-0	01	1	9312-			●
224	02.042 STUD; STARTER M12X33 L=51	9-94411-233-0	01	1	9312-			●
248	00.669 COVER; DUST,FLYWHEEL HSG RET	8-97042-801-0	01	1	9312-			●
249	00.669 WASHER; LK,DUST COVER 00.206 ID=6.1	9-09150-506-0	02	1	9312-9605			●
258	00.669 BOLT; DUST COVER,RET M6X12	0-20800-612-0	02	1	9312-9605			●
258	00.669 BOLT; DUST COVER,RET 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9606-			●

15 11 97 1 175 162 162 109 99 98 50 162 145 103 123 129 129 137 137 139 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR	8-94155-361-3	01	1	9312-9506	●
1	00.206 CASE; TIMING GEAR	8-97129-982-0	01	1	9507-9510	●
1	00.206 CASE; TIMING GEAR	8-97129-982-1	01	1	9511-9711	●
1	00.206 CASE; TIMING GEAR AUSTRALIA EQUIPMENT(RR3)	8-97129-982-1	01	1	9511-9711		●
1	00.206 CASE; TIMING GEAR	8-97129-982-2	01	1	9712-	●
1	00.206 CASE; TIMING GEAR	8-94457-910-2	01	1	9312-9608			●
1	00.206 CASE; TIMING GEAR TACHOMETER<U16>	8-94457-910-2	01	1	9609-			●
1	00.206 CASE; TIMING GEAR EXC. TACHOMETER<U16>	8-94450-975-2	01	1	9609-			●
1	00.206 CASE; TIMING GEAR	8-97115-133-0	01	1	9507-9510		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA)	8-97115-133-0	01	1	9511-9511		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF>	8-97115-133-0	01	1	9512-9606		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF>	8-97160-960-0	01	1	9607-9711		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97141-532-1	01	1	9512-9606		●
1	00.206 CASE; TIMING GEAR HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97141-532-1	01	1	9607-9711		●
1	00.206 CASE; TIMING GEAR	8-97141-532-1	01	1	9712-		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9312-9506	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9507-	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9312-9506	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9507-	●	●
50	00.206 STUD UNITED KINGDOM EQUIPMENT(6AA) M8X42.5 L=69	8-97148-539-0	01	1	9606-9606		●
50	00.206 STUD HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) M8X42.5 L=69	8-97148-539-0	01	1	9607-9711		●
50	00.206 STUD M8X42.5 L=69	8-97148-539-0	01	1	9712-		●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-429-0	01	1	9507-9510		●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(6AA)	8-97129-429-0	01	1	9511-9606		●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97129-429-0	01	1	9607-9711		●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-429-0	01	1	9712-		●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	03	1	9507-9510		●
98	00.206 NUT; STUD,INJ PUMP UNITED KINGDOM EQUIPMENT(6AA) 03.340 M8	8-94224-829-0	03	1	9511-9511		●
98	00.206 NUT; STUD,INJ PUMP UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF> 03.340 M8	8-94224-829-0	03	1	9512-9711		●
98	00.206 NUT; STUD,INJ PUMP UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> 03.340 M8	8-94224-829-0	02	1	9512-9606		●
98	00.206 NUT; STUD,INJ PUMP HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> 03.340 M8	8-94224-829-0	02	1	9607-9711		●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	02	1	9712-		●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	03	1	9507-9510		●
99	00.206 STUD; INJ PUMP UNITED KINGDOM EQUIPMENT(6AA) 00.004 M8X28 L=44	9-04020-828-0	03	1	9511-9511		●
99	00.206 STUD; INJ PUMP UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF> 00.004 M8X28 L=44	9-04020-828-0	03	1	9512-9711		●
99	00.206 STUD; INJ PUMP UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> 00.004 M8X28 L=44	9-04020-828-0	02	1	9512-9606		●
99	00.206 STUD; INJ PUMP HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> 00.004 M8X28 L=44	9-04020-828-0	02	1	9607-9711		●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	02	1	9712-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9312-9609	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9610-9711	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97049-145-0	01	1	9610-9711		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9712-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9312-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9312-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9507-9510		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(6AA)	8-97071-560-1	01	1	9511-9606		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97071-560-1	01	1	9607-9711		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9712-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97049-145-0	01	1	9511-9609		●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	9507-9510		●
109	00.219 POINTER; TIMING UNITED KINGDOM EQUIPMENT(6AA) M5X7.5	8-94133-500-0	01	1	9511-9606		●
109	00.219 POINTER; TIMING HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) M5X7.5	8-94133-500-0	01	1	9607-9711		●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	9712-		●
123	00.206 COVER; TIMING,LWR	8-97038-105-0	01	1	9507-9510		●
123	00.206 COVER; TIMING,LWR UNITED KINGDOM EQUIPMENT(6AA)	8-97038-105-0	01	1	9511-9606		●
123	00.206 COVER; TIMING,LWR HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97038-105-1	01	1	9607-9711		●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	9712-		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=560	8-94464-695-1	01	1	9507-9510		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(6AA) (B) L=560	8-94464-695-1	01	1	9511-9606		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) (B) L=560	8-94464-695-1	01	1	9607-9711		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=560	8-94464-695-1	01	1	9712-		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=366	8-94464-696-0	01	1	9507-9510		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(6AA) (A) L=366	8-94464-696-0	01	1	9511-9606		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) (A) L=366	8-94464-696-0	01	1	9607-9711		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=366	8-94464-696-0	01	1	9712-		●
132	00.206 COVER; TIMING,UPR	8-97038-103-0	01	1	9507-9510		●
132	00.206 COVER; TIMING,UPR UNITED KINGDOM EQUIPMENT(6AA)	8-97038-103-0	01	1	9511-9606		●
132	00.206 COVER; TIMING,UPR HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97038-103-1	01	1	9607-9711		●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	9712-		●
137	00.206 BOLT; FRT PLATE (A) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9507-9510		●
137	00.206 BOLT; FRT PLATE UNITED KINGDOM EQUIPMENT(6AA) (A) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9511-9606		●
137	00.206 BOLT; FRT PLATE HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) (A) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9607-9711		●
137	00.206 BOLT; FRT PLATE (A) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9712-		●
137	00.206 BOLT; FRT PLATE (B) M6X50 W/LK WASHER	8-94152-616-1	03	1	9507-9510		●
137	00.206 BOLT; FRT PLATE UNITED KINGDOM EQUIPMENT(6AA) (B) M6X50 W/LK WASHER	8-94152-616-1	03	1	9511-9606		●
137	00.206 BOLT; FRT PLATE HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) (B) M6X50 W/LK WASHER	8-94152-616-1	03	1	9607-9711		●
137	00.206 BOLT; FRT PLATE (B) M6X50 W/LK WASHER	8-94152-616-1	03	1	9712-		●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-94139-961-0	01	1	9507-9510		●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(6AA) L=215	8-94139-961-0	01	1	9511-9606		●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) L=215	8-94139-961-0	01	1	9607-9711		●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-94139-961-0	01	1	9712-		●
145	00.206 BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	9507-9510		●
145	00.206 BOLT; TENSIONER GUIDE UNITED KINGDOM EQUIPMENT(6AA) M8X20	8-94152-617-1	01	1	9511-9606		●
145	00.206 BOLT; TENSIONER GUIDE HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) M8X20	8-94152-617-1	01	1	9607-9711		●
145	00.206 BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	9712-		●
162	00.206 BOLT; FRT PLATE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	03	1	9507-9510		●
162	00.206 BOLT; FRT PLATE UNITED KINGDOM EQUIPMENT(6AA) 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	03	1	9511-9606		●
162	00.206 BOLT; FRT PLATE HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	03	1	9607-9711		●
162	00.206 BOLT; FRT PLATE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	03	1	9712-		●
162	00.206 BOLT; FRT PLATE (B) M8X19.5,M8X42.5 L=69	8-94167-314-1	01	1	9507-9510		●
162	00.206 BOLT; FRT PLATE UNITED KINGDOM EQUIPMENT(6AA) (B) M8X19.5,M8X42.5 L=69	8-94167-314-1	01	1	9511-9605		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9312-9506	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9507-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9312-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9312-				●

11 15 175 32 33 1 109 56 38 54 69 65 57 36 58 60 71 72 73 103 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR	8-94155-361-3	01	1	9312-9506	●
1	00.206 CASE; TIMING GEAR	8-97129-982-0	01	1	9507-9510	●
1	00.206 CASE; TIMING GEAR	8-97129-982-1	01	1	9511-9711	●
1	00.206 CASE; TIMING GEAR AUSTRALIA EQUIPMENT(RR3)	8-97129-982-1	01	1	9511-9711		●
1	00.206 CASE; TIMING GEAR	8-97129-982-2	01	1	9712-	●
1	00.206 CASE; TIMING GEAR	8-94457-910-2	01	1	9312-9608			●
1	00.206 CASE; TIMING GEAR TACHOMETER<U16>	8-94457-910-2	01	1	9609-			●
1	00.206 CASE; TIMING GEAR EXC. TACHOMETER<U16>	8-94450-975-2	01	1	9609-			●
1	00.206 CASE; TIMING GEAR	8-97115-133-0	01	1	9507-9510		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA)	8-97115-133-0	01	1	9511-9511		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF>	8-97115-133-0	01	1	9512-9606		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF>	8-97160-960-0	01	1	9607-9711		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97141-532-1	01	1	9512-9606		●
1	00.206 CASE; TIMING GEAR HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97141-532-1	01	1	9607-9711		●
1	00.206 CASE; TIMING GEAR	8-97141-532-1	01	1	9712-		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9312-9506	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9507-	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9312-9506	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9507-	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97046-469-0	01	1	9312-9409	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO1 SPECIFICATION<6YW>	8-97046-469-0	01	1	9410-9411	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97046-469-1	01	1	9412-9507	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9508-9609	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9610-9711	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97129-427-0	01	1	9610-9711		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9712-	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-671-0	01	1	9312-			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9312-9609	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9610-9711	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-94109-707-0	01	1	9610-9711		●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9712-	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9312-9609	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9610-9711	●
36	00.206 BOLT; GEAR CASE AUSTRALIA EQUIPMENT(RR3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9610-9711		●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9712-	●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9312-9609	●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9610-9711	●
36	00.206 BOLT; GEAR CASE AUSTRALIA EQUIPMENT(RR3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9610-9711		●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9712-9802	●
36	00.206 BOLT; GEAR CASE TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41),POWER STEERING<N40>,TACHOMETER<U16> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9712-9802	●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9803-	●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9312-9609	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9312-9609			●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9610-9711	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9610-9711			●
36	00.206 BOLT; GEAR CASE AUSTRALIA EQUIPMENT(RR3) EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9610-9711		●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9712-	●
36	00.206 BOLT; GEAR CASE TURBOCHARGER<K51> EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9712-	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9712-			●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9312-			●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9312-9609	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9610-9711	●
38	00.685 PIN; GEAR CASE COVER AUSTRALIA EQUIPMENT(RR3) 00.669 OD=10 L=20	9-08151-020-0	02	1	9610-9711		●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9712-	●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9312-9609	●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9610-9711	●
54	00.206 COVER; GEAR CASE AUSTRALIA EQUIPMENT(RR3)	8-94155-360-2	01	1	9610-9711		●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9712-	●
54	00.206 COVER; GEAR CASE POWER STEERING<N40>	8-94371-853-2	01	1	9312-			●
54	00.206 COVER; GEAR CASE EXC. POWER STEERING<N40>	8-94465-434-2	01	1	9312-			●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9312-9609	●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9610-9711	●
56	00.207 GASKET; GEAR CASE TO COVER AUSTRALIA EQUIPMENT(RR3)	8-94140-117-1	01	1	9610-9711		●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9712-	●
56	00.207 GASKET; GEAR CASE TO COVER	8-94370-672-0	01	1	9312-			●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9312-9609	●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9610-9711	●
57	00.206 COVER; TIMING CHECK HOLE AUSTRALIA EQUIPMENT(RR3)	5-11321-009-0	02	1	9610-9711		●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9712-	●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	01	1	9312-			●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-94250-086-1	01	1	9312-			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9312-9609	●
58	00.206 BOLT; CHECK HOLE COVER EXC. POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	04	1	9312-9609			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9610-9711	●
58	00.206 BOLT; CHECK HOLE COVER EXC. POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	04	1	9610-9711			●
58	00.206 BOLT; CHECK HOLE COVER AUSTRALIA EQUIPMENT(RR3) M6X14 W/LK WASHER	0-50040-614-0	04	1	9610-9711		●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9712-	●
58	00.206 BOLT; CHECK HOLE COVER EXC. POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	04	1	9712-			●
58	00.206 BOLT; CHECK HOLE COVER POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	03	1	9312-			●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9312-9609	●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9610-9711	●
60	00.206 BOLT; COVER TO CASE AUSTRALIA EQUIPMENT(RR3) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9610-9711		●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9712-	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9312-9609	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9610-9711	●
60	00.206 BOLT; COVER TO CASE AUSTRALIA EQUIPMENT(RR3) 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9610-9711		●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9712-	●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9312-9609	●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9610-9711	●
60	00.206 BOLT; COVER TO CASE AUSTRALIA EQUIPMENT(RR3) M8X65 W/LK WASHER	8-94205-986-1	06	1	9610-9711		●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9712-	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9312-9609	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9610-9711	●
60	00.206 BOLT; COVER TO CASE AUSTRALIA EQUIPMENT(RR3) M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9610-9711		●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9712-	●
60	00.206 BOLT; COVER TO CASE 01.073 M8X25 W/LK WASHER	0-50040-825-0	08	1	9312-			●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	04	1	9312-			●
60	00.206 BOLT; COVER TO CASE M8X80 W/LK WASHER	0-50040-880-0	01	1	9312-			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EURO1 SPECIFICATION<6YW>	8-97118-698-0	02	1	9410-9412	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9501-9609	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9610-9711	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE AUSTRALIA EQUIPMENT(RR3)	8-97118-698-0	02	1	9610-9711		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9712-	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9312-9409	●		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EXC. HONG KONG EQUIPMENT(PQ1)	8-97045-362-1	02	1	9410-9412	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9410-9412			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9501-			●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9312-9609	●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9610-9711	●
68	00.206 COVER ASM; GEAR CASE COVER AUSTRALIA EQUIPMENT(RR3)	8-94155-721-1	01	1	9610-9711		●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9712-	●
68	00.206 COVER ASM; GEAR CASE COVER	5-19380-023-2	01	1	9312-			●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	9312-9609	●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	9610-9711	●
69	00.206 SEAL; RUBBER,COVER TO COVER AUSTRALIA EQUIPMENT(RR3)	8-94155-722-3	01	1	9610-9711		●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	9712-	●
69	00.206 SEAL; RUBBER,COVER TO COVER	5-19387-005-1	01	1	9312-			●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9312-9609	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9610-9711	●
71	00.206 RUBBER; MTG,COVER AUSTRALIA EQUIPMENT(RR3)	5-19389-002-0	04	1	9610-9711		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9712-	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	07	1	9312-			●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9312-9609	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9610-9711	●
72	00.206 BUSHING; SPACER,COVER TO COVER AUSTRALIA EQUIPMENT(RR3)	5-19389-009-0	04	1	9610-9711		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9712-	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	07	1	9312-			●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9312-9609	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9610-9711	●
73	00.206 BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3) 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9610-9711		●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9712-	●
73	00.206 BOLT; COVER FIX 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	07	1	9312-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9312-9609	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9610-9711	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97049-145-0	01	1	9610-9711		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9712-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9312-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9312-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9507-9510		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(6AA)	8-97071-560-1	01	1	9511-9606		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97071-560-1	01	1	9607-9711		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9712-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97049-145-0	01	1	9511-9609		●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	9507-9510		●
109	00.219 POINTER; TIMING UNITED KINGDOM EQUIPMENT(6AA) M5X7.5	8-94133-500-0	01	1	9511-9606		●
109	00.219 POINTER; TIMING HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) M5X7.5	8-94133-500-0	01	1	9607-9711		●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	9712-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9312-9506	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9507-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9312-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9312-				●

11 15 175 32 33 1 56 38 54 69 65 57 36 58 60 71 72 73 103 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR	8-94155-361-3	01	1	9312-9506	●
1	00.206 CASE; TIMING GEAR	8-97129-982-0	01	1	9507-9510	●
1	00.206 CASE; TIMING GEAR	8-97129-982-1	01	1	9511-9711	●
1	00.206 CASE; TIMING GEAR AUSTRALIA EQUIPMENT(RR3)	8-97129-982-1	01	1	9511-9711		●
1	00.206 CASE; TIMING GEAR	8-97129-982-2	01	1	9712-	●
1	00.206 CASE; TIMING GEAR	8-94457-910-2	01	1	9312-9608			●
1	00.206 CASE; TIMING GEAR TACHOMETER<U16>	8-94457-910-2	01	1	9609-			●
1	00.206 CASE; TIMING GEAR EXC. TACHOMETER<U16>	8-94450-975-2	01	1	9609-			●
1	00.206 CASE; TIMING GEAR	8-97115-133-0	01	1	9507-9510		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA)	8-97115-133-0	01	1	9511-9511		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF>	8-97115-133-0	01	1	9512-9606		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF>	8-97160-960-0	01	1	9607-9711		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97141-532-1	01	1	9512-9606		●
1	00.206 CASE; TIMING GEAR HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97141-532-1	01	1	9607-9711		●
1	00.206 CASE; TIMING GEAR	8-97141-532-1	01	1	9712-		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9312-9506	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9507-	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9312-9506	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9507-	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97046-469-0	01	1	9312-9409	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO1 SPECIFICATION<6YW>	8-97046-469-0	01	1	9410-9411	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97046-469-1	01	1	9412-9507	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9508-9609	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9610-9711	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97129-427-0	01	1	9610-9711		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9712-	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-671-0	01	1	9312-			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9312-9609	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9610-9711	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-94109-707-0	01	1	9610-9711		●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9712-	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9312-9609	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9610-9711	●
36	00.206 BOLT; GEAR CASE AUSTRALIA EQUIPMENT(RR3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9610-9711		●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9712-	●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9312-9609	●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9610-9711	●
36	00.206 BOLT; GEAR CASE AUSTRALIA EQUIPMENT(RR3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9610-9711		●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9712-9802	●
36	00.206 BOLT; GEAR CASE TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41),POWER STEERING<N40>,TACHOMETER<U16> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9712-9802	●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9803-	●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9312-9609	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9312-9609			●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9610-9711	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9610-9711			●
36	00.206 BOLT; GEAR CASE AUSTRALIA EQUIPMENT(RR3) EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9610-9711		●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9712-	●
36	00.206 BOLT; GEAR CASE TURBOCHARGER<K51> EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9712-	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9712-			●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9312-			●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9312-9609	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9610-9711	●
38	00.685 PIN; GEAR CASE COVER AUSTRALIA EQUIPMENT(RR3) 00.669 OD=10 L=20	9-08151-020-0	02	1	9610-9711		●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9712-	●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9312-9609	●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9610-9711	●
54	00.206 COVER; GEAR CASE AUSTRALIA EQUIPMENT(RR3)	8-94155-360-2	01	1	9610-9711		●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9712-	●
54	00.206 COVER; GEAR CASE POWER STEERING<N40>	8-94371-853-2	01	1	9312-			●
54	00.206 COVER; GEAR CASE EXC. POWER STEERING<N40>	8-94465-434-2	01	1	9312-			●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9312-9609	●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9610-9711	●
56	00.207 GASKET; GEAR CASE TO COVER AUSTRALIA EQUIPMENT(RR3)	8-94140-117-1	01	1	9610-9711		●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9712-	●
56	00.207 GASKET; GEAR CASE TO COVER	8-94370-672-0	01	1	9312-			●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9312-9609	●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9610-9711	●
57	00.206 COVER; TIMING CHECK HOLE AUSTRALIA EQUIPMENT(RR3)	5-11321-009-0	02	1	9610-9711		●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9712-	●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	01	1	9312-			●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-94250-086-1	01	1	9312-			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9312-9609	●
58	00.206 BOLT; CHECK HOLE COVER EXC. POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	04	1	9312-9609			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9610-9711	●
58	00.206 BOLT; CHECK HOLE COVER EXC. POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	04	1	9610-9711			●
58	00.206 BOLT; CHECK HOLE COVER AUSTRALIA EQUIPMENT(RR3) M6X14 W/LK WASHER	0-50040-614-0	04	1	9610-9711		●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9712-	●
58	00.206 BOLT; CHECK HOLE COVER EXC. POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	04	1	9712-			●
58	00.206 BOLT; CHECK HOLE COVER POWER STEERING<N40> M6X14 W/LK WASHER	0-50040-614-0	03	1	9312-			●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9312-9609	●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9610-9711	●
60	00.206 BOLT; COVER TO CASE AUSTRALIA EQUIPMENT(RR3) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9610-9711		●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9712-	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9312-9609	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9610-9711	●
60	00.206 BOLT; COVER TO CASE AUSTRALIA EQUIPMENT(RR3) 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9610-9711		●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9712-	●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9312-9609	●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9610-9711	●
60	00.206 BOLT; COVER TO CASE AUSTRALIA EQUIPMENT(RR3) M8X65 W/LK WASHER	8-94205-986-1	06	1	9610-9711		●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9712-	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9312-9609	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9610-9711	●
60	00.206 BOLT; COVER TO CASE AUSTRALIA EQUIPMENT(RR3) M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9610-9711		●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9712-	●
60	00.206 BOLT; COVER TO CASE 01.073 M8X25 W/LK WASHER	0-50040-825-0	08	1	9312-			●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	04	1	9312-			●
60	00.206 BOLT; COVER TO CASE M8X80 W/LK WASHER	0-50040-880-0	01	1	9312-			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EURO1 SPECIFICATION<6YW>	8-97118-698-0	02	1	9410-9412	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9501-9609	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9610-9711	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE AUSTRALIA EQUIPMENT(RR3)	8-97118-698-0	02	1	9610-9711		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9712-	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9312-9409	●		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EXC. HONG KONG EQUIPMENT(PQ1)	8-97045-362-1	02	1	9410-9412	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9410-9412			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9501-			●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9312-9609	●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9610-9711	●
68	00.206 COVER ASM; GEAR CASE COVER AUSTRALIA EQUIPMENT(RR3)	8-94155-721-1	01	1	9610-9711		●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9712-	●
68	00.206 COVER ASM; GEAR CASE COVER	5-19380-023-2	01	1	9312-			●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	9312-9609	●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	9610-9711	●
69	00.206 SEAL; RUBBER,COVER TO COVER AUSTRALIA EQUIPMENT(RR3)	8-94155-722-3	01	1	9610-9711		●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	9712-	●
69	00.206 SEAL; RUBBER,COVER TO COVER	5-19387-005-1	01	1	9312-			●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9312-9609	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9610-9711	●
71	00.206 RUBBER; MTG,COVER AUSTRALIA EQUIPMENT(RR3)	5-19389-002-0	04	1	9610-9711		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9712-	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	07	1	9312-			●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9312-9609	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9610-9711	●
72	00.206 BUSHING; SPACER,COVER TO COVER AUSTRALIA EQUIPMENT(RR3)	5-19389-009-0	04	1	9610-9711		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9712-	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	07	1	9312-			●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9312-9609	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9610-9711	●
73	00.206 BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3) 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9610-9711		●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9712-	●
73	00.206 BOLT; COVER FIX 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	07	1	9312-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9312-9609	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9610-9711	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97049-145-0	01	1	9610-9711		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9712-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9312-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9312-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9507-9510		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(6AA)	8-97071-560-1	01	1	9511-9606		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97071-560-1	01	1	9607-9711		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9712-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97049-145-0	01	1	9511-9609		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9312-9506	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9507-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9312-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9312-				●

268 62 101 103 100 62 102 100 225 260 100 175 465 467 63 480 356 211 193 198 464 211 2 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.683 HOUSING; FLYWHEEL	8-94327-481-1	01	1	9312-9605			●
2	00.683 HOUSING; FLYWHEEL	8-97146-428-0	01	1	9606-			●
2	00.683 HOUSING; FLYWHEEL	8-97071-848-5	01	1	9312-9407				●
2	00.683 HOUSING; FLYWHEEL	8-97112-139-5	01	1	9408-				●
62	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.386 M10X50 W/LK WASHER	0-50041-050-0	03	1	9312-			●
62	00.206 BOLT; COVER 08.900 M8X22 FLANGE	0-28080-822-0	07	1	9312-9510				●
62	00.206 BOLT; COVER 08.900 M8X22 FLANGE	0-28080-822-0	01	1	9511-9511				●
62	00.206 BOLT; COVER 00.004 M8X32 FLANGE	0-28080-832-0	05	1	9312-9510				●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	9512-				●
62	00.206 BOLT; COVER 00.349 M8X65	8-94158-393-1	03	1	9312-9402				●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	9403-				●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	9512-				●
63	00.206 COVER; P/S	8-94360-201-0	01	1	9312-9412				●
63	00.206 COVER; P/S	8-97126-392-0	01	1	9501-9510				●
63	00.206 COVER; P/S EXC. POWER STEERING<N40>	8-97126-392-0	01	1	9511-				●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	9312-				●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	9312-				●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (C) ID=27.7	9-09563-228-0	01	1	9407-9510				●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	9312-				●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	9312-				●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	9312-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9312-9609	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9610-9711	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97049-145-0	01	1	9610-9711		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9712-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94373-765-0	01	1	9312-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9312-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9507-9510		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(6AA)	8-97071-560-1	01	1	9511-9606		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97071-560-1	01	1	9607-9711		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9712-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). AUSTRALIA EQUIPMENT(RR3)	8-97049-145-0	01	1	9511-9609		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9312-9506	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9507-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97072-823-1	01	1	9312-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9312-				●
193	01.428 SPACER; STAY TO OIL,PAN	8-97100-516-1	01	1	9312-9406				●
198	01.428 BOLT; STAY TO OIL PAN 02.483 M12X20 FLANGE	0-28181-220-0	02	1	9312-9510				●
211	00.669 BOLT; HSG M14X50	0-50041-450-0	04	1	9312-			●
211	00.669 BOLT; HSG M14X45	8-94341-374-1	02	1	9312-			●
211	00.669 BOLT; HSG M14X65	8-94341-376-1	02	1	9312-			●
211	00.669 BOLT; HSG 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9312-9403				●
211	00.669 BOLT; HSG 00.002 M12X30 FLANGE	8-94343-919-0	01	1	9312-9511				●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	9512-				●
211	00.669 BOLT; HSG M8X65 W/PL WASHER	8-94388-781-0	02	1	9312-				●
211	00.669 BOLT; HSG M12X70	8-94388-783-1	09	1	9312-9404				●
211	00.669 BOLT; HSG 04.510 M10X40 FLANGE	0-28181-040-0	01	1	9404-9606				●
211	00.669 BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	9607-				●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9405-				●
211	00.669 BOLT; HSG M14X35 FLANGE	0-28791-435-0	01	1	9410-9510				●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28791-435-0	01	1	9511-				●
225	01.428 STUD; OIL PAN M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	9511-				●
260	01.428 STUD; OIL PAN M8X20 L=32	9-04110-820-0	04	1	9312-9510				●
268	00.206 COVER; FRT	8-97113-768-0	01	1	9312-9510				●
268	00.206 COVER; FRT	8-97074-859-3	01	1	9511-				●
356	00.207 GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). 06.673	8-97101-875-0	01	1	9312-9510				●
356	00.207 GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER STEERING<N40> 06.673	8-97101-875-2	01	1	9511-				●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	9312-				●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-3	01	1	9312-				●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	9312-				●
480	00.206 BOLT; COVER 04.525 M10X25 FLANGE	0-28181-025-0	02	1	9312-9510				●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 04.525 M10X25 FLANGE	0-28181-025-0	02	1	9511-9602				●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE	0-28181-028-0	02	1	9603-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
