Sayfa 0-15 - Isuzu EPC

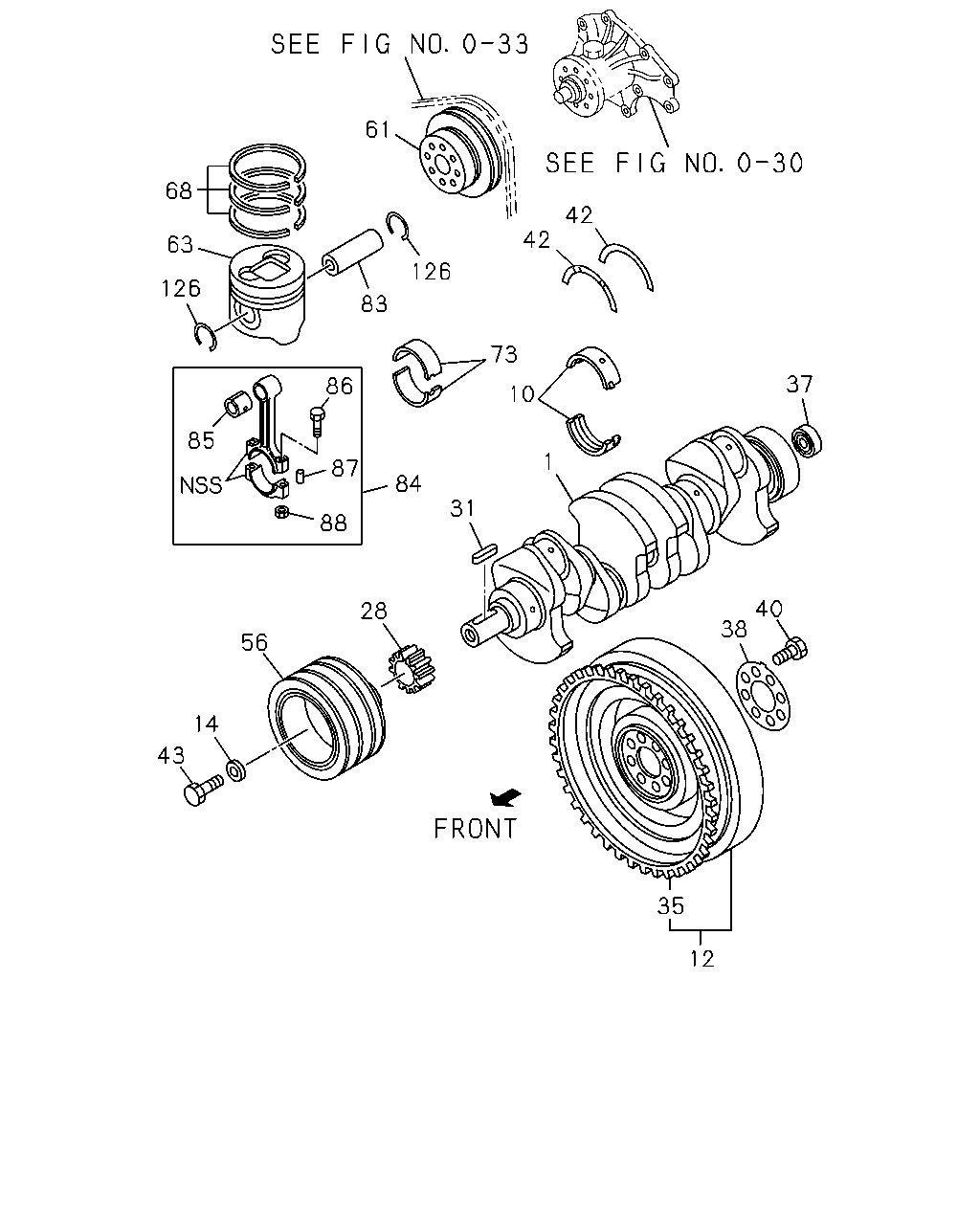

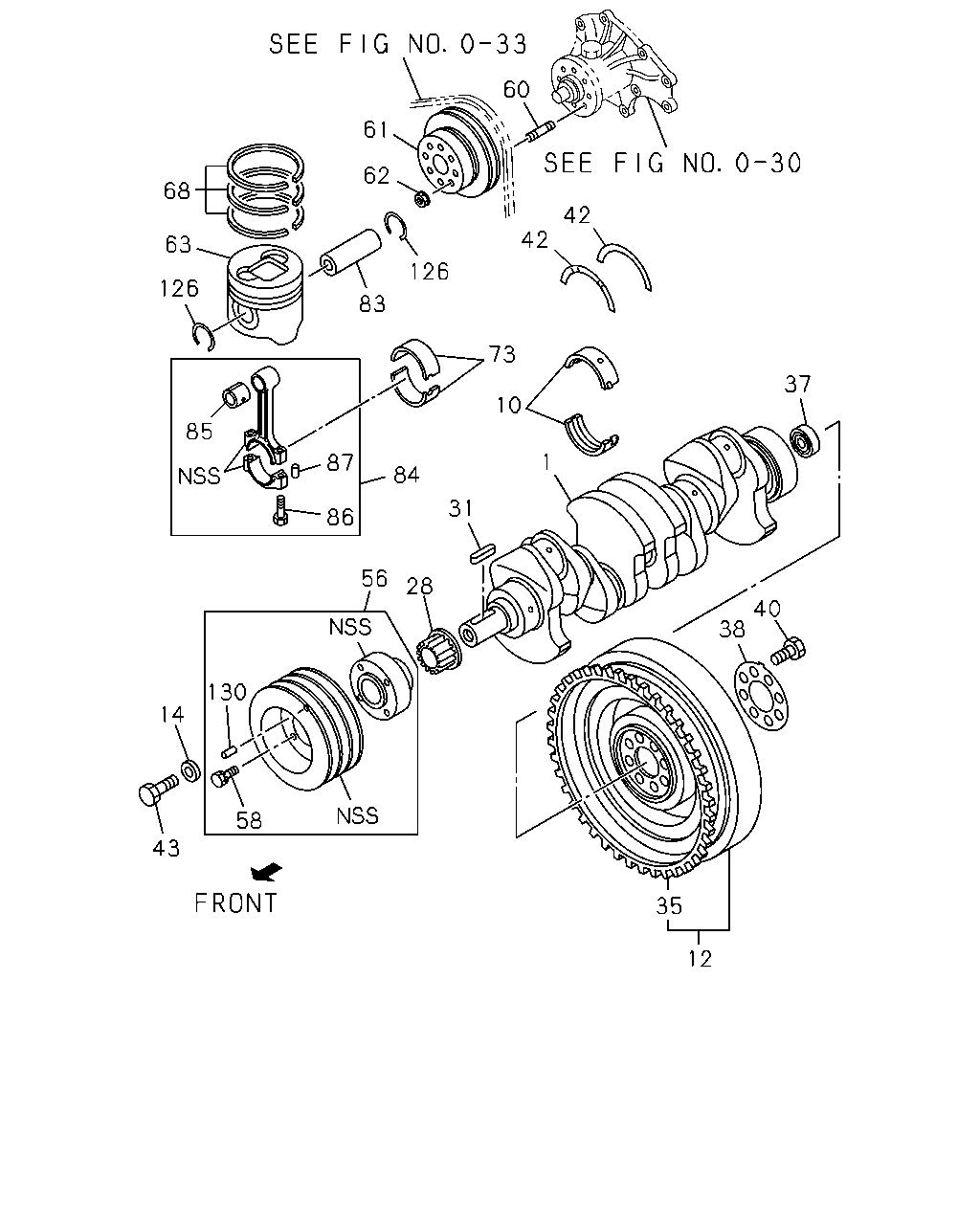

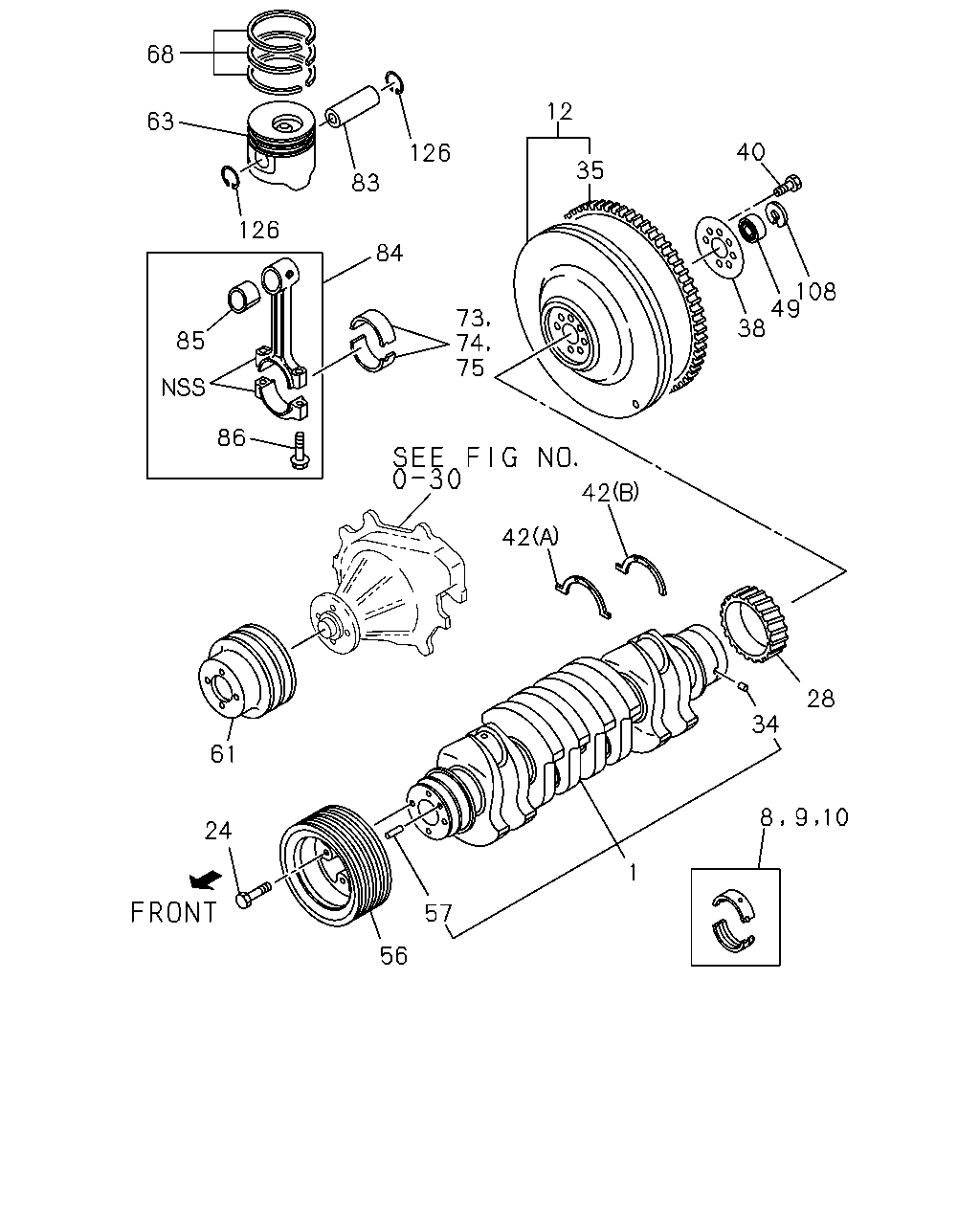

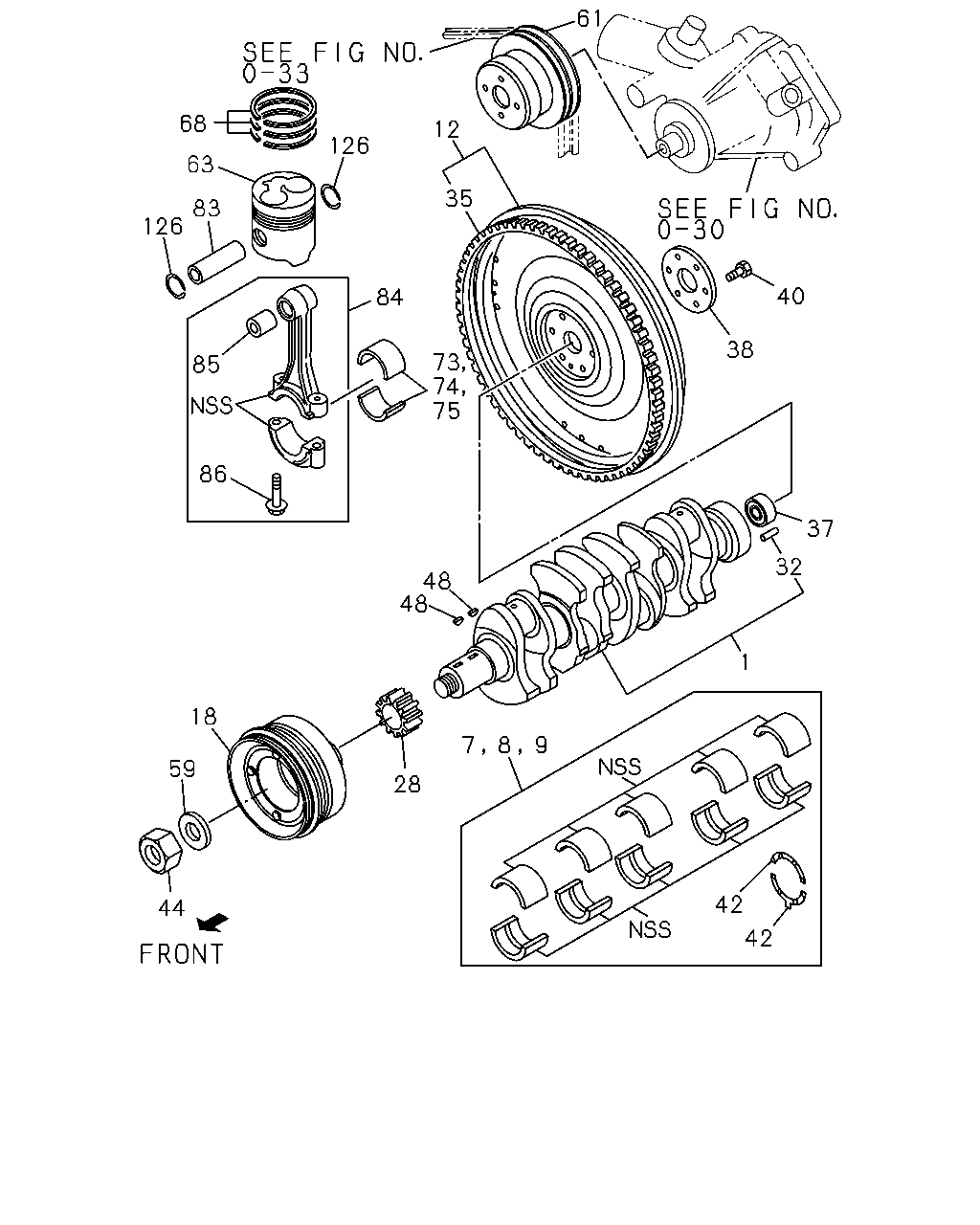

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#33740) — 689 parça

61 68 42 42 63 126 126 83 73 37 86 10 85 1 87 84 31 88 40 38 28 56 14 43 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-94443-662-0	01	1	9312-9711	●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	9712-	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9712-	●
1	00.646 CRANKSHAFT	8-94416-373-2	01	1	9312-		●
1	00.646 CRANKSHAFT	8-97033-171-2	01	1	9312-9408			●
1	00.646 CRANKSHAFT	8-97112-981-1	01	1	9409-			●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9507-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9312-9506	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9507-9510	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9312-9506	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9507-9510	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9312-9506	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9507-9510	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9511-9711	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9511-9711	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9511-9711	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9712-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9712-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9712-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9312-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9312-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9312-			●
12	00.666 FLYWHEEL	8-94125-761-4	01	1	9312-9711	●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51>	8-94125-761-4	01	1	9712-	●
12	00.666 FLYWHEEL	8-94372-128-1	01	1	9312-		●
12	00.666 FLYWHEEL	8-97077-585-1	01	1	9312-9408			●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	9409-9612			●
12	00.666 FLYWHEEL	8-97169-129-2	01	1	9701-			●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9507-9711				●
12	00.666 FLYWHEEL TURBOCHARGER<K51>	8-97034-430-2	01	1	9712-	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9712-				●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9407-9506	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9507-	●			●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9312-9609	●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9610-9711	●
28	00.728 GEAR; CR/SHF AUSTRALIA EQUIPMENT(RR3) Z=21	8-94139-754-0	01	1	9610-9711				●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9712-	●
28	00.728 GEAR; CR/SHF Z=25	9-12521-043-0	01	1	9312-9510		●
28	00.728 GEAR; CR/SHF Z=25	1-12521-008-0	01	1	9511-9806		●
28	00.728 GEAR; CR/SHF Z=25	8-97137-910-1	01	1	9807-		●
28	00.728 GEAR; CR/SHF Z=42	8-94370-784-3	01	1	9312-9404			●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9405-			●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9312-9506	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9507-	●			●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9312-9506	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9507-	●			●
35	00.673 GEAR; RING	8-94468-412-0	01	1	9312-		●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	9312-9612			●
35	00.673 GEAR; RING Z=138	8-97169-134-0	01	1	9701-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9312-9506	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9507-	●	●		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9312-9506	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9507-	●			●
38	00.862 WASHER; FLYWHEEL 00.669	5-12336-003-0	01	1	9312-		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9312-			●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9312-9506	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9507-	●			●
40	00.669 BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9312-		●
40	00.669 BOLT; FLYWHEEL M16X62	8-97065-517-1	08	1	9312-9408			●
40	00.669 BOLT; FLYWHEEL M18X33	8-97112-999-0	08	1	9409-9702			●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9703-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9312-9506	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9507-	●			●
42	00.095 WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9402-		●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9312-9510			●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9312-			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9511-			●
43	00.662 BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9312-9312	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-1	01	1	9401-9506	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9507-	●			●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9312-	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-94453-552-2	01	1	9312-	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97033-848-0	01	1	9312-9412			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9501-9711			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97096-884-0	01	1	9312-9412			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9712-9712			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9712-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-94460-623-1	01	1	9507-9510				●
56	00.659 PULLEY; CR/SHF DAMPER UNITED KINGDOM EQUIPMENT(6AA) 3-GROOVE	8-94460-623-1	01	1	9511-9606				●
56	00.659 PULLEY; CR/SHF DAMPER HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 3-GROOVE	8-94460-623-1	01	1	9607-9707				●
56	00.659 PULLEY; CR/SHF DAMPER HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 3-GROOVE	8-97182-904-0	01	1	9708-9711				●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9712-				●
56	00.659 PULLEY; CR/SHF DAMPER AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-94387-650-2	01	1	9511-9609				●
56	00.659 PULLEY; CR/SHF DAMPER AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-94387-650-2	01	1	9610-9708				●
56	00.659 PULLEY; CR/SHF DAMPER AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-97184-135-0	01	1	9709-9711				●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9712-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9312-9711	●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	9712-	●
61	00.659 PULLEY; FAN DRIVE FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97013-763-0	01	1	9312-9312		●
61	00.659 PULLEY; FAN DRIVE REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97013-763-0	01	1	9401-9510		●
61	00.659 PULLEY; FAN DRIVE FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97013-763-0	01	1	9401-9510		●
61	00.659 PULLEY; FAN DRIVE REFRIGERATOR CHASSIS(V4R) 2-GROOVE	8-97013-763-0	01	1	9511-9711		●
61	00.659 PULLEY; FAN DRIVE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 01.062 1-GROOVE	5-13663-057-0	01	1	9312-9510		●
61	00.659 PULLEY; FAN DRIVE EXC. REFRIGERATOR CHASSIS(V4R) 01.062 1-GROOVE	5-13663-057-0	01	1	9511-9711		●
61	00.659 PULLEY; FAN DRIVE 01.062 1-GROOVE	5-13663-057-0	01	1	9712-		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9312-			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9507-9711				●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	9712-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9712-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-604-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-605-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> GRADE=AX	8-97176-606-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> GRADE=CX	8-97176-607-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> GRADE=AX	8-97176-604-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> GRADE=CX	8-97176-605-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-648-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-649-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-655-0	04	1	9312-9510			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9511-9704			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9705-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-616-0	04	1	9507-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-617-0	04	1	9507-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9507-9606				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9607-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9712-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9512-9606				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9607-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9712-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9312-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94418-918-0	04	1	9312-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97028-691-0	04	1	9312-9510			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9511-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9507-9611				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF>	8-97080-215-0	04	1	9612-9708				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97147-984-0	04	1	9612-9708				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9709-				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9312-9506	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9507-	●			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9312-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9312-			●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9312-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9312-9711	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	9712-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-022-0	04	1	9312-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9312-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9507-9711				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9712-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9712-				●
84	00.603 ROD ASM; CONN	8-94329-692-1	04	1	9312-9711	●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-1	04	1	9712-	●
84	00.603 ROD ASM; CONN	8-97011-030-0	04	1	9312-		●
84	00.603 ROD ASM; CONN	8-94473-443-6	04	1	9312-9506			●
84	00.603 ROD ASM; CONN	8-97135-032-0	04	1	9507-			●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9507-9711				●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-0	04	1	9712-	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9712-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9312-9711	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9712-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9312-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9312-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9507-9711				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9712-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9712-				●
86	00.623 BOLT; CONNROD M11X59	8-94419-729-1	08	1	9312-9408	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9409-9711	●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	9712-	●
86	00.623 BOLT; CONNROD M12X61	8-97011-094-0	08	1	9312-		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9312-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9507-9711				●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	9712-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9712-				●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9507-9711				●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	9712-	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9712-				●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9312-9711	●
88	00.623 NUT; CONNROD EXC. TURBOCHARGER<K51> 00.626 M11	5-09409-016-0	08	1	9712-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	9312-9711	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	9712-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-1	08	1	9312-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9312-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9507-9711				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9712-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9712-				●

68 12 63 40 126 35 83 126 84 108 49 38 73 74 75 85 86 42 42 28 34 61 8 9 10 24 1 57 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-94443-662-0	01	1	9312-9711	●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	9712-	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9712-	●
1	00.646 CRANKSHAFT	8-94416-373-2	01	1	9312-		●
1	00.646 CRANKSHAFT	8-97033-171-2	01	1	9312-9408			●
1	00.646 CRANKSHAFT	8-97112-981-1	01	1	9409-			●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9507-				●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-97064-883-0	01	1	9312-		●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-97174-988-0	01	1	9312-			●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-97064-884-0	01	1	9312-		●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-97174-989-0	01	1	9312-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9312-9506	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9507-9510	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9312-9506	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9507-9510	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9312-9506	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9507-9510	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9511-9711	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9511-9711	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9511-9711	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9712-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9712-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9712-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9312-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9312-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9312-			●
12	00.666 FLYWHEEL	8-94125-761-4	01	1	9312-9711	●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51>	8-94125-761-4	01	1	9712-	●
12	00.666 FLYWHEEL	8-94372-128-1	01	1	9312-		●
12	00.666 FLYWHEEL	8-97077-585-1	01	1	9312-9408			●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	9409-9612			●
12	00.666 FLYWHEEL	8-97169-129-2	01	1	9701-			●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9507-9711				●
12	00.666 FLYWHEEL TURBOCHARGER<K51>	8-97034-430-2	01	1	9712-	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9712-				●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	9312-			●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9312-9609	●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9610-9711	●
28	00.728 GEAR; CR/SHF AUSTRALIA EQUIPMENT(RR3) Z=21	8-94139-754-0	01	1	9610-9711				●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9712-	●
28	00.728 GEAR; CR/SHF Z=25	9-12521-043-0	01	1	9312-9510		●
28	00.728 GEAR; CR/SHF Z=25	1-12521-008-0	01	1	9511-9806		●
28	00.728 GEAR; CR/SHF Z=25	8-97137-910-1	01	1	9807-		●
28	00.728 GEAR; CR/SHF Z=42	8-94370-784-3	01	1	9312-9404			●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9405-			●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9312-			●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9312-9506	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9507-	●			●
35	00.673 GEAR; RING	8-94468-412-0	01	1	9312-		●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	9312-9612			●
35	00.673 GEAR; RING Z=138	8-97169-134-0	01	1	9701-			●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9312-9506	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9507-	●			●
38	00.862 WASHER; FLYWHEEL 00.669	5-12336-003-0	01	1	9312-		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9312-			●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9312-9506	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9507-	●			●
40	00.669 BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9312-		●
40	00.669 BOLT; FLYWHEEL M16X62	8-97065-517-1	08	1	9312-9408			●
40	00.669 BOLT; FLYWHEEL M18X33	8-97112-999-0	08	1	9409-9702			●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9703-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9312-9506	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9507-	●			●
42	00.095 WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9402-		●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9312-9510			●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9312-			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9511-			●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	9312-			●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9312-	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-94453-552-2	01	1	9312-	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97033-848-0	01	1	9312-9412			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9501-9711			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97096-884-0	01	1	9312-9412			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9712-9712			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9712-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-94460-623-1	01	1	9507-9510				●
56	00.659 PULLEY; CR/SHF DAMPER UNITED KINGDOM EQUIPMENT(6AA) 3-GROOVE	8-94460-623-1	01	1	9511-9606				●
56	00.659 PULLEY; CR/SHF DAMPER HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 3-GROOVE	8-94460-623-1	01	1	9607-9707				●
56	00.659 PULLEY; CR/SHF DAMPER HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 3-GROOVE	8-97182-904-0	01	1	9708-9711				●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9712-				●
56	00.659 PULLEY; CR/SHF DAMPER AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-94387-650-2	01	1	9511-9609				●
56	00.659 PULLEY; CR/SHF DAMPER AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-94387-650-2	01	1	9610-9708				●
56	00.659 PULLEY; CR/SHF DAMPER AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-97184-135-0	01	1	9709-9711				●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9712-	●
57	00.662 PIN; PULLEY 08.939 OD=8 L=16	9-08150-816-0	02	1	9312-			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9312-9711	●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	9712-	●
61	00.659 PULLEY; FAN DRIVE FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97013-763-0	01	1	9312-9312		●
61	00.659 PULLEY; FAN DRIVE REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97013-763-0	01	1	9401-9510		●
61	00.659 PULLEY; FAN DRIVE FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97013-763-0	01	1	9401-9510		●
61	00.659 PULLEY; FAN DRIVE REFRIGERATOR CHASSIS(V4R) 2-GROOVE	8-97013-763-0	01	1	9511-9711		●
61	00.659 PULLEY; FAN DRIVE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 01.062 1-GROOVE	5-13663-057-0	01	1	9312-9510		●
61	00.659 PULLEY; FAN DRIVE EXC. REFRIGERATOR CHASSIS(V4R) 01.062 1-GROOVE	5-13663-057-0	01	1	9511-9711		●
61	00.659 PULLEY; FAN DRIVE 01.062 1-GROOVE	5-13663-057-0	01	1	9712-		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9312-			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9507-9711				●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	9712-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9712-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-604-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-605-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> GRADE=AX	8-97176-606-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> GRADE=CX	8-97176-607-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> GRADE=AX	8-97176-604-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> GRADE=CX	8-97176-605-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-648-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-649-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-655-0	04	1	9312-9510			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9511-9704			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9705-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-616-0	04	1	9507-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-617-0	04	1	9507-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9507-9606				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9607-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9712-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9512-9606				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9607-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9712-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9312-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94418-918-0	04	1	9312-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97028-691-0	04	1	9312-9510			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9511-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9507-9611				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF>	8-97080-215-0	04	1	9612-9708				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97147-984-0	04	1	9612-9708				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9709-				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9312-9506	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9507-	●			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9312-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9312-			●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9312-			●
74	00.616 METAL SET; CONN ROD,U/S=0.25	5-87310-090-1	04	1	9312-		●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9511-			●
75	00.616 METAL SET; CONN ROD,U/S=0.50	5-87310-091-1	04	1	9312-		●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9511-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9312-9711	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	9712-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-022-0	04	1	9312-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9312-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9507-9711				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9712-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9712-				●
84	00.603 ROD ASM; CONN	8-94329-692-1	04	1	9312-9711	●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-1	04	1	9712-	●
84	00.603 ROD ASM; CONN	8-97011-030-0	04	1	9312-		●
84	00.603 ROD ASM; CONN	8-94473-443-6	04	1	9312-9506			●
84	00.603 ROD ASM; CONN	8-97135-032-0	04	1	9507-			●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9507-9711				●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-0	04	1	9712-	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9712-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9312-9711	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9712-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9312-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9312-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9507-9711				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9712-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9712-				●
86	00.623 BOLT; CONNROD M11X59	8-94419-729-1	08	1	9312-9408	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9409-9711	●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	9712-	●
86	00.623 BOLT; CONNROD M12X61	8-97011-094-0	08	1	9312-		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9312-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9507-9711				●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	9712-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9712-				●
108	00.096 RING; SNAP,BRG SET 04.012 OD=45.5	9-09180-142-0	01	1	9312-9406			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	9312-9711	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	9712-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-1	08	1	9312-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9312-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9507-9711				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9712-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9712-				●

60 61 62 68 42 42 63 126 126 83 73 37 10 85 1 87 84 31 86 56 28 40 38 130 14 58 43 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-94443-662-0	01	1	9312-9711	●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	9712-	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9712-	●
1	00.646 CRANKSHAFT	8-94416-373-2	01	1	9312-		●
1	00.646 CRANKSHAFT	8-97033-171-2	01	1	9312-9408			●
1	00.646 CRANKSHAFT	8-97112-981-1	01	1	9409-			●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9507-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9312-9506	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9507-9510	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9312-9506	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9507-9510	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9312-9506	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9507-9510	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9511-9711	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9511-9711	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9511-9711	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9712-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9712-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9712-	●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9312-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9312-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9312-			●
12	00.666 FLYWHEEL	8-94125-761-4	01	1	9312-9711	●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51>	8-94125-761-4	01	1	9712-	●
12	00.666 FLYWHEEL	8-94372-128-1	01	1	9312-		●
12	00.666 FLYWHEEL	8-97077-585-1	01	1	9312-9408			●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	9409-9612			●
12	00.666 FLYWHEEL	8-97169-129-2	01	1	9701-			●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9507-9711				●
12	00.666 FLYWHEEL TURBOCHARGER<K51>	8-97034-430-2	01	1	9712-	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9712-				●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9407-9506	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9507-	●			●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9312-9609	●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9610-9711	●
28	00.728 GEAR; CR/SHF AUSTRALIA EQUIPMENT(RR3) Z=21	8-94139-754-0	01	1	9610-9711				●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9712-	●
28	00.728 GEAR; CR/SHF Z=25	9-12521-043-0	01	1	9312-9510		●
28	00.728 GEAR; CR/SHF Z=25	1-12521-008-0	01	1	9511-9806		●
28	00.728 GEAR; CR/SHF Z=25	8-97137-910-1	01	1	9807-		●
28	00.728 GEAR; CR/SHF Z=42	8-94370-784-3	01	1	9312-9404			●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9405-			●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9312-9506	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9507-	●			●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9312-9506	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9507-	●			●
35	00.673 GEAR; RING	8-94468-412-0	01	1	9312-		●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	9312-9612			●
35	00.673 GEAR; RING Z=138	8-97169-134-0	01	1	9701-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9312-9506	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9507-	●	●		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9312-9506	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9507-	●			●
38	00.862 WASHER; FLYWHEEL 00.669	5-12336-003-0	01	1	9312-		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9312-			●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9312-9506	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9507-	●			●
40	00.669 BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9312-		●
40	00.669 BOLT; FLYWHEEL M16X62	8-97065-517-1	08	1	9312-9408			●
40	00.669 BOLT; FLYWHEEL M18X33	8-97112-999-0	08	1	9409-9702			●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9703-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9312-9506	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9507-	●			●
42	00.095 WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9402-		●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9312-9510			●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9312-			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9511-			●
43	00.662 BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9312-9312	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-1	01	1	9401-9506	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9507-	●			●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9312-	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-94453-552-2	01	1	9312-	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97033-848-0	01	1	9312-9412			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-3	01	1	9501-9711			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97096-884-0	01	1	9312-9412			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9712-9712			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9712-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-94460-623-1	01	1	9507-9510				●
56	00.659 PULLEY; CR/SHF DAMPER UNITED KINGDOM EQUIPMENT(6AA) 3-GROOVE	8-94460-623-1	01	1	9511-9606				●
56	00.659 PULLEY; CR/SHF DAMPER HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 3-GROOVE	8-94460-623-1	01	1	9607-9707				●
56	00.659 PULLEY; CR/SHF DAMPER HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 3-GROOVE	8-97182-904-0	01	1	9708-9711				●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9712-				●
56	00.659 PULLEY; CR/SHF DAMPER AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-94387-650-2	01	1	9511-9609				●
56	00.659 PULLEY; CR/SHF DAMPER AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-94387-650-2	01	1	9610-9708				●
56	00.659 PULLEY; CR/SHF DAMPER AUSTRALIA EQUIPMENT(RR3) 3-GROOVE	8-97184-135-0	01	1	9709-9711				●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9712-	●
58	00.659 BOLT; CR/SHF PULLEY 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9507-9510				●
58	00.659 BOLT; CR/SHF PULLEY UNITED KINGDOM EQUIPMENT(6AA) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9511-9606				●
58	00.659 BOLT; CR/SHF PULLEY HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9607-9707				●
60	01.060 STUD; FAN FIX 01.073 M6X18 L=27	9-04110-618-0	04	1	9507-				●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9312-9711	●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	9712-	●
61	00.659 PULLEY; FAN DRIVE FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97013-763-0	01	1	9312-9312		●
61	00.659 PULLEY; FAN DRIVE REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97013-763-0	01	1	9401-9510		●
61	00.659 PULLEY; FAN DRIVE FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97013-763-0	01	1	9401-9510		●
61	00.659 PULLEY; FAN DRIVE REFRIGERATOR CHASSIS(V4R) 2-GROOVE	8-97013-763-0	01	1	9511-9711		●
61	00.659 PULLEY; FAN DRIVE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 01.062 1-GROOVE	5-13663-057-0	01	1	9312-9510		●
61	00.659 PULLEY; FAN DRIVE EXC. REFRIGERATOR CHASSIS(V4R) 01.062 1-GROOVE	5-13663-057-0	01	1	9511-9711		●
61	00.659 PULLEY; FAN DRIVE 01.062 1-GROOVE	5-13663-057-0	01	1	9712-		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9312-			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9507-9711				●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	9712-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9712-				●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9507-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-604-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-605-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> GRADE=AX	8-97176-606-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> GRADE=CX	8-97176-607-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> GRADE=AX	8-97176-604-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> GRADE=CX	8-97176-605-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-648-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-649-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-655-0	04	1	9312-9510			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9511-9704			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9705-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-616-0	04	1	9507-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-617-0	04	1	9507-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9507-9606				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9607-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9712-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9512-9606				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9607-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9712-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9312-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94418-918-0	04	1	9312-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97028-691-0	04	1	9312-9510			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9511-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9507-9611				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF>	8-97080-215-0	04	1	9612-9708				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97147-984-0	04	1	9612-9708				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9709-				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9312-9506	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9507-	●			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9312-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9312-			●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9312-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9312-9711	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	9712-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-022-0	04	1	9312-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9312-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9507-9711				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9712-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9712-				●
84	00.603 ROD ASM; CONN	8-94329-692-1	04	1	9312-9711	●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-1	04	1	9712-	●
84	00.603 ROD ASM; CONN	8-97011-030-0	04	1	9312-		●
84	00.603 ROD ASM; CONN	8-94473-443-6	04	1	9312-9506			●
84	00.603 ROD ASM; CONN	8-97135-032-0	04	1	9507-			●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9507-9711				●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-0	04	1	9712-	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9712-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9312-9711	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9712-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9312-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9312-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9507-9711				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9712-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9712-				●
86	00.623 BOLT; CONNROD M11X59	8-94419-729-1	08	1	9312-9408	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9409-9711	●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	9712-	●
86	00.623 BOLT; CONNROD M12X61	8-97011-094-0	08	1	9312-		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9312-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9507-9711				●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	9712-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9712-				●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9507-9711				●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	9712-	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9712-				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	9312-9711	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	9712-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-1	08	1	9312-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9312-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9507-9711				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9712-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9712-				●
130	00.662 PIN; STRAIGHT 08.939 OD=4 L=12	9-08160-412-0	01	1	9507-9510				●
130	00.662 PIN; STRAIGHT UNITED KINGDOM EQUIPMENT(6AA) 08.939 OD=4 L=12	9-08160-412-0	01	1	9511-9606				●
130	00.662 PIN; STRAIGHT HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 08.939 OD=4 L=12	9-08160-412-0	01	1	9607-9707				●

61 68 12 126 63 35 83 126 40 84 38 73 74 75 85 86 37 32 48 48 1 18 7 8 9 59 28 42 44 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-94443-662-0	01	1	9312-9711	●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	9712-	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9712-	●
1	00.646 CRANKSHAFT	8-94416-373-2	01	1	9312-		●
1	00.646 CRANKSHAFT	8-97033-171-2	01	1	9312-9408			●
1	00.646 CRANKSHAFT	8-97112-981-1	01	1	9409-			●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9507-				●
7	00.094 METAL KIT; CRANKSHAFT,STANDARD	8-97071-660-0	01	1	9312-		●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-97064-883-0	01	1	9312-		●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-97174-988-0	01	1	9312-			●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-97064-884-0	01	1	9312-		●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-97174-989-0	01	1	9312-			●
12	00.666 FLYWHEEL	8-94125-761-4	01	1	9312-9711	●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51>	8-94125-761-4	01	1	9712-	●
12	00.666 FLYWHEEL	8-94372-128-1	01	1	9312-		●
12	00.666 FLYWHEEL	8-97077-585-1	01	1	9312-9408			●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	9409-9612			●
12	00.666 FLYWHEEL	8-97169-129-2	01	1	9701-			●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9507-9711				●
12	00.666 FLYWHEEL TURBOCHARGER<K51>	8-97034-430-2	01	1	9712-	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9712-				●
18	00.659 PULLEY; CR/SHF FRT INDEPENDENT SUSPENSION(6PP) 3-GROOVE	8-97041-578-0	01	1	9312-9510		●
18	00.659 PULLEY; CR/SHF REFRIGERATOR CHASSIS(V4R) 3-GROOVE	8-94478-927-0	01	1	9401-9711		●
18	00.659 PULLEY; CR/SHF EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-94341-943-0	01	1	9312-9510		●
18	00.659 PULLEY; CR/SHF EXC. REFRIGERATOR CHASSIS(V4R) 2-GROOVE	8-94341-943-0	01	1	9511-9703		●
18	00.659 PULLEY; CR/SHF EXC. REFRIGERATOR CHASSIS(V4R) 2-GROOVE	8-97173-059-0	01	1	9704-9711		●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-97173-059-0	01	1	9712-		●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9312-9609	●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9610-9711	●
28	00.728 GEAR; CR/SHF AUSTRALIA EQUIPMENT(RR3) Z=21	8-94139-754-0	01	1	9610-9711				●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9712-	●
28	00.728 GEAR; CR/SHF Z=25	9-12521-043-0	01	1	9312-9510		●
28	00.728 GEAR; CR/SHF Z=25	1-12521-008-0	01	1	9511-9806		●
28	00.728 GEAR; CR/SHF Z=25	8-97137-910-1	01	1	9807-		●
28	00.728 GEAR; CR/SHF Z=42	8-94370-784-3	01	1	9312-9404			●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9405-			●
32	00.669 PIN; FLYWHEEL 08.939 OD=12 L=20	9-08161-220-0	01	1	9312-		●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9312-9506	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9507-	●			●
35	00.673 GEAR; RING	8-94468-412-0	01	1	9312-		●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	9312-9612			●
35	00.673 GEAR; RING Z=138	8-97169-134-0	01	1	9701-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9312-9506	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9507-	●	●		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9312-9506	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9507-	●			●
38	00.862 WASHER; FLYWHEEL 00.669	5-12336-003-0	01	1	9312-		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9312-			●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9312-9506	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9507-	●			●
40	00.669 BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9312-		●
40	00.669 BOLT; FLYWHEEL M16X62	8-97065-517-1	08	1	9312-9408			●
40	00.669 BOLT; FLYWHEEL M18X33	8-97112-999-0	08	1	9409-9702			●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9703-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9312-9506	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9507-	●			●
42	00.095 WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9402-		●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9312-9510			●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9312-			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9511-			●
44	00.662 NUT; CR/SHF FRT 06.861 M27	5-12378-002-0	01	1	9312-		●
48	00.662 KEY; WOODRUFF,CR/SHF	8-94107-597-0	02	1	9312-		●
59	00.662 WASHER; CR/SHF PULLEY	5-09503-024-0	01	1	9312-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9312-9711	●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	9712-	●
61	00.659 PULLEY; FAN DRIVE FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97013-763-0	01	1	9312-9312		●
61	00.659 PULLEY; FAN DRIVE REFRIGERATOR CHASSIS(V4R) EXC. FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97013-763-0	01	1	9401-9510		●
61	00.659 PULLEY; FAN DRIVE FRT INDEPENDENT SUSPENSION(6PP) 2-GROOVE	8-97013-763-0	01	1	9401-9510		●
61	00.659 PULLEY; FAN DRIVE REFRIGERATOR CHASSIS(V4R) 2-GROOVE	8-97013-763-0	01	1	9511-9711		●
61	00.659 PULLEY; FAN DRIVE EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 01.062 1-GROOVE	5-13663-057-0	01	1	9312-9510		●
61	00.659 PULLEY; FAN DRIVE EXC. REFRIGERATOR CHASSIS(V4R) 01.062 1-GROOVE	5-13663-057-0	01	1	9511-9711		●
61	00.659 PULLEY; FAN DRIVE 01.062 1-GROOVE	5-13663-057-0	01	1	9712-		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9312-			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9507-9711				●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	9712-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9712-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-604-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-605-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> GRADE=AX	8-97176-606-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO1 SPECIFICATION<6YW> GRADE=CX	8-97176-607-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> GRADE=AX	8-97176-604-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO1 SPECIFICATION<6YW> GRADE=CX	8-97176-605-0	04	1	9511-9711	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9712-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-648-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-649-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-655-0	04	1	9312-9510			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9511-9704			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9705-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-616-0	04	1	9507-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-617-0	04	1	9507-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9507-9606				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9607-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9712-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9512-9606				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9607-9711				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9712-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9312-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94418-918-0	04	1	9312-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97028-691-0	04	1	9312-9510			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9511-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9507-9611				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF>	8-97080-215-0	04	1	9612-9708				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97147-984-0	04	1	9612-9708				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9709-				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9312-9506	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9507-	●			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9312-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9312-			●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9312-			●
74	00.616 METAL SET; CONN ROD,U/S=0.25	5-87310-090-1	04	1	9312-		●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9511-			●
75	00.616 METAL SET; CONN ROD,U/S=0.50	5-87310-091-1	04	1	9312-		●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9511-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9312-9711	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	9712-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-022-0	04	1	9312-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9312-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9507-9711				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9712-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9712-				●
84	00.603 ROD ASM; CONN	8-94329-692-1	04	1	9312-9711	●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-1	04	1	9712-	●
84	00.603 ROD ASM; CONN	8-97011-030-0	04	1	9312-		●
84	00.603 ROD ASM; CONN	8-94473-443-6	04	1	9312-9506			●
84	00.603 ROD ASM; CONN	8-97135-032-0	04	1	9507-			●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9507-9711				●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-0	04	1	9712-	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9712-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9312-9711	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9712-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9312-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9312-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9507-9711				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9712-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9712-				●
86	00.623 BOLT; CONNROD M11X59	8-94419-729-1	08	1	9312-9408	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9409-9711	●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	9712-	●
86	00.623 BOLT; CONNROD M12X61	8-97011-094-0	08	1	9312-		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9312-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9507-9711				●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	9712-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9712-				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	9312-9711	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	9712-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-1	08	1	9312-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9312-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9507-9711				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9712-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9712-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
