Sayfa 0-14 - Isuzu EPC

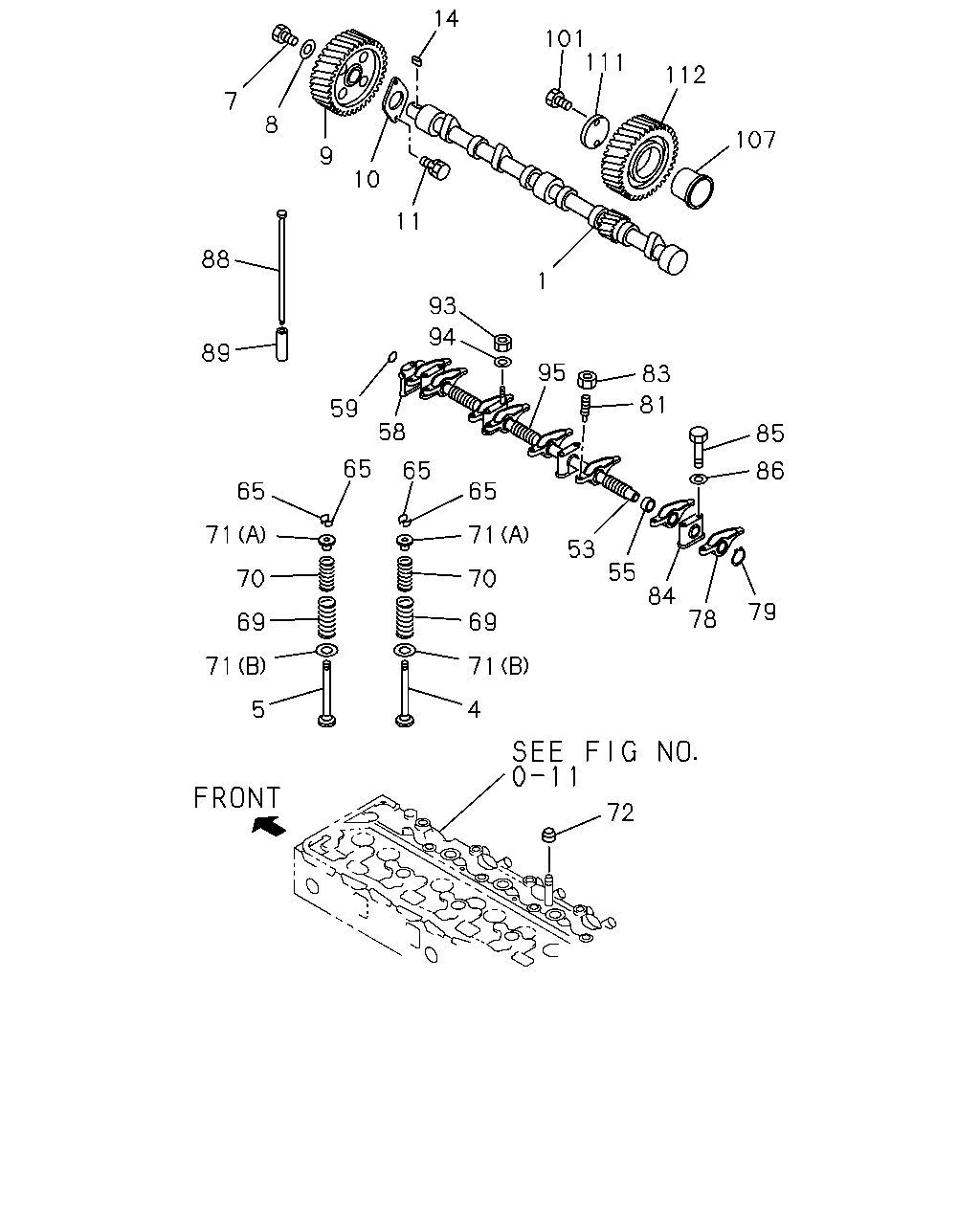

0-14 — CAMSHAFT AND VALVE (#33739) — 960 parça

14 101 111 112 7 8 107 9 10 11 88 1 93 94 89 95 83 81 59 58 85 65 65 86 65 65 71 71 53 55 70 70 84 79 78 69 69 71 71 5 4 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9312-9506	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9507-	●	●
1	00.519 CAMSHAFT	8-94409-412-0	01	1	9312-			●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9312-				●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9312-9711	●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	9712-	●
4	00.296 VALVE; INL TURBOCHARGER<K51>	8-94464-921-0	04	1	9712-	●
4	00.296 VALVE; INL	8-97034-379-0	04	1	9312-			●
4	00.296 VALVE; INL	8-97033-864-1	04	1	9312-9510				●
4	00.296 VALVE; INL	8-94394-160-1	04	1	9511-9705				●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9706-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9507-		●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9312-9711	●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	9712-	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	9712-	●
5	00.297 VALVE; EXH	8-97028-707-2	04	1	9312-			●
5	00.297 VALVE; EXH	8-97019-337-0	04	1	9312-9705				●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9706-				●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9507-		●
7	00.738 BOLT; CM/SHF GEAR M14X39	5-09000-236-0	01	1	9312-			●
7	00.738 BOLT; CM/SHF GEAR 08.900 M14X40	9-92061-440-0	01	1	9312-				●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9312-9406			●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9407-9502			●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9503-			●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9407-9502				●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9312-9609	●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9610-9711	●
9	00.736 GEAR; CM/SHF AUSTRALIA EQUIPMENT(RR3) Z=42	8-97079-212-0	01	1	9610-9711		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9712-	●
9	00.736 GEAR; CM/SHF Z=50	9-12522-147-1	01	1	9312-9510			●
9	00.736 GEAR; CM/SHF Z=50	1-12522-016-2	01	1	9511-			●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-1	01	1	9312-9510				●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9511-				●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9312-9609	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9610-9711	●
10	00.533 PLATE; THRUST AUSTRALIA EQUIPMENT(RR3)	8-94110-480-1	01	1	9610-9711		●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9712-	●
10	00.533 PLATE; THRUST	9-11681-015-0	01	1	9312-			●
11	00.533 BOLT; THRUST PLATE TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9312-			●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9312-9506	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9507-	●	●
14	00.738 KEY; CM/SHF 08.960	9-08010-720-0	01	1	9312-			●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9312-9506	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9507-	●	●
53	00.353 SHAFT; ROCKER ARM	8-94129-551-0	01	1	9312-			●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9312-				●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9705-				●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9312-9506	●		●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9507-	●	●	●
58	00.349 BRACKET; ROCKER SHAFT,FRT	5-12628-012-0	01	1	9312-			●
59	00.349 GASKET; ROCKER SHAFT 00.356	5-09623-060-0	01	1	9312-			●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9312-9506	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9507-	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9312-9406			●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502			●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9503-			●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502				●
69	00.303 SPRING; VLV,OUTER	8-94125-512-0	08	1	9312-			●
70	00.303 SPRING; VLV,INNER	8-94125-511-0	08	1	9312-			●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9312-9506	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9507-	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9312-9506	●		●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9507-	●	●	●
71	00.309 SEAT; SPR (A) OD=32	8-94114-579-0	08	1	9312-			●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-1	08	1	9312-				●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9312-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9312-9506	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9507-9511	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9512-9604	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF> 00.283	5-12569-006-0	08	1	9512-9604		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	1-12569-015-0	08	1	9312-9410			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-167-0	08	1	9411-			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94396-609-2	08	1	9312-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97120-307-0	08	1	9512-9604		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9605-	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9312-9506	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9507-	●	●
78	00.333 ARM; ROCKER	1-12611-249-0	08	1	9312-			●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-1	04	1	9312-				●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-0	04	1	9312-				●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9705-				●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9705-				●
79	00.349 RING; SNAP,RR END,ROCKER SHAFT ID=17.5	9-09180-019-0	01	1	9312-			●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-0	08	1	9312-9506	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9507-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9312-			●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9312-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9312-9506	●		●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9507-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 03.459 M10	9-09111-510-0	08	1	9312-9602				●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9603-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9312-9506	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9507-	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9312-			●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9312-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9705-				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9312-9506	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9507-	●	●
85	00.349 BOLT; BRKT M8X65	1-09000-567-0	06	1	9312-			●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	9312-				●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	9705-				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9312-9506	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9507-	●	●
86	00.349 WASHER; ROCKER ARM FIX 00.373	9-09851-430-0	06	1	9312-			●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9312-9506	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9507-	●	●
88	00.426 ROD; PUSH	8-94146-132-0	08	1	9312-			●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9312-9506	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9507-	●	●
89	00.459 TAPPET; VLV	8-94366-277-1	08	1	9312-			●
93	00.349 NUT; BRKT	1-09400-116-0	03	1	9312-			●
94	00.373 WASHER; PL,BRKT	9-09851-430-0	03	1	9312-			●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9312-9506	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9507-	●	●
95	00.376 SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9312-			●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9312-				●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9705-				●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9312-9609	●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9610-9711	●
101	00.724 BOLT; THRUST COLLAR AUSTRALIA EQUIPMENT(RR3) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9610-9711		●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9712-	●
101	00.724 BOLT; THRUST COLLAR M10X55	5-09030-038-1	02	1	9312-			●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9312-				●
101	00.724 BOLT; THRUST COLLAR (D) M14X65	8-97066-798-0	01	1	9312-9405				●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9312-				●
101	00.724 BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9312-9711				●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9712-				●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9312-9609	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9610-9711	●
107	00.724 SHAFT; IDLE GEAR AUSTRALIA EQUIPMENT(RR3)	8-94139-758-1	01	1	9610-9711		●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9712-	●
107	00.724 SHAFT; IDLE GEAR	9-12531-030-0	01	1	9312-9402			●
107	00.724 SHAFT; IDLE GEAR	8-97101-281-0	01	1	9403-9804			●
107	00.724 SHAFT; IDLE GEAR	9-12531-030-0	01	1	9805-			●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9312-9502				●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	9503-				●
107	00.724 SHAFT; IDLE GEAR (D)	8-94399-245-4	01	1	9312-9406				●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9407-				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97065-555-1	01	1	9312-9711				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-0	01	1	9712-				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9312-9711				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9712-				●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9312-9609	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9610-9711	●
111	00.724 COLLAR; THRUST,IDLE GEAR AUSTRALIA EQUIPMENT(RR3)	8-94141-937-1	01	1	9610-9711		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9712-	●
111	00.724 COLLAR; THRUST,IDLE GEAR	5-12535-001-1	01	1	9312-			●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	04	1	9312-9502				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	03	1	9503-9605				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	03	1	9606-9711				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	01	1	9712-9807				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-0	01	1	9808-				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-94370-688-0	01	1	9503-9605				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	01	1	9606-9711				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	03	1	9712-9807				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-0	03	1	9808-				●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9312-9510	●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9511-9609	●
112	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=31	8-94139-759-0	01	1	9511-9609		●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9610-9611	●
112	00.724 GEAR; IDLE Z=51	9-12523-801-4	01	1	9312-9511			●
112	00.724 GEAR; IDLE Z=51	8-94133-937-3	01	1	9511-			●
112	00.724 GEAR; IDLE (B) Z=34	8-94341-671-4	01	1	9312-9409				●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	9410-				●
112	00.724 GEAR; IDLE (D) Z=41	8-94396-834-1	01	1	9312-9408				●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-0	01	1	9409-9510				●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9511-				●
112	00.724 GEAR; IDLE (A) Z=72-30	8-97094-544-1	01	1	9312-9510				●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9511-				●
112	00.724 GEAR; IDLE (C) Z=61	8-97094-546-1	01	1	9312-9510				●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9511-				●
112	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=31	8-97164-773-0	01	1	9610-9611		●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9612-9711	●
112	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=31	8-97164-773-0	01	1	9612-9711		●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9712-	●
305	00.724 BEARING; IDLE GEAR	8-94110-271-0	01	1	9712-	●

65 87 55 71 86 65 68 72 71 85 86 88 83 81 53 54 95 78 84 78 56 55 89 144 5 50 4 46 36 14 47 1 49 43 48 45 44 31 123 121 41 42 138 137 116 120 119 118 117 148 146 145 124 146 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9312-9506	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9507-	●	●
1	00.519 CAMSHAFT	8-94409-412-0	01	1	9312-			●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9312-				●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9312-9711	●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	9712-	●
4	00.296 VALVE; INL TURBOCHARGER<K51>	8-94464-921-0	04	1	9712-	●
4	00.296 VALVE; INL	8-97034-379-0	04	1	9312-			●
4	00.296 VALVE; INL	8-97033-864-1	04	1	9312-9510				●
4	00.296 VALVE; INL	8-94394-160-1	04	1	9511-9705				●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9706-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9507-		●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9312-9711	●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	9712-	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	9712-	●
5	00.297 VALVE; EXH	8-97028-707-2	04	1	9312-			●
5	00.297 VALVE; EXH	8-97019-337-0	04	1	9312-9705				●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9706-				●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9507-		●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9312-9506	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9507-	●	●
14	00.738 KEY; CM/SHF 08.960	9-08010-720-0	01	1	9312-			●
31	00.736 SPROCKET; CM/SHF Z=44	8-97116-059-0	01	1	9507-9510		●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(6AA) Z=44	8-97116-059-0	01	1	9511-9606		●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF> Z=44	8-97116-059-0	01	1	9607-9607		●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF> Z=44	8-97147-983-0	01	1	9608-9611		●
31	00.736 SPROCKET; CM/SHF HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) Z=44	8-97147-983-0	01	1	9612-9711		●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	9712-		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OD=56 T=7.0	8-97080-562-0	01	1	9507-9510		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) UNITED KINGDOM EQUIPMENT(6AA) OD=56 T=7.0	8-97080-562-0	01	1	9511-9606		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) OD=56 T=7.0	8-97080-562-0	01	1	9607-9711		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OD=56 T=7.0	8-97080-562-0	01	1	9712-		●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	9507-9510		●
41	00.662 FLANGE; CAM PULLEY UNITED KINGDOM EQUIPMENT(6AA)	8-94157-492-0	01	1	9511-9606		●
41	00.662 FLANGE; CAM PULLEY HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-94157-492-0	01	1	9607-9711		●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	9712-		●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9507-9510		●
42	00.662 BOLT; FLANGE CAM UNITED KINGDOM EQUIPMENT(6AA) 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9511-9606		●
42	00.662 BOLT; FLANGE CAM HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9607-9711		●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9712-		●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510		●
43	00.662 BOLT; PULLEY UNITED KINGDOM EQUIPMENT(6AA) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9606		●
43	00.662 BOLT; PULLEY HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9607-9711		●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9712-		●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9312-9609	●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9610-9711	●
44	00.738 BOLT AUSTRALIA EQUIPMENT(RR3) 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9610-9711		●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9712-	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9312-9506	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9507-	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9312-9506	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9507-	●	●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-0	01	1	9507-9510		●
46	00.736 CENTER ASM; TIMING PULLEY UNITED KINGDOM EQUIPMENT(6AA)	8-97118-491-0	01	1	9511-9606		●
46	00.736 CENTER ASM; TIMING PULLEY HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97118-491-0	01	1	9607-9711		●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-0	01	1	9712-		●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	9507-9510		●
47	00.662 PIN; STRAIGHT,CENTER UNITED KINGDOM EQUIPMENT(6AA) 08.939 OD=4 L=12	9-08160-412-0	01	1	9511-9606		●
47	00.662 PIN; STRAIGHT,CENTER HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 08.939 OD=4 L=12	9-08160-412-0	01	1	9607-9711		●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	9712-		●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9507-9510		●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(6AA) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9511-9606		●
48	00.724 BOLT; RET HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9607-9711		●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9712-		●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	9507-9510		●
49	00.724 RETAINER; OIL SEAL,CM/SHF UNITED KINGDOM EQUIPMENT(6AA)	8-94133-516-2	01	1	9511-9606		●
49	00.724 RETAINER; OIL SEAL,CM/SHF HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-94133-516-2	01	1	9607-9711		●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	9712-		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97080-893-0	01	1	9507-9510		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) UNITED KINGDOM EQUIPMENT(6AA)	8-97080-893-0	01	1	9511-9606		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97080-893-0	01	1	9607-9711		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97080-893-0	01	1	9712-		●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9312-9506	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9507-	●	●
53	00.353 SHAFT; ROCKER ARM	8-94129-551-0	01	1	9312-			●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9312-				●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9705-				●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9312-9506	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9507-	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9312-9506	●		●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9507-	●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9312-9506	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9507-	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9312-9506	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9507-	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9312-9406			●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502			●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9503-			●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9312-9506	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9507-	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9312-				●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9312-9506	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9507-	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9312-9506	●		●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9507-	●	●	●
71	00.309 SEAT; SPR (A) OD=32	8-94114-579-0	08	1	9312-			●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-1	08	1	9312-				●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9312-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9312-9506	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9507-9511	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9512-9604	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF> 00.283	5-12569-006-0	08	1	9512-9604		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	1-12569-015-0	08	1	9312-9410			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-167-0	08	1	9411-			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94396-609-2	08	1	9312-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97120-307-0	08	1	9512-9604		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9605-	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9312-9506	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9507-	●	●
78	00.333 ARM; ROCKER	1-12611-249-0	08	1	9312-			●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-1	04	1	9312-				●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-0	04	1	9312-				●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9705-				●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9705-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-0	08	1	9312-9506	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9507-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9312-			●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9312-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9312-9506	●		●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9507-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 03.459 M10	9-09111-510-0	08	1	9312-9602				●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9603-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9312-9506	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9507-	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9312-			●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9312-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9705-				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9312-9506	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9507-	●	●
85	00.349 BOLT; BRKT M8X65	1-09000-567-0	06	1	9312-			●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	9312-				●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	9705-				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9312-9506	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9507-	●	●
86	00.349 WASHER; ROCKER ARM FIX 00.373	9-09851-430-0	06	1	9312-			●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9312-9506	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9507-	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9312-9704				●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	04	1	9705-				●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9312-9506	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9507-	●	●
88	00.426 ROD; PUSH	8-94146-132-0	08	1	9312-			●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9312-9506	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9507-	●	●
89	00.459 TAPPET; VLV	8-94366-277-1	08	1	9312-			●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9312-9506	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9507-	●	●
95	00.376 SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9312-			●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9312-				●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9705-				●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	9507-9510		●
116	00.659 PULLEY; TIMING,INJ PUMP UNITED KINGDOM EQUIPMENT(6AA) Z=44 B=37.7	8-97043-289-0	01	1	9511-9606		●
116	00.659 PULLEY; TIMING,INJ PUMP HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) Z=44 B=37.7	8-97043-289-0	01	1	9607-9711		●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	9712-		●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	9406-				●
117	00.662 BOLT; FLANGE 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	9507-9510		●
117	00.662 BOLT; FLANGE UNITED KINGDOM EQUIPMENT(6AA) 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	9511-9606		●
117	00.662 BOLT; FLANGE UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF> 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	9607-9607		●
118	00.662 FLANGE; INJ PUMP PULLEY 03.340	5-12539-020-0	01	1	9507-9510		●
118	00.662 FLANGE; INJ PUMP PULLEY UNITED KINGDOM EQUIPMENT(6AA) 03.340	5-12539-020-0	01	1	9511-9606		●
118	00.662 FLANGE; INJ PUMP PULLEY UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF> 03.340	5-12539-020-0	01	1	9607-9607		●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	9507-9510		●
119	00.662 NUT; PULLEY UNITED KINGDOM EQUIPMENT(6AA) 03.340 M14	8-94226-565-0	01	1	9511-9606		●
119	00.662 NUT; PULLEY HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 03.340 M14	8-94226-565-0	01	1	9607-9711		●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	9712-		●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	9507-9510		●
120	00.662 WASHER; LK,PULLEY,INJ PUMP UNITED KINGDOM EQUIPMENT(6AA) 03.340	8-94226-554-0	01	1	9511-9606		●
120	00.662 WASHER; LK,PULLEY,INJ PUMP HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 03.340	8-94226-554-0	01	1	9607-9711		●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	9712-		●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-0	01	1	9507-9510		●
121	00.724 BOLT; IDLE PULLEY UNITED KINGDOM EQUIPMENT(6AA) M12X57 FLANGE	8-94433-408-0	01	1	9511-9606		●
121	00.724 BOLT; IDLE PULLEY HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) M12X57 FLANGE	8-94433-408-0	01	1	9607-9711		●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	9712-		●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-0	01	1	9507-9510		●
123	00.724 PULLEY; IDLE,TIMING UNITED KINGDOM EQUIPMENT(6AA)	8-94382-215-0	01	1	9511-9606		●
123	00.724 PULLEY; IDLE,TIMING HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-94382-215-0	01	1	9607-9711		●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	9712-		●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9507-9510		●
124	00.659 PULLEY; TIMING,CR/SHF UNITED KINGDOM EQUIPMENT(6AA) Z=22	8-94133-501-3	01	1	9511-9606		●
124	00.659 PULLEY; TIMING,CR/SHF HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) Z=22	8-94133-501-3	01	1	9607-9711		●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9712-		●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-0	01	1	9507-9510		●
137	00.724 BOLT; TENSIONER UNITED KINGDOM EQUIPMENT(6AA) M12X57 FLANGE	8-94433-408-0	01	1	9511-9606		●
137	00.724 BOLT; TENSIONER HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) M12X57 FLANGE	8-94433-408-0	01	1	9607-9711		●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	9712-		●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-0	01	1	9507-9510		●
138	00.724 TENSIONER; TIMING BELT UNITED KINGDOM EQUIPMENT(6AA)	8-94382-214-0	01	1	9511-9606		●
138	00.724 TENSIONER; TIMING BELT HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-94382-214-0	01	1	9607-9711		●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	9712-		●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	9507-9510		●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(6AA) BLUE	8-94380-679-0	01	1	9511-9606		●
144	00.724 BELT; TIMING HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) BLUE	8-94380-679-0	01	1	9607-9711		●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	9712-		●
145	00.724 NUT; FLANGE 03.340 M8	8-94224-829-0	01	1	9507-9510		●
145	00.724 NUT; FLANGE UNITED KINGDOM EQUIPMENT(6AA) 03.340 M8	8-94224-829-0	01	1	9511-9606		●
145	00.724 NUT; FLANGE HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 01.540 M8 FLANGE	0-91150-208-0	01	1	9607-9711		●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-		●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9507-9510		●
146	00.724 WASHER; PL,TENSION LEVER UNITED KINGDOM EQUIPMENT(6AA) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9511-9606		●
146	00.724 WASHER; PL,TENSION LEVER HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9607-9711		●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9712-		●
147	00.724 BOLT; TENSION LEVER 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9507-9510		●
147	00.724 BOLT; TENSION LEVER UNITED KINGDOM EQUIPMENT(6AA) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9511-9605		●
147	00.724 BOLT; TENSION LEVER UNITED KINGDOM EQUIPMENT(6AA) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9606-9606		●
147	00.724 BOLT; TENSION LEVER HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9607-9711		●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●
148	00.724 LEVER; TENSION,TIMING BELT	8-94167-317-0	01	1	9507-9510		●
148	00.724 LEVER; TENSION,TIMING BELT UNITED KINGDOM EQUIPMENT(6AA)	8-94167-317-0	01	1	9511-9605		●
148	00.724 LEVER; TENSION,TIMING BELT UNITED KINGDOM EQUIPMENT(6AA)	8-97146-370-0	01	1	9606-9606		●
148	00.724 LEVER; TENSION,TIMING BELT HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97146-370-0	01	1	9607-9711		●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	9712-		●
305	00.724 BEARING; IDLE GEAR	8-94110-271-0	01	1	9712-	●

55 87 65 65 86 71 85 68 86 72 71 83 78 81 88 53 54 95 84 78 56 55 89 5 9 45 4 44 14 44 1 10 107 112 109 113 106 104 111 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9312-9506	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9507-	●	●
1	00.519 CAMSHAFT	8-94409-412-0	01	1	9312-			●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9312-				●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9312-9711	●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	9712-	●
4	00.296 VALVE; INL TURBOCHARGER<K51>	8-94464-921-0	04	1	9712-	●
4	00.296 VALVE; INL	8-97034-379-0	04	1	9312-			●
4	00.296 VALVE; INL	8-97033-864-1	04	1	9312-9510				●
4	00.296 VALVE; INL	8-94394-160-1	04	1	9511-9705				●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9706-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9507-		●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9312-9711	●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	9712-	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	9712-	●
5	00.297 VALVE; EXH	8-97028-707-2	04	1	9312-			●
5	00.297 VALVE; EXH	8-97019-337-0	04	1	9312-9705				●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9706-				●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9507-		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9312-9609	●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9610-9711	●
9	00.736 GEAR; CM/SHF AUSTRALIA EQUIPMENT(RR3) Z=42	8-97079-212-0	01	1	9610-9711		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9712-	●
9	00.736 GEAR; CM/SHF Z=50	9-12522-147-1	01	1	9312-9510			●
9	00.736 GEAR; CM/SHF Z=50	1-12522-016-2	01	1	9511-			●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-1	01	1	9312-9510				●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9511-				●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9312-9609	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9610-9711	●
10	00.533 PLATE; THRUST AUSTRALIA EQUIPMENT(RR3)	8-94110-480-1	01	1	9610-9711		●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9712-	●
10	00.533 PLATE; THRUST	9-11681-015-0	01	1	9312-			●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9312-9506	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9507-	●	●
14	00.738 KEY; CM/SHF 08.960	9-08010-720-0	01	1	9312-			●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9312-9609	●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9610-9711	●
44	00.738 BOLT AUSTRALIA EQUIPMENT(RR3) 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9610-9711		●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9712-	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9312-9506	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9507-	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9312-9506	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9507-	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9312-9506	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9507-	●	●
53	00.353 SHAFT; ROCKER ARM	8-94129-551-0	01	1	9312-			●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9312-				●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9705-				●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9312-9506	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9507-	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9312-9506	●		●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9507-	●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9312-9506	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9507-	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9312-9506	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9507-	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9312-9406			●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502			●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9503-			●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9312-9506	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9507-	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9312-				●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9312-9506	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9507-	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9312-9506	●		●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9507-	●	●	●
71	00.309 SEAT; SPR (A) OD=32	8-94114-579-0	08	1	9312-			●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-1	08	1	9312-				●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9312-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9312-9506	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9507-9511	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9512-9604	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF> 00.283	5-12569-006-0	08	1	9512-9604		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	1-12569-015-0	08	1	9312-9410			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-167-0	08	1	9411-			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94396-609-2	08	1	9312-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97120-307-0	08	1	9512-9604		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9605-	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9312-9506	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9507-	●	●
78	00.333 ARM; ROCKER	1-12611-249-0	08	1	9312-			●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-1	04	1	9312-				●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-0	04	1	9312-				●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9705-				●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9705-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-0	08	1	9312-9506	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9507-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9312-			●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9312-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9312-9506	●		●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9507-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 03.459 M10	9-09111-510-0	08	1	9312-9602				●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9603-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9312-9506	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9507-	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9312-			●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9312-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9705-				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9312-9506	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9507-	●	●
85	00.349 BOLT; BRKT M8X65	1-09000-567-0	06	1	9312-			●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	9312-				●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	9705-				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9312-9506	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9507-	●	●
86	00.349 WASHER; ROCKER ARM FIX 00.373	9-09851-430-0	06	1	9312-			●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9312-9506	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9507-	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9312-9704				●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	04	1	9705-				●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9312-9506	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9507-	●	●
88	00.426 ROD; PUSH	8-94146-132-0	08	1	9312-			●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9312-9506	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9507-	●	●
89	00.459 TAPPET; VLV	8-94366-277-1	08	1	9312-			●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9312-9506	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9507-	●	●
95	00.376 SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9312-			●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9312-				●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9705-				●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9312-9609	●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9610-9711	●
101	00.724 BOLT; THRUST COLLAR AUSTRALIA EQUIPMENT(RR3) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9610-9711		●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9712-	●
101	00.724 BOLT; THRUST COLLAR M10X55	5-09030-038-1	02	1	9312-			●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9312-				●
101	00.724 BOLT; THRUST COLLAR (D) M14X65	8-97066-798-0	01	1	9312-9405				●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9312-				●
101	00.724 BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9312-9711				●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9712-				●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9312-9609	●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9610-9711	●
104	00.724 BOLT; SHAFT IDLE AUSTRALIA EQUIPMENT(RR3)	8-94109-706-1	01	1	9610-9711		●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9712-	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9312-9609	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9610-9711	●
106	00.724 WASHER; IDLE GEAR SHAFT AUSTRALIA EQUIPMENT(RR3) 00.738 ID=13 OD=36	5-12519-002-1	01	1	9610-9711		●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9712-	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9312-9609	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9610-9711	●
107	00.724 SHAFT; IDLE GEAR AUSTRALIA EQUIPMENT(RR3)	8-94139-758-1	01	1	9610-9711		●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9712-	●
107	00.724 SHAFT; IDLE GEAR	9-12531-030-0	01	1	9312-9402			●
107	00.724 SHAFT; IDLE GEAR	8-97101-281-0	01	1	9403-9804			●
107	00.724 SHAFT; IDLE GEAR	9-12531-030-0	01	1	9805-			●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9312-9502				●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	9503-				●
107	00.724 SHAFT; IDLE GEAR (D)	8-94399-245-4	01	1	9312-9406				●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9407-				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97065-555-1	01	1	9312-9711				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-0	01	1	9712-				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9312-9711				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9712-				●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	9312-9609	●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	9610-9711	●
109	00.724 SHAFT; IDLE GEAR AUSTRALIA EQUIPMENT(RR3)	8-94109-913-1	01	1	9610-9711		●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	9712-	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9312-9609	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9610-9711	●
111	00.724 COLLAR; THRUST,IDLE GEAR AUSTRALIA EQUIPMENT(RR3)	8-94141-937-1	01	1	9610-9711		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9712-	●
111	00.724 COLLAR; THRUST,IDLE GEAR	5-12535-001-1	01	1	9312-			●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	04	1	9312-9502				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	03	1	9503-9605				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	03	1	9606-9711				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	01	1	9712-9807				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-0	01	1	9808-				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-94370-688-0	01	1	9503-9605				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	01	1	9606-9711				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	03	1	9712-9807				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-0	03	1	9808-				●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9312-9510	●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9511-9609	●
112	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=31	8-94139-759-0	01	1	9511-9609		●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9610-9611	●
112	00.724 GEAR; IDLE Z=51	9-12523-801-4	01	1	9312-9511			●
112	00.724 GEAR; IDLE Z=51	8-94133-937-3	01	1	9511-			●
112	00.724 GEAR; IDLE (B) Z=34	8-94341-671-4	01	1	9312-9409				●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	9410-				●
112	00.724 GEAR; IDLE (D) Z=41	8-94396-834-1	01	1	9312-9408				●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-0	01	1	9409-9510				●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9511-				●
112	00.724 GEAR; IDLE (A) Z=72-30	8-97094-544-1	01	1	9312-9510				●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9511-				●
112	00.724 GEAR; IDLE (C) Z=61	8-97094-546-1	01	1	9312-9510				●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9511-				●
112	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=31	8-97164-773-0	01	1	9610-9611		●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9612-9711	●
112	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=31	8-97164-773-0	01	1	9612-9711		●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9712-	●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	9312-9609	●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	9610-9711	●
113	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=37	8-94139-761-0	01	1	9610-9711		●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	9712-	●
305	00.724 BEARING; IDLE GEAR	8-94110-271-0	01	1	9712-	●

55 87 65 65 86 71 85 68 86 72 71 83 78 81 88 53 54 95 84 78 56 55 89 5 9 45 4 44 14 44 1 10 107 112 109 113 106 104 111 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9312-9506	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9507-	●	●
1	00.519 CAMSHAFT	8-94409-412-0	01	1	9312-			●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9312-				●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9312-9711	●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	9712-	●
4	00.296 VALVE; INL TURBOCHARGER<K51>	8-94464-921-0	04	1	9712-	●
4	00.296 VALVE; INL	8-97034-379-0	04	1	9312-			●
4	00.296 VALVE; INL	8-97033-864-1	04	1	9312-9510				●
4	00.296 VALVE; INL	8-94394-160-1	04	1	9511-9705				●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9706-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9507-		●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9312-9711	●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	9712-	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	9712-	●
5	00.297 VALVE; EXH	8-97028-707-2	04	1	9312-			●
5	00.297 VALVE; EXH	8-97019-337-0	04	1	9312-9705				●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9706-				●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9507-		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9312-9609	●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9610-9711	●
9	00.736 GEAR; CM/SHF AUSTRALIA EQUIPMENT(RR3) Z=42	8-97079-212-0	01	1	9610-9711		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9712-	●
9	00.736 GEAR; CM/SHF Z=50	9-12522-147-1	01	1	9312-9510			●
9	00.736 GEAR; CM/SHF Z=50	1-12522-016-2	01	1	9511-			●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-1	01	1	9312-9510				●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9511-				●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9312-9609	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9610-9711	●
10	00.533 PLATE; THRUST AUSTRALIA EQUIPMENT(RR3)	8-94110-480-1	01	1	9610-9711		●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9712-	●
10	00.533 PLATE; THRUST	9-11681-015-0	01	1	9312-			●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9312-9506	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9507-	●	●
14	00.738 KEY; CM/SHF 08.960	9-08010-720-0	01	1	9312-			●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9312-9609	●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9610-9711	●
44	00.738 BOLT AUSTRALIA EQUIPMENT(RR3) 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9610-9711		●
44	00.738 BOLT 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9712-	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9312-9506	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	9507-	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9312-9506	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9507-	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9312-9506	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9507-	●	●
53	00.353 SHAFT; ROCKER ARM	8-94129-551-0	01	1	9312-			●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9312-				●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9705-				●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9312-9506	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9507-	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9312-9506	●		●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9507-	●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9312-9506	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9507-	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9312-9506	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9507-	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9312-9406			●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502			●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9503-			●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9312-9506	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9507-	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9312-				●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9312-9506	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9507-	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9312-9506	●		●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9507-	●	●	●
71	00.309 SEAT; SPR (A) OD=32	8-94114-579-0	08	1	9312-			●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-1	08	1	9312-				●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9312-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9312-9506	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9507-9511	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9512-9604	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF> 00.283	5-12569-006-0	08	1	9512-9604		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	1-12569-015-0	08	1	9312-9410			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-167-0	08	1	9411-			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94396-609-2	08	1	9312-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97120-307-0	08	1	9512-9604		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9605-	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9312-9506	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9507-	●	●
78	00.333 ARM; ROCKER	1-12611-249-0	08	1	9312-			●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-1	04	1	9312-				●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-0	04	1	9312-				●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9705-				●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9705-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-0	08	1	9312-9506	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9507-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9312-			●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9312-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9312-9506	●		●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9507-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 03.459 M10	9-09111-510-0	08	1	9312-9602				●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9603-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9312-9506	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9507-	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9312-			●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9312-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9705-				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9312-9506	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9507-	●	●
85	00.349 BOLT; BRKT M8X65	1-09000-567-0	06	1	9312-			●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	9312-				●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	9705-				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9312-9506	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9507-	●	●
86	00.349 WASHER; ROCKER ARM FIX 00.373	9-09851-430-0	06	1	9312-			●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9312-9506	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9507-	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9312-9704				●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	04	1	9705-				●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9312-9506	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9507-	●	●
88	00.426 ROD; PUSH	8-94146-132-0	08	1	9312-			●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9312-9506	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9507-	●	●
89	00.459 TAPPET; VLV	8-94366-277-1	08	1	9312-			●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9312-9506	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9507-	●	●
95	00.376 SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9312-			●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9312-				●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9705-				●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9312-9609	●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9610-9711	●
101	00.724 BOLT; THRUST COLLAR AUSTRALIA EQUIPMENT(RR3) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9610-9711		●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9712-	●
101	00.724 BOLT; THRUST COLLAR M10X55	5-09030-038-1	02	1	9312-			●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9312-				●
101	00.724 BOLT; THRUST COLLAR (D) M14X65	8-97066-798-0	01	1	9312-9405				●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9312-				●
101	00.724 BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9312-9711				●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9712-				●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9312-9609	●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9610-9711	●
104	00.724 BOLT; SHAFT IDLE AUSTRALIA EQUIPMENT(RR3)	8-94109-706-1	01	1	9610-9711		●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9712-	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9312-9609	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9610-9711	●
106	00.724 WASHER; IDLE GEAR SHAFT AUSTRALIA EQUIPMENT(RR3) 00.738 ID=13 OD=36	5-12519-002-1	01	1	9610-9711		●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9712-	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9312-9609	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9610-9711	●
107	00.724 SHAFT; IDLE GEAR AUSTRALIA EQUIPMENT(RR3)	8-94139-758-1	01	1	9610-9711		●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9712-	●
107	00.724 SHAFT; IDLE GEAR	9-12531-030-0	01	1	9312-9402			●
107	00.724 SHAFT; IDLE GEAR	8-97101-281-0	01	1	9403-9804			●
107	00.724 SHAFT; IDLE GEAR	9-12531-030-0	01	1	9805-			●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9312-9502				●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	9503-				●
107	00.724 SHAFT; IDLE GEAR (D)	8-94399-245-4	01	1	9312-9406				●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9407-				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97065-555-1	01	1	9312-9711				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-0	01	1	9712-				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9312-9711				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9712-				●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	9312-9609	●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	9610-9711	●
109	00.724 SHAFT; IDLE GEAR AUSTRALIA EQUIPMENT(RR3)	8-94109-913-1	01	1	9610-9711		●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	9712-	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9312-9609	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9610-9711	●
111	00.724 COLLAR; THRUST,IDLE GEAR AUSTRALIA EQUIPMENT(RR3)	8-94141-937-1	01	1	9610-9711		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9712-	●
111	00.724 COLLAR; THRUST,IDLE GEAR	5-12535-001-1	01	1	9312-			●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	04	1	9312-9502				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	03	1	9503-9605				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	03	1	9606-9711				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	01	1	9712-9807				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-0	01	1	9808-				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-94370-688-0	01	1	9503-9605				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	01	1	9606-9711				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	03	1	9712-9807				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-0	03	1	9808-				●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9312-9510	●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9511-9609	●
112	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=31	8-94139-759-0	01	1	9511-9609		●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9610-9611	●
112	00.724 GEAR; IDLE Z=51	9-12523-801-4	01	1	9312-9511			●
112	00.724 GEAR; IDLE Z=51	8-94133-937-3	01	1	9511-			●
112	00.724 GEAR; IDLE (B) Z=34	8-94341-671-4	01	1	9312-9409				●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	9410-				●
112	00.724 GEAR; IDLE (D) Z=41	8-94396-834-1	01	1	9312-9408				●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-0	01	1	9409-9510				●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9511-				●
112	00.724 GEAR; IDLE (A) Z=72-30	8-97094-544-1	01	1	9312-9510				●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9511-				●
112	00.724 GEAR; IDLE (C) Z=61	8-97094-546-1	01	1	9312-9510				●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9511-				●
112	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=31	8-97164-773-0	01	1	9610-9611		●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9612-9711	●
112	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=31	8-97164-773-0	01	1	9612-9711		●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9712-	●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	9312-9609	●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	9610-9711	●
113	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=37	8-94139-761-0	01	1	9610-9711		●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	9712-	●
305	00.724 BEARING; IDLE GEAR	8-94110-271-0	01	1	9712-	●

87 83 107 112 111 81 78 85 102 65 65 66 105 78 223 65 66 71 65 224 71 53 84 68 68 95 71 71 87 72 72 1 5 4 37 12 9 8 112 7 37 206 101 102 107 111 107 112 206 101 101 111 111 101 117 107 206 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9312-9506	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9507-	●	●
1	00.519 CAMSHAFT	8-94409-412-0	01	1	9312-			●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9312-				●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9312-9711	●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	9712-	●
4	00.296 VALVE; INL TURBOCHARGER<K51>	8-94464-921-0	04	1	9712-	●
4	00.296 VALVE; INL	8-97034-379-0	04	1	9312-			●
4	00.296 VALVE; INL	8-97033-864-1	04	1	9312-9510				●
4	00.296 VALVE; INL	8-94394-160-1	04	1	9511-9705				●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9706-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9507-		●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9312-9711	●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	9712-	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	9712-	●
5	00.297 VALVE; EXH	8-97028-707-2	04	1	9312-			●
5	00.297 VALVE; EXH	8-97019-337-0	04	1	9312-9705				●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9706-				●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9507-		●
7	00.738 BOLT; CM/SHF GEAR M14X39	5-09000-236-0	01	1	9312-			●
7	00.738 BOLT; CM/SHF GEAR 08.900 M14X40	9-92061-440-0	01	1	9312-				●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9312-9406			●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9407-9502			●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9503-			●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9407-9502				●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9312-9609	●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9610-9711	●
9	00.736 GEAR; CM/SHF AUSTRALIA EQUIPMENT(RR3) Z=42	8-97079-212-0	01	1	9610-9711		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9712-	●
9	00.736 GEAR; CM/SHF Z=50	9-12522-147-1	01	1	9312-9510			●
9	00.736 GEAR; CM/SHF Z=50	1-12522-016-2	01	1	9511-			●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-1	01	1	9312-9510				●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9511-				●
12	00.738 KEY; CAM GEAR SET	8-94399-487-0	01	1	9312-				●
37	00.539 METAL; CM/SHF	8-94393-380-0	10	1	9312-9408				●
37	00.539 METAL; CM/SHF	8-97112-638-0	10	1	9409-				●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9312-9506	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9507-	●	●
53	00.353 SHAFT; ROCKER ARM	8-94129-551-0	01	1	9312-			●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9312-				●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9705-				●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9312-9506	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9507-	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9312-9406			●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502			●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9503-			●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502				●
66	00.303 CAP; VLV STEM END	8-97075-453-0	08	1	9312-9805				●
66	00.303 CAP; VLV STEM END	8-97188-300-0	08	1	9806-				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9312-9506	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9507-	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9312-				●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9312-9506	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9507-	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9312-9506	●		●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9507-	●	●	●
71	00.309 SEAT; SPR (A) OD=32	8-94114-579-0	08	1	9312-			●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-1	08	1	9312-				●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9312-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9312-9506	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9507-9511	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9512-9604	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF> 00.283	5-12569-006-0	08	1	9512-9604		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	1-12569-015-0	08	1	9312-9410			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-167-0	08	1	9411-			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94396-609-2	08	1	9312-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) UNITED KINGDOM EQUIPMENT(6AA) EURO2 SPECIFICATION<7AF>	8-97120-307-0	08	1	9512-9604		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9605-	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9312-9506	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9507-	●	●
78	00.333 ARM; ROCKER	1-12611-249-0	08	1	9312-			●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-1	04	1	9312-				●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-0	04	1	9312-				●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9705-				●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9705-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-0	08	1	9312-9506	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9507-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9312-			●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9312-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9312-9506	●		●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9507-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 03.459 M10	9-09111-510-0	08	1	9312-9602				●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9603-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9312-9506	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9507-	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9312-			●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9312-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9705-				●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9312-9506	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9507-	●	●
85	00.349 BOLT; BRKT M8X65	1-09000-567-0	06	1	9312-			●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	9312-				●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	9705-				●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9312-9506	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9507-	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9312-9704				●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	04	1	9705-				●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9312-9506	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9507-	●	●
95	00.376 SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9312-			●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9312-				●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9705-				●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9312-9609	●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9610-9711	●
101	00.724 BOLT; THRUST COLLAR AUSTRALIA EQUIPMENT(RR3) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9610-9711		●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9712-	●
101	00.724 BOLT; THRUST COLLAR M10X55	5-09030-038-1	02	1	9312-			●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9312-				●
101	00.724 BOLT; THRUST COLLAR (D) M14X65	8-97066-798-0	01	1	9312-9405				●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9312-				●
101	00.724 BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9312-9711				●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9712-				●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	9312-				●
102	00.724 COVER; IDLE GEAR 00.253 (B) OD=51	8-94396-229-0	01	1	9312-9710				●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	9711-				●
105	00.724 BOLT; IDLE GEAR SHAFT 08.900 M14X60	9-91666-460-0	01	1	9312-9502				●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	9503-				●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9312-9609	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9610-9711	●
107	00.724 SHAFT; IDLE GEAR AUSTRALIA EQUIPMENT(RR3)	8-94139-758-1	01	1	9610-9711		●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9712-	●
107	00.724 SHAFT; IDLE GEAR	9-12531-030-0	01	1	9312-9402			●
107	00.724 SHAFT; IDLE GEAR	8-97101-281-0	01	1	9403-9804			●
107	00.724 SHAFT; IDLE GEAR	9-12531-030-0	01	1	9805-			●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9312-9502				●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	9503-				●
107	00.724 SHAFT; IDLE GEAR (D)	8-94399-245-4	01	1	9312-9406				●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9407-				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97065-555-1	01	1	9312-9711				●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-0	01	1	9712-				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9312-9711				●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9712-				●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9312-9609	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9610-9711	●
111	00.724 COLLAR; THRUST,IDLE GEAR AUSTRALIA EQUIPMENT(RR3)	8-94141-937-1	01	1	9610-9711		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9712-	●
111	00.724 COLLAR; THRUST,IDLE GEAR	5-12535-001-1	01	1	9312-			●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	04	1	9312-9502				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	03	1	9503-9605				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	03	1	9606-9711				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	01	1	9712-9807				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-0	01	1	9808-				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-94370-688-0	01	1	9503-9605				●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	01	1	9606-9711				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	03	1	9712-9807				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-0	03	1	9808-				●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9312-9510	●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9511-9609	●
112	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=31	8-94139-759-0	01	1	9511-9609		●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9610-9611	●
112	00.724 GEAR; IDLE Z=51	9-12523-801-4	01	1	9312-9511			●
112	00.724 GEAR; IDLE Z=51	8-94133-937-3	01	1	9511-			●
112	00.724 GEAR; IDLE (B) Z=34	8-94341-671-4	01	1	9312-9409				●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	9410-				●
112	00.724 GEAR; IDLE (D) Z=41	8-94396-834-1	01	1	9312-9408				●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-0	01	1	9409-9510				●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9511-				●
112	00.724 GEAR; IDLE (A) Z=72-30	8-97094-544-1	01	1	9312-9510				●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9511-				●
112	00.724 GEAR; IDLE (C) Z=61	8-97094-546-1	01	1	9312-9510				●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9511-				●
112	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=31	8-97164-773-0	01	1	9610-9611		●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9612-9711	●
112	00.724 GEAR; IDLE AUSTRALIA EQUIPMENT(RR3) Z=31	8-97164-773-0	01	1	9612-9711		●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9712-	●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	9406-				●
117	00.662 BOLT; FLANGE 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	9507-9510		●
117	00.662 BOLT; FLANGE UNITED KINGDOM EQUIPMENT(6AA) 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	9511-9606		●
117	00.662 BOLT; FLANGE UNITED KINGDOM EQUIPMENT(6AA) EXC. EURO2 SPECIFICATION<7AF> 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	9607-9607		●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	9312-				●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	9312-				●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	9409-				●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 ID=105.6	1-09623-247-0	01	1	9312-				●
224	00.724 BOLT; COVER 00.662 M8X14 FLANGE	0-28080-814-0	04	1	9312-9502				●
224	00.724 BOLT; COVER 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9503-9606				●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9607-				●
305	00.724 BEARING; IDLE GEAR	8-94110-271-0	01	1	9712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
