Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#33738) — 331 parça

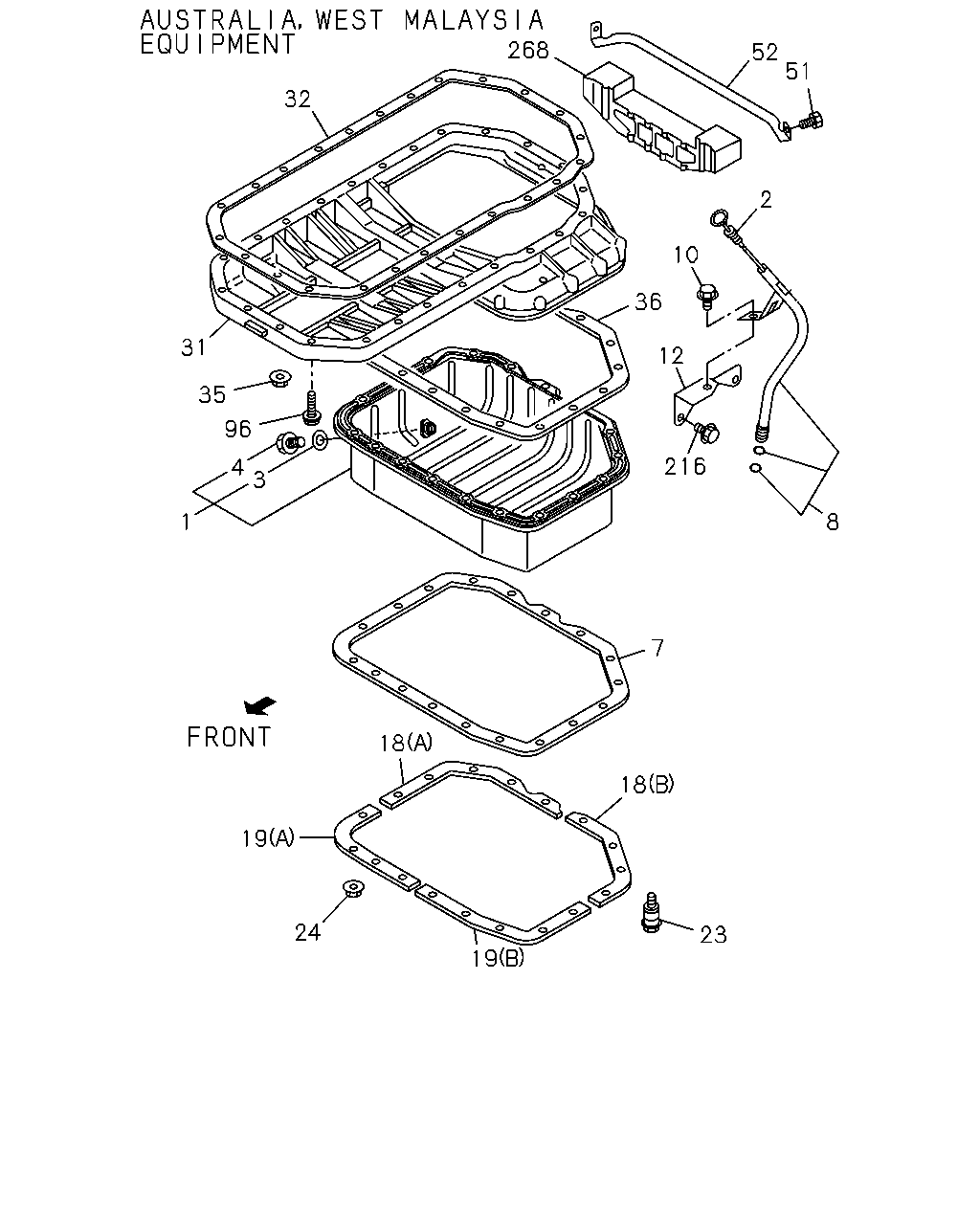

268 52 51 32 2 10 36 31 12 35 96 216 4 3 8 1 7 18 18 19 24 23 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-9506	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9507-	●	●
1	01.426 PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94466-367-0	01	1	9312-9510			●
1	01.426 PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3)	8-94466-367-0	01	1	9511-			●
1	01.426 PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94442-071-0	01	1	9312-9510			●
1	01.426 PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94442-071-0	01	1	9511-			●
1	01.426 PAN ASM; OIL	8-97095-100-0	01	1	9312-9510				●
1	01.426 PAN ASM; OIL	8-97087-642-1	01	1	9511-				●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-9506	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9507-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702			●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-			●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9506	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9507-	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9506	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9507-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502				●
7	01.429 GASKET; PLATE TO OIL PAN AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94170-388-0	01	1	9312-9510			●
7	01.429 GASKET; PLATE TO OIL PAN AUSTRALIA EQUIPMENT(RR3)	8-94170-388-0	01	1	9511-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-9506	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9507-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-				●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-			●
10	01.516 BOLT; GUIDE TUBE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9502				●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9503-				●
12	01.516 BRACKET; TUBE,OIL LEVEL GAUGE	8-97106-819-0	01	1	9312-			●
18	01.426 PLATE; OIL PAN RR AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) (B)	8-94323-918-1	01	1	9312-9510			●
18	01.426 PLATE; OIL PAN RR AUSTRALIA EQUIPMENT(RR3) (B)	8-94323-918-1	01	1	9511-			●
18	01.426 PLATE; OIL PAN RR AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) (A)	8-94323-917-1	01	1	9312-9510			●
18	01.426 PLATE; OIL PAN RR AUSTRALIA EQUIPMENT(RR3) (A)	8-94323-917-1	01	1	9511-			●
19	01.426 PLATE; OIL PAN FRT AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) (B)	8-94323-916-1	01	1	9312-9510			●
19	01.426 PLATE; OIL PAN FRT AUSTRALIA EQUIPMENT(RR3) (B)	8-94323-916-1	01	1	9511-			●
19	01.426 PLATE; OIL PAN FRT AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) (A)	8-94323-915-1	01	1	9312-9510			●
19	01.426 PLATE; OIL PAN FRT AUSTRALIA EQUIPMENT(RR3) (A)	8-94323-915-1	01	1	9511-			●
23	01.428 BOLT; OIL PAN AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) M8X28	5-11369-095-5	11	1	9312-9510			●
23	01.428 BOLT; OIL PAN AUSTRALIA EQUIPMENT(RR3) M8X28	5-11369-095-5	11	1	9511-			●
23	01.428 BOLT; OIL PAN EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9312-9510			●
23	01.428 BOLT; OIL PAN EXC. AUSTRALIA EQUIPMENT(RR3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9511-			●
23	01.428 BOLT; OIL PAN (A) M8X14	8-97047-004-0	01	1	9312-9510				●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	9312-9510				●
23	01.428 BOLT; OIL PAN (A),(B) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9511-				●
24	01.453 NUT; OIL PAN AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) 07.633 M8 FLANGE	0-91150-108-0	07	1	9312-9510			●
24	01.453 NUT; OIL PAN AUSTRALIA EQUIPMENT(RR3) 07.633 M8 FLANGE	0-91150-108-0	07	1	9511-			●
24	01.453 NUT; OIL PAN 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9312-9510				●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9511-9801				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-				●
31	01.430 PLATE; BED,C/BL TO OIL PAN	8-94481-379-1	01	1	9312-			●
32	01.429 GASKET; C/BL TO BED PLATE	8-94370-666-0	01	1	9312-			●
35	01.430 NUT; BED PLATE FIX 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-			●
36	01.429 GASKET; OIL PAN TO BED PLATE AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94170-387-0	01	1	9312-9510			●
36	01.429 GASKET; OIL PAN TO BED PLATE AUSTRALIA EQUIPMENT(RR3)	8-94170-387-0	01	1	9511-			●
51	01.428 BOLT; BRKT,NOISE RUBBER AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9312-9711			●
51	01.428 BOLT; BRKT,NOISE RUBBER AUSTRALIA EQUIPMENT(RR3) 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9712-			●
52	01.430 BRACKET; NOISE SPACER AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94466-373-0	01	1	9312-9711			●
52	01.430 BRACKET; NOISE SPACER AUSTRALIA EQUIPMENT(RR3)	8-94466-373-0	01	1	9712-			●
96	01.428 BOLT; BED PLATE TO C/BL 03.706 M8X40 W/LK WASHER	0-50040-840-0	18	1	9312-			●
96	01.428 BOLT; BED PLATE TO C/BL 01.252 M8X60 W/LK WASHER	0-50040-860-0	02	1	9312-			●
216	01.429 BOLT; BRKT 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9312-			●
268	01.428 SPACER; RUBBER,NOISE,OIL PAN AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94366-563-0	01	1	9312-9711			●
268	01.428 SPACER; RUBBER,NOISE,OIL PAN AUSTRALIA EQUIPMENT(RR3)	8-94366-563-0	01	1	9712-			●

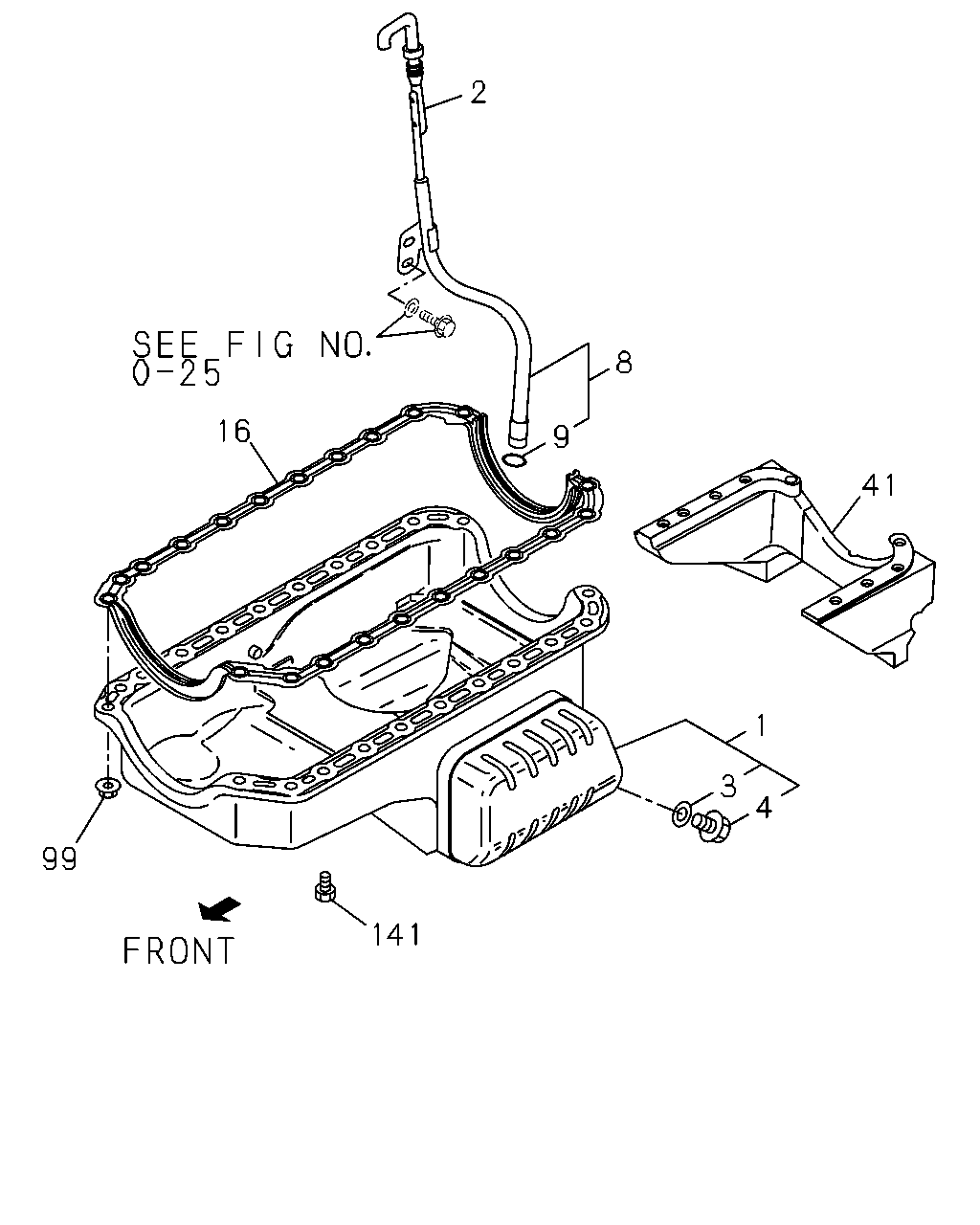

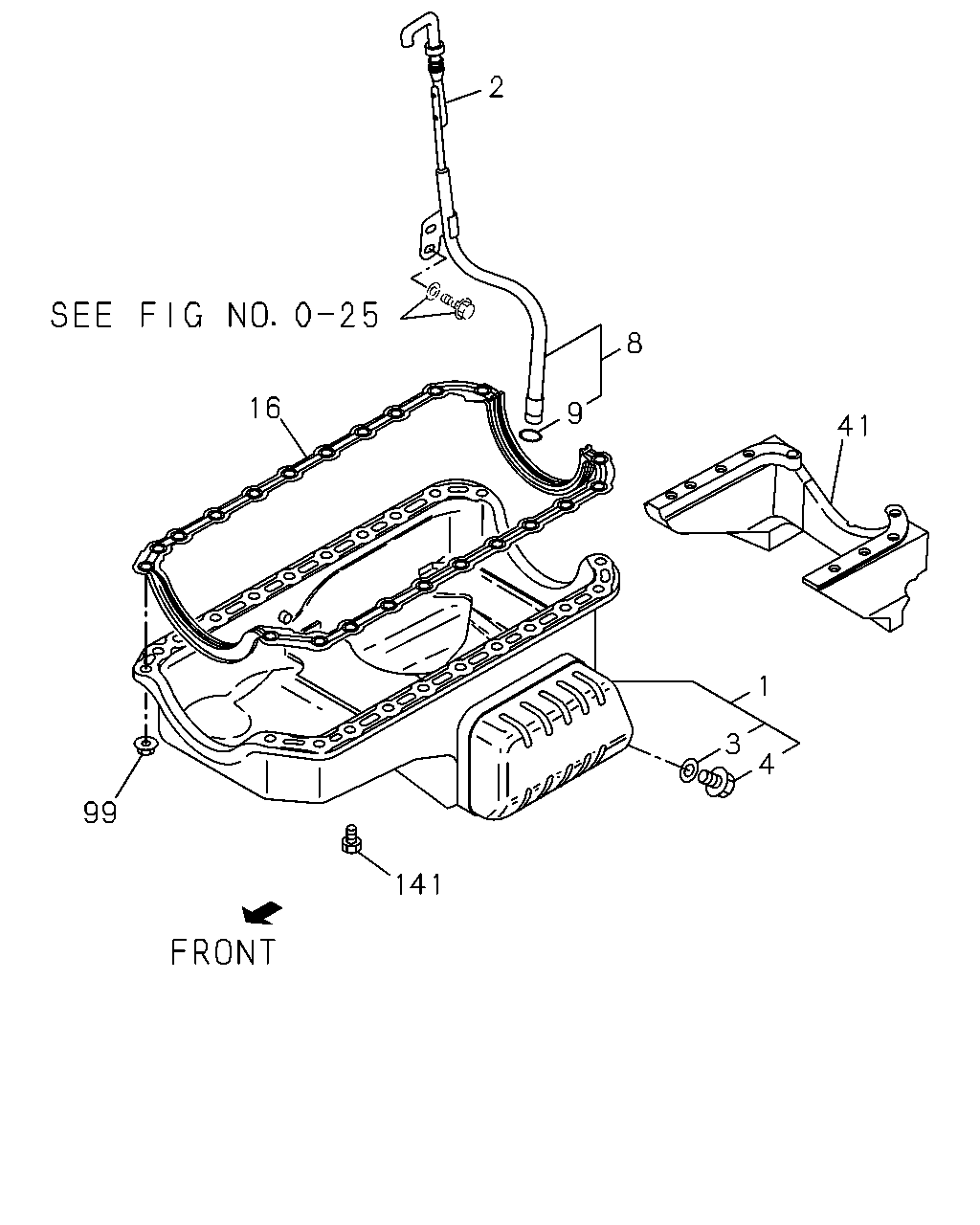

2 8 16 9 41 1 3 4 99 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-9506	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9507-	●	●
1	01.426 PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94466-367-0	01	1	9312-9510			●
1	01.426 PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3)	8-94466-367-0	01	1	9511-			●
1	01.426 PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94442-071-0	01	1	9312-9510			●
1	01.426 PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94442-071-0	01	1	9511-			●
1	01.426 PAN ASM; OIL	8-97095-100-0	01	1	9312-9510				●
1	01.426 PAN ASM; OIL	8-97087-642-1	01	1	9511-				●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-9506	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9507-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702			●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-			●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9506	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9507-	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9506	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9507-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-9506	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9507-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9312-9506	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9507-9709	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9312-				●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9312-9506	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9507-	●	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94370-667-0	01	1	9312-9510			●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AUSTRALIA EQUIPMENT(RR3)	8-94370-667-0	01	1	9511-			●
41	00.137 RUBBER; SPACE EURO1 SPECIFICATION<6YW>	8-97095-936-0	01	1	9410-9506	●
41	00.137 RUBBER; SPACE EURO1 SPECIFICATION<6YW>	8-97095-936-0	01	1	9507-9510	●
41	00.137 RUBBER; SPACE	8-97095-936-0	01	1	9507-9510		●
41	00.137 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1)	8-97095-936-0	01	1	9511-9609	●
41	00.137 RUBBER; SPACE UNITED KINGDOM EQUIPMENT(6AA)	8-97095-936-0	01	1	9511-9609		●
41	00.137 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1)	8-97095-936-0	01	1	9610-9711	●
41	00.137 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97095-936-0	01	1	9610-9711		●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97095-936-0	01	1	9712-	●
41	00.137 RUBBER; SPACE DUAL RR TIRE&SHORT(NKC**C) HONG KONG EQUIPMENT(PQ1)	8-97095-936-0	01	1	9712-	●
41	00.137 RUBBER; SPACE SGL CAB&MIDDLE(NK**SF) HONG KONG EQUIPMENT(PQ1) EXC. TURBOCHARGER<K51>	8-97095-936-0	01	1	9712-	●
41	00.137 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97095-936-0	01	1	9712-		●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9312-9403	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	08	1	9404-9409	●
99	01.453 NUT; BRKT TO OIL PAN FIX EXC. EURO1 SPECIFICATION<6YW> 06.164 M8 FLANGE	5-09440-010-0	08	1	9410-9410	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9411-9506	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9507-	●	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9312-9403	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	14	1	9404-9409	●
141	01.428 BOLT; BRKT TO OIL PAN FIX EXC. EURO1 SPECIFICATION<6YW>	8-94133-973-2	14	1	9410-9410	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9411-9506	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9507-	●	●

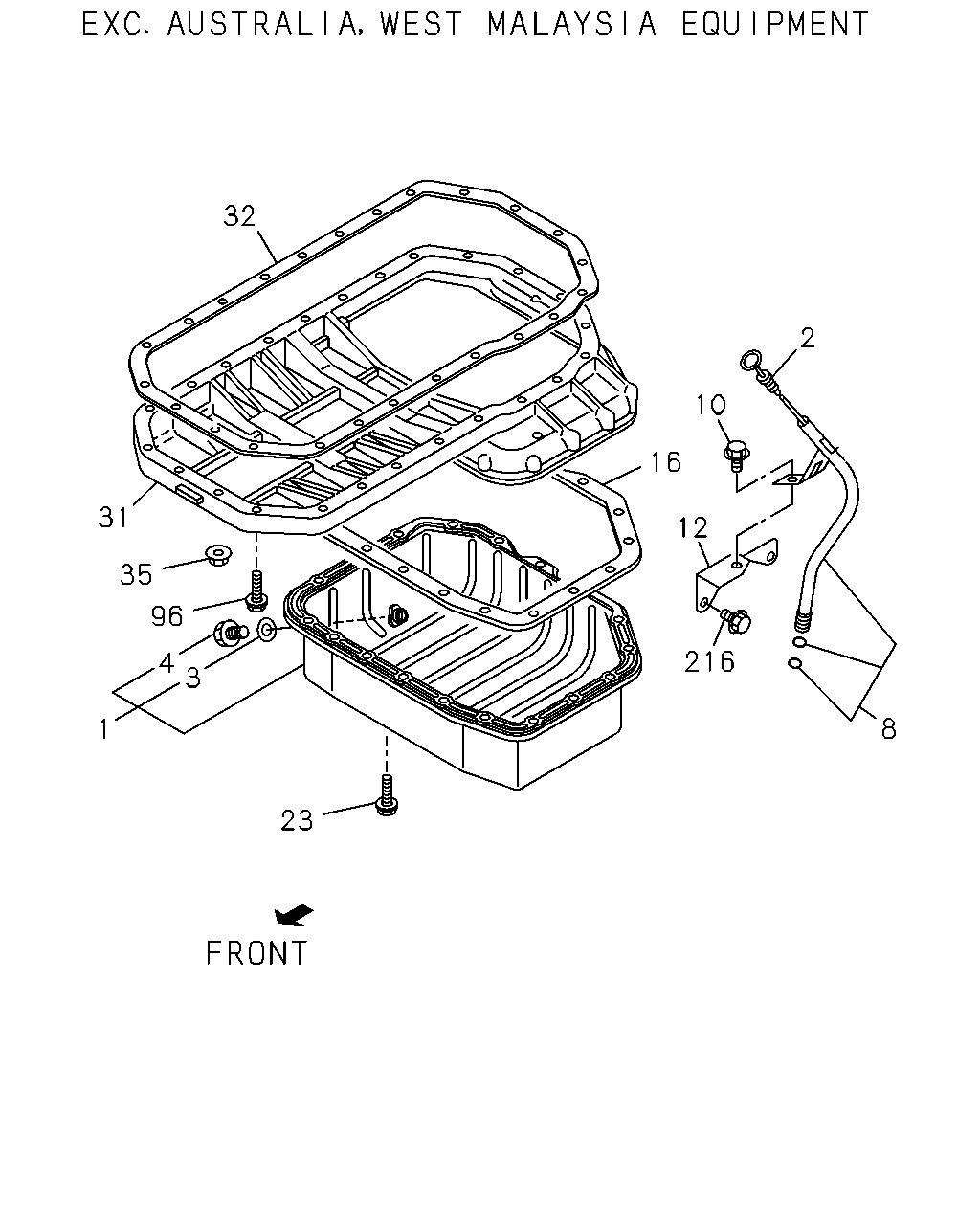

32 2 10 16 31 12 35 96 216 4 3 8 1 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-9506	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9507-	●	●
1	01.426 PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94466-367-0	01	1	9312-9510			●
1	01.426 PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3)	8-94466-367-0	01	1	9511-			●
1	01.426 PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94442-071-0	01	1	9312-9510			●
1	01.426 PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94442-071-0	01	1	9511-			●
1	01.426 PAN ASM; OIL	8-97095-100-0	01	1	9312-9510				●
1	01.426 PAN ASM; OIL	8-97087-642-1	01	1	9511-				●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-9506	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9507-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702			●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-			●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9506	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9507-	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9506	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9507-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-9506	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9507-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-				●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-			●
10	01.516 BOLT; GUIDE TUBE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9502				●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9503-				●
12	01.516 BRACKET; TUBE,OIL LEVEL GAUGE	8-97106-819-0	01	1	9312-			●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9312-9506	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9507-	●	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94370-667-0	01	1	9312-9510			●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AUSTRALIA EQUIPMENT(RR3)	8-94370-667-0	01	1	9511-			●
23	01.428 BOLT; OIL PAN AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) M8X28	5-11369-095-5	11	1	9312-9510			●
23	01.428 BOLT; OIL PAN AUSTRALIA EQUIPMENT(RR3) M8X28	5-11369-095-5	11	1	9511-			●
23	01.428 BOLT; OIL PAN EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9312-9510			●
23	01.428 BOLT; OIL PAN EXC. AUSTRALIA EQUIPMENT(RR3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9511-			●
23	01.428 BOLT; OIL PAN (A) M8X14	8-97047-004-0	01	1	9312-9510				●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	9312-9510				●
23	01.428 BOLT; OIL PAN (A),(B) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9511-				●
31	01.430 PLATE; BED,C/BL TO OIL PAN	8-94481-379-1	01	1	9312-			●
32	01.429 GASKET; C/BL TO BED PLATE	8-94370-666-0	01	1	9312-			●
35	01.430 NUT; BED PLATE FIX 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-			●
96	01.428 BOLT; BED PLATE TO C/BL 03.706 M8X40 W/LK WASHER	0-50040-840-0	18	1	9312-			●
96	01.428 BOLT; BED PLATE TO C/BL 01.252 M8X60 W/LK WASHER	0-50040-860-0	02	1	9312-			●
216	01.429 BOLT; BRKT 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9312-			●

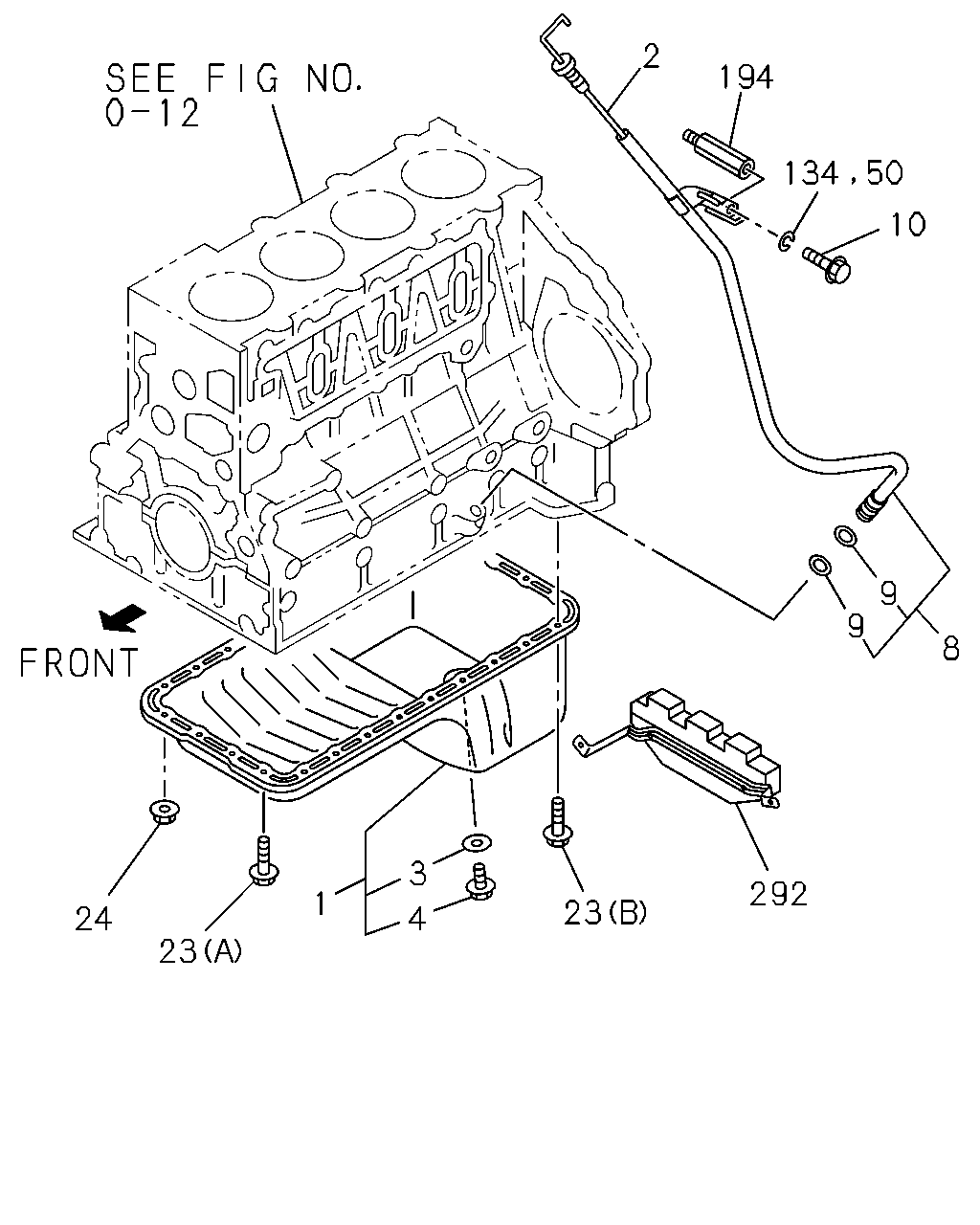

2 194 134 50 10 9 9 8 3 292 1 23 24 4 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-9506	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9507-	●	●
1	01.426 PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94466-367-0	01	1	9312-9510			●
1	01.426 PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3)	8-94466-367-0	01	1	9511-			●
1	01.426 PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94442-071-0	01	1	9312-9510			●
1	01.426 PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94442-071-0	01	1	9511-			●
1	01.426 PAN ASM; OIL	8-97095-100-0	01	1	9312-9510				●
1	01.426 PAN ASM; OIL	8-97087-642-1	01	1	9511-				●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-9506	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9507-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702			●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-			●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9506	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9507-	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9506	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9507-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-9506	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9507-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9312-9506	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9507-9709	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9312-				●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-			●
10	01.516 BOLT; GUIDE TUBE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9502				●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9503-				●
23	01.428 BOLT; OIL PAN AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) M8X28	5-11369-095-5	11	1	9312-9510			●
23	01.428 BOLT; OIL PAN AUSTRALIA EQUIPMENT(RR3) M8X28	5-11369-095-5	11	1	9511-			●
23	01.428 BOLT; OIL PAN EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9312-9510			●
23	01.428 BOLT; OIL PAN EXC. AUSTRALIA EQUIPMENT(RR3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9511-			●
23	01.428 BOLT; OIL PAN (A) M8X14	8-97047-004-0	01	1	9312-9510				●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	9312-9510				●
23	01.428 BOLT; OIL PAN (A),(B) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9511-				●
24	01.453 NUT; OIL PAN AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) 07.633 M8 FLANGE	0-91150-108-0	07	1	9312-9510			●
24	01.453 NUT; OIL PAN AUSTRALIA EQUIPMENT(RR3) 07.633 M8 FLANGE	0-91150-108-0	07	1	9511-			●
24	01.453 NUT; OIL PAN 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9312-9510				●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9511-9801				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-				●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9503-9711				●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9808-				●
134	01.516 WASHER; LK,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9312-9502				●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9312-				●
292	01.531 INSULATOR ASM; OIL PAN SGL CAB&MIDDLE(NK**SF)	8-97106-452-1	01	1	9407-9510				●

2 8 16 9 41 1 3 4 99 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-9506	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9507-	●	●
1	01.426 PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94466-367-0	01	1	9312-9510			●
1	01.426 PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3)	8-94466-367-0	01	1	9511-			●
1	01.426 PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94442-071-0	01	1	9312-9510			●
1	01.426 PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94442-071-0	01	1	9511-			●
1	01.426 PAN ASM; OIL	8-97095-100-0	01	1	9312-9510				●
1	01.426 PAN ASM; OIL	8-97087-642-1	01	1	9511-				●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-9506	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9507-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702			●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-			●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9506	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9507-	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9506	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9507-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-9506	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9507-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9312-9506	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9507-9709	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9312-				●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9312-9506	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9507-	●	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94370-667-0	01	1	9312-9510			●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AUSTRALIA EQUIPMENT(RR3)	8-94370-667-0	01	1	9511-			●
41	00.137 RUBBER; SPACE EURO1 SPECIFICATION<6YW>	8-97095-936-0	01	1	9410-9506	●
41	00.137 RUBBER; SPACE EURO1 SPECIFICATION<6YW>	8-97095-936-0	01	1	9507-9510	●
41	00.137 RUBBER; SPACE	8-97095-936-0	01	1	9507-9510		●
41	00.137 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1)	8-97095-936-0	01	1	9511-9609	●
41	00.137 RUBBER; SPACE UNITED KINGDOM EQUIPMENT(6AA)	8-97095-936-0	01	1	9511-9609		●
41	00.137 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1)	8-97095-936-0	01	1	9610-9711	●
41	00.137 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97095-936-0	01	1	9610-9711		●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97095-936-0	01	1	9712-	●
41	00.137 RUBBER; SPACE DUAL RR TIRE&SHORT(NKC**C) HONG KONG EQUIPMENT(PQ1)	8-97095-936-0	01	1	9712-	●
41	00.137 RUBBER; SPACE SGL CAB&MIDDLE(NK**SF) HONG KONG EQUIPMENT(PQ1) EXC. TURBOCHARGER<K51>	8-97095-936-0	01	1	9712-	●
41	00.137 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1),UNITED KINGDOMEQUIPMENT(6AA)	8-97095-936-0	01	1	9712-		●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9312-9403	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	08	1	9404-9409	●
99	01.453 NUT; BRKT TO OIL PAN FIX EXC. EURO1 SPECIFICATION<6YW> 06.164 M8 FLANGE	5-09440-010-0	08	1	9410-9410	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9411-9506	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9507-	●	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9312-9403	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	14	1	9404-9409	●
141	01.428 BOLT; BRKT TO OIL PAN FIX EXC. EURO1 SPECIFICATION<6YW>	8-94133-973-2	14	1	9410-9410	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9411-9506	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9507-	●	●

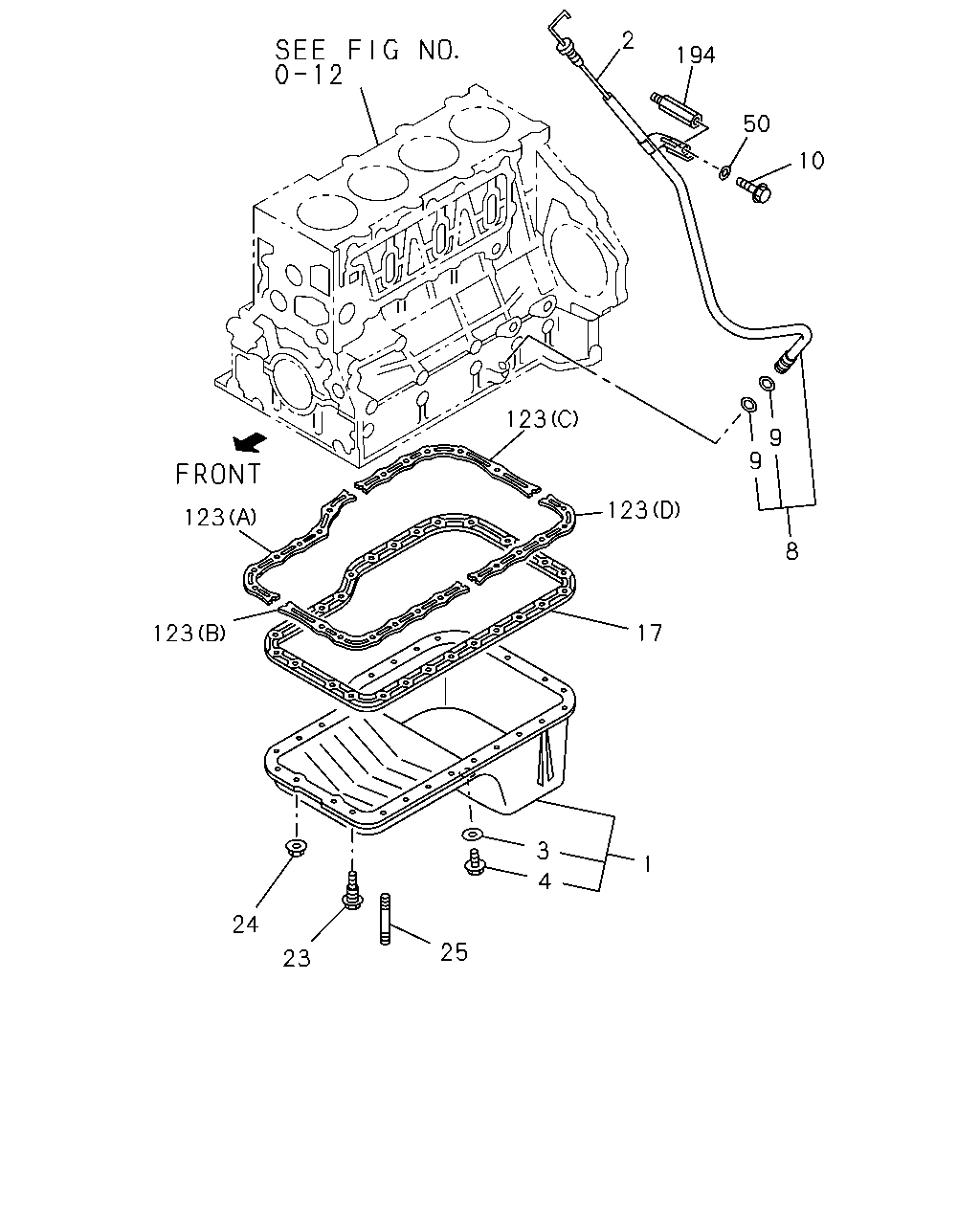

2 194 50 10 123 9 9 123 123 8 17 123 3 1 4 24 25 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9312-9506	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9507-	●	●
1	01.426 PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94466-367-0	01	1	9312-9510			●
1	01.426 PAN ASM; OIL AUSTRALIA EQUIPMENT(RR3)	8-94466-367-0	01	1	9511-			●
1	01.426 PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP)	8-94442-071-0	01	1	9312-9510			●
1	01.426 PAN ASM; OIL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94442-071-0	01	1	9511-			●
1	01.426 PAN ASM; OIL	8-97095-100-0	01	1	9312-9510				●
1	01.426 PAN ASM; OIL	8-97087-642-1	01	1	9511-				●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9312-9506	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9507-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97108-689-0	01	1	9312-9702			●
2	01.516 GAUGE; OIL LEVEL	8-97177-983-0	01	1	9703-			●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9312-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9312-9406	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9503-9506	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9507-	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9407-9502				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9312-9406	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9503-9506	●		●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9507-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9407-9502				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9312-9506	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9507-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97106-818-0	01	1	9312-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9312-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9312-9506	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9507-9709	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9312-				●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-			●
10	01.516 BOLT; GUIDE TUBE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9502				●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9503-				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97106-747-2	01	1	9511-9602				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-148-1	01	1	9603-				●
23	01.428 BOLT; OIL PAN AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) M8X28	5-11369-095-5	11	1	9312-9510			●
23	01.428 BOLT; OIL PAN AUSTRALIA EQUIPMENT(RR3) M8X28	5-11369-095-5	11	1	9511-			●
23	01.428 BOLT; OIL PAN EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9312-9510			●
23	01.428 BOLT; OIL PAN EXC. AUSTRALIA EQUIPMENT(RR3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	18	1	9511-			●
23	01.428 BOLT; OIL PAN (A) M8X14	8-97047-004-0	01	1	9312-9510				●
23	01.428 BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	9312-9510				●
23	01.428 BOLT; OIL PAN (A),(B) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9511-				●
24	01.453 NUT; OIL PAN AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(RWP) 07.633 M8 FLANGE	0-91150-108-0	07	1	9312-9510			●
24	01.453 NUT; OIL PAN AUSTRALIA EQUIPMENT(RR3) 07.633 M8 FLANGE	0-91150-108-0	07	1	9511-			●
24	01.453 NUT; OIL PAN 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9312-9510				●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91150-208-0	15	1	9511-9801				●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9802-				●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	10	1	9511-				●
25	01.453 STUD; OIL PAN M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	01	1	9511-				●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9503-9711				●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9808-				●
123	01.516 RUBBER; SEAL OIL (A)	8-97087-619-2	01	1	9511-				●
123	01.516 RUBBER; SEAL OIL (B)	8-97087-622-2	01	1	9511-				●
123	01.516 RUBBER; SEAL OIL (C)	8-97087-625-2	01	1	9511-				●
123	01.516 RUBBER; SEAL OIL (D)	8-97087-628-2	01	1	9511-				●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9312-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
