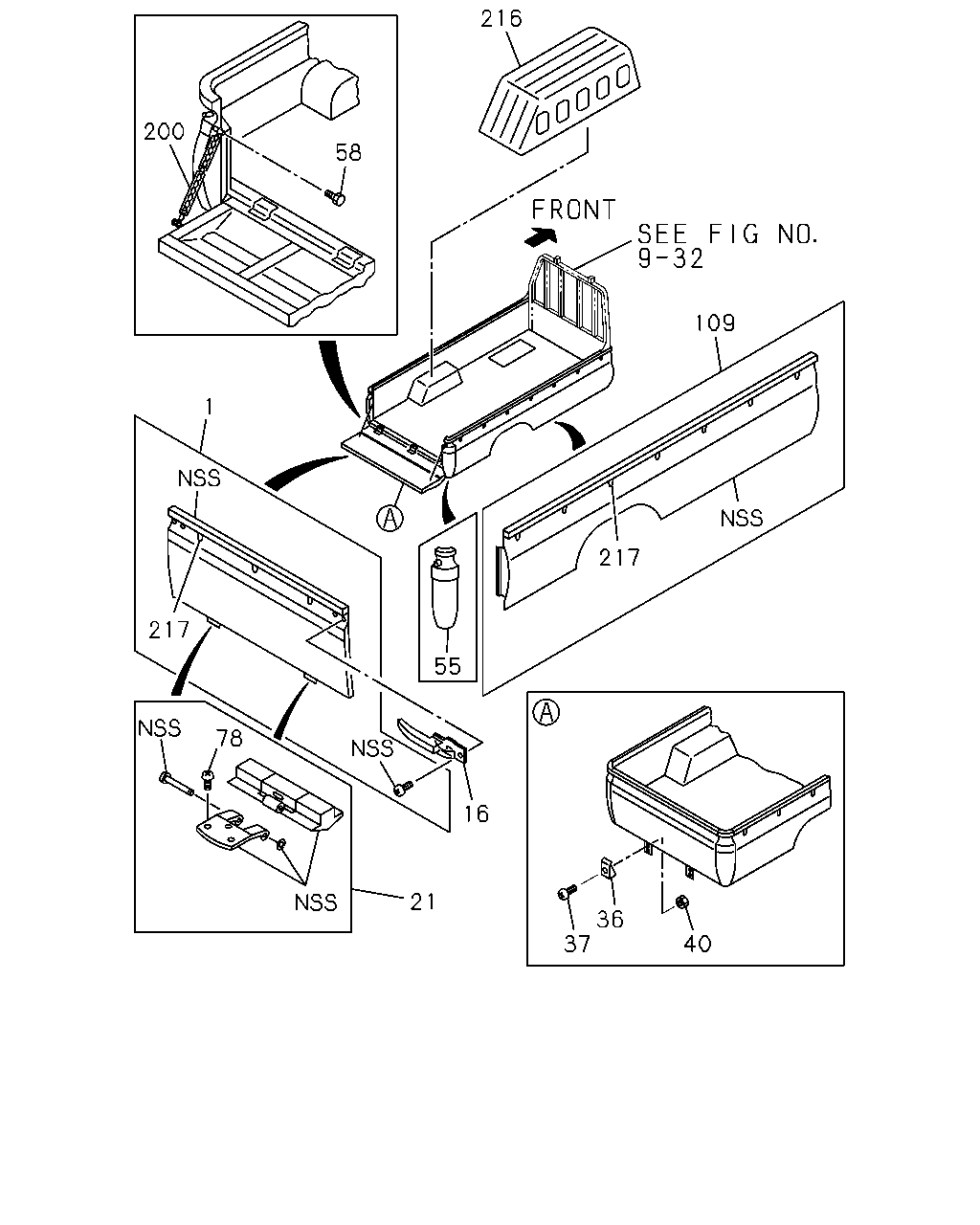

9-33 — REAR BODY; GATE AND SIDE GUARD (#33732) — 65 parça

216 200 58 217 217 55 16 21 36 37 40 1 78 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1596 H=398 B=43 STEEL TAKADA	8-94197-168-0	01	1	9312-	●	●	●	●
1	17.185 GATE ASM; RR RR BODY NON FLAT BED(RS5) L=1512 H=443 B=43 STEEL	8-94197-169-0	01	1	9312-					●	●
16	17.198 LOCK; RR GATE RR BODY NON FLAT BED(RS5)	8-94197-052-0	01	1	9312-					●	●
16	17.198 LOCK; RR GATE RR BODY NON FLAT BED(RS5)	8-94197-051-0	01	1	9312-					●	●
21	17.208 HINGE; LEAF,LWR RR BODY NON FLAT BED(RS5)	8-94197-058-0	03	1	9312-					●	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6>	8-94197-202-0	02	1	9312-	●	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY NON FLAT BED(RS5)	5-66900-040-1	02	1	9312-					●	●
37	17.202 SCREW RR BODY FLAT BED<RS6>	8-94197-198-0	06	1	9312-	●	●	●	●
37	17.202 SCREW RR BODY NON FLAT BED(RS5)	8-94197-156-0	02	1	9502-					●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> M6 FLANGE	8-94197-199-0	06	1	9312-	●	●	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY NON FLAT BED(RS5) M6 FLANGE	8-94197-199-0	02	1	9502-					●	●
55	17.505 PANEL; RR CORNER RR BODY NON FLAT BED(RS5)	8-94197-167-0	01	1	9312-					●	●
55	17.505 PANEL; RR CORNER RR BODY NON FLAT BED(RS5)	8-94197-166-0	01	1	9312-					●	●
58	17.225 BOLT; CHAIN TO RR BODY RR BODY NON FLAT BED(RS5) 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9312-					●	●
78	17.185 SCREW; HINGE LWR RR BODY NON FLAT BED(RS5)	8-94197-158-0	09	1	9502-					●	●
109	17.485 PANEL; SIDE RR BODY NON FLAT BED(RS5)	8-94197-165-0	01	1	9312-9501					●	●
109	17.485 PANEL; SIDE RR BODY NON FLAT BED(RS5)	8-94197-241-0	01	1	9502-					●	●
109	17.485 PANEL; SIDE RR BODY NON FLAT BED(RS5)	8-94197-164-0	01	1	9312-9501					●	●
109	17.485 PANEL; SIDE RR BODY NON FLAT BED(RS5)	8-94197-240-0	01	1	9502-					●	●
200	17.225 CHAIN; REAR GATE RR BODY NON FLAT BED(RS5)	5-66600-033-0	02	1	9312-					●	●
216	17.505 HOUSE; WHEEL RR BODY NON FLAT BED(RS5)	8-94197-194-0	02	1	9312-					●	●
217	17.505 HOOK; ROPE RR BODY NON FLAT BED(RS5)	5-66200-016-0	08	1	9312-					●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94197-371-0	01	1	9312-	●	●	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94197-370-0	01	1	9312-	●	●	●	●

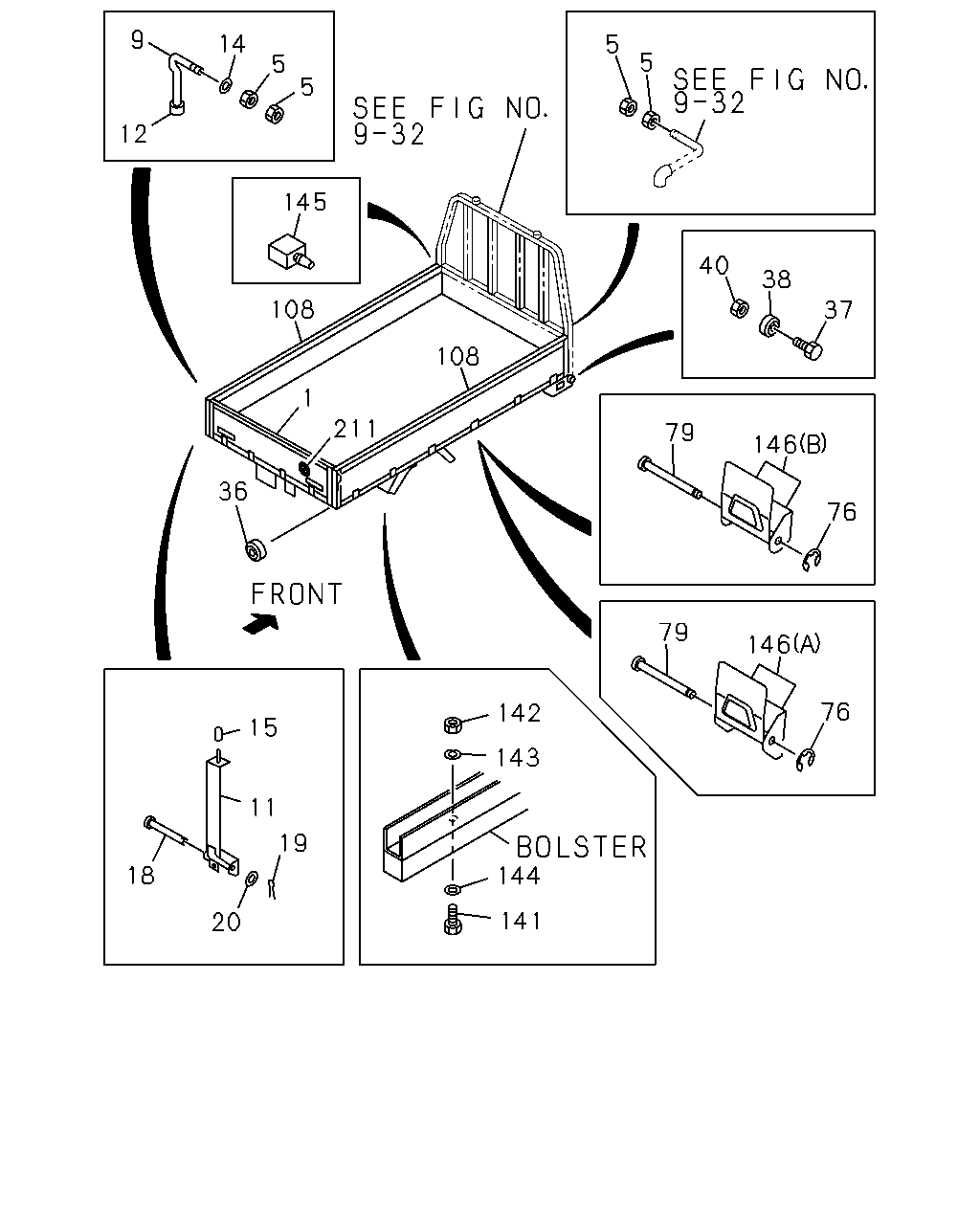

9 5 5 5 5 12 145 40 38 37 211 79 146 36 76 79 146 76 142 15 143 19 18 20 14 108 108 1 11 144 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1596 H=398 B=43 STEEL TAKADA	8-94197-168-0	01	1	9312-	●	●	●	●
1	17.185 GATE ASM; RR RR BODY NON FLAT BED(RS5) L=1512 H=443 B=43 STEEL	8-94197-169-0	01	1	9312-					●	●
5	17.204 NUT; LATCH HANDLE RR BODY FLAT BED<RS6> 07.347 M12	9-99111-412-0	08	1	9312-	●	●	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94197-208-0	01	1	9312-	●	●	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94197-207-0	01	1	9312-	●	●	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> TAKADA	8-94197-201-2	01	1	9312-	●	●	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> TAKADA	8-94197-200-2	01	1	9312-	●	●	●	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	9312-	●	●	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 03.430 ID=12.5	9-09160-512-0	04	1	9502-	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 03.430 ID=12.5	9-09160-512-0	04	1	9312-9501	●	●	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18	9-09160-510-0	02	1	9502-	●	●	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 03.430 ID=12.5	9-09160-512-0	02	1	9502-			●	●
15	17.198 CAP; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-022-0	02	1	9312-9611	●	●	●	●
18	17.198 PIN; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94197-090-0	02	1	9312-	●	●	●	●
19	17.198 PIN; SPLIT,VERTICAL LOCK RR BODY FLAT BED<RS6>	9-08113-015-0	02	1	9312-	●	●	●	●
20	17.198 WASHER; PL,VERTICAL LOCK RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18	9-09160-510-0	04	1	9312-	●	●	●	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6>	8-94197-202-0	02	1	9312-	●	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY NON FLAT BED(RS5)	5-66900-040-1	02	1	9312-					●	●
37	17.202 SCREW RR BODY FLAT BED<RS6>	8-94197-198-0	06	1	9312-	●	●	●	●
37	17.202 SCREW RR BODY NON FLAT BED(RS5)	8-94197-156-0	02	1	9502-					●	●
38	17.507 RUBBER; STOPPER,SIDE GATE RR BODY FLAT BED<RS6> 17.202 OD=45 H=30	5-66900-013-1	06	1	9312-	●	●	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> M6 FLANGE	8-94197-199-0	06	1	9312-	●	●	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY NON FLAT BED(RS5) M6 FLANGE	8-94197-199-0	02	1	9502-					●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> 17.208 ID=6	9-09185-006-0	16	1	9312-	●	●	●	●
79	17.185 PIN; SIDE & RR GATE RR BODY FLAT BED<RS6>	8-94197-143-0	16	1	9312-	●	●	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-94197-141-1	01	1	9312-9501	●	●	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-263-0	01	1	9502-	●	●	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-94197-140-1	01	1	9312-9501	●	●	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-262-0	01	1	9502-	●	●	●	●
141	17.505 BOLT RR BODY FLAT BED<RS6> M6X32	0-10805-632-0	16	1	9312-	●	●
142	17.505 NUT RR BODY FLAT BED<RS6> 00.413 M6	9-09110-506-0	16	1	9312-9406	●	●
142	17.505 NUT RR BODY FLAT BED<RS6> 16.176 M6	9-09110-406-0	16	1	9407-	●	●
143	17.505 WASHER; LK,SPACER RR BODY FLAT BED<RS6> 00.206 ID=6.1	9-09150-506-0	16	1	9312-	●	●
144	17.505 WASHER; PL,SPACER RR BODY FLAT BED<RS6> 02.334 ID=6.4 OD=22	9-09164-806-0	16	1	9312-	●	●
145	17.505 STOPPER; SIDE GATE RR BODY FLAT BED<RS6> 17.507	8-94238-211-0	02	1	9312-	●	●	●	●
146	17.505 HINGE; SIDE & REAR RR BODY FLAT BED<RS6> (A)	8-94197-205-0	16	1	9312-	●	●
146	17.505 HINGE; SIDE & REAR RR BODY FLAT BED<RS6> (A)	8-94197-205-0	14	1	9312-			●	●
146	17.505 HINGE; SIDE & REAR RR BODY FLAT BED<RS6> (B)	8-94197-206-0	02	1	9312-			●	●
211	17.505 REFLECTOR; RR BODY RR BODY FLAT BED<RS6> 16.225	8-97808-650-0	02	1	9312-	●	●	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94197-371-0	01	1	9312-	●	●	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94197-370-0	01	1	9312-	●	●	●	●
