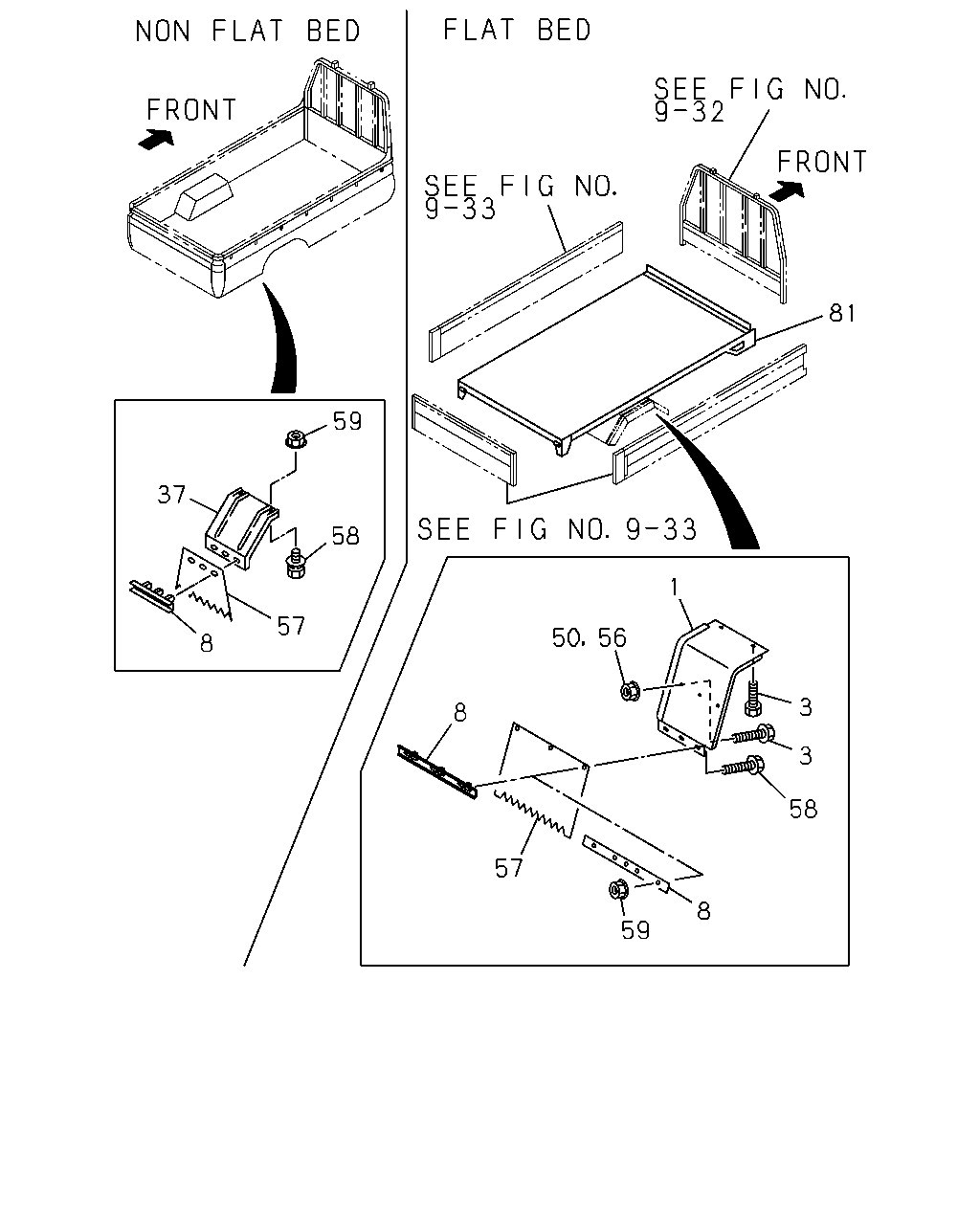

9-31 — REAR BODY; FLOOR AND FENDER (#33730) — 29 parça

81 59 37 58 57 50 56 8 3 8 3 58 57 8 59 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> FRONT SIDE	8-94197-181-0	01	1	9312-	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> REAR SIDE	8-94197-185-0	01	1	9312-	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> FRONT SIDE	8-94197-180-0	01	1	9312-	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> REAR SIDE	8-94197-184-0	01	1	9312-	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> FRONT SIDE	8-94197-183-0	01	1	9312-			●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> REAR SIDE	8-94197-189-0	01	1	9312-			●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> FRONT SIDE	8-94197-182-0	01	1	9312-			●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> REAR SIDE	8-94197-188-0	01	1	9312-			●	●
3	08.203 BOLT; FENDER TO RR BODY RR BODY FLAT BED<RS6> 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	08	1	9502-9711	●	●
3	08.203 BOLT; FENDER TO RR BODY RR BODY FLAT BED<RS6> 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	16	1	9712-	●	●
3	08.203 BOLT; FENDER TO RR BODY RR BODY FLAT BED<RS6> 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	12	1	9502-9711			●	●
3	08.203 BOLT; FENDER TO RR BODY RR BODY FLAT BED<RS6> 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	22	1	9712-			●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>	8-97069-729-0	02	1	9312-	●	●			●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97066-225-0	02	1	9312-			●	●
37	08.212 BRACKET; MUD COVER RR BODY NON FLAT BED(RS5)	8-94197-195-0	02	1	9312-					●	●
50	17.447 NUT; RR FENDER RR BODY FLAT BED<RS6> 17.208 M6 FLANGE	8-94197-193-0	08	1	9712-	●	●
50	17.447 NUT; RR FENDER RR BODY FLAT BED<RS6> 17.208 M6 FLANGE	8-94197-193-0	10	1	9712-			●	●
56	17.447 NUT; RR FENDER RR BODY FLAT BED<RS6> 17.208 M6 FLANGE	8-94197-193-0	08	1	9502-9711	●	●
56	17.447 NUT; RR FENDER RR BODY FLAT BED<RS6> 17.208 M6 FLANGE	8-94197-193-0	10	1	9502-9711			●	●
57	08.214 RUBBER; FLAP RR RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6> H=330 B=280	8-97089-827-1	02	1	9312-	●	●			●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=270 B=340	8-97089-828-1	02	1	9312-			●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY NON FLAT BED(RS5) M6X12 W/LK&PL WASHER	8-94197-192-0	10	1	9502-					●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-2	06	1	9312-			●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY NON FLAT BED(RS5) M6 FLANGE	8-94197-193-0	10	1	9502-					●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	9312-			●	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94197-178-1	01	1	9312-9501	●	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94197-232-0	01	1	9502-	●	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94197-170-1	01	1	9312-9501			●	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6>	8-94197-234-0	01	1	9502-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
