9-30 — REAR BODY ASM AND MOUNTING (#33729) — 64 parça

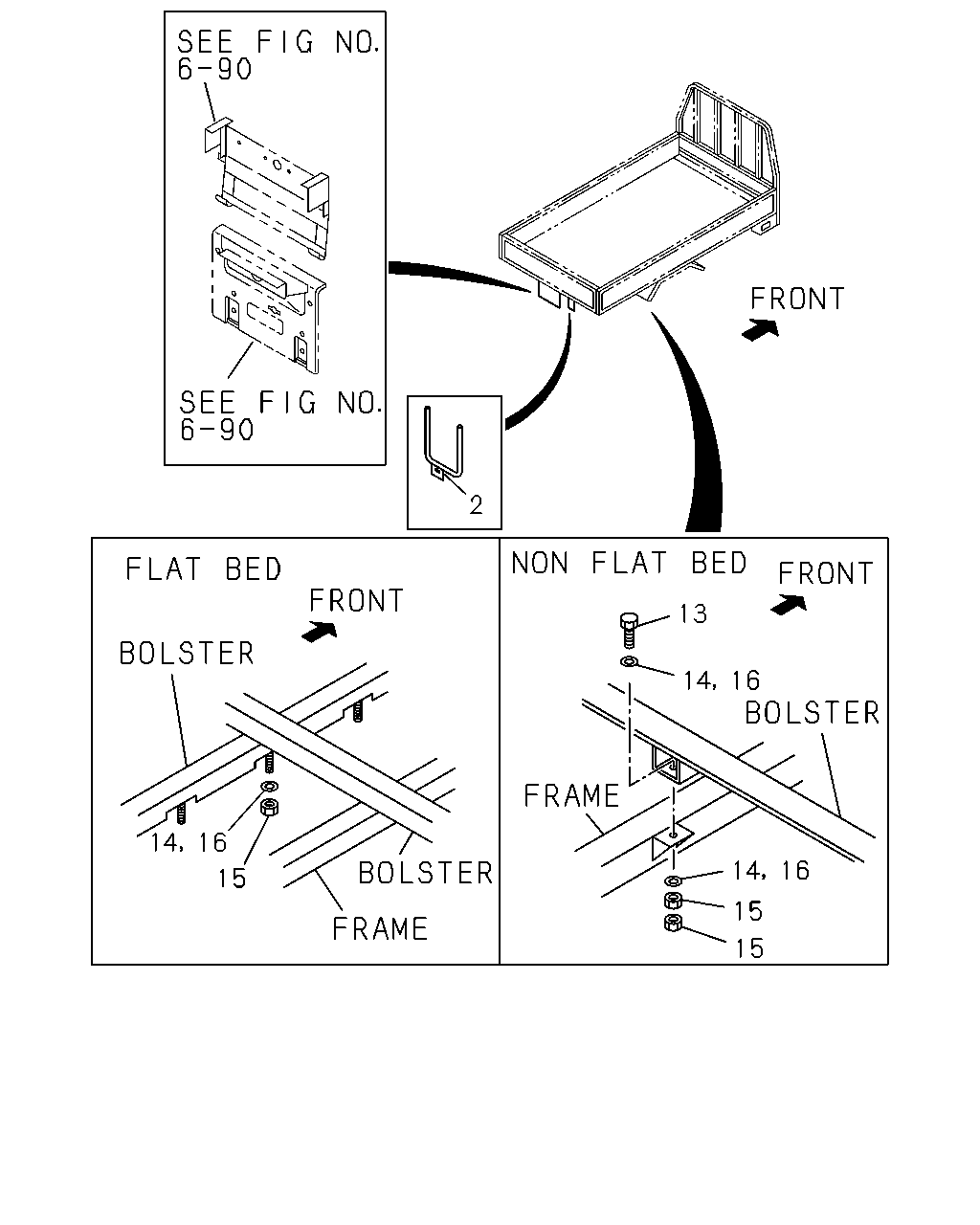

çizim 19558
2 13 16 14 16 15 14 16 14 15 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 17.185 STEP; RR
RR BODY FLAT BED<RS6> 		5-66900-333-0 01 1 9312- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY NON FLAT BED(RS5) M12X40 		0-20801-240-0 08 1 9312-9705 ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY NON FLAT BED(RS5) 09.003 M12X40 FLANGE 		0-28681-240-0 08 1 9706- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> M12X40 		0-20801-240-0 10 1 9312-9705 ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> 09.003 M12X40 FLANGE 		0-28681-240-0 10 1 9706- ● ●
14 09.011 WASHER; PL,RR BODY MTG
RR BODY FLAT BED<RS6> 04.792 ID=10.5 OD=26 		9-09160-710-0 04 1 9312- ● ●
14 09.011 WASHER; PL,RR BODY MTG
RR BODY NON FLAT BED(RS5) 07.633 ID=12.5 OD=32 		9-09164-712-0 14 1 9312- ● ●
14 09.011 WASHER; PL,RR BODY MTG
RR BODY FLAT BED<RS6> 07.633 ID=12.5 OD=32 		9-09164-712-0 18 1 9312- ● ●
15 09.011 NUT; RR BODY MTG
RR BODY NON FLAT BED(RS5) 05.816 M12 		9-99110-412-0 16 1 9312- ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6> 05.816 M12 		9-99110-412-0 20 1 9312- ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6> ID=12.5 OD=26 		9-09164-612-0 02 1 9312- ● ● ● ●

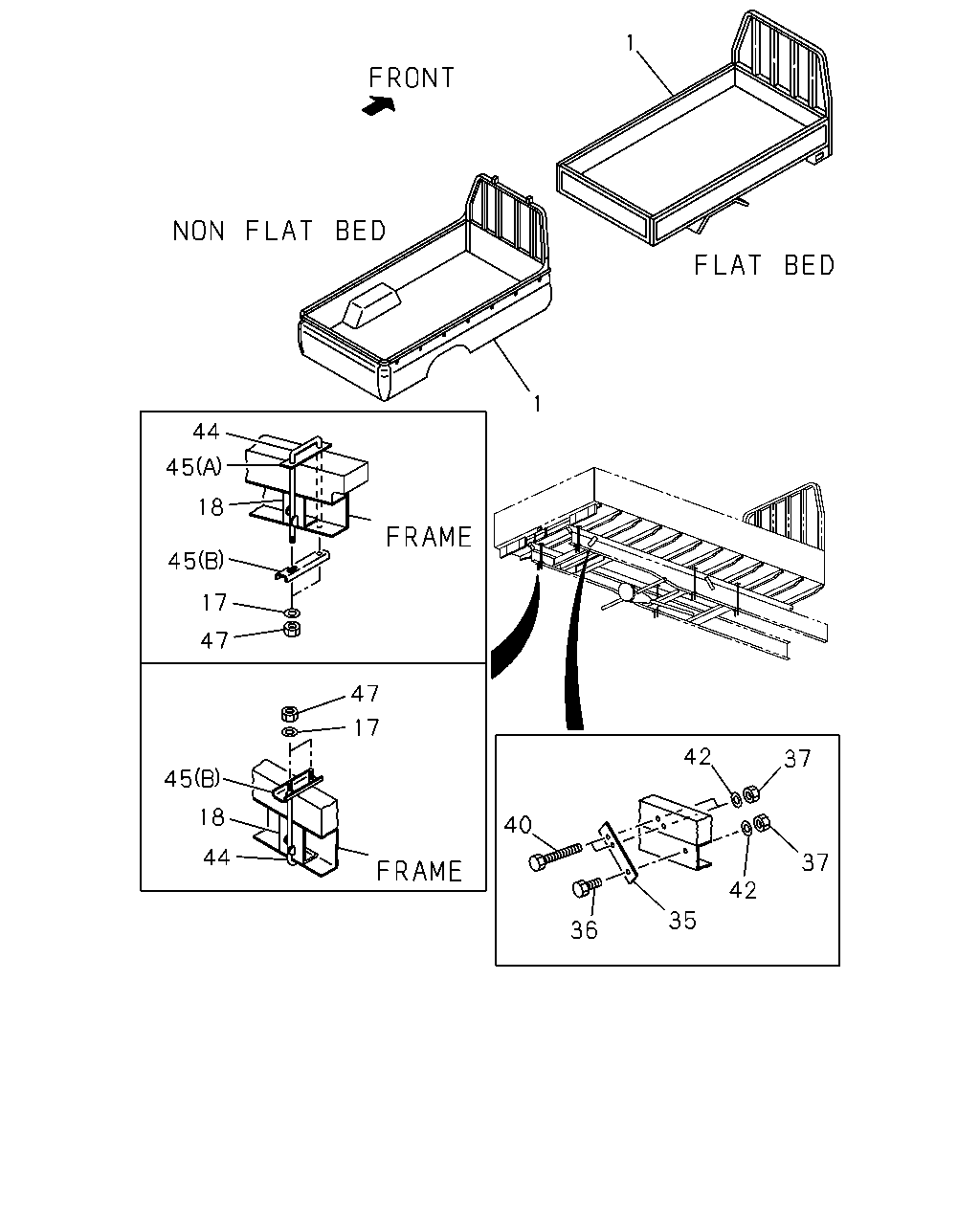

çizim 69193
45 18 45 47 47 42 37 45 18 40 37 42 35 36 1 1 44 17 17 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> 		8-97098-186-1 01 1 9312-9501 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> BLUE 		8-97154-184-0 01 1 9502- ● ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> 		8-97097-021-1 01 1 9312-9501 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE 		8-97154-183-0 01 1 9502- ● ●
1 17.090 BODY ASM; REAR
BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> 		8-97097-059-1 01 1 9312-9501 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> RED 		8-97154-185-0 01 1 9502- ● ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> 		8-97097-022-1 01 1 9312-9501 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE 		8-97154-186-0 01 1 9502- ● ●
1 17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730) RR BODY NON FLAT BED(RS5) 		8-97098-187-2 01 1 9312-9501 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730) RR BODY NON FLAT BED(RS5) BLUE 		8-97154-210-0 01 1 9502- ● ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY NON FLAT BED(RS5) 		8-97097-023-2 01 1 9312-9501 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY NON FLAT BED(RS5) WHITE 		8-97154-209-0 01 1 9502- ● ●
1 17.090 BODY ASM; REAR
BODY COLOR CARDINAL RED(736) RR BODY NON FLAT BED(RS5) 		8-97097-060-2 01 1 9312-9501 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR CARDINAL RED(736) RR BODY NON FLAT BED(RS5) RED 		8-97154-211-0 01 1 9502- ● ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) 		8-97097-024-2 01 1 9312-9501 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) BLUE 		8-97154-212-0 01 1 9502- ● ●
1 17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> BLUE 		8-97154-191-0 01 1 9604- ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> WHITE 		8-97154-190-0 01 1 9604- ●
1 17.090 BODY ASM; REAR
BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> RED 		8-97157-825-0 01 1 9604- ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> BLUE 		8-97154-192-0 01 1 9604- ●
1 17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> 		8-97098-188-0 01 1 9312-9501 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> BLUE 		8-97154-194-0 01 1 9502-9603 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ> BLUE 		8-97154-194-0 01 1 9604- ●
1 17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> BLUE 		8-97154-194-0 01 1 9604- ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> 		8-97097-025-0 01 1 9312-9501 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE 		8-97154-193-0 01 1 9502-9603 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ> WHITE 		8-97154-193-0 01 1 9604- ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE 		8-97154-193-0 01 1 9604- ●
1 17.090 BODY ASM; REAR
BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> 		8-97097-061-0 01 1 9312-9501 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> RED 		8-97154-195-0 01 1 9502-9603 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ> RED 		8-97154-195-0 01 1 9604- ●
1 17.090 BODY ASM; REAR
BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> RED 		8-97154-195-0 01 1 9604- ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> 		8-97097-026-0 01 1 9312-9501 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE 		8-97154-196-0 01 1 9502-9603 ● ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ> BLUE 		8-97154-196-0 01 1 9604- ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE 		8-97154-196-0 01 1 9604- ●
17 17.447 WASHER; PL,U-BOLT
RR BODY FLAT BED<RS6> 06.172 ID=12.5 		9-09164-512-0 06 1 9312- ● ●
18 17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6> H=121 B=50 D=47.5 		5-53119-094-2 02 1 9312- ● ●
18 17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6> FRT INDEPENDENT SUSPENSION(6PP) H=161 B=50 D=52 		5-53119-093-2 02 1 9312-9510 ● ●
18 17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6> H=161 B=50 D=52 		5-53119-093-2 04 1 9511- ● ●
18 17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6> FRT INDEPENDENT SUSPENSION(6PP) H=152 B=50 D=52 		8-97013-988-0 02 1 9312-9510 ● ●
18 17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6> EXC. FRT INDEPENDENT SUSPENSION(6PP) H=161 B=50 D=52 		5-53119-093-2 04 1 9312-9510 ● ●
35 17.447 STOPPER; RR BODY
RR BODY FLAT BED<RS6> L=191.5 		8-94121-666-0 04 1 9312- ● ●
36 17.447 BOLT; FRAME
RR BODY FLAT BED<RS6> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 04 1 9312- ● ●
37 17.447 NUT; STOPPER TO FRAME
RR BODY FLAT BED<RS6> 08.917 M10 FLANGE 		0-91150-210-0 04 1 9312- ● ●
40 17.447 BOLT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 04 1 9312-9705 ● ●
40 17.447 BOLT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6> 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9706- ● ●
42 17.447 WASHER; PL,STOPPER TO RR BODY
RR BODY FLAT BED<RS6> 04.792 ID=10.5 OD=26 		9-09160-710-0 04 1 9312- ● ●
44 17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6> L=340 		8-94151-369-0 04 1 9312- ● ●
44 17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6> L=300 		8-94151-371-0 02 1 9312- ● ●
45 17.447 PLATE; U-BOLT
RR BODY FLAT BED<RS6> (A) L=100 B=30 		8-94148-715-0 05 1 9312- ● ●
45 17.447 PLATE; U-BOLT
RR BODY FLAT BED<RS6> (B) L=115 B=40 		9-61200-629-2 06 1 9312- ● ●
47 17.447 NUT; U-BOLT
RR BODY FLAT BED<RS6> M12 		9-09130-412-0 12 1 9312- ● ●
