9-01 — TOOLS (#33728) — 62 parça

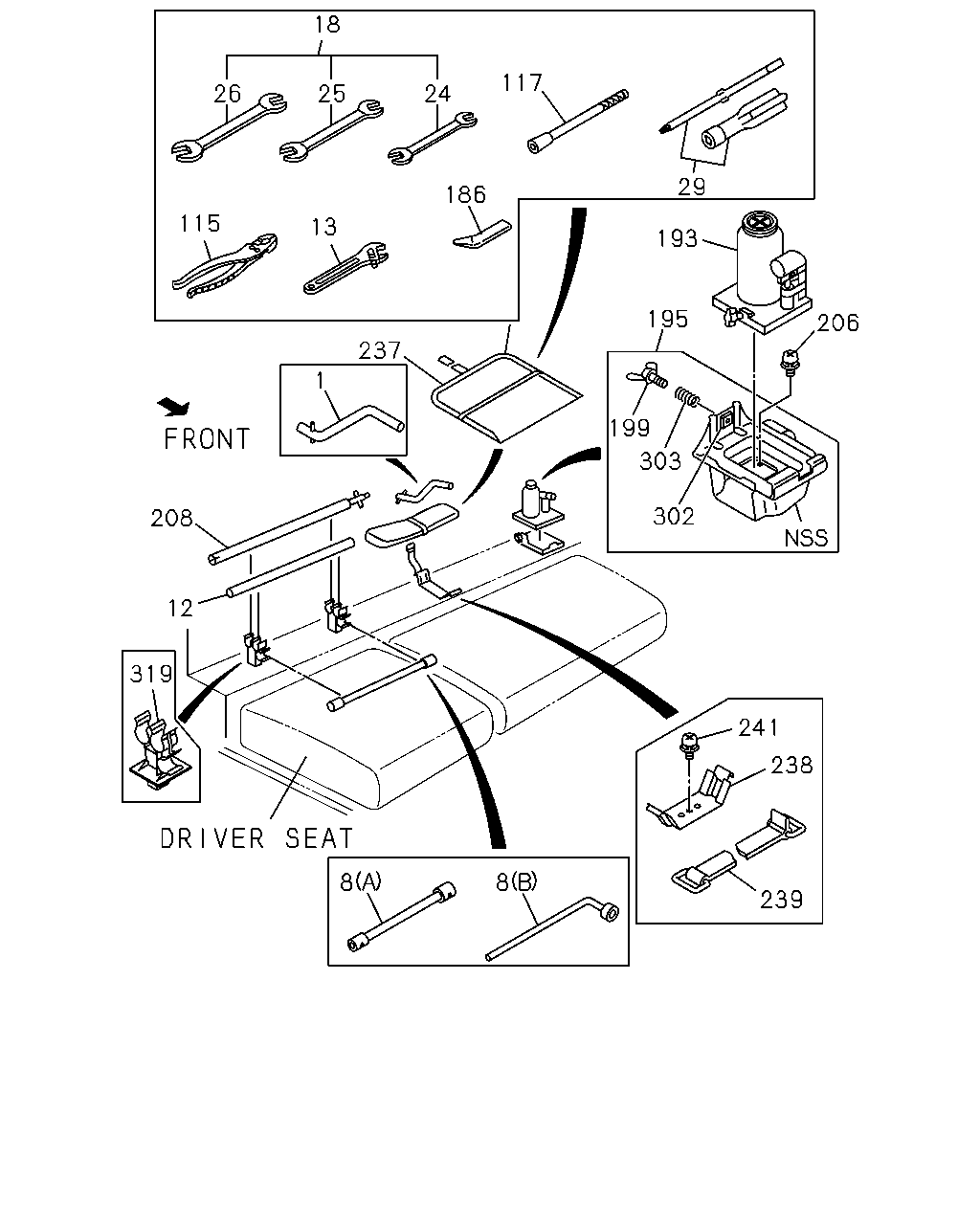

çizim 70837
18 117 26 25 24 29 186 115 13 193 195 206 237 1 199 303 302 208 12 319 241 238 8 8 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.629 HANDLE; SPARE TIRE CARRIER
08.820 		9-85512-608-0 01 1 9312- ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
(B) B=27 L=280 		5-85115-002-1 01 1 9312-9803 ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 9804- ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
(A) B=35X17 L=300 		8-94341-283-1 01 1 9312- ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9312- ● ●
13 08.821 WRENCH; MONKEY
TOOL MADE IN JAPAN<6VY> 		5-85117-001-0 01 1 9312-9501 ● ● ● ● ● ●
13 08.821 WRENCH; MONKEY
EXC. TOOL MADE IN JAPAN<6VY> 		8-94310-178-0 01 1 9312-9407 ● ● ● ● ● ●
18 08.821 WRENCH KIT 9-85161-902-0 01 1 9312- ● ● ● ● ● ●
24 08.821 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9312-9507 ● ● ● ● ● ●
25 08.821 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9312-9507 ● ● ● ● ● ●
26 08.821 WRENCH; 22X17
22X17 		9-85162-101-0 01 1 9312-9507 ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9312- ● ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9312- ● ● ● ● ● ●
117 08.821 WRENCH; VALVE CAP 9-85163-906-1 01 1 9312- ● ●
186 08.821 ADJUSTER; BRAKE 5-85269-001-0 01 1 9312- ● ●
193 08.820 JACK ASM
4TON 		8-97131-075-1 01 1 9512-9711 ● ● ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 4TON 		8-97131-075-1 01 1 9512-9711 ●
193 08.820 JACK ASM
4TON 		8-97131-075-1 01 1 9712- ● ● ● ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-424-1 01 1 9502-9505 ● ● ● ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 4TON 		8-97131-075-1 01 1 9506-9510 ● ● ● ●
193 08.820 JACK ASM 8-97048-422-1 01 1 9312-9501 ● ● ● ● ● ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-422-1 01 1 9502-9505 ● ● ● ● ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) 4TON 		8-97131-074-1 01 1 9506-9510 ● ● ● ● ●
193 08.820 JACK ASM
4TON 		8-97131-074-1 01 1 9511-9511 ● ● ● ● ● ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) 4TON 		8-97131-074-1 01 1 9512-9711 ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-423-0 01 1 9502-9505 ●
193 08.820 JACK ASM 8-97048-423-0 01 1 9502-9505 ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 3TON 		8-97131-073-1 01 1 9506-9510 ●
193 08.820 JACK ASM
3TON 		8-97131-073-1 01 1 9506-9510 ●
193 08.820 JACK ASM
3TON 		8-97131-073-1 01 1 9512- ● ●
195 08.820 BRACKET; JACK 8-94273-287-6 01 1 9312-9501 ● ● ● ●
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(6PP) 		8-94273-287-6 01 1 9502-9510 ● ● ● ●
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(6PP) 		8-94273-287-6 01 1 9511-9711 ●
195 08.820 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94262-068-2 01 1 9502-9510 ● ● ● ●
195 08.820 BRACKET; JACK 8-94262-068-2 01 1 9511-9711 ● ● ●
195 08.820 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94262-068-2 01 1 9511-9711 ●
195 08.820 BRACKET; JACK 8-94262-068-2 01 1 9712- ● ● ● ●
195 08.820 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97856-997-3 01 1 9502-9510 ●
195 08.820 BRACKET; JACK 8-97856-997-3 01 1 9502-9510 ●
195 08.820 BRACKET; JACK 8-97856-997-3 01 1 9511- ● ●
195 08.820 BRACKET; JACK 8-97856-994-2 01 1 9312-9501 ● ●
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97856-994-2 01 1 9502-9510 ●
199 08.820 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 9502-9510 ● ● ● ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 9502-9510 ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 9511-9711 ● ● ● ● ●
199 08.820 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 9511-9711 ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 9712- ● ● ● ● ● ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 9312-9501 ● ● ● ● ● ●
199 08.820 BOLT; JACK
FRT INDEPENDENT SUSPENSION(6PP) M8X30 WING 		8-94279-018-1 01 1 9502-9510 ● ● ● ● ●
199 08.820 BOLT; JACK
FRT INDEPENDENT SUSPENSION(6PP) M8X30 WING 		8-94279-018-1 01 1 9511-9711 ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9312- ● ● ● ● ● ●
208 08.820 HANDLE; JACK 9-85512-607-0 01 1 9312- ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-94367-102-0 01 1 9312-9509 ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-97130-902-0 01 1 9510- ● ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-94273-001-0 01 1 9312-9510 ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97866-879-0 01 1 9511- ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 9312- ● ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9312- ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 9312- ● ● ● ● ● ●
303 08.820 SPRING; WING BOLT 8-94279-944-0 01 1 9312-9409 ● ● ● ● ● ●
303 08.820 SPRING; WING BOLT 8-94279-944-0 01 1 9410-9410 ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 9312- ● ● ● ● ● ●
