8-90 — RADIO AND TV (#33727) — 66 parça

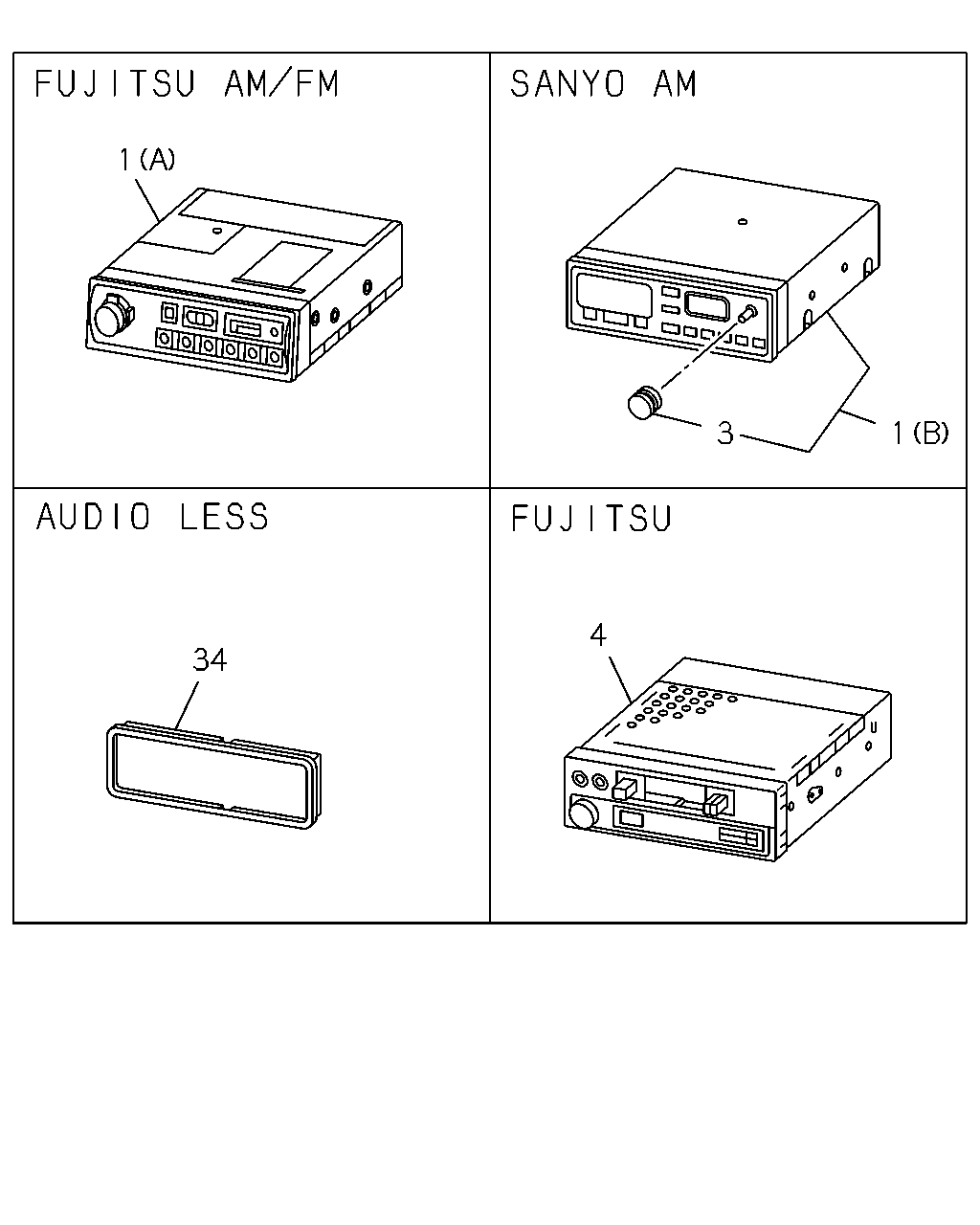

1 1 3 4 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> (B) SANYO AM	8-97088-264-0	01	1	9312-	●	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9312-	●	●	●	●	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO	8-97093-557-0	01	1	9312-	●	●	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FUJITSU	8-97088-290-0	01	1	9312-	●	●	●	●	●	●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	9312-	●	●	●	●	●	●

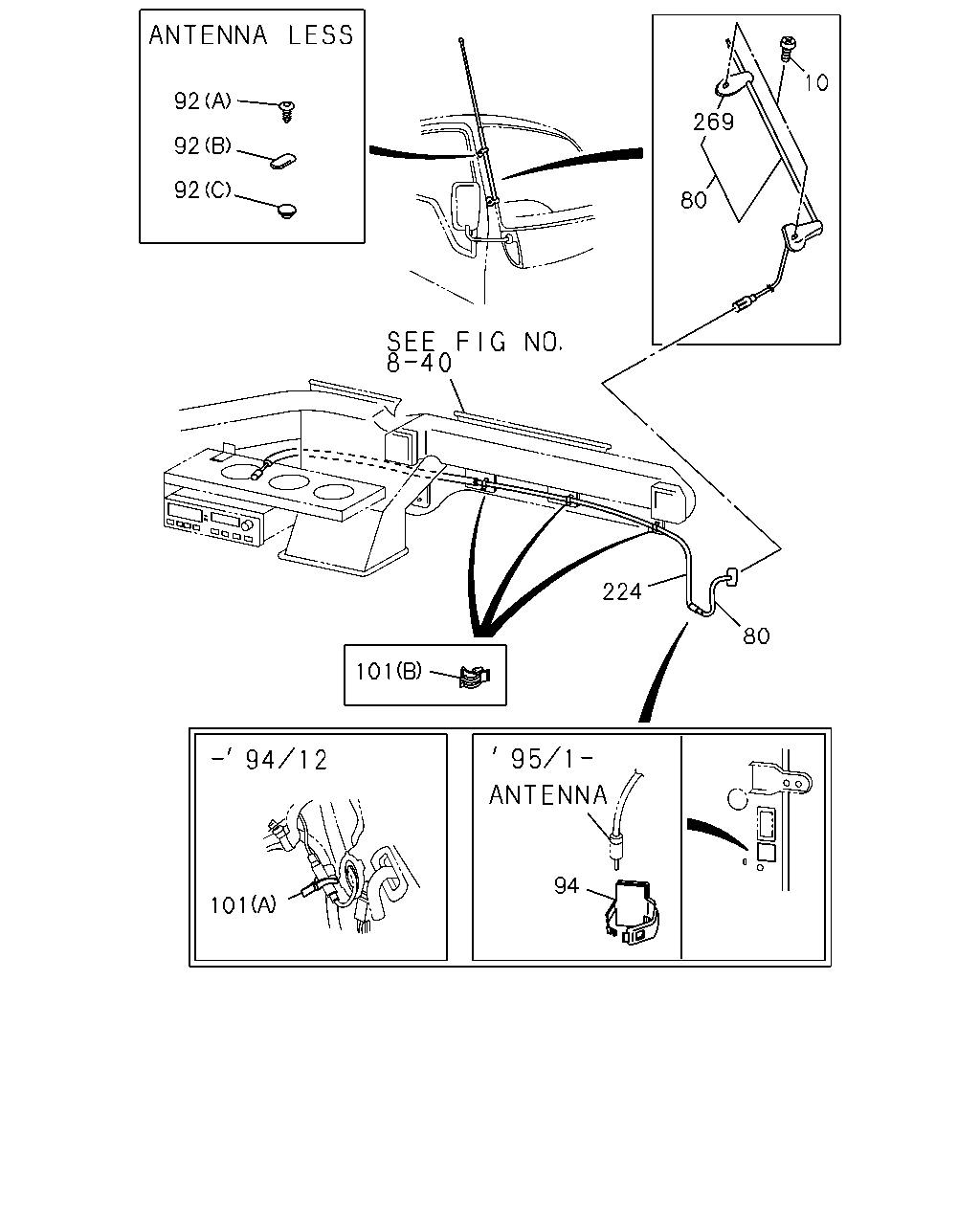

10 269 92 92 80 224 80 101 94 92 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	09.647 SCREW; ANTENNA CABLE ANTENNA<U73> M6X20	8-97068-547-1	02	1	9312-9405	●	●	●	●	●	●
10	09.647 SCREW; ANTENNA CABLE ANTENNA<U73> M6X20	8-97068-547-2	01	1	9406-9411	●	●	●	●	●	●
10	09.647 SCREW; ANTENNA CABLE ANTENNA<U73> M6X20	8-97120-686-0	01	1	9412-	●	●	●	●	●	●
10	09.647 SCREW; ANTENNA CABLE ANTENNA<U73> 05.812 M6X16	9-03486-616-0	01	1	9406-9411	●	●	●	●	●	●
10	09.647 SCREW; ANTENNA CABLE ANTENNA<U73> M6X16	8-97123-696-0	01	1	9412-	●	●	●	●	●	●
80	09.645 ANTENNA ANTENNA<U73>	8-97070-022-2	01	1	9312-9809	●	●			●
80	09.645 ANTENNA ANTENNA<U73>	8-97210-546-0	01	1	9810-	●	●			●
80	09.645 ANTENNA ANTENNA<U73>	8-97071-721-1	01	1	9312-9809			●	●		●
80	09.645 ANTENNA ANTENNA<U73>	8-97210-547-0	01	1	9810-			●	●		●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	9312-	●	●	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	9312-9404	●	●	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	9405-9712	●		●		●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	9801-	●	●	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 08.155 (A) OD=16 L=11	1-76378-155-0	01	1	9405-9712		●		●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 09.775 (B)	8-94203-634-1	01	1	9405-9407		●		●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (C)	1-09983-097-0	01	1	9408-9712		●		●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-0	01	1	9501-	●	●	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 03.162 (A) L=170	5-09707-054-0	01	1	9312-9412	●	●	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> (B) ID=7	8-97085-207-0	03	1	9312-9503	●	●	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 (B) ID=7	5-09707-053-0	03	1	9504-	●	●	●	●	●	●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97041-980-1	01	1	9312-9412	●	●	●	●	●	●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97118-847-0	01	1	9501-	●	●	●	●	●	●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97108-183-0	01	1	9712-	●	●			●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97108-184-0	01	1	9712-			●	●		●

222 116 222 171 222 5 48 221 49 221 48 49 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	09.647 HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	9509-	●	●	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97048-675-0	02	1	9312-9508	●	●	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97130-575-0	02	1	9509-9809	●	●	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97207-696-0	02	1	9810-	●	●	●	●	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9312-	●	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-325-3	01	1	9312-	●	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-324-3	01	1	9312-	●	●	●	●	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9312-	●	●	●	●	●	●
171	09.650 COVER; SPEAKER RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97852-331-2	02	1	9312-9403	●	●	●	●	●	●
171	09.650 COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-331-4	02	1	9404-	●	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	8-97852-327-4	02	1	9312-	●	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)	8-97852-601-1	02	1	9312-	●	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A)	1-09987-144-0	02	1	9312-	●	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.345 (B) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	06	1	9312-9705	●	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	9706-	●	●	●	●	●	●

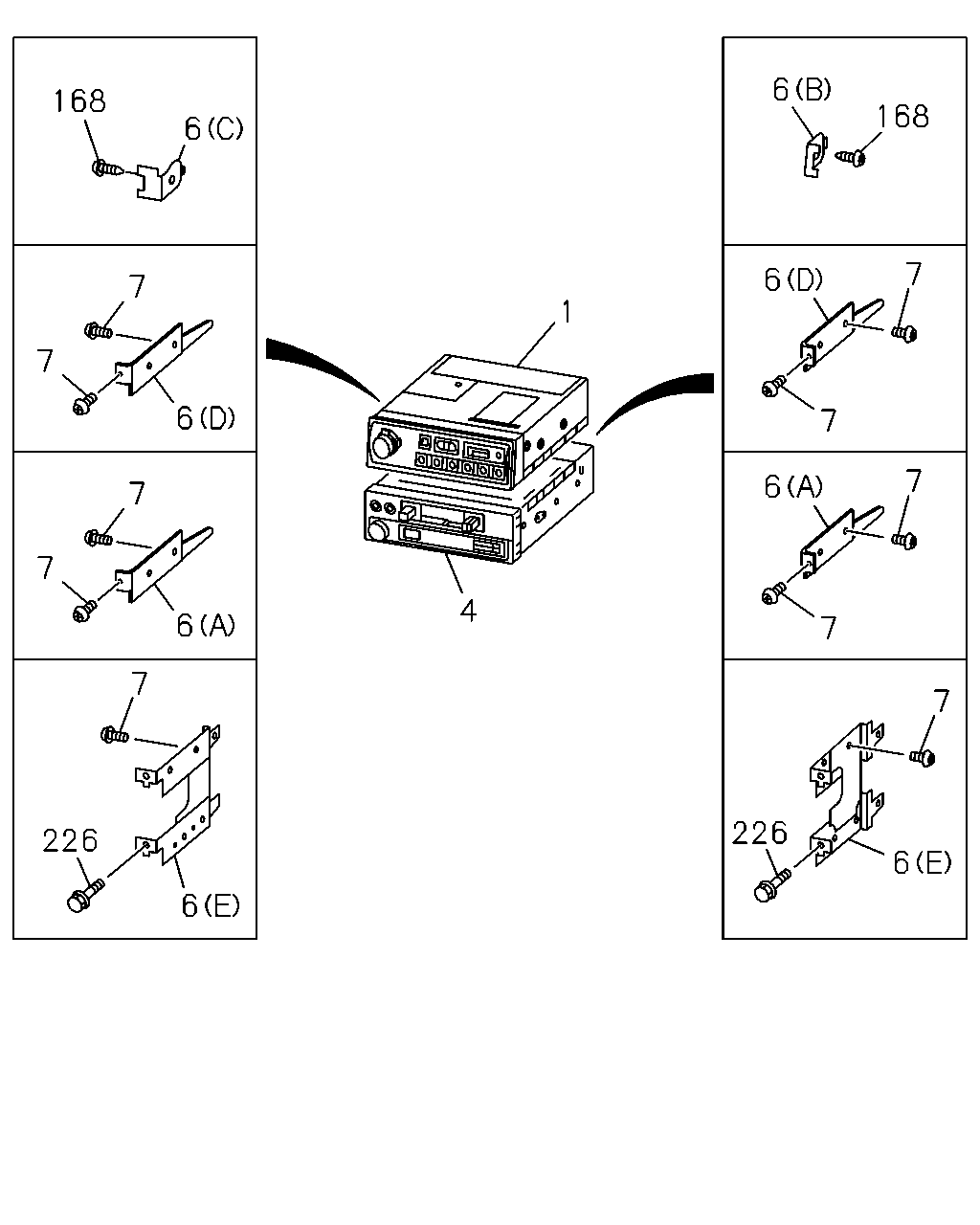

6 168 168 6 7 6 7 1 7 6 7 7 6 7 7 4 6 7 7 7 226 226 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> (B) SANYO AM	8-97088-264-0	01	1	9312-	●	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9312-	●	●	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FUJITSU	8-97088-290-0	01	1	9312-	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9312-	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9312-	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (C)	8-97108-200-0	01	1	9312-9312	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (D)	8-97857-877-0	01	1	9312-9312	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (E)	8-97859-104-1	01	1	9401-	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97108-199-0	01	1	9312-9312	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (D)	8-97857-875-0	01	1	9312-9312	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (E)	8-97859-103-1	01	1	9401-	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 08.852 M5X14	8-94323-227-0	04	1	9312-9409	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 08.852 M5X14	8-94323-227-0	02	1	9410-9412	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ),RADIO AM/FM W /CASSETTE 2 SPEAKERS(6VL) 08.852 M5X14	8-94323-227-0	02	1	9410-9412	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9312-	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 08.852 M5X14	8-94323-227-0	08	1	9312-9409	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	08	1	9312-	●	●	●	●	●	●
168	09.645 SCREW; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	02	1	9312-9312	●	●	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9312-9603	●	●	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9604-	●	●	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9312-9603	●	●	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9604-	●	●	●	●	●	●
