Sayfa 8-80 - Isuzu EPC

8-80 — WINDSHIELD WIPER AND WASHER (#33726) — 255 parça

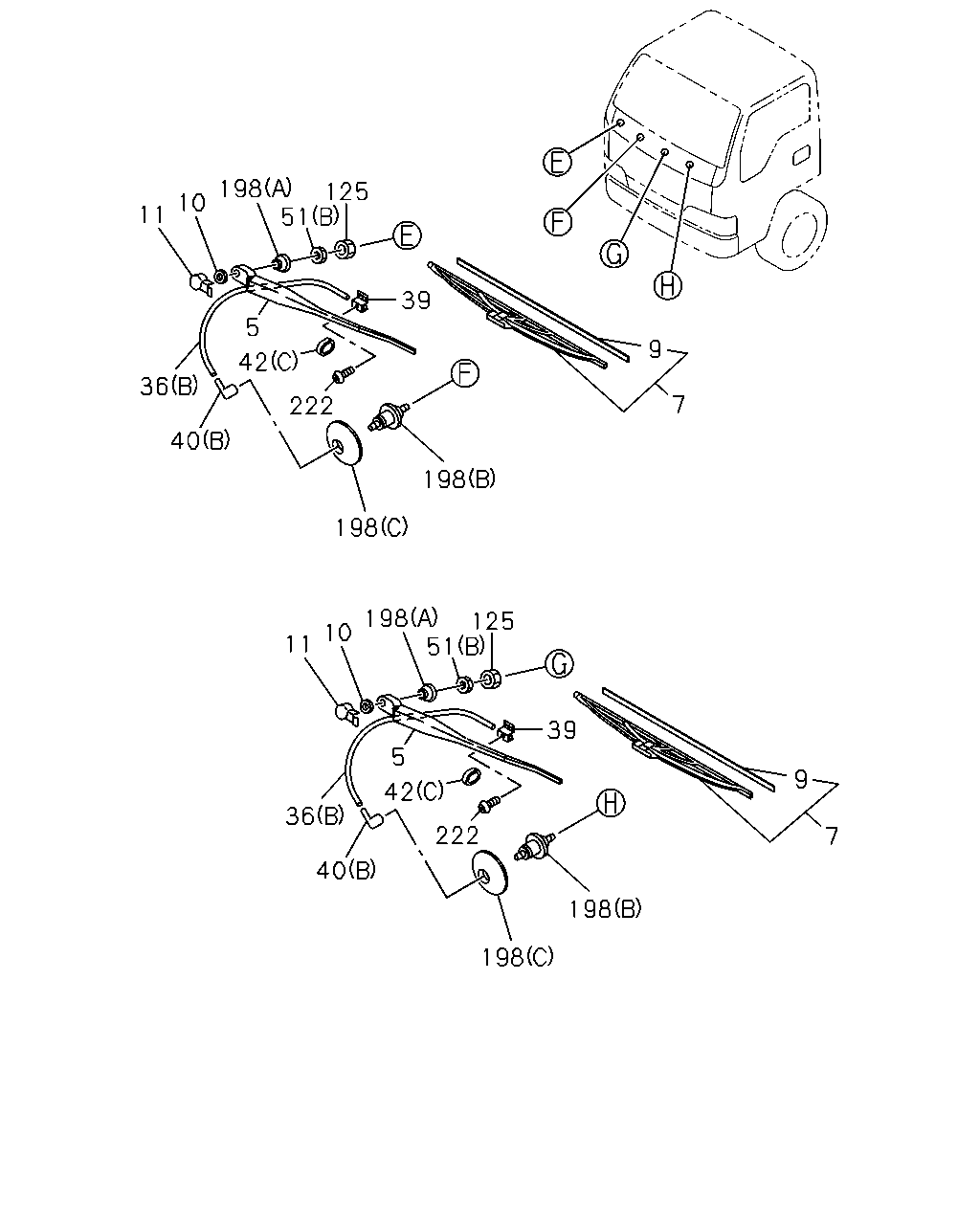

51 125 198 5 36 42 9 39 222 40 198 198 51 25 198 5 36 42 9 39 222 40 198 198 7 7 11 10 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	16.063 ARM; WIPER ASSIST	8-97093-563-0	01	1	9312-9711	●	●	●
5	16.063 ARM; WIPER ASSIST	8-97168-984-1	01	1	9712-	●	●	●
5	16.063 ARM; WIPER DRIVER	8-97093-561-0	01	1	9312-9711	●	●	●
5	16.063 ARM; WIPER DRIVER	8-97168-982-1	01	1	9712-	●	●	●
5	16.063 ARM; WIPER DRIVER	8-97093-562-0	01	1	9312-9711				●	●	●
5	16.063 ARM; WIPER DRIVER	8-97184-555-0	01	1	9712-				●	●	●
5	16.063 ARM; WIPER ASSIST	8-97093-564-0	01	1	9312-9711				●	●	●
5	16.063 ARM; WIPER ASSIST	8-97184-556-0	01	1	9712-				●	●	●
7	16.062 BLADE; WIPER DRIVER	8-97093-567-0	01	1	9312-9510	●	●	●	●	●	●
7	16.062 BLADE; WIPER	8-97137-468-0	02	1	9511-	●	●	●
7	16.062 BLADE; WIPER ASSIST	8-97093-568-0	01	1	9312-9510	●	●	●	●	●	●
7	16.062 BLADE; WIPER	8-97137-469-0	02	1	9511-				●	●	●
9	16.062 RUBBER; FRT WIPER BLADE DRIVER	8-97093-565-0	01	1	9312-9510	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE	8-97142-093-0	02	1	9511-	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE ASSIST	8-97093-566-0	01	1	9312-9510	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.559 M8	9-09110-408-0	02	1	9312-	●	●	●	●	●	●
11	16.063 COVER; WIPER ARM BLACK	8-94282-851-0	02	1	9312-	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK (B)	8-97855-142-0	01	1	9312-9408	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK (B)	8-97855-142-0	01	1	9409-9411				●	●	●
25	16.065 BRACKET; WASHER TANK (A)	8-97855-023-2	01	1	9312-	●	●	●
25	16.065 BRACKET; WASHER TANK (B)	8-97855-226-0	01	1	9409-9411	●	●	●
25	16.065 BRACKET; WASHER TANK (B)	8-97855-226-0	01	1	9412-	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK (A)	8-97855-067-0	01	1	9312-				●	●	●
36	16.065 HOSE; WASHER (B)	8-97216-110-0	01	1	9712-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (B)	8-97216-109-0	01	1	9712-	●	●	●	●	●	●
36	16.065 HOSE; WASHER 10.155 (A) L=550,L=1020,L=120 SERVICED BY L=10000	8-94389-303-0	01	1	9312-9510	●	●	●
36	16.065 HOSE; WASHER 10.155 (A) L=550,L=1020,L=120 SERVICED BY L=10000	8-94389-303-0	01	1	9511-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (A) L=730,L=730,L=120 SERVICED BY L=10000	9-09914-906-0	01	1	9312-9510				●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97855-025-2	02	1	9312-9711	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97216-107-0	02	1	9712-	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97216-108-0	02	1	9712-				●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	9312-9711	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	9712-				●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97216-115-0	02	1	9712-	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97167-258-0	01	1	9712-	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	5-83363-006-0	01	1	9312-				●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	05	1	9312-9711	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	06	1	9712-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (A)	8-94144-956-0	02	1	9408-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (C)	8-97216-114-0	02	1	9712-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 07.829 (A) M6 FLANGE	5-09440-004-0	04	1	9312-9409	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	9410-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (B)	8-97135-435-0	02	1	9312-	●	●	●	●	●	●
125	16.065 SPACER; WIPER PIVOT	8-97135-434-0	02	1	9312-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97855-021-1	02	1	9312-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (B)	8-97855-134-0	02	1	9712-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (C)	8-97855-135-0	02	1	9712-	●	●	●	●	●	●
222	16.064 SCREW; WASHER NOZZLE	8-97216-113-0	02	1	9712-	●	●	●
222	16.064 SCREW; WASHER NOZZLE	8-97216-113-0	04	1	9712-				●	●	●

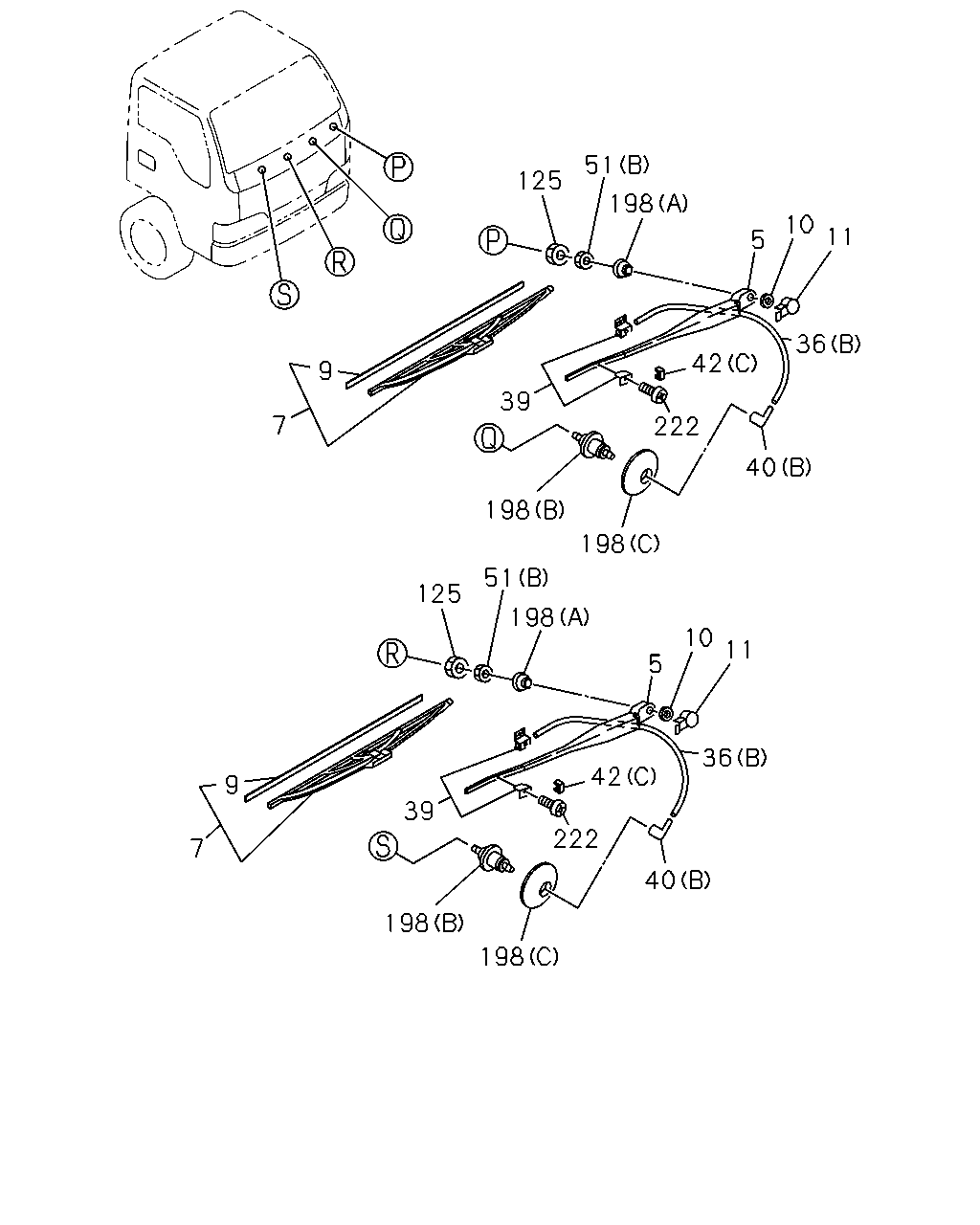

198 125 51 39 5 42 36 222 40 198 198 198 125 51 39 5 42 36 222 40 198 198 9 7 9 7 10 11 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	16.063 ARM; WIPER ASSIST	8-97093-563-0	01	1	9312-9711	●	●	●
5	16.063 ARM; WIPER ASSIST	8-97168-984-1	01	1	9712-	●	●	●
5	16.063 ARM; WIPER DRIVER	8-97093-561-0	01	1	9312-9711	●	●	●
5	16.063 ARM; WIPER DRIVER	8-97168-982-1	01	1	9712-	●	●	●
5	16.063 ARM; WIPER DRIVER	8-97093-562-0	01	1	9312-9711				●	●	●
5	16.063 ARM; WIPER DRIVER	8-97184-555-0	01	1	9712-				●	●	●
5	16.063 ARM; WIPER ASSIST	8-97093-564-0	01	1	9312-9711				●	●	●
5	16.063 ARM; WIPER ASSIST	8-97184-556-0	01	1	9712-				●	●	●
7	16.062 BLADE; WIPER DRIVER	8-97093-567-0	01	1	9312-9510	●	●	●	●	●	●
7	16.062 BLADE; WIPER	8-97137-468-0	02	1	9511-	●	●	●
7	16.062 BLADE; WIPER ASSIST	8-97093-568-0	01	1	9312-9510	●	●	●	●	●	●
7	16.062 BLADE; WIPER	8-97137-469-0	02	1	9511-				●	●	●
9	16.062 RUBBER; FRT WIPER BLADE DRIVER	8-97093-565-0	01	1	9312-9510	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE	8-97142-093-0	02	1	9511-	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE ASSIST	8-97093-566-0	01	1	9312-9510	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.559 M8	9-09110-408-0	02	1	9312-	●	●	●	●	●	●
11	16.063 COVER; WIPER ARM BLACK	8-94282-851-0	02	1	9312-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (B)	8-97216-110-0	01	1	9712-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (B)	8-97216-109-0	01	1	9712-	●	●	●	●	●	●
36	16.065 HOSE; WASHER 10.155 (A) L=550,L=1020,L=120 SERVICED BY L=10000	8-94389-303-0	01	1	9312-9510	●	●	●
36	16.065 HOSE; WASHER 10.155 (A) L=550,L=1020,L=120 SERVICED BY L=10000	8-94389-303-0	01	1	9511-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (A) L=730,L=730,L=120 SERVICED BY L=10000	9-09914-906-0	01	1	9312-9510				●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97855-025-2	02	1	9312-9711	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97216-107-0	02	1	9712-	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97216-108-0	02	1	9712-				●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	9312-9711	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	9712-				●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97216-115-0	02	1	9712-	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97167-258-0	01	1	9712-	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	5-83363-006-0	01	1	9312-				●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	05	1	9312-9711	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	06	1	9712-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (A)	8-94144-956-0	02	1	9408-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (C)	8-97216-114-0	02	1	9712-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 07.829 (A) M6 FLANGE	5-09440-004-0	04	1	9312-9409	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	9410-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (B)	8-97135-435-0	02	1	9312-	●	●	●	●	●	●
125	16.065 SPACER; WIPER PIVOT	8-97135-434-0	02	1	9312-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97855-021-1	02	1	9312-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (B)	8-97855-134-0	02	1	9712-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (C)	8-97855-135-0	02	1	9712-	●	●	●	●	●	●
222	16.064 SCREW; WASHER NOZZLE	8-97216-113-0	02	1	9712-	●	●	●
222	16.064 SCREW; WASHER NOZZLE	8-97216-113-0	04	1	9712-				●	●	●

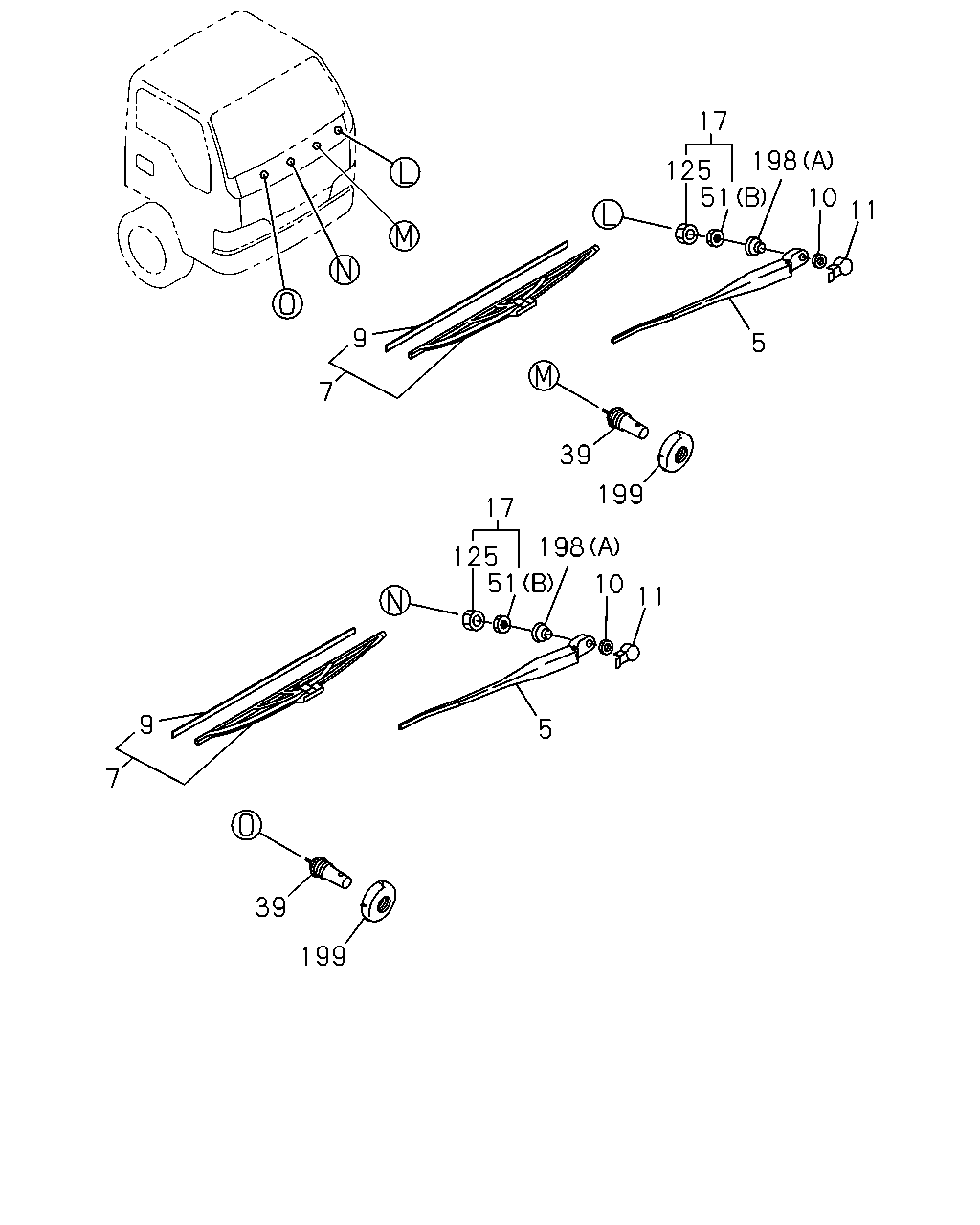

17 198 125 51 10 11 9 5 7 39 199 17 198 125 51 10 11 9 5 7 39 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	16.063 ARM; WIPER ASSIST	8-97093-563-0	01	1	9312-9711	●	●	●
5	16.063 ARM; WIPER ASSIST	8-97168-984-1	01	1	9712-	●	●	●
5	16.063 ARM; WIPER DRIVER	8-97093-561-0	01	1	9312-9711	●	●	●
5	16.063 ARM; WIPER DRIVER	8-97168-982-1	01	1	9712-	●	●	●
5	16.063 ARM; WIPER DRIVER	8-97093-562-0	01	1	9312-9711				●	●	●
5	16.063 ARM; WIPER DRIVER	8-97184-555-0	01	1	9712-				●	●	●
5	16.063 ARM; WIPER ASSIST	8-97093-564-0	01	1	9312-9711				●	●	●
5	16.063 ARM; WIPER ASSIST	8-97184-556-0	01	1	9712-				●	●	●
7	16.062 BLADE; WIPER DRIVER	8-97093-567-0	01	1	9312-9510	●	●	●	●	●	●
7	16.062 BLADE; WIPER	8-97137-468-0	02	1	9511-	●	●	●
7	16.062 BLADE; WIPER ASSIST	8-97093-568-0	01	1	9312-9510	●	●	●	●	●	●
7	16.062 BLADE; WIPER	8-97137-469-0	02	1	9511-				●	●	●
9	16.062 RUBBER; FRT WIPER BLADE DRIVER	8-97093-565-0	01	1	9312-9510	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE	8-97142-093-0	02	1	9511-	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE ASSIST	8-97093-566-0	01	1	9312-9510	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.559 M8	9-09110-408-0	02	1	9312-	●	●	●	●	●	●
11	16.063 COVER; WIPER ARM BLACK	8-94282-851-0	02	1	9312-	●	●	●	●	●	●
17	16.063 OTHER PARTS; WIPER LINK	8-97855-155-1	02	1	9312-9711	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97855-025-2	02	1	9312-9711	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97216-107-0	02	1	9712-	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97216-108-0	02	1	9712-				●	●	●
51	16.063 NUT; WIPER MOTOR LINK 07.829 (A) M6 FLANGE	5-09440-004-0	04	1	9312-9409	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	9410-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (B)	8-97135-435-0	02	1	9312-	●	●	●	●	●	●
125	16.065 SPACER; WIPER PIVOT	8-97135-434-0	02	1	9312-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97855-021-1	02	1	9312-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (B)	8-97855-134-0	02	1	9712-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (C)	8-97855-135-0	02	1	9712-	●	●	●	●	●	●
199	16.063 COVER; NOZZLE,WIPER	8-97855-022-1	02	1	9312-9711	●	●	●	●	●	●

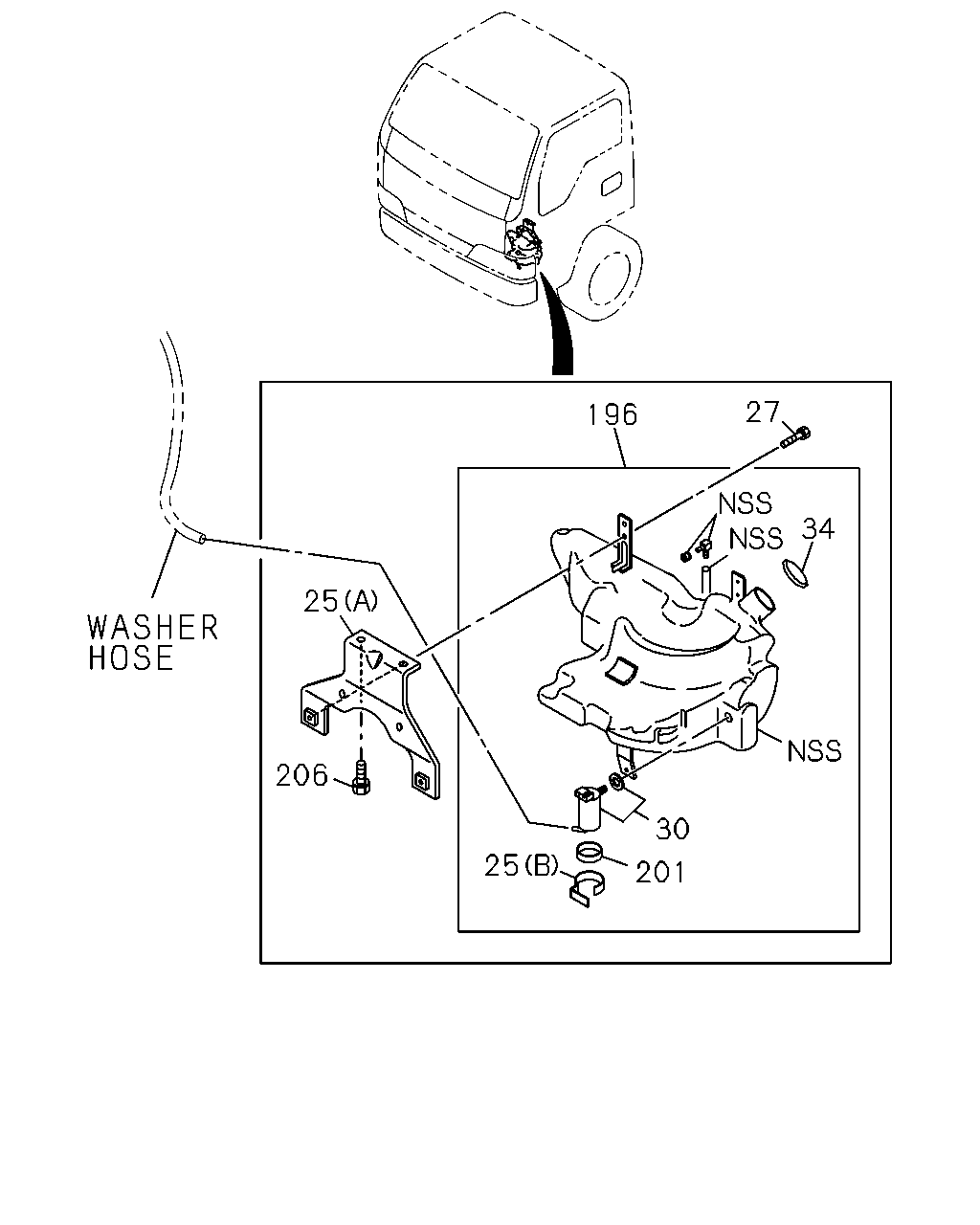

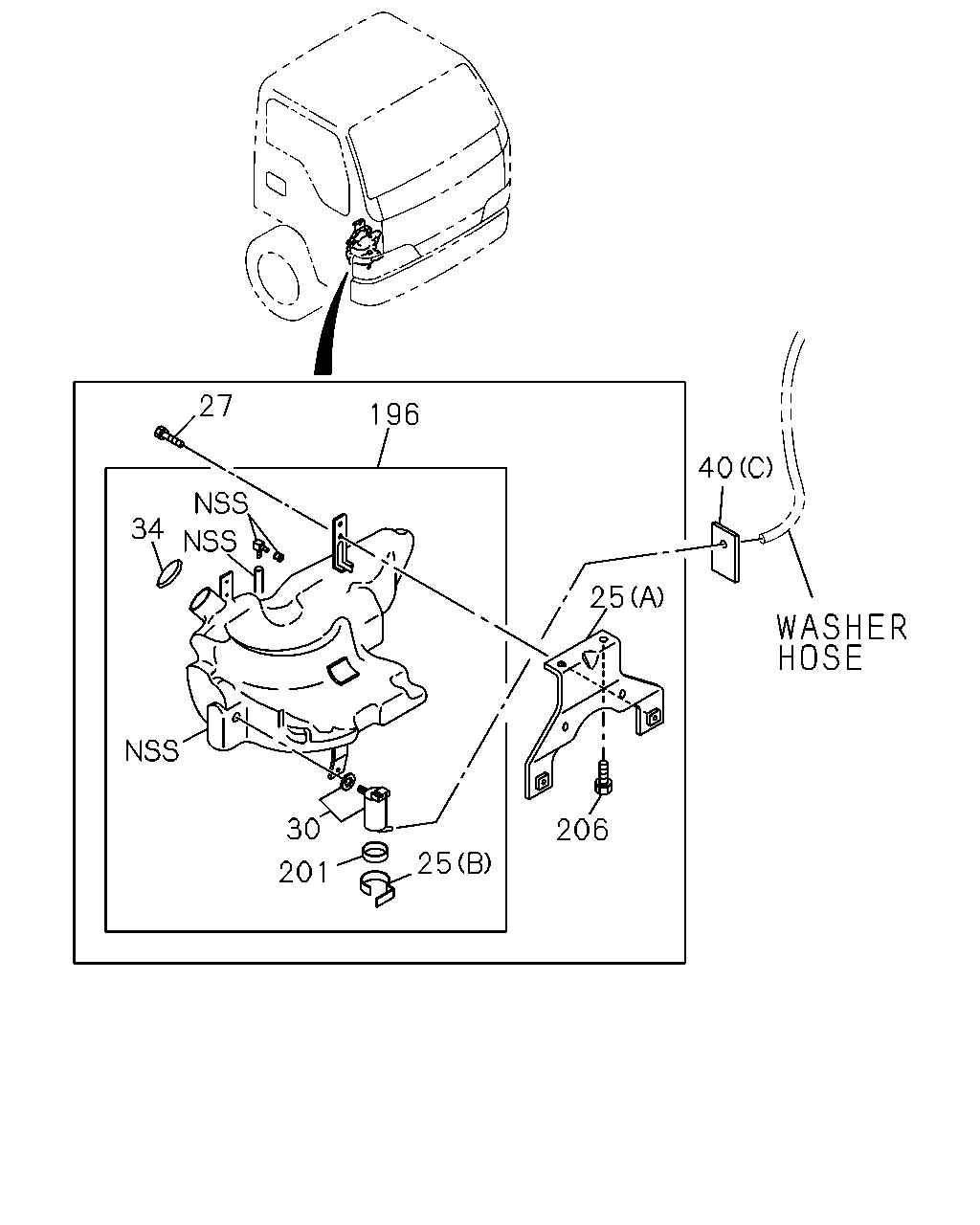

27 196 34 25 206 30 201 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	16.065 BRACKET; WASHER TANK (B)	8-97855-142-0	01	1	9312-9408	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK (B)	8-97855-142-0	01	1	9409-9411				●	●	●
25	16.065 BRACKET; WASHER TANK (A)	8-97855-023-2	01	1	9312-	●	●	●
25	16.065 BRACKET; WASHER TANK (B)	8-97855-226-0	01	1	9409-9411	●	●	●
25	16.065 BRACKET; WASHER TANK (B)	8-97855-226-0	01	1	9412-	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK (A)	8-97855-067-0	01	1	9312-				●	●	●
27	16.065 BOLT; WASHER TANK 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9312-9603	●	●	●	●	●	●
27	16.065 BOLT; WASHER TANK 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9604-	●	●	●	●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK	8-97855-138-0	01	1	9312-	●	●	●	●	●	●
34	16.065 CAP; WASHER TANK	8-97855-140-0	01	1	9312-	●	●	●	●	●	●
196	16.065 TANK; WASHER	8-97855-016-5	01	1	9312-	●	●	●
196	16.065 TANK; WASHER	8-97855-065-3	01	1	9312-				●	●	●
201	16.064 LINING; WIPER MOTOR	8-97855-141-0	01	1	9312-	●	●	●	●	●	●
206	16.065 BOLT; BRKT,WASHER TANK 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9312-9603	●	●	●	●	●	●
206	16.065 BOLT; BRKT,WASHER TANK 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9604-	●	●	●	●	●	●

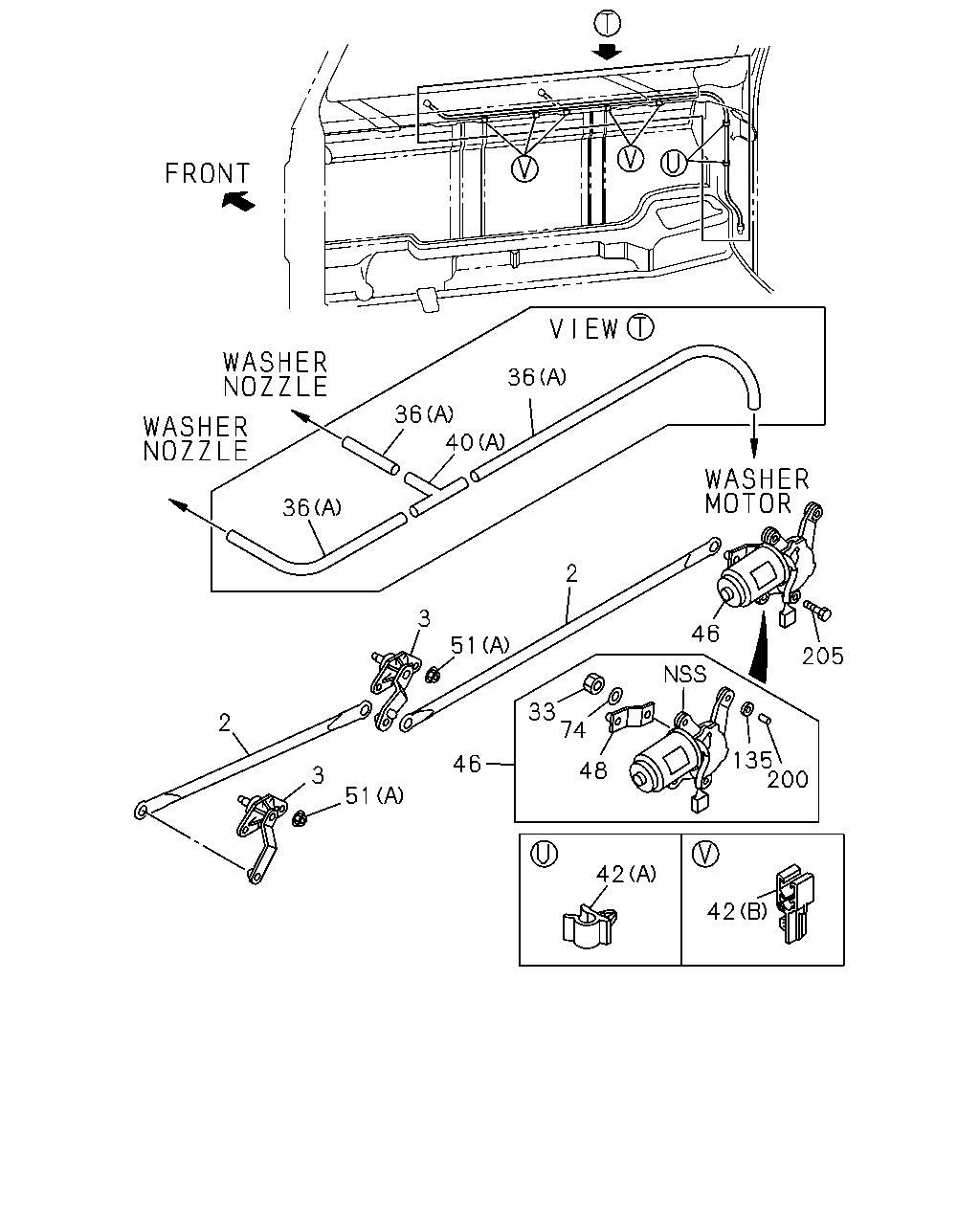

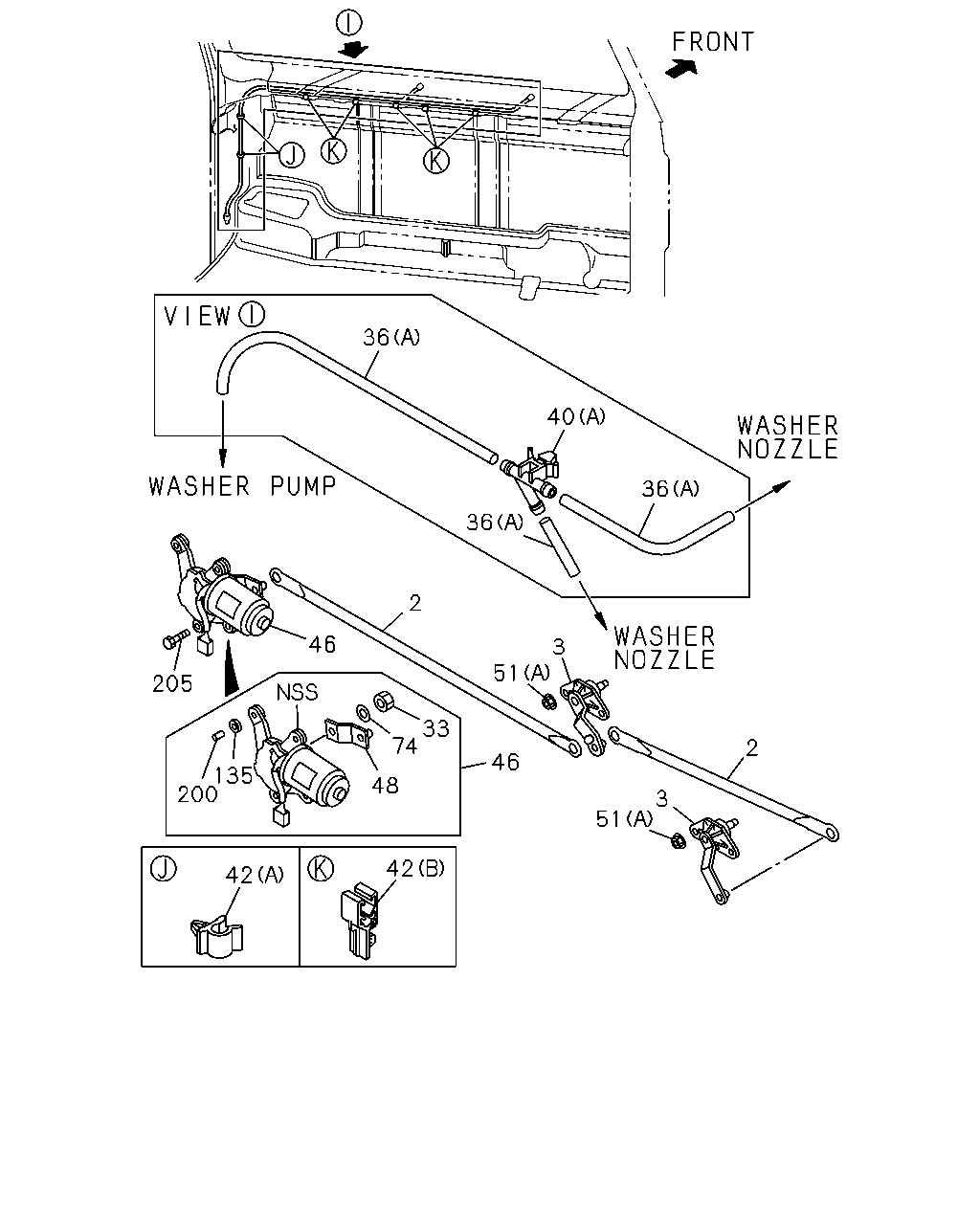

36 40 36 36 2 46 3 51 205 33 74 2 46 135 200 48 3 51 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.063 LINK; FRT WIPER DRIVER L=580 W/CAP	8-97855-153-0	01	1	9312-	●	●	●	●	●	●
2	16.063 LINK; FRT WIPER ASSIST L=424 W/CAP	8-97855-149-0	01	1	9312-	●	●	●
2	16.063 LINK; FRT WIPER ASSIST	8-97855-150-0	01	1	9312-				●	●	●
3	16.063 PIVOT ASM; FRT WIPER DRIVER	8-97855-148-0	01	1	9312-	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER ASSIST	8-97855-144-0	01	1	9312-	●	●	●
3	16.063 PIVOT ASM; FRT WIPER ASSIST	8-97855-145-0	01	1	9312-				●	●	●
33	16.064 NUT; MOTOR TO ARM M8	8-97855-157-0	01	1	9312-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (B)	8-97216-110-0	01	1	9712-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (B)	8-97216-109-0	01	1	9712-	●	●	●	●	●	●
36	16.065 HOSE; WASHER 10.155 (A) L=550,L=1020,L=120 SERVICED BY L=10000	8-94389-303-0	01	1	9312-9510	●	●	●
36	16.065 HOSE; WASHER 10.155 (A) L=550,L=1020,L=120 SERVICED BY L=10000	8-94389-303-0	01	1	9511-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (A) L=730,L=730,L=120 SERVICED BY L=10000	9-09914-906-0	01	1	9312-9510				●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	9312-9711	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	9712-				●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97216-115-0	02	1	9712-	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97167-258-0	01	1	9712-	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	5-83363-006-0	01	1	9312-				●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	05	1	9312-9711	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	06	1	9712-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (A)	8-94144-956-0	02	1	9408-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (C)	8-97216-114-0	02	1	9712-	●	●	●	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97855-011-4	01	1	9312-	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97855-060-5	01	1	9312-				●	●	●
48	16.063 ARM; WIPER MOTOR	8-97855-156-0	01	1	9312-	●	●	●
48	16.063 ARM; WIPER MOTOR	8-97855-162-0	01	1	9312-				●	●	●
51	16.063 NUT; WIPER MOTOR LINK 07.829 (A) M6 FLANGE	5-09440-004-0	04	1	9312-9409	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	9410-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (B)	8-97135-435-0	02	1	9312-	●	●	●	●	●	●
74	16.063 WASHER; ARM TO MOTOR ID=8	8-97855-158-0	01	1	9312-	●	●	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR	8-97855-159-0	03	1	9312-	●	●	●	●	●	●
200	16.064 COLLAR; WIPER MOTOR	8-97855-160-0	03	1	9312-9711	●	●	●
200	16.064 COLLAR; WIPER MOTOR	8-97855-160-0	03	1	9712-	●	●	●	●	●	●
200	16.064 COLLAR; WIPER MOTOR	8-97855-160-0	01	1	9312-9711				●	●	●
205	16.064 BOLT; WIPER MOTOR 16.063 M6X27	8-94107-658-0	03	1	9312-9405	●	●	●	●	●	●
205	16.064 BOLT; WIPER MOTOR 10.152 M6X28 W/PL WASHER	8-94148-420-0	03	1	9406-	●	●	●	●	●	●

36 36 40 36 2 46 3 51 205 33 74 2 135 200 46 48 3 51 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.063 LINK; FRT WIPER DRIVER L=580 W/CAP	8-97855-153-0	01	1	9312-	●	●	●	●	●	●
2	16.063 LINK; FRT WIPER ASSIST L=424 W/CAP	8-97855-149-0	01	1	9312-	●	●	●
2	16.063 LINK; FRT WIPER ASSIST	8-97855-150-0	01	1	9312-				●	●	●
3	16.063 PIVOT ASM; FRT WIPER DRIVER	8-97855-148-0	01	1	9312-	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER ASSIST	8-97855-144-0	01	1	9312-	●	●	●
3	16.063 PIVOT ASM; FRT WIPER ASSIST	8-97855-145-0	01	1	9312-				●	●	●
33	16.064 NUT; MOTOR TO ARM M8	8-97855-157-0	01	1	9312-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (B)	8-97216-110-0	01	1	9712-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (B)	8-97216-109-0	01	1	9712-	●	●	●	●	●	●
36	16.065 HOSE; WASHER 10.155 (A) L=550,L=1020,L=120 SERVICED BY L=10000	8-94389-303-0	01	1	9312-9510	●	●	●
36	16.065 HOSE; WASHER 10.155 (A) L=550,L=1020,L=120 SERVICED BY L=10000	8-94389-303-0	01	1	9511-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (A) L=730,L=730,L=120 SERVICED BY L=10000	9-09914-906-0	01	1	9312-9510				●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	9312-9711	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	9712-				●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97216-115-0	02	1	9712-	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97167-258-0	01	1	9712-	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	5-83363-006-0	01	1	9312-				●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	05	1	9312-9711	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	06	1	9712-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (A)	8-94144-956-0	02	1	9408-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (C)	8-97216-114-0	02	1	9712-	●	●	●	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97855-011-4	01	1	9312-	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97855-060-5	01	1	9312-				●	●	●
48	16.063 ARM; WIPER MOTOR	8-97855-156-0	01	1	9312-	●	●	●
48	16.063 ARM; WIPER MOTOR	8-97855-162-0	01	1	9312-				●	●	●
51	16.063 NUT; WIPER MOTOR LINK 07.829 (A) M6 FLANGE	5-09440-004-0	04	1	9312-9409	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	9410-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (B)	8-97135-435-0	02	1	9312-	●	●	●	●	●	●
74	16.063 WASHER; ARM TO MOTOR ID=8	8-97855-158-0	01	1	9312-	●	●	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR	8-97855-159-0	03	1	9312-	●	●	●	●	●	●
200	16.064 COLLAR; WIPER MOTOR	8-97855-160-0	03	1	9312-9711	●	●	●
200	16.064 COLLAR; WIPER MOTOR	8-97855-160-0	03	1	9712-	●	●	●	●	●	●
200	16.064 COLLAR; WIPER MOTOR	8-97855-160-0	01	1	9312-9711				●	●	●
205	16.064 BOLT; WIPER MOTOR 16.063 M6X27	8-94107-658-0	03	1	9312-9405	●	●	●	●	●	●
205	16.064 BOLT; WIPER MOTOR 10.152 M6X28 W/PL WASHER	8-94148-420-0	03	1	9406-	●	●	●	●	●	●

17 198 125 10 51 11 9 5 7 39 199 17 198 125 10 51 11 9 5 7 39 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	16.063 ARM; WIPER ASSIST	8-97093-563-0	01	1	9312-9711	●	●	●
5	16.063 ARM; WIPER ASSIST	8-97168-984-1	01	1	9712-	●	●	●
5	16.063 ARM; WIPER DRIVER	8-97093-561-0	01	1	9312-9711	●	●	●
5	16.063 ARM; WIPER DRIVER	8-97168-982-1	01	1	9712-	●	●	●
5	16.063 ARM; WIPER DRIVER	8-97093-562-0	01	1	9312-9711				●	●	●
5	16.063 ARM; WIPER DRIVER	8-97184-555-0	01	1	9712-				●	●	●
5	16.063 ARM; WIPER ASSIST	8-97093-564-0	01	1	9312-9711				●	●	●
5	16.063 ARM; WIPER ASSIST	8-97184-556-0	01	1	9712-				●	●	●
7	16.062 BLADE; WIPER DRIVER	8-97093-567-0	01	1	9312-9510	●	●	●	●	●	●
7	16.062 BLADE; WIPER	8-97137-468-0	02	1	9511-	●	●	●
7	16.062 BLADE; WIPER ASSIST	8-97093-568-0	01	1	9312-9510	●	●	●	●	●	●
7	16.062 BLADE; WIPER	8-97137-469-0	02	1	9511-				●	●	●
9	16.062 RUBBER; FRT WIPER BLADE DRIVER	8-97093-565-0	01	1	9312-9510	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE	8-97142-093-0	02	1	9511-	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE ASSIST	8-97093-566-0	01	1	9312-9510	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.559 M8	9-09110-408-0	02	1	9312-	●	●	●	●	●	●
11	16.063 COVER; WIPER ARM BLACK	8-94282-851-0	02	1	9312-	●	●	●	●	●	●
17	16.063 OTHER PARTS; WIPER LINK	8-97855-155-1	02	1	9312-9711	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97855-025-2	02	1	9312-9711	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97216-107-0	02	1	9712-	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97216-108-0	02	1	9712-				●	●	●
51	16.063 NUT; WIPER MOTOR LINK 07.829 (A) M6 FLANGE	5-09440-004-0	04	1	9312-9409	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	9410-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (B)	8-97135-435-0	02	1	9312-	●	●	●	●	●	●
125	16.065 SPACER; WIPER PIVOT	8-97135-434-0	02	1	9312-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97855-021-1	02	1	9312-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (B)	8-97855-134-0	02	1	9712-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (C)	8-97855-135-0	02	1	9712-	●	●	●	●	●	●
199	16.063 COVER; NOZZLE,WIPER	8-97855-022-1	02	1	9312-9711	●	●	●	●	●	●

27 196 40 34 25 30 201 206 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	16.065 BRACKET; WASHER TANK (B)	8-97855-142-0	01	1	9312-9408	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK (B)	8-97855-142-0	01	1	9409-9411				●	●	●
25	16.065 BRACKET; WASHER TANK (A)	8-97855-023-2	01	1	9312-	●	●	●
25	16.065 BRACKET; WASHER TANK (B)	8-97855-226-0	01	1	9409-9411	●	●	●
25	16.065 BRACKET; WASHER TANK (B)	8-97855-226-0	01	1	9412-	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK (A)	8-97855-067-0	01	1	9312-				●	●	●
27	16.065 BOLT; WASHER TANK 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9312-9603	●	●	●	●	●	●
27	16.065 BOLT; WASHER TANK 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9604-	●	●	●	●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK	8-97855-138-0	01	1	9312-	●	●	●	●	●	●
34	16.065 CAP; WASHER TANK	8-97855-140-0	01	1	9312-	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	9312-9711	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	9712-				●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97216-115-0	02	1	9712-	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97167-258-0	01	1	9712-	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	5-83363-006-0	01	1	9312-				●	●	●
196	16.065 TANK; WASHER	8-97855-016-5	01	1	9312-	●	●	●
196	16.065 TANK; WASHER	8-97855-065-3	01	1	9312-				●	●	●
201	16.064 LINING; WIPER MOTOR	8-97855-141-0	01	1	9312-	●	●	●	●	●	●
206	16.065 BOLT; BRKT,WASHER TANK 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9312-9603	●	●	●	●	●	●
206	16.065 BOLT; BRKT,WASHER TANK 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9604-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
