Sayfa 8-74 - Isuzu EPC

8-74 — EVAPORATOR (#33724) — 288 parça

44 48 47 37 46 33 37 45 38 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97085-274-0	01	1	9312-9411	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-0	01	1	9312-				●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9312-9405	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9406-9407	●	●	●	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9408-9411	●	●	●
33	09.211 LINING; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9408-9411				●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-1	01	1	9412-9711				●	●	●
33	09.211 LINING; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-1	01	1	9712-				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	9312-9411	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	9412-9510				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9312-9405	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9406-9407	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9408-9411	●	●	●
37	09.214 GASKET; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9408-9411				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9412-				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9406-9407				●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-275-0	01	1	9312-9411	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-275-0	01	1	9412-				●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9312-9405	●	●	●	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9406-9407	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9408-9411	●	●	●
39	09.214 GASKET; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9408-9411				●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9412-				●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9406-9407				●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97085-273-1	01	1	9312-9411	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97102-593-0	01	1	9312-				●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97085-276-1	01	1	9312-9411	●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	9312-				●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-94334-784-0	01	1	9312-9411	●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-596-0	01	1	9312-				●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9312-9405	●	●	●	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9406-9407	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9408-9411	●	●	●
47	09.214 SCREW; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9408-9411				●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9412-				●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9406-9407				●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	5-83579-024-0	01	1	9312-9411	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	5-83579-024-0	01	1	9412-				●	●	●

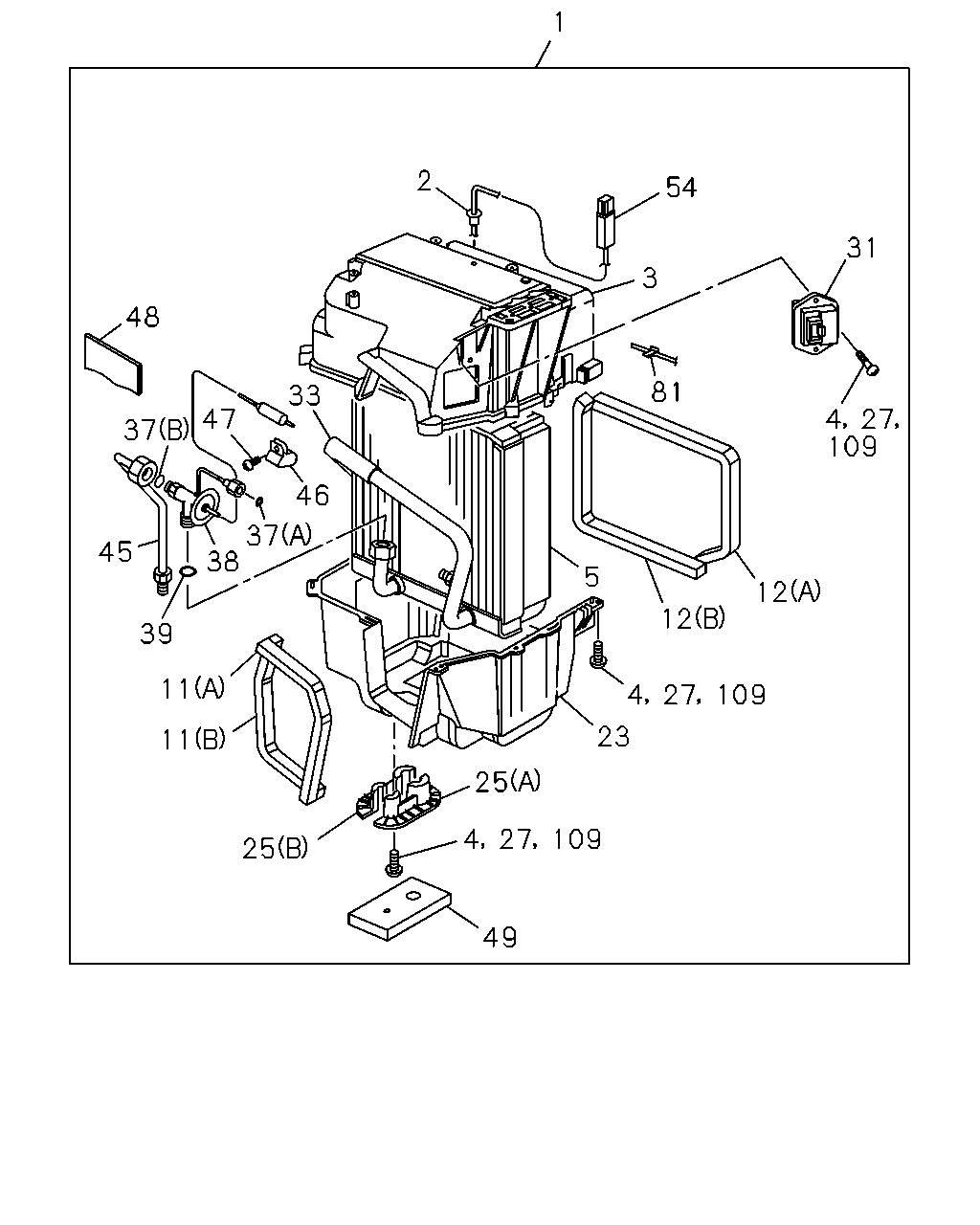

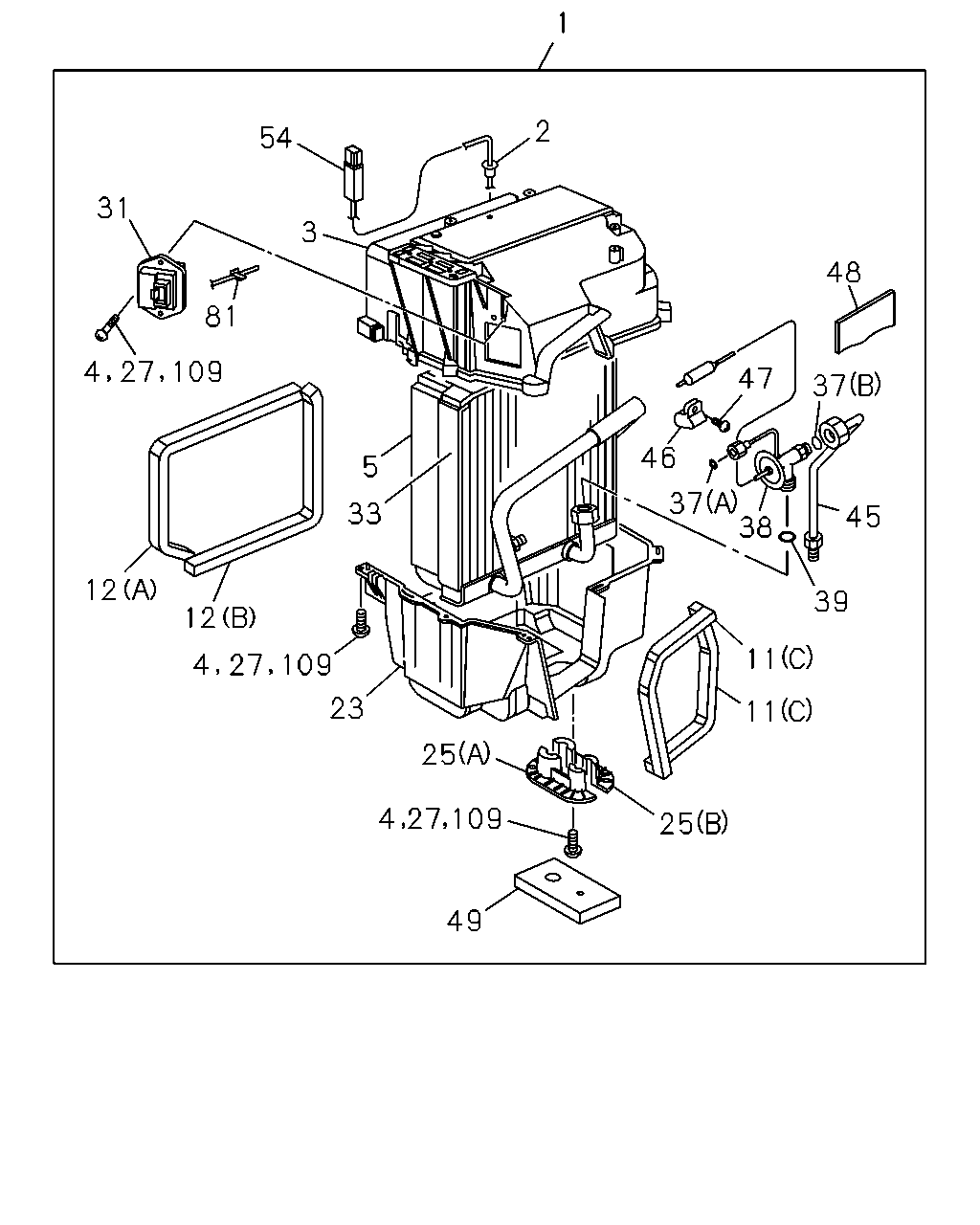

1 2 54 31 3 48 81 109 47 37 46 5 37 33 45 38 12 39 12 11 109 23 11 25 25 49 4 27 109 27 4 4 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97048-333-2	01	1	9312-9411	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97071-220-0	01	1	9312-				●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9312-9405	●	●	●	●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9406-9407	●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9408-9411	●	●	●
2	09.211 GROMMET; CASE,EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9408-9411				●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9412-				●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9406-9407				●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97085-279-3	01	1	9312-9411	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97102-597-0	01	1	9312-				●	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	02	1	9312-9411	●	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	08	1	9312-				●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97085-274-0	01	1	9312-9411	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-0	01	1	9312-				●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-285-0	01	1	9312-9411	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-288-0	01	1	9312-9411	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-97102-599-0	02	1	9312-				●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9312-9405	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9406-9407	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9408-9411	●	●	●
12	09.211 LINING; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9408-9411				●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9412-				●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9312-9405	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9406-9407	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9408-9411	●	●	●
12	09.211 LINING; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9408-9411				●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9412-				●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9406-9407				●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9406-9407				●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97085-280-3	01	1	9312-9411	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97102-598-0	01	1	9312-				●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9312-9405	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9406-9407	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9408-9411	●	●	●
25	09.211 COVER; EVAP PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9408-9411				●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9412-				●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9312-9405	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9406-9407	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9408-9411	●	●	●
25	09.211 COVER; EVAP PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9408-9411				●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9412-				●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9406-9407				●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9406-9407				●	●	●
27	09.211 SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9312-9406	●	●	●
27	09.211 SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9407-9407	●	●	●	●	●	●
27	09.211 SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9408-9411	●	●	●
27	09.211 SCREW; COVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9408-9411				●	●	●
27	09.211 SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9412-9711				●	●	●
27	09.211 SCREW; COVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9712-				●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) 08.855	8-97083-135-0	01	1	9312-9411	●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97083-136-0	01	1	9312-				●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9312-9405	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9406-9407	●	●	●	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9408-9411	●	●	●
33	09.211 LINING; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9408-9411				●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-1	01	1	9412-9711				●	●	●
33	09.211 LINING; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-1	01	1	9712-				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	9312-9411	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	9412-9510				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9312-9405	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9406-9407	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9408-9411	●	●	●
37	09.214 GASKET; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9408-9411				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9412-				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9406-9407				●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-275-0	01	1	9312-9411	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-275-0	01	1	9412-				●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9312-9405	●	●	●	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9406-9407	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9408-9411	●	●	●
39	09.214 GASKET; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9408-9411				●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9412-				●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9406-9407				●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97085-276-1	01	1	9312-9411	●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	9312-				●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-94334-784-0	01	1	9312-9411	●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-596-0	01	1	9312-				●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9312-9405	●	●	●	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9406-9407	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9408-9411	●	●	●
47	09.214 SCREW; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9408-9411				●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9412-				●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9406-9407				●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	5-83579-024-0	01	1	9312-9411	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	5-83579-024-0	01	1	9412-				●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9312-9405	●	●	●	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9406-9407	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9408-9411	●	●	●
49	09.211 GROMMET; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9408-9411				●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9412-				●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9406-9407				●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) 09.275	8-97085-283-0	01	1	9312-9411	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) 09.275 "R-134A"	8-97087-577-0	01	1	9312-				●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9312-9405	●	●	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9406-9407	●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9408-9411	●	●	●
81	09.211 CLIP; THERMOSTAT A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9408-9411				●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9412-				●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9406-9407				●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9312-9406	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9407-9407	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9408-9411	●	●	●
109	09.211 BOLT; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9408-9411				●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9412-9711				●	●	●
109	09.211 BOLT; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9712-				●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	06	1	9406-9406				●	●	●

44 48 33 47 46 45 37 38 37 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97085-274-0	01	1	9312-9411	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-0	01	1	9312-				●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9312-9405	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9406-9407	●	●	●	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9408-9411	●	●	●
33	09.211 LINING; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9408-9411				●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-1	01	1	9412-9711				●	●	●
33	09.211 LINING; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-1	01	1	9712-				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	9312-9411	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	9412-9510				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9312-9405	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9406-9407	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9408-9411	●	●	●
37	09.214 GASKET; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9408-9411				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9412-				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9406-9407				●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-275-0	01	1	9312-9411	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-275-0	01	1	9412-				●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9312-9405	●	●	●	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9406-9407	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9408-9411	●	●	●
39	09.214 GASKET; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9408-9411				●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9412-				●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9406-9407				●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97085-273-1	01	1	9312-9411	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97102-593-0	01	1	9312-				●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97085-276-1	01	1	9312-9411	●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	9312-				●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-94334-784-0	01	1	9312-9411	●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-596-0	01	1	9312-				●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9312-9405	●	●	●	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9406-9407	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9408-9411	●	●	●
47	09.214 SCREW; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9408-9411				●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9412-				●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9406-9407				●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	5-83579-024-0	01	1	9312-9411	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	5-83579-024-0	01	1	9412-				●	●	●

1 2 54 31 3 48 81 33 47 37 27 109 46 37 38 45 5 12 12 39 11 23 109 11 25 109 25 49 4 4 27 4 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97048-333-2	01	1	9312-9411	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97071-220-0	01	1	9312-				●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9312-9405	●	●	●	●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9406-9407	●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9408-9411	●	●	●
2	09.211 GROMMET; CASE,EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9408-9411				●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9412-				●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9406-9407				●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97085-279-3	01	1	9312-9411	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97102-597-0	01	1	9312-				●	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	02	1	9312-9411	●	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	08	1	9312-				●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97085-274-0	01	1	9312-9411	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-0	01	1	9312-				●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-285-0	01	1	9312-9411	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-288-0	01	1	9312-9411	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-97102-599-0	02	1	9312-				●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9312-9405	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9406-9407	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9408-9411	●	●	●
12	09.211 LINING; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9408-9411				●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9412-				●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9312-9405	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9406-9407	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9408-9411	●	●	●
12	09.211 LINING; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9408-9411				●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9412-				●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9406-9407				●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9406-9407				●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97085-280-3	01	1	9312-9411	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97102-598-0	01	1	9312-				●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9312-9405	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9406-9407	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9408-9411	●	●	●
25	09.211 COVER; EVAP PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9408-9411				●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9412-				●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9312-9405	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9406-9407	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9408-9411	●	●	●
25	09.211 COVER; EVAP PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9408-9411				●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9412-				●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9406-9407				●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9406-9407				●	●	●
27	09.211 SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9312-9406	●	●	●
27	09.211 SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9407-9407	●	●	●	●	●	●
27	09.211 SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9408-9411	●	●	●
27	09.211 SCREW; COVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9408-9411				●	●	●
27	09.211 SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9412-9711				●	●	●
27	09.211 SCREW; COVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9712-				●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) 08.855	8-97083-135-0	01	1	9312-9411	●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97083-136-0	01	1	9312-				●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9312-9405	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9406-9407	●	●	●	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9408-9411	●	●	●
33	09.211 LINING; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-0	01	1	9408-9411				●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-1	01	1	9412-9711				●	●	●
33	09.211 LINING; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-1	01	1	9712-				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	9312-9411	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	9412-9510				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9312-9405	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9406-9407	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9408-9411	●	●	●
37	09.214 GASKET; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9408-9411				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9412-				●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6	8-94481-700-0	01	1	9406-9407				●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-275-0	01	1	9312-9411	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-275-0	01	1	9412-				●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9312-9405	●	●	●	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9406-9407	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9408-9411	●	●	●
39	09.214 GASKET; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9408-9411				●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9412-				●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9406-9407				●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97085-276-1	01	1	9312-9411	●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	9312-				●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-94334-784-0	01	1	9312-9411	●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-596-0	01	1	9312-				●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9312-9405	●	●	●	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9406-9407	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9408-9411	●	●	●
47	09.214 SCREW; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9408-9411				●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9412-				●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9406-9407				●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	5-83579-024-0	01	1	9312-9411	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	5-83579-024-0	01	1	9412-				●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9312-9405	●	●	●	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9406-9407	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9408-9411	●	●	●
49	09.211 GROMMET; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9408-9411				●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9412-				●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9406-9407				●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) 09.275	8-97085-283-0	01	1	9312-9411	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) 09.275 "R-134A"	8-97087-577-0	01	1	9312-				●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9312-9405	●	●	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9406-9407	●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9408-9411	●	●	●
81	09.211 CLIP; THERMOSTAT A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9408-9411				●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9412-				●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9406-9407				●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9312-9406	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9407-9407	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9408-9411	●	●	●
109	09.211 BOLT; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9408-9411				●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9412-9711				●	●	●
109	09.211 BOLT; EVAP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9712-				●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	06	1	9406-9406				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
