◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#33719) — 45 parça

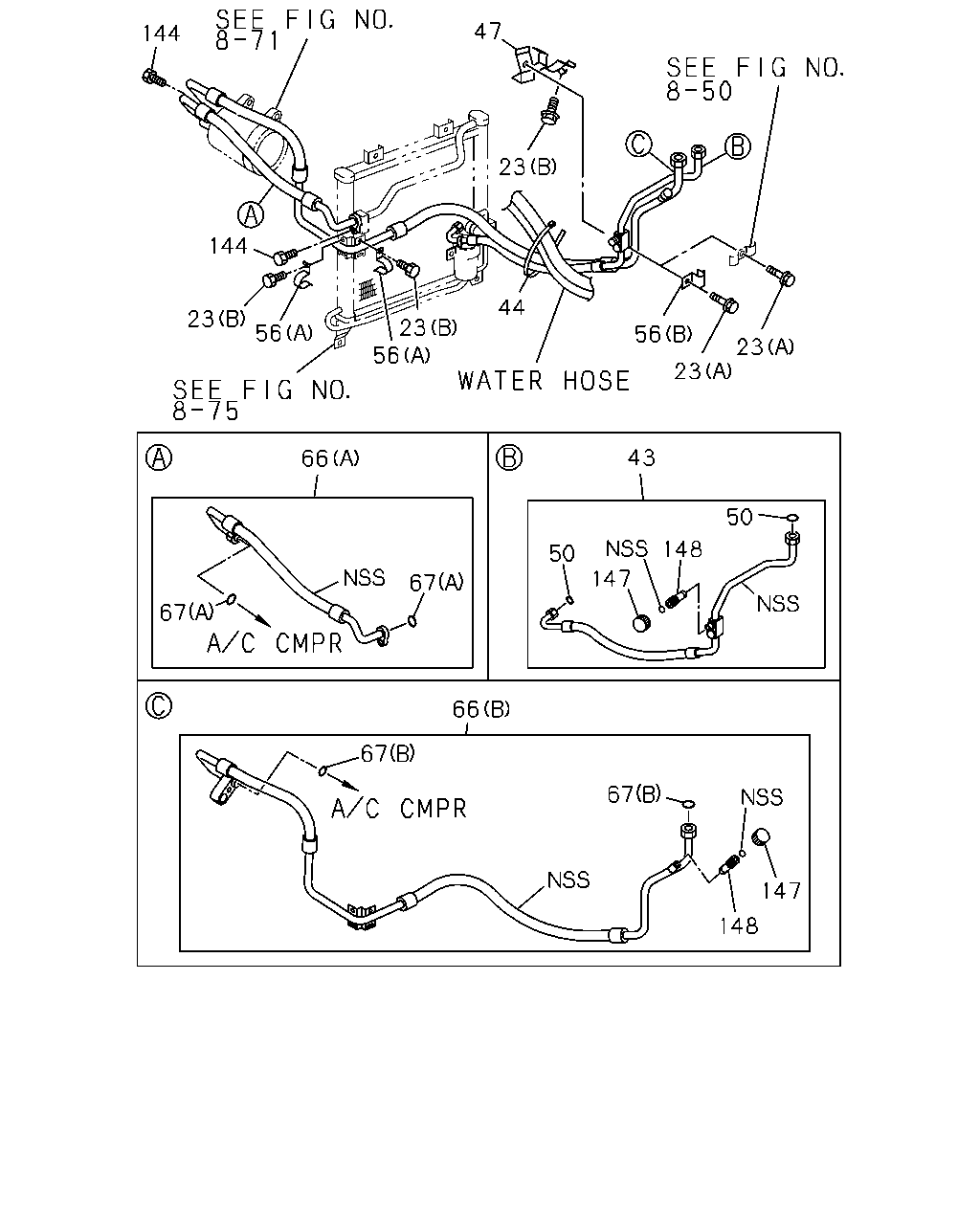

çizim 69104
47 23 56 56 56 23 23 43 66 50 147 148 50 67 67 66 67 67 147 148 144 144 23 44 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 12.187 (B) M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9312-9407 ● ● ●
23 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 12.187 (B) M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9408-9612 ● ● ●
23 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 00.738 (B) M6X16 FLANGE 		0-28080-616-0 03 1 9701- ● ● ●
23 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9312-9612 ● ● ●
23 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 03.670 (A) M6X20 FLANGE 		0-28080-620-0 01 1 9701- ● ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97103-570-1 01 1 9312-9407 ● ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97103-572-0 01 1 9408- ● ● ●
44 09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250 		5-09707-030-1 03 1 9312- ● ● ●
47 09.242 BRACKET; TILT BAR
AIR CONDITIONER MANUAL CONT(C60) 		8-97090-311-1 01 1 9406-9711 ● ● ●
47 09.242 BRACKET; TILT BAR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97090-311-1 01 1 9712- ● ● ●
50 09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07 		8-94461-902-0 02 1 9312- ● ● ●
56 09.242 CLIP; PIPE,A/C
AIR CONDITIONER MANUAL CONT(C60) 09.190 (A) 		8-97024-716-0 03 1 9312-9407 ● ● ●
56 09.242 CLIP; PIPE,A/C
AIR CONDITIONER MANUAL CONT(C60) 09.190 (A) 		8-97024-716-0 02 1 9408- ● ● ●
56 09.242 CLIP; PIPE,A/C
AIR CONDITIONER MANUAL CONT(C60) 09.276 (B) ID=10 L=20 		8-97036-717-0 01 1 9312-9407 ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97069-977-0 01 1 9312-9405 ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97108-684-0 01 1 9312-9407 ● ● ●
66 09.225 HOSE; FLEX,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97108-684-1 01 1 9408- ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97069-977-1 01 1 9406-9407 ● ● ●
66 09.225 HOSE; FLEX,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97069-977-1 01 1 9408- ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 09.222 (B) ID=13.9 		8-94113-330-0 01 1 9312-9405 ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 09.222 (A) ID=10.8 		8-94113-331-0 01 1 9312-9407 ● ● ●
67 09.260 GASKET; FLEX HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 (A) ID=10.8 		8-94113-331-0 01 1 9408- ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.8 		8-94461-901-0 01 1 9312-9405 ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.0 		8-94461-900-0 01 1 9312-9407 ● ● ●
67 09.260 GASKET; FLEX HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.0 		8-94461-900-0 01 1 9408- ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 09.222 (B) ID=13.9 		8-94113-330-0 01 1 9406-9407 ● ● ●
67 09.260 GASKET; FLEX HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 (B) ID=13.9 		8-94113-330-0 01 1 9408- ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.8 		8-94461-901-0 01 1 9406-9407 ● ● ●
67 09.260 GASKET; FLEX HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.8 		8-94461-901-0 01 1 9408- ● ● ●
144 09.242 BOLT; CONN TO CMPR
AIR CONDITIONER MANUAL CONT(C60) 04.104 M10X45 W/LK&PL WASHER 		0-50141-045-0 01 1 9312-9407 ● ● ● ● ● ●
144 09.242 BOLT; CONN TO CMPR
AIR CONDITIONER MANUAL CONT(C60) 01.840 M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9408-9612 ● ● ● ● ● ●
144 09.242 BOLT; CONN TO CMPR
AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X35 FLANGE 		0-28081-035-0 01 1 9701-9705 ● ● ● ● ● ●
144 09.242 BOLT; CONN TO CMPR
AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9706- ● ● ● ● ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) CAP MARK H 		8-97083-101-0 01 1 9312-9407 ● ● ●
147 09.242 CAP; FLEX HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CAP MARK H 		8-97083-101-0 01 1 9312-9407 ● ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L 		8-97083-102-0 01 1 9312- ● ● ●
147 09.242 CAP; FLEX HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L 		8-97083-102-0 01 1 9312- ● ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) CAP MARK H 		8-97083-101-0 01 1 9712- ● ● ●
147 09.242 CAP; FLEX HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CAP MARK H 		8-97083-101-0 01 1 9712- ● ● ●
148 09.262 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 		8-97083-100-0 02 1 9312-9407 ● ● ●
148 09.262 VALVE; FLEX HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97083-100-0 02 1 9312-9407 ● ● ●
148 09.262 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 		8-97083-100-0 01 1 9406-9711 ● ● ●
148 09.262 VALVE; FLEX HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97083-100-0 01 1 9406-9711 ● ● ●
148 09.262 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 		8-97083-100-0 02 1 9712- ● ● ●
148 09.262 VALVE; FLEX HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97083-100-0 02 1 9712- ● ● ●
