Isuzu WW
▶
TRUCKS
▶
NHR
▶
50693 - NHR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#33715) — 44 parça
Tümü
A - NHB5SF
B - NHB5WF
C - NHB6SF
D - NHB6WF
E - NHN5SF
F - NHN6SF
◀
[828A] LHD(NO.2) (12 parça)
[828A] ALL MODEL (5 parça)
[828A] RHD(NO.1) (6 parça)
[828A] RHD(NO.2) (12 parça)
[828A] LHD(NO.1) (9 parça)
▶

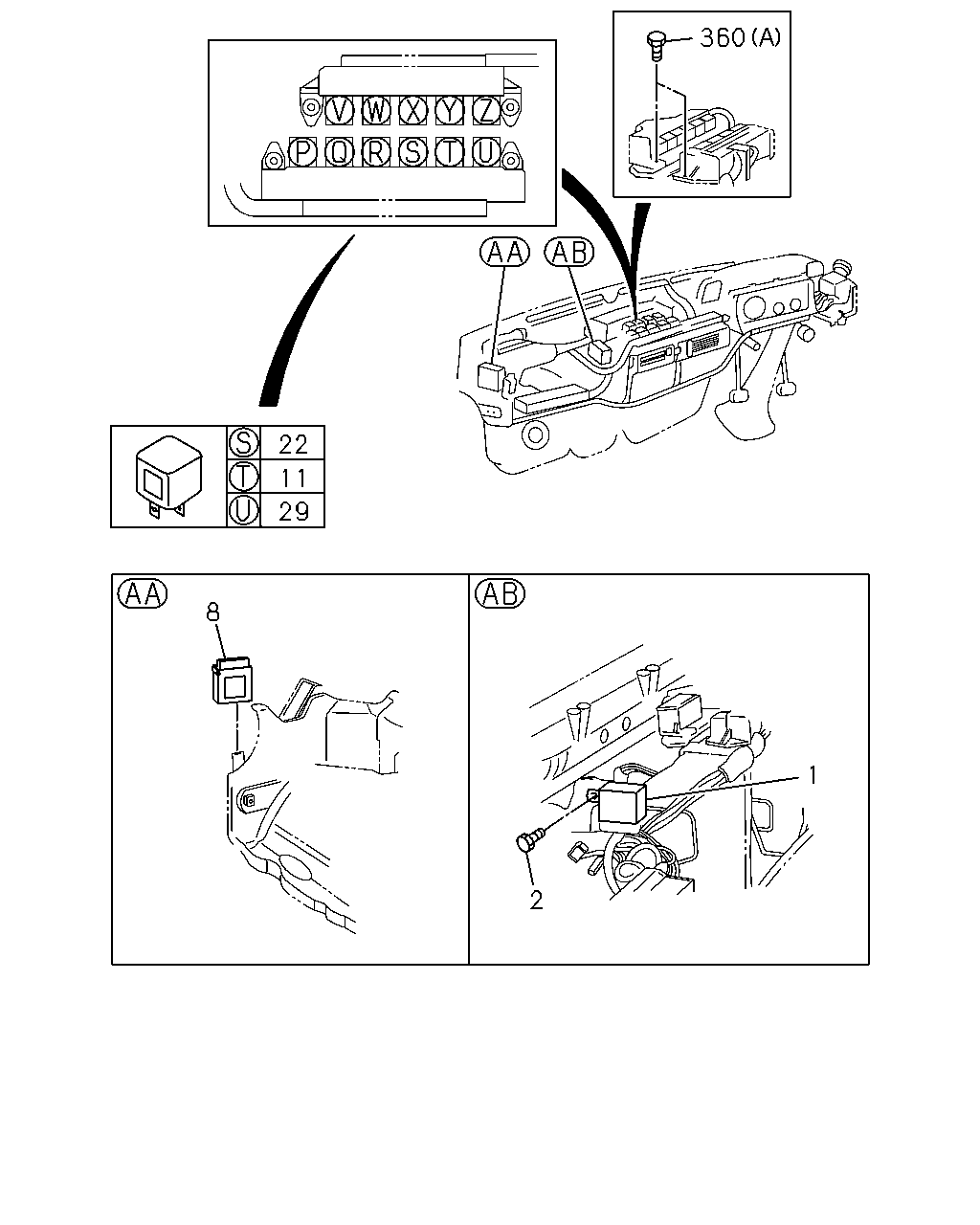

360
22
11
29
8
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
02.575 UNIT; FLASHER
8-97086-509-1
01
1
9312-
●
●
●
●
●
●
2
02.892 BOLT; FLASHER UNIT
08.225 M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
9312-9603
●
●
●
●
●
●
2
02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER
8-94139-963-0
01
1
9604-
●
●
●
●
●
●
8
16.067 RELAY; WIPER
INTERMITTENT WIPER<C13>
8-97855-014-0
01
1
9312-9711
●
●
●
●
●
●
8
16.067 RELAY; WIPER
INTERMITTENT WIPER<C13>
8-97855-186-0
01
1
9712-
●
●
●
●
●
●
11
02.485 RELAY; DIMMER
08.852 12V 20A
8-97060-926-1
01
1
9312-
●
●
●
●
●
●
22
02.679 RELAY; STOP LAMP
08.852 12V 20A
8-97060-926-1
01
1
9312-
●
●
●
●
●
●
29
02.815 RELAY; HORN
08.852 12V 20A
8-97060-926-1
01
1
9312-
●
●
●
●
●
●
360
02.483 BOLT; RELAY BOX
01.531 (B) M8X25 FLANGE
0-28080-825-0
03
1
9312-9503
●
●
●
●
●
●
360
02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE
0-28680-825-0
03
1
9504-
●
●
●
●
●
●
360
02.483 BOLT; RELAY BOX
08.225 (A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
9312-9603
●
●
●
●
●
●
360
02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER
8-94139-963-0
04
1
9604-
●
●
●
●
●
●

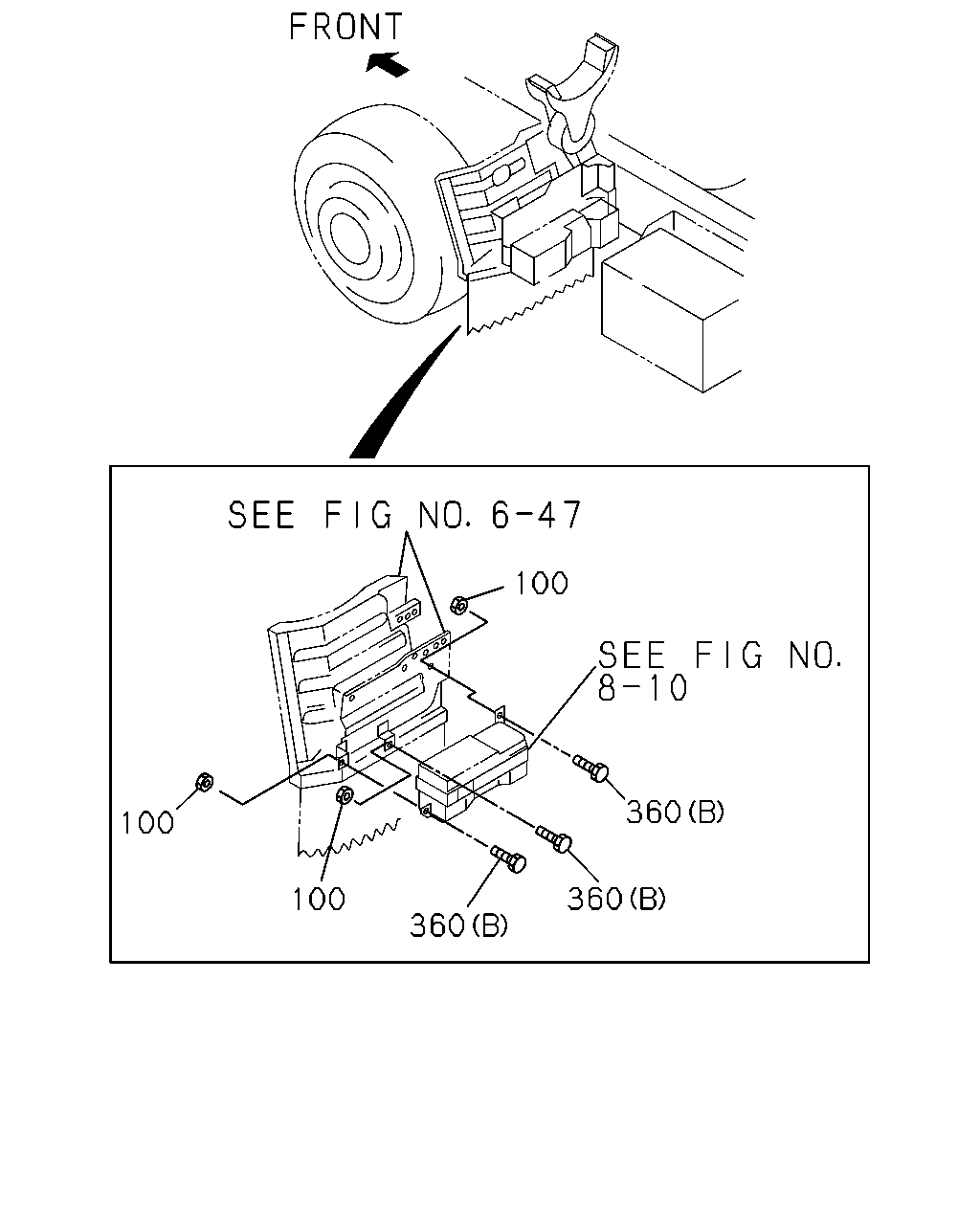

100
360
100
360
100
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
100
09.277 NUT; RELAY BOX COVER
07.633 M8 FLANGE
0-91150-108-0
03
1
9312-
●
●
●
●
●
●
360
02.483 BOLT; RELAY BOX
01.531 (B) M8X25 FLANGE
0-28080-825-0
03
1
9312-9503
●
●
●
●
●
●
360
02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE
0-28680-825-0
03
1
9504-
●
●
●
●
●
●
360
02.483 BOLT; RELAY BOX
08.225 (A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
9312-9603
●
●
●
●
●
●
360
02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER
8-94139-963-0
04
1
9604-
●
●
●
●
●
●

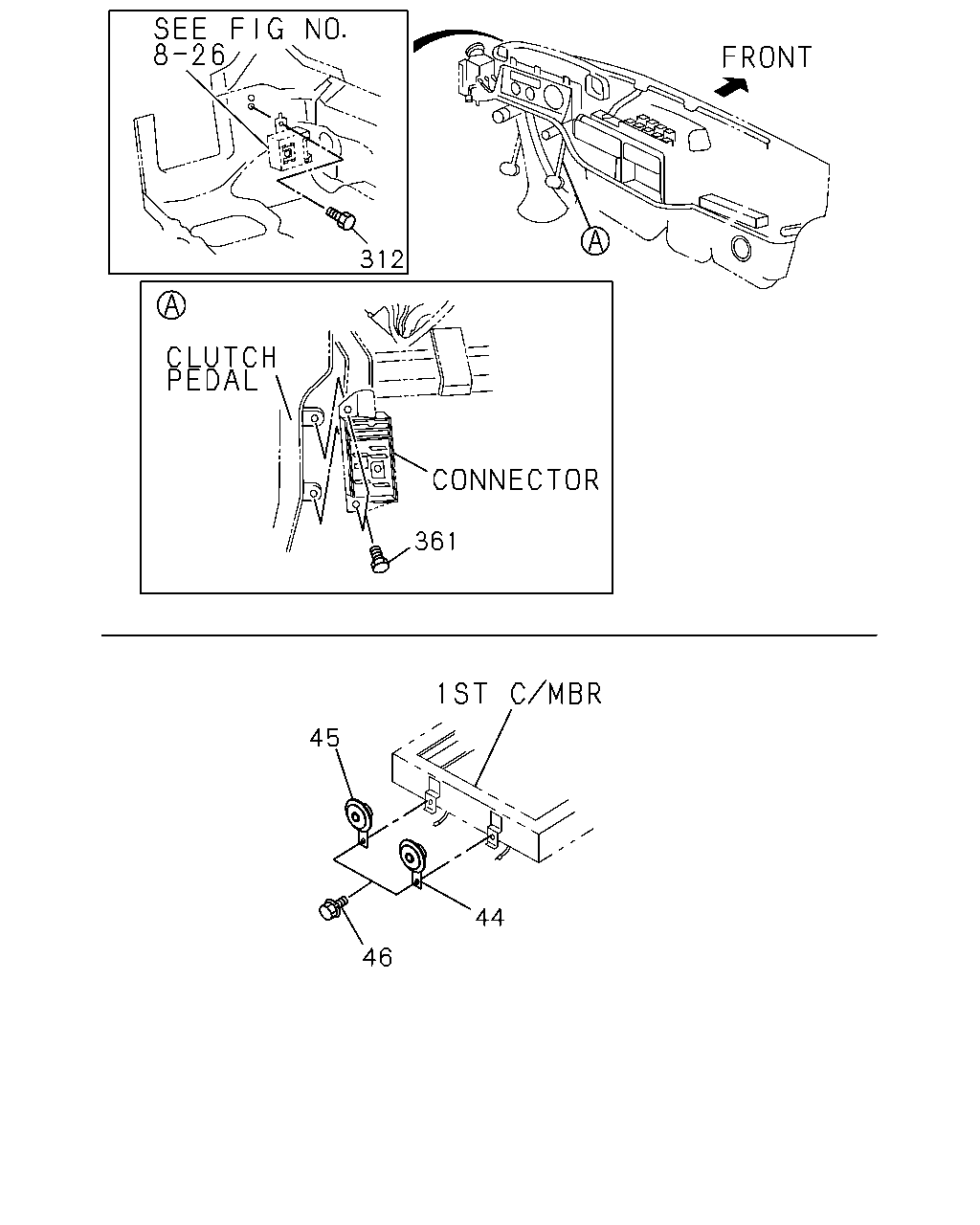

361
45
44
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
44
02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK)
8-97091-305-0
01
1
9312-9404
●
●
●
●
●
●
44
02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK)
8-97109-361-0
01
1
9405-
●
●
●
●
●
●
45
02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK)
8-97091-303-0
01
1
9312-9404
●
●
●
●
●
●
45
02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK)
8-97109-362-1
01
1
9405-
●
●
●
●
●
●
46
02.812 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
9312-
●
●
●
●
●
●
361
02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
9312-
●
●
●
●
●
●

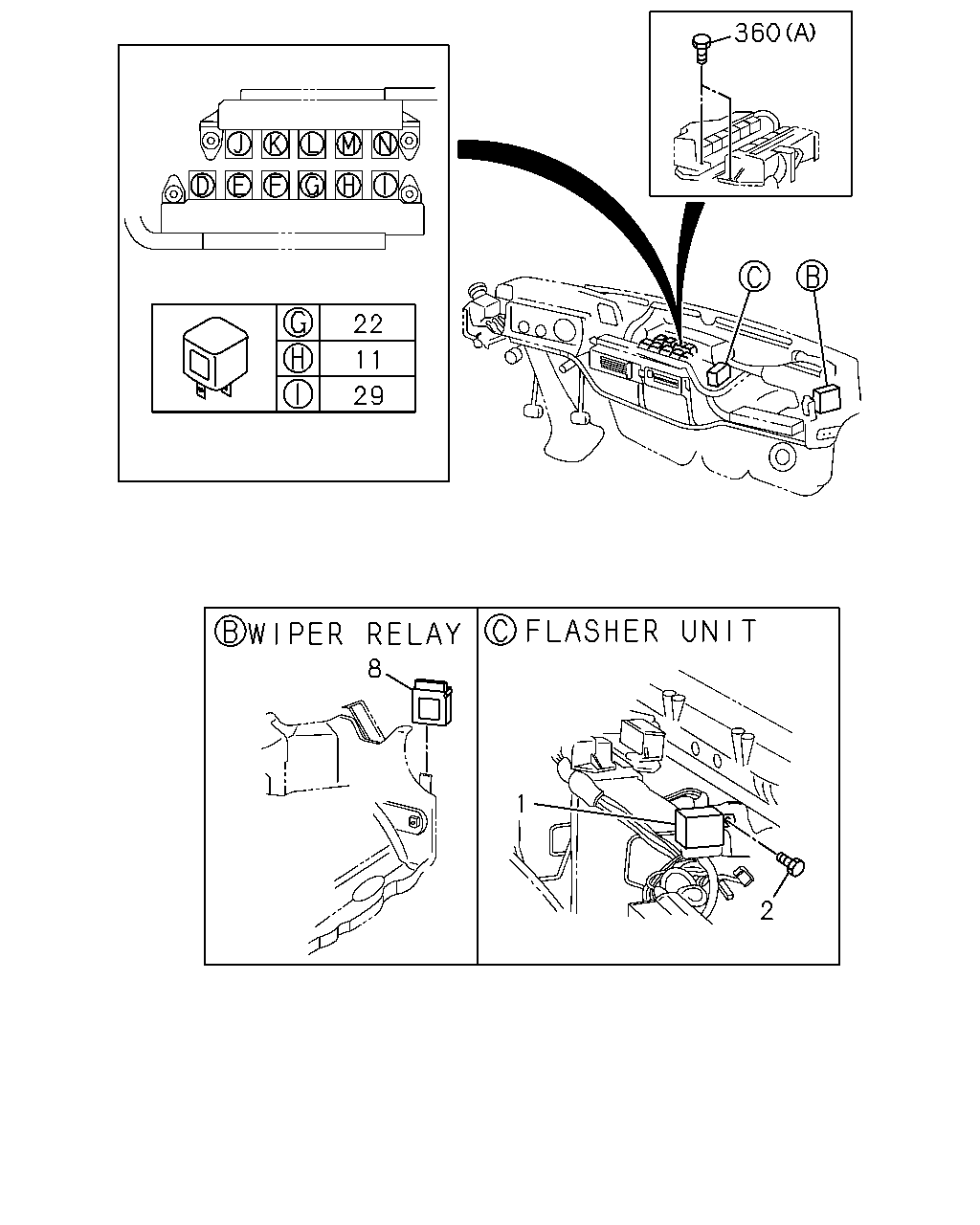

360
22
29
8
2
1
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
02.575 UNIT; FLASHER
8-97086-509-1
01
1
9312-
●
●
●
●
●
●
2
02.892 BOLT; FLASHER UNIT
08.225 M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
9312-9603
●
●
●
●
●
●
2
02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER
8-94139-963-0
01
1
9604-
●
●
●
●
●
●
8
16.067 RELAY; WIPER
INTERMITTENT WIPER<C13>
8-97855-014-0
01
1
9312-9711
●
●
●
●
●
●
8
16.067 RELAY; WIPER
INTERMITTENT WIPER<C13>
8-97855-186-0
01
1
9712-
●
●
●
●
●
●
11
02.485 RELAY; DIMMER
08.852 12V 20A
8-97060-926-1
01
1
9312-
●
●
●
●
●
●
22
02.679 RELAY; STOP LAMP
08.852 12V 20A
8-97060-926-1
01
1
9312-
●
●
●
●
●
●
29
02.815 RELAY; HORN
08.852 12V 20A
8-97060-926-1
01
1
9312-
●
●
●
●
●
●
360
02.483 BOLT; RELAY BOX
01.531 (B) M8X25 FLANGE
0-28080-825-0
03
1
9312-9503
●
●
●
●
●
●
360
02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE
0-28680-825-0
03
1
9504-
●
●
●
●
●
●
360
02.483 BOLT; RELAY BOX
08.225 (A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
9312-9603
●
●
●
●
●
●
360
02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER
8-94139-963-0
04
1
9604-
●
●
●
●
●
●
312
361
45
44
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
44
02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK)
8-97091-305-0
01
1
9312-9404
●
●
●
●
●
●
44
02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK)
8-97109-361-0
01
1
9405-
●
●
●
●
●
●
45
02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK)
8-97091-303-0
01
1
9312-9404
●
●
●
●
●
●
45
02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK)
8-97109-362-1
01
1
9405-
●
●
●
●
●
●
46
02.812 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
9312-
●
●
●
●
●
●
312
09.765 BOLT; BUZZER
SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER
8-94139-963-0
01
1
9312-9510
●
●
312
09.765 BOLT; BUZZER
SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER
8-94139-963-0
01
1
9511-9807
●
312
09.765 BOLT; BUZZER
SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER
8-94139-963-0
01
1
9808-
●
●
361
02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
9312-
●
●
●
●
●
●
