◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#33714) — 38 parça

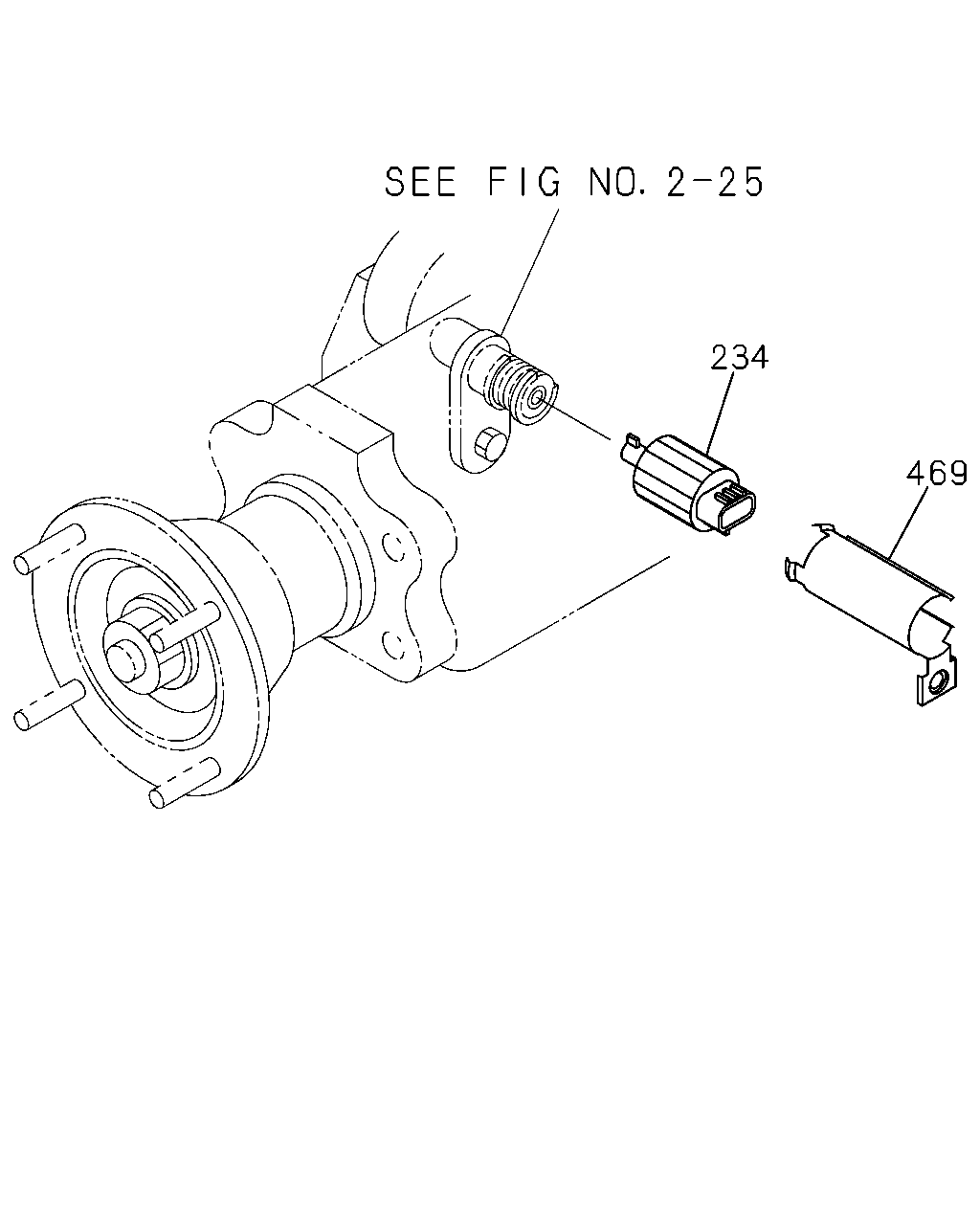

çizim 66259
234 469
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN DARK GRAY 		8-97065-834-0 01 1 9312-9502 ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9503- ● ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR 8-97094-699-2 01 1 9312-9510 ● ● ● ● ● ●

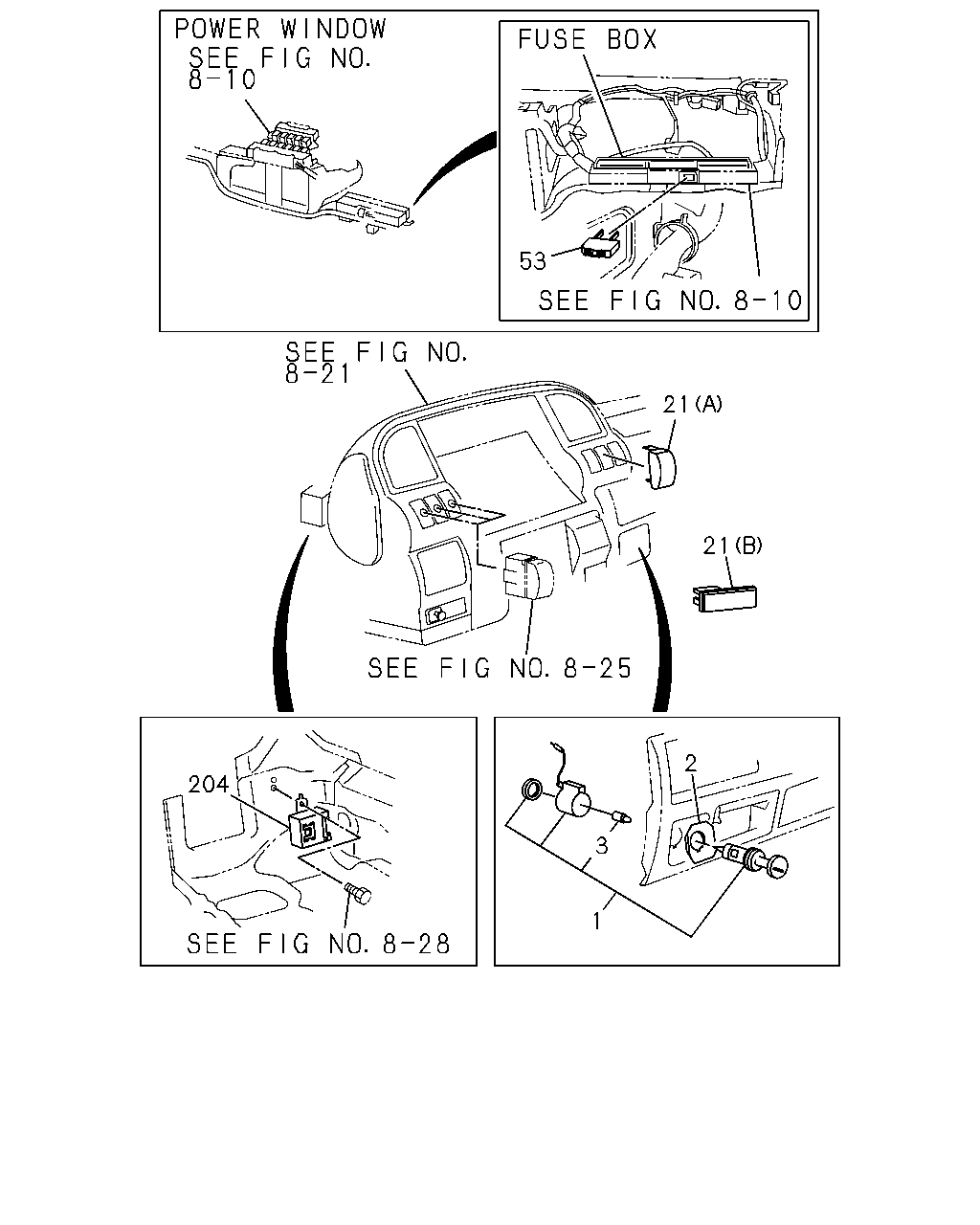

çizim 67718
53 21 21 2 204 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR 8-97073-936-1 01 1 9312- ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 9312- ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER 8-97092-963-0 01 1 9312-9612 ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 9701- ● ● ● ● ● ●
21 09.744 COVER; HOLE
02.485 (B) 		8-94310-890-0 02 1 9312-9409 ● ● ● ● ● ●
21 09.744 COVER; HOLE
02.485 (B) 		8-94310-890-0 02 1 9410-9506 ● ● ●
21 09.744 COVER; HOLE
02.485 (B) 		8-94310-890-0 01 1 9507- ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 03 1 9312-9506 ● ● ● ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 03 1 9507-9601 ● ● ● ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 01 1 9602-9711 ● ● ● ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 01 1 9602-9711 ● ● ● ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 01 1 9602-9711 ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
53 02.510 BREAKER; ELEC CIRCUIT
POWER WINDOW FRT DOOR<A32> 20A 		8-94447-470-0 01 1 9312-9711 ● ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9312-9510 ● ●
204 02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9511-9807 ●
204 02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9808- ● ●

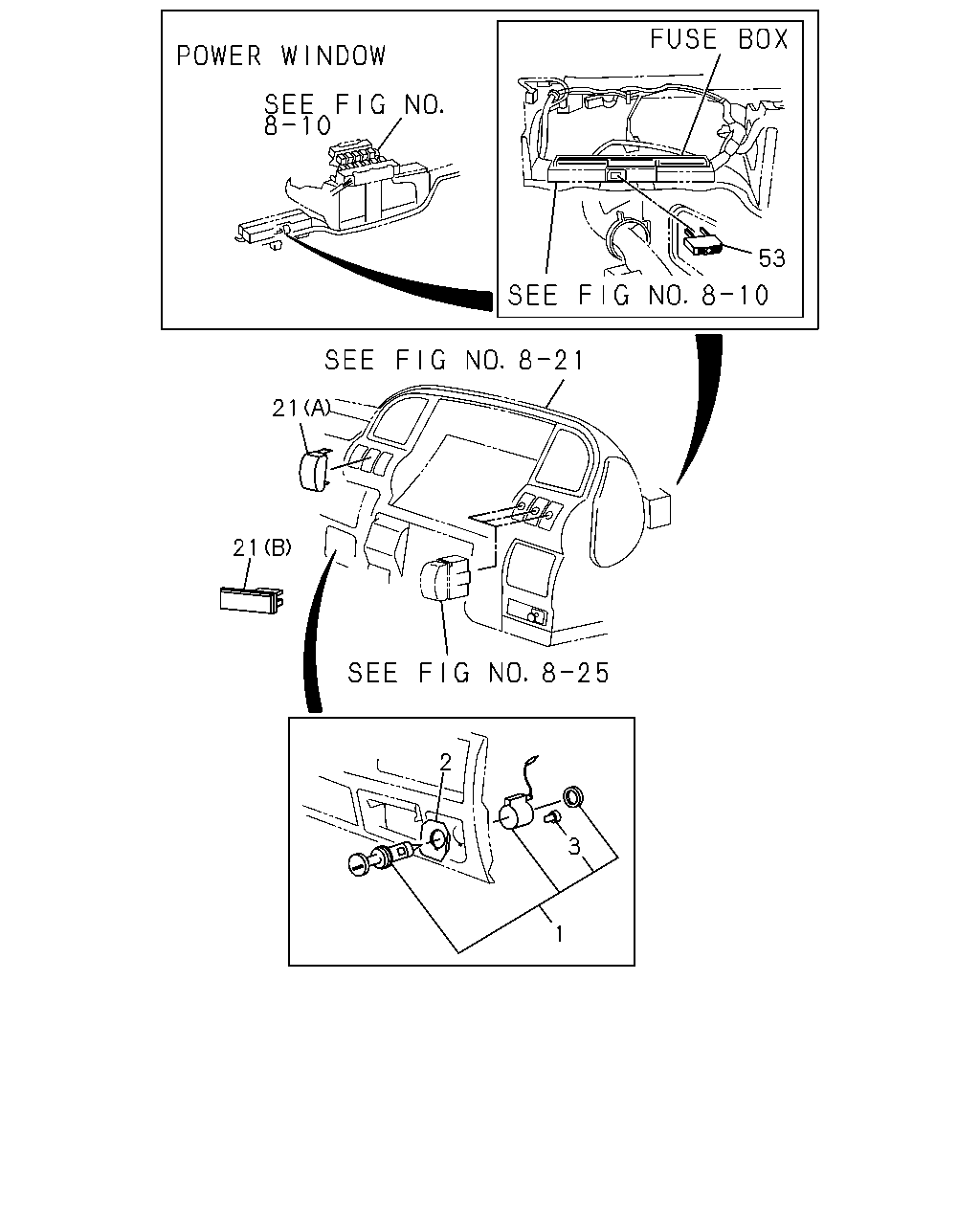

çizim 70800
53 21 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR 8-97073-936-1 01 1 9312- ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 9312- ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER 8-97092-963-0 01 1 9312-9612 ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 9701- ● ● ● ● ● ●
21 09.744 COVER; HOLE
02.485 (B) 		8-94310-890-0 02 1 9312-9409 ● ● ● ● ● ●
21 09.744 COVER; HOLE
02.485 (B) 		8-94310-890-0 02 1 9410-9506 ● ● ●
21 09.744 COVER; HOLE
02.485 (B) 		8-94310-890-0 01 1 9507- ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 03 1 9312-9506 ● ● ● ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 03 1 9507-9601 ● ● ● ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 01 1 9602-9711 ● ● ● ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 01 1 9602-9711 ● ● ● ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 01 1 9602-9711 ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
53 02.510 BREAKER; ELEC CIRCUIT
POWER WINDOW FRT DOOR<A32> 20A 		8-94447-470-0 01 1 9312-9711 ● ● ● ● ● ●
