◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#33713) — 175 parça
çizim 16479
29 30 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 16.263 SWITCH; DOOR 8-94272-915-0 02 1 9312-9403 ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-1 02 1 9404-9404 ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 01 1 9405- ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 02 1 9405- ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9312-9404 ● ● ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9405- ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9405- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9412-9510 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9511-9711 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9405- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9312- ● ●
257 16.081 COVER; HOLE,SW
02.485 (B) 		8-94310-890-0 01 1 9507- ● ● ●

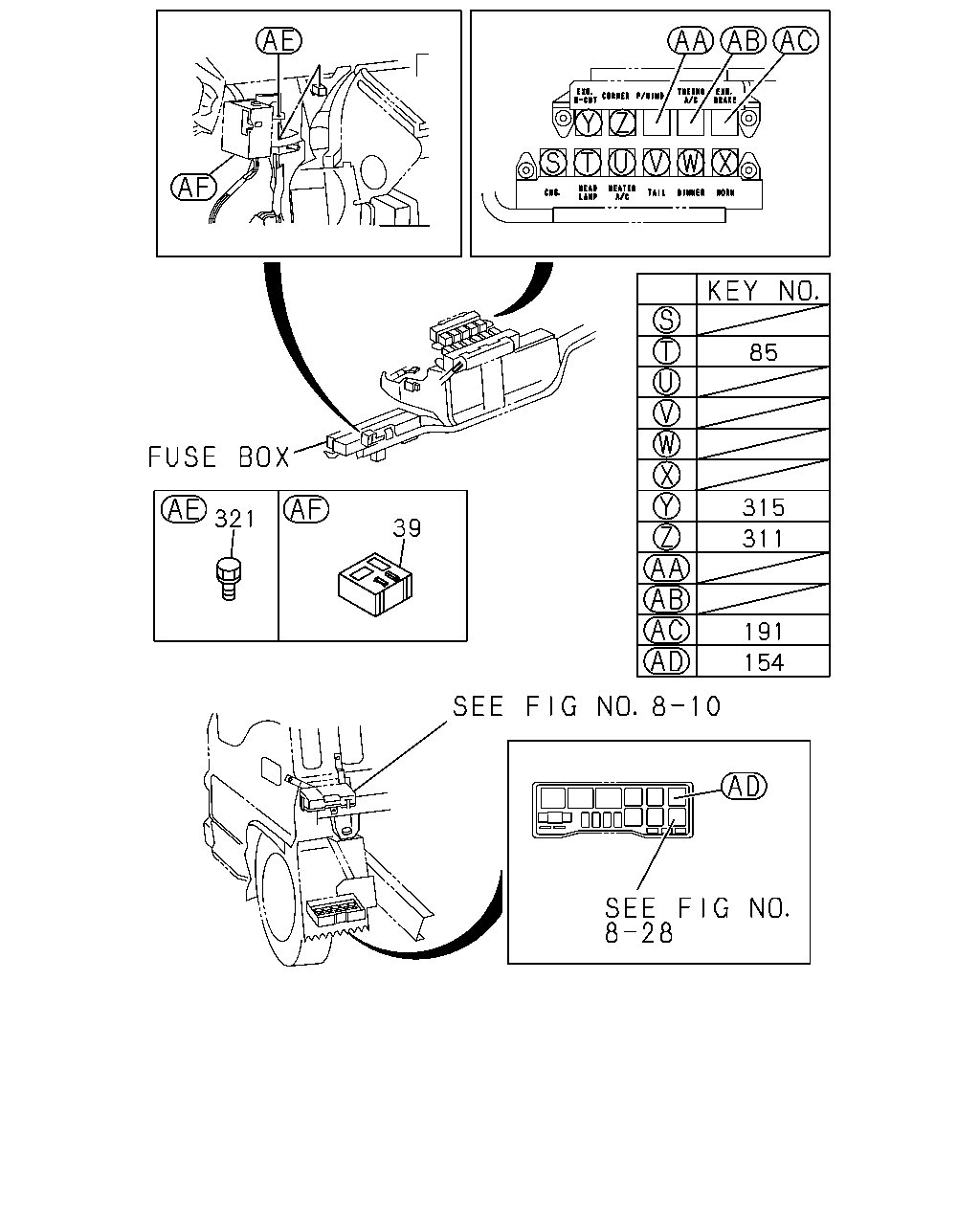

çizim 16672
85 315 311 321 39 191 154
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97063-658-0 01 1 9312-9705 ● ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-215-0 01 1 9706- ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-0 01 1 9312-9403 ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-1 01 1 9404- ● ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A 		8-97060-926-0 01 1 9312-9405 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 08.852 12V 20A 		8-97060-926-1 01 1 9312- ● ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9403 ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. CHINA EQUIPMENT(YT2) 08.852 12V 20A 		8-97060-926-0 01 1 9312-9403 ● ●
311 02.596 RELAY; CORNERING LAMP
08.852 12V 20A 		8-97060-926-0 01 1 9404-9406 ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. CHINA EQUIPMENT(YT2) 08.852 12V 20A 		8-97060-926-0 01 1 9404-9406 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. CHINA EQUIPMENT(YT2) 08.852 12V 20A 		8-97060-926-1 01 1 9407-9711 ● ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
08.852 12V 20A 		8-97060-926-1 01 1 9712- ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
08.852 12V 20A 		8-97060-926-0 01 1 9312-9403 ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 9404- ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 9404- ● ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9312- ● ● ● ● ● ●

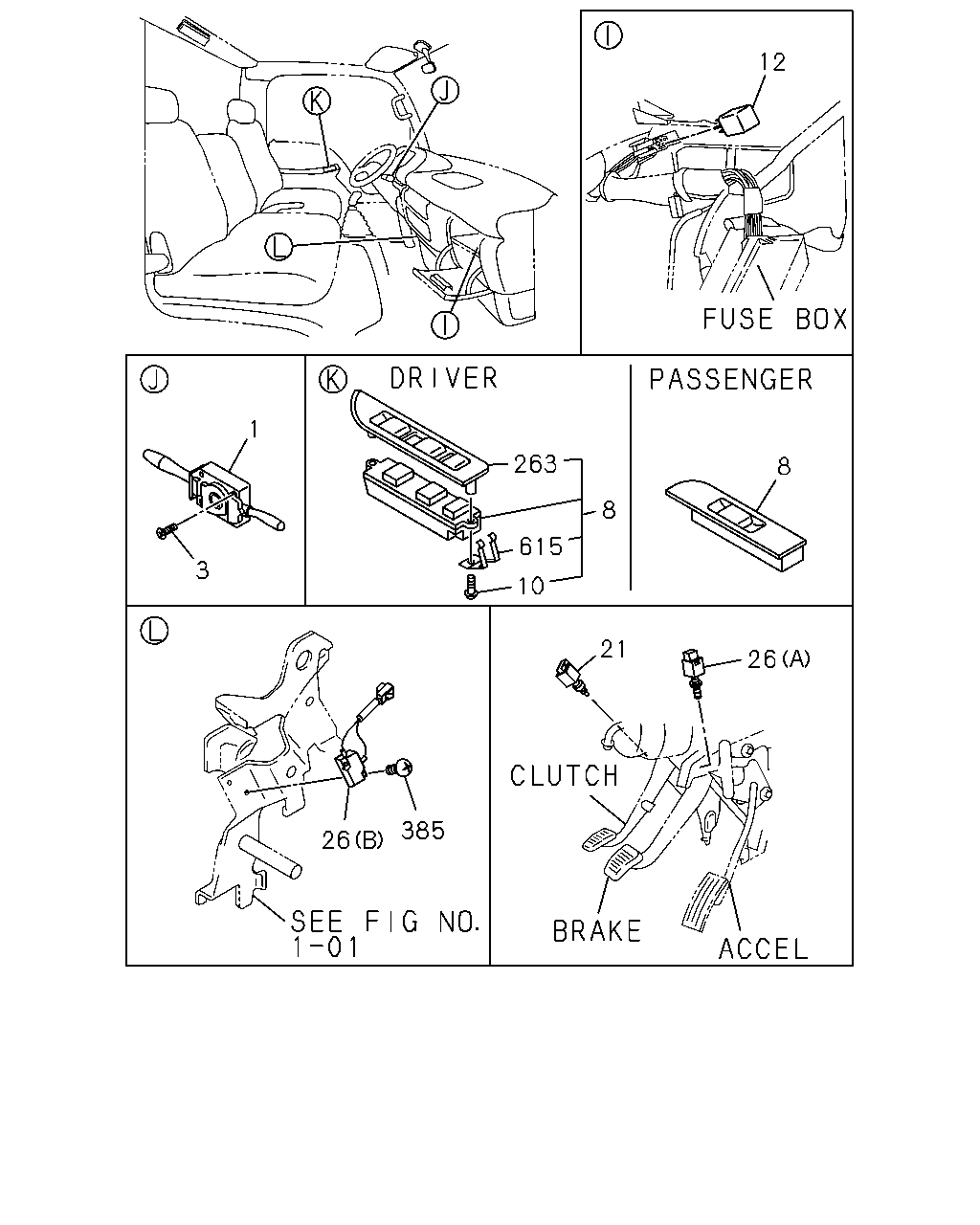

çizim 67755
12 1 263 8 8 615 3 10 21 26 385 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-217-1 01 1 9312- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97071-215-1 01 1 9312-9711 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97170-393-0 01 1 9712- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97071-216-1 01 1 9312-9711 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97170-394-0 01 1 9712- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97071-218-1 01 1 9312- ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-007-2 01 1 9312- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97071-005-2 01 1 9312-9711 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97167-653-0 01 1 9712- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97071-006-2 01 1 9312-9711 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97170-390-0 01 1 9712- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97071-008-2 01 1 9312- ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 03 1 9312-9502 ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9503- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97043-748-2 01 1 9312-9711 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97136-761-0 01 1 9712-9805 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-726-0 01 1 9806- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97073-930-2 01 1 9312-9611 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-337-0 01 1 9612-9711 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-343-0 01 1 9712- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97073-839-1 01 1 9312-9711 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97140-631-0 01 1 9712-9805 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-727-0 01 1 9806- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97073-929-2 01 1 9312-9611 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-339-0 01 1 9612-9711 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-345-0 01 1 9712- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9312- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 9312- ● ● ● ● ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9312- ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 04.054 (A) 		8-94368-343-0 01 1 9312-9312 ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 04.054 (A) 		8-94368-343-0 01 1 9401- ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> (B) 		8-97855-192-0 01 1 9401- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-235-0 01 1 9312-9711 ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 9712- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-237-0 01 1 9312-9711 ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-236-0 01 1 9712- ● ● ●
385 08.909 SCREW; ACCEL SW
EXHAUST BRAKE<NF8> M3X25 TAPPING 		9-07076-325-0 02 1 9401-9403 ● ● ●
385 08.909 SCREW; ACCEL SW
EXHAUST BRAKE<NF8> 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 9404- ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9312- ● ● ● ● ● ●

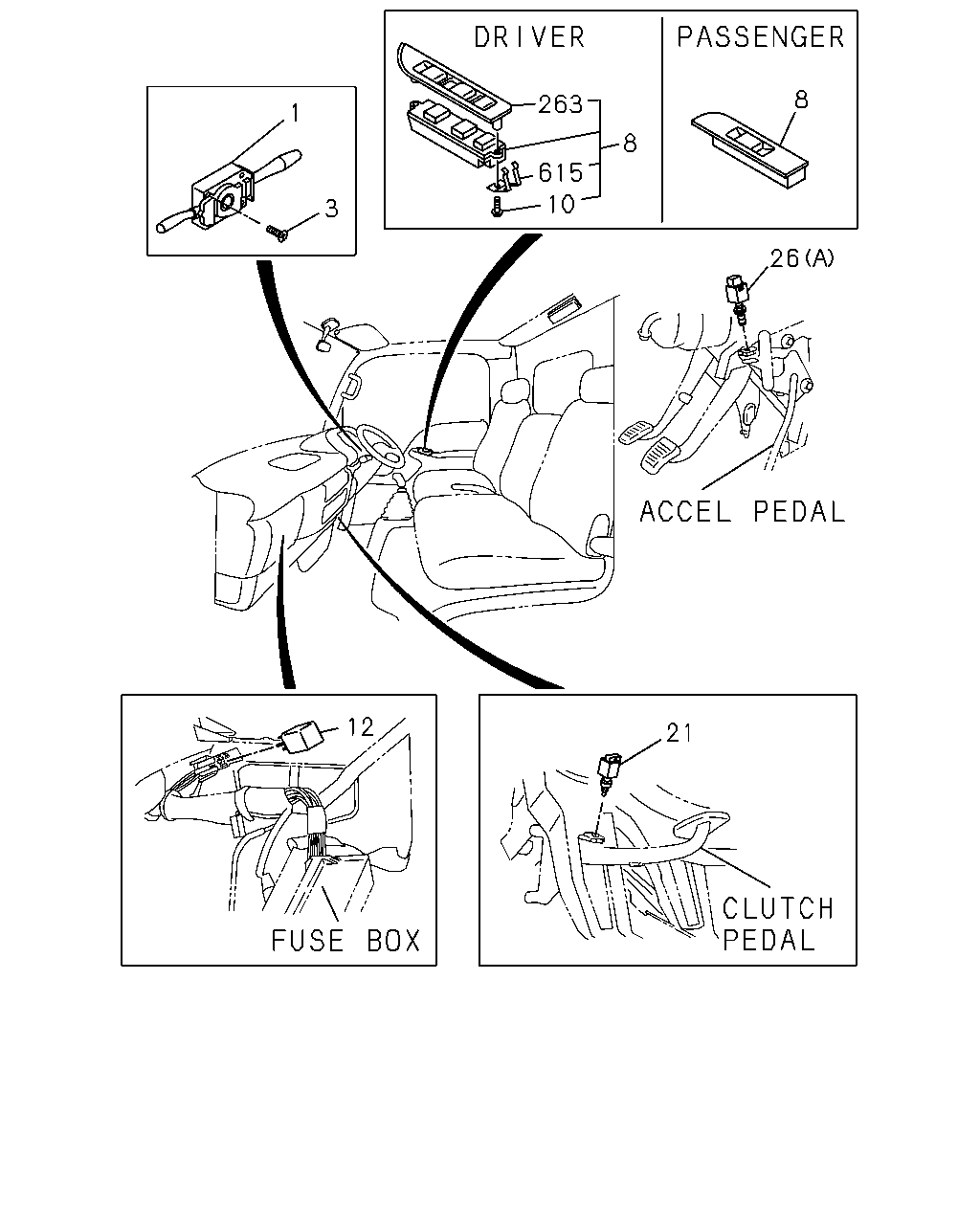

çizim 67756
8 263 1 8 615 10 3 26 12 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-217-1 01 1 9312- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97071-215-1 01 1 9312-9711 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97170-393-0 01 1 9712- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97071-216-1 01 1 9312-9711 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97170-394-0 01 1 9712- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97071-218-1 01 1 9312- ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-007-2 01 1 9312- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97071-005-2 01 1 9312-9711 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97167-653-0 01 1 9712- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97071-006-2 01 1 9312-9711 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97170-390-0 01 1 9712- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97071-008-2 01 1 9312- ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 03 1 9312-9502 ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9503- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97043-748-2 01 1 9312-9711 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97136-761-0 01 1 9712-9805 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-726-0 01 1 9806- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97073-930-2 01 1 9312-9611 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-337-0 01 1 9612-9711 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-343-0 01 1 9712- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97073-839-1 01 1 9312-9711 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97140-631-0 01 1 9712-9805 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-727-0 01 1 9806- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97073-929-2 01 1 9312-9611 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-339-0 01 1 9612-9711 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-345-0 01 1 9712- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9312- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 9312- ● ● ● ● ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9312- ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 04.054 (A) 		8-94368-343-0 01 1 9312-9312 ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 04.054 (A) 		8-94368-343-0 01 1 9401- ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> (B) 		8-97855-192-0 01 1 9401- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-235-0 01 1 9312-9711 ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 9712- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-237-0 01 1 9312-9711 ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-236-0 01 1 9712- ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9312- ● ● ● ● ● ●

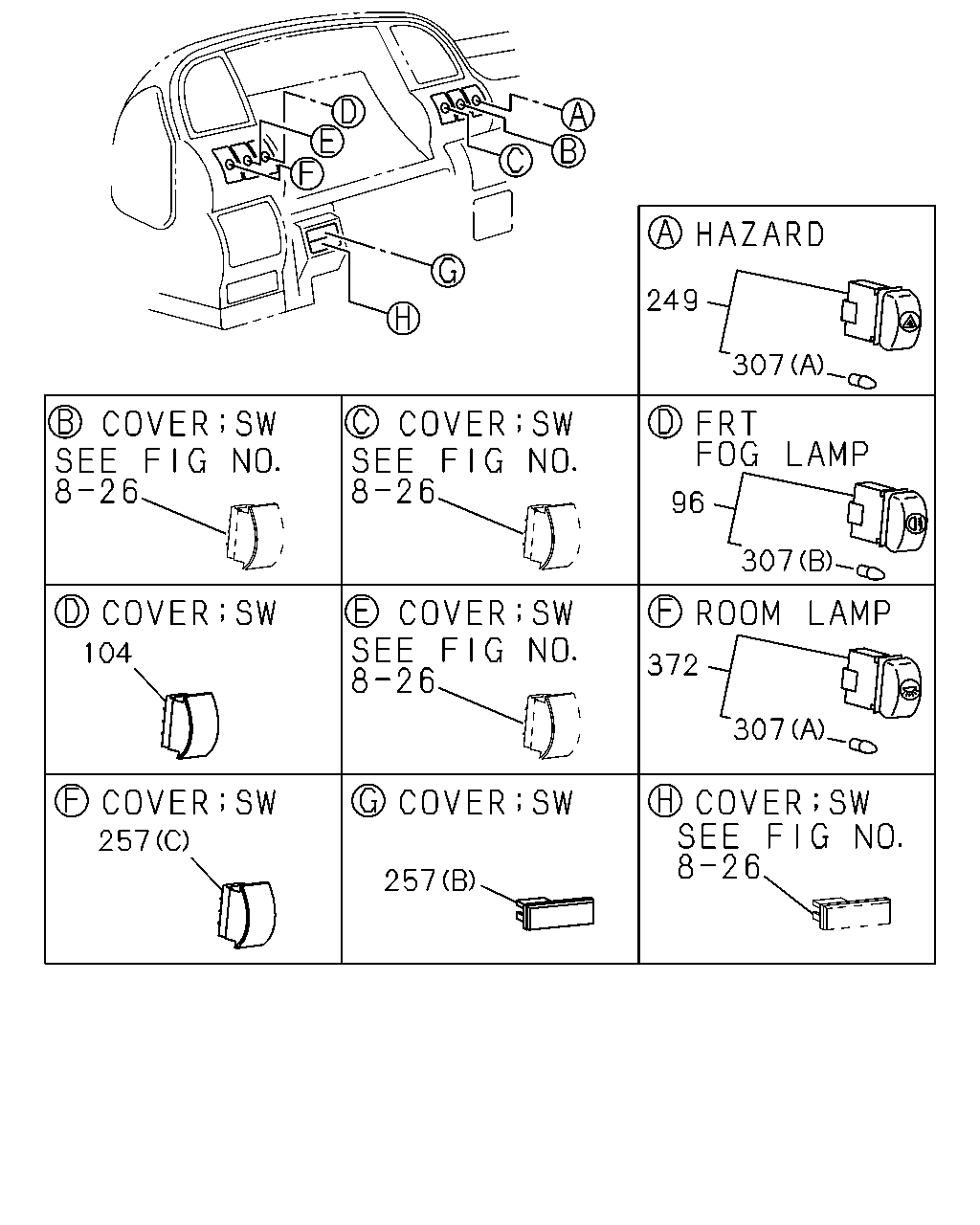

çizim 67792
249 307 96 307 104 372 307 257 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
96 02.485 SWITCH; FOG LAMP
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97076-350-4 01 1 9312-9711 ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97076-350-4 01 1 9312-9711 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97140-964-0 01 1 9712- ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97140-964-0 01 1 9712- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP(T96) 		8-97047-694-1 01 1 9312-9711 ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP(T96) 09.744 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97076-344-2 01 1 9312-9703 ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97117-657-0 01 1 9704-9711 ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97136-691-1 01 1 9712-9807 ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 9808- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9412-9510 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9511-9711 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9405- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9312- ● ●
257 16.081 COVER; HOLE,SW
02.485 (B) 		8-94310-890-0 01 1 9507- ● ● ●
307 08.991 BULB ASM; SW
(A) 14V 60MA 		8-97116-328-0 01 1 9511-9703 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> (A) 14V 60MA 		8-97116-328-0 01 1 9511-9703 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 14V 60MA 		8-97116-329-0 01 1 9511-9703 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 14V 60MA 		8-97116-329-0 01 1 9511-9703 ● ● ●
307 08.991 BULB ASM; SW
(A),(B) 14V 60MA 		8-97116-329-0 01 1 9704-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> (A),(B) 14V 60MA 		8-97116-329-0 01 1 9704-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A),(B) 14V 60MA 		8-97116-329-0 01 1 9704-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A),(B) 14V 60MA 		8-97116-329-0 01 1 9704-9807 ● ● ●
307 08.991 BULB ASM; SW
(B) 14V 60MA 		8-97116-329-0 02 1 9808- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> (B) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP(T96) (B) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ●
372 08.852 SWITCH; ROOM LAMP 8-97076-360-2 01 1 9312-9411 ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97076-360-2 01 1 9412-9510 ●
372 08.852 SWITCH; ROOM LAMP 8-97076-360-2 01 1 9412-9510 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97076-360-2 01 1 9511-9703 ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97117-660-0 01 1 9704-9711 ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 9712- ● ● ● ● ● ●

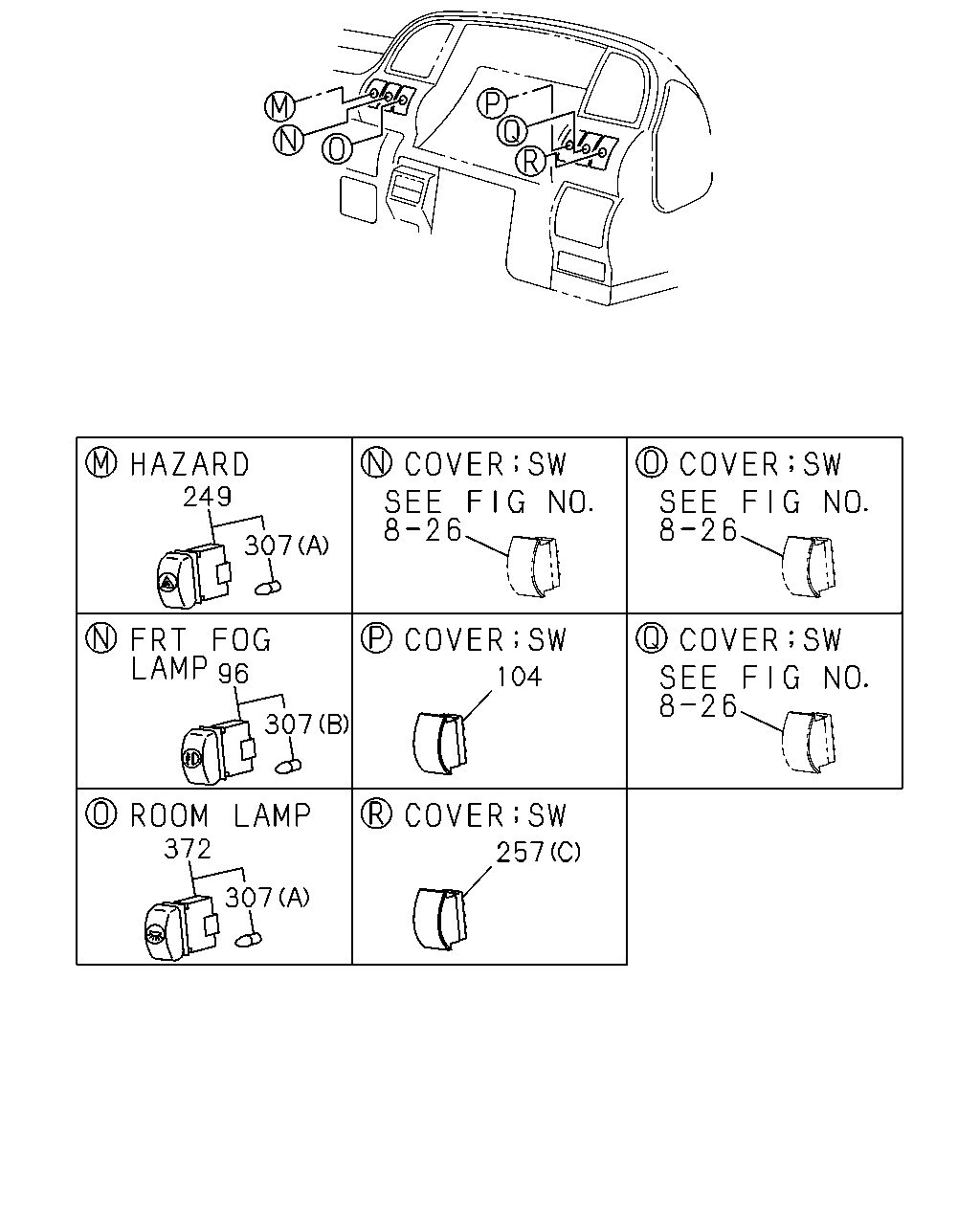

çizim 70801
249 307 96 104 307 372 257 307
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
96 02.485 SWITCH; FOG LAMP
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97076-350-4 01 1 9312-9711 ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97076-350-4 01 1 9312-9711 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97140-964-0 01 1 9712- ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97140-964-0 01 1 9712- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP(T96) 		8-97047-694-1 01 1 9312-9711 ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP(T96) 09.744 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97076-344-2 01 1 9312-9703 ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97117-657-0 01 1 9704-9711 ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97136-691-1 01 1 9712-9807 ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 9808- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9412-9510 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9511-9711 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9405- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9312- ● ●
257 16.081 COVER; HOLE,SW
02.485 (B) 		8-94310-890-0 01 1 9507- ● ● ●
307 08.991 BULB ASM; SW
(A) 14V 60MA 		8-97116-328-0 01 1 9511-9703 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> (A) 14V 60MA 		8-97116-328-0 01 1 9511-9703 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 14V 60MA 		8-97116-329-0 01 1 9511-9703 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 14V 60MA 		8-97116-329-0 01 1 9511-9703 ● ● ●
307 08.991 BULB ASM; SW
(A),(B) 14V 60MA 		8-97116-329-0 01 1 9704-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> (A),(B) 14V 60MA 		8-97116-329-0 01 1 9704-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A),(B) 14V 60MA 		8-97116-329-0 01 1 9704-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A),(B) 14V 60MA 		8-97116-329-0 01 1 9704-9807 ● ● ●
307 08.991 BULB ASM; SW
(B) 14V 60MA 		8-97116-329-0 02 1 9808- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> (B) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP(T96) (B) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ●
372 08.852 SWITCH; ROOM LAMP 8-97076-360-2 01 1 9312-9411 ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97076-360-2 01 1 9412-9510 ●
372 08.852 SWITCH; ROOM LAMP 8-97076-360-2 01 1 9412-9510 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97076-360-2 01 1 9511-9703 ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97117-660-0 01 1 9704-9711 ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
