◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#33712) — 381 parça
çizim 67793
165 129 129 129 129 129 333 129 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97103-680-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97129-291-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97106-584-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97129-295-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97103-683-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97129-294-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97106-576-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97129-293-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97106-585-1 01 1 9312-9510 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97129-302-0 01 1 9511-9711 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97172-035-3 01 1 9712-9809 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97172-035-3 01 1 9810- ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97103-689-1 01 1 9312-9510 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97129-301-0 01 1 9511-9711 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97172-034-3 01 1 9712-9809 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97172-034-3 01 1 9810- ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
TACHOMETER<U16> (D) M4X16 		1-09140-005-0 01 1 9312-9501 ● ● ● ● ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) (D) M4X16 		1-09140-005-0 01 1 9502-9711 ● ● ● ● ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
TACHOMETER<U16> (B),(C) 		8-97092-908-0 02 1 9312-9406 ● ● ● ● ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
(B),(C) 		8-97092-908-0 02 1 9407-9711 ● ● ● ● ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
EXC. TACHOMETER<U16> (D) M4X16 		1-09140-005-0 02 1 9407-9711 ● ● ● ● ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9312-9406 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9407-9501 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> (D) M4X16 		1-09140-005-0 03 1 9502-9510 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> (D) M4X16 		1-09140-005-0 03 1 9511-9711 ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> (A) 		8-97092-905-0 03 1 9312-9406 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97092-905-0 03 1 9407-9510 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97092-905-0 03 1 9511-9711 ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> (F) 		8-97108-148-0 01 1 9312-9406 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) (F) 		8-97108-148-0 01 1 9407-9510 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) (F) 		8-97108-148-0 01 1 9511-9711 ●
165 09.762 TIMER; SEAT BELT
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97108-137-0 01 1 9312-9406 ● ●
165 09.762 TIMER; SEAT BELT
SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-137-0 01 1 9407-9510 ● ●
165 09.762 TIMER; SEAT BELT
SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-137-0 01 1 9511-9711 ●
333 09.744 CIRCUIT; SPEED WARNING
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97108-135-0 01 1 9312-9406 ● ●
333 09.744 CIRCUIT; SPEED WARNING
SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-135-0 01 1 9407-9510 ● ●
333 09.744 CIRCUIT; SPEED WARNING
SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-135-0 01 1 9511-9711 ●

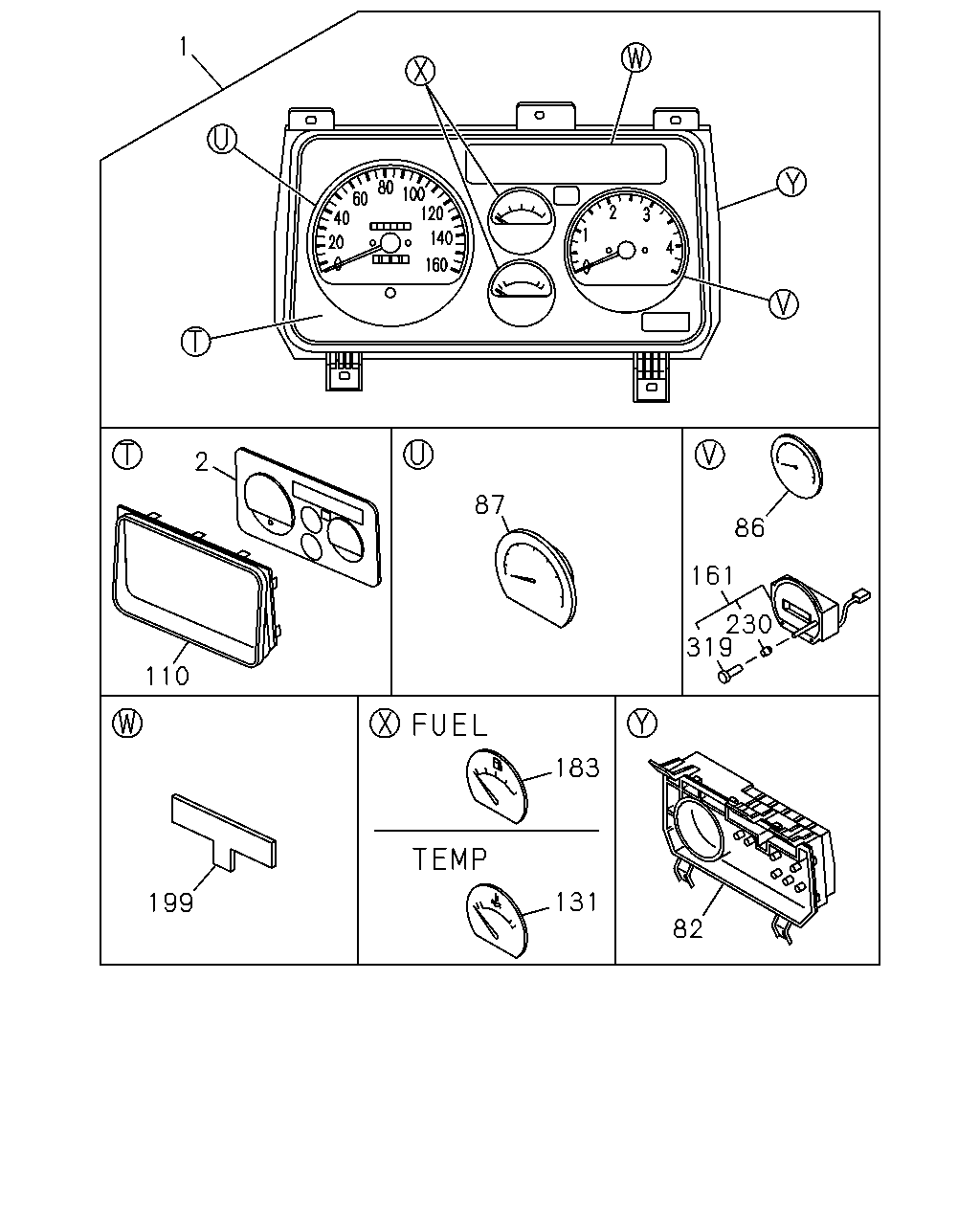

çizim 67831
1 2 87 86 161 230 319 110 183 131 199 82
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97103-680-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97129-291-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97106-584-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97129-295-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97103-683-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97129-294-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97106-576-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97129-293-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97106-585-1 01 1 9312-9510 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97129-302-0 01 1 9511-9711 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97172-035-3 01 1 9712-9809 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97172-035-3 01 1 9810- ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97103-689-1 01 1 9312-9510 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97129-301-0 01 1 9511-9711 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97172-034-3 01 1 9712-9809 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97172-034-3 01 1 9810- ● ●
2 09.735 PANEL; CLUSTER 8-97185-443-0 01 1 9712-9807 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97185-443-0 01 1 9712-9807 ●
2 09.735 PANEL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-97185-443-0 01 1 9712-9807 ●
2 09.735 PANEL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97185-443-0 01 1 9712-9807 ●
2 09.735 PANEL; CLUSTER 8-97185-443-0 01 1 9808-9809 ● ● ● ●
2 09.735 PANEL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-97185-443-0 01 1 9808-9809 ● ●
2 09.735 PANEL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97185-443-0 01 1 9808-9809 ● ●
2 09.735 PANEL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97185-443-0 01 1 9808-9809 ●
2 09.735 PANEL; CLUSTER 8-97185-443-0 01 1 9810- ● ● ● ●
2 09.735 PANEL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97185-443-0 01 1 9810- ● ●
2 09.735 PANEL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-97185-443-0 01 1 9810- ● ●
2 09.735 PANEL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97185-443-0 01 1 9810- ● ●
2 09.735 PANEL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97185-444-0 01 1 9712-9809 ●
2 09.735 PANEL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97185-444-0 01 1 9810- ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOMETER<U16> 		8-97088-505-0 01 1 9312-9406 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER 8-97088-505-0 01 1 9407-9711 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER 8-97185-448-0 01 1 9712- ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97088-512-0 01 1 9312-9510 ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97117-464-0 01 1 9511-9711 ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97185-467-0 01 1 9712- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97108-126-0 01 1 9312-9711 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
EXC. SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 9712- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> 		8-97108-129-0 01 1 9312-9711 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> 		8-97185-458-0 01 1 9712- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97108-131-0 01 1 9312-9406 ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-131-0 01 1 9407-9510 ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-131-0 01 1 9511-9711 ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97092-872-0 01 1 9312-9711 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97185-452-0 01 1 9712-9809 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97185-452-0 01 1 9712-9809 ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97185-452-0 01 1 9810- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97185-452-0 01 1 9810- ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97108-121-0 01 1 9312-9711 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97185-451-0 01 1 9712- ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER 8-97185-476-0 01 1 9712-9807 ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97185-476-0 01 1 9712-9807 ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97185-476-0 01 1 9712-9807 ●
131 01.148 GAUGE; TEMP,CLUSTER METER 8-97185-476-0 01 1 9808-9809 ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
SPEEDOMETER MILE<UC1> 		8-97185-476-0 01 1 9808-9809 ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97185-476-0 01 1 9808-9809 ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97185-476-0 01 1 9808-9809 ●
131 01.148 GAUGE; TEMP,CLUSTER METER 8-97185-476-0 01 1 9810- ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97185-476-0 01 1 9810- ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
SPEEDOMETER MILE<UC1> 		8-97185-476-0 01 1 9810- ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97185-476-0 01 1 9810- ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97185-477-0 01 1 9712-9809 ●
131 01.148 GAUGE; TEMP,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97185-477-0 01 1 9810- ● ●
161 09.772 CLOCK; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97105-398-0 01 1 9312-9711 ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-462-0 01 1 9712- ● ● ● ● ● ●
183 03.107 GAUGE; FUEL 8-97185-473-0 01 1 9712- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> 		8-97108-123-0 01 1 9312-9406 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP 8-97108-123-0 01 1 9407-9711 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP 8-97185-481-0 01 1 9712- ● ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 9712- ● ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 9712- ● ● ● ● ● ●

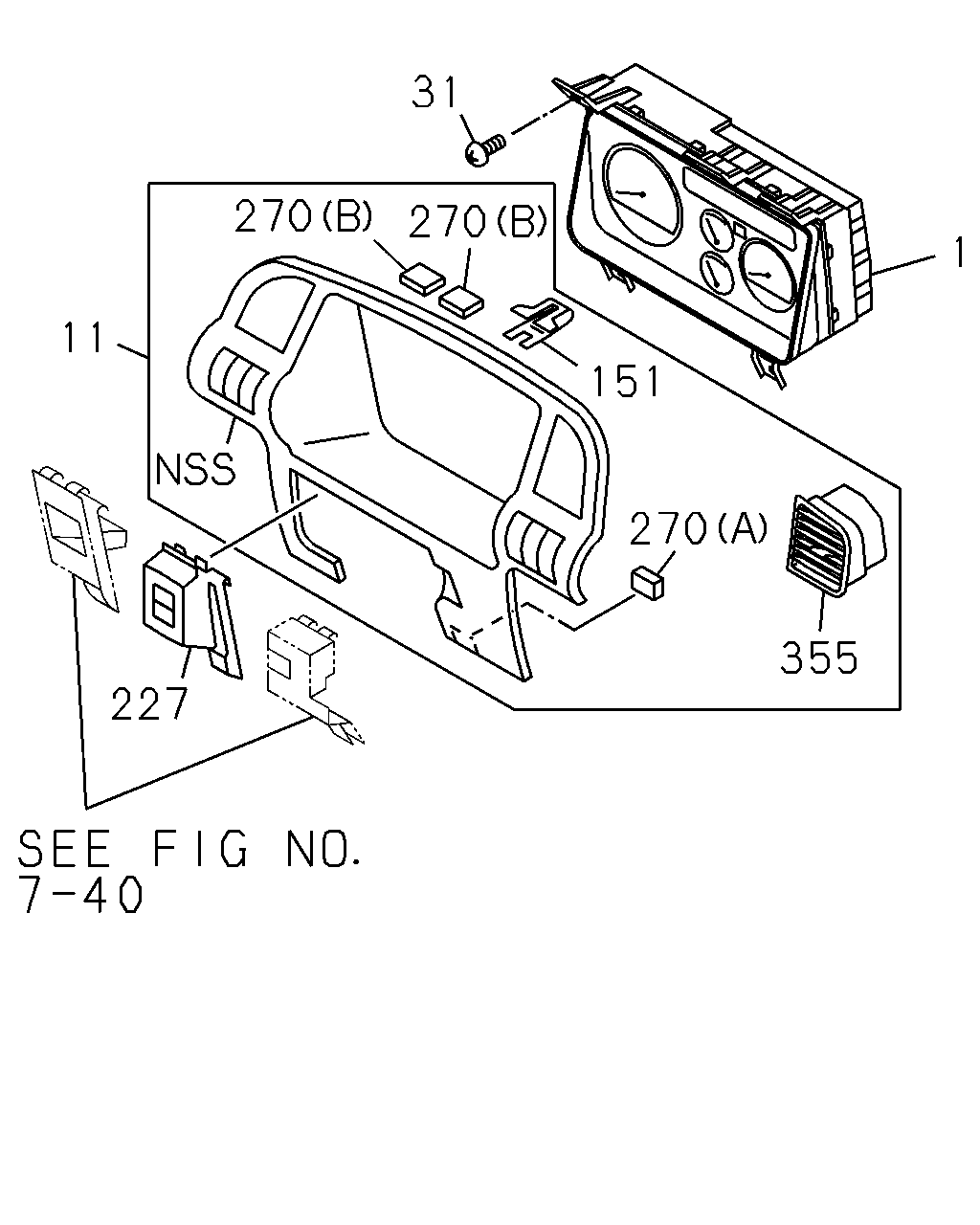

çizim 67832
31 270 270 151 270 355 227 1 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97103-680-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97129-291-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97106-584-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97129-295-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97103-683-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97129-294-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97106-576-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97129-293-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97106-585-1 01 1 9312-9510 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97129-302-0 01 1 9511-9711 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97172-035-3 01 1 9712-9809 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97172-035-3 01 1 9810- ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97103-689-1 01 1 9312-9510 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97129-301-0 01 1 9511-9711 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97172-034-3 01 1 9712-9809 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97172-034-3 01 1 9810- ● ●
11 09.743 CLUSTER ASM; METER
DARK BEIGE 		8-97853-869-8 01 1 9312-9404 ● ● ●
11 09.743 CLUSTER ASM; METER
DARK BEIGE 		8-97859-352-0 01 1 9405-9711 ● ● ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97195-964-1 01 1 9712- ● ● ●
11 09.743 CLUSTER ASM; METER
DARK BEIGE 		8-97856-157-9 01 1 9312-9404 ● ● ●
11 09.743 CLUSTER ASM; METER
DARK BEIGE 		8-97859-354-0 01 1 9405-9711 ● ● ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97195-965-1 01 1 9712- ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9312- ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER 8-97853-939-4 07 1 9312- ● ● ● ● ● ●
227 09.743 BEZEL; METER
DARK BEIGE 		8-97856-922-2 01 1 9312-9711 ● ● ●
227 09.743 BEZEL; METER
BLACK 		8-97868-660-2 01 1 9712- ● ● ●
270 09.743 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 9312- ● ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 9312- ● ● ●
355 09.748 GRILLE; VENT
DARK BEIGE 		8-97853-872-3 01 1 9312-9711 ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 9712- ● ● ● ● ● ●
355 09.748 GRILLE; VENT
DARK BEIGE 		8-97853-871-3 01 1 9312-9711 ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 9712- ● ● ● ● ● ●

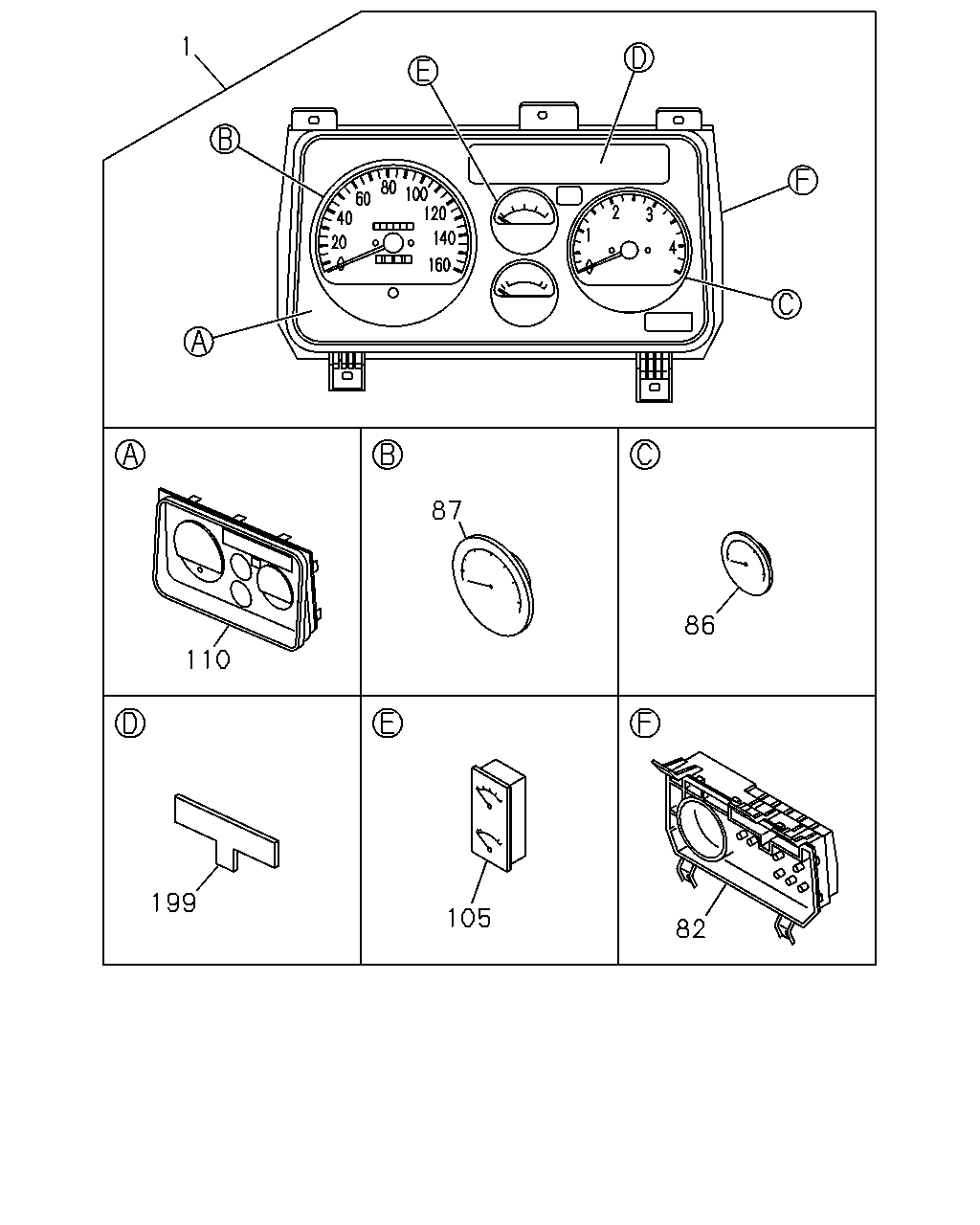

çizim 67833
1 87 86 110 199 105 82
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97103-680-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97129-291-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97106-584-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97129-295-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97103-683-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97129-294-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97106-576-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97129-293-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97106-585-1 01 1 9312-9510 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97129-302-0 01 1 9511-9711 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97172-035-3 01 1 9712-9809 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97172-035-3 01 1 9810- ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97103-689-1 01 1 9312-9510 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97129-301-0 01 1 9511-9711 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97172-034-3 01 1 9712-9809 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97172-034-3 01 1 9810- ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOMETER<U16> 		8-97088-505-0 01 1 9312-9406 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER 8-97088-505-0 01 1 9407-9711 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER 8-97185-448-0 01 1 9712- ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97088-512-0 01 1 9312-9510 ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97117-464-0 01 1 9511-9711 ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97185-467-0 01 1 9712- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97108-126-0 01 1 9312-9711 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
EXC. SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 9712- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> 		8-97108-129-0 01 1 9312-9711 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> 		8-97185-458-0 01 1 9712- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97108-131-0 01 1 9312-9406 ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-131-0 01 1 9407-9510 ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-131-0 01 1 9511-9711 ●
105 01.148 GAUGE; THERMO & FUEL,CLUSTER MET
TACHOMETER<U16> 		8-97088-509-0 01 1 9312-9406 ● ● ● ● ● ●
105 01.148 GAUGE; THERMO & FUEL,CLUSTER MET 8-97088-509-0 01 1 9407-9510 ● ● ● ● ● ●
105 01.148 GAUGE; THERMO & FUEL,CLUSTER MET 8-97117-461-0 01 1 9511-9711 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97092-872-0 01 1 9312-9711 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97185-452-0 01 1 9712-9809 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97185-452-0 01 1 9712-9809 ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97185-452-0 01 1 9810- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97185-452-0 01 1 9810- ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97108-121-0 01 1 9312-9711 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97185-451-0 01 1 9712- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> 		8-97108-123-0 01 1 9312-9406 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP 8-97108-123-0 01 1 9407-9711 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP 8-97185-481-0 01 1 9712- ● ● ● ● ● ●

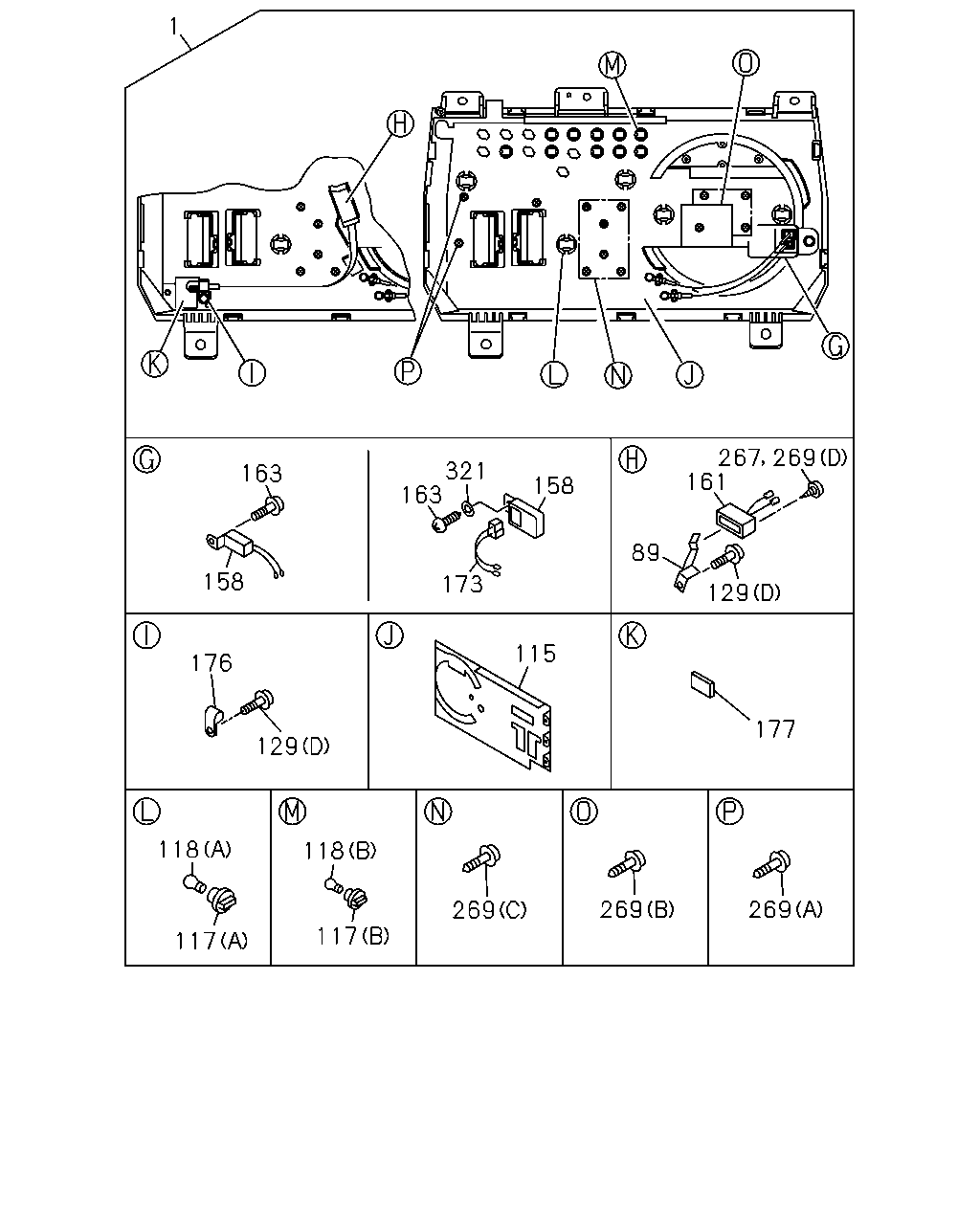

çizim 67834
1 161 321 163 163 158 89 173 158 115 176 177 118 118 269 269 269 117 117 129 129 267 269
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97103-680-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97129-291-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97106-584-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97129-295-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97103-683-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97129-294-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97106-576-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97129-293-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97106-585-1 01 1 9312-9510 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97129-302-0 01 1 9511-9711 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97172-035-3 01 1 9712-9809 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97172-035-3 01 1 9810- ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97103-689-1 01 1 9312-9510 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97129-301-0 01 1 9511-9711 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97172-034-3 01 1 9712-9809 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97172-034-3 01 1 9810- ● ●
89 09.761 CLIP; HARNESS
TACHOMETER<U16> 		8-97088-531-1 01 1 9312-9406 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS 8-97088-531-1 01 1 9407-9711 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97108-114-0 01 1 9312-9711 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> (A) 		8-97185-499-0 01 1 9712- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-105-0 01 1 9312-9711 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97185-506-0 01 1 9712- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97185-534-0 01 1 9712-9809 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97185-534-0 01 1 9810- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97108-107-0 01 1 9312-9510 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97108-107-0 01 1 9511-9711 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> (A) 		8-97185-505-0 01 1 9712-9809 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> (A) 		8-97185-505-0 01 1 9810- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97108-116-0 01 1 9312-9510 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97108-116-0 01 1 9511-9711 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> (A) 		8-97185-504-0 01 1 9712-9809 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> (A) 		8-97185-504-0 01 1 9810- ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
02.892 (B) 12V 1.4W BLACK 		8-94114-138-0 09 1 9502-9711 ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 12V 2W GRAY 		8-97031-180-0 10 1 9312-9501 ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 12V 2W GRAY 		8-97031-180-0 01 1 9502-9711 ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
TACHOMETER<U16> (A) 12V 3W GREEN 		8-97092-901-0 05 1 9312-9406 ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(A) 12V 3W GREEN 		8-97092-901-0 05 1 9407-9501 ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
TACHOMETER<U16> (A) 12V 3W GREEN 		8-97092-901-0 05 1 9502-9711 ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
EXC. TACHOMETER<U16> (A) 12V 3W GREEN 		8-97092-901-0 04 1 9502-9711 ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> (B) 12V 2W GRAY 		8-97031-180-0 11 1 9312-9406 ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
SAUDI ARABIA EQUIPMENT(EU2) (B) 12V 2W GRAY 		8-97031-180-0 11 1 9407-9501 ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
SAUDI ARABIA EQUIPMENT(EU2) (B) 12V 2W GRAY 		8-97031-180-0 02 1 9502-9510 ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
SAUDI ARABIA EQUIPMENT(EU2) (B) 12V 2W GRAY 		8-97031-180-0 02 1 9511-9711 ●
118 08.991 BULB; CLUSTER METER
(B) 12V 1.4W 		8-94152-313-0 09 1 9502-9711 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 9712- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 12V 2W 		8-97031-178-0 10 1 9312-9501 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 12V 2W 		8-97031-178-0 01 1 9502-9711 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 9712- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> (A) 12V 3.4W 		8-97092-898-0 05 1 9312-9406 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 12V 3.4W 		8-97092-898-0 05 1 9407-9501 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> (A) 12V 3.4W 		8-97092-898-0 05 1 9502-9711 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 9712- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (A) 12V 3.4W 		8-97092-898-0 04 1 9502-9711 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> (B) 12V 2W 		8-97031-178-0 11 1 9312-9501 ● ●
118 08.991 BULB; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) (B) 12V 2W 		8-97031-178-0 02 1 9502-9510 ● ●
118 08.991 BULB; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 03 1 9712-9809 ●
118 08.991 BULB; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 03 1 9810- ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
TACHOMETER<U16> (D) M4X16 		1-09140-005-0 01 1 9312-9501 ● ● ● ● ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) (D) M4X16 		1-09140-005-0 01 1 9502-9711 ● ● ● ● ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
TACHOMETER<U16> (B),(C) 		8-97092-908-0 02 1 9312-9406 ● ● ● ● ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
(B),(C) 		8-97092-908-0 02 1 9407-9711 ● ● ● ● ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
EXC. TACHOMETER<U16> (D) M4X16 		1-09140-005-0 02 1 9407-9711 ● ● ● ● ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9312-9406 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9407-9501 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> (D) M4X16 		1-09140-005-0 03 1 9502-9510 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> (D) M4X16 		1-09140-005-0 03 1 9511-9711 ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> (A) 		8-97092-905-0 03 1 9312-9406 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97092-905-0 03 1 9407-9510 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97092-905-0 03 1 9511-9711 ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> (F) 		8-97108-148-0 01 1 9312-9406 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) (F) 		8-97108-148-0 01 1 9407-9510 ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
SAUDI ARABIA EQUIPMENT(EU2) (F) 		8-97108-148-0 01 1 9511-9711 ●
158 09.765 BUZZER; VAC WARNING
EXC. SAUDI ARABIA EQUIPMENT(EU2) 12V 		8-97088-529-0 01 1 9312-9501 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 12V 		5-83460-006-0 01 1 9312-9406 ● ●
158 09.765 BUZZER; VAC WARNING
SAUDI ARABIA EQUIPMENT(EU2) 12V 		5-83460-006-0 01 1 9407-9501 ● ●
158 09.765 BUZZER; VAC WARNING
12V 		5-83460-006-0 01 1 9502-9711 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
12V 		8-97185-520-0 01 1 9712- ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97105-398-0 01 1 9312-9711 ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-462-0 01 1 9712- ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
TACHOMETER<U16> 09.743 M4X20 		8-94246-136-0 01 1 9312-9406 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
09.743 M4X20 		8-94246-136-0 01 1 9407-9711 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 9712- ● ● ● ● ● ●
173 09.744 WIRE; LEAD
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97108-141-0 01 1 9312-9406 ● ●
173 09.744 WIRE; LEAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-141-0 01 1 9407-9501 ● ●
173 09.744 WIRE; LEAD 8-97108-141-0 01 1 9502-9711 ● ● ● ● ● ●
173 09.744 WIRE; LEAD 8-97185-643-0 01 1 9712- ● ● ● ● ● ●
176 02.483 CLAMP; CORD,METER
EXC. TACHOMETER<U16> 		8-97088-532-0 01 1 9312-9711 ● ● ● ● ● ●
177 09.748 COVER; WIRE HOLE
EXC. TACHOMETER<U16> 		8-97092-911-0 01 1 9312-9711 ● ● ● ● ● ●
267 09.772 SCREW; CLOCK
EXC. TACHOMETER<U16> 09.743 		8-97107-891-0 03 1 9312-9406 ● ● ● ● ● ●
267 09.772 SCREW; CLOCK
EXC. TACHOMETER<U16> 09.743 		8-97107-891-0 03 1 9607-9711 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (B) 		8-97092-904-0 04 1 9312-9406 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(B) 		8-97092-904-0 04 1 9407-9711 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(F) 		8-97185-525-0 06 1 9712- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (A) 		8-97092-906-0 03 1 9312-9711 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (E) 		8-97185-524-0 08 1 9712- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (C) 		8-97092-907-0 06 1 9312-9406 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(C) 		8-97092-907-0 06 1 9407-9711 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (G) 		8-97185-528-0 02 1 9712- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (D) 		8-97107-891-0 03 1 9312-9501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (D) 		8-97115-808-0 03 1 9502-9711 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (E) 		8-97185-524-0 07 1 9712- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) (G) 		8-97185-528-0 04 1 9712-9809 ●
269 09.743 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) (G) 		8-97185-528-0 04 1 9810- ● ●
321 09.744 WASHER; BUZZER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97108-140-0 01 1 9312-9406 ● ●
321 09.744 WASHER; BUZZER
SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-140-0 01 1 9407-9501 ● ●
321 09.744 WASHER; BUZZER 8-97108-140-0 01 1 9502-9711 ● ● ● ● ● ●

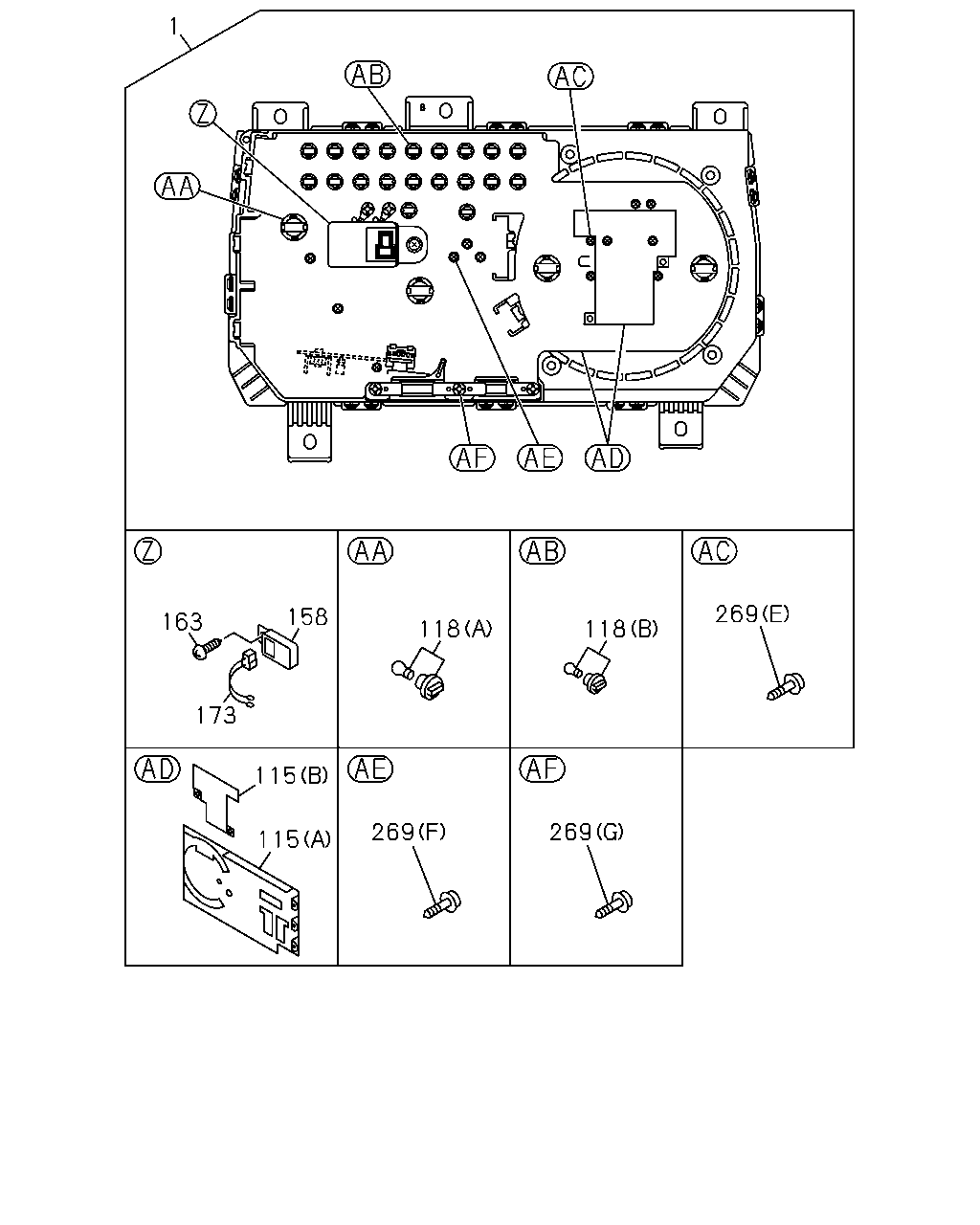

çizim 68335
1 269 158 163 118 118 173 115 269 269 115
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97103-680-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97129-291-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97170-585-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97106-584-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97129-295-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> 		8-97172-143-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97103-683-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97129-294-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-97172-142-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97106-576-1 01 1 9312-9510 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97129-293-0 01 1 9511-9711 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97172-033-2 01 1 9712- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97106-585-1 01 1 9312-9510 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97129-302-0 01 1 9511-9711 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97172-035-3 01 1 9712-9809 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97172-035-3 01 1 9810- ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97103-689-1 01 1 9312-9510 ● ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97129-301-0 01 1 9511-9711 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97172-034-3 01 1 9712-9809 ●
1 09.735 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97172-034-3 01 1 9810- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97108-114-0 01 1 9312-9711 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> (A) 		8-97185-499-0 01 1 9712- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-105-0 01 1 9312-9711 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97185-506-0 01 1 9712- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97185-534-0 01 1 9712-9809 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97185-534-0 01 1 9810- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97108-107-0 01 1 9312-9510 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97108-107-0 01 1 9511-9711 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> (A) 		8-97185-505-0 01 1 9712-9809 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> (A) 		8-97185-505-0 01 1 9810- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97108-116-0 01 1 9312-9510 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> 		8-97108-116-0 01 1 9511-9711 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> (A) 		8-97185-504-0 01 1 9712-9809 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) EXC. TACHOMETER<U16> (A) 		8-97185-504-0 01 1 9810- ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V 1.4W 		8-94152-313-0 09 1 9502-9711 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 9712- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 12V 2W 		8-97031-178-0 10 1 9312-9501 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 12V 2W 		8-97031-178-0 01 1 9502-9711 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 9712- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> (A) 12V 3.4W 		8-97092-898-0 05 1 9312-9406 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 12V 3.4W 		8-97092-898-0 05 1 9407-9501 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> (A) 12V 3.4W 		8-97092-898-0 05 1 9502-9711 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 9712- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (A) 12V 3.4W 		8-97092-898-0 04 1 9502-9711 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> (B) 12V 2W 		8-97031-178-0 11 1 9312-9501 ● ●
118 08.991 BULB; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) (B) 12V 2W 		8-97031-178-0 02 1 9502-9510 ● ●
118 08.991 BULB; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 03 1 9712-9809 ●
118 08.991 BULB; CLUSTER METER
SAUDI ARABIA EQUIPMENT(EU2) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 03 1 9810- ● ●
158 09.765 BUZZER; VAC WARNING
EXC. SAUDI ARABIA EQUIPMENT(EU2) 12V 		8-97088-529-0 01 1 9312-9501 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 12V 		5-83460-006-0 01 1 9312-9406 ● ●
158 09.765 BUZZER; VAC WARNING
SAUDI ARABIA EQUIPMENT(EU2) 12V 		5-83460-006-0 01 1 9407-9501 ● ●
158 09.765 BUZZER; VAC WARNING
12V 		5-83460-006-0 01 1 9502-9711 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
12V 		8-97185-520-0 01 1 9712- ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
TACHOMETER<U16> 09.743 M4X20 		8-94246-136-0 01 1 9312-9406 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
09.743 M4X20 		8-94246-136-0 01 1 9407-9711 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 9712- ● ● ● ● ● ●
173 09.744 WIRE; LEAD
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> 		8-97108-141-0 01 1 9312-9406 ● ●
173 09.744 WIRE; LEAD
SAUDI ARABIA EQUIPMENT(EU2) 		8-97108-141-0 01 1 9407-9501 ● ●
173 09.744 WIRE; LEAD 8-97108-141-0 01 1 9502-9711 ● ● ● ● ● ●
173 09.744 WIRE; LEAD 8-97185-643-0 01 1 9712- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (B) 		8-97092-904-0 04 1 9312-9406 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(B) 		8-97092-904-0 04 1 9407-9711 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(F) 		8-97185-525-0 06 1 9712- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (A) 		8-97092-906-0 03 1 9312-9711 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (E) 		8-97185-524-0 08 1 9712- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (C) 		8-97092-907-0 06 1 9312-9406 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(C) 		8-97092-907-0 06 1 9407-9711 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (G) 		8-97185-528-0 02 1 9712- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (D) 		8-97107-891-0 03 1 9312-9501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (D) 		8-97115-808-0 03 1 9502-9711 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (E) 		8-97185-524-0 07 1 9712- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) (G) 		8-97185-528-0 04 1 9712-9809 ●
269 09.743 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) (G) 		8-97185-528-0 04 1 9810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
