◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#33711) — 724 parça
çizim 16011
48 139 139 48 31 48 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) L=20 		8-94165-263-1 01 1 9312- ● ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(B) 		8-97077-845-0 02 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9406 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9407-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 02 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=19 L=60 		9-09525-893-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9402 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9403- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9405 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 AR 1 9406-9406 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 06 1 9312-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 06 1 9511- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 05 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) ID=28 L=32 		1-09701-064-1 01 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=28 L=32 		1-09701-064-1 01 1 9712- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9312- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
01.540 (B) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9312-9510 ● ● ● ● ● ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 04.595 (C) M8X20 FLANGE 		0-28480-820-0 02 1 9312-9510 ● ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 04.595 (C) M8X20 FLANGE 		0-28480-820-0 02 1 9511-9601 ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9602-9711 ●
çizim 16012
2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 09.775 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 9312-9505 ● ● ● ● ● ●
2 09.775 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,ANTENNA<U73>,RADIO AM/ FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 9506-9510 ● ● ● ● ● ●
2 09.775 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) (B) 		8-94279-736-0 02 1 9312-9505 ● ● ● ● ● ●
2 09.775 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,ANTENNA<U73>,RADIO AM/ FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) (B) 		8-94279-736-0 02 1 9506-9510 ● ● ● ● ● ●
çizim 16088
2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 09.775 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 9312-9505 ● ● ● ● ● ●
2 09.775 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,ANTENNA<U73>,RADIO AM/ FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 9506-9510 ● ● ● ● ● ●
2 09.775 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) (B) 		8-94279-736-0 02 1 9312-9505 ● ● ● ● ● ●
2 09.775 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,ANTENNA<U73>,RADIO AM/ FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) (B) 		8-94279-736-0 02 1 9506-9510 ● ● ● ● ● ●
çizim 16206
294 219 294 469 515 55 219
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
55 02.559 WASHER; PL,CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9312-9711 ● ● ● ● ● ●
55 02.559 WASHER; PL,CLIP
02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9712- ● ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 AR 1 9312-9406 ● ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9407-9510 ● ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9511- ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9312-9711 ● ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9712- ● ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9312-9312 ● ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9401- ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9401- ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97108-658-0 01 1 9312-9711 ● ● ●
219 02.559 NUT
(D) 		8-97108-658-0 01 1 9712- ● ● ● ● ● ●
219 02.559 NUT
RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 9401- ● ●
294 02.559 NUT
RR BODY NON FLAT BED(RS5) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9312-9710 ● ●
294 02.559 NUT
RR BODY NON FLAT BED(RS5) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9711- ● ●
469 02.559 NUT; PROTECTOR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ● ● ●
469 02.559 NUT; PROTECTOR
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ● ● ●
469 02.559 NUT; PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9511-9711 ●
515 02.559 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 AR 1 9312-9510 ● ● ● ● ● ●
çizim 16478
7 21 53 53 178 178 527
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 02.559 BRACKET; CONNECTOR 8-97102-247-2 01 1 9312- ● ● ●
21 02.483 BRACKET; ENG HARNESS 8-97068-801-1 01 1 9312-9401 ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97068-801-1 01 1 9402-9510 ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97062-325-1 01 1 9312-9510 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97062-324-1 01 1 9312-9510 ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
(A) ID=47 		8-94279-735-0 01 1 9312- ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
AIR INTAKE REAR VERTICAL<KJ3> (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9502-9604 ● ●
178 02.559 GROMMET; HARNESS
02.343 (C) ID=17 		8-94128-319-2 01 1 9312-9604 ● ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
100X100 		8-94232-622-0 01 1 9312- ● ● ●

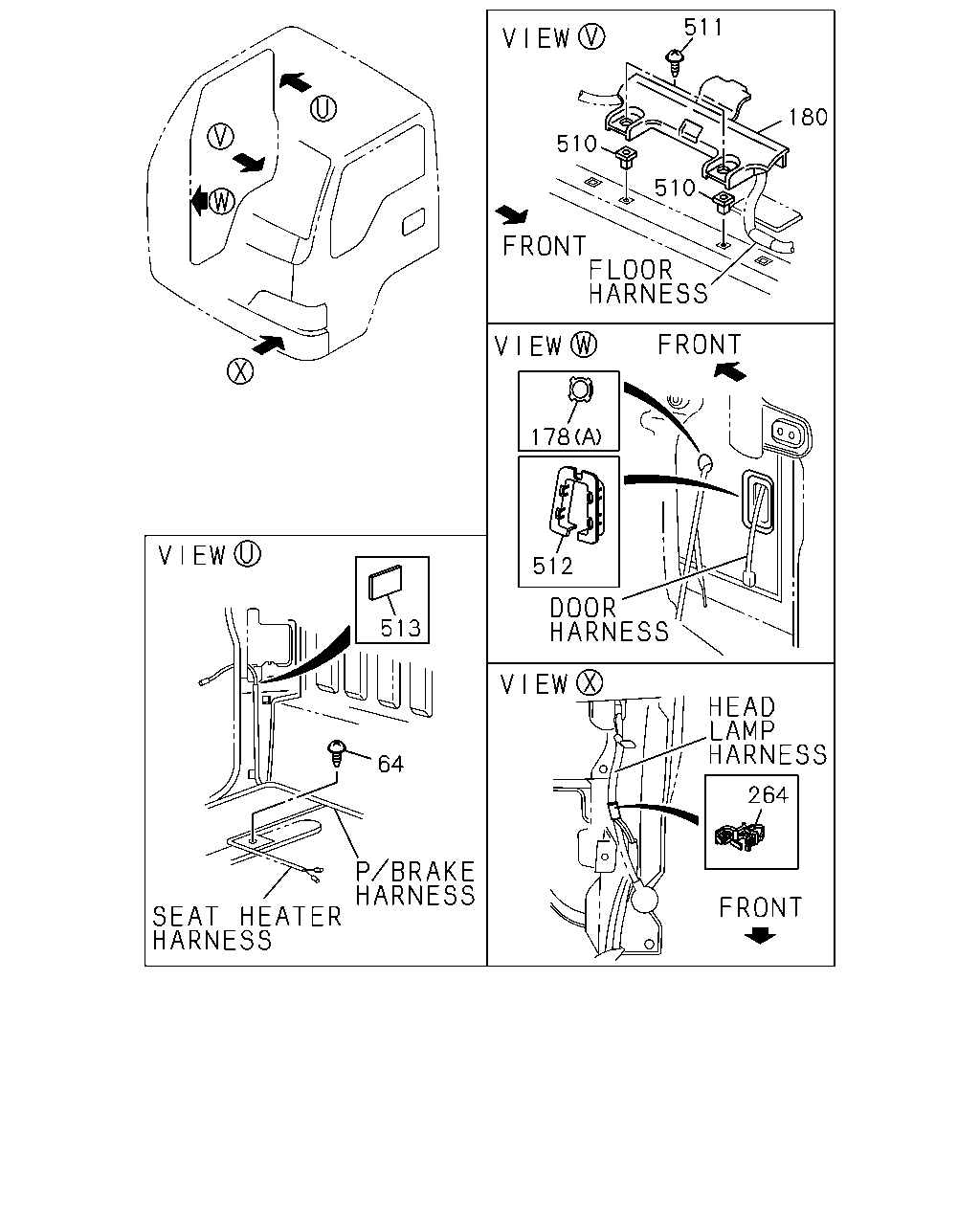

çizim 16768
511 180 510 510 178 512 513 64 264
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-476-0 01 1 9312-9603 ● ●
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-477-0 01 1 9604- ● ●
178 02.559 GROMMET; HARNESS
(A) ID=47 		8-94279-735-0 01 1 9312- ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
AIR INTAKE REAR VERTICAL<KJ3> (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9502-9604 ● ●
178 02.559 GROMMET; HARNESS
02.343 (C) ID=17 		8-94128-319-2 01 1 9312-9604 ● ● ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 9312- ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 ID=16 		8-94413-325-0 03 1 9312- ● ● ● ● ● ●
510 02.559 GROMMET; SCREW
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 9312-9409 ● ● ● ● ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 9410- ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9312-9409 ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9410- ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS 8-97072-950-0 02 1 9312- ● ● ● ● ● ●
513 02.559 TAPE; SOFT,HARNESS
02.480 45X50 50X45 		8-94232-630-0 02 1 9312-9404 ● ● ● ●
513 02.559 TAPE; SOFT,HARNESS
02.480 45X50 50X45 		8-94232-630-0 01 1 9405-9707 ● ● ● ●
çizim 16769
16 16 483 48 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(T) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(V) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (U) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (A) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.587 (K) L=112 		8-94232-618-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.430 (W) L=200 		8-94464-835-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (R) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9406 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9407-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 02 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=19 L=60 		9-09525-893-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9402 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9403- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9405 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 AR 1 9406-9406 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 06 1 9312-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 06 1 9511- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 05 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) ID=28 L=32 		1-09701-064-1 01 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=28 L=32 		1-09701-064-1 01 1 9712- ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S) 03.162 (B) L=140 		5-09707-031-0 01 1 9312-9405 ●
483 02.559 CLIP; ENG HARNESS
WEST MALAYSIA EQUIPMENT(RWP) 03.162 (B) L=140 		5-09707-031-0 01 1 9406-9702 ●
483 02.559 CLIP; ENG HARNESS
EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S) 04.342 (A) L=197 		1-83574-032-0 01 1 9312-9405 ●
483 02.559 CLIP; ENG HARNESS
04.342 (A) L=197 		1-83574-032-0 01 1 9312-9405 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
EXC. WEST MALAYSIA EQUIPMENT(RWP) 04.342 (A) L=197 		1-83574-032-0 01 1 9406-9702 ●
483 02.559 CLIP; ENG HARNESS
04.342 (A) L=197 		1-83574-032-0 01 1 9406-9702 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
04.342 (A) L=197 		1-83574-032-0 01 1 9703- ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 9712- ● ● ● ● ● ●

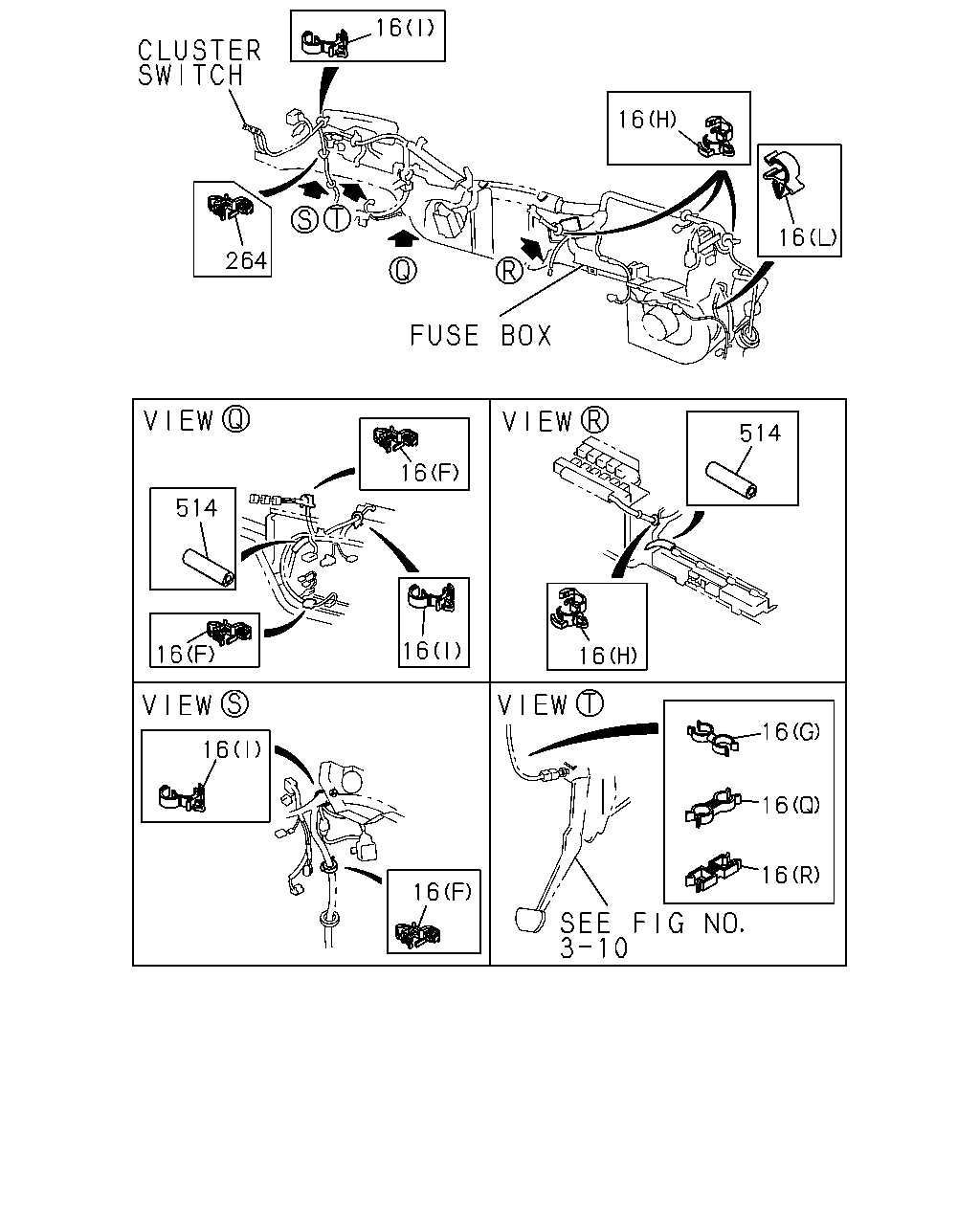

çizim 65522
16 16 16 264 514 16 514 16 16 16 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(T) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(V) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (U) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (A) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.587 (K) L=112 		8-94232-618-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.430 (W) L=200 		8-94464-835-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (R) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 ID=16 		8-94413-325-0 03 1 9312- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 		1-71997-513-1 03 1 9312-9409 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 		1-71997-513-1 02 1 9410- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 		1-71997-513-1 01 1 9407- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=175 		1-71997-513-1 01 1 9410- ● ● ● ● ● ●

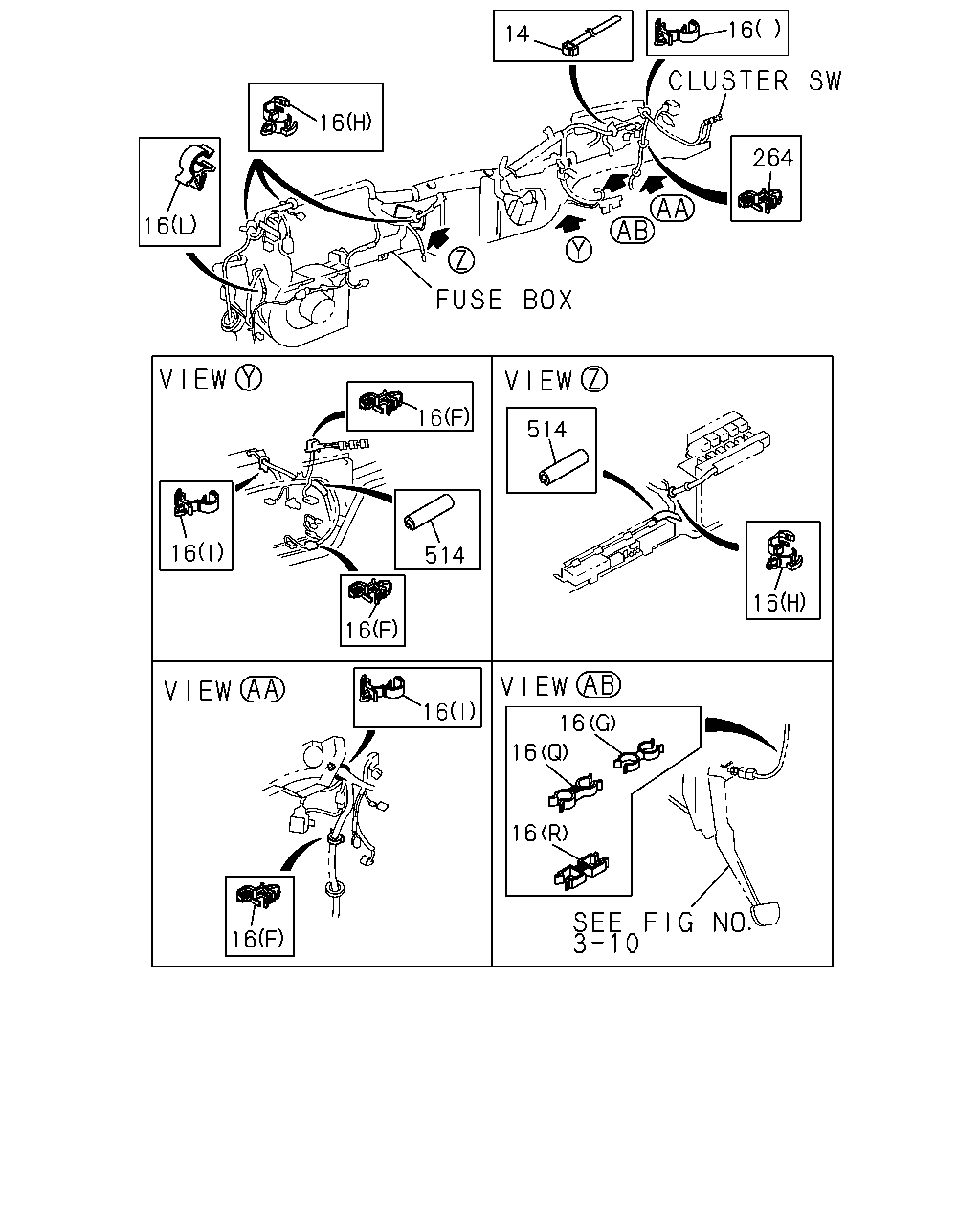

çizim 65544
16 14 16 264 16 16 514 16 514 16 16 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 02.559 CLIP; BAND,HARNESS
03.430 L=200 		8-94464-835-0 01 1 9312- ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(T) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(V) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (U) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (A) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.587 (K) L=112 		8-94232-618-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.430 (W) L=200 		8-94464-835-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (R) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 ID=16 		8-94413-325-0 03 1 9312- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 		1-71997-513-1 03 1 9312-9409 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 		1-71997-513-1 02 1 9410- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 		1-71997-513-1 01 1 9407- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=175 		1-71997-513-1 01 1 9410- ● ● ● ● ● ●

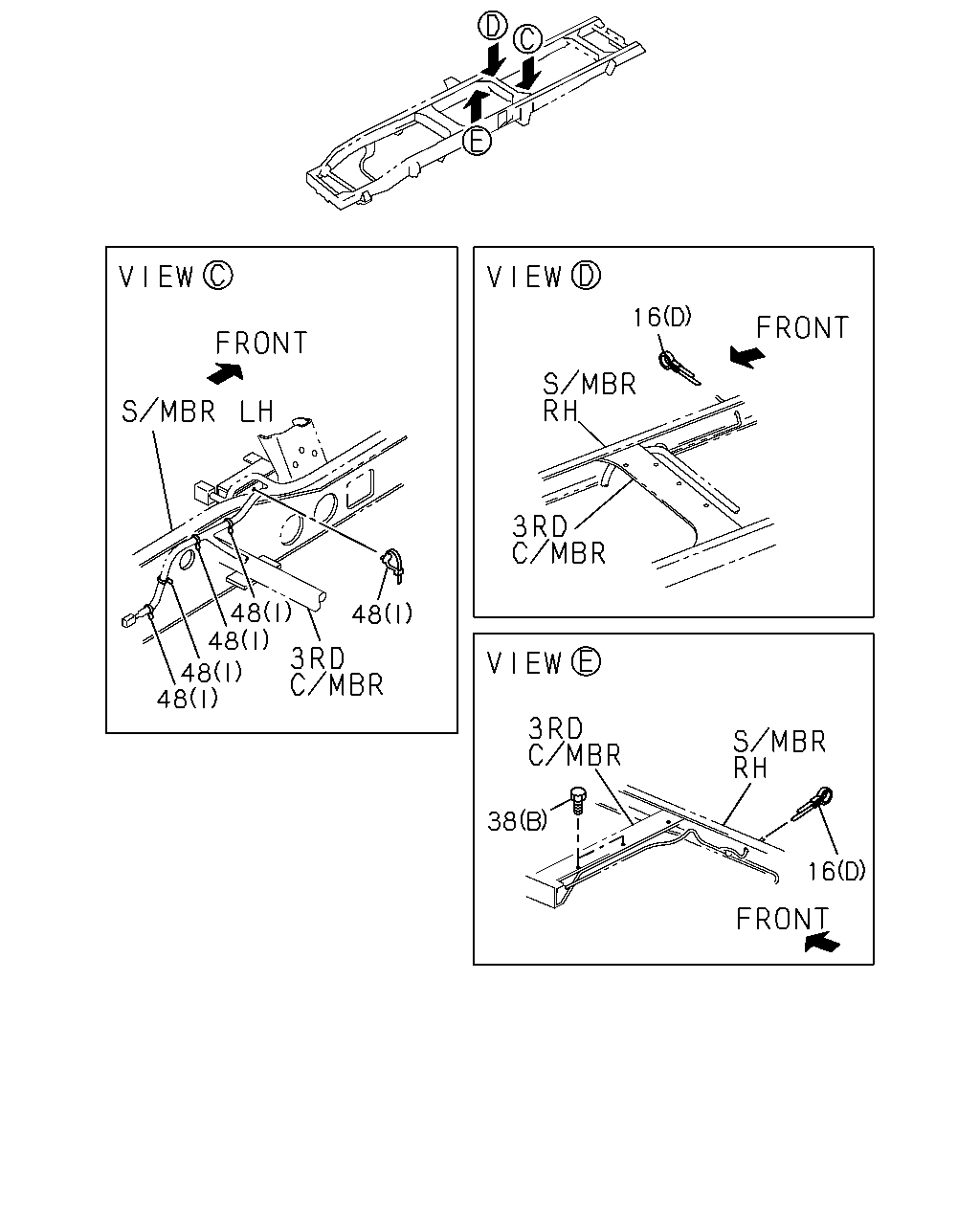

çizim 65728
16 48 48 48 48 48 38 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(T) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(V) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (U) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (A) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.587 (K) L=112 		8-94232-618-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.430 (W) L=200 		8-94464-835-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (R) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9312-9502 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9712- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 (D) M6X25 FLANGE 		0-28080-625-0 02 1 9312-9702 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 9703-9711 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 9712- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9312-9312 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9401- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9401- ● ●
38 02.559 BOLT; CLIP,HARNESS
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (C) M6X20 FLANGE 		0-28480-620-0 01 1 9312-9510 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9511-9702 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9703-9711 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9312-9503 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9312-9503 ● ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9510 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9510 ● ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9711 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9711 ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.890 (D) M6X25 		0-28280-625-0 01 1 9312-9312 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9401-9502 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9511-9702 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 9703-9711 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 9712- ● ● ● ● ● ●

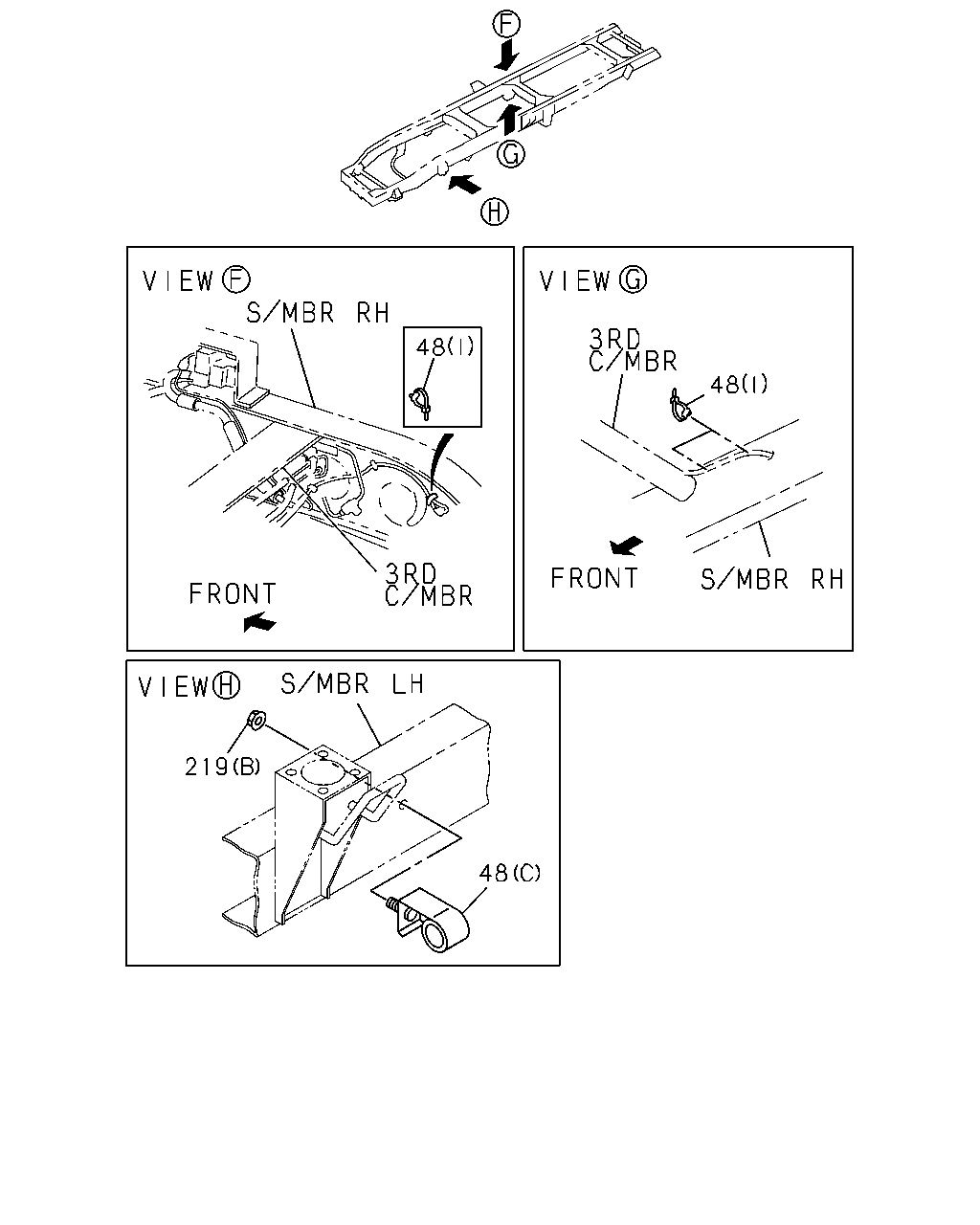

48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9406 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9407-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 02 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=19 L=60 		9-09525-893-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9402 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9403- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9405 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 AR 1 9406-9406 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 06 1 9312-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 06 1 9511- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 05 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) ID=28 L=32 		1-09701-064-1 01 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=28 L=32 		1-09701-064-1 01 1 9712- ● ● ● ● ● ●
çizim 67762
16 16 16 16 16 16 464 48 16 208 16 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(T) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(V) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (U) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (A) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.587 (K) L=112 		8-94232-618-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.430 (W) L=200 		8-94464-835-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (R) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9406 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9407-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 02 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=19 L=60 		9-09525-893-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9402 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9403- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9405 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 AR 1 9406-9406 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 06 1 9312-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 06 1 9511- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 05 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) ID=28 L=32 		1-09701-064-1 01 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=28 L=32 		1-09701-064-1 01 1 9712- ● ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> 03.162 (A) L=140 		5-09707-031-0 01 1 9312-9701 ● ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) L=140 		5-09707-031-0 01 1 9702-9711 ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> (B) ID=6 		5-09700-316-0 02 1 9312-9711 ● ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> 02.557 (D) ID=10 		5-09700-318-0 02 1 9712- ● ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> 01.240 (C) T=5.5 		5-09709-047-0 01 1 9702-9711 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.240 (C) T=5.5 		5-09709-047-0 01 1 9702-9711 ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> 01.240 (C) T=5.5 		5-09709-047-0 01 1 9712- ● ● ● ● ● ●

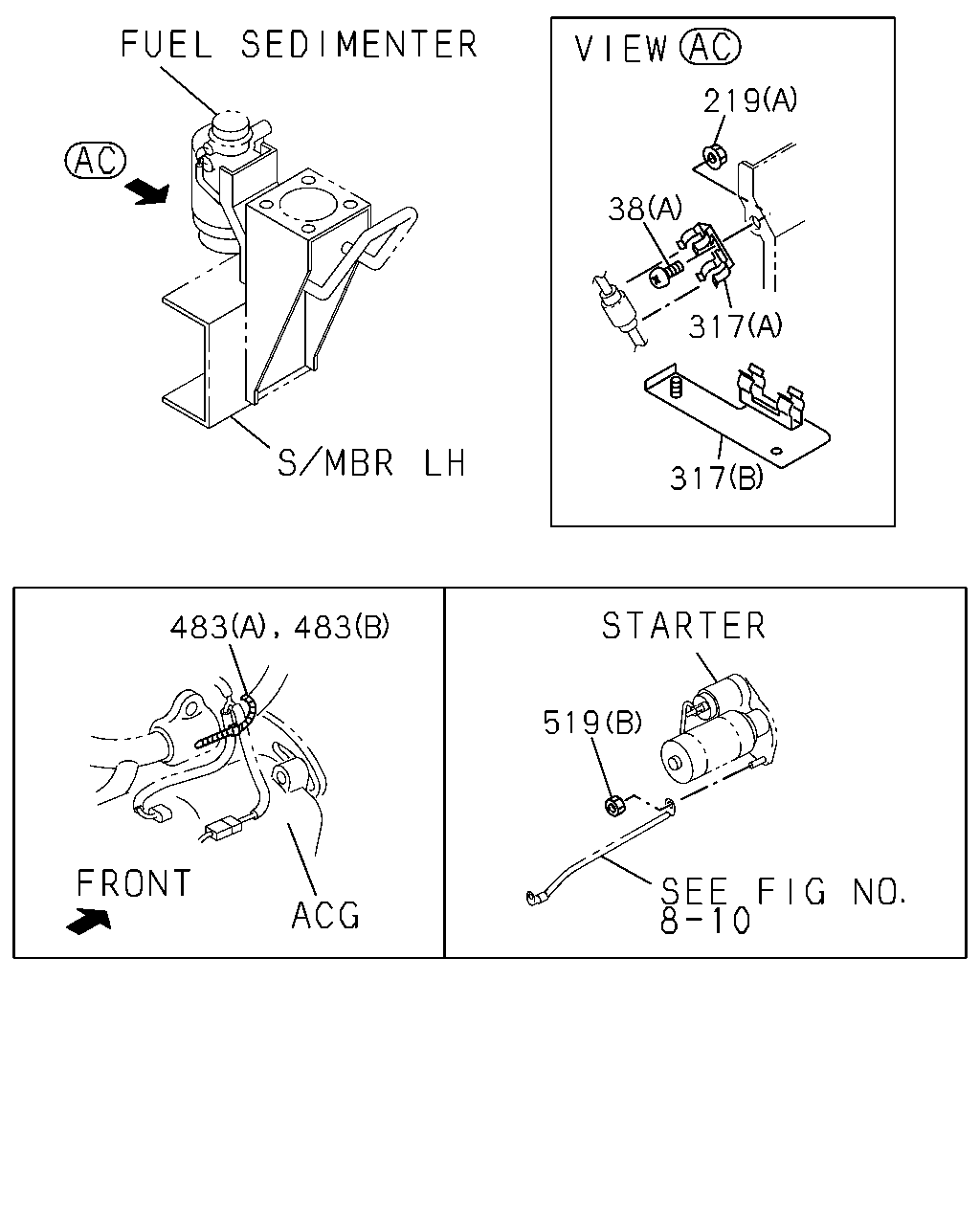

464 02.525 CLIP; SEDIMENTER HARNESS
02.559 (B) ID=6.5 		8-94257-639-0 01 1 9312-9312 ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
02.559 (B) ID=6.5 		8-94257-639-0 01 1 9401- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
RR BODY FLAT BED<RS6> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9401- ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. RR BODY FLAT BED<RS6> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9401- ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> 02.587 (A) L=112 		8-94232-618-0 01 1 9401- ● ●
çizim 67797
208 48 48 48 48 48 48 48 208 208
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9406 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9407-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 02 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=19 L=60 		9-09525-893-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9402 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9403- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9405 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 AR 1 9406-9406 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 06 1 9312-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 06 1 9511- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 05 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) ID=28 L=32 		1-09701-064-1 01 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=28 L=32 		1-09701-064-1 01 1 9712- ● ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> 03.162 (A) L=140 		5-09707-031-0 01 1 9312-9701 ● ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) L=140 		5-09707-031-0 01 1 9702-9711 ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> (B) ID=6 		5-09700-316-0 02 1 9312-9711 ● ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> 02.557 (D) ID=10 		5-09700-318-0 02 1 9712- ● ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> 01.240 (C) T=5.5 		5-09709-047-0 01 1 9702-9711 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.240 (C) T=5.5 		5-09709-047-0 01 1 9702-9711 ●
208 02.559 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> 01.240 (C) T=5.5 		5-09709-047-0 01 1 9712- ● ● ● ● ● ●
çizim 67799
16 16 16 48 48 183 397 464
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(T) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(V) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (U) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (A) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.587 (K) L=112 		8-94232-618-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.430 (W) L=200 		8-94464-835-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (R) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9406 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9407-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 02 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=19 L=60 		9-09525-893-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9402 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9403- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9405 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 AR 1 9406-9406 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 06 1 9312-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 06 1 9511- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 05 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) ID=28 L=32 		1-09701-064-1 01 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=28 L=32 		1-09701-064-1 01 1 9712- ● ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
L=15 		8-94315-436-1 02 1 9312- ● ●
397 02.559 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> 10.154 ID=7 		8-97014-713-0 02 1 9312-9406 ● ●
397 02.559 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> ID=6.8 		8-97134-154-0 02 1 9506-9506 ● ●
397 02.559 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> 10.154 ID=7 		8-97014-713-0 02 1 9507- ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
02.559 (B) ID=6.5 		8-94257-639-0 01 1 9312-9312 ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
02.559 (B) ID=6.5 		8-94257-639-0 01 1 9401- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
RR BODY FLAT BED<RS6> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9401- ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. RR BODY FLAT BED<RS6> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9401- ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> 02.587 (A) L=112 		8-94232-618-0 01 1 9401- ● ●
çizim 67877
8 386 38 460 38 150 150 139 377 8 150 159 19 139 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9312- ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
16.714 (B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 03 1 9312-9702 ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 03 1 9703- ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9312- ● ● ●
19 02.559 BOLT; PROTECTOR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9511-9702 ● ● ● ● ● ●
19 02.559 BOLT; PROTECTOR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9703-9711 ● ● ● ● ● ●
19 02.559 BOLT; PROTECTOR
02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ● ● ● ● ●
19 02.559 BOLT; PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9511-9702 ●
19 02.559 BOLT; PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 9703-9711 ●
38 02.559 BOLT; CLIP,HARNESS
03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9312-9502 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9712- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 (D) M6X25 FLANGE 		0-28080-625-0 02 1 9312-9702 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 9703-9711 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 9712- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9312-9312 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9401- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9401- ● ●
38 02.559 BOLT; CLIP,HARNESS
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (C) M6X20 FLANGE 		0-28480-620-0 01 1 9312-9510 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9511-9702 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9703-9711 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9312-9503 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9312-9503 ● ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9510 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9510 ● ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9711 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9711 ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.890 (D) M6X25 		0-28280-625-0 01 1 9312-9312 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9401-9502 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9511-9702 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 9703-9711 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 9712- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9312- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
01.540 (B) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9312-9510 ● ● ● ● ● ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 04.595 (C) M8X20 FLANGE 		0-28480-820-0 02 1 9312-9510 ● ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 04.595 (C) M8X20 FLANGE 		0-28480-820-0 02 1 9511-9601 ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9602-9711 ●
150 02.343 BOLT; CLIP
08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 9712- ● ● ● ● ● ●
150 02.343 BOLT; CLIP
RR BODY NON FLAT BED(RS5) 01.531 (A) M8X25 FLANGE 		0-28080-825-0 01 1 9312-9503 ● ●
150 02.343 BOLT; CLIP
RR BODY NON FLAT BED(RS5) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9710 ● ●
150 02.343 BOLT; CLIP
RR BODY NON FLAT BED(RS5) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 9711- ● ●
159 02.559 BOLT; GRAND ENG ELEC
02.343 M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9312- ● ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9312- ● ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9312- ● ● ● ● ● ●
460 02.559 BOLT; HARNESS PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 00.785 M6X20 FLANGE 		0-28480-620-0 02 1 9312-9510 ● ● ● ● ●
460 02.559 BOLT; HARNESS PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 00.785 M6X20 FLANGE 		0-28480-620-0 02 1 9511-9605 ●
460 02.559 BOLT; HARNESS PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9606-9711 ●
çizim 67937
16 48 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(T) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(V) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (U) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (A) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.587 (K) L=112 		8-94232-618-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.430 (W) L=200 		8-94464-835-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (R) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9406 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9407-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 02 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=19 L=60 		9-09525-893-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9402 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9403- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9405 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 AR 1 9406-9406 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 06 1 9312-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 06 1 9511- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 05 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) ID=28 L=32 		1-09701-064-1 01 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=28 L=32 		1-09701-064-1 01 1 9712- ● ● ● ● ● ●
çizim 67939
16 116 521 519 518 504 519
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(T) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(V) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (U) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (A) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.587 (K) L=112 		8-94232-618-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.430 (W) L=200 		8-94464-835-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (R) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ●
116 02.559 CLIP; ROOF HARNESS
CAB-LOW ROOF<6XQ> 16.065 1 SET=5 PIECE 		1-09987-214-0 01 1 9803- ●
504 02.559 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9511-9711 ● ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9712- ● ● ● ● ● ●
518 02.559 WASHER; LK,EARTH CABLE
ID=6 		9-09151-506-0 01 1 9312-9510 ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
05.586 (B) M12 FLANGE 		0-91150-112-0 01 1 9312- ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
16.176 (A) M6 		9-09110-406-0 01 1 9312-9510 ● ● ● ● ● ●
521 02.559 BOLT; GRAND CABLE
04.785 M6X16 		0-20800-616-0 01 1 9312-9510 ● ● ● ● ● ●
çizim 67972
48 48 219 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (P) ID=5-12 L=14.5 		1-09987-221-0 01 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9406 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9407-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (F) L=170.3 		1-09987-182-0 02 1 9511-9711 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 02 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=19 L=60 		9-09525-893-0 01 1 9312- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9402 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9403- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9711 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 01 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 AR 1 9312-9405 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 AR 1 9406-9406 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 06 1 9312-9510 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 06 1 9511- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 05 1 9712- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) ID=28 L=32 		1-09701-064-1 01 1 9312-9711 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=28 L=32 		1-09701-064-1 01 1 9712- ● ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 AR 1 9312-9406 ● ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9407-9510 ● ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9511- ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9312-9711 ● ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9712- ● ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9312-9312 ● ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9401- ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9401- ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97108-658-0 01 1 9312-9711 ● ● ●
219 02.559 NUT
(D) 		8-97108-658-0 01 1 9712- ● ● ● ● ● ●
219 02.559 NUT
RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 9401- ● ●
çizim 67990
219 38 317 317 483 483 519
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 02.559 BOLT; CLIP,HARNESS
03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9312-9502 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9712- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 (D) M6X25 FLANGE 		0-28080-625-0 02 1 9312-9702 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 9703-9711 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 9712- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9312-9312 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9401- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9401- ● ●
38 02.559 BOLT; CLIP,HARNESS
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (C) M6X20 FLANGE 		0-28480-620-0 01 1 9312-9510 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9511-9702 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9703-9711 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9312-9503 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9312-9503 ● ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9510 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9510 ● ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9711 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9711 ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.890 (D) M6X25 		0-28280-625-0 01 1 9312-9312 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9401-9502 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 (D) M6X25 FLANGE 		0-28080-625-0 01 1 9511-9702 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 9703-9711 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 9712- ● ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 AR 1 9312-9406 ● ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9407-9510 ● ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9511- ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9312-9711 ● ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9712- ● ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9312-9312 ● ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9401- ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9401- ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97108-658-0 01 1 9312-9711 ● ● ●
219 02.559 NUT
(D) 		8-97108-658-0 01 1 9712- ● ● ● ● ● ●
219 02.559 NUT
RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 9401- ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9312-9312 ● ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9401- ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> (A) 		8-94441-365-0 01 1 9401- ● ●
317 02.559 CLAMP; CONNECTOR
RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-94310-684-0 01 1 9401-9801 ● ●
317 02.559 CLAMP; CONNECTOR
RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-94366-903-0 01 1 9802- ● ●
483 02.559 CLIP; ENG HARNESS
WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S) 03.162 (B) L=140 		5-09707-031-0 01 1 9312-9405 ●
483 02.559 CLIP; ENG HARNESS
WEST MALAYSIA EQUIPMENT(RWP) 03.162 (B) L=140 		5-09707-031-0 01 1 9406-9702 ●
483 02.559 CLIP; ENG HARNESS
EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S) 04.342 (A) L=197 		1-83574-032-0 01 1 9312-9405 ●
483 02.559 CLIP; ENG HARNESS
04.342 (A) L=197 		1-83574-032-0 01 1 9312-9405 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
EXC. WEST MALAYSIA EQUIPMENT(RWP) 04.342 (A) L=197 		1-83574-032-0 01 1 9406-9702 ●
483 02.559 CLIP; ENG HARNESS
04.342 (A) L=197 		1-83574-032-0 01 1 9406-9702 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
04.342 (A) L=197 		1-83574-032-0 01 1 9703- ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 9712- ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
05.586 (B) M12 FLANGE 		0-91150-112-0 01 1 9312- ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
16.176 (A) M6 		9-09110-406-0 01 1 9312-9510 ● ● ● ● ● ●
çizim 68006
511 510 180 510 178 512 513 64 264
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-476-0 01 1 9312-9603 ● ●
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-477-0 01 1 9604- ● ●
178 02.559 GROMMET; HARNESS
(A) ID=47 		8-94279-735-0 01 1 9312- ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
AIR INTAKE REAR VERTICAL<KJ3> (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9502-9604 ● ●
178 02.559 GROMMET; HARNESS
02.343 (C) ID=17 		8-94128-319-2 01 1 9312-9604 ● ● ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 9312- ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 ID=16 		8-94413-325-0 03 1 9312- ● ● ● ● ● ●
510 02.559 GROMMET; SCREW
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 9312-9409 ● ● ● ● ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 9410- ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9312-9409 ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9410- ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS 8-97072-950-0 02 1 9312- ● ● ● ● ● ●
513 02.559 TAPE; SOFT,HARNESS
02.480 45X50 50X45 		8-94232-630-0 02 1 9312-9404 ● ● ● ●
513 02.559 TAPE; SOFT,HARNESS
02.480 45X50 50X45 		8-94232-630-0 01 1 9405-9707 ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
