Sayfa 3-20 - Isuzu EPC

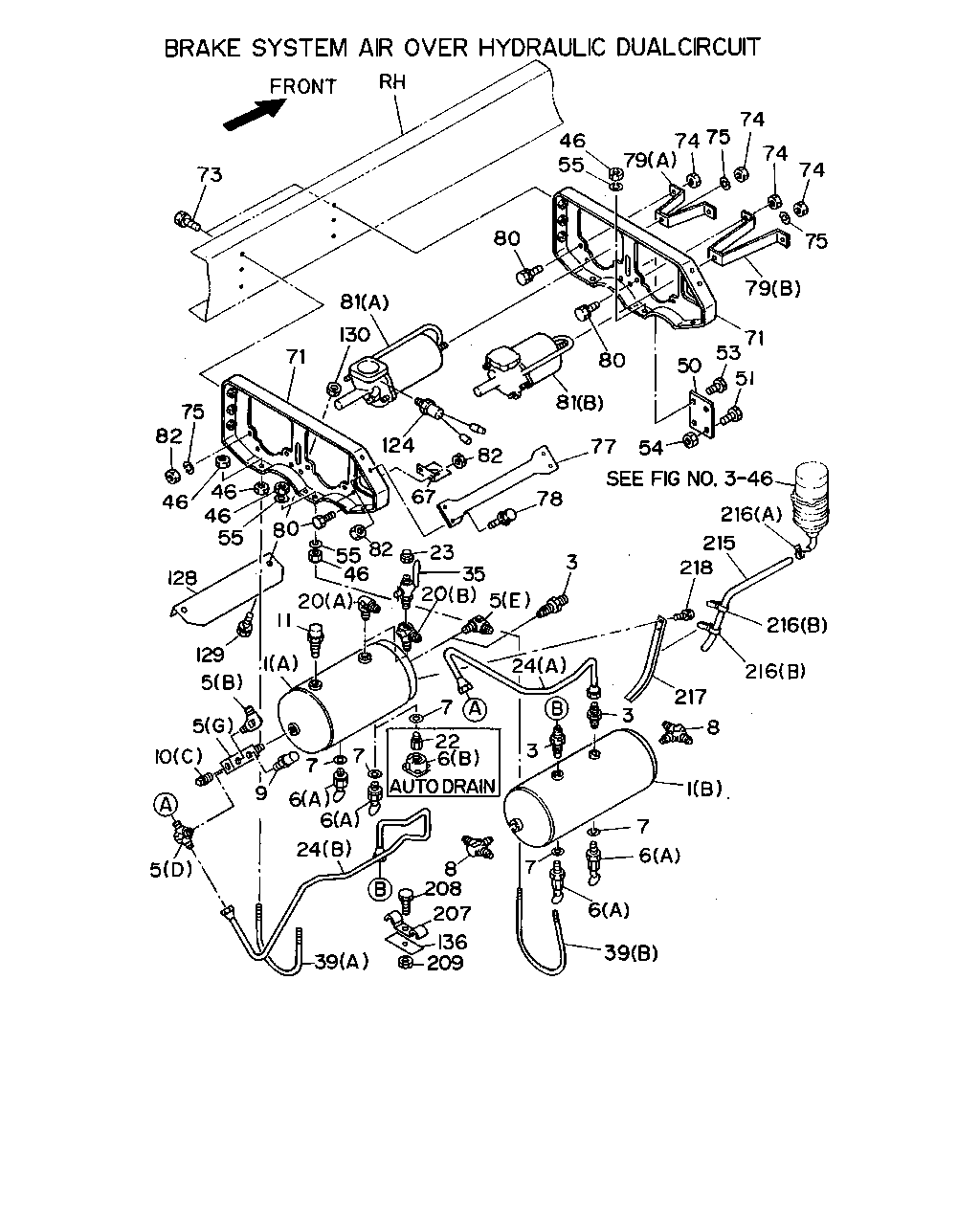

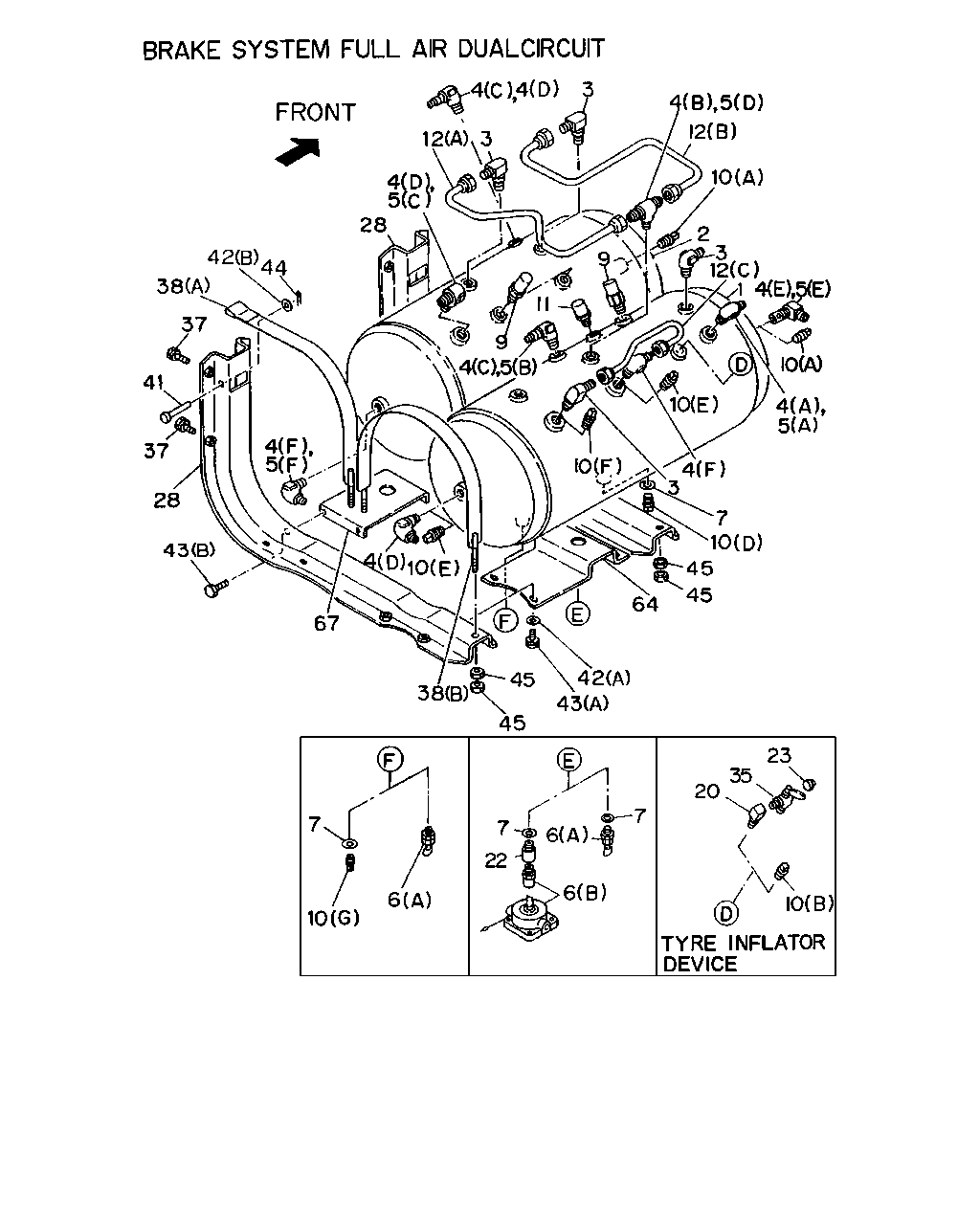

3-20 — AIR TANK (#3371) — 251 parça

73 46 79 74 75 74 74 74 75 55 79 80 71 80 53 51 50 54 77 81 130 71 75 82 124 82 46 46 46 67 80 55 55 82 78 216 23 215 3 218 35 5 20 46 20 11 128 129 1 5 5 10 5 9 6 24 39 209 8 136 39 207 6 208 6 7 7 7 3 7 7 6 1 8 216 216 217 3 24 22 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48330-070-1	01	1	9002-	●	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48330-736-0	01	1	9002-	●	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (A)	1-48330-737-0	01	1	9002-	●	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48330-674-1	01	1	9002-9407		●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48370-211-0	01	1	9408-		●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-48330-479-0	01	1	9002-		●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-182-3	02	1	9002-	●	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48410-182-3	01	1	9002-	●	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48410-133-2	04	1	9002-		●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-48410-133-2	03	1	9307-		●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) EXC. AIR DRYER<PS7>	1-48410-133-2	02	1	9002-9306		●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),AIR DRYER<PS7>	1-48410-133-2	03	1	9002-9306		●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) AIR DRYER<PS7>	1-48410-133-2	03	1	9002-9306		●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306		●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9307-	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	1-09660-091-3	01	1	9002-	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302		●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306		●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9307-	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (E) M22	1-09650-277-0	01	1	9002-9306	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) EXC. AIR DRYER<PS7> (E) M22	1-09650-277-0	01	1	9002-9306		●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (E) M22	1-09650-277-0	01	1	9307-	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302		●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-9306		●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302		●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306		●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M22 & PT1/2 ELBOW	9-09234-315-1	02	1	9002-9302		●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M22 & PT1/2 ELBOW	1-09650-444-0	02	1	9303-9306		●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9002-	●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A) W/COVER	1-48312-004-1	01	1	9002-9509	●	●	●
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	01	1	9002-9509	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) W/COVER	1-48312-004-1	01	1	9002-9509		●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9510-	●	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	9510-	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	01	1	9510-		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) W/COVER	1-48312-004-1	02	1	9002-9509	●	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	02	1	9510-	●	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) W/COVER	1-48312-004-1	04	1	9307-9407		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) W/COVER	1-48312-004-1	04	1	9408-9509		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-48312-015-0	04	1	9510-		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) W/COVER	1-48312-004-1	03	1	9408-9509		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48312-015-0	03	1	9510-		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) W/COVER	1-48312-004-1	03	1	9002-9306		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) W/COVER	1-48312-004-1	04	1	9002-9306		●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602	●	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602		●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-	●	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9603-	●	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-	●	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-		●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & M22 & PT1/2 3WAY	1-09656-296-1	02	1	9002-	●	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	01	1	9002-9411	●	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9412-	●	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48340-040-0	03	1	9002-9411		●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	03	1	9412-		●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT3/8	9-09204-517-0	01	1	9002-	●	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) PT1/4	9-09205-513-0	01	1	9002-9008		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) PT3/8	9-99205-517-0	01	1	9009-		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D) M14X9	9-99202-314-0	01	1	9408-		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) PT1/2	9-09204-521-0	02	1	9002-9306		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) PT3/4	9-09204-526-0	01	1	9002-9306		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (G) M14X9	9-99202-314-0	01	1	9002-9306		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> (B) PT1/4	9-99204-513-0	01	1	9002-		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/4	9-99204-513-0	01	1	9002-		●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9002-	●	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<W47> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	9002-	●	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302	●	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> PT1/4	9-09903-738-0	01	1	9002-9306		●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> PT1/4	1-09660-501-0	01	1	9307-		●	●
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9002-	●	●	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9002-	●	●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=987 SERVICED BY L=1000	1-47434-485-0	01	1	9002-9306	●	●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=987	1-47496-254-0	01	1	9307-	●	●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1110	1-47449-415-4	01	1	9002-9306	●	●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1110	1-47496-255-0	01	1	9307-	●	●	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9002-	●	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48317-301-0	01	1	9002-	●	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-302-0	02	1	9002-	●	●	●
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	12	1	9002-	●	●	●
50	STAY; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-477-0	01	1	9002-	●	●	●
51	BOLT; STAY TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-	●	●	●
53	BOLT; STAY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 W/LK WASHER	0-50041-020-0	02	1	9002-	●	●	●
54	NUT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-510-0	02	1	9002-	●	●	●
55	WASHER; PL,U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	04	1	9002-	●	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-321-2	01	1	9002-	●	●	●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-271-0	01	1	9002-		●	●
71	BRACKET; AIR MASTER,TANDEM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-276-1	02	1	9002-	●	●	●
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X45	1-09030-052-1	06	1	9002-9601	●	●	●
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28681-240-0	06	1	9602-	●	●	●
74	NUT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-510-0	04	1	9002-	●	●	●
75	WASHER; LK,STAY,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	9-09150-510-0	10	1	9002-	●	●	●
77	STAY; AIR MASTER UPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-224-2	01	1	9002-9207	●	●	●
77	STAY; AIR MASTER UPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-293-1	01	1	9208-	●	●	●
78	BOLT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9002-	●	●	●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) H=133	1-53318-216-0	01	1	9002-	●	●	●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) H=203	1-53318-217-0	01	1	9002-	●	●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 W/LK WASHER	0-50041-020-0	06	1	9002-	●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),CHINA EQUIPMENT(YT2) (A)	1-47800-428-2	01	1	9002-	●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),CHINA EQUIPMENT(YT2) (B)	1-47800-429-2	01	1	9002-	●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. CHINA EQUIPMENT(YT2) (A)	1-47800-464-2	01	1	9002-		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. CHINA EQUIPMENT(YT2) (B)	1-47800-466-2	01	1	9002-		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA EQUIPMENT(YT2) (A)	1-47800-454-2	01	1	9002-		●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA EQUIPMENT(YT2) (B)	1-47800-459-2	01	1	9002-		●	●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-510-0	16	1	9002-	●	●	●
124	SWITCH; AIR PRESSURE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. CHINA EQUIPMENT(YT2)	1-82410-129-0	01	1	9002-9501		●
124	SWITCH; AIR PRESSURE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. CHINA EQUIPMENT(YT2)	1-82410-154-0	01	1	9502-		●
128	PROTECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53319-018-0	01	1	9002-	●	●	●
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9002-9204	●	●	●
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9205-9306	●	●	●
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●	●
130	NUT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9002-	●	●	●
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	02	1	9002-	●	●	●
207	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=13 & 13 L=16 & 16	1-09700-666-0	02	1	9002-	●	●	●
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●	●
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●	●	●
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9002-	●	●	●
215	PIPE; VINYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03266-300-0	01	1	9002-	●	●	●
216	CLIP; PIPE,VINYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	9002-	●	●	●
216	CLIP; PIPE,VINYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) ID=25 L=55	9-09917-573-0	02	1	9002-	●	●	●
217	BRACKET; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48317-463-0	01	1	9002-	●	●	●
218	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●	●
218	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306	●	●	●
218	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●	●

4 4 3 4 5 10 12 3 12 4 5 28 44 42 38 41 37 37 43 28 4 5 67 38 4 45 45 43 42 64 45 45 7 4 3 10 4 5 9 11 9 2 12 4 5 10 5 4 10 10 7 10 7 6 22 6 7 20 35 23 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48330-228-0	01	1	9002-		●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-182-3	02	1	9002-	●	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48410-182-3	01	1	9002-	●	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48410-133-2	04	1	9002-		●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-48410-133-2	03	1	9307-		●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) EXC. AIR DRYER<PS7>	1-48410-133-2	02	1	9002-9306		●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),AIR DRYER<PS7>	1-48410-133-2	03	1	9002-9306		●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) AIR DRYER<PS7>	1-48410-133-2	03	1	9002-9306		●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302		●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M20 & PT1/2 ELBOW	1-09650-178-1	02	1	9002-9302		●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-		●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-		●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302		●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-		●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) M22 & PT1/2 ELBOW	9-09234-315-1	03	1	9002-9302		●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9303-		●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),AIR DRYER<PS7> (E) M22	1-09650-277-0	01	1	9002-		●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306		●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9307-	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	1-09660-091-3	01	1	9002-	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302		●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306		●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9307-	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (E) M22	1-09650-277-0	01	1	9002-9306	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) EXC. AIR DRYER<PS7> (E) M22	1-09650-277-0	01	1	9002-9306		●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (E) M22	1-09650-277-0	01	1	9307-	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302		●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-9306		●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302		●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306		●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M22 & PT1/2 ELBOW	9-09234-315-1	02	1	9002-9302		●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M22 & PT1/2 ELBOW	1-09650-444-0	02	1	9303-9306		●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9002-	●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A) W/COVER	1-48312-004-1	01	1	9002-9509	●	●	●
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-1	01	1	9002-9509	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) W/COVER	1-48312-004-1	01	1	9002-9509		●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9510-	●	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	9510-	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	01	1	9510-		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) W/COVER	1-48312-004-1	02	1	9002-9509	●	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	02	1	9510-	●	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) W/COVER	1-48312-004-1	04	1	9307-9407		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) W/COVER	1-48312-004-1	04	1	9408-9509		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-48312-015-0	04	1	9510-		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) W/COVER	1-48312-004-1	03	1	9408-9509		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48312-015-0	03	1	9510-		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) W/COVER	1-48312-004-1	03	1	9002-9306		●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) W/COVER	1-48312-004-1	04	1	9002-9306		●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602	●	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602		●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-	●	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9603-	●	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-	●	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-		●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	01	1	9002-9411	●	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9412-	●	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48340-040-0	03	1	9002-9411		●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	03	1	9412-		●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT3/8	9-09204-517-0	01	1	9002-	●	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) PT1/4	9-09205-513-0	01	1	9002-9008		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) PT3/8	9-99205-517-0	01	1	9009-		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D) M14X9	9-99202-314-0	01	1	9408-		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) PT1/2	9-09204-521-0	02	1	9002-9306		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) PT3/4	9-09204-526-0	01	1	9002-9306		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (G) M14X9	9-99202-314-0	01	1	9002-9306		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> (B) PT1/4	9-99204-513-0	01	1	9002-		●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/4	9-99204-513-0	01	1	9002-		●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9002-	●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47485-581-0	01	1	9002-9306		●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47485-582-0	01	1	9002-9306		●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47496-038-0	01	1	9307-		●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47496-039-0	01	1	9307-		●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47496-040-0	01	1	9307-		●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C)	1-47485-583-0	01	1	9002-9306		●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<W47> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	9002-	●	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302	●	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> PT1/4	9-09903-738-0	01	1	9002-9306		●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> PT1/4	1-09660-501-0	01	1	9307-		●	●
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9002-	●	●	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9002-	●	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-240-4	02	1	9002-		●	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9002-	●	●	●
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	08	1	9002-9601		●	●
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M12X40 FLANGE	0-28681-240-0	08	1	9602-		●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9002-		●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	9002-		●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-08221-060-0	02	1	9002-9407		●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	9-08224-060-0	02	1	9408-		●	●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=8.4 OD=22	9-09160-708-0	04	1	9002-		●	●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=10.5	9-09164-510-0	02	1	9002-		●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204		●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-		●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9002-9204		●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9205-		●	●
44	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=2.8 L=18	9-08113-018-0	02	1	9002-		●	●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	12	1	9002-		●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-220-1	01	1	9002-		●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-321-2	01	1	9002-	●	●	●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-271-0	01	1	9002-		●	●

141 237 238 239 240 86 125 145 145 138 152 151 139 153 140 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	9002-	●	●	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140	1-47469-051-1	01	1	9002-	●	●	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=190	1-47469-052-2	01	1	9002-	●	●	●
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-175-0	01	1	9002-9401	●	●	●
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-170-1	01	1	9402-	●	●	●
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-114-3	01	1	9002-	●	●	●
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 W/LK WASHER	0-50041-020-0	03	1	9002-	●	●	●
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-510-0	03	1	9002-	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15	1-09704-018-1	04	1	9002-9306	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	9307-	●	●	●
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-113-0	02	1	9002-	●	●	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	5-09440-005-0	02	1	9002-	●	●	●
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-026-1	01	1	9002-9401	●	●	●
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-019-2	01	1	9402-	●	●	●
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	9002-	●	●	●
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	9002-	●	●	●
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	9002-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
