◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#33706) — 62 parça

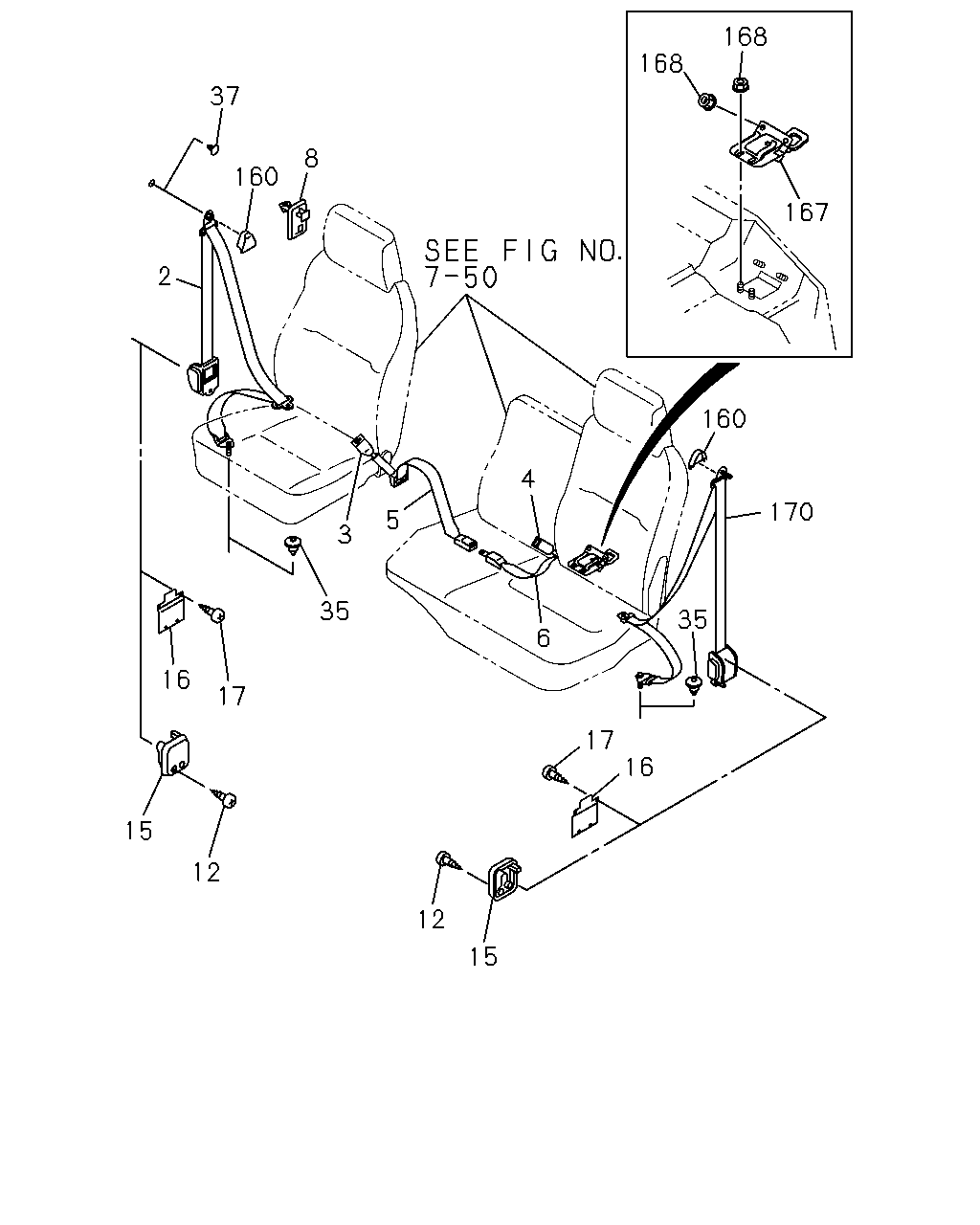

çizim 67928
168 168 37 8 160 167 2 160 4 170 5 3 35 35 6 16 17 17 16 15 12 12 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK BEIGE 		8-97854-768-1 01 1 9312-9711 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 9712- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97854-143-0 01 1 9312-9711 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97863-751-0 01 1 9712-9712 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97868-487-0 01 1 9801- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK BEIGE 		8-97854-760-0 01 1 9312-9711 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK GRAY 		8-97868-892-0 01 1 9712- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK BEIGE 		8-97854-759-0 01 1 9312-9711 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK GRAY 		8-97868-362-0 01 1 9712- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) SAUDI ARABIA EQUIPMENT(EU2) DARK BEIGE 		8-97854-763-2 01 1 9312-9510 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) SAUDI ARABIA EQUIPMENT(EU2) DARK BEIGE 		8-97854-763-2 01 1 9511-9711 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97868-891-2 01 1 9712-9807 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97868-891-2 01 1 9808- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK BEIGE 		8-97854-994-0 01 1 9312-9711 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97868-894-0 01 1 9712- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK BEIGE 		8-97854-993-0 01 1 9312-9711 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK GRAY 		8-97868-364-0 01 1 9712- ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) 		8-97854-146-1 01 1 9312-9711 ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK GRAY 		8-97854-893-1 01 1 9712-9712 ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK GRAY 		8-97868-475-1 01 1 9801- ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK BEIGE 		8-97854-766-0 01 1 9312-9711 ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK GRAY 		8-97868-479-0 01 1 9712- ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) 		8-97854-147-1 01 1 9312-9711 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK GRAY 		8-97854-895-1 01 1 9712-9712 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK GRAY 		8-97890-431-1 01 1 9801- ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) 		8-97854-148-0 01 1 9312-9711 ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK GRAY 		8-97863-754-0 01 1 9712-9712 ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK GRAY 		8-97868-897-0 01 1 9801- ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRONT SEAT,CENTER 2 POINT(A38) DARK GRAY 		8-97198-783-0 01 1 9810-9810 ● ● ● ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> 		8-94276-268-1 02 1 9312- ● ● ● ● ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 04 1 9312- ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97854-154-2 02 1 9312-9711 ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-94351-619-3 02 1 9712- ● ●
16 16.714 COVER; HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> 		8-97854-868-1 02 1 9312- ● ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> 16.584 M6X13 		5-09981-074-0 08 1 9312- ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 P OINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 9312- ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 04 1 9312- ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 P OINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 9312- ● ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 9312- ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97854-145-0 02 1 9312-9711 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 9712- ● ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97853-700-5 01 1 9312-9710 ● ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-0 01 1 9711- ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 9312- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK BEIGE 		8-97854-768-1 01 1 9312-9711 ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 9712- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97854-143-0 01 1 9312-9711 ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97863-751-0 01 1 9712-9712 ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97868-487-0 01 1 9801- ● ● ● ● ● ●
çizim 70796
35 35 152 177 161 166 165 166
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 P OINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 9312- ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 04 1 9312- ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.570 L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9407- ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-462-3 01 1 9312- ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-442-2 01 1 9312- ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97850-288-5 01 1 9312-9710 ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 9711- ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97850-377-3 01 1 9312-9710 ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 9711- ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 04 1 9312-9603 ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9604- ● ● ● ● ● ●
177 16.714 NUT
03.417 M8 FLANGE 		8-94279-517-0 01 1 9312-9609 ● ● ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 01 1 9610- ● ● ● ● ● ●
