Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#33703) — 134 parça

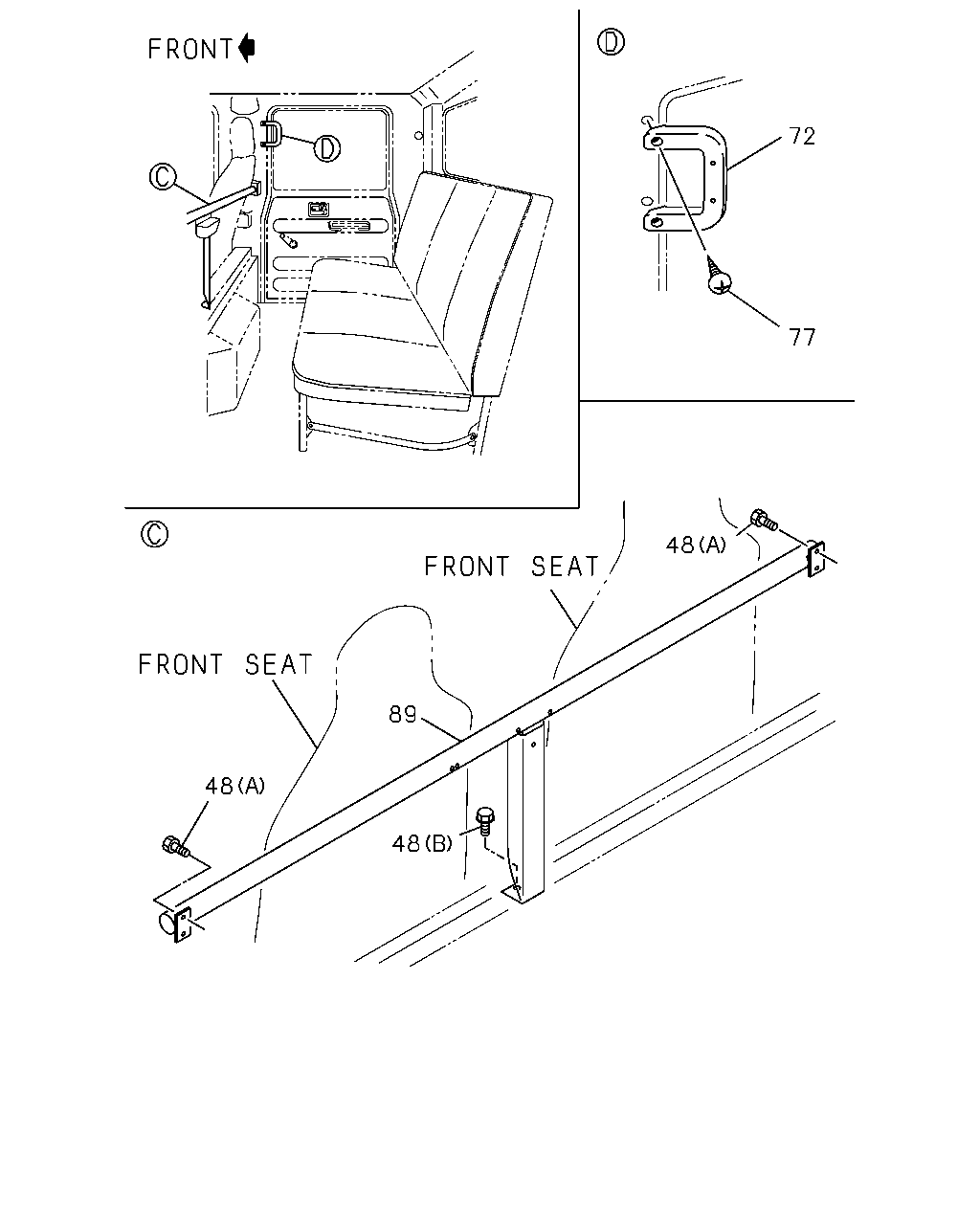

72 48 89 48 48 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	16.450 BOLT; ASSIST GRIP 16.350 (A) M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9312-	●	●
48	16.450 BOLT; ASSIST GRIP 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9312-	●	●
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK	8-97853-802-2	02	1	9312-9608	●	●
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK DARK BEIGE	8-97867-883-0	02	1	9609-9711	●	●
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK DARK GRAY	8-97867-209-0	02	1	9712-	●	●
77	16.450 SCREW; ASSIST GRIP M4X30	8-94279-360-0	04	1	9312-9608	●	●
77	16.450 SCREW; ASSIST GRIP M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9609-	●	●
89	16.560 HANDLE; ASSIST	8-97853-446-4	01	1	9312-	●	●

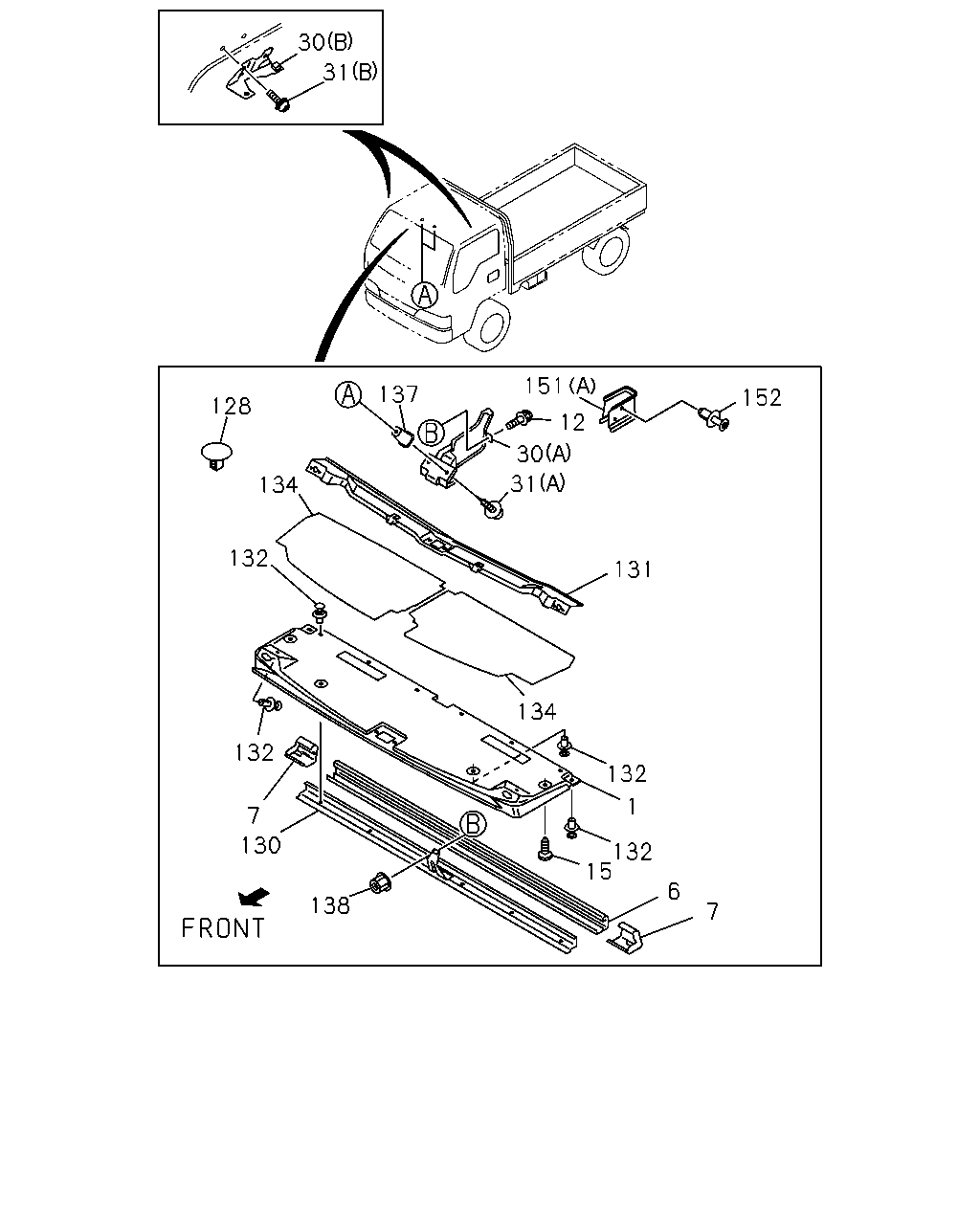

151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A)	1-73318-553-1	01	1	9312-9711	●	●	●	●	●	●
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A) LIGHT GRAY	8-97867-250-0	01	1	9712-	●	●	●	●	●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-113-2	01	1	9507-9510		●		●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-113-2	01	1	9511-9710				●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-112-2	01	1	9507-9510		●		●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-112-2	01	1	9511-9710				●

30 31 151 137 152 128 12 30 31 134 132 131 134 132 132 130 132 15 6 138 1 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97856-714-3	01	1	9312-9701	●	●	●	●	●	●
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97869-050-0	01	1	9702-9711	●	●	●	●	●	●
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-847-0	01	1	9712-	●	●	●	●	●	●
6	16.742 FINISHER; HEADER SHELF,REAR TRAY ROOF HEAD<7EJ> GRAY	8-97856-055-1	01	1	9312-9711	●	●	●	●	●	●
6	16.742 FINISHER; HEADER SHELF,REAR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-241-1	01	1	9712-	●	●	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-057-3	01	1	9312-9711	●	●	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-849-3	01	1	9712-	●	●	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-056-3	01	1	9312-9711	●	●	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-848-3	01	1	9712-	●	●	●	●	●	●
12	16.742 SCREW; HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	03	1	9312-	●	●	●	●	●	●
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9312-9712	●	●	●	●	●	●
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	02	1	9801-	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97856-012-6	01	1	9312-9405	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-1	01	1	9406-	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-2	01	1	9312-	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-2	01	1	9312-	●	●	●	●	●	●
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9312-	●	●	●	●	●	●
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9312-	●	●	●	●	●	●
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-998-2	01	1	9312-9711	●	●	●	●	●	●
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-230-2	01	1	9712-	●	●	●	●	●	●
130	16.742 REIFORCEMENT; HEADER SHELF,RR TRAY ROOF HEAD<7EJ>	8-97853-743-3	01	1	9312-9604	●	●	●	●	●	●
130	16.742 REIFORCEMENT; HEADER SHELF,RR TRAY ROOF HEAD<7EJ>	8-97859-531-1	01	1	9605-	●	●	●	●	●	●
131	16.742 REIFORCEMENT; HEADER SHELF,FRT TRAY ROOF HEAD<7EJ>	8-97853-742-6	01	1	9312-	●	●	●	●	●	●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	10	1	9312-9510	●	●	●	●	●	●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	08	1	9511-9712	●	●	●	●	●	●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	08	1	9801-	●	●	●	●	●	●
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97856-394-2	01	1	9312-9602	●	●	●	●	●	●
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97856-393-2	01	1	9312-9602	●	●	●	●	●	●
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97867-478-0	02	1	9603-	●	●	●	●	●	●
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 09.743	8-94279-084-2	01	1	9312-9503	●	●	●	●	●	●
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	9504-	●	●	●	●	●	●
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-	●	●	●	●	●	●
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A)	1-73318-553-1	01	1	9312-9711	●	●	●	●	●	●
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A) LIGHT GRAY	8-97867-250-0	01	1	9712-	●	●	●	●	●	●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-113-2	01	1	9507-9510		●		●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-113-2	01	1	9511-9710				●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-112-2	01	1	9507-9510		●		●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-112-2	01	1	9511-9710				●
152	16.450 CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> GRAY	8-97857-053-0	02	1	9312-9711	●	●	●	●	●	●
152	16.450 CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-185-0	02	1	9712-	●	●	●	●	●	●

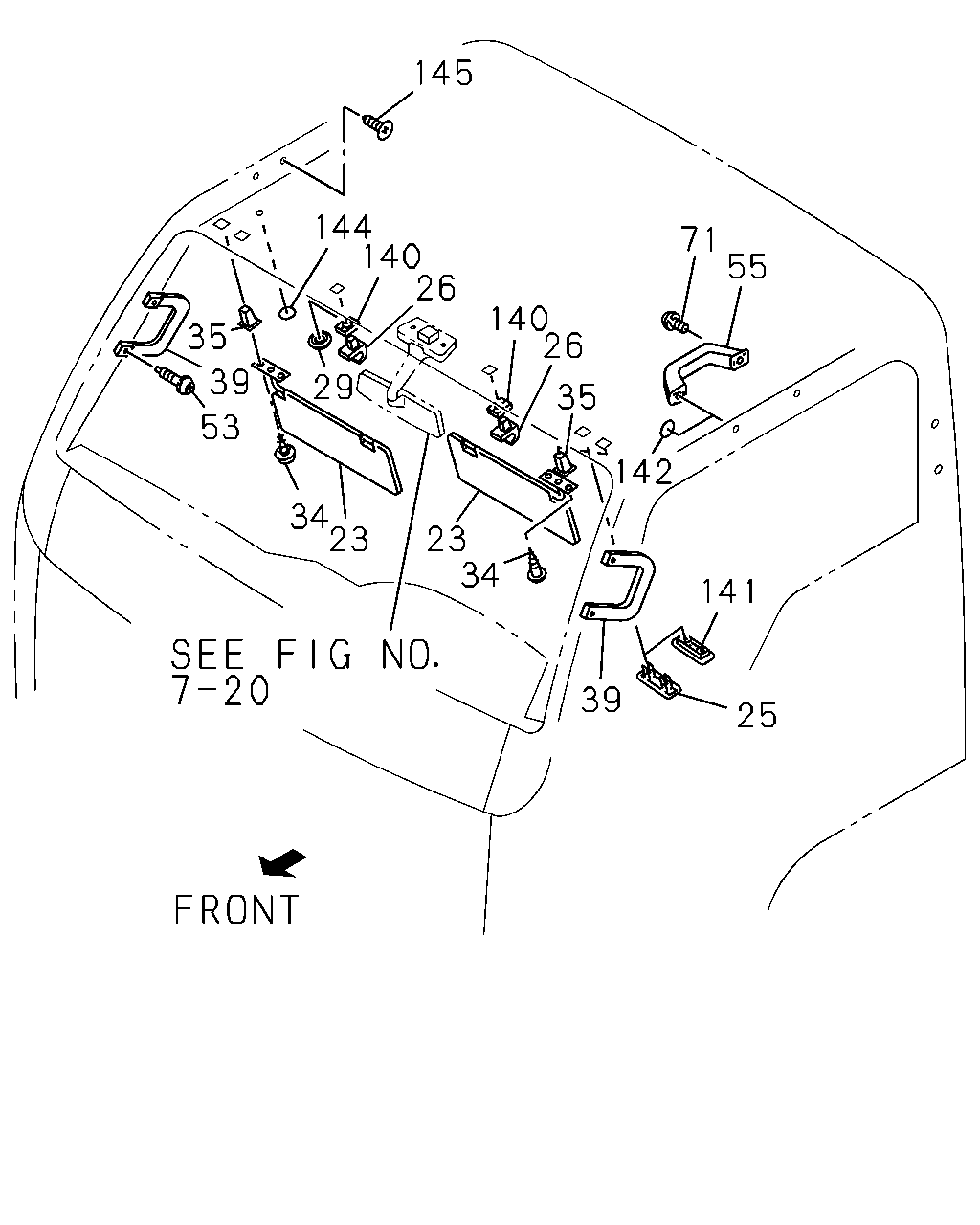

145 140 26 55 140 26 35 142 35 53 29 34 23 23 34 39 25 144 71 141 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY	8-97856-034-3	01	1	9312-9711	●		●		●
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> GRAY	8-97856-034-3	01	1	9312-9711		●		●		●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-841-3	01	1	9712-	●		●		●
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-841-3	01	1	9712-		●		●		●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-236-2	01	1	9312-9602	●		●		●
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-236-2	01	1	9312-9602		●		●		●
23	16.070 SUN VISOR ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ> GRAY	8-97856-236-2	01	1	9603-9711	●	●	●	●	●	●
23	16.070 SUN VISOR ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97868-630-3	01	1	9712-	●	●	●	●	●	●
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> GRAY	8-97856-237-2	01	1	9312-9711	●		●		●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY	8-97856-237-2	01	1	9312-9711		●		●		●
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-631-2	01	1	9712-	●		●		●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-631-2	01	1	9712-		●		●		●
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-235-2	01	1	9312-9602	●		●		●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-235-2	01	1	9312-9602		●		●		●
23	16.070 SUN VISOR EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> GRAY	8-97856-235-2	01	1	9603-9711	●		●		●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. CHINA EQUIPMENT(YT2),TRAY ROOF HEAD<7EJ> GRAY	8-97856-235-2	01	1	9603-9711		●		●		●
23	16.070 SUN VISOR CHINA EQUIPMENT(YT2) EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-235-2	01	1	9603-9711		●
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-820-3	01	1	9712-	●		●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-820-3	01	1	9712-		●		●		●
23	16.070 SUN VISOR EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-820-3	01	1	9712-					●
23	16.070 SUN VISOR CAB-LOW ROOF<6XQ> GRAY	8-97856-879-1	01	1	9603-9711					●
23	16.070 SUN VISOR CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97859-842-1	01	1	9712-					●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> GRAY	8-97856-880-1	01	1	9603-9711					●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97859-843-1	01	1	9712-					●
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY	8-97853-968-3	01	1	9312-9711	●	●	●	●	●	●
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-846-3	01	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY	8-97853-966-2	02	1	9312-9702	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> GRAY	8-97853-966-2	02	1	9703-9711	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97853-966-2	02	1	9703-9711					●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-184-2	02	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	02	1	9712-					●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	02	1	9312-9702	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	02	1	9703-9711	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	02	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	01	1	9312-9702	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	01	1	9703-9711	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	01	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-966-2	01	1	9312-9702	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20>, CAB-LOW ROOF<6XQ> GRAY	8-97853-966-2	01	1	9703-9711	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY	8-97853-966-2	01	1	9703-9711					●
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20>, CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-184-2	01	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	01	1	9712-					●
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> 16.547 OD=15.0	8-94279-040-0	01	1	9312-9806	●	●	●	●	●	●
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.547 OD=15.0	8-94279-040-0	01	1	9807-	●	●	●	●	●	●
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9312-	●	●	●	●	●	●
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9312-	●	●	●	●	●	●
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	9312-	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 09.743	8-94279-084-2	04	1	9312-9503	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 09.743	8-94279-084-2	04	1	9312-9503	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9504-	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9504-	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 09.743	8-94279-084-2	02	1	9312-9503	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	02	1	9504-	●	●	●	●	●	●
39	16.450 HANDLE; ASSIST,A-POST	8-97853-802-2	02	1	9312-9608	●	●	●	●	●	●
39	16.450 HANDLE; ASSIST,A-POST DARK BEIGE	8-97867-883-0	02	1	9609-9711	●	●	●	●	●	●
39	16.450 HANDLE; ASSIST,A-POST DARK GRAY	8-97867-209-0	02	1	9712-	●	●	●	●	●	●
53	16.450 SCREW; ASSIST HANDLE M4X30	8-94279-360-0	04	1	9312-9608	●	●	●	●	●	●
53	16.450 SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9609-	●	●	●	●	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR GRAY	8-97853-837-2	01	1	9312-9411	●	●	●	●	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97853-837-2	01	1	9412-9711	●	●	●	●	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> 16.346 DARK GRAY	8-97098-476-2	01	1	9712-	●	●	●	●	●	●
71	16.450 SCREW M4X30	8-94279-360-0	02	1	9312-9411	●	●	●	●	●	●
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M4X30	8-94279-360-0	02	1	9412-9510	●	●	●	●	●	●
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	9511-	●	●	●	●	●	●
140	16.742 SPACER; HOLDER,SUN VISOR CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.070 GRAY	8-97856-335-1	01	1	9603-9711					●
140	16.742 SPACER; HOLDER,SUN VISOR CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.070 LIGHT GRAY	8-97867-152-1	01	1	9712-					●
140	16.742 SPACER; HOLDER,SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> 16.070 GRAY	8-97856-335-1	02	1	9603-9711					●
140	16.742 SPACER; HOLDER,SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> 16.070 LIGHT GRAY	8-97867-152-1	02	1	9712-					●
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-967-1	01	1	9312-9711	●	●	●	●	●	●
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-845-1	01	1	9712-	●	●	●	●	●	●
142	16.742 SEAL; ASSIST GRIP BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9412-9510			●
142	16.742 SEAL; ASSIST GRIP BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9511-	●	●	●	●	●	●
142	16.742 SEAL; ASSIST GRIP BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9412-9510			●
142	16.742 SEAL; ASSIST GRIP BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9511-	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9312-9403	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9404-	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) 16.081 WHITE	1-76777-076-0	02	1	9312-9402	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9403-9403	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9404-	●	●	●	●	●	●
145	16.070 PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8	8-94279-921-0	04	1	9312-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
