Isuzu WW
▶
TRUCKS
▶
NHR
▶
50693 - NHR
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-42 - ASH TRAY
▶

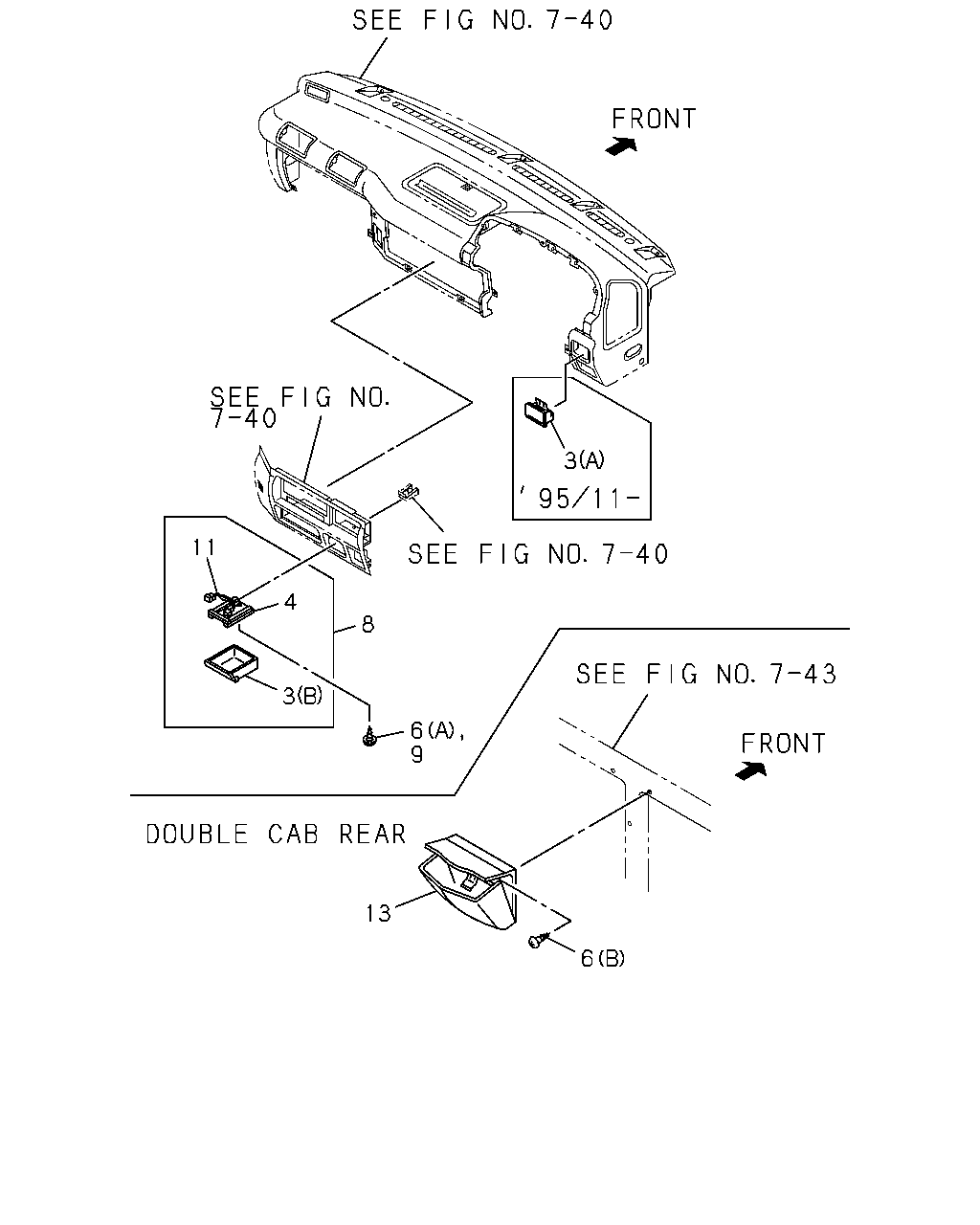

7-42 — ASH TRAY
(#33702) — 14 parça
Tümü
A - NHB5SF
B - NHB5WF
C - NHB6SF
D - NHB6WF
E - NHN5SF
F - NHN6SF
3
11
4
8
3
6
9
13
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
3
16.120 CASE ASM; ASH TRAY INNER
(B) DARK BEIGE
8-97857-997-1
01
1
9312-9711
●
●
●
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY
8-97857-998-1
01
1
9712-
●
●
●
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> 16.100 (A) DARK BEIGE
8-97853-892-3
01
1
9511-9711
●
●
●
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY
8-97859-799-3
01
1
9712-9809
●
●
●
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY
8-97198-913-0
01
1
9810-
●
●
●
●
●
●
4
16.120 CASE ASM; ASH TRAY OUTER
8-97857-995-1
01
1
9312-
●
●
●
●
●
●
6
16.120 SCREW; ASH TRAY
07.874 (A) M6X16 TRUSS-HEAD
8-94318-980-0
01
1
9701-
●
●
●
●
●
●
6
16.120 SCREW; ASH TRAY
(B) M4X10 CK-HEAD
9-03950-410-0
03
1
9312-9411
●
●
6
16.120 SCREW; ASH TRAY
16.345 (B) M4X10 TAPPING OVAL-HEAD
0-70680-410-0
03
1
9412-
●
●
8
16.120 TRAY ASM; ASH
8-97853-866-2
01
1
9312-9711
●
●
●
●
●
●
8
16.120 TRAY ASM; ASH
DARK GRAY
8-97857-543-2
01
1
9712-
●
●
●
●
●
●
9
16.120 SCREW; OUTER CASE,ASH TRAY
16.067 M5X14
8-94279-325-0
01
1
9312-9612
●
●
●
●
●
●
11
08.991 BULB; ASH TRAY
8-97858-977-0
01
1
9312-
●
●
●
●
●
●
13
16.120 TRAY ASM; ASH,RR
5-76457-001-0
01
1
9312-
●
●
