Isuzu WW
▶
TRUCKS
▶
NHR
▶
50693 - NHR
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

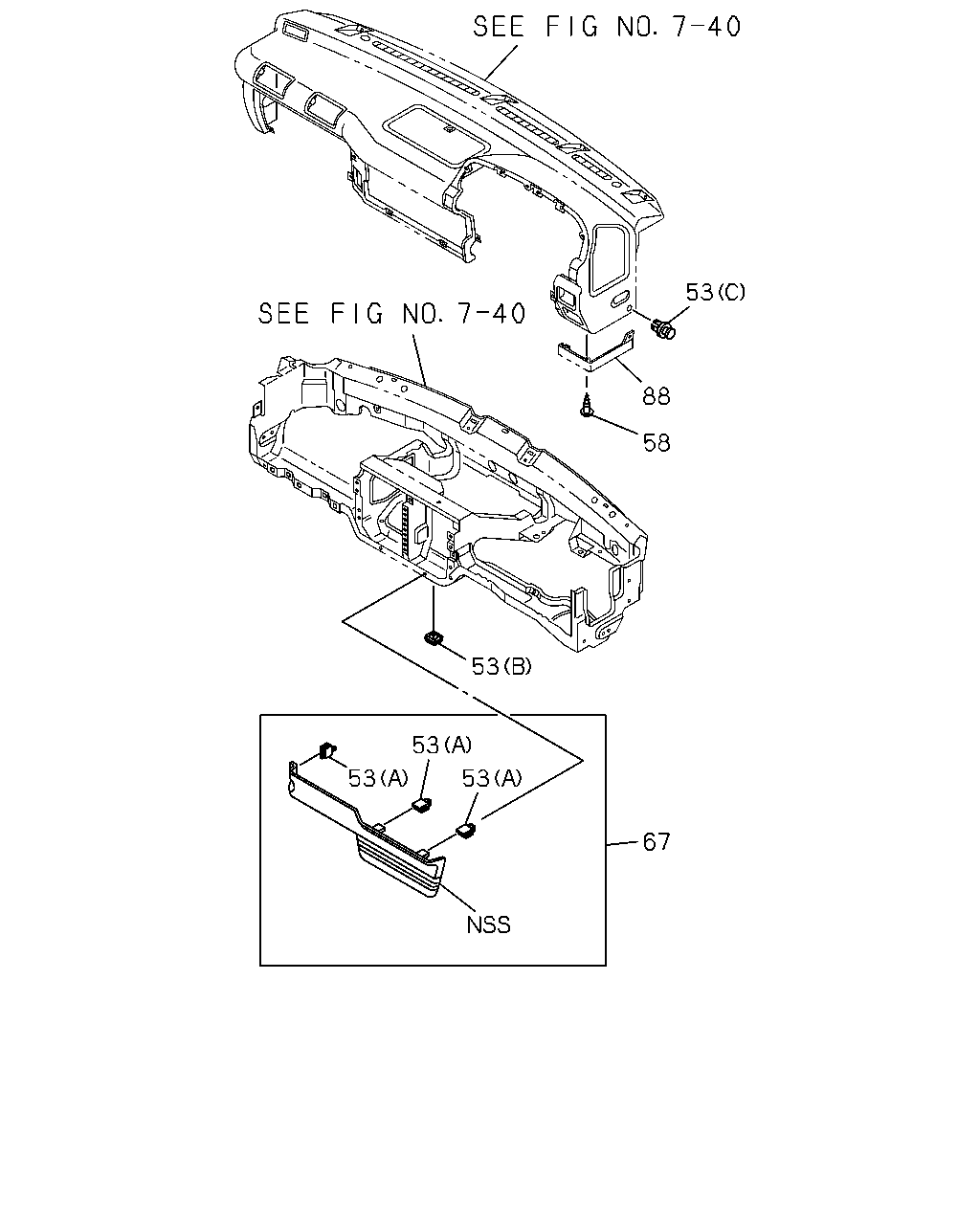

7-41 - UNDER COVER; INSTRUMENT
▶
7-41 — UNDER COVER; INSTRUMENT
(#33701) — 12 parça
Tümü
A - NHB5SF
B - NHB5WF
C - NHB6SF
D - NHB6WF
E - NHN5SF
F - NHN6SF
53
88
58
53
53
53
53
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
53
16.085 CLIP; UNDER COVER
16.100 (A)
8-97853-169-0
03
1
9312-
●
●
●
●
●
●
53
16.085 CLIP; UNDER COVER
06.521 (C)
8-97856-011-0
01
1
9312-9711
●
●
●
●
●
●
53
16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY
8-97857-542-0
01
1
9712-
●
●
●
●
●
●
53
16.085 CLIP; UNDER COVER
(B)
8-97853-249-4
03
1
9312-9403
●
●
●
53
16.085 CLIP; UNDER COVER
(B)
8-97853-249-5
03
1
9404-
●
●
●
●
●
●
58
09.264 SCREW; UNDER COVER
16.067 M5X14
8-94279-325-0
02
1
9312-
●
●
●
●
●
●
67
16.081 COVER; UNDER,INST PNL
8-97856-660-3
01
1
9312-
●
●
●
67
16.081 COVER; UNDER,INST PNL
8-97857-187-0
01
1
9312-
●
●
●
88
16.081 COVER; UNDER,INST PNL SIDE
8-97853-888-2
01
1
9312-9711
●
●
●
88
16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97859-801-2
01
1
9712-
●
●
●
88
16.081 COVER; UNDER,INST PNL SIDE
DARK BEIGE
8-97856-918-1
01
1
9312-9711
●
●
●
88
16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97857-539-1
01
1
9712-
●
●
●
