Sayfa 7-40 - Isuzu EPC

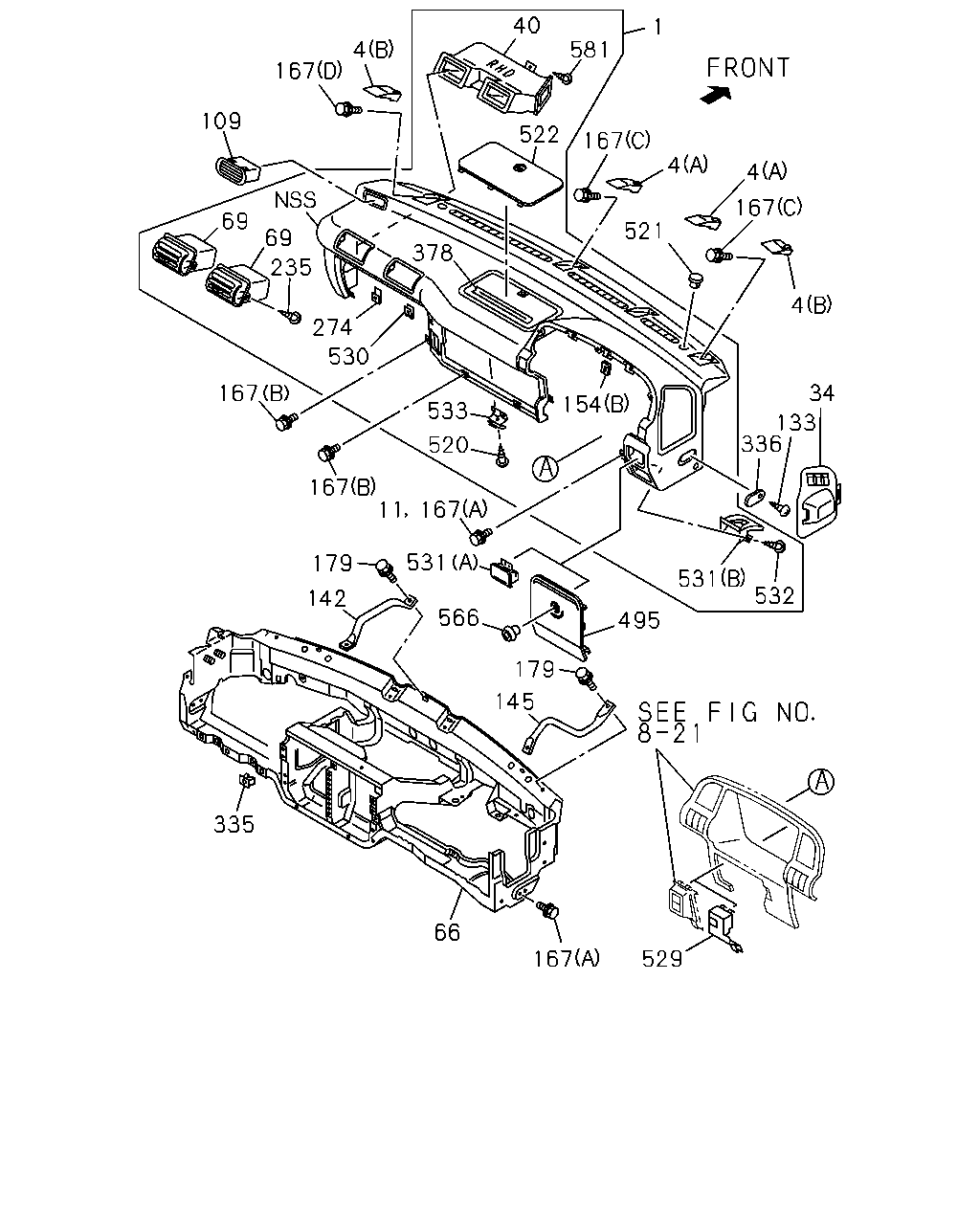

7-40 — INSTRUMENT PANEL AND BOX (#33700) — 244 parça

40 581 4 167 522 167 167 69 378 521 69 235 4 274 530 34 133 336 167 154 533 520 167 167 531 179 531 532 142 566 495 179 145 335 66 529 167 1 109 11 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.080 PANEL; INST IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97855-238-4	01	1	9412-9510	●
1	16.080 PANEL; INST DARK BEIGE	8-97856-663-0	01	1	9312-9411	●	●	●
1	16.080 PANEL; INST ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97856-663-2	01	1	9412-9510	●	●	●
1	16.080 PANEL; INST DARK BEIGE	8-97855-243-4	01	1	9511-9711	●	●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-958-0	01	1	9712-	●	●	●
1	16.080 PANEL; INST DARK BEIGE	8-97856-921-5	01	1	9312-9510				●	●	●
1	16.080 PANEL; INST DARK BEIGE	8-97855-258-4	01	1	9511-9711				●	●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-961-0	01	1	9712-				●	●	●
4	16.080 COVER; INST PNL (A)	8-97853-880-3	02	1	9312-9711	●	●	●	●	●	●
4	16.080 COVER; INST PNL (A) DARK GRAY	8-97857-523-3	02	1	9712-	●	●	●	●	●	●
4	16.080 COVER; INST PNL (B)	8-97853-882-3	01	1	9312-9711	●	●	●	●	●	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97857-525-3	01	1	9712-	●	●	●	●	●	●
4	16.080 COVER; INST PNL (B)	8-97853-881-3	01	1	9312-9711	●	●	●	●	●	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97857-524-3	01	1	9712-	●	●	●	●	●	●
11	16.090 BOLT; INST PNL 16.085 M8X20 FLANGE	8-97114-431-0	04	1	9407-	●	●	●	●	●	●
34	16.085 LID; OIL TANK	8-97853-886-7	01	1	9312-9711	●	●	●
34	16.085 LID; OIL TANK DARK GRAY	8-97859-800-7	01	1	9712-	●	●	●
34	16.085 LID; OIL TANK DARK BEIGE	8-97856-919-5	01	1	9312-9711				●	●	●
34	16.085 LID; OIL TANK DARK GRAY	8-97857-499-5	01	1	9712-				●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL 09.786	8-97035-234-0	01	1	9405-	●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL 09.786	8-97069-824-0	01	1	9405-				●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97857-590-8	01	1	9312-9802	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97194-312-3	01	1	9803-	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97856-187-9	01	1	9312-9606				●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97867-898-5	01	1	9607-				●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK BEIGE	8-97853-878-2	02	1	9312-9711	●	●	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97890-631-0	02	1	9712-	●	●	●	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR	8-97853-879-0	01	1	9312-9711	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97859-795-0	01	1	9712-	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK BEIGE	8-97856-923-0	01	1	9312-9711				●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97857-530-0	01	1	9712-				●	●	●
133	16.081 SCREW; COVER,INST PNL 09.744 M5X20 TAPPING W/PL WASHER	0-74110-520-0	02	1	9312-	●	●	●	●	●	●
142	16.085 STAY; INST PANEL	8-97853-637-2	01	1	9312-	●	●	●
142	16.085 STAY; INST PANEL	8-97856-196-2	01	1	9312-				●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97853-638-3	01	1	9312-	●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97856-197-2	01	1	9312-				●	●	●
154	16.085 NUT 16.081 (A) M5 SPIRE NUT	8-94279-051-0	01	1	9312-9612	●	●	●	●	●	●
154	16.085 NUT 16.081 (A) M5 SPIRE NUT	8-94279-051-0	01	1	9701-9702				●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	01	1	9703-9711	●	●	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	03	1	9312-9806	●	●	●	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	03	1	9807-	●	●	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	01	1	9701-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 02.343 (A) M8X22	8-94122-771-0	04	1	9312-9405	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	9312-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (C) M6X25	8-94279-204-0	02	1	9312-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST (D) M6X24 FLANGE	8-94279-231-1	02	1	9312-	●	●	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL 16.350 M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9312-9401	●	●	●
179	16.085 BOLT; STAY,INST PANEL 16.350 M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9402-	●	●	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9312-9401				●	●	●
235	16.081 SCREW; GRILLE 16.067 M5X14	8-94279-325-0	04	1	9312-	●	●	●	●	●	●
274	16.100 NUT; GLOVE BOX 16.081 M5 SPIRE NUT	8-94279-051-0	02	1	9312-	●	●	●	●	●	●
335	16.115 GROMMET; GLOVE BOX LK 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9312-	●	●	●	●	●	●
336	16.081 COVER; INST PANEL SIDE	8-97853-885-4	02	1	9312-9711	●	●	●	●	●	●
336	16.081 COVER; INST PANEL SIDE DARK GRAY	8-97857-528-4	02	1	9712-	●	●	●	●	●	●
378	09.743 SEAL; INST PANEL	8-97853-938-0	01	1	9312-	●	●	●	●	●	●
495	09.743 BEZEL; SW IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-977-4	01	1	9412-9510	●
495	09.743 BEZEL; SW EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-977-4	01	1	9511-9711	●	●	●	●	●	●
495	09.743 BEZEL; SW EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97857-548-4	01	1	9712-	●	●	●	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	03	1	9312-9406	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	02	1	9407-	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	04	1	9312-9406				●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	03	1	9407-				●	●	●
521	16.081 COVER; SUN SENSOR	8-97853-890-2	01	1	9312-9711	●	●	●	●	●	●
521	16.081 COVER; SUN SENSOR DARK GRAY	8-97857-529-2	01	1	9712-	●	●	●	●	●	●
522	16.085 LID; RELAY BOX DARK BEIGE	8-97853-876-4	01	1	9312-9711	●	●	●	●	●	●
522	16.085 LID; RELAY BOX DARK GRAY	8-97857-520-5	01	1	9712-	●	●	●	●	●	●
529	16.100 POCKET; COIN	8-97853-873-4	01	1	9312-9711	●	●	●
529	16.100 POCKET; COIN BLACK	8-97867-074-5	01	1	9712-	●	●	●
530	16.100 CLIP; GLOVE BOX	8-97856-135-0	01	1	9312-	●	●	●	●	●	●
531	16.100 CASE; ASH TRAY (B)	8-97853-130-0	01	1	9312-9411	●	●	●	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU> (B)	8-97853-130-0	01	1	9412-	●	●	●	●	●	●
531	16.100 CASE; ASH TRAY (A) DARK BEIGE	8-97853-892-2	01	1	9312-9411	●	●	●	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU> (A) DARK BEIGE	8-97853-892-2	01	1	9412-9510	●	●	●	●	●	●
532	16.100 SCREW; ASH TRAY 16.067 M5X14	8-94279-325-0	02	1	9312-9411	●	●	●	●	●	●
532	16.100 SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14	8-94279-325-0	02	1	9412-	●	●	●	●	●	●
533	16.100 CLIP; SPRING,CTR CLUSTER	8-97853-170-2	03	1	9312-9406	●	●	●	●	●	●
533	16.100 CLIP; SPRING,CTR CLUSTER	8-97853-170-5	02	1	9407-	●	●	●	●	●	●
566	16.085 PLUG; HOLE IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU>	8-97859-978-0	01	1	9412-9507	●
566	16.085 PLUG; HOLE IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-839-0	01	1	9508-9510	●
566	16.085 PLUG; HOLE EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-839-0	01	1	9511-9711	●	●	●	●	●	●
566	16.085 PLUG; HOLE EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-413-0	01	1	9712-	●	●	●	●	●	●
581	09.744 SCREW 16.067 M5X14	8-94279-325-0	02	1	9405-	●	●	●	●	●	●

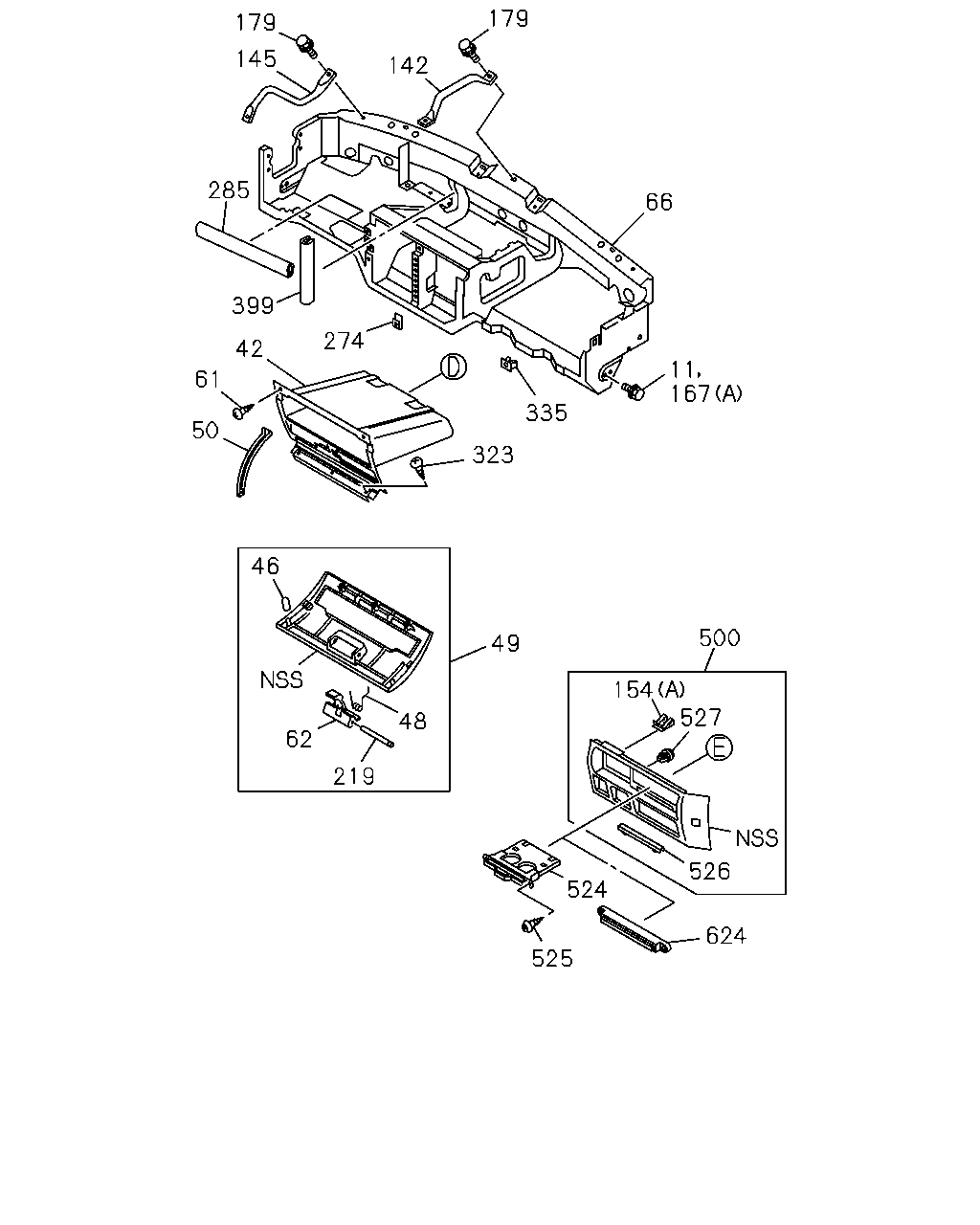

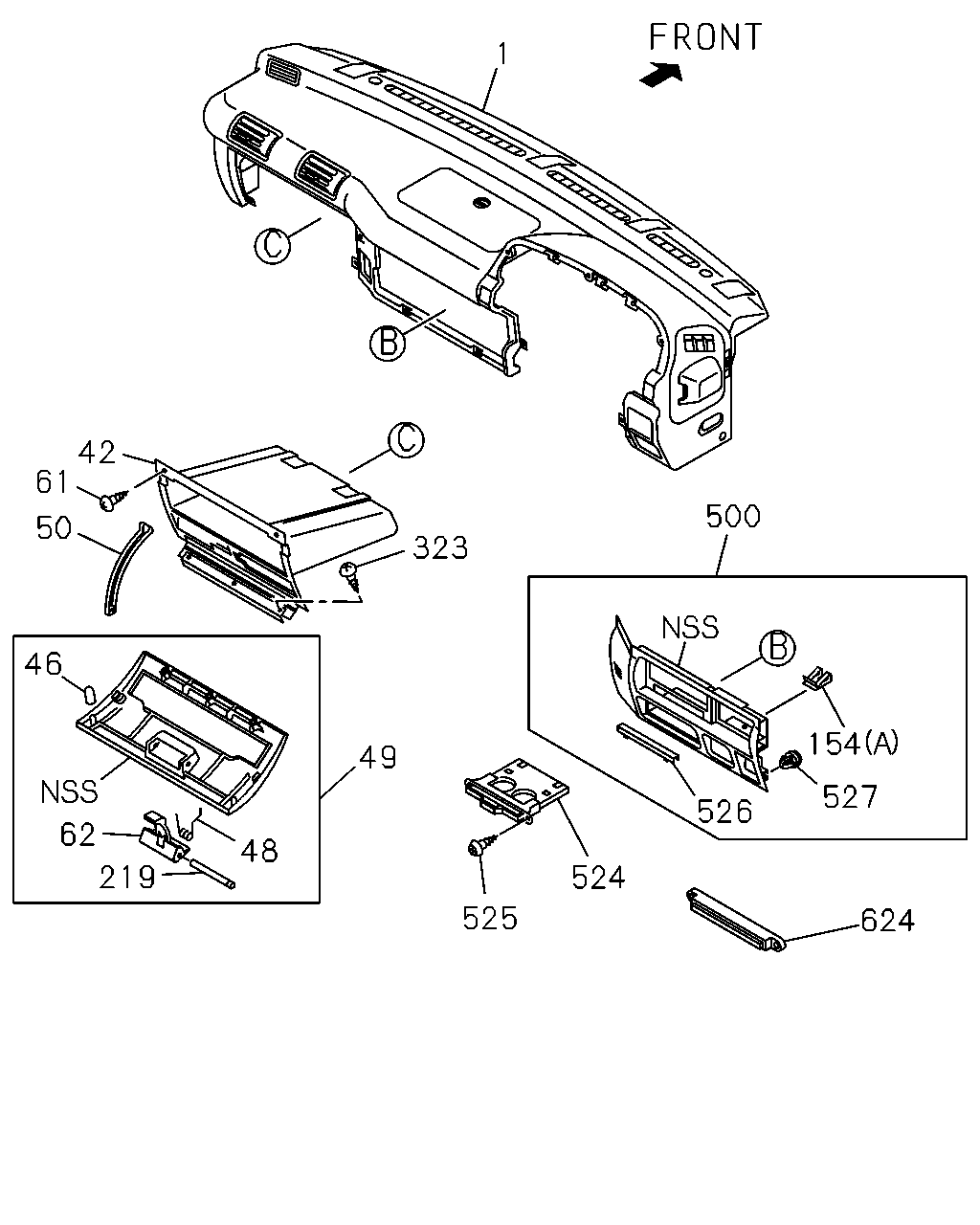

1 42 61 50 500 323 46 154 49 62 219 527 526 48 524 525 624

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.080 PANEL; INST IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97855-238-4	01	1	9412-9510	●
1	16.080 PANEL; INST DARK BEIGE	8-97856-663-0	01	1	9312-9411	●	●	●
1	16.080 PANEL; INST ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97856-663-2	01	1	9412-9510	●	●	●
1	16.080 PANEL; INST DARK BEIGE	8-97855-243-4	01	1	9511-9711	●	●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-958-0	01	1	9712-	●	●	●
1	16.080 PANEL; INST DARK BEIGE	8-97856-921-5	01	1	9312-9510				●	●	●
1	16.080 PANEL; INST DARK BEIGE	8-97855-258-4	01	1	9511-9711				●	●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-961-0	01	1	9712-				●	●	●
42	16.100 BOX; GLOVE,INST PNL	8-97853-150-5	01	1	9312-	●	●	●	●	●	●
46	16.110 CAP; GLOVE BOX STOPPER	8-94270-538-0	02	1	9312-	●	●	●	●	●	●
48	16.110 SPRING; GLOVE BOX LID	8-97853-750-1	01	1	9312-	●	●	●	●	●	●
49	16.110 LID; GLOVE BOX	8-97853-859-3	01	1	9312-9711	●	●	●	●	●	●
49	16.110 LID; GLOVE BOX DARK GRAY	8-97859-798-3	01	1	9712-	●	●	●	●	●	●
50	16.110 STOPPER; LID,GLOVE BOX,INST CLUS	8-97853-152-0	02	1	9312-	●	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	9312-	●	●	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID	8-97853-861-1	01	1	9312-9711	●	●	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID DARK GRAY	8-97857-498-1	01	1	9712-	●	●	●	●	●	●
154	16.085 NUT 16.081 (A) M5 SPIRE NUT	8-94279-051-0	01	1	9312-9612	●	●	●	●	●	●
154	16.085 NUT 16.081 (A) M5 SPIRE NUT	8-94279-051-0	01	1	9701-9702				●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	01	1	9703-9711	●	●	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	03	1	9312-9806	●	●	●	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	03	1	9807-	●	●	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	01	1	9701-	●	●	●	●	●	●
219	09.744 SHAFT; GLOVE BOX LID	5-72547-059-1	01	1	9312-	●	●	●	●	●	●
323	16.110 SCREW; GLOVE BOX LK 16.067 M5X14	8-94279-325-0	03	1	9312-	●	●	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97853-863-9	01	1	9312-9711	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY	8-97859-813-9	01	1	9712-	●	●	●
500	16.081 CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL)	8-97853-862-9	01	1	9312-9711	●	●	●
500	16.081 CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY	8-97859-812-9	01	1	9712-	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE	8-97857-897-2	01	1	9312-9711				●	●	●
500	16.081 CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY	8-97868-657-3	01	1	9712-				●	●	●
500	16.081 CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK BEIGE	8-97856-920-5	01	1	9312-9711				●	●	●
500	16.081 CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY	8-97868-656-6	01	1	9712-				●	●	●
524	16.100 STAND ASM; CUP,INST	8-97853-172-5	01	1	9312-9510	●	●	●	●	●	●
524	16.100 STAND ASM; CUP,INST CUP HOLDER<7KZ>	8-97853-172-7	01	1	9511-	●	●	●	●	●	●
525	16.100 SCREW; CUP STAND 16.067 M5X14	8-94279-325-0	02	1	9312-	●	●	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL)	8-97853-896-1	01	1	9312-9702	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK BEIGE	8-97853-896-1	01	1	9703-9711	●	●	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY	8-97857-503-1	01	1	9712-	●	●	●	●	●	●
527	16.100 CLIP; INST CLUSTER	8-97853-169-0	04	1	9312-	●	●	●	●	●	●
624	16.085 COVER; CUP STAND EXC. CUP HOLDER<7KZ>	1-72438-139-0	01	1	9511-	●	●	●	●	●	●

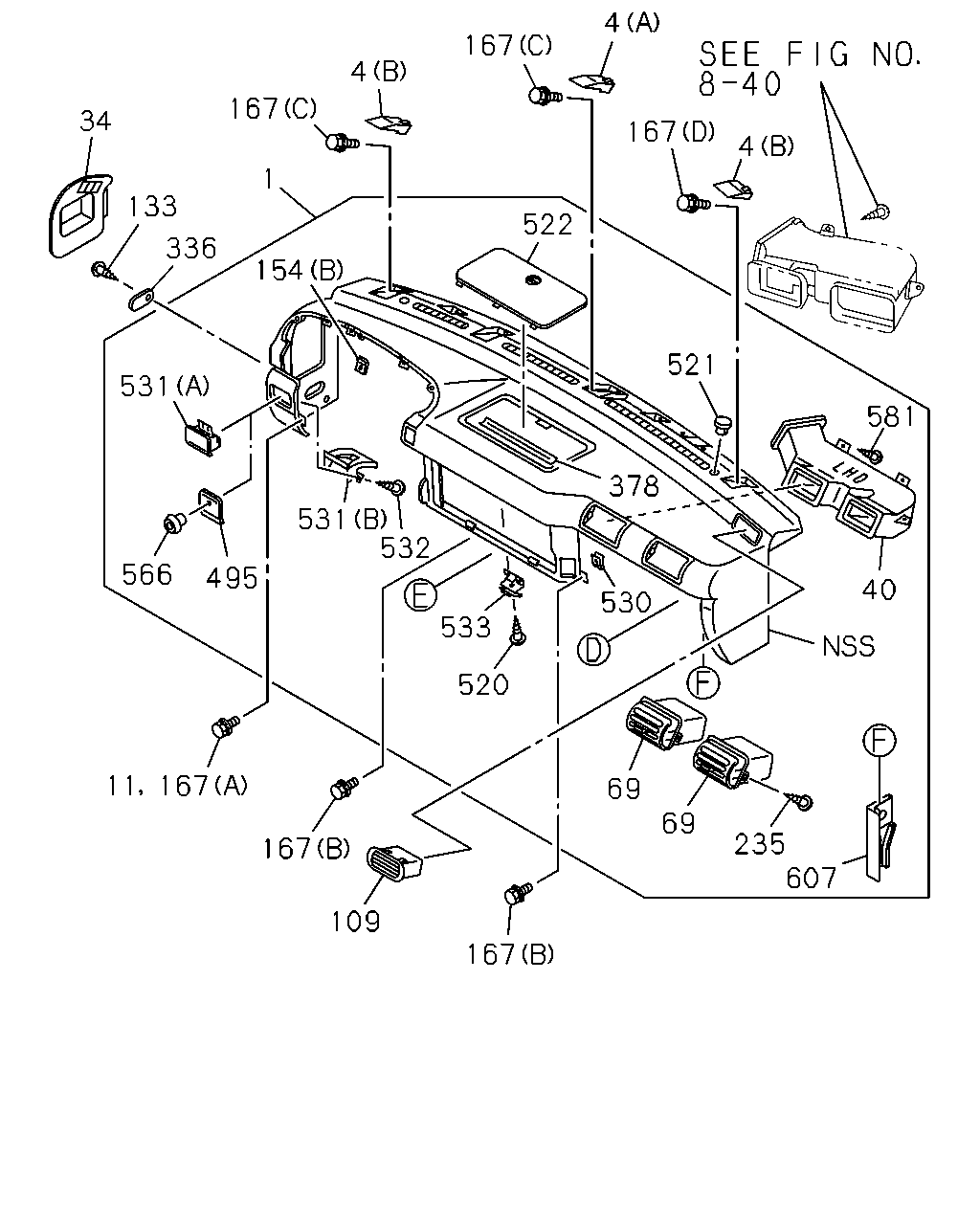

4 167 4 167 34 167 4 133 336 522 154 521 531 581 378 532 531 566 495 40 530 533 520 167 69 69 235 607 167 167 1 11 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.080 PANEL; INST IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97855-238-4	01	1	9412-9510	●
1	16.080 PANEL; INST DARK BEIGE	8-97856-663-0	01	1	9312-9411	●	●	●
1	16.080 PANEL; INST ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97856-663-2	01	1	9412-9510	●	●	●
1	16.080 PANEL; INST DARK BEIGE	8-97855-243-4	01	1	9511-9711	●	●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-958-0	01	1	9712-	●	●	●
1	16.080 PANEL; INST DARK BEIGE	8-97856-921-5	01	1	9312-9510				●	●	●
1	16.080 PANEL; INST DARK BEIGE	8-97855-258-4	01	1	9511-9711				●	●	●
1	16.080 PANEL; INST DARK GRAY	8-97195-961-0	01	1	9712-				●	●	●
4	16.080 COVER; INST PNL (A)	8-97853-880-3	02	1	9312-9711	●	●	●	●	●	●
4	16.080 COVER; INST PNL (A) DARK GRAY	8-97857-523-3	02	1	9712-	●	●	●	●	●	●
4	16.080 COVER; INST PNL (B)	8-97853-882-3	01	1	9312-9711	●	●	●	●	●	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97857-525-3	01	1	9712-	●	●	●	●	●	●
4	16.080 COVER; INST PNL (B)	8-97853-881-3	01	1	9312-9711	●	●	●	●	●	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97857-524-3	01	1	9712-	●	●	●	●	●	●
11	16.090 BOLT; INST PNL 16.085 M8X20 FLANGE	8-97114-431-0	04	1	9407-	●	●	●	●	●	●
34	16.085 LID; OIL TANK	8-97853-886-7	01	1	9312-9711	●	●	●
34	16.085 LID; OIL TANK DARK GRAY	8-97859-800-7	01	1	9712-	●	●	●
34	16.085 LID; OIL TANK DARK BEIGE	8-97856-919-5	01	1	9312-9711				●	●	●
34	16.085 LID; OIL TANK DARK GRAY	8-97857-499-5	01	1	9712-				●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL 09.786	8-97035-234-0	01	1	9405-	●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL 09.786	8-97069-824-0	01	1	9405-				●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK BEIGE	8-97853-878-2	02	1	9312-9711	●	●	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97890-631-0	02	1	9712-	●	●	●	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR	8-97853-879-0	01	1	9312-9711	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97859-795-0	01	1	9712-	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK BEIGE	8-97856-923-0	01	1	9312-9711				●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97857-530-0	01	1	9712-				●	●	●
133	16.081 SCREW; COVER,INST PNL 09.744 M5X20 TAPPING W/PL WASHER	0-74110-520-0	02	1	9312-	●	●	●	●	●	●
154	16.085 NUT 16.081 (A) M5 SPIRE NUT	8-94279-051-0	01	1	9312-9612	●	●	●	●	●	●
154	16.085 NUT 16.081 (A) M5 SPIRE NUT	8-94279-051-0	01	1	9701-9702				●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	01	1	9703-9711	●	●	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	03	1	9312-9806	●	●	●	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	03	1	9807-	●	●	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	01	1	9701-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 02.343 (A) M8X22	8-94122-771-0	04	1	9312-9405	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	9312-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (C) M6X25	8-94279-204-0	02	1	9312-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST (D) M6X24 FLANGE	8-94279-231-1	02	1	9312-	●	●	●	●	●	●
235	16.081 SCREW; GRILLE 16.067 M5X14	8-94279-325-0	04	1	9312-	●	●	●	●	●	●
336	16.081 COVER; INST PANEL SIDE	8-97853-885-4	02	1	9312-9711	●	●	●	●	●	●
336	16.081 COVER; INST PANEL SIDE DARK GRAY	8-97857-528-4	02	1	9712-	●	●	●	●	●	●
378	09.743 SEAL; INST PANEL	8-97853-938-0	01	1	9312-	●	●	●	●	●	●
495	09.743 BEZEL; SW IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-977-4	01	1	9412-9510	●
495	09.743 BEZEL; SW EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97859-977-4	01	1	9511-9711	●	●	●	●	●	●
495	09.743 BEZEL; SW EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97857-548-4	01	1	9712-	●	●	●	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	03	1	9312-9406	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	02	1	9407-	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	04	1	9312-9406				●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	03	1	9407-				●	●	●
521	16.081 COVER; SUN SENSOR	8-97853-890-2	01	1	9312-9711	●	●	●	●	●	●
521	16.081 COVER; SUN SENSOR DARK GRAY	8-97857-529-2	01	1	9712-	●	●	●	●	●	●
522	16.085 LID; RELAY BOX DARK BEIGE	8-97853-876-4	01	1	9312-9711	●	●	●	●	●	●
522	16.085 LID; RELAY BOX DARK GRAY	8-97857-520-5	01	1	9712-	●	●	●	●	●	●
530	16.100 CLIP; GLOVE BOX	8-97856-135-0	01	1	9312-	●	●	●	●	●	●
531	16.100 CASE; ASH TRAY (B)	8-97853-130-0	01	1	9312-9411	●	●	●	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU> (B)	8-97853-130-0	01	1	9412-	●	●	●	●	●	●
531	16.100 CASE; ASH TRAY (A) DARK BEIGE	8-97853-892-2	01	1	9312-9411	●	●	●	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU> (A) DARK BEIGE	8-97853-892-2	01	1	9412-9510	●	●	●	●	●	●
532	16.100 SCREW; ASH TRAY 16.067 M5X14	8-94279-325-0	02	1	9312-9411	●	●	●	●	●	●
532	16.100 SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14	8-94279-325-0	02	1	9412-	●	●	●	●	●	●
533	16.100 CLIP; SPRING,CTR CLUSTER	8-97853-170-2	03	1	9312-9406	●	●	●	●	●	●
533	16.100 CLIP; SPRING,CTR CLUSTER	8-97853-170-5	02	1	9407-	●	●	●	●	●	●
566	16.085 PLUG; HOLE IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU>	8-97859-978-0	01	1	9412-9507	●
566	16.085 PLUG; HOLE IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-839-0	01	1	9508-9510	●
566	16.085 PLUG; HOLE EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE	8-97863-839-0	01	1	9511-9711	●	●	●	●	●	●
566	16.085 PLUG; HOLE EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-413-0	01	1	9712-	●	●	●	●	●	●
581	09.744 SCREW 16.067 M5X14	8-94279-325-0	02	1	9405-	●	●	●	●	●	●
607	16.085 FIXING ASM; CLIP INST TO M/CSTR	8-97857-893-2	01	1	9312-				●	●	●

179 179 145 142 285 66 399 274 42 11 167 61 335 50 323 46 500 49 154 527 48 62 219 526 524 624 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	16.090 BOLT; INST PNL 16.085 M8X20 FLANGE	8-97114-431-0	04	1	9407-	●	●	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL	8-97853-150-5	01	1	9312-	●	●	●	●	●	●
46	16.110 CAP; GLOVE BOX STOPPER	8-94270-538-0	02	1	9312-	●	●	●	●	●	●
48	16.110 SPRING; GLOVE BOX LID	8-97853-750-1	01	1	9312-	●	●	●	●	●	●
49	16.110 LID; GLOVE BOX	8-97853-859-3	01	1	9312-9711	●	●	●	●	●	●
49	16.110 LID; GLOVE BOX DARK GRAY	8-97859-798-3	01	1	9712-	●	●	●	●	●	●
50	16.110 STOPPER; LID,GLOVE BOX,INST CLUS	8-97853-152-0	02	1	9312-	●	●	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	9312-	●	●	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID	8-97853-861-1	01	1	9312-9711	●	●	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID DARK GRAY	8-97857-498-1	01	1	9712-	●	●	●	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97857-590-8	01	1	9312-9802	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97194-312-3	01	1	9803-	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97856-187-9	01	1	9312-9606				●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97867-898-5	01	1	9607-				●	●	●
142	16.085 STAY; INST PANEL	8-97853-637-2	01	1	9312-	●	●	●
142	16.085 STAY; INST PANEL	8-97856-196-2	01	1	9312-				●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97853-638-3	01	1	9312-	●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97856-197-2	01	1	9312-				●	●	●
154	16.085 NUT 16.081 (A) M5 SPIRE NUT	8-94279-051-0	01	1	9312-9612	●	●	●	●	●	●
154	16.085 NUT 16.081 (A) M5 SPIRE NUT	8-94279-051-0	01	1	9701-9702				●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	01	1	9703-9711	●	●	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	03	1	9312-9806	●	●	●	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	03	1	9807-	●	●	●	●	●	●
154	16.085 NUT 16.742 (B) M6 SPIRE NUT	8-94291-960-0	01	1	9701-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 02.343 (A) M8X22	8-94122-771-0	04	1	9312-9405	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	9312-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (C) M6X25	8-94279-204-0	02	1	9312-	●	●	●	●	●	●
167	16.085 BOLT; REINF TO INST (D) M6X24 FLANGE	8-94279-231-1	02	1	9312-	●	●	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL 16.350 M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9312-9401	●	●	●
179	16.085 BOLT; STAY,INST PANEL 16.350 M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9402-	●	●	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9312-9401				●	●	●
219	09.744 SHAFT; GLOVE BOX LID	5-72547-059-1	01	1	9312-	●	●	●	●	●	●
274	16.100 NUT; GLOVE BOX 16.081 M5 SPIRE NUT	8-94279-051-0	02	1	9312-	●	●	●	●	●	●
285	16.085 FINISHER; INST PANEL 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	01	1	9407-				●	●	●
323	16.110 SCREW; GLOVE BOX LK 16.067 M5X14	8-94279-325-0	03	1	9312-	●	●	●	●	●	●
335	16.115 GROMMET; GLOVE BOX LK 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9312-	●	●	●	●	●	●
399	16.085 FINISHER; HARNESS 03.885 L=50	8-94270-377-1	01	1	9312-				●	●	●
500	16.081 CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97853-863-9	01	1	9312-9711	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY	8-97859-813-9	01	1	9712-	●	●	●
500	16.081 CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL)	8-97853-862-9	01	1	9312-9711	●	●	●
500	16.081 CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY	8-97859-812-9	01	1	9712-	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE	8-97857-897-2	01	1	9312-9711				●	●	●
500	16.081 CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY	8-97868-657-3	01	1	9712-				●	●	●
500	16.081 CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK BEIGE	8-97856-920-5	01	1	9312-9711				●	●	●
500	16.081 CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY	8-97868-656-6	01	1	9712-				●	●	●
524	16.100 STAND ASM; CUP,INST	8-97853-172-5	01	1	9312-9510	●	●	●	●	●	●
524	16.100 STAND ASM; CUP,INST CUP HOLDER<7KZ>	8-97853-172-7	01	1	9511-	●	●	●	●	●	●
525	16.100 SCREW; CUP STAND 16.067 M5X14	8-94279-325-0	02	1	9312-	●	●	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL)	8-97853-896-1	01	1	9312-9702	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK BEIGE	8-97853-896-1	01	1	9703-9711	●	●	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY	8-97857-503-1	01	1	9712-	●	●	●	●	●	●
527	16.100 CLIP; INST CLUSTER	8-97853-169-0	04	1	9312-	●	●	●	●	●	●
624	16.085 COVER; CUP STAND EXC. CUP HOLDER<7KZ>	1-72438-139-0	01	1	9511-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
