1-50 — EXHAUST PIPE AND SILENCER (#337) — 303 parça

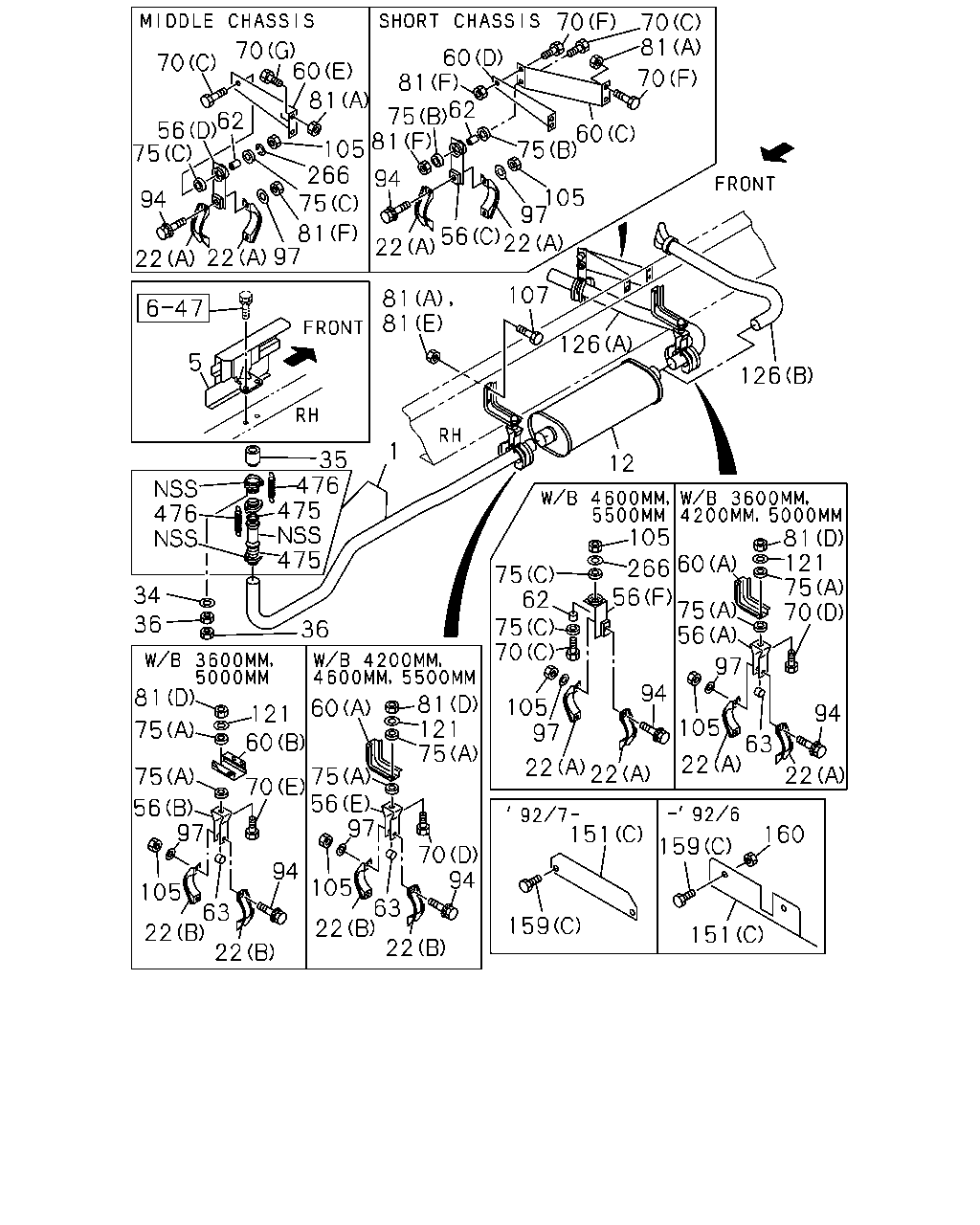

70 70 81 70 60 81 60 81 62 75 81 105 266 75 70 70 62 56 75 60 75 94 105 97 56 22 94 81 22 22 22 107 81 81 126 5 126 1 35 476 475 475 12 476 105 81 266 60 121 75 56 75 70 56 75 62 75 70 34 36 36 81 121 75 81 97 94 105 97 60 94 121 60 75 70 56 97 105 75 63 22 22 22 22 75 56 97 151 160 159 70 94 94 105 105 63 22 63 22 159 151 22 22 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH ANTI NOISE EQUIPMENT VAR2<TAK>	1-22122-369-0	01	1	9411-9412	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22122-083-1	01	1	9202-	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-264-1	01	1	9202-9410	●
1	PIPE; EXH	1-22122-264-1	01	1	9202-9410		●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-22122-264-1	01	1	9411-9412	●
1	PIPE; EXH	1-22122-264-1	01	1	9411-9412		●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-264-1	01	1	9501-	●
1	PIPE; EXH	1-22122-264-1	01	1	9501-		●
5	PROTECTOR; HEAT	1-33659-167-1	01	1	9202-	●	●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4>	1-22140-735-0	01	1	9202-	●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-715-2	01	1	9202-	●
12	SILENCER ASM; EXH	1-22140-715-2	01	1	9202-		●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (A) ID=83.5	1-22133-178-1	01	1	9202-	●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (B)	1-22133-228-0	02	1	9202-	●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (B) L=120	1-22133-231-0	02	1	9202-	●
22	CLAMP; EXH PIPE (B) L=120	1-22133-231-0	02	1	9202-		●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A) ID=75-78	1-22133-232-0	04	1	9202-	●
22	CLAMP; EXH PIPE (A) ID=75-78	1-22133-232-0	04	1	9202-		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9202-	●	●
35	GASKET; EXH PIPE TO MANIF EXC. EXHAUST BRAKE<NF8>	1-22116-024-0	01	1	9202-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE VERTICAL TAIL PIPE<NC4>	1-22139-082-0	02	1	9202-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (E) H=125	1-22139-048-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (F)	1-22131-599-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(FT***C) (C) L=287	1-22131-523-1	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(FT***C) (B)	1-22139-044-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (B)	1-22139-044-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(FT***C) (A) H=119	1-22139-060-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> (A) H=119	1-22139-060-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS(FT***F) EXC. VERTICAL TAIL PIPE<NC4> (D)	1-22131-528-1	01	1	9202-	●	●
60	BRACKET; FRAME TO BRKT VERTICAL TAIL PIPE<NC4>	1-22151-397-1	02	1	9202-	●
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (C)	1-22131-489-0	01	1	9202-	●	●
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (D)	1-22131-491-0	01	1	9202-	●	●
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (A)	1-22151-512-2	01	1	9202-9203	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9202-9203	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9202-9203	●	●
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (A)	1-22151-512-2	01	1	9204-	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9204-	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9204-	●	●
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (B)	1-22151-534-3	01	1	9202-	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (B)	1-22151-534-3	01	1	9202-	●	●
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS(FT***F) EXC. VERTICAL TAIL PIPE<NC4> (E)	1-22131-435-1	01	1	9202-	●	●
62	TUBE; DIST,BRKT EXC. VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	01	1	9202-	●	●
62	TUBE; DIST,BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	01	1	9202-	●	●
63	TUBE; DIST,BRKT SHORT CHASSIS(FT***C) L=11	1-22139-026-0	01	1	9202-9203	●	●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> L=11	1-22139-026-0	01	1	9202-9203	●	●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> L=11	1-22139-026-0	01	1	9202-9203	●	●
63	TUBE; DIST,BRKT SHORT CHASSIS(FT***C) L=11	1-22139-026-0	01	1	9204-	●	●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> L=11	1-22139-026-0	01	1	9204-	●	●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> L=11	1-22139-026-0	01	1	9204-	●	●
63	TUBE; DIST,BRKT SHORT CHASSIS(FT***C) L=8.5	1-22139-057-0	01	1	9202-	●	●
63	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) L=8.5	1-22139-057-0	01	1	9202-	●	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (A) M10X50	0-10806-050-0	02	1	9202-	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (C) M10X55	0-10806-055-0	01	1	9202-	●	●
70	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (C) M10X55	0-10806-055-0	01	1	9202-	●	●
70	BOLT; BRKT SHORT CHASSIS(FT***C) (E) M10X45	0-10806-045-0	01	1	9202-	●	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) (E) M10X45	0-10806-045-0	01	1	9202-	●	●
70	BOLT; BRKT SHORT CHASSIS(FT***C) (D) M10X50	0-10806-050-0	01	1	9202-9203	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (D) M10X50	0-10806-050-0	01	1	9202-9203	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (D) M10X50	0-10806-050-0	01	1	9202-9203	●	●
70	BOLT; BRKT SHORT CHASSIS(FT***C) (D) M10X50	0-10806-050-0	01	1	9204-	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (D) M10X50	0-10806-050-0	01	1	9204-	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> (D) M10X50	0-10806-050-0	01	1	9204-	●	●
70	BOLT; BRKT SHORT CHASSIS(FT***C) (F) M10X30 W/LK WASHER	0-50041-030-0	01	1	9202-	●	●
70	BOLT; BRKT SHORT CHASSIS(FT***C) (F) M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-9307	●	●
70	BOLT; BRKT SHORT CHASSIS(FT***C) (F) M10X30 FLANGE	0-28081-030-0	04	1	9308-	●	●
70	BOLT; BRKT MIDDLE CHASSIS(FT***F) EXC. VERTICAL TAIL PIPE<NC4> (G) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9307	●	●
70	BOLT; BRKT MIDDLE CHASSIS(FT***F) EXC. VERTICAL TAIL PIPE<NC4> (G) M10X30 FLANGE	0-28081-030-0	02	1	9308-	●	●
75	RUBBER; SUPPORT,BRKT VERTICAL TAIL PIPE<NC4> OD=30	1-22159-106-1	04	1	9202-	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	02	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	02	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (C) OD=35	9-22159-008-0	02	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (C) OD=35	9-22159-008-0	02	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS(FT***C) (B)	1-22159-119-0	02	1	9202-	●	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> (C) M8	9-09110-408-0	02	1	9202-	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> (B) M10 LOCK NUT	9-09131-510-0	02	1	9202-	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (F) M10	9-09110-410-0	02	1	9202-9304	●
81	NUT; BRKT (F) M10	9-09110-410-0	02	1	9202-9304		●
81	NUT; BRKT SHORT CHASSIS(FT***C) (F) M10	9-09110-410-0	02	1	9305-9407	●	●
81	NUT; BRKT (A) M10	9-09110-510-0	04	1	9202-	●	●
81	NUT; BRKT SHORT CHASSIS(FT***C) (A) M10	9-09110-510-0	04	1	9202-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (E) M10	9-09110-410-0	01	1	9202-9203	●	●
81	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> (E) M10	9-09110-410-0	01	1	9202-9203	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (E) M10	9-09110-410-0	01	1	9204-9304	●	●
81	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (E) M10	9-09110-410-0	01	1	9204-9304	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (E) M10	9-09110-410-0	01	1	9305-9407	●	●
81	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (E) M10	9-09110-410-0	01	1	9305-9407	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (D) M10 LOCK NUT	9-09131-510-0	01	1	9202-9203	●	●
81	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (D) M10 LOCK NUT	9-09131-510-0	01	1	9202-9203	●	●
81	NUT; BRKT SHORT CHASSIS(FT***C) (D) M10 LOCK NUT	9-09131-510-0	01	1	9204-	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> (D) M10 LOCK NUT	9-09131-510-0	01	1	9204-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (D) M10 LOCK NUT	9-09131-510-0	01	1	9204-	●	●
81	NUT; BRKT SHORT CHASSIS(FT***C) (E) M10	9-09110-510-0	01	1	9305-9407	●	●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (E) M10	9-09110-510-0	01	1	9305-9407	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-510-0	02	1	9408-	●
81	NUT; BRKT (A) M10	9-09110-510-0	02	1	9408-		●
81	NUT; BRKT MIDDLE CHASSIS(FT***F) EXC. VERTICAL TAIL PIPE<NC4> (F) M10	9-09110-510-0	02	1	9305-9407	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (F) M10	9-09110-510-0	01	1	9408-	●	●
81	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (F) M10	9-09110-510-0	01	1	9408-	●	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-	●	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-	●	●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9202-	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9202-	●	●
97	WASHER; PL,CLAMP EXC. VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	02	1	9202-	●	●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9305-9407	●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9408-	●	●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9408-	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9408-	●	●
105	NUT; CLAMP M10	9-09110-410-0	02	1	9202-9407	●	●
105	NUT; CLAMP M10	9-09110-410-0	02	1	9202-9407	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	02	1	9202-9407	●	●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	04	1	9202-9307	●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X40 FLANGE	0-28081-040-0	04	1	9308-	●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-9307	●
107	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-9307		●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 FLANGE	0-28081-030-0	04	1	9308-	●
107	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	04	1	9308-		●
107	BOLT; BRKT SHORT CHASSIS(FT***C) M10X30 W/LK WASHER	0-50041-030-0	01	1	9202-9307	●	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X30 W/LK WASHER	0-50041-030-0	01	1	9202-9307	●	●
107	BOLT; BRKT SHORT CHASSIS(FT***C) M10X30 FLANGE	0-28081-030-0	01	1	9308-	●	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X30 FLANGE	0-28081-030-0	01	1	9308-	●	●
121	WASHER; PL,BRKT VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9202-	●
121	WASHER; PL,BRKT SHORT CHASSIS(FT***C) ID=10.5 OD=32	9-09164-810-0	01	1	9202-	●	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	01	1	9202-	●	●
121	WASHER; PL,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	01	1	9202-	●	●
126	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22112-777-2	01	1	9202-9207	●
126	PIPE; EXH,RR (A)	1-22112-777-2	01	1	9202-9207		●
126	PIPE; EXH,RR MIDDLE CHASSIS(FT***F) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22126-073-0	01	1	9208-	●	●
126	PIPE; EXH,RR SHORT CHASSIS(FT***C) (B)	1-22126-072-0	01	1	9208-	●	●
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> (A)	1-22159-169-3	01	1	9202-	●
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> (B)	1-22159-204-1	01	1	9202-	●
151	PROTECTOR; HEAT,EXH PIPE (C)	1-53619-081-1	01	1	9203-9206	●	●
151	PROTECTOR; HEAT,EXH PIPE (C)	1-53319-018-0	01	1	9207-	●	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> (A) M8X22	9-01900-822-0	10	1	9202-9204	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> (A) M8X22 W/LK WASHER	0-50040-822-0	10	1	9205-	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> (B) M8X14	9-01960-814-0	04	1	9202-9204	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> (B) M8X14	0-50140-814-0	04	1	9205-	●
159	BOLT; HEAT PROTECTOR (C) M8X25 FLANGE	0-28080-825-0	02	1	9203-	●	●
160	NUT; HEAT PROTECTOR M8	9-09110-408-0	02	1	9203-9206	●	●
266	WASHER; LK,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.2	9-09150-510-0	01	1	9202-	●	●
266	WASHER; LK,BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> ID=10.2	9-09150-510-0	01	1	9202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4>	1-22119-277-0	02	1	9202-	●
475	BEARING; SEAL,VIBNON,EXH PIPE	1-22119-277-0	02	1	9202-		●
476	SPRING; VIBNON,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4>	1-09583-298-0	02	1	9202-	●
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	02	1	9202-		●

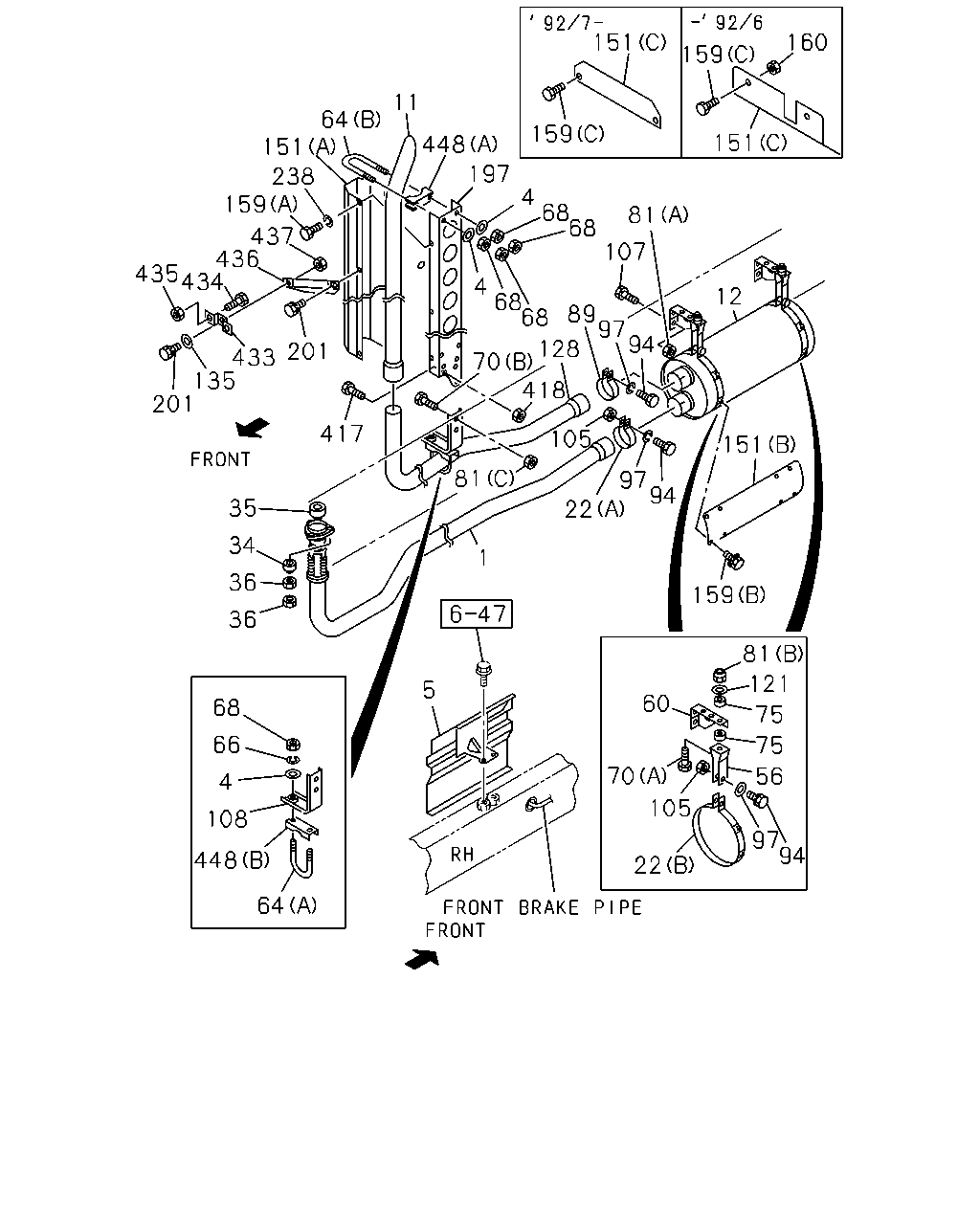

151 160 159 11 64 151 159 151 448 197 238 159 4 68 68 81 437 436 435 434 107 4 68 68 12 89 97 94 128 70 418 201 433 135 201 417 105 151 81 97 94 35 22 34 1 36 159 36 81 121 5 60 68 75 66 75 70 56 4 105 108 97 94 448 22 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH ANTI NOISE EQUIPMENT VAR2<TAK>	1-22122-369-0	01	1	9411-9412	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22122-083-1	01	1	9202-	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-264-1	01	1	9202-9410	●
1	PIPE; EXH	1-22122-264-1	01	1	9202-9410		●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-22122-264-1	01	1	9411-9412	●
1	PIPE; EXH	1-22122-264-1	01	1	9411-9412		●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-264-1	01	1	9501-	●
1	PIPE; EXH	1-22122-264-1	01	1	9501-		●
4	WASHER; PL,U BOLT VERTICAL TAIL PIPE<NC4> ID=8.4	9-09160-508-0	02	1	9202-	●
4	WASHER; PL,U BOLT VERTICAL TAIL PIPE<NC4> ID=8.4	9-09160-508-0	04	1	9202-	●
5	PROTECTOR; HEAT	1-33659-167-1	01	1	9202-	●	●
11	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4>	1-22112-968-1	01	1	9202-	●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4>	1-22140-735-0	01	1	9202-	●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-715-2	01	1	9202-	●
12	SILENCER ASM; EXH	1-22140-715-2	01	1	9202-		●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (A) ID=83.5	1-22133-178-1	01	1	9202-	●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (B)	1-22133-228-0	02	1	9202-	●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (B) L=120	1-22133-231-0	02	1	9202-	●
22	CLAMP; EXH PIPE (B) L=120	1-22133-231-0	02	1	9202-		●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A) ID=75-78	1-22133-232-0	04	1	9202-	●
22	CLAMP; EXH PIPE (A) ID=75-78	1-22133-232-0	04	1	9202-		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9202-	●	●
35	GASKET; EXH PIPE TO MANIF EXC. EXHAUST BRAKE<NF8>	1-22116-024-0	01	1	9202-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE VERTICAL TAIL PIPE<NC4>	1-22139-082-0	02	1	9202-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (E) H=125	1-22139-048-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (F)	1-22131-599-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(FT***C) (C) L=287	1-22131-523-1	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(FT***C) (B)	1-22139-044-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (B)	1-22139-044-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(FT***C) (A) H=119	1-22139-060-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> (A) H=119	1-22139-060-0	01	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS(FT***F) EXC. VERTICAL TAIL PIPE<NC4> (D)	1-22131-528-1	01	1	9202-	●	●
60	BRACKET; FRAME TO BRKT VERTICAL TAIL PIPE<NC4>	1-22151-397-1	02	1	9202-	●
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (C)	1-22131-489-0	01	1	9202-	●	●
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (D)	1-22131-491-0	01	1	9202-	●	●
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (A)	1-22151-512-2	01	1	9202-9203	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9202-9203	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9202-9203	●	●
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (A)	1-22151-512-2	01	1	9204-	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9204-	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	01	1	9204-	●	●
60	BRACKET; FRAME TO BRKT SHORT CHASSIS(FT***C) (B)	1-22151-534-3	01	1	9202-	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (B)	1-22151-534-3	01	1	9202-	●	●
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS(FT***F) EXC. VERTICAL TAIL PIPE<NC4> (E)	1-22131-435-1	01	1	9202-	●	●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> (A)	1-22139-033-1	01	1	9202-	●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> (B)	1-22139-053-0	02	1	9202-9502	●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> (B) L=140	1-22113-030-1	02	1	9503-	●
66	WASHER; LK,U BOLT VERTICAL TAIL PIPE<NC4> ID=8.2	9-09150-508-0	02	1	9202-	●
68	NUT; U BOLT VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	02	1	9202-	●
68	NUT; U BOLT VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	08	1	9202-	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (A) M10X50	0-10806-050-0	02	1	9202-	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (C) M10X55	0-10806-055-0	01	1	9202-	●	●
70	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (C) M10X55	0-10806-055-0	01	1	9202-	●	●
70	BOLT; BRKT SHORT CHASSIS(FT***C) (E) M10X45	0-10806-045-0	01	1	9202-	●	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) (E) M10X45	0-10806-045-0	01	1	9202-	●	●
70	BOLT; BRKT SHORT CHASSIS(FT***C) (D) M10X50	0-10806-050-0	01	1	9202-9203	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (D) M10X50	0-10806-050-0	01	1	9202-9203	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (D) M10X50	0-10806-050-0	01	1	9202-9203	●	●
70	BOLT; BRKT SHORT CHASSIS(FT***C) (D) M10X50	0-10806-050-0	01	1	9204-	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (D) M10X50	0-10806-050-0	01	1	9204-	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> (D) M10X50	0-10806-050-0	01	1	9204-	●	●
70	BOLT; BRKT SHORT CHASSIS(FT***C) (F) M10X30 W/LK WASHER	0-50041-030-0	01	1	9202-	●	●
70	BOLT; BRKT SHORT CHASSIS(FT***C) (F) M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-9307	●	●
70	BOLT; BRKT SHORT CHASSIS(FT***C) (F) M10X30 FLANGE	0-28081-030-0	04	1	9308-	●	●
70	BOLT; BRKT MIDDLE CHASSIS(FT***F) EXC. VERTICAL TAIL PIPE<NC4> (G) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9307	●	●
70	BOLT; BRKT MIDDLE CHASSIS(FT***F) EXC. VERTICAL TAIL PIPE<NC4> (G) M10X30 FLANGE	0-28081-030-0	02	1	9308-	●	●
75	RUBBER; SUPPORT,BRKT VERTICAL TAIL PIPE<NC4> OD=30	1-22159-106-1	04	1	9202-	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	02	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	02	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (C) OD=35	9-22159-008-0	02	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (C) OD=35	9-22159-008-0	02	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS(FT***C) (B)	1-22159-119-0	02	1	9202-	●	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> (C) M8	9-09110-408-0	02	1	9202-	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> (B) M10 LOCK NUT	9-09131-510-0	02	1	9202-	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (F) M10	9-09110-410-0	02	1	9202-9304	●
81	NUT; BRKT (F) M10	9-09110-410-0	02	1	9202-9304		●
81	NUT; BRKT SHORT CHASSIS(FT***C) (F) M10	9-09110-410-0	02	1	9305-9407	●	●
81	NUT; BRKT (A) M10	9-09110-510-0	04	1	9202-	●	●
81	NUT; BRKT SHORT CHASSIS(FT***C) (A) M10	9-09110-510-0	04	1	9202-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (E) M10	9-09110-410-0	01	1	9202-9203	●	●
81	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> (E) M10	9-09110-410-0	01	1	9202-9203	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (E) M10	9-09110-410-0	01	1	9204-9304	●	●
81	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (E) M10	9-09110-410-0	01	1	9204-9304	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (E) M10	9-09110-410-0	01	1	9305-9407	●	●
81	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (E) M10	9-09110-410-0	01	1	9305-9407	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (D) M10 LOCK NUT	9-09131-510-0	01	1	9202-9203	●	●
81	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (D) M10 LOCK NUT	9-09131-510-0	01	1	9202-9203	●	●
81	NUT; BRKT SHORT CHASSIS(FT***C) (D) M10 LOCK NUT	9-09131-510-0	01	1	9204-	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> (D) M10 LOCK NUT	9-09131-510-0	01	1	9204-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (D) M10 LOCK NUT	9-09131-510-0	01	1	9204-	●	●
81	NUT; BRKT SHORT CHASSIS(FT***C) (E) M10	9-09110-510-0	01	1	9305-9407	●	●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (E) M10	9-09110-510-0	01	1	9305-9407	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-510-0	02	1	9408-	●
81	NUT; BRKT (A) M10	9-09110-510-0	02	1	9408-		●
81	NUT; BRKT MIDDLE CHASSIS(FT***F) EXC. VERTICAL TAIL PIPE<NC4> (F) M10	9-09110-510-0	02	1	9305-9407	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (F) M10	9-09110-510-0	01	1	9408-	●	●
81	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. VERTICAL TAIL PIPE<NC4> (F) M10	9-09110-510-0	01	1	9408-	●	●
89	CLAMP; EXH SILENCER,RR VERTICAL TAIL PIPE<NC4> ID=83.5	1-22133-178-1	01	1	9202-	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-	●	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-	●	●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9202-	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9202-	●	●
97	WASHER; PL,CLAMP EXC. VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	02	1	9202-	●	●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9305-9407	●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9408-	●	●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9408-	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9408-	●	●
105	NUT; CLAMP M10	9-09110-410-0	02	1	9202-9407	●	●
105	NUT; CLAMP M10	9-09110-410-0	02	1	9202-9407	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	02	1	9202-9407	●	●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	04	1	9202-9307	●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X40 FLANGE	0-28081-040-0	04	1	9308-	●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-9307	●
107	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-9307		●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 FLANGE	0-28081-030-0	04	1	9308-	●
107	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	04	1	9308-		●
107	BOLT; BRKT SHORT CHASSIS(FT***C) M10X30 W/LK WASHER	0-50041-030-0	01	1	9202-9307	●	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X30 W/LK WASHER	0-50041-030-0	01	1	9202-9307	●	●
107	BOLT; BRKT SHORT CHASSIS(FT***C) M10X30 FLANGE	0-28081-030-0	01	1	9308-	●	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X30 FLANGE	0-28081-030-0	01	1	9308-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR VERTICAL TAIL PIPE<NC4>	1-22131-426-0	01	1	9202-	●
121	WASHER; PL,BRKT VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9202-	●
121	WASHER; PL,BRKT SHORT CHASSIS(FT***C) ID=10.5 OD=32	9-09164-810-0	01	1	9202-	●	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	01	1	9202-	●	●
121	WASHER; PL,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	01	1	9202-	●	●
128	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4>	1-22112-959-1	01	1	9202-	●
135	WASHER; PL,STAY VERTICAL TAIL PIPE<NC4> ID=10.5 OD=22	9-09160-610-0	01	1	9202-	●
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> (A)	1-22159-169-3	01	1	9202-	●
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> (B)	1-22159-204-1	01	1	9202-	●
151	PROTECTOR; HEAT,EXH PIPE (C)	1-53619-081-1	01	1	9203-9206	●	●
151	PROTECTOR; HEAT,EXH PIPE (C)	1-53319-018-0	01	1	9207-	●	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> (A) M8X22	9-01900-822-0	10	1	9202-9204	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> (A) M8X22 W/LK WASHER	0-50040-822-0	10	1	9205-	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> (B) M8X14	9-01960-814-0	04	1	9202-9204	●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> (B) M8X14	0-50140-814-0	04	1	9205-	●
159	BOLT; HEAT PROTECTOR (C) M8X25 FLANGE	0-28080-825-0	02	1	9203-	●	●
160	NUT; HEAT PROTECTOR M8	9-09110-408-0	02	1	9203-9206	●	●
197	BRACKET; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4>	1-22131-605-2	01	1	9202-	●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> M10X25 W/LK WASHER	0-50041-025-0	01	1	9202-	●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	01	1	9202-	●
238	WASHER; LK,HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> ID=8.4 OD=22	9-09160-708-0	10	1	9202-	●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	05	1	9202-9307	●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X30 FLANGE	0-28081-030-0	05	1	9308-	●
418	NUT; BRKT VERTICAL TAIL PIPE<NC4> M8	9-09110-510-0	05	1	9202-	●
433	BRACKET; STAY,EXH PIPE VERTICAL TAIL PIPE<NC4>	1-22131-501-1	01	1	9202-	●
434	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-	●
435	NUT; BRKT VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	02	1	9202-	●
436	STAY; SUPPORT,EXH VERTICAL TAIL PIPE<NC4>	1-22131-659-0	01	1	9202-	●
437	NUT; STAY VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	9202-	●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4> (A)	1-22113-074-0	02	1	9202-	●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4> (B)	1-22119-214-0	01	1	9202-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
