◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#33699) — 12 parça

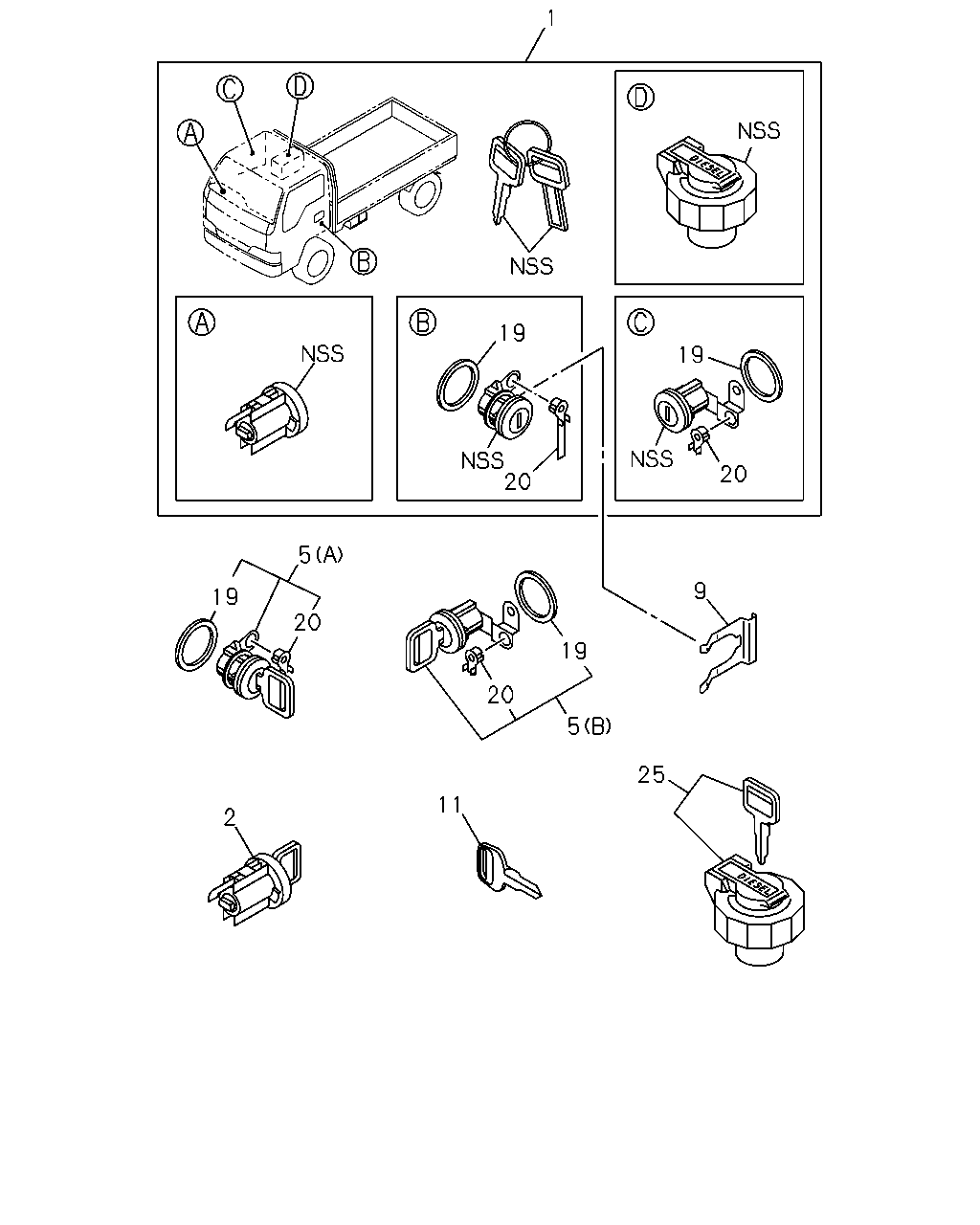

çizim 67796
20 20 5 9 20 19 20 5 25 2 1 19 19 19 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97035-293-1 01 1 9312- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-97035-294-1 01 1 9312- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-97095-682-2 01 1 9312- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-97095-685-2 01 1 9312- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-97095-684-2 01 1 9312- ● ● ● ● ● ●
9 16.328 CLIP; DOOR LOCK 8-94278-105-0 02 1 9312- ● ● ● ● ● ●
11 02.187 KEY; BLANK
EXC. FUEL TANK CAP W/LOCK<N05> WO/NOTCH 		8-97076-337-0 AR 1 9312- ● ● ● ● ● ●
11 02.187 KEY; BLANK
FUEL TANK CAP W/LOCK<N05> WO/NOTCH 		8-97076-337-0 01 1 9312- ● ● ● ●
19 16.328 GASKET; DOOR LOCK CYL
FUEL TANK CAP W/LOCK<N05> 		8-94128-739-0 02 1 9312- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
FUEL TANK CAP W/LOCK<N05> 10.474 BROWN 		8-97040-453-0 01 1 9312- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
FUEL TANK CAP W/LOCK<N05> 10.474 YELLOW 		8-97040-452-0 01 1 9312- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-97095-686-2 01 1 9312- ● ● ● ●
