Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#33698) — 211 parça

4 162 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> GRAY	8-97853-835-2	01	1	9312-9711	●	●	●	●	●	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-346-2	01	1	9712-	●	●	●	●	●	●
1	16.068 MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-772-2	01	1	9312-9602	●	●	●	●	●	●
1	16.068 MIRROR; ROOM EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> GRAY	8-97856-772-2	01	1	9603-9711	●	●	●	●	●	●
1	16.068 MIRROR; ROOM EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-348-2	01	1	9712-	●	●	●	●	●	●
1	16.068 MIRROR; ROOM CAB-LOW ROOF<6XQ> GRAY	8-97859-200-1	01	1	9603-9711					●
1	16.068 MIRROR; ROOM CAB-LOW ROOF<6XQ> DARK GRAY	8-97868-663-1	01	1	9712-					●
2	16.069 SCREW; MIRROR TO BODY 03.671 M5X20	5-09981-059-0	02	1	9312-	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> L=15	8-97857-428-0	01	1	9312-9401	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR EXC. TRAY ROOF HEAD<7EJ> L=23	8-97853-083-0	01	1	9312-9401	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR L=23	8-97853-083-0	01	1	9402-9507	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR L=22	8-97857-352-1	01	1	9508-9603	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=22	8-97857-352-1	01	1	9604-	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	9604-	●	●	●	●	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR 09.743	8-94279-084-2	01	1	9312-9503	●	●	●	●	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR 16.588	8-94279-039-0	01	1	9504-	●	●	●	●	●	●
33	16.069 COVER; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-94262-629-0	01	1	9312-9510	●	●	●	●	●	●
158	16.495 LENS; ROOM LAMP TRAY ROOF HEAD<7EJ> 16.068	5-73117-108-0	01	1	9312-9409	●	●	●	●	●	●
158	16.495 LENS; ROOM LAMP 16.068	5-73117-108-1	01	1	9410-	●	●	●	●	●	●
159	08.991 BULB; ROOM LAMP TRAY ROOF HEAD<7EJ> 12V 10W	5-82194-015-0	01	1	9312-9409	●	●	●	●	●	●
159	08.991 BULB; ROOM LAMP 12V 10W	5-82194-015-0	01	1	9410-	●	●	●	●	●	●
162	16.069 SEAL; ROOM LAMP CAB-LOW ROOF<6XQ>	8-97856-532-0	01	1	9603-					●

90 92 19 90 92 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE> 16.588	8-97857-925-0	02	1	9703-9807			●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE> 16.588	8-97857-925-0	02	1	9808-			●			●
33	16.069 COVER; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-94262-629-0	01	1	9312-9510	●	●	●	●	●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> (A)	8-97857-463-2	01	1	9507-9510			●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> (A)	8-97857-463-4	01	1	9511-9710			●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> 16.588 (B)	8-97868-528-0	01	1	9711-9807			●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> 16.588 (B)	8-97868-528-0	01	1	9808-			●			●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> (A)	8-97857-462-2	01	1	9507-9510			●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> (A)	8-97857-462-4	01	1	9511-9710			●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> 16.588 (B)	8-97868-527-0	01	1	9711-9807			●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> 16.588 (B)	8-97868-527-0	01	1	9808-			●			●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-0	06	1	9312-	●	●	●	●	●	●

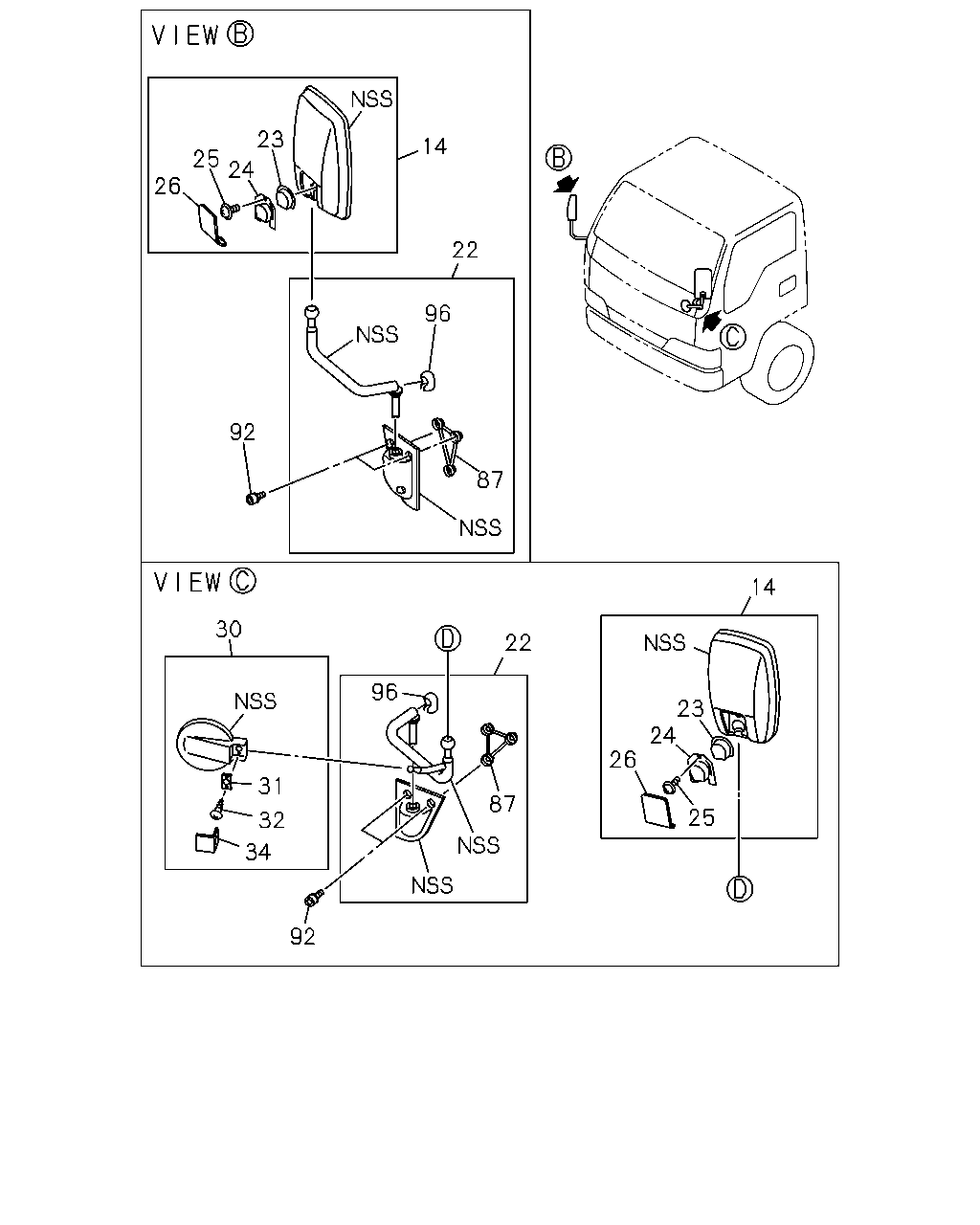

23 25 24 26 14 22 96 92 87 14 30 22 96 23 24 26 31 32 34 87 25 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	16.068 MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	9312-9506	●	●	●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	9507-9510	●	●			●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>	8-94262-542-3	02	1	9507-9510			●	●
14	16.068 MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	9511-9807	●	●		●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>	8-94262-542-3	02	1	9511-9807			●
14	16.068 MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	9808-	●	●		●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>	8-94262-542-3	02	1	9808-			●			●
22	16.069 STAY; OUTSIDE MIRROR	8-97853-026-9	01	1	9312-9702	●	●			●
22	16.069 STAY; OUTSIDE MIRROR	8-97868-237-0	01	1	9703-	●	●			●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97853-027-9	01	1	9312-9702	●	●			●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97868-238-0	01	1	9703-9706	●	●			●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-942-1	01	1	9707-	●	●			●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-739-7	01	1	9312-	●	●			●
22	16.069 STAY; OUTSIDE MIRROR	8-97856-269-6	01	1	9312-9506			●	●		●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>	8-97856-269-7	01	1	9507-9807			●	●		●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>	8-97856-269-7	01	1	9808-			●			●
22	16.069 STAY; OUTSIDE MIRROR	8-97856-269-7	01	1	9808-				●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97856-736-6	01	1	9312-9506			●	●		●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-97856-736-7	01	1	9507-9711			●	●		●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-97866-939-0	01	1	9712-			●	●		●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-735-6	01	1	9312-9506			●	●		●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>,DOOR MIRROR<6VE>	8-97856-735-7	01	1	9507-			●	●		●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	9312-9506	●	●	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	9507-9510	●	●			●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.0	8-94262-545-0	02	1	9507-9510			●	●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	9511-9807	●	●		●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.0	8-94262-545-0	02	1	9511-9807			●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	9808-	●	●		●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.0	8-94262-545-0	02	1	9808-			●			●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	9312-9506	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	9507-9510	●	●			●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=1.6	8-94262-546-1	02	1	9507-9510			●	●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	9511-9807	●	●		●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=1.6	8-94262-546-1	02	1	9511-9807			●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	9808-	●	●		●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=1.6	8-94262-546-1	02	1	9808-			●			●
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	9312-9506	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	9507-9510	●	●			●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> M6X30	8-94279-365-0	02	1	9507-9510			●	●
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	9511-9807	●	●		●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> M6X30	8-94279-365-0	02	1	9511-9807			●
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	9808-	●	●		●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> M6X30	8-94279-365-0	02	1	9808-			●			●
26	16.069 COVER; OUTSIDE MIRROR T=2.3	8-94262-547-2	02	1	9312-9506	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR T=2.3	8-94262-547-2	02	1	9507-9510	●	●			●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.3	8-94262-547-2	02	1	9507-9510			●	●
26	16.069 COVER; OUTSIDE MIRROR T=2.3	8-94262-547-2	02	1	9511-9807	●	●		●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.3	8-94262-547-2	02	1	9511-9807			●
26	16.069 COVER; OUTSIDE MIRROR T=2.3	8-94262-547-2	02	1	9808-	●	●		●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.3	8-94262-547-2	02	1	9808-			●			●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9>	8-94262-625-1	01	1	9312-9506	●	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-94262-625-2	01	1	9507-	●	●	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-94262-631-0	01	1	9312-	●	●	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE> M5X18	8-94279-372-0	02	1	9312-	●	●	●	●	●	●
33	16.069 COVER; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-94262-629-0	01	1	9312-9510	●	●	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-94262-629-0	01	1	9511-	●	●	●	●	●	●
87	16.069 SPACER	8-97856-606-2	01	1	9312-9506	●	●	●	●	●	●
87	16.069 SPACER EXC. DOOR MIRROR<6VE>	8-97856-606-2	01	1	9507-9510	●	●	●	●	●	●
87	16.069 SPACER	8-97856-605-2	01	1	9312-9506	●	●	●	●	●	●
87	16.069 SPACER EXC. DOOR MIRROR<6VE>	8-97856-605-2	01	1	9507-9510	●	●	●	●	●	●
87	16.069 SPACER DOOR MIRROR<6VE>	8-94272-677-0	02	1	9507-9510			●	●
87	16.069 SPACER DOOR MIRROR<6VE>	8-94272-677-0	02	1	9511-9807			●
87	16.069 SPACER DOOR MIRROR<6VE>	8-94272-677-0	02	1	9808-			●			●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-0	06	1	9312-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	9312-9506	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	9507-9510	●	●			●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE> OD=40	8-97853-206-2	02	1	9507-9510			●	●
96	16.069 CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	9511-9807	●	●		●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE> OD=40	8-97853-206-2	02	1	9511-9807			●
96	16.069 CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	9808-	●	●		●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE> OD=40	8-97853-206-2	02	1	9808-			●			●

126 69 88 59 199 13 59 51 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	16.068 MIRROR ASM; OUTSIDE RR VIEW GULF STANDARD EQUIPMENT<6HK> DOOR MIRROR<6VE>	8-97867-880-0	02	1	9607-9611			●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(EU2) DOOR MIRROR<6VE>	8-97867-880-0	02	1	9612-9807			●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(EU2) DOOR MIRROR<6VE>	8-97867-880-0	02	1	9808-			●			●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>	8-97094-318-0	02	1	9507-9510			●	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>	8-97094-318-0	02	1	9511-9606			●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE> EXC. GULF STANDARD EQUIPMENT<6HK>	8-97094-318-0	02	1	9607-9611			●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97094-318-0	02	1	9612-9807			●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97094-318-0	02	1	9808-			●			●
33	16.069 COVER; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-94262-629-0	01	1	9312-9510	●	●	●	●	●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE> M6X30	8-94279-327-0	08	1	9507-9510			●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE> M6X30	8-94279-327-0	08	1	9511-9807			●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE> M6X30	8-94279-327-0	08	1	9808-			●			●
59	16.069 WASHER; LK DOOR MIRROR<6VE> T=2.6	8-94279-073-0	04	1	9507-9510			●	●
59	16.069 WASHER; LK DOOR MIRROR<6VE> T=2.6	8-94279-073-0	04	1	9511-9807			●
59	16.069 WASHER; LK DOOR MIRROR<6VE> T=2.6	8-94279-073-0	04	1	9808-			●			●
69	16.069 NUT; CAP DOOR MIRROR<6VE> M10	1-09984-134-0	02	1	9507-9510			●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE> M10	1-09984-134-0	02	1	9511-9807			●
69	16.069 NUT; CAP DOOR MIRROR<6VE> M10	1-09984-134-0	02	1	9808-			●			●
87	16.069 SPACER	8-97856-606-2	01	1	9312-9506	●	●	●	●	●	●
87	16.069 SPACER EXC. DOOR MIRROR<6VE>	8-97856-606-2	01	1	9507-9510	●	●	●	●	●	●
87	16.069 SPACER	8-97856-605-2	01	1	9312-9506	●	●	●	●	●	●
87	16.069 SPACER EXC. DOOR MIRROR<6VE>	8-97856-605-2	01	1	9507-9510	●	●	●	●	●	●
87	16.069 SPACER DOOR MIRROR<6VE>	8-94272-677-0	02	1	9507-9510			●	●
87	16.069 SPACER DOOR MIRROR<6VE>	8-94272-677-0	02	1	9511-9807			●
87	16.069 SPACER DOOR MIRROR<6VE>	8-94272-677-0	02	1	9808-			●			●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE> 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9507-9510			●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE> 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9511-9807			●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE> 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9808-			●			●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97856-638-3	01	1	9511-9807			●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97856-638-3	01	1	9808-			●			●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97856-637-3	01	1	9511-9807			●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97856-637-3	01	1	9808-			●			●
199	16.069 SUPPORT; MIRROR DOOR MIRROR<6VE>	8-97856-622-2	02	1	9507-9510			●	●
199	16.069 SUPPORT; MIRROR DOOR MIRROR<6VE>	8-97856-622-2	02	1	9511-9807			●
199	16.069 SUPPORT; MIRROR DOOR MIRROR<6VE>	8-97856-622-2	02	1	9808-			●			●

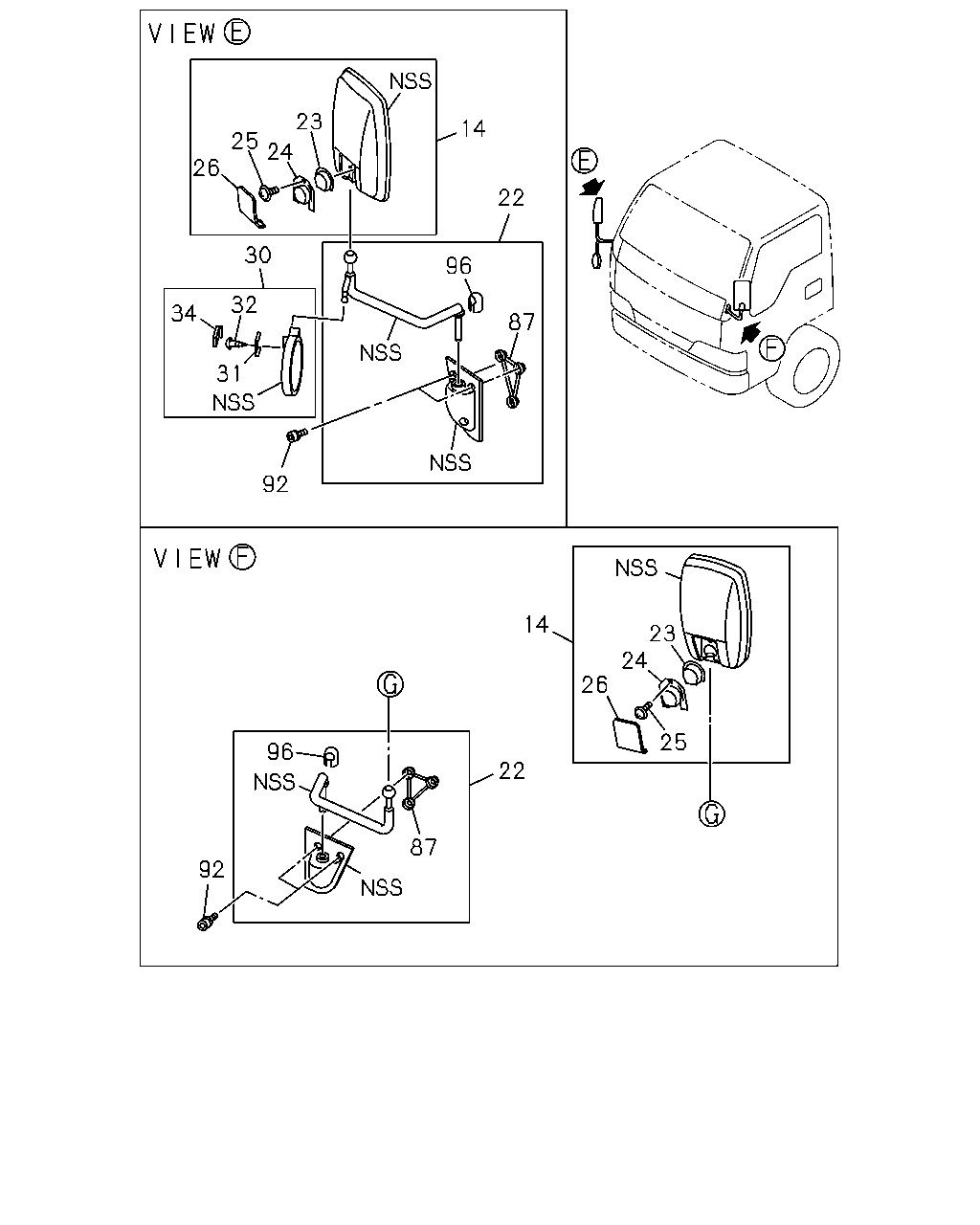

23 25 24 26 14 22 30 96 32 34 87 31 92 14 23 24 26 25 96 22 87 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	16.068 MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	9312-9506	●	●	●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	9507-9510	●	●			●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>	8-94262-542-3	02	1	9507-9510			●	●
14	16.068 MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	9511-9807	●	●		●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>	8-94262-542-3	02	1	9511-9807			●
14	16.068 MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	9808-	●	●		●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>	8-94262-542-3	02	1	9808-			●			●
22	16.069 STAY; OUTSIDE MIRROR	8-97853-026-9	01	1	9312-9702	●	●			●
22	16.069 STAY; OUTSIDE MIRROR	8-97868-237-0	01	1	9703-	●	●			●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97853-027-9	01	1	9312-9702	●	●			●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97868-238-0	01	1	9703-9706	●	●			●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-942-1	01	1	9707-	●	●			●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-739-7	01	1	9312-	●	●			●
22	16.069 STAY; OUTSIDE MIRROR	8-97856-269-6	01	1	9312-9506			●	●		●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>	8-97856-269-7	01	1	9507-9807			●	●		●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>	8-97856-269-7	01	1	9808-			●			●
22	16.069 STAY; OUTSIDE MIRROR	8-97856-269-7	01	1	9808-				●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97856-736-6	01	1	9312-9506			●	●		●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-97856-736-7	01	1	9507-9711			●	●		●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-97866-939-0	01	1	9712-			●	●		●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-735-6	01	1	9312-9506			●	●		●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>,DOOR MIRROR<6VE>	8-97856-735-7	01	1	9507-			●	●		●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	9312-9506	●	●	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	9507-9510	●	●			●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.0	8-94262-545-0	02	1	9507-9510			●	●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	9511-9807	●	●		●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.0	8-94262-545-0	02	1	9511-9807			●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	9808-	●	●		●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.0	8-94262-545-0	02	1	9808-			●			●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	9312-9506	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	9507-9510	●	●			●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=1.6	8-94262-546-1	02	1	9507-9510			●	●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	9511-9807	●	●		●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=1.6	8-94262-546-1	02	1	9511-9807			●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	9808-	●	●		●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=1.6	8-94262-546-1	02	1	9808-			●			●
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	9312-9506	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	9507-9510	●	●			●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> M6X30	8-94279-365-0	02	1	9507-9510			●	●
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	9511-9807	●	●		●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> M6X30	8-94279-365-0	02	1	9511-9807			●
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	9808-	●	●		●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> M6X30	8-94279-365-0	02	1	9808-			●			●
26	16.069 COVER; OUTSIDE MIRROR T=2.3	8-94262-547-2	02	1	9312-9506	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR T=2.3	8-94262-547-2	02	1	9507-9510	●	●			●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.3	8-94262-547-2	02	1	9507-9510			●	●
26	16.069 COVER; OUTSIDE MIRROR T=2.3	8-94262-547-2	02	1	9511-9807	●	●		●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.3	8-94262-547-2	02	1	9511-9807			●
26	16.069 COVER; OUTSIDE MIRROR T=2.3	8-94262-547-2	02	1	9808-	●	●		●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.3	8-94262-547-2	02	1	9808-			●			●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9>	8-94262-625-1	01	1	9312-9506	●	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-94262-625-2	01	1	9507-	●	●	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-94262-631-0	01	1	9312-	●	●	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE> M5X18	8-94279-372-0	02	1	9312-	●	●	●	●	●	●
33	16.069 COVER; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-94262-629-0	01	1	9312-9510	●	●	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>	8-94262-629-0	01	1	9511-	●	●	●	●	●	●
87	16.069 SPACER	8-97856-606-2	01	1	9312-9506	●	●	●	●	●	●
87	16.069 SPACER EXC. DOOR MIRROR<6VE>	8-97856-606-2	01	1	9507-9510	●	●	●	●	●	●
87	16.069 SPACER	8-97856-605-2	01	1	9312-9506	●	●	●	●	●	●
87	16.069 SPACER EXC. DOOR MIRROR<6VE>	8-97856-605-2	01	1	9507-9510	●	●	●	●	●	●
87	16.069 SPACER DOOR MIRROR<6VE>	8-94272-677-0	02	1	9507-9510			●	●
87	16.069 SPACER DOOR MIRROR<6VE>	8-94272-677-0	02	1	9511-9807			●
87	16.069 SPACER DOOR MIRROR<6VE>	8-94272-677-0	02	1	9808-			●			●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-0	06	1	9312-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	9312-9506	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	9507-9510	●	●			●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE> OD=40	8-97853-206-2	02	1	9507-9510			●	●
96	16.069 CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	9511-9807	●	●		●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE> OD=40	8-97853-206-2	02	1	9511-9807			●
96	16.069 CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	9808-	●	●		●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE> OD=40	8-97853-206-2	02	1	9808-			●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
