◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#33694) — 17 parça

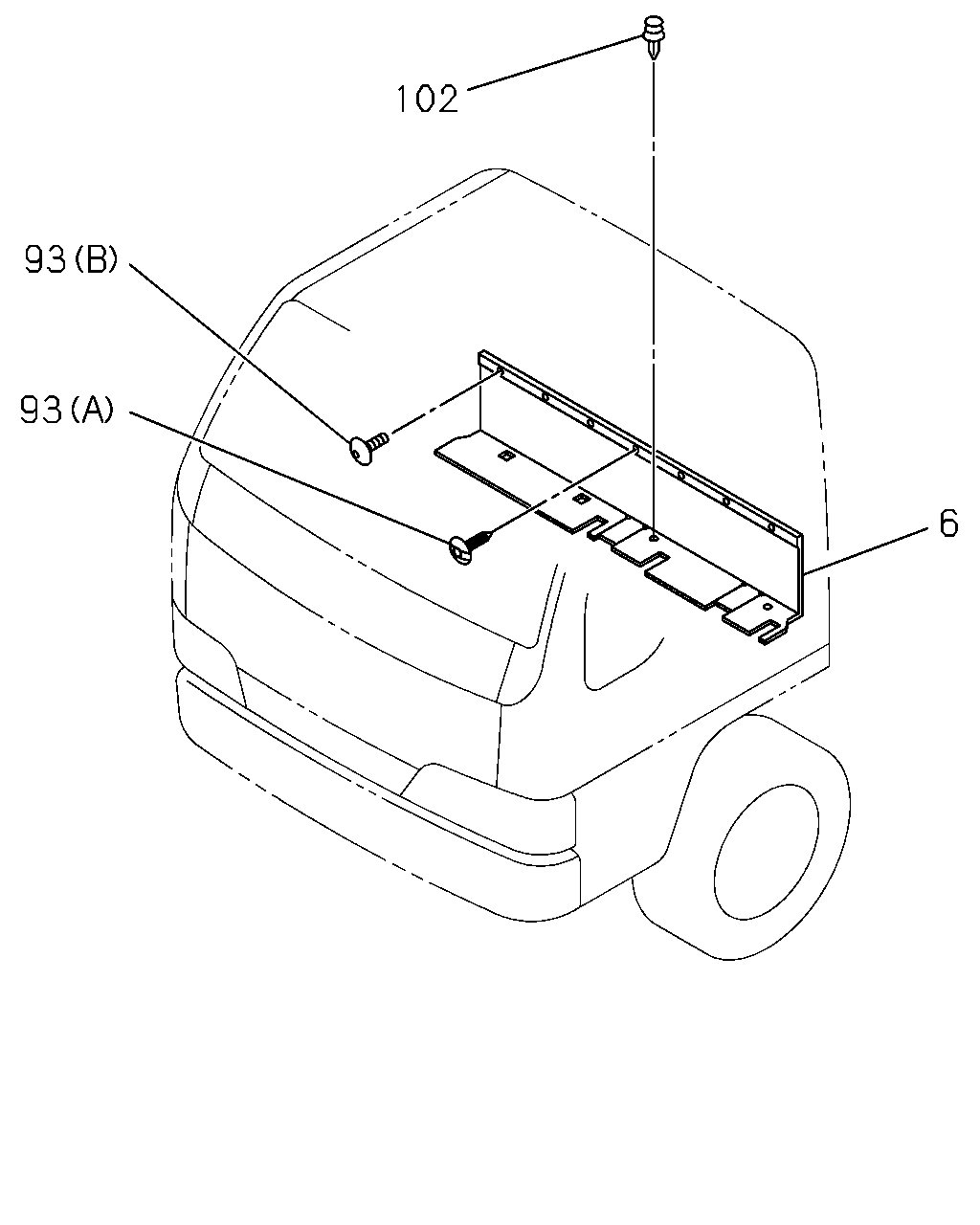

çizim 65698
102 93 93 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 16.592 MAT; SILENCER,CAB BACK 8-97856-017-4 01 1 9312-9408 ● ●
6 16.592 MAT; SILENCER,CAB BACK
EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S) DARK BEIGE 		8-97856-017-5 01 1 9409-9510 ● ●
6 16.592 MAT; SILENCER,CAB BACK
DARK BEIGE 		8-97856-251-2 01 1 9312-9408 ● ●
6 16.592 MAT; SILENCER,CAB BACK
EXC. CHINA EQUIPMENT(YT2) DARK BEIGE 		8-97856-251-3 01 1 9409-9510 ●
6 16.592 MAT; SILENCER,CAB BACK
CHINA EQUIPMENT(YT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> DARK BEIGE 		8-97856-251-3 01 1 9409-9510 ●
6 16.592 MAT; SILENCER,CAB BACK
DARK BEIGE 		8-97856-251-3 01 1 9409-9510 ●
93 16.584 CLIP; SILENCER MATTERESS
(A) D6X23 		8-94279-509-0 02 1 9312-9408 ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S) (A) D6X23 		8-94279-509-0 02 1 9409-9510 ●
93 16.584 CLIP; SILENCER MATTERESS
CHINA EQUIPMENT(YT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) D6X23 		8-94279-509-0 02 1 9409-9510 ●
93 16.584 CLIP; SILENCER MATTERESS
EXC. CHINA EQUIPMENT(YT2) (A) D6X23 		8-94279-509-0 02 1 9409-9510 ●
93 16.584 CLIP; SILENCER MATTERESS
(A) D6X23 		8-94279-509-0 02 1 9409-9510 ● ●
93 16.584 CLIP; SILENCER MATTERESS
(B) DARK BEIGE 		8-97856-753-0 05 1 9312-9408 ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
EXC. WEST MALAYSIA EQUIPMENT(RWP), INDONESIA EQUIPMENT(S4S) (B) DARK BEIGE 		8-97856-753-0 05 1 9409-9510 ●
93 16.584 CLIP; SILENCER MATTERESS
EXC. CHINA EQUIPMENT(YT2) (B) DARK BEIGE 		8-97856-753-0 05 1 9409-9510 ●
93 16.584 CLIP; SILENCER MATTERESS
CHINA EQUIPMENT(YT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) DARK BEIGE 		8-97856-753-0 05 1 9409-9510 ●
93 16.584 CLIP; SILENCER MATTERESS
(B) DARK BEIGE 		8-97856-753-0 05 1 9409-9510 ● ●
102 16.584 CLIP; TRAY,BACK PANEL
16.165 OD=7.9 BLACK 		8-94279-974-1 01 1 9312- ● ●
