◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#33692) — 61 parça

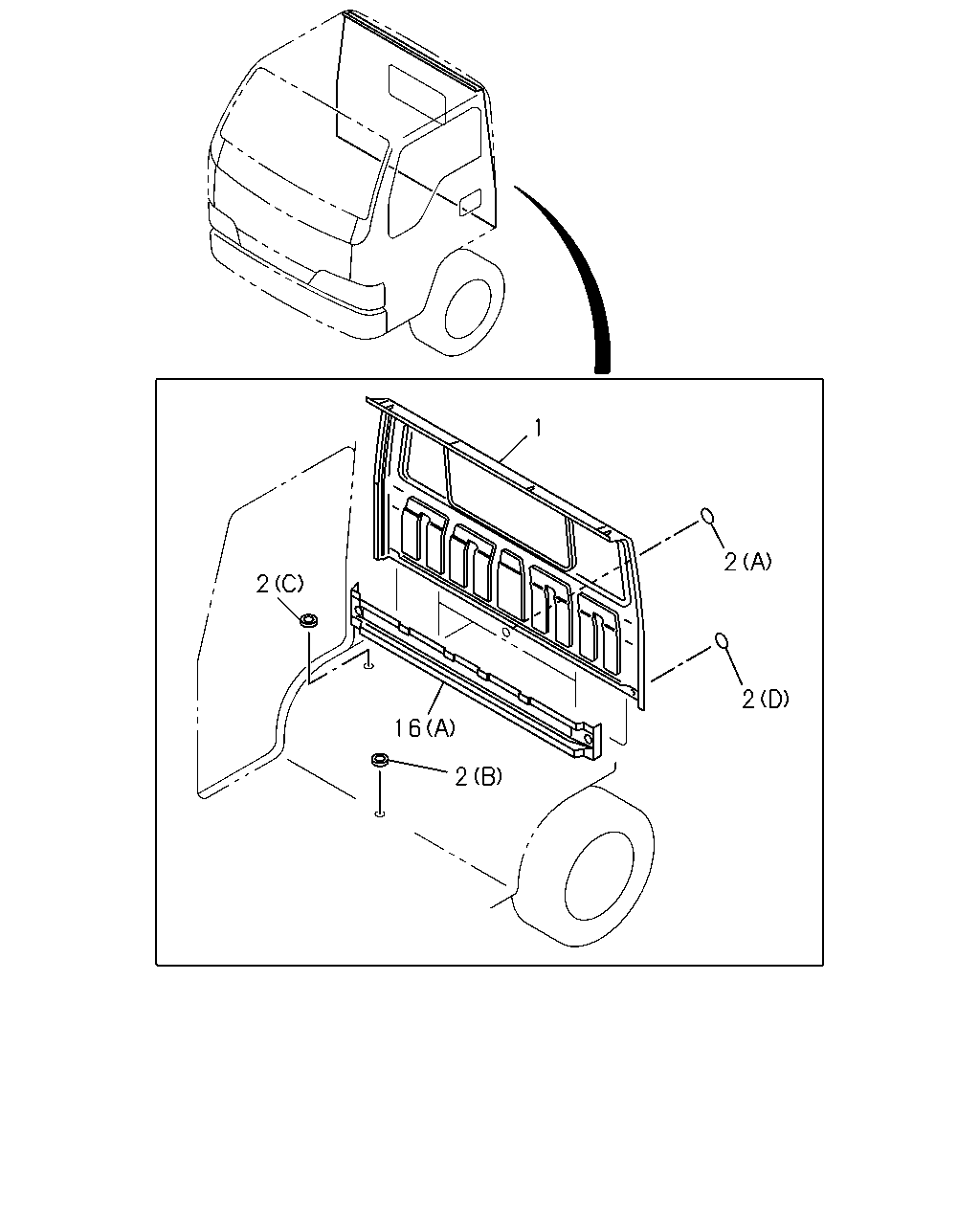

çizim 18170
2 2 2 16 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-479-2 01 1 9312-9411 ● ●
1 16.587 PANEL; BACK OUTER
EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 9312-9408 ● ● ● ●
1 16.587 PANEL; BACK OUTER
EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 9409-9411 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 9409-9411 ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 9412-9510 ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 9511-9602 ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 9603-9711 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9603-9711 ●
1 16.587 PANEL; BACK OUTER
EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9712- ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 9312-9408 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 9712- ● ●
1 16.587 PANEL; BACK OUTER
CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9603- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 9312- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 9312- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=36 BLACK 		1-76798-018-0 02 1 9312- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9312- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 9312- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-055-5 01 1 9511-9702 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-055-5 01 1 9703-9703 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. CAB-LOW ROOF<6XQ> (A) 		8-97851-055-5 01 1 9703-9703 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 9312- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
CAB-LOW ROOF<6XQ> (A) 		8-97867-215-0 01 1 9703-9703 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 9704- ● ● ● ● ● ●

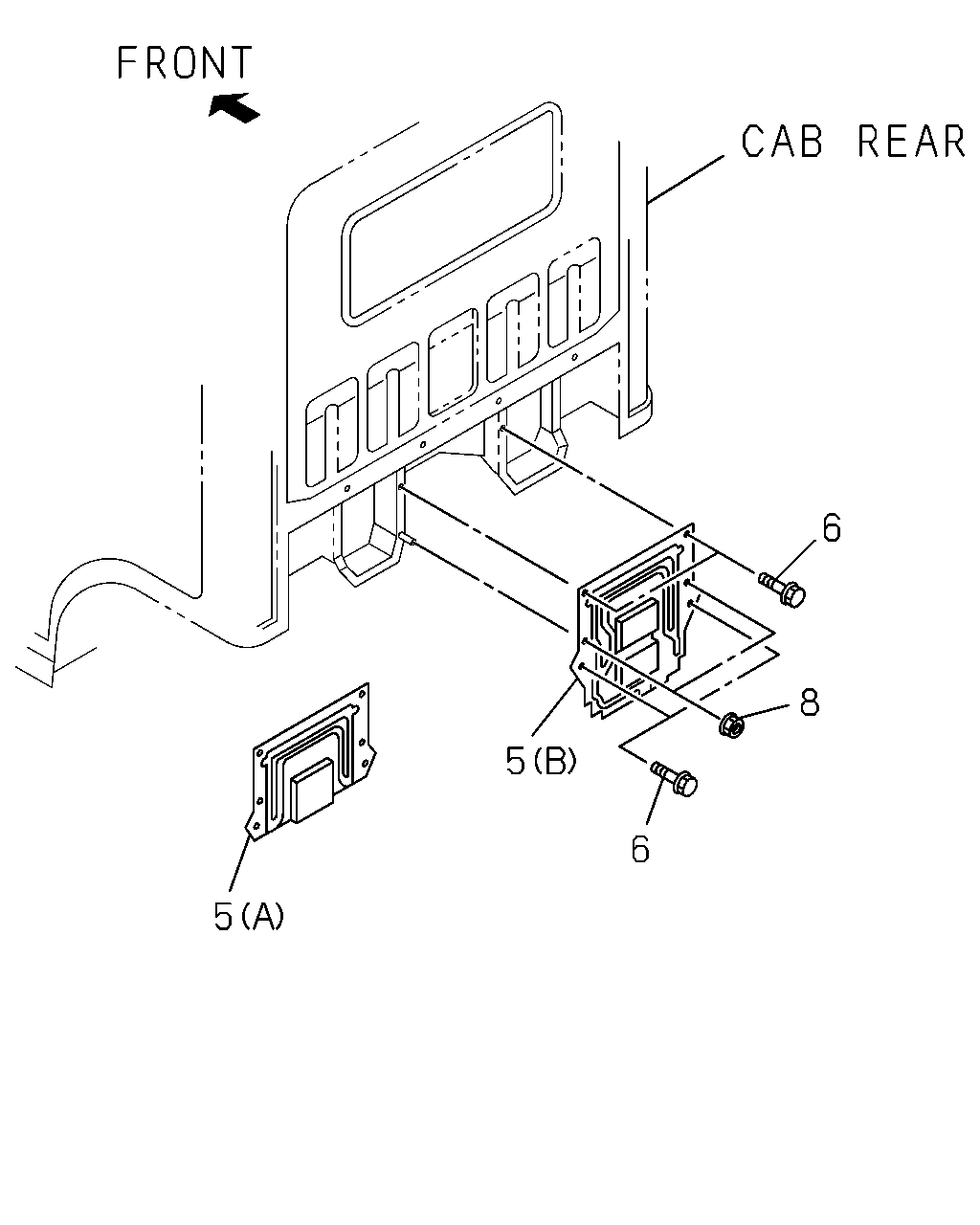

çizim 18330
6 8 5 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 16.587 PANEL; CAB BACK
AIR INTAKE REAR VERTICAL<KJ3> HONG KONG EQUIPMENT(PQ1) (A) 		8-97122-140-0 01 1 9501-9608 ●
5 16.587 PANEL; CAB BACK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HONG KONG EQUIPMENT(PQ1) (A) 		8-97122-140-0 01 1 9609- ●
5 16.587 PANEL; CAB BACK
HONG KONG EQUIPMENT(PQ1) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97122-141-0 01 1 9501-9608 ●
5 16.587 PANEL; CAB BACK
HONG KONG EQUIPMENT(PQ1) (B) 		8-97122-141-0 01 1 9501-9608 ●
5 16.587 PANEL; CAB BACK
4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97122-141-0 01 1 9609-9711 ● ●
5 16.587 PANEL; CAB BACK
4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97122-141-0 01 1 9712- ● ●
6 16.587 BOLT; BACK PANEL
HONG KONG EQUIPMENT(PQ1) 04.595 M8X20 FLANGE 		0-28480-820-0 04 1 9501-9608 ● ●
6 16.587 BOLT; BACK PANEL
4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) 04.595 M8X20 FLANGE 		0-28480-820-0 04 1 9609-9702 ● ●
6 16.587 BOLT; BACK PANEL
4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9703- ● ●
8 16.587 NUT; BACK PANEL
HONG KONG EQUIPMENT(PQ1) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9501-9608 ● ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9609- ● ●

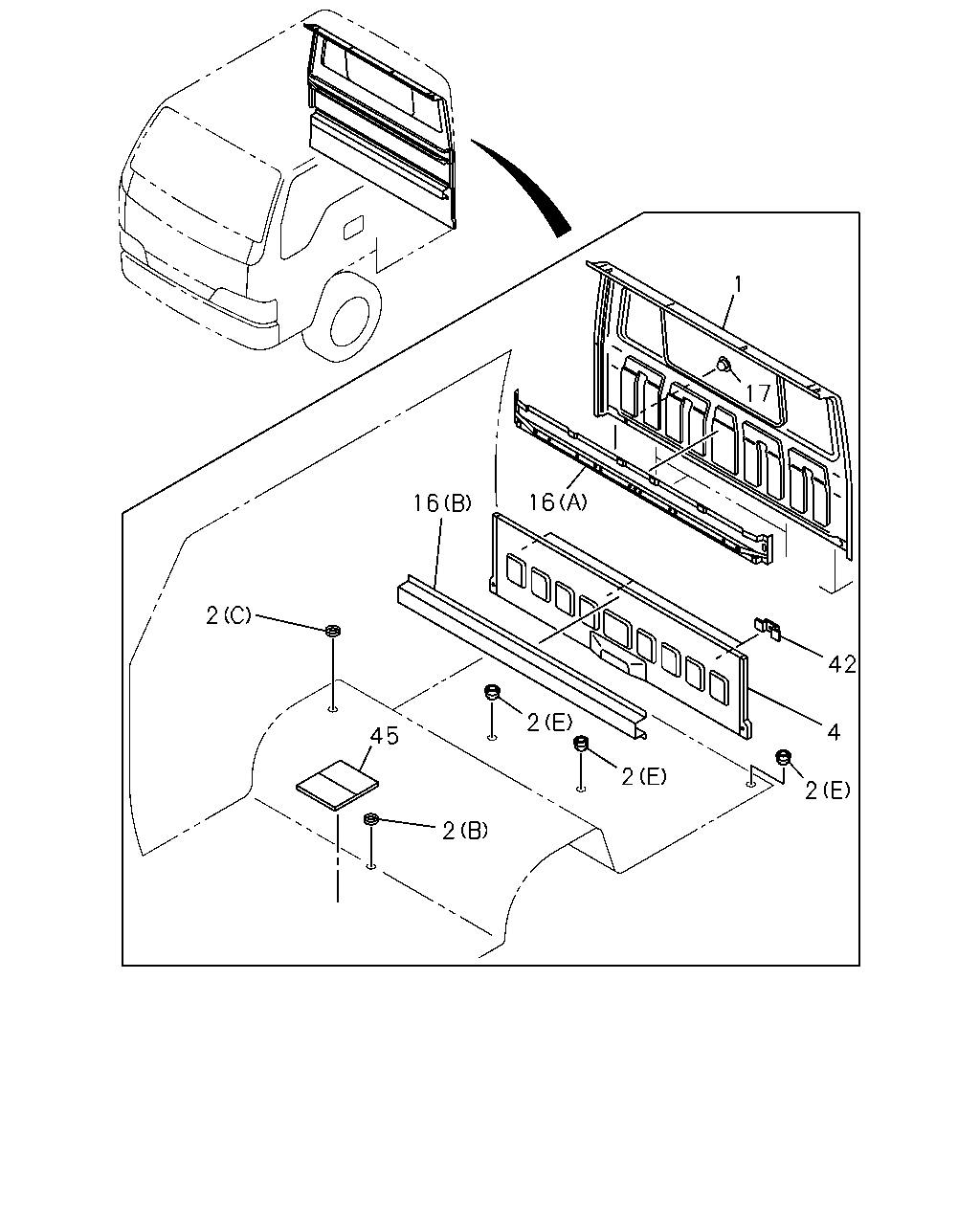

çizim 67842
16 16 2 42 2 45 2 2 2 1 17 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-479-2 01 1 9312-9411 ● ●
1 16.587 PANEL; BACK OUTER
EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 9312-9408 ● ● ● ●
1 16.587 PANEL; BACK OUTER
EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 9409-9411 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 9409-9411 ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 9412-9510 ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 9511-9602 ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 9603-9711 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9603-9711 ●
1 16.587 PANEL; BACK OUTER
EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9712- ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 9312-9408 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 9712- ● ●
1 16.587 PANEL; BACK OUTER
CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9603- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 9312- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 9312- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=36 BLACK 		1-76798-018-0 02 1 9312- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9312- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 9312- ● ●
4 16.575 PANEL; CAB BACK LWR 8-97851-145-6 01 1 9312- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-055-5 01 1 9511-9702 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-055-5 01 1 9703-9703 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. CAB-LOW ROOF<6XQ> (A) 		8-97851-055-5 01 1 9703-9703 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 9312- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
CAB-LOW ROOF<6XQ> (A) 		8-97867-215-0 01 1 9703-9703 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 9704- ● ● ● ● ● ●
17 16.592 GROMMET; LOCATION HOLE,CAB RR MT
09.647 		1-09983-097-0 02 1 9312-9411 ● ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 03 1 9312- ● ●
45 16.587 SHEET; MELTING,BACK PANEL
16.850 NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 02 1 9312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
