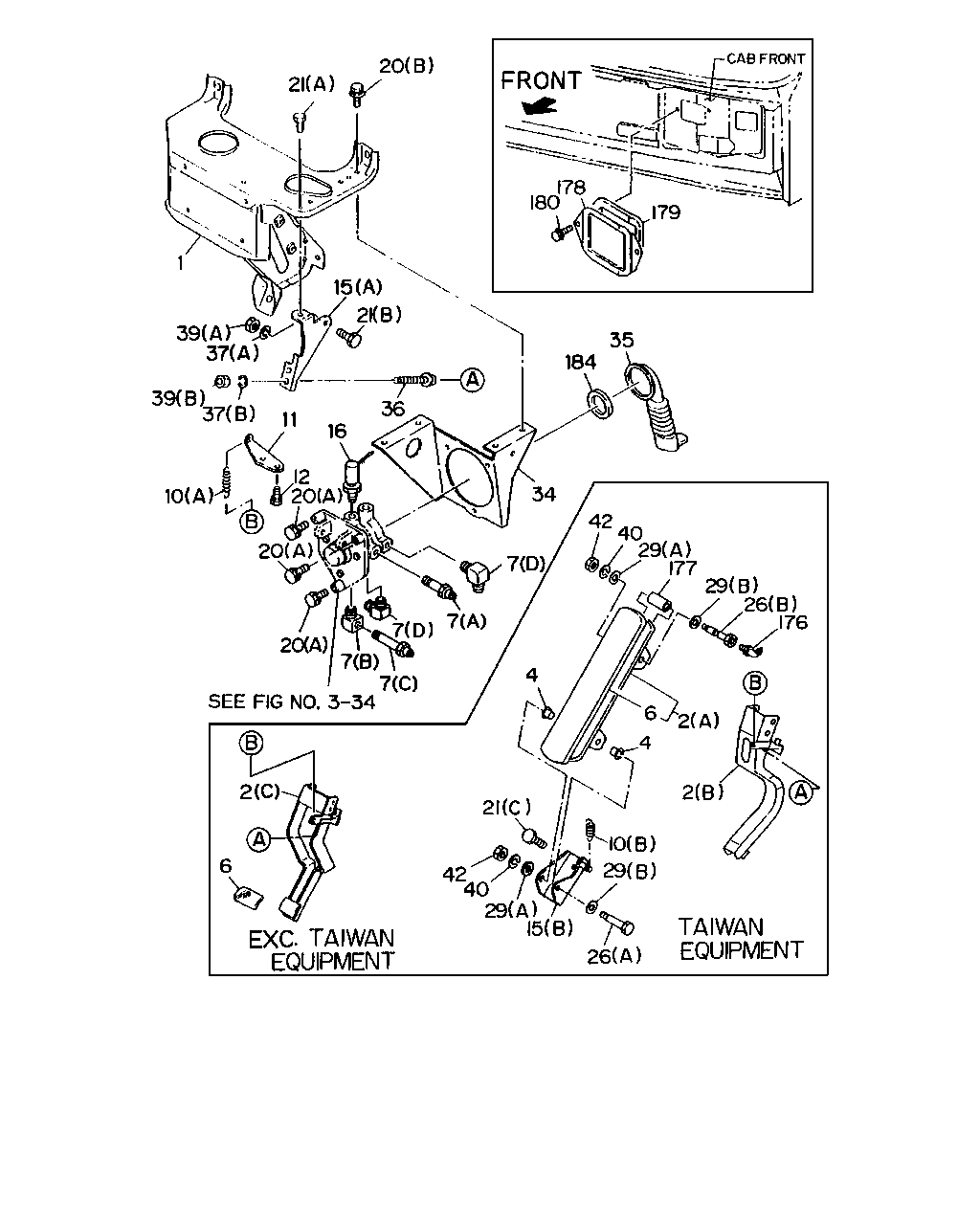

3-10 — BRAKE PEDAL AND CONTROL (#3369) — 52 parça
çizim 6624
20 21 15 39 39 37 37 21 11 10 12 16 20 20 20 7 7 7 7 7 34 184 35 36 42 40 29 177 29 26 176 2 2 6 4 4 10 29 26 21 15 6 2 29 40 42 180 178 179 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET ASM; PEDAL 1-73998-393-3 01 1 9002- ● ● ●
2 PEDAL; BRK
TAIWAN EQUIPMENT(WW5) (A) 		1-47310-073-2 01 1 9002- ● ● ●
2 PEDAL; BRK
TAIWAN EQUIPMENT(WW5) (B) 		1-79997-168-2 01 1 9002- ● ● ●
2 PEDAL; BRK
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-47311-105-0 01 1 9002- ● ● ●
4 BUSHING; BRK PEDAL
TAIWAN EQUIPMENT(WW5) 		5-33659-011-0 02 1 9002- ● ● ●
6 COVER; BRK PEDAL
TAIWAN EQUIPMENT(WW5) 		1-48119-246-0 01 1 9002- ● ● ●
6 COVER; BRK PEDAL
EXC. TAIWAN EQUIPMENT(WW5) 		8-94204-810-0 01 1 9002- ● ● ●
7 CONNECTOR; BRK VALVE
(C) 		1-09650-150-2 01 1 9002- ● ● ●
7 CONNECTOR; BRK VALVE
(A) 		1-09650-181-1 01 1 9002- ● ● ●
7 CONNECTOR; BRK VALVE
(B) 		1-09664-049-1 01 1 9002-9302 ● ● ●
7 CONNECTOR; BRK VALVE
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 9303- ● ● ●
7 CONNECTOR; BRK VALVE
(D) 		9-09234-312-1 02 1 9002-9302 ● ● ●
7 CONNECTOR; BRK VALVE
(D) 		1-09650-439-0 02 1 9303- ● ● ●
10 SPRING; RETURN,BRK PEDAL
(A) 		8-94251-601-0 01 1 9002- ● ● ●
10 SPRING; RETURN,BRK PEDAL
TAIWAN EQUIPMENT(WW5) (B) 		1-09985-203-0 01 1 9002- ● ● ●
11 BRACKET; RETURN SPRING 1-73997-820-0 01 1 9002- ● ● ●
12 BOLT; BRKT
M6X12 W/LK&PL WASHER 		9-01960-612-0 02 1 9002-9204 ● ● ●
12 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9205- ● ● ●
15 BRACKET ASM; STOPPER,BRK PEDAL
(A) 		1-73997-821-1 01 1 9002- ● ● ●
15 BRACKET ASM; STOPPER,BRK PEDAL
TAIWAN EQUIPMENT(WW5) (B) 		1-79997-166-1 01 1 9002- ● ● ●
16 SWITCH; STOP LAMP 1-82380-007-3 01 1 9002- ● ● ●
20 BOLT; BRKT
(A) M10X25 W/LK WASHER 		0-50041-025-0 01 1 9002- ● ● ●
20 BOLT; BRKT
(A) M10X35 W/LK WASHER 		0-50041-035-0 02 1 9002- ● ● ●
20 BOLT; BRKT
(B) M8X20 		9-01970-820-0 04 1 9002-9005 ● ● ●
20 BOLT; BRKT
(B) M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9006- ● ● ●
21 BOLT; STOPPER BRKT
(A) M6X20 W/LK&PL WASHER 		9-01960-620-0 01 1 9002-9204 ● ● ●
21 BOLT; STOPPER BRKT
(A) M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9205- ● ● ●
21 BOLT; STOPPER BRKT
(B) M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9002-9204 ● ● ●
21 BOLT; STOPPER BRKT
(B) M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9205- ● ● ●
21 BOLT; STOPPER BRKT
TAIWAN EQUIPMENT(WW5) (C) M8X18 W/LK&PL WASHER 		9-01970-818-0 02 1 9002-9005 ● ● ●
21 BOLT; STOPPER BRKT
TAIWAN EQUIPMENT(WW5) (C) M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9006- ● ● ●
26 BOLT; PEDAL
TAIWAN EQUIPMENT(WW5) (A) 		1-09980-559-1 01 1 9002- ● ● ●
26 BOLT; PEDAL
TAIWAN EQUIPMENT(WW5) (B) 		1-09980-565-0 01 1 9002- ● ● ●
29 WASHER; PL,BRK PEDAL
TAIWAN EQUIPMENT(WW5) (A) ID=8.4 		9-09164-508-0 02 1 9002- ● ● ●
29 WASHER; PL,BRK PEDAL
TAIWAN EQUIPMENT(WW5) (B) ID=12.5 		9-09164-512-0 02 1 9002- ● ● ●
34 BRACKET ASM; BRK VLV 1-73997-771-1 01 1 9002- ● ● ●
35 DUCT ASM; AIR,BRK VLV EXH 1-76377-099-1 01 1 9002-9305 ● ● ●
35 DUCT ASM; AIR,BRK VLV EXH 1-76377-176-0 01 1 9306- ● ● ●
36 STOPPER; BRK PEDAL 9-54359-079-0 01 1 9002- ● ● ●
37 WASHER; LK,STOPPER
(A) ID=8.2 		9-09150-508-0 01 1 9002- ● ● ●
37 WASHER; LK,STOPPER
(B) ID=10.2 		9-09150-510-0 01 1 9002- ● ● ●
39 NUT; STOPPER LK
(A) M8 		9-09111-408-0 01 1 9002- ● ● ●
39 NUT; STOPPER LK
(B) M10 		9-09111-410-0 01 1 9002- ● ● ●
40 WASHER; BRK PEDAL
TAIWAN EQUIPMENT(WW5) ID=8.2 		9-09150-508-0 02 1 9002- ● ● ●
42 NUT; BRK PEDAL
TAIWAN EQUIPMENT(WW5) M8 		9-09110-508-0 02 1 9002- ● ● ●
176 NIPPLE; GREASE,BRK PEDAL
TAIWAN EQUIPMENT(WW5) PT1/8 ELBOW 		9-09031-210-0 01 1 9002- ● ● ●
177 ROLLER; BRK PEDAL
TAIWAN EQUIPMENT(WW5) 		1-79997-263-0 01 1 9002- ● ● ●
178 COVER; CHECK HOLE 1-71997-687-0 01 1 9002- ● ● ●
179 SEAL; CHECK HOLE COVER 1-71997-689-0 01 1 9002- ● ● ●
180 BOLT; CHECK HOLE COVER 0-50100-616-0 02 1 9002-9204 ● ● ●
180 BOLT; CHECK HOLE COVER 0-50180-616-0 02 1 9205- ● ● ●
184 SEAL; AIR DUCT 1-76377-102-0 01 1 9002- ● ● ●
