6-75 — MAT AND CARPET (#33689) — 76 parça

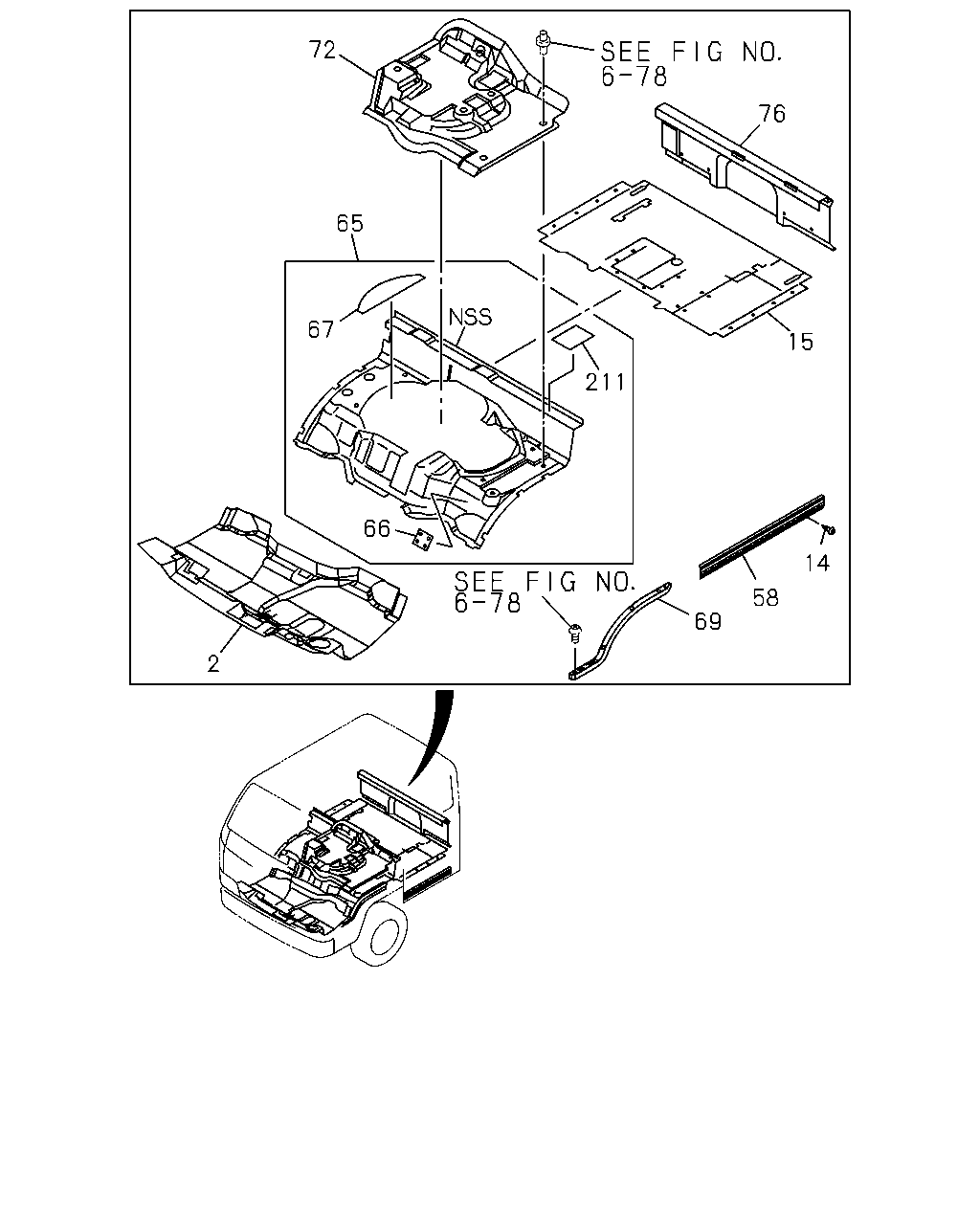

72 76 65 67 15 211 66 14 58 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60)	8-97009-963-4	01	1	9312-9711	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97867-795-4	01	1	9712-	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-011-4	01	1	9312-9711	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97867-794-4	01	1	9712-	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60)	8-97097-010-2	01	1	9312-9711				●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-662-2	01	1	9712-				●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97097-009-2	01	1	9312-9711				●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-661-2	01	1	9712-				●	●	●
14	16.870 SCREW; PLATE 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	9312-		●			●
15	16.800 MAT; FLOOR REAR DARK BEIGE	8-97098-711-0	01	1	9312-9711		●			●
15	16.800 MAT; FLOOR REAR DARK GRAY	8-97868-592-0	01	1	9712-		●			●
58	08.153 PLATE; GUARD,RR FLOOR MAT	8-97081-344-3	02	1	9312-		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR	8-97853-949-9	01	1	9312-9503	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97855-272-1	01	1	9504-9711	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-637-1	01	1	9712-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR	8-97856-763-8	01	1	9312-9711		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97859-703-8	01	1	9712-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-764-5	01	1	9312-9711				●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-638-5	01	1	9712-				●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-766-5	01	1	9312-9711					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-639-5	01	1	9712-					●
66	16.549 HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9312-9711	●	●	●	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9712-	●	●	●	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-193-0	01	1	9312-9510	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-193-0	01	1	9511-9711	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97859-704-0	01	1	9712-	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-924-0	01	1	9312-9711				●	●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9712-				●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE	8-97853-958-0	01	1	9312-9711	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	9712-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE	8-97853-957-0	01	1	9312-9711	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	9712-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER	8-97853-959-5	01	1	9312-9409	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK BEIGE	8-97859-933-0	01	1	9410-9711	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97859-707-0	01	1	9712-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK BEIGE	8-97856-770-4	01	1	9312-9711				●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97890-495-0	01	1	9712-				●	●	●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG	8-97853-952-7	01	1	9312-9711		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97867-155-7	01	1	9712-		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK BEIGE	8-97856-769-4	01	1	9312-9711					●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97868-640-4	01	1	9712-					●
211	16.800 COVER; HINGE	8-97857-191-1	02	1	9312-9405	●	●	●	●	●	●

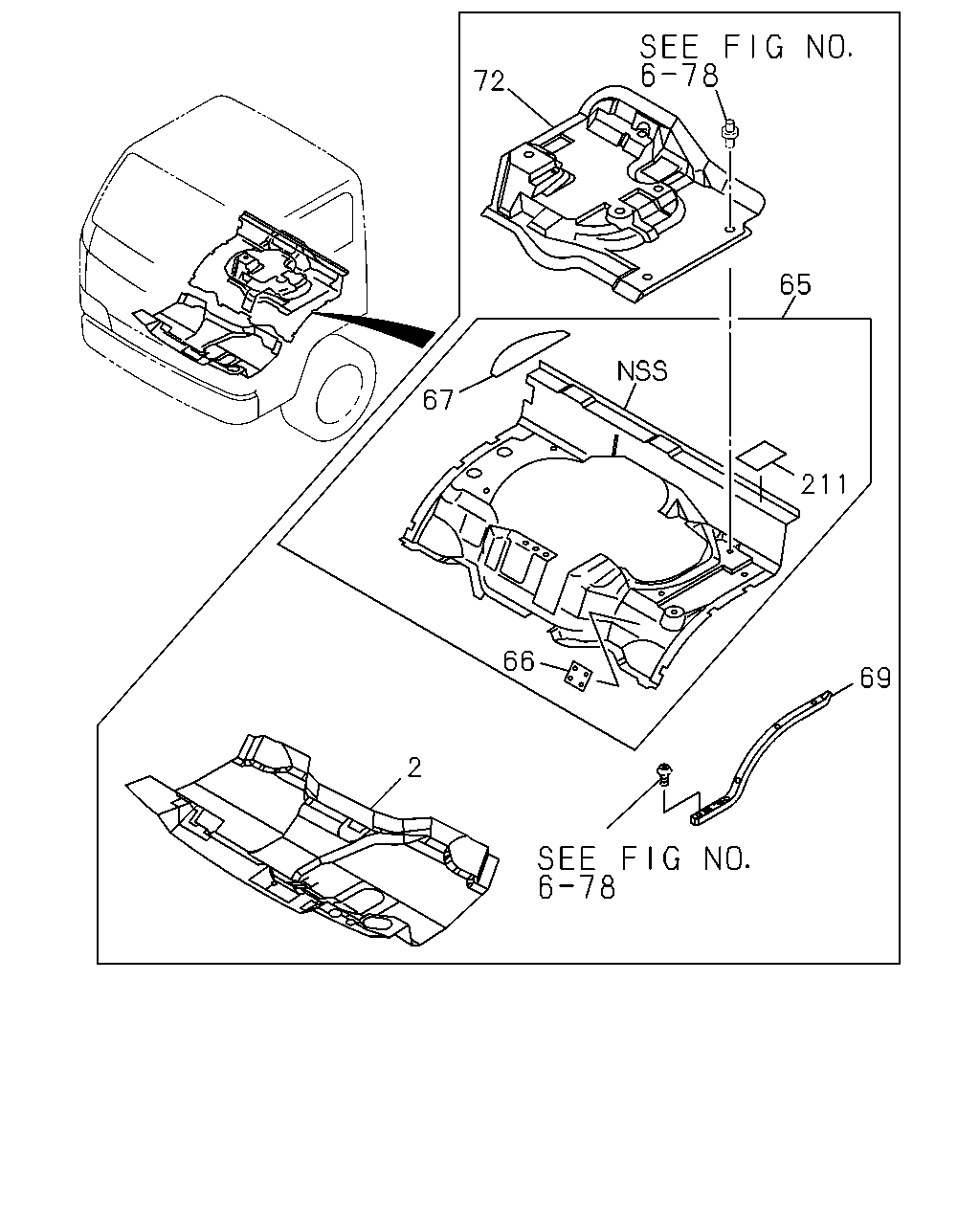

72 65 67 211 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60)	8-97009-963-4	01	1	9312-9711	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97867-795-4	01	1	9712-	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-011-4	01	1	9312-9711	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97867-794-4	01	1	9712-	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60)	8-97097-010-2	01	1	9312-9711				●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-662-2	01	1	9712-				●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97097-009-2	01	1	9312-9711				●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-661-2	01	1	9712-				●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR	8-97853-949-9	01	1	9312-9503	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97855-272-1	01	1	9504-9711	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-637-1	01	1	9712-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR	8-97856-763-8	01	1	9312-9711		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97859-703-8	01	1	9712-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-764-5	01	1	9312-9711				●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-638-5	01	1	9712-				●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-766-5	01	1	9312-9711					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-639-5	01	1	9712-					●
66	16.549 HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9312-9711	●	●	●	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9712-	●	●	●	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-193-0	01	1	9312-9510	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-193-0	01	1	9511-9711	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97859-704-0	01	1	9712-	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-924-0	01	1	9312-9711				●	●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9712-				●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE	8-97853-958-0	01	1	9312-9711	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	9712-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE	8-97853-957-0	01	1	9312-9711	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	9712-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER	8-97853-959-5	01	1	9312-9409	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK BEIGE	8-97859-933-0	01	1	9410-9711	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97859-707-0	01	1	9712-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK BEIGE	8-97856-770-4	01	1	9312-9711				●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97890-495-0	01	1	9712-				●	●	●
211	16.800 COVER; HINGE	8-97857-191-1	02	1	9312-9405	●	●	●	●	●	●
