◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#33688) — 204 parça

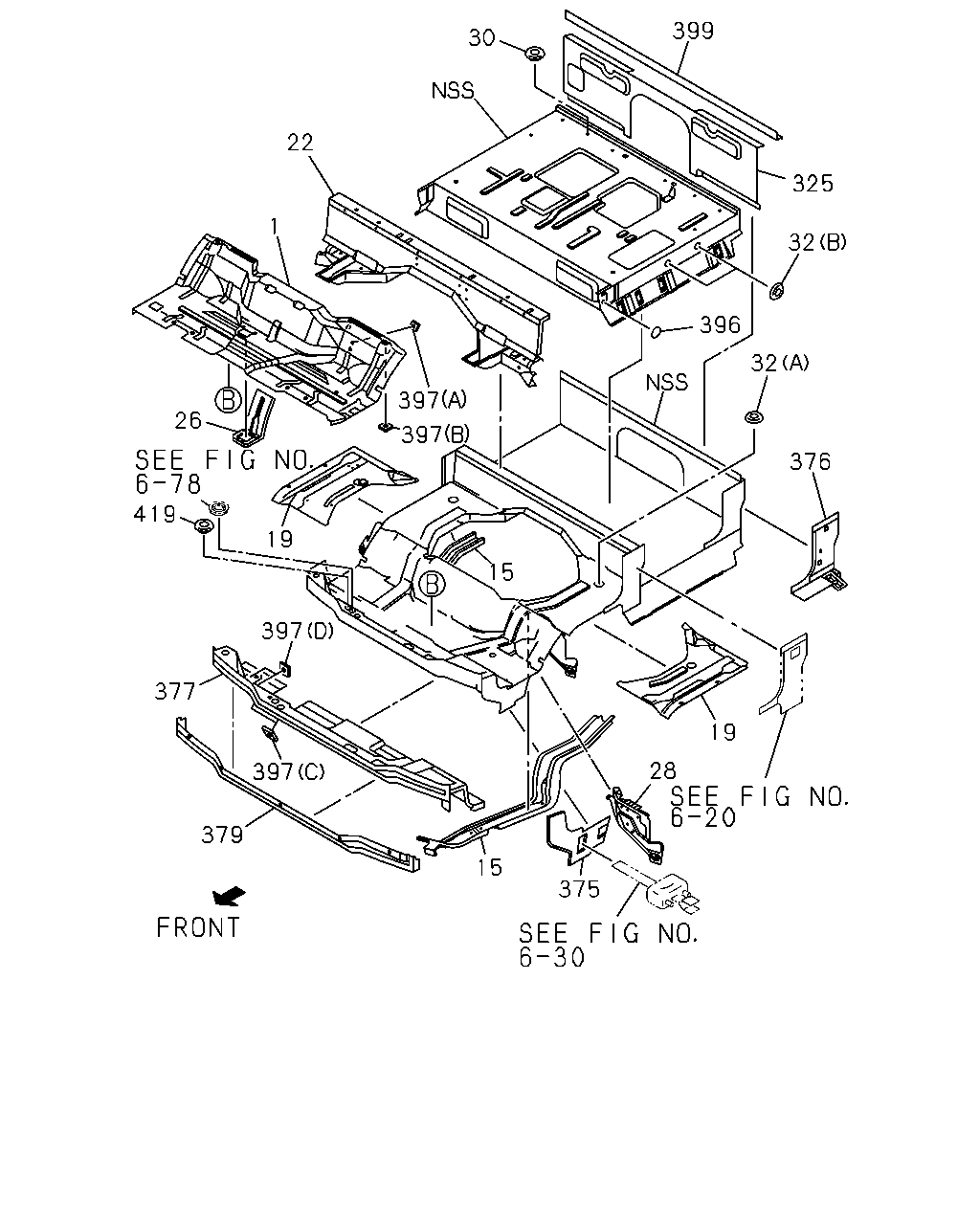

çizim 65696
399 22 325 32 396 32 397 26 376 419 19 15 397 377 28 397 379 15 375 30 1 19 397
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR
INDONESIA EQUIPMENT(S4S) 		8-97850-491-3 01 1 9612- ●
1 16.545 PANEL; FLOOR 8-97850-004-6 01 1 9312-9406 ● ● ●
1 16.545 PANEL; FLOOR 8-97850-004-7 01 1 9407-9611 ● ● ●
1 16.545 PANEL; FLOOR
EXC. INDONESIA EQUIPMENT(S4S) 		8-97850-004-7 01 1 9612- ● ● ●
1 16.545 PANEL; FLOOR 8-97850-332-5 01 1 9312-9406 ● ● ●
1 16.545 PANEL; FLOOR 8-97850-332-6 01 1 9407-9711 ● ● ●
1 16.545 PANEL; FLOOR 8-97850-332-6 01 1 9712- ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9312-9711 ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9712- ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9312-9711 ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9712- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-2 01 1 9312-9406 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-3 01 1 9407-9711 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 9712- ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-002-5 01 1 9312-9711 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-002-6 01 1 9712- ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-337-3 01 1 9312-9711 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-337-4 01 1 9712- ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-3 01 1 9312-9711 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 9712- ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-519-5 01 1 9312-9711 ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-519-5 01 1 9712- ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-202-9 01 1 9312-9602 ●
22 16.545 FRAME; FLOOR REAR 8-97850-763-0 01 1 9603-9711 ●
22 16.545 FRAME; FLOOR REAR 8-97850-763-0 01 1 9712- ●
22 16.545 FRAME; FLOOR REAR 8-97850-537-5 01 1 9312-9711 ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-537-5 01 1 9712- ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-383-7 01 1 9312-9711 ●
22 16.545 FRAME; FLOOR REAR 8-97850-383-7 01 1 9712- ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 9312-9711 ● ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 9712- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-5 01 1 9312-9403 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-6 01 1 9404-9711 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9712- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-016-6 01 1 9312-9403 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-339-2 01 1 9312-9403 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-2 01 1 9312-9403 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-4 01 1 9404-9711 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9712- ● ● ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 9312- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9312- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9312- ● ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97850-189-9 01 1 9312-9404 ● ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97850-652-0 01 1 9405- ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9312-9711 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9712- ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9312-9711 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9712- ● ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9312-9711 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9712- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9312-9711 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9712- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9312- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9312- ● ●
377 16.545 RAIL ASM; MTG,FRT
INDONESIA EQUIPMENT(S4S) 		8-97850-477-2 01 1 9612- ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-048-6 01 1 9312-9510 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-049-6 01 1 9511-9611 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. INDONESIA EQUIPMENT(S4S) 		8-97850-049-6 01 1 9612- ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-350-5 01 1 9312-9510 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-351-7 01 1 9511-9711 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-351-7 01 1 9712- ● ● ●
379 16.545 PANEL 8-97850-050-2 01 1 9312-9711 ● ● ● ● ● ●
379 16.545 PANEL 8-97850-050-2 01 1 9712- ● ● ● ● ● ●
396 16.547 GROMMET; LOCATION HOLE 1-09983-049-0 02 1 9312- ● ●
397 16.545 NUT; PIERCE
(A) 		8-94279-531-0 04 1 9312-9510 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) (A) M6 		9-09114-046-0 04 1 9511- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9511-9611 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (C) M8 		9-09114-048-0 04 1 9612-9711 ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9612-9711 ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (C) M8 		9-09114-048-0 04 1 9712- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) (D) M10 		9-09114-030-0 03 1 9511- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
(B) 		8-94279-533-0 05 1 9312-9510 ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 05 1 9511-9611 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 05 1 9612-9711 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 02 1 9805-9805 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 02 1 9806-9807 ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9712-9804 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 03 1 9805-9805 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9805-9805 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 03 1 9806-9807 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9808- ● ● ●
397 16.545 NUT; PIERCE
(B) 		8-94279-533-0 03 1 9312-9510 ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9511-9711 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 05 1 9712-9805 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 05 1 9808- ● ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97850-170-2 01 1 9312- ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 9508- ● ● ● ● ● ●
çizim 68004
377 378 380 398 381 378 380
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
377 16.545 RAIL ASM; MTG,FRT
INDONESIA EQUIPMENT(S4S) 		8-97850-477-2 01 1 9612- ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-048-6 01 1 9312-9510 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-049-6 01 1 9511-9611 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. INDONESIA EQUIPMENT(S4S) 		8-97850-049-6 01 1 9612- ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-350-5 01 1 9312-9510 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-351-7 01 1 9511-9711 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-351-7 01 1 9712- ● ● ●
378 16.545 GASSET; LWR 8-97850-052-9 01 1 9404-9407 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 9408-9711 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 9712- ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-051-9 01 1 9404-9407 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9408-9711 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9712- ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-052-7 01 1 9312-9403 ● ● ●
378 16.545 GASSET; LWR 8-97850-051-7 01 1 9312-9403 ● ● ●
378 16.545 GASSET; LWR 8-97850-355-2 01 1 9312-9403 ● ● ●
378 16.545 GASSET; LWR 8-97850-354-2 01 1 9312-9403 ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-091-6 01 1 9312-9501 ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-705-0 01 1 9502-9711 ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-705-0 01 1 9712- ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-090-2 01 1 9312-9711 ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-090-2 01 1 9712- ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-359-1 01 1 9312-9711 ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-359-1 01 1 9712- ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-358-1 01 1 9312-9501 ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-704-0 01 1 9502-9711 ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-704-0 01 1 9712- ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 9312-9611 ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
EXC. INDONESIA EQUIPMENT(S4S) 		8-97850-221-5 01 1 9612- ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 9312-9711 ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 9712- ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9312-9711 ● ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9712- ● ● ● ● ● ●

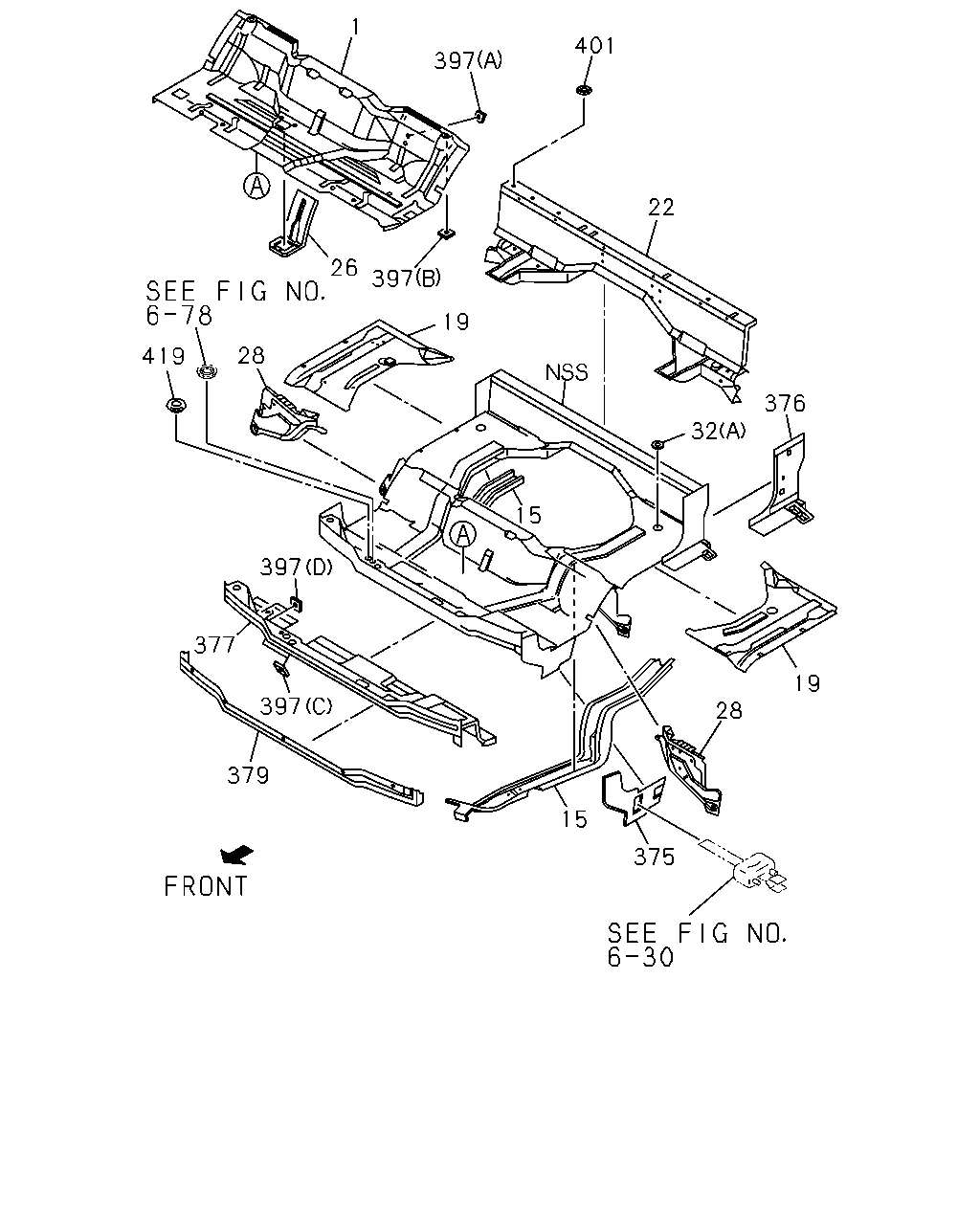

çizim 68036
401 397 22 26 397 19 28 376 32 15 397 377 397 28 379 15 375 1 19 419
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR
INDONESIA EQUIPMENT(S4S) 		8-97850-491-3 01 1 9612- ●
1 16.545 PANEL; FLOOR 8-97850-004-6 01 1 9312-9406 ● ● ●
1 16.545 PANEL; FLOOR 8-97850-004-7 01 1 9407-9611 ● ● ●
1 16.545 PANEL; FLOOR
EXC. INDONESIA EQUIPMENT(S4S) 		8-97850-004-7 01 1 9612- ● ● ●
1 16.545 PANEL; FLOOR 8-97850-332-5 01 1 9312-9406 ● ● ●
1 16.545 PANEL; FLOOR 8-97850-332-6 01 1 9407-9711 ● ● ●
1 16.545 PANEL; FLOOR 8-97850-332-6 01 1 9712- ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9312-9711 ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9712- ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9312-9711 ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9712- ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-2 01 1 9312-9406 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-3 01 1 9407-9711 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 9712- ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-002-5 01 1 9312-9711 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-002-6 01 1 9712- ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-337-3 01 1 9312-9711 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-337-4 01 1 9712- ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-3 01 1 9312-9711 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 9712- ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-519-5 01 1 9312-9711 ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-519-5 01 1 9712- ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-202-9 01 1 9312-9602 ●
22 16.545 FRAME; FLOOR REAR 8-97850-763-0 01 1 9603-9711 ●
22 16.545 FRAME; FLOOR REAR 8-97850-763-0 01 1 9712- ●
22 16.545 FRAME; FLOOR REAR 8-97850-537-5 01 1 9312-9711 ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-537-5 01 1 9712- ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-383-7 01 1 9312-9711 ●
22 16.545 FRAME; FLOOR REAR 8-97850-383-7 01 1 9712- ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 9312-9711 ● ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 9712- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-5 01 1 9312-9403 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-6 01 1 9404-9711 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9712- ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-016-6 01 1 9312-9403 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-339-2 01 1 9312-9403 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-2 01 1 9312-9403 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-4 01 1 9404-9711 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9712- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9312- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9312- ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9312-9711 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9712- ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9312-9711 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9712- ● ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9312-9711 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9712- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9312-9711 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9712- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9312- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9312- ● ●
377 16.545 RAIL ASM; MTG,FRT
INDONESIA EQUIPMENT(S4S) 		8-97850-477-2 01 1 9612- ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-048-6 01 1 9312-9510 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-049-6 01 1 9511-9611 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. INDONESIA EQUIPMENT(S4S) 		8-97850-049-6 01 1 9612- ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-350-5 01 1 9312-9510 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-351-7 01 1 9511-9711 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-351-7 01 1 9712- ● ● ●
379 16.545 PANEL 8-97850-050-2 01 1 9312-9711 ● ● ● ● ● ●
379 16.545 PANEL 8-97850-050-2 01 1 9712- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
(A) 		8-94279-531-0 04 1 9312-9510 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) (A) M6 		9-09114-046-0 04 1 9511- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9511-9611 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (C) M8 		9-09114-048-0 04 1 9612-9711 ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9612-9711 ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (C) M8 		9-09114-048-0 04 1 9712- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) (D) M10 		9-09114-030-0 03 1 9511- ● ● ● ● ● ●
397 16.545 NUT; PIERCE
(B) 		8-94279-533-0 05 1 9312-9510 ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 05 1 9511-9611 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 05 1 9612-9711 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 02 1 9805-9805 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 02 1 9806-9807 ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9712-9804 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 03 1 9805-9805 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9805-9805 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 03 1 9806-9807 ● ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9808- ● ● ●
397 16.545 NUT; PIERCE
(B) 		8-94279-533-0 03 1 9312-9510 ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9511-9711 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 05 1 9712-9805 ● ● ●
397 16.545 NUT; PIERCE
EXC. INDONESIA EQUIPMENT(S4S) 16.588 (B) M8 		9-09114-048-0 05 1 9808- ● ● ●
401 16.545 GROMMET; HOLE
INDONESIA EQUIPMENT(S4S) 16.549 OD=12.1 		8-94279-716-0 01 1 9612- ●
401 16.545 GROMMET; HOLE
OD=26.1 T=7.8 		8-94279-963-0 01 1 9312- ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 9508- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
