Isuzu WW
▶
TRUCKS
▶
NHR
▶
50693 - NHR
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#33685) — 35 parça
Tümü
A - NHB5SF
B - NHB6SF
C - NHN5SF
D - NHN6SF
E - NHB5WF
F - NHB6WF
◀

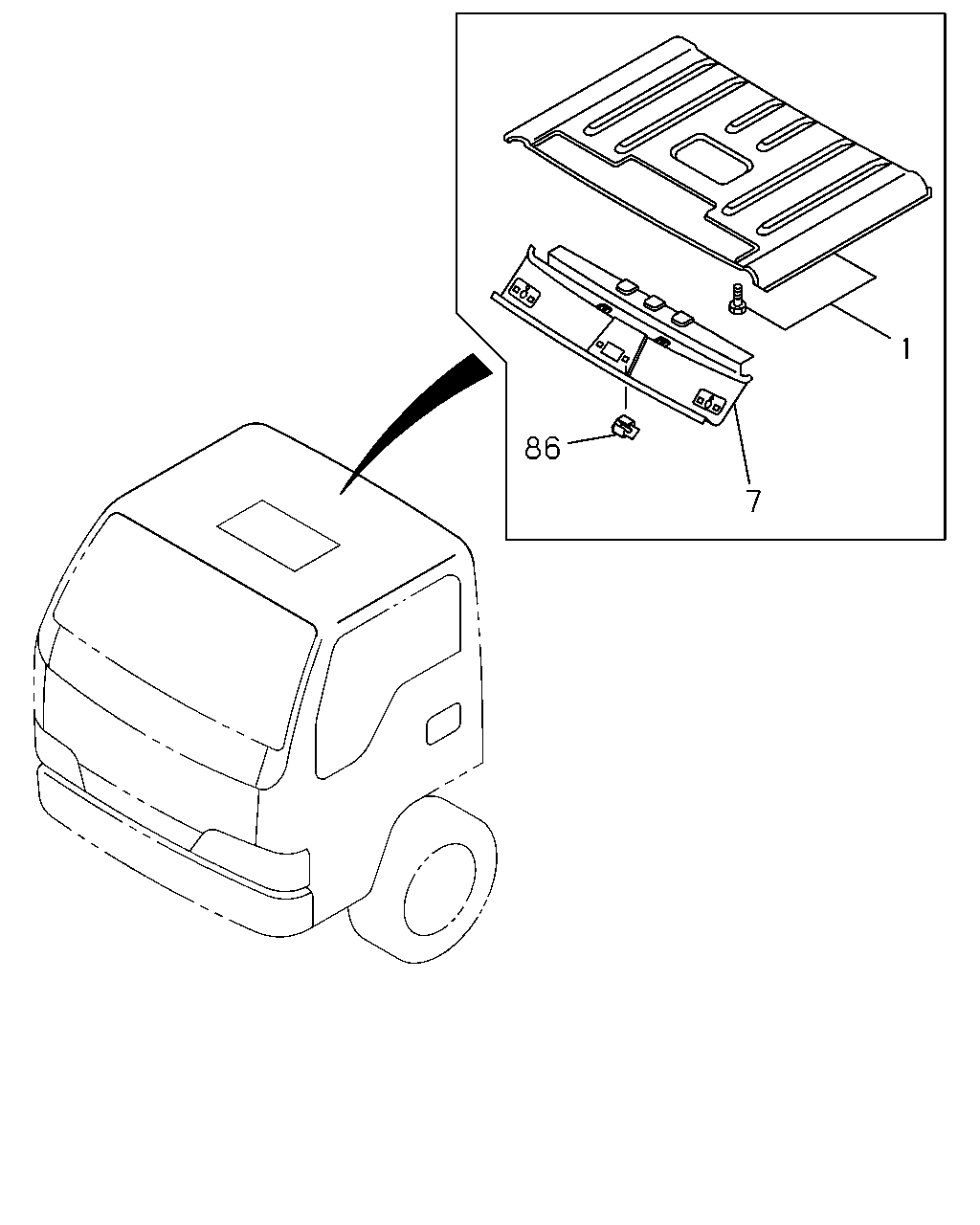

[660A] SINGLE CAB (15 parça)

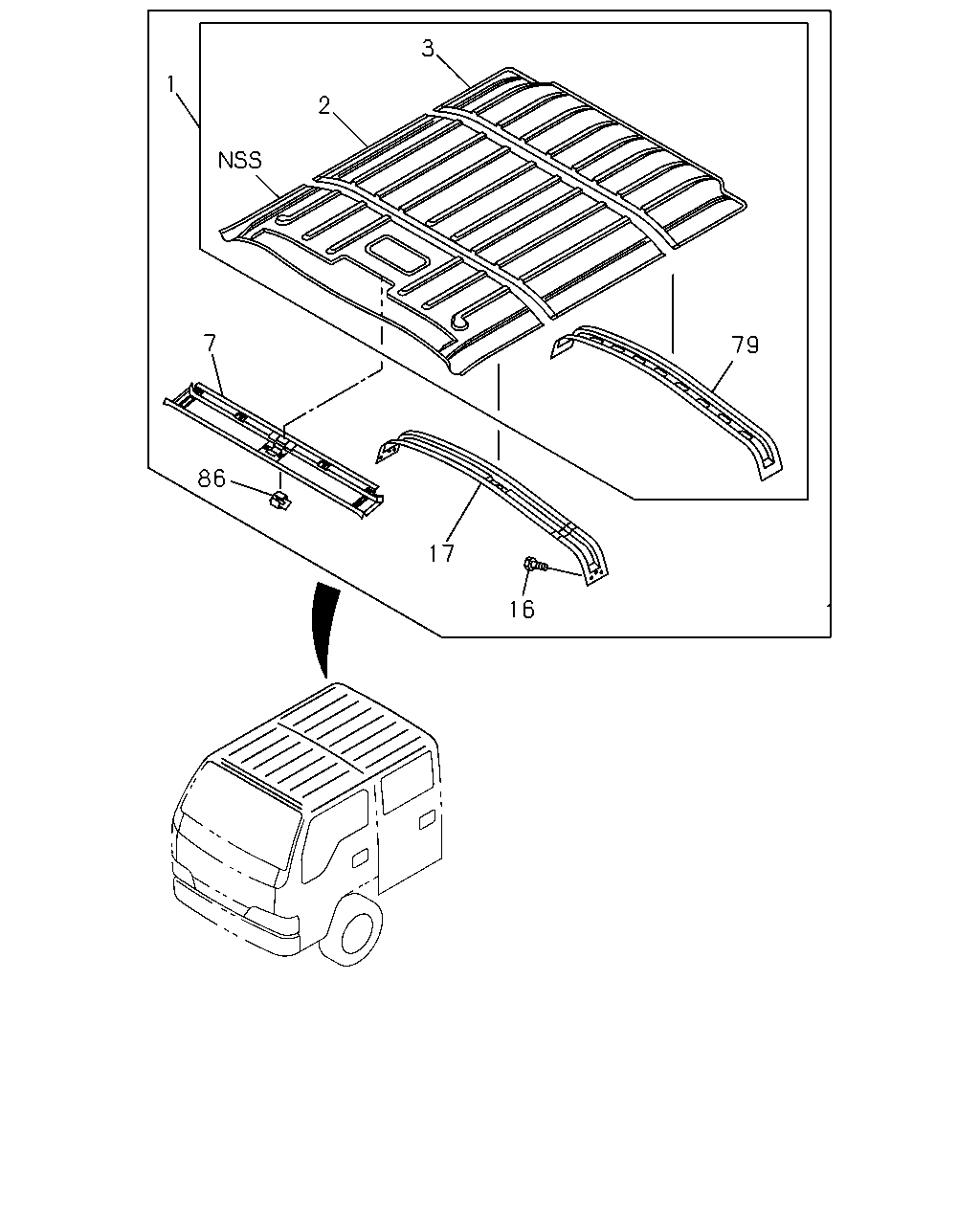

[660A] DOUBLE CAB (20 parça)
▶
86
7
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97851-109-1
01
1
9312-9602
●
●
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ>
8-97851-109-1
01
1
9603-
●
●
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97851-369-0
01
1
9312-9602
●
●
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ>
8-97851-369-0
01
1
9603-
●
●
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97851-450-0
01
1
9312-
●
●
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97851-378-4
01
1
9312-
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97851-266-4
01
1
9312-
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97851-451-4
01
1
9312-
●
●
1
16.585 PANEL; ROOF
CAB-LOW ROOF<6XQ>
8-97851-046-1
01
1
9603-
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97851-281-4
01
1
9312-9602
●
●
●
●
●
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97859-530-0
01
1
9603-
●
●
●
●
●
7
16.585 PANEL; FRT WINDSHIELD UPR
EXC. CAB-LOW ROOF<6XQ>
8-97859-530-0
01
1
9603-
●
7
16.585 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ>
8-97851-209-5
01
1
9603-9702
●
7
16.585 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ>
8-97859-529-0
01
1
9703-
●
86
16.585 NUT; ROOF
16.069 M5
8-94279-075-1
01
1
9312-
●
●
●
●
●
●
2
79
86
16
3
1
7
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97851-109-1
01
1
9312-9602
●
●
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ>
8-97851-109-1
01
1
9603-
●
●
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97851-369-0
01
1
9312-9602
●
●
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ>
8-97851-369-0
01
1
9603-
●
●
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97851-450-0
01
1
9312-
●
●
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97851-378-4
01
1
9312-
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97851-266-4
01
1
9312-
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97851-451-4
01
1
9312-
●
●
1
16.585 PANEL; ROOF
CAB-LOW ROOF<6XQ>
8-97851-046-1
01
1
9603-
●
2
16.585 PANEL; ROOF,CENTER
8-97851-264-1
01
1
9312-
●
●
3
16.585 PANEL; ROOF,RR
8-97851-265-3
01
1
9312-
●
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97851-281-4
01
1
9312-9602
●
●
●
●
●
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97859-530-0
01
1
9603-
●
●
●
●
●
7
16.585 PANEL; FRT WINDSHIELD UPR
EXC. CAB-LOW ROOF<6XQ>
8-97859-530-0
01
1
9603-
●
7
16.585 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ>
8-97851-209-5
01
1
9603-9702
●
7
16.585 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ>
8-97859-529-0
01
1
9703-
●
16
16.585 SCREW; ROOF SUPPORT
16.085 M6X16 W/LK&PL WASHER
1-09981-141-0
04
1
9312-
●
●
17
16.570 REINFORCEMENT; ROOF PNL CENTER
8-97853-628-2
01
1
9312-
●
●
79
16.570 REINFORCEMENT; ROOF PANEL,RR
8-97851-410-0
01
1
9312-
●
●
86
16.585 NUT; ROOF
16.069 M5
8-94279-075-1
01
1
9312-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
