◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#33684) — 15 parça

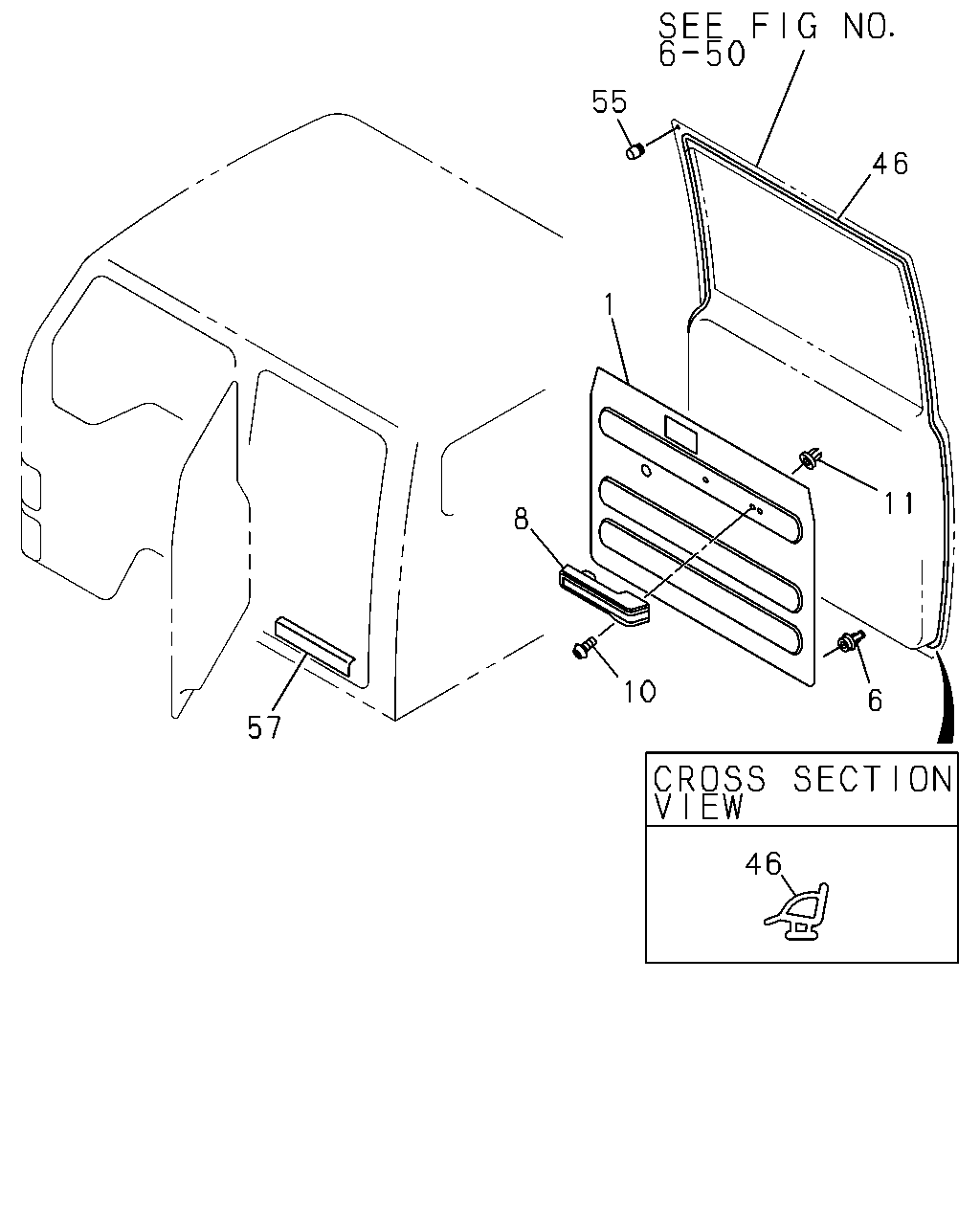

çizim 67934
55 8 10 46 1 11 6 57 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.165 PAD; TRIM,RR DOOR 8-97852-441-5 01 1 9312-9711 ● ●
1 16.165 PAD; TRIM,RR DOOR
DARK GRAY 		8-97867-203-5 01 1 9712- ● ●
1 16.165 PAD; TRIM,RR DOOR 8-97852-440-5 01 1 9312-9711 ● ●
1 16.165 PAD; TRIM,RR DOOR
DARK GRAY 		8-97867-202-5 01 1 9712- ● ●
6 16.165 CLIP; DOOR PAD
16.166 		8-94226-492-0 18 1 9312-9404 ● ●
6 16.165 CLIP; DOOR PAD
16.166 		8-94226-492-0 22 1 9405- ● ●
8 16.155 REST; ARM,RR DOOR 8-94345-854-0 01 1 9312-9711 ● ●
8 16.155 REST; ARM,RR DOOR
DARK GRAY 		8-97867-207-0 01 1 9712- ● ●
8 16.155 REST; ARM,RR DOOR 8-94345-852-0 01 1 9312-9711 ● ●
8 16.155 REST; ARM,RR DOOR
DARK GRAY 		8-97867-206-0 01 1 9712- ● ●
10 16.155 SCREW; ARM REST
02.483 M6X30 TAPPING 		9-07066-630-0 04 1 9312- ● ●
11 16.155 NUT; ARM REST
14.686 SCREW GROMMET 		8-06698-938-1 04 1 9312- ● ●
46 16.225 SEAL; DOOR,UPR,CAB SIDE 8-97852-364-8 02 1 9312- ● ●
55 16.165 RUBBER; STOPPER,DOOR INNER
16.225 		8-97852-022-1 04 1 9312- ● ●
57 16.445 PROTECTOR; STEP RR 8-97852-871-0 02 1 9312- ● ●
