6-47 — MUD GUARD AND INSULATOR (#33680) — 118 parça

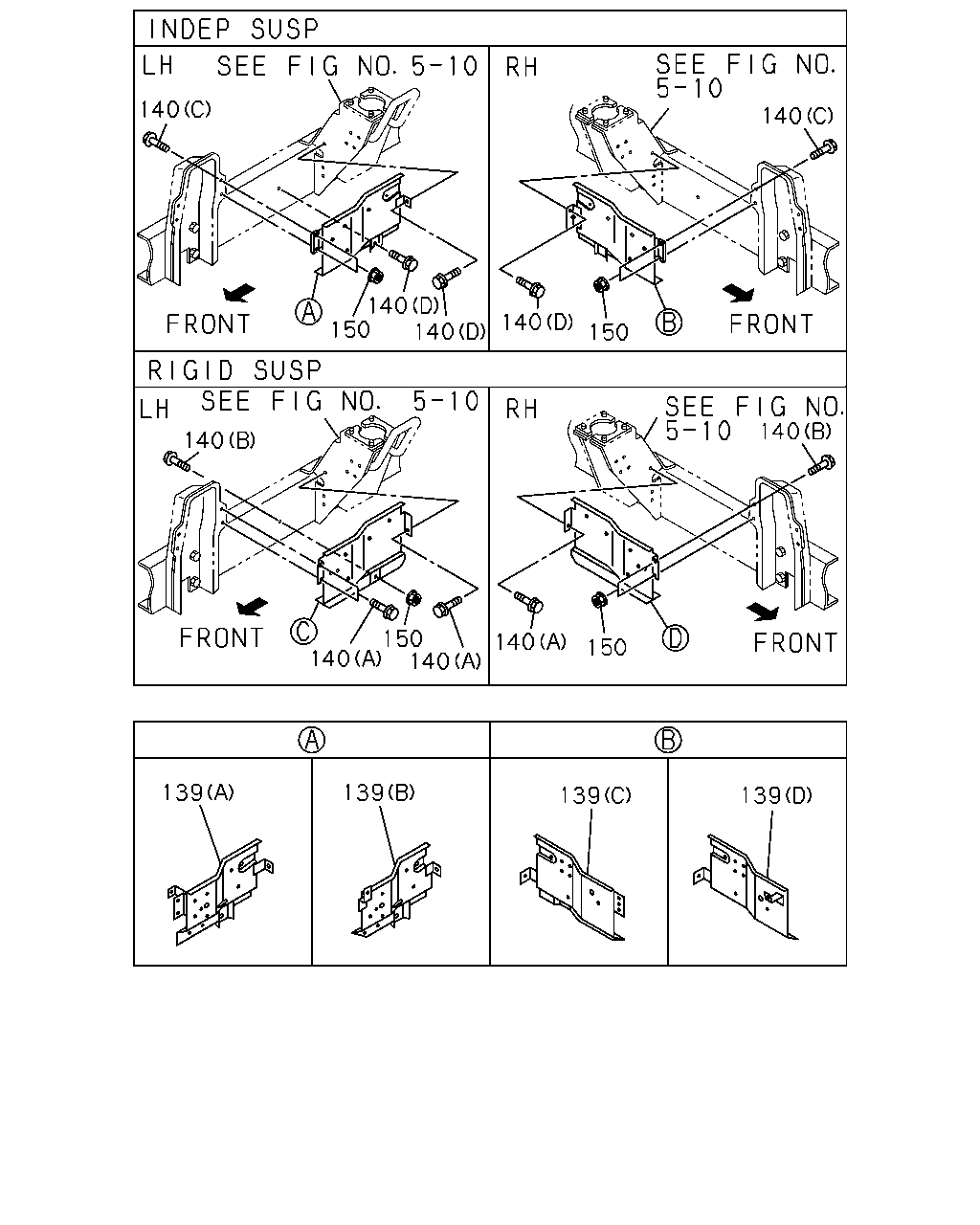

140 140 140 150 140 150 140 140 150 140 140 140 150 139 139 139 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
139	08.153 PANEL; SIDE FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-164-1	01	1	9312-9510	●	●	●	●	●
139	08.153 PANEL; SIDE FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-164-1	01	1	9511-9711				●
139	08.153 PANEL; SIDE FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-161-1	01	1	9312-9510	●	●	●	●	●
139	08.153 PANEL; SIDE FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-161-1	01	1	9511-9711				●
139	08.153 PANEL; SIDE EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-2	01	1	9312-9711	●	●	●	●	●	●
139	08.153 PANEL; SIDE AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-774-3	01	1	9712-	●		●
139	08.153 PANEL; SIDE (A)	8-97035-774-3	01	1	9712-		●		●	●	●
139	08.153 PANEL; SIDE EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97078-381-1	01	1	9312-9711	●	●	●	●	●	●
139	08.153 PANEL; SIDE (C)	8-97078-381-1	01	1	9712-	●	●	●	●	●	●
139	08.153 PANEL; SIDE AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97083-093-0	01	1	9312-9510	●		●
139	08.153 PANEL; SIDE AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97083-093-1	01	1	9511-	●		●
140	08.155 BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 07.010 (C) M8X20 FLANGE	0-28080-820-0	02	1	9312-9507	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 02.559 (C) M8X25 FLANGE	0-28680-825-0	02	1	9508-9510	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 02.559 (C) M8X25 FLANGE	0-28680-825-0	02	1	9511-9711				●
140	08.155 BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 04.595 (D) M8X20 FLANGE	0-28480-820-0	03	1	9312-9510	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 04.595 (D) M8X20 FLANGE	0-28480-820-0	03	1	9511-9711				●
140	08.155 BOLT; SIDE PANEL EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	9312-9507	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9508-9711	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9712-	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.595 (A) M8X20 FLANGE	0-28480-820-0	04	1	9312-9711	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 04.595 (A) M8X20 FLANGE	0-28480-820-0	04	1	9712-	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510	●	●	●	●	●
150	08.155 NUT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711				●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	03	1	9712-	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	03	1	9312-9711	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9501-9711	●	●	●	●	●	●

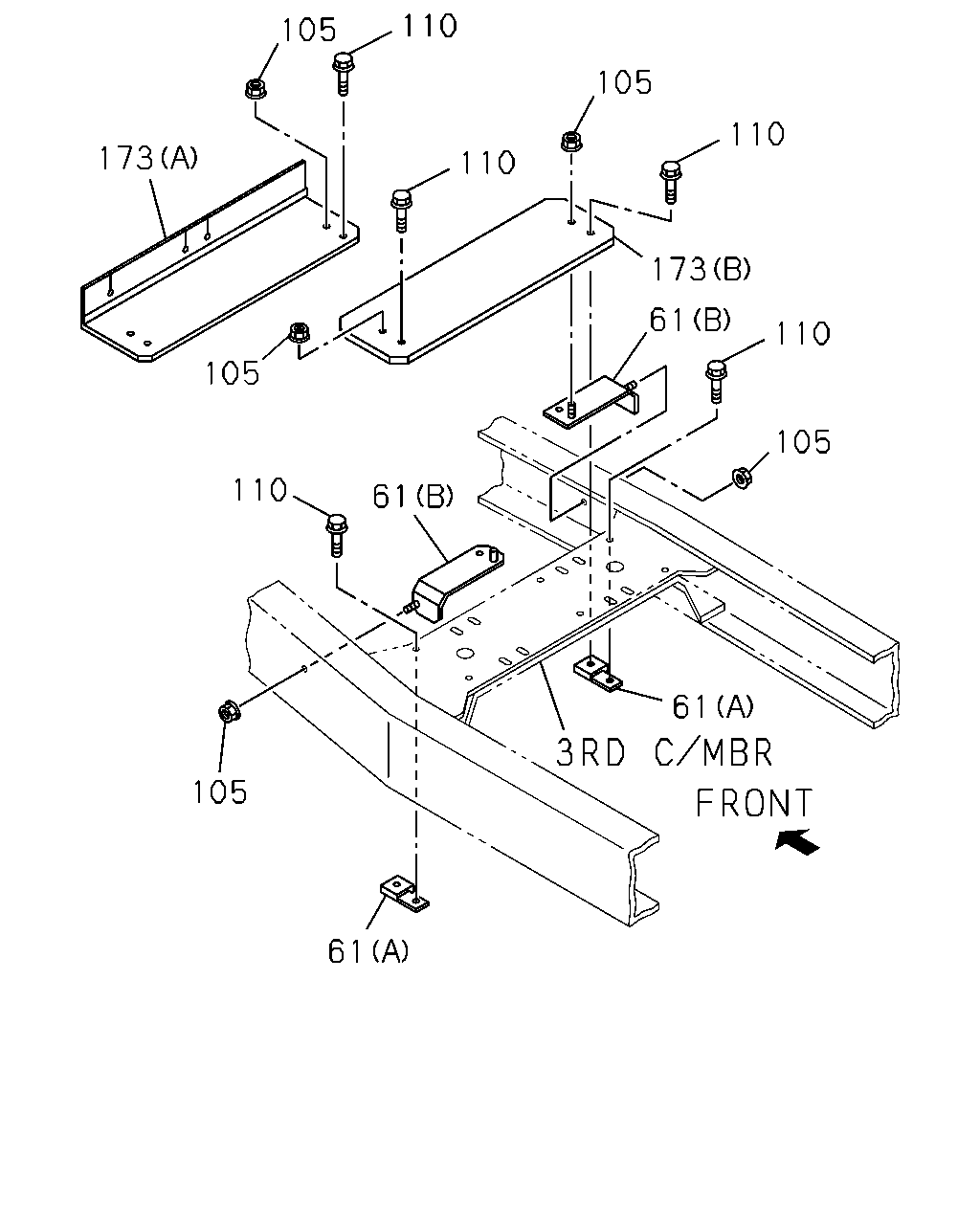

110 105 110 173 110 173 61 105 105 61 61 61 105 110 105 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	E
61	08.155 BRACKET; COVER HONG KONG EQUIPMENT(PQ1) 16.545 (A)	8-97103-549-1	02	1	9501-9608	●	●
61	08.155 BRACKET; COVER 4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) 16.545 (A)	8-97103-549-1	02	1	9609-	●	●
61	08.155 BRACKET; COVER HONG KONG EQUIPMENT(PQ1) (B)	8-97124-515-1	01	1	9501-9510	●	●
61	08.155 BRACKET; COVER HONG KONG EQUIPMENT(PQ1) (B)	8-97124-514-1	01	1	9501-9510	●	●
61	08.155 BRACKET; COVER HONG KONG EQUIPMENT(PQ1) (B)	8-97124-514-1	01	1	9511-9608	●	●
61	08.155 BRACKET; COVER 4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) (B)	8-97124-514-1	01	1	9609-	●	●
61	08.155 BRACKET; COVER HONG KONG EQUIPMENT(PQ1) (B)	8-97124-515-1	01	1	9511-9608	●	●
61	08.155 BRACKET; COVER 4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) (B)	8-97124-515-1	01	1	9609-	●	●
105	08.155 NUT; BRKT HONG KONG EQUIPMENT(PQ1) 07.633 M8 FLANGE	0-91150-108-0	04	1	9501-9608	●	●
105	08.155 NUT; BRKT 4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) 07.633 M8 FLANGE	0-91150-108-0	04	1	9609-	●	●
110	08.155 BOLT; BRKT HONG KONG EQUIPMENT(PQ1) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9501-9608	●	●
110	08.155 BOLT; BRKT 4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9609-9702	●	●
110	08.155 BOLT; BRKT 4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9703-	●	●
173	08.155 COVER; TRANS SIDE AIR INTAKE REAR VERTICAL<KJ3> HONG KONG EQUIPMENT(PQ1) (A)	8-97122-138-1	01	1	9501-9608	●
173	08.155 COVER; TRANS SIDE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HONG KONG EQUIPMENT(PQ1) (A)	8-97122-138-1	01	1	9609-	●
173	08.155 COVER; TRANS SIDE HONG KONG EQUIPMENT(PQ1) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97122-142-1	01	1	9501-9608	●
173	08.155 COVER; TRANS SIDE HONG KONG EQUIPMENT(PQ1) (B)	8-97122-142-1	01	1	9501-9608		●
173	08.155 COVER; TRANS SIDE 4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97122-142-1	01	1	9609-9711	●	●
173	08.155 COVER; TRANS SIDE 4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97122-142-1	01	1	9712-	●	●

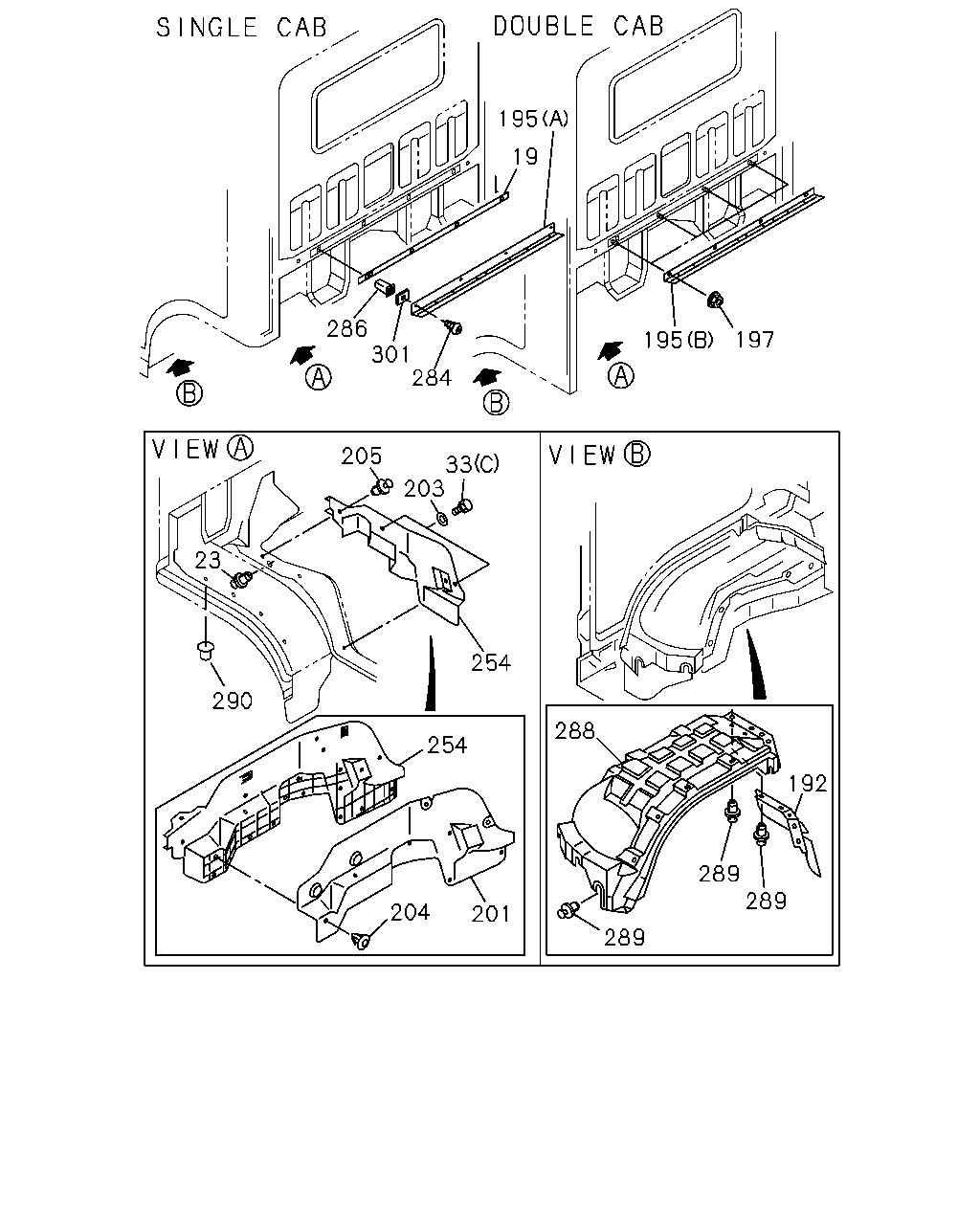

195 19 286 301 284 197 195 205 33 203 23 254 290 288 254 192 289 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	9312-	●		●		●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-94279-989-0	10	1	9312-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9312-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9312-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 06.500 (C) M6X25	8-94279-204-0	04	1	9312-9603	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9604-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.633 (B) M8X28 W/LK&PL WASHER	8-94438-324-1	01	1	9312-9501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9502-	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER	8-97857-297-3	02	1	9312-	●	●	●	●	●	●
195	03.602 PROTECTOR; HEAT (A)	8-97094-833-1	01	1	9312-9702	●		●		●	●
195	03.602 PROTECTOR; HEAT 4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) (A)	8-97094-833-1	01	1	9703-	●				●
195	03.602 PROTECTOR; HEAT EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-97094-833-1	01	1	9703-	●				●
195	03.602 PROTECTOR; HEAT (A)	8-97094-833-1	01	1	9703-			●			●
195	03.602 PROTECTOR; HEAT (B)	8-94462-569-0	01	1	9312-		●		●
197	03.602 NUT; HEAT PROTECTOR,CAB BACK 03.417 M6 FLANGE	8-94279-514-0	03	1	9312-		●		●
201	08.155 INSULATOR; VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-115-3	01	1	9312-9510	●	●	●	●	●
201	08.155 INSULATOR; VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-115-3	01	1	9511-9711				●
201	08.155 INSULATOR; VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-114-4	01	1	9312-9510	●	●	●	●	●
201	08.155 INSULATOR; VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-114-4	01	1	9511-9711				●
201	08.155 INSULATOR; VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-117-2	01	1	9312-9711	●	●	●	●	●	●
201	08.155 INSULATOR; VALANCE	8-97853-117-2	01	1	9712-	●	●	●	●	●	●
201	08.155 INSULATOR; VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-116-2	01	1	9312-9711	●	●	●	●	●	●
201	08.155 INSULATOR; VALANCE	8-97853-116-2	01	1	9712-	●	●	●	●	●	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	9312-	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	10	1	9312-9406	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	9407-	●	●	●	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9312-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-112-5	01	1	9312-9510	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-112-5	01	1	9511-9711				●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-111-5	01	1	9312-9510	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-111-5	01	1	9511-9711				●
254	08.153 COVER; MUD,VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-072-4	01	1	9312-9711	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-072-4	01	1	9712-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-071-4	01	1	9312-9711	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-071-4	01	1	9712-	●	●	●	●	●	●
284	08.155 SCREW; HEAT PROTECTOR 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9312-9501	●		●		●	●
284	08.155 SCREW; HEAT PROTECTOR M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9502-	●		●		●	●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	9312-	●		●		●	●
288	08.155 LINER; TIRE HOUSE	8-97853-716-6	01	1	9312-9803	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-579-0	01	1	9804-	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97853-715-6	01	1	9312-9803	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-578-0	01	1	9804-	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	22	1	9312-9406	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	20	1	9407-	●	●	●	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	9312-	●	●	●	●	●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97857-153-0	04	1	9312-	●		●		●	●

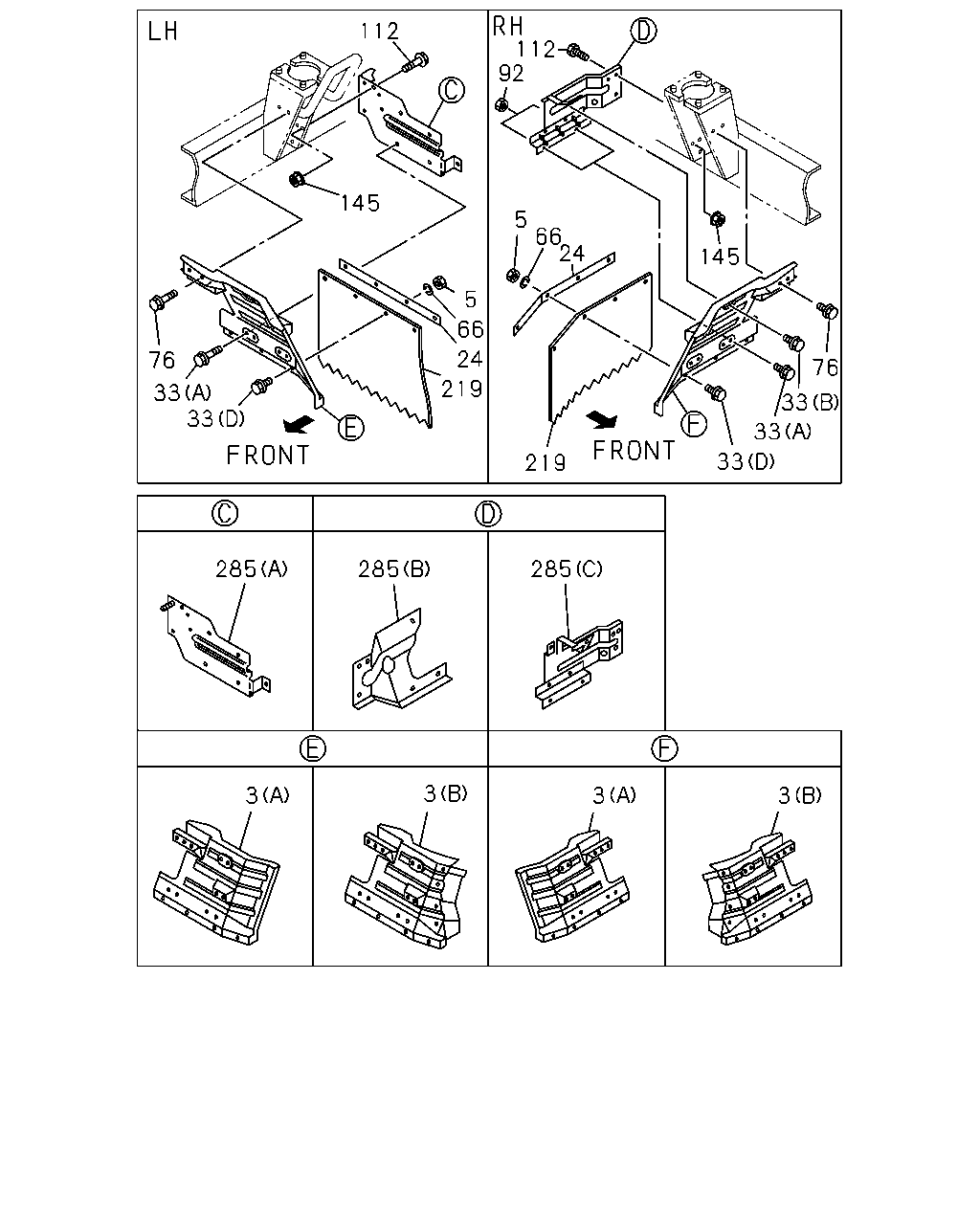

112 112 92 145 5 66 24 145 5 66 24 219 76 33 33 76 33 33 285 285 285 3 3 3 219 33 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	08.153 GUARD; MUD,RR (A)	8-97048-729-1	01	1	9312-	●		●		●	●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	9312-	●		●		●	●
3	08.153 GUARD; MUD,RR (B)	8-97081-735-3	01	1	9312-		●		●
3	08.153 GUARD; MUD,RR (B)	8-97081-734-5	01	1	9312-		●		●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	9312-	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	9312-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9312-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9312-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 06.500 (C) M6X25	8-94279-204-0	04	1	9312-9603	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9604-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.633 (B) M8X28 W/LK&PL WASHER	8-94438-324-1	01	1	9312-9501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9502-	●	●	●	●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	9312-	●	●	●	●	●	●
76	08.155 BOLT; MUD GUARD 04.595 M8X20 FLANGE	0-28480-820-0	02	1	9312-	●	●	●	●	●	●
92	08.155 NUT; MUD COVER EXC. AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9402	●		●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9402		●		●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	9403-	●	●	●	●	●	●
112	08.155 BOLT; BRKT 07.010 M8X20 FLANGE	0-28080-820-0	05	1	9312-9509	●	●	●	●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	9510-	●	●	●	●	●	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	9312-	●	●	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-97036-107-2	02	1	9312-	●	●	●	●	●	●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-3	01	1	9312-	●	●	●	●	●	●
285	08.155 BRACKET; MUD COVER AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97089-653-2	01	1	9312-	●		●
285	08.155 BRACKET; MUD COVER EXC. AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97035-778-4	01	1	9312-9711	●		●		●	●
285	08.155 BRACKET; MUD COVER AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97035-778-4	01	1	9712-	●		●		●	●
285	08.155 BRACKET; MUD COVER (C)	8-97103-463-0	01	1	9312-		●		●
