◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#33679) — 81 parça

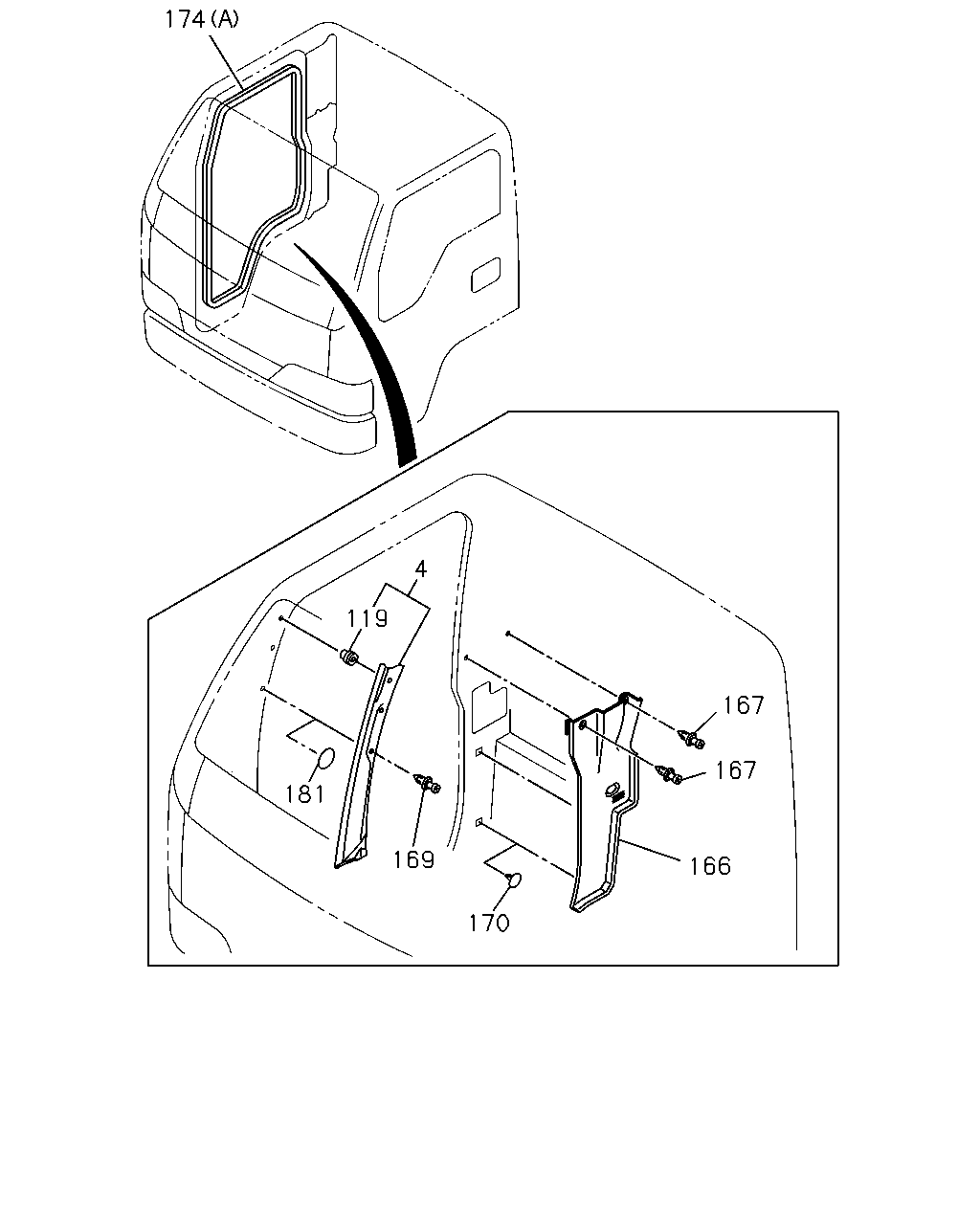

çizim 68125
174 119 167 167 181 169 166 170 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> 		8-97856-695-2 01 1 9312-9711 ● ● ● ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97859-853-3 01 1 9712- ● ● ● ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> 		8-97856-694-2 01 1 9312-9711 ● ● ● ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97859-852-3 01 1 9712- ● ● ● ● ● ●
119 16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742 		1-73318-278-0 02 1 9312-9510 ● ● ● ● ● ●
119 16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742 		1-73318-278-0 02 1 9511- ● ● ● ● ● ●
166 16.578 TRIM; RR PILLAR
DARK BEIGE 		8-97853-920-5 01 1 9312-9711 ● ●
166 16.578 TRIM; RR PILLAR
DARK GRAY 		8-97859-870-5 01 1 9712- ● ●
166 16.578 TRIM; RR PILLAR
DARK BEIGE 		8-97853-919-5 01 1 9312-9612 ● ●
166 16.578 TRIM; RR PILLAR
DARK BEIGE 		8-97857-795-0 01 1 9701-9711 ● ●
166 16.578 TRIM; RR PILLAR
DARK GRAY 		8-97857-803-0 01 1 9712- ● ●
166 16.578 TRIM; RR PILLAR
DARK BEIGE 		8-97856-212-3 01 1 9312-9612 ● ●
166 16.578 TRIM; RR PILLAR
DARK BEIGE 		8-97857-800-0 01 1 9701-9711 ● ●
166 16.578 TRIM; RR PILLAR
DARK GRAY 		8-97857-804-0 01 1 9712- ● ●
166 16.578 TRIM; RR PILLAR
DARK BEIGE 		8-97856-211-3 01 1 9312-9711 ● ●
166 16.578 TRIM; RR PILLAR
DARK GRAY 		8-97868-653-3 01 1 9712- ● ●
167 16.578 CLIP; TRIM,RR PILLAR
DARK BEIGE 		8-97853-925-0 04 1 9312-9711 ● ● ● ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
DARK GRAY 		8-97857-211-0 04 1 9712- ● ● ● ● ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
D8.5X19 PUSH RIVET 		8-97856-751-0 02 1 9312-9411 ● ● ● ● ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97856-751-0 02 1 9412-9711 ● ● ● ● ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97857-210-0 02 1 9712- ● ● ● ● ● ●
170 16.578 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 03.602 		8-94244-922-0 02 1 9312- ● ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
16.183 (A) L=2982 DARK BEIGE 		8-97856-430-3 01 1 9312-9602 ● ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
16.183 (A) L=2982 DARK BEIGE 		8-97856-430-3 01 1 9603-9711 ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 16.183 (A) L=2982 DARK BEIGE 		8-97856-430-3 01 1 9603-9711 ●
174 16.507 FINISHER; BODY SIDE
(A) L=2982 DARK GRAY 		8-97857-206-4 01 1 9712- ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> (A) L=2982 DARK GRAY 		8-97857-206-4 01 1 9712- ●
174 16.507 FINISHER; BODY SIDE
16.183 (A) L=2982 DARK BEIGE 		8-97856-429-3 01 1 9312-9602 ● ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
16.183 (A) L=2982 DARK BEIGE 		8-97856-429-3 01 1 9603-9711 ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 16.183 (A) L=2982 DARK BEIGE 		8-97856-429-3 01 1 9603-9711 ●
174 16.507 FINISHER; BODY SIDE
(A) L=2982 DARK GRAY 		8-97857-205-4 01 1 9712- ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> (A) L=2982 DARK GRAY 		8-97857-205-4 01 1 9712- ●
174 16.507 FINISHER; BODY SIDE
16.183 (B) L=3150 DARK BEIGE 		8-97853-841-4 02 1 9312-9711 ● ●
174 16.507 FINISHER; BODY SIDE
(B) L=3120 DARK GRAY 		8-97867-195-5 02 1 9712- ● ●
174 16.507 FINISHER; BODY SIDE
CAB-LOW ROOF<6XQ> (A) L=2857 DARK BEIGE 		8-97856-428-3 01 1 9603-9711 ●
174 16.507 FINISHER; BODY SIDE
CAB-LOW ROOF<6XQ> (A) L=2857 DARK GRAY 		8-97859-868-4 01 1 9712- ●
174 16.507 FINISHER; BODY SIDE
CAB-LOW ROOF<6XQ> (A) L=2857 DARK BEIGE 		8-97856-427-3 01 1 9603-9711 ●
174 16.507 FINISHER; BODY SIDE
CAB-LOW ROOF<6XQ> (A) L=2857 DARK GRAY 		8-97859-867-4 01 1 9712- ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9312-9403 ● ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9404- ● ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) 16.081 WHITE 		1-76777-076-0 02 1 9312-9402 ● ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9403-9403 ● ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9404- ● ● ● ● ● ●

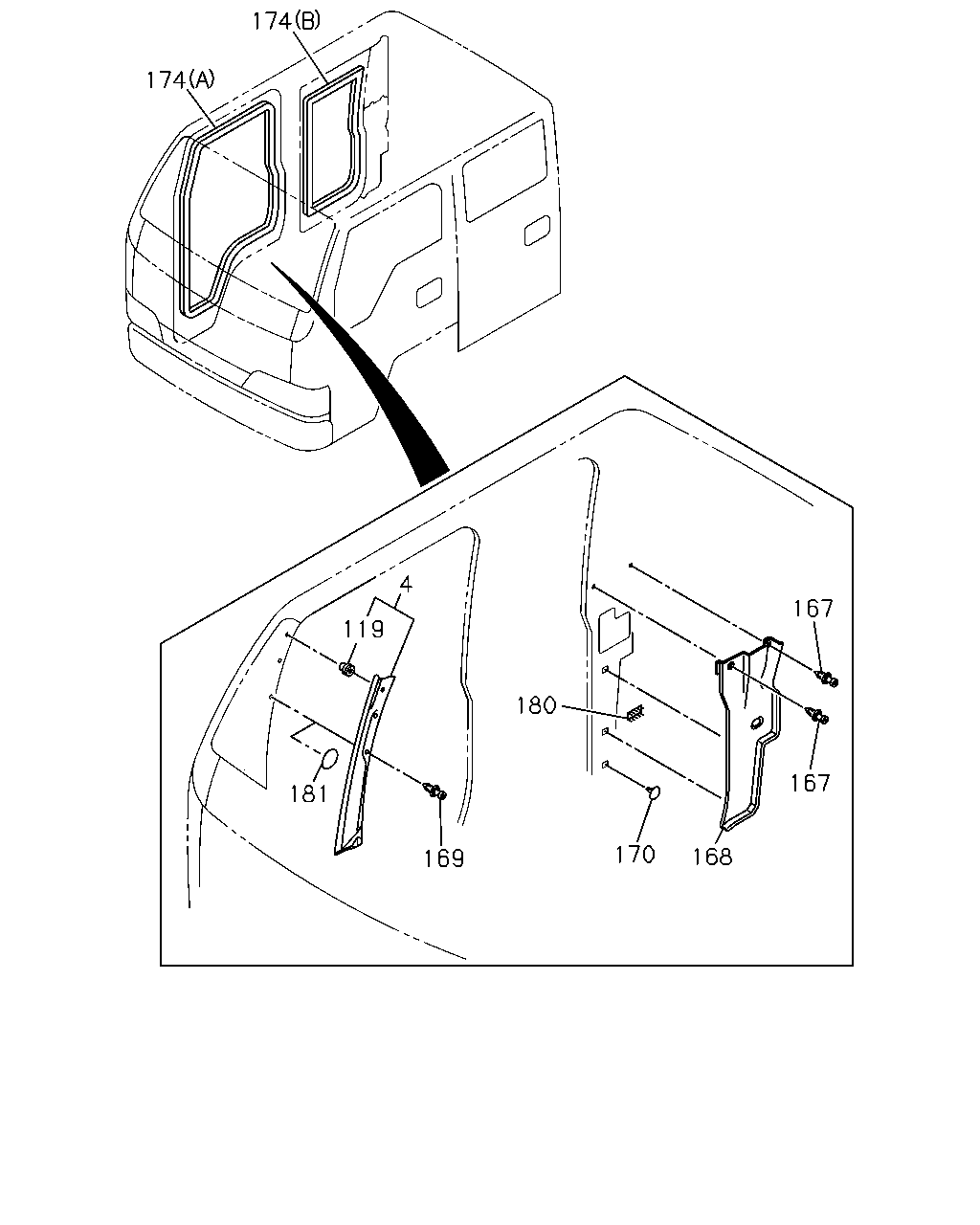

çizim 68689
174 174 4 167 119 180 167 181 170 168 169
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> 		8-97856-695-2 01 1 9312-9711 ● ● ● ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97859-853-3 01 1 9712- ● ● ● ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> 		8-97856-694-2 01 1 9312-9711 ● ● ● ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97859-852-3 01 1 9712- ● ● ● ● ● ●
119 16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742 		1-73318-278-0 02 1 9312-9510 ● ● ● ● ● ●
119 16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742 		1-73318-278-0 02 1 9511- ● ● ● ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
DARK BEIGE 		8-97853-925-0 04 1 9312-9711 ● ● ● ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
DARK GRAY 		8-97857-211-0 04 1 9712- ● ● ● ● ● ●
168 16.578 COVER; SEAT BELT RETRACTOR
DARK BEIGE 		8-97857-912-0 01 1 9312-9711 ● ●
168 16.578 COVER; SEAT BELT RETRACTOR
DARK GRAY 		8-97867-616-0 01 1 9712- ● ●
168 16.578 COVER; SEAT BELT RETRACTOR
DARK BEIGE 		8-97857-911-0 01 1 9312-9711 ● ●
168 16.578 COVER; SEAT BELT RETRACTOR
DARK GRAY 		8-97867-615-0 01 1 9712- ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
D8.5X19 PUSH RIVET 		8-97856-751-0 02 1 9312-9411 ● ● ● ● ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97856-751-0 02 1 9412-9711 ● ● ● ● ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97857-210-0 02 1 9712- ● ● ● ● ● ●
170 16.578 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 03.602 		8-94244-922-0 02 1 9312- ● ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
16.183 (A) L=2982 DARK BEIGE 		8-97856-430-3 01 1 9312-9602 ● ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
16.183 (A) L=2982 DARK BEIGE 		8-97856-430-3 01 1 9603-9711 ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 16.183 (A) L=2982 DARK BEIGE 		8-97856-430-3 01 1 9603-9711 ●
174 16.507 FINISHER; BODY SIDE
(A) L=2982 DARK GRAY 		8-97857-206-4 01 1 9712- ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> (A) L=2982 DARK GRAY 		8-97857-206-4 01 1 9712- ●
174 16.507 FINISHER; BODY SIDE
16.183 (A) L=2982 DARK BEIGE 		8-97856-429-3 01 1 9312-9602 ● ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
16.183 (A) L=2982 DARK BEIGE 		8-97856-429-3 01 1 9603-9711 ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 16.183 (A) L=2982 DARK BEIGE 		8-97856-429-3 01 1 9603-9711 ●
174 16.507 FINISHER; BODY SIDE
(A) L=2982 DARK GRAY 		8-97857-205-4 01 1 9712- ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> (A) L=2982 DARK GRAY 		8-97857-205-4 01 1 9712- ●
174 16.507 FINISHER; BODY SIDE
16.183 (B) L=3150 DARK BEIGE 		8-97853-841-4 02 1 9312-9711 ● ●
174 16.507 FINISHER; BODY SIDE
(B) L=3120 DARK GRAY 		8-97867-195-5 02 1 9712- ● ●
174 16.507 FINISHER; BODY SIDE
CAB-LOW ROOF<6XQ> (A) L=2857 DARK BEIGE 		8-97856-428-3 01 1 9603-9711 ●
174 16.507 FINISHER; BODY SIDE
CAB-LOW ROOF<6XQ> (A) L=2857 DARK GRAY 		8-97859-868-4 01 1 9712- ●
174 16.507 FINISHER; BODY SIDE
CAB-LOW ROOF<6XQ> (A) L=2857 DARK BEIGE 		8-97856-427-3 01 1 9603-9711 ●
174 16.507 FINISHER; BODY SIDE
CAB-LOW ROOF<6XQ> (A) L=2857 DARK GRAY 		8-97859-867-4 01 1 9712- ●
180 16.578 FASTENER; COVER 8-94353-002-1 02 1 9312- ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9312-9403 ● ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9404- ● ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) 16.081 WHITE 		1-76777-076-0 02 1 9312-9402 ● ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9403-9403 ● ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9404- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
