◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#33676) — 123 parça

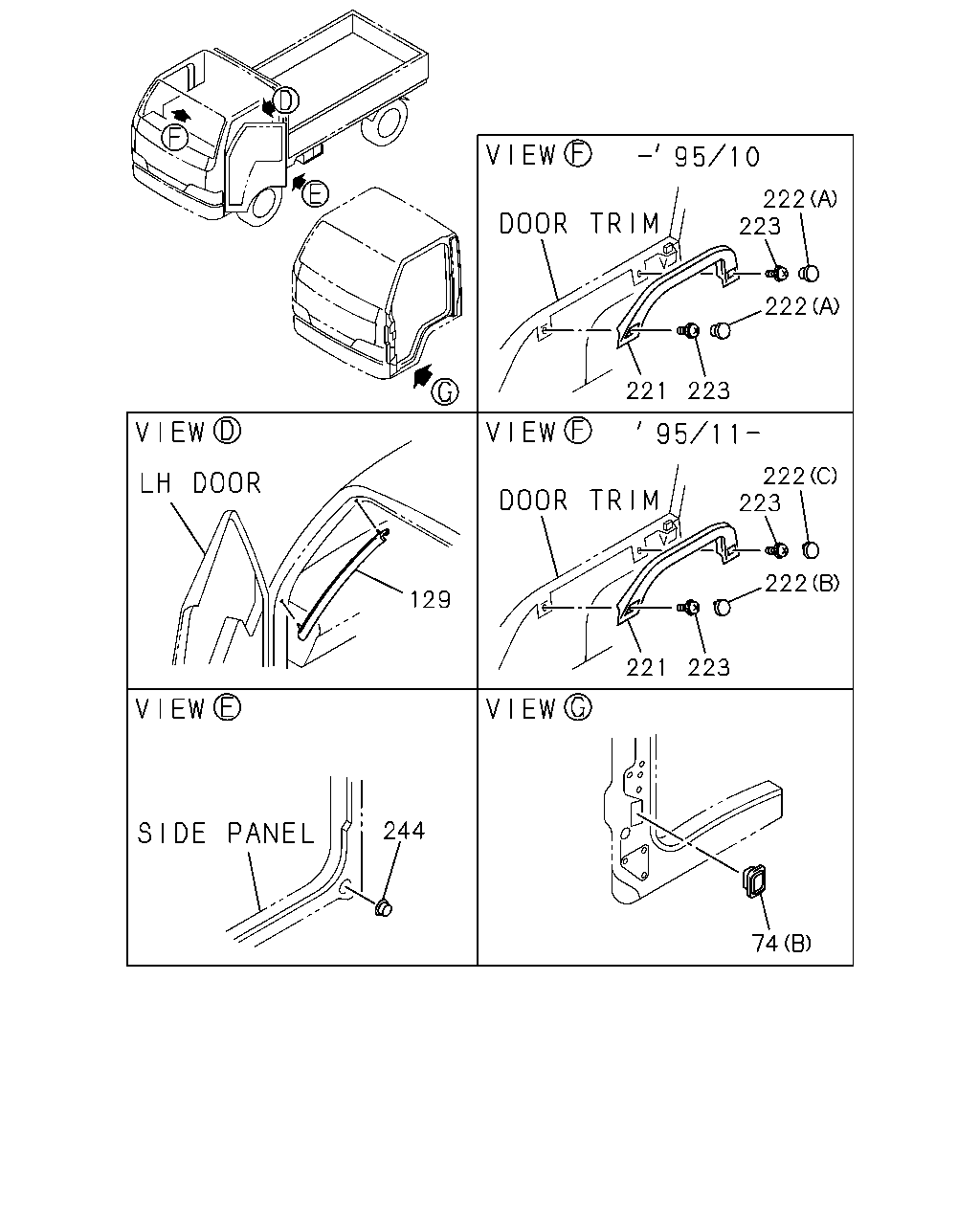

çizim 67679
222 223 222 221 223 222 223 222 129 221 223 244 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,ANTENNA<U73>,RADIO AM/ FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 9511- ● ● ● ● ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,ANTENNA<U73>,RADIO AM/ FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.775 (B) 		8-94279-736-0 02 1 9511- ● ● ● ● ● ●
129 16.183 SEAL; DOOR,SUB UPR 8-97852-147-3 01 1 9312-9602 ● ● ● ● ● ●
129 16.183 SEAL; DOOR,SUB UPR 8-97852-147-3 01 1 9603- ● ● ● ● ●
129 16.183 SEAL; DOOR,SUB UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-147-3 01 1 9603- ●
129 16.183 SEAL; DOOR,SUB UPR 8-97852-146-3 01 1 9312-9602 ● ● ● ● ● ●
129 16.183 SEAL; DOOR,SUB UPR 8-97852-146-3 01 1 9603- ● ● ● ● ●
129 16.183 SEAL; DOOR,SUB UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-146-3 01 1 9603- ●
129 16.183 SEAL; DOOR,SUB UPR
CAB-LOW ROOF<6XQ> 		8-97857-841-0 02 1 9603- ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK BEIGE 		8-97852-423-0 01 1 9312-9510 ● ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK BEIGE 		8-97863-834-1 01 1 9511-9602 ● ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK BEIGE 		8-97863-834-1 01 1 9603-9605 ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97863-834-1 01 1 9603-9605 ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK BEIGE 		8-97867-821-0 01 1 9606-9711 ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97867-821-0 01 1 9606-9711 ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97867-822-1 01 1 9712- ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK GRAY 		8-97867-822-1 01 1 9712- ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK BEIGE 		8-97852-422-0 01 1 9312-9510 ● ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK BEIGE 		8-97863-833-1 01 1 9511-9602 ● ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK BEIGE 		8-97863-833-1 01 1 9603-9605 ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97863-833-1 01 1 9603-9605 ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK BEIGE 		8-97867-819-0 01 1 9606-9711 ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97867-819-0 01 1 9606-9711 ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97867-820-1 01 1 9712- ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK GRAY 		8-97867-820-1 01 1 9712- ●
222 16.320 CAP; GUARD BAR
(A) DARK BEIGE 		8-97852-425-0 04 1 9312-9510 ● ● ● ● ● ●
222 16.320 CAP; GUARD BAR
(B) FRONT DARK BEIGE 		8-97863-835-0 02 1 9511-9602 ● ● ● ● ● ●
222 16.320 CAP; GUARD BAR
(B) FRONT DARK BEIGE 		8-97863-835-0 02 1 9603-9605 ● ● ● ● ●
222 16.320 CAP; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> (B) FRONT DARK BEIGE 		8-97863-835-0 02 1 9603-9605 ●
222 16.320 CAP; GUARD BAR
(B) FRONT DARK BEIGE 		8-97867-823-0 02 1 9606-9711 ● ● ● ● ●
222 16.320 CAP; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> (B) FRONT DARK BEIGE 		8-97867-823-0 02 1 9606-9711 ●
222 16.320 CAP; GUARD BAR
(B) FRONT DARK GRAY 		8-97867-824-0 02 1 9712- ● ● ● ● ●
222 16.320 CAP; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> (B) FRONT DARK GRAY 		8-97867-824-0 02 1 9712- ●
222 16.320 CAP; GUARD BAR
(C) REAR DARK BEIGE 		8-97863-836-0 02 1 9511-9602 ● ● ● ● ● ●
222 16.320 CAP; GUARD BAR
(C) REAR DARK BEIGE 		8-97863-836-0 02 1 9603-9605 ● ● ● ● ●
222 16.320 CAP; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> (C) REAR DARK BEIGE 		8-97863-836-0 02 1 9603-9605 ●
222 16.320 CAP; GUARD BAR
(C) REAR DARK BEIGE 		8-97867-825-0 02 1 9606-9711 ● ● ● ● ●
222 16.320 CAP; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> (C) REAR DARK BEIGE 		8-97867-825-0 02 1 9606-9711 ●
222 16.320 CAP; GUARD BAR
(C) REAR DARK GRAY 		8-97867-826-0 02 1 9712- ● ● ● ● ●
222 16.320 CAP; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> (C) REAR DARK GRAY 		8-97867-826-0 02 1 9712- ●
223 16.320 SCREW; GUARD BAR
M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9312-9602 ● ● ● ● ● ●
223 16.320 SCREW; GUARD BAR
M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9603- ● ● ● ● ●
223 16.320 SCREW; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9603- ●
244 16.155 STOPPER; DOOR 8-97857-394-0 02 1 9312-9706 ● ● ● ● ● ●
244 16.155 STOPPER; DOOR 8-97890-484-0 02 1 9707- ● ● ● ● ● ●

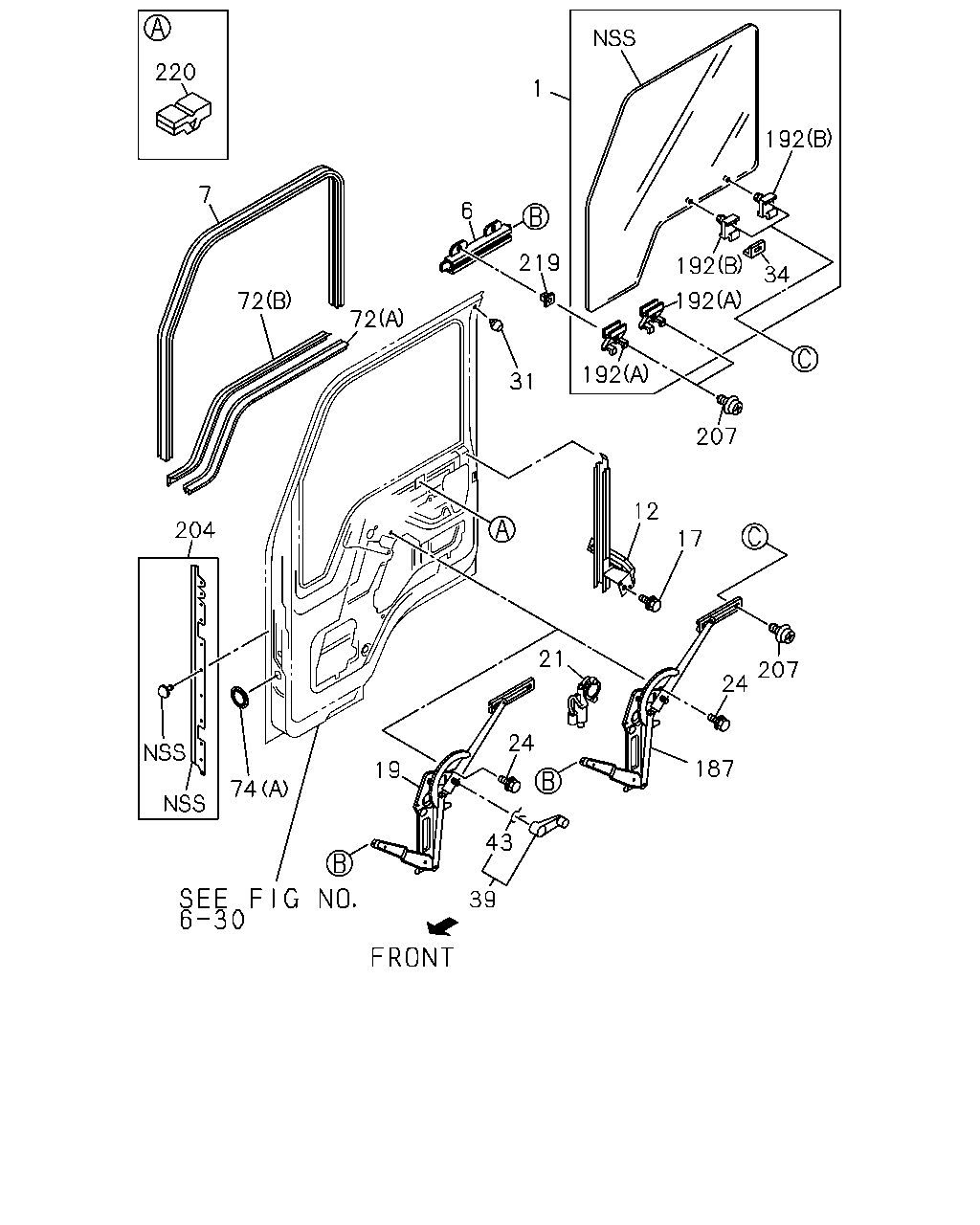

çizim 67892
220 1 192 7 6 34 219 192 192 72 72 192 31 207 12 204 17 21 207 24 24 187 19 74 43 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97852-149-2 01 1 9312-9501 ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97859-955-0 01 1 9502-9602 ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97859-955-0 01 1 9603-9708 ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> ASAHI 		8-97859-955-0 01 1 9603-9708 ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-418-0 01 1 9709- ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> ASAHI 		8-97867-418-0 01 1 9709- ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97852-148-2 01 1 9312-9501 ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97859-954-0 01 1 9502-9602 ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97859-954-0 01 1 9603-9708 ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> ASAHI 		8-97859-954-0 01 1 9603-9708 ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-417-0 01 1 9709- ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> ASAHI 		8-97867-417-0 01 1 9709- ●
1 16.180 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> ASAHI 		8-97859-951-0 01 1 9603-9708 ●
1 16.180 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> ASAHI 		8-97867-416-0 01 1 9709- ●
1 16.180 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> ASAHI 		8-97859-950-0 01 1 9603-9708 ●
1 16.180 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> ASAHI 		8-97867-415-0 01 1 9709- ●
6 10.685 CHANNEL; DOOR GLASS
W/ROLLER 		8-97852-367-0 02 1 9312-9706 ● ● ● ● ● ●
6 10.685 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR 		8-97890-590-0 02 1 9707- ● ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97852-143-4 01 1 9312-9602 ● ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97852-143-4 01 1 9603- ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-143-4 01 1 9603- ●
7 16.190 GLASS RUN; FRT DOOR 8-97852-142-4 01 1 9312-9602 ● ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97852-142-4 01 1 9603- ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-142-4 01 1 9603- ●
7 16.190 GLASS RUN; FRT DOOR
CAB-LOW ROOF<6XQ> 		8-97852-114-4 01 1 9603- ●
7 16.190 GLASS RUN; FRT DOOR
CAB-LOW ROOF<6XQ> 		8-97852-113-4 01 1 9603- ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97852-112-5 01 1 9312- ● ● ● ● ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 9312- ● ● ● ● ● ●
17 16.183 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9312- ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-116-5 01 1 9312- ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-115-5 01 1 9312- ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97852-182-2 01 1 9312-9503 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> HONG KONG EQUIPMENT(PQ1) 		8-97852-182-3 01 1 9504-9605 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97852-182-3 01 1 9504-9605 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97852-181-2 01 1 9312-9503 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97852-181-3 01 1 9504-9510 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> CHINA EQUIPMENT(YT2) 		8-97852-181-3 01 1 9504-9510 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97852-181-3 01 1 9511-9605 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> CHINA EQUIPMENT(YT2) 		8-97852-181-3 01 1 9511-9605 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97859-909-0 01 1 9504-9605 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97859-909-0 01 1 9606-9608 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-064-0 01 1 9609- ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. CHINA EQUIPMENT(YT2) 		8-97859-910-0 01 1 9504-9510 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97859-910-0 01 1 9504-9510 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97859-910-0 01 1 9511-9605 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. CHINA EQUIPMENT(YT2) 		8-97859-910-0 01 1 9511-9605 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97859-910-0 01 1 9606-9608 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-063-0 01 1 9609- ● ● ● ● ● ●
24 16.230 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 9312- ● ● ● ● ● ●
31 16.225 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 9312- ● ● ● ● ● ●
34 16.270 STOPPER; WINDOW REG 8-97852-012-0 02 1 9312- ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-452-0 02 1 9312-9711 ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97098-453-0 02 1 9712- ● ● ● ● ● ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 9312-9510 ● ● ● ● ● ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 9511- ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97852-120-5 01 1 9312-9503 ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-293-1 01 1 9504- ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-166-5 01 1 9312-9510 ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-118-5 01 1 9511- ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97852-119-5 01 1 9312-9503 ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-292-1 01 1 9504- ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-165-5 01 1 9312-9510 ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-5 01 1 9511- ● ● ● ● ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,ANTENNA<U73>,RADIO AM/ FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 9511- ● ● ● ● ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,ANTENNA<U73>,RADIO AM/ FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.775 (B) 		8-94279-736-0 02 1 9511- ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97852-184-3 01 1 9312-9608 ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-114-0 01 1 9609- ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97852-183-3 01 1 9312-9608 ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-113-0 01 1 9609- ● ● ● ● ● ●
192 16.183 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 9312- ● ● ● ● ● ●
192 16.183 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 9312- ● ● ● ● ● ●
204 16.183 RUBBER; SHIELD,FRT DOOR 8-97852-093-2 01 1 9312- ● ● ● ● ● ●
204 16.183 RUBBER; SHIELD,FRT DOOR 8-97852-092-2 01 1 9312- ● ● ● ● ● ●
207 16.183 SCREW; DOOR GLASS
16.445 M6X16 TAPPING W/PL WASHER 		1-09981-452-0 08 1 9312-9706 ● ● ● ● ● ●
207 16.183 SCREW; DOOR GLASS
16.445 REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9707- ● ● ● ● ● ●
207 16.183 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 9707- ● ● ● ● ● ●
219 16.175 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 9312- ● ● ● ● ● ●
220 16.332 SEAL; LINK ROD 8-97852-321-0 02 1 9312- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
