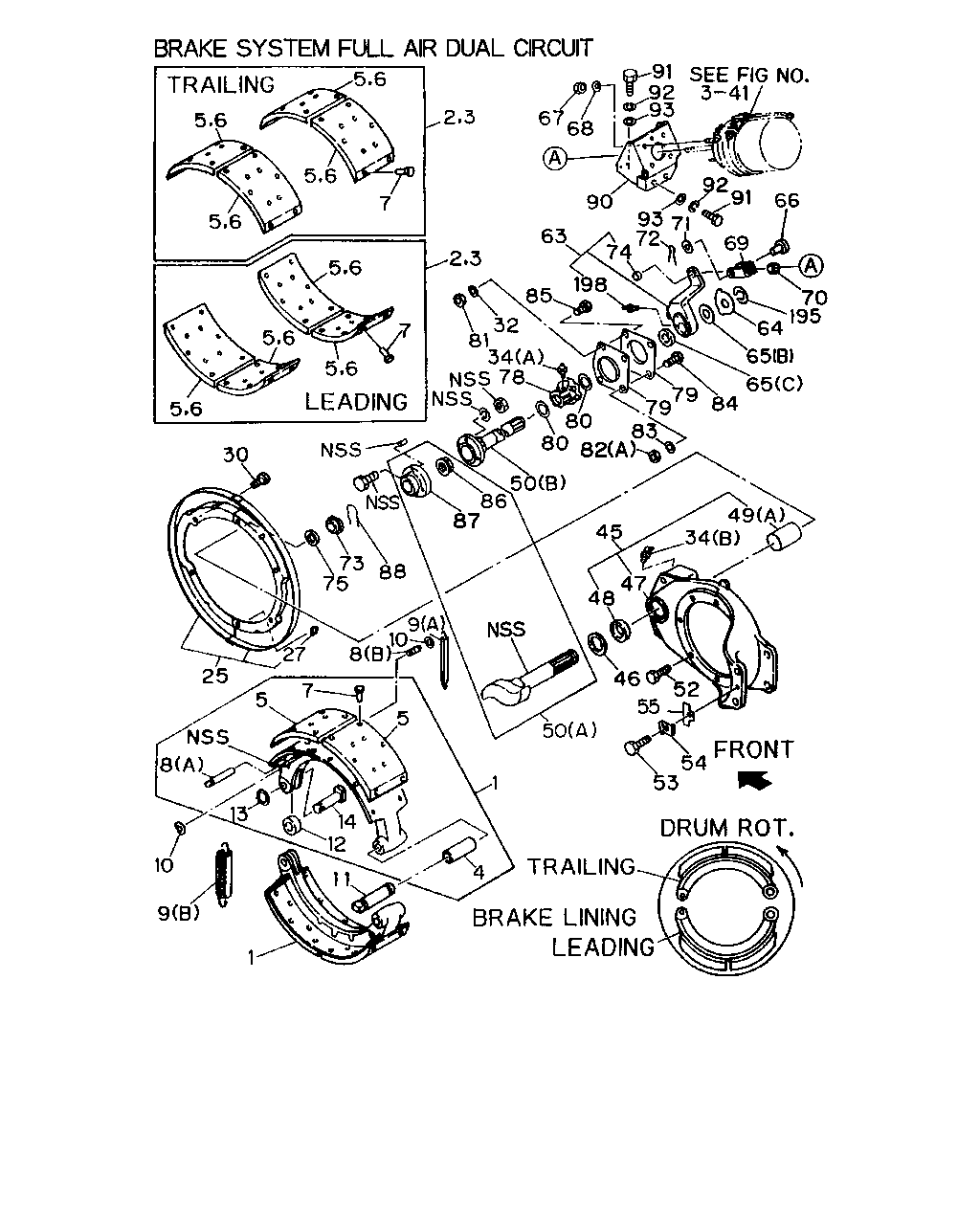

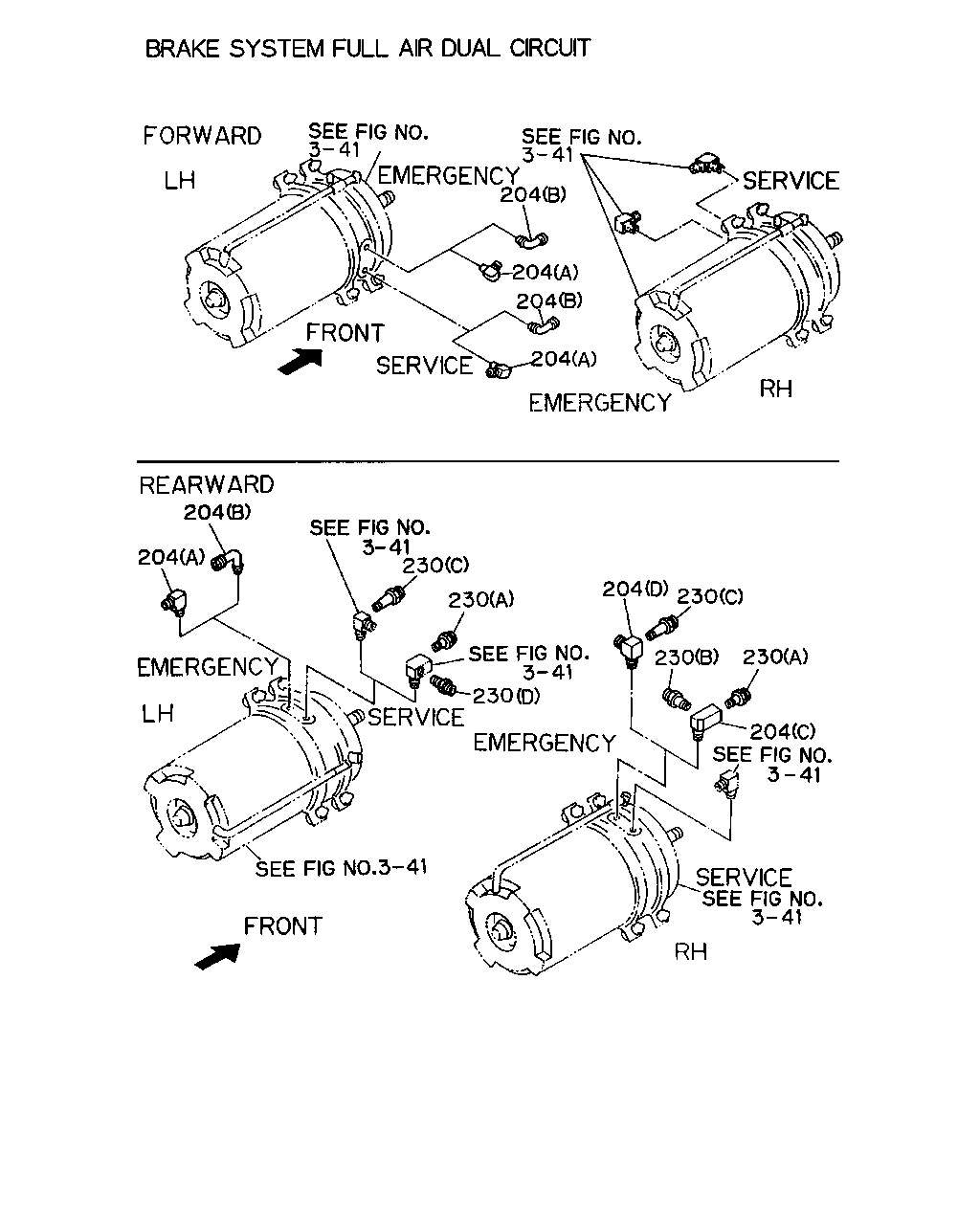

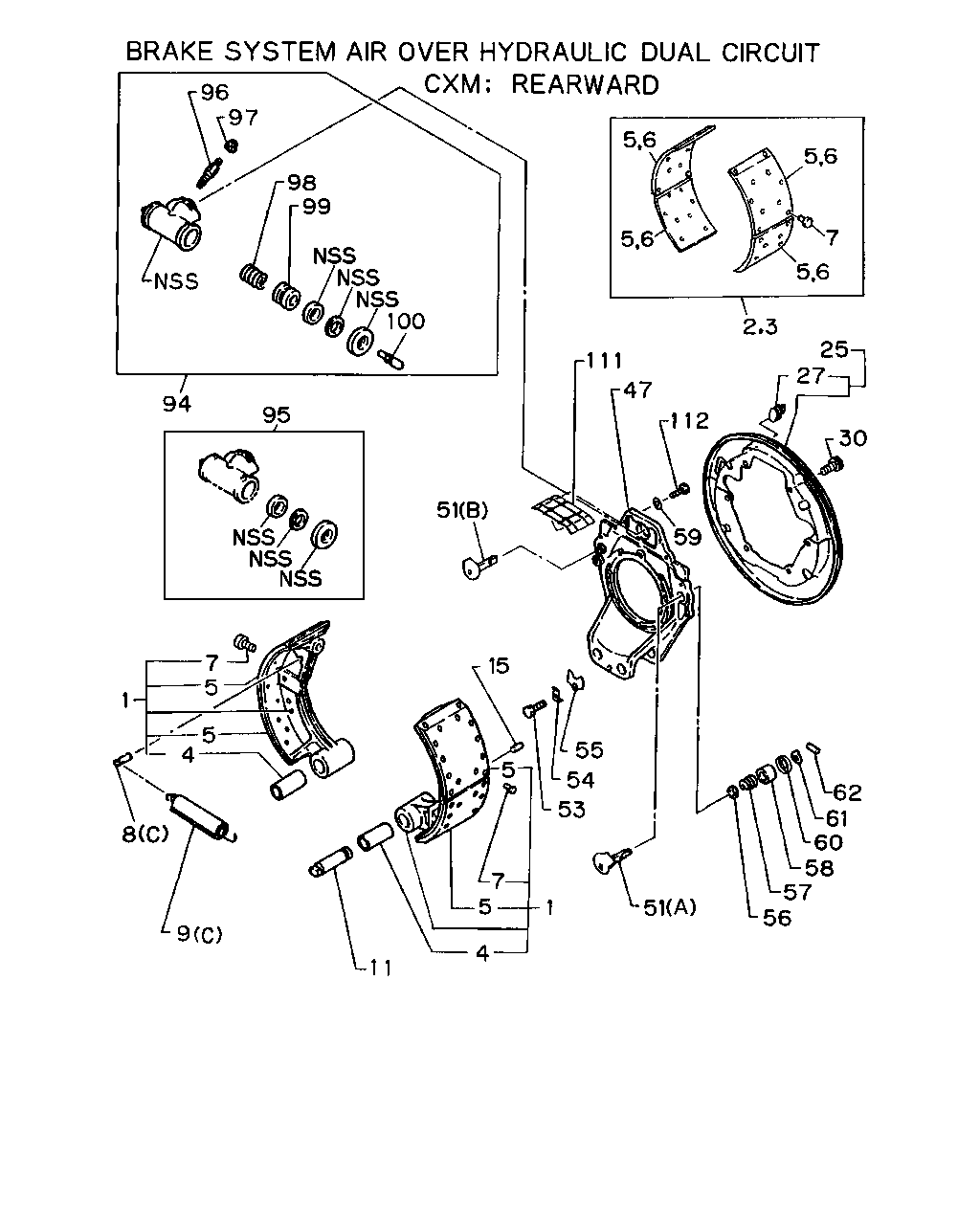

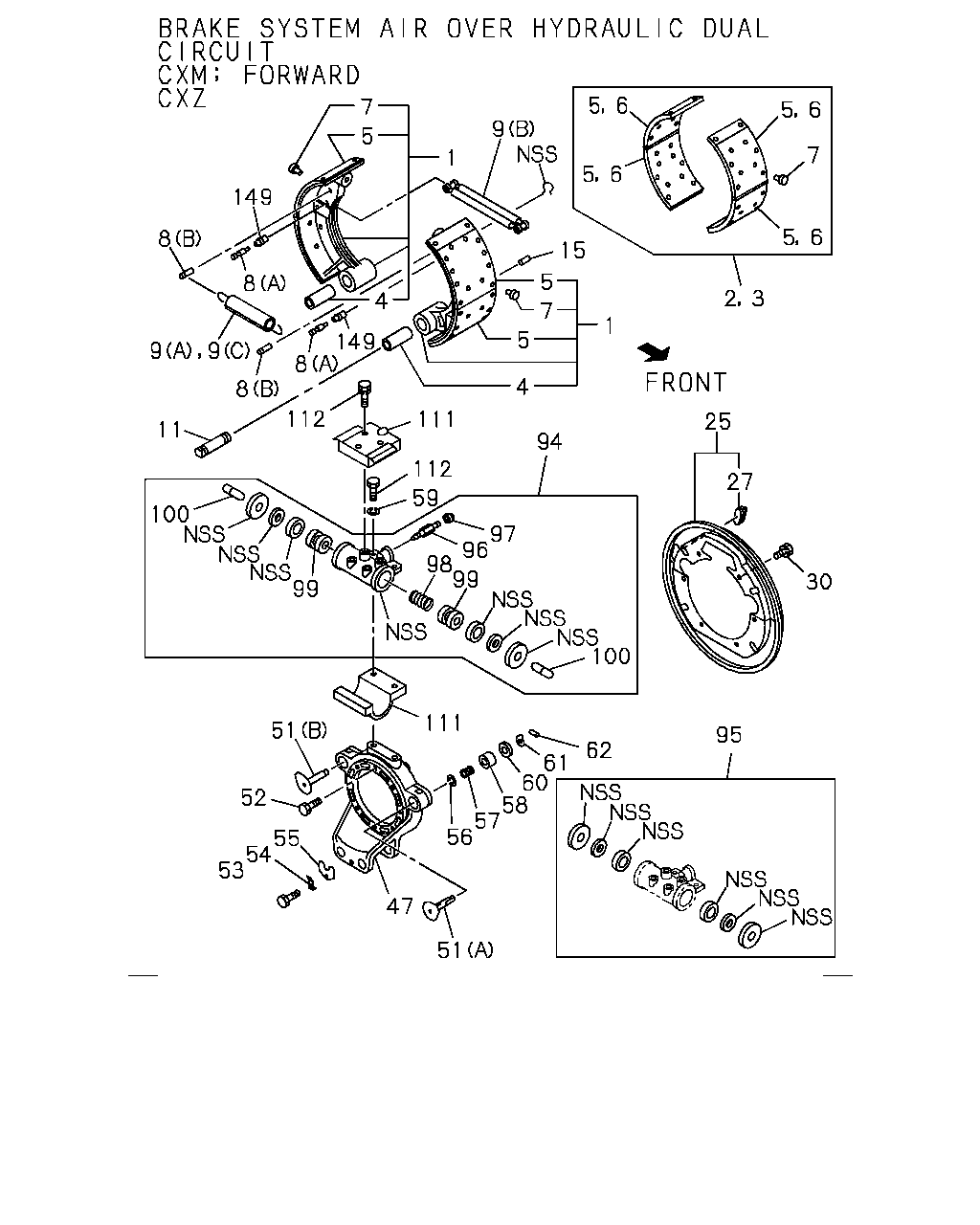

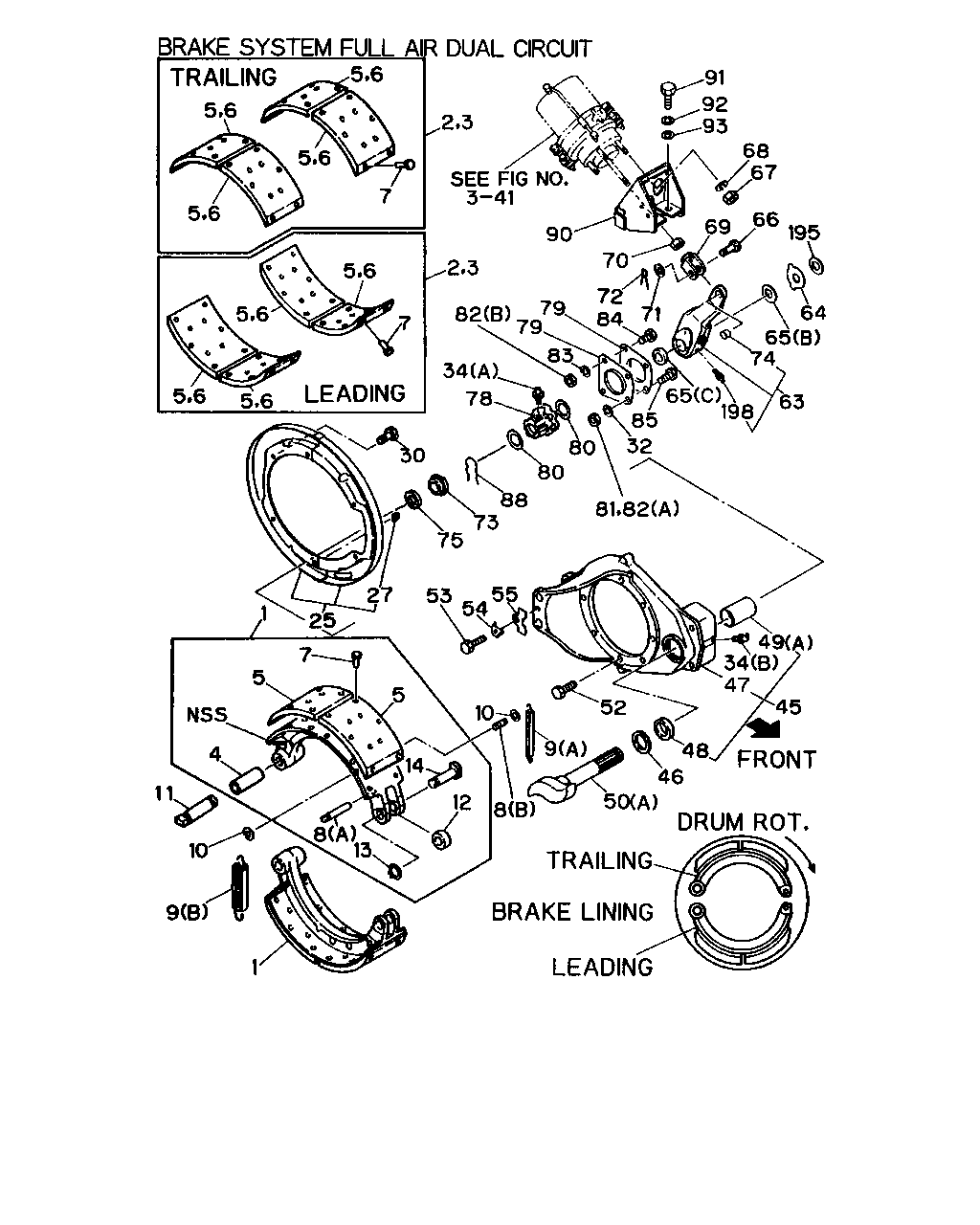

3-05 — REAR WHEEL BRAKE (#3367) — 916 parça

96 98 97 99 100 95 94 7 5 5 4 1 8 9 11 1 4 7 5 51 56 57 58 60 61 62 53 54 55 15 51 59 112 47 11 30 27 25 2 3 5 6 5 6 5 6 7 6 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR REARWARD	1-47110-853-0	04	1	9002-	●
1	SHOE; BRK,RR CXM; FORWARD	1-47110-893-0	04	1	9002-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47110-893-0	04	1	9002-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47110-893-0	04	1	9002-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55)	1-47110-928-0	04	1	9307-		●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-969-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-970-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-967-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LRADING	1-47110-967-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-968-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-117-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-118-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-115-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-116-0	02	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD REARWARD	1-88302-923-0	02	1	9002-	●
2	LINING SET; RR BRK,STANDARD CXM;FORWARD	1-88302-925-0	02	1	9002-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-88302-925-0	02	1	9002-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-88302-925-0	02	1	9002-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM HEAVY DUTY(J55)	1-88302-951-0	04	1	9002-		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-925-0	01	1	9307-9412		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-933-0	01	1	9307-9412		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-059-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-061-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-929-0	02	1	9002-9306		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-937-0	02	1	9002-9306		●	●
3	LINING SET; RR BRK,OVER SIZE REARWARD	1-88302-924-0	02	1	9002-	●
3	LINING SET; RR BRK,OVER SIZE CXM;REARWARD	1-88302-926-0	02	1	9002-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-88302-926-0	02	1	9002-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-88302-926-0	02	1	9002-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55)	1-88302-952-0	04	1	9002-		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADIND	1-88302-926-0	01	1	9307-9412		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-934-0	01	1	9307-9412		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-060-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-062-0	01	1	9501-		●	●
4	BUSHING; BRK SHOE,RR WHEEL REARWARD	1-47112-011-0	04	1	9002-	●
4	BUSHING; BRK SHOE,RR WHEEL FORWARD	1-47112-012-0	04	1	9002-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD	1-47115-771-0	08	1	9002-	●
5	LINING; RR BRK SHOE,STANDARD CXM; FORWARD	1-47115-773-0	08	1	9002-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-773-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-773-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM HEAVY DUTY(J55)	1-47115-775-0	16	1	9002-		●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-773-0	08	1	9002-9412		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-817-0	08	1	9002-9412		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-075-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-081-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD	1-47115-772-0	08	1	9002-	●
6	LINING; RR BRK SHOE,OVER SIZE CXM; FORWARD	1-47115-774-0	08	1	9002-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-774-0	08	1	9002-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-774-0	08	1	9002-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55)	1-47115-776-0	16	1	9002-		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-774-0	08	1	9002-9412		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-818-0	08	1	9002-9412		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-076-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-082-0	08	1	9501-		●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-	●		●
7	RIVET; LINING,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=18.5	1-09732-034-0	AR	1	9002-		●
7	RIVET; LINING,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) L=19.5	1-09732-035-0	AR	1	9002-		●
8	PIN; RETURN SPRING,RR BRK SHOE (A) CXM; FORWARD	1-09744-051-0	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) CXM; FORWARD	1-09744-051-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) CXM; FORWARD	1-09744-051-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (C) REARWARD	1-47119-017-1	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) CXM; FORWARD	1-47119-025-0	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) CXM; FORWARD	1-47119-025-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) CXM; FORWARD	1-47119-025-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	08	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	08	1	9002-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) REARWARD	1-09583-175-0	02	1	9002-	●		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (C) REARWARD	1-09583-175-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A),(B) FORWARD	1-09583-210-0	04	1	9002-9412	●		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9002-9412		●
9	SPRING; RETURN,BRK SHOE (A),(B) FORWARD	1-09583-210-0	04	1	9501-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9501-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9501-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (C) REARWARD	1-09583-185-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (A) FORWARD	1-09583-210-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09583-277-2	04	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09583-175-0	04	1	9002-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	04	1	9002-		●	●
11	PIN; ANCHOR,RR WHEEL BRK REARWARD L=106.5	1-47131-038-0	04	1	9002-	●
11	PIN; ANCHOR,RR WHEEL BRK CXM; FORWARD L=121.5	1-47131-039-0	04	1	9002-	●	●	●
11	PIN; ANCHOR,RR WHEEL BRK CXM; FORWARD L=121.5	1-47131-039-0	04	1	9002-		●	●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	08	1	9002-	●		●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47116-002-0	08	1	9002-		●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-47116-005-0	08	1	9002-		●
25	COVER SET; RR BRK DRUM REARWARD	1-47151-458-1	02	1	9002-	●
25	COVER SET; RR BRK DRUM CXM;FORWARD	1-47151-526-1	02	1	9002-	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-47151-526-1	02	1	9002-		●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM;FORWARD	1-47151-526-1	02	1	9002-			●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM HEAVY DUTY(J55)	1-47151-527-1	04	1	9002-		●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	04	1	9002-		●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9002-9501	●	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9502-	●	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9002-9204	●	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-	●	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK REARWARD	1-47137-112-3	02	1	9002-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK CXM; FORWARD	1-47137-151-0	02	1	9002-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM; FORWARD	1-47137-151-0	02	1	9002-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK CXM; FORWARD	1-47137-151-0	02	1	9002-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-153-0	02	1	9002-		●	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47165-058-1	04	1	9002-	●		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-47165-058-1	04	1	9002-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47165-059-1	04	1	9002-	●		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-47165-059-1	04	1	9002-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-47165-076-0	04	1	9002-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-47165-077-0	04	1	9002-		●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	9002-9204	●	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	9002-9109	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-	●	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9002-	●	●	●
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	08	1	9002-	●	●	●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09941-293-0	08	1	9002-9506	●		●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	9-09941-293-0	08	1	9002-9506		●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	9507-	●		●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47169-046-0	04	1	9507-		●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-09580-471-0	08	1	9002-9106		●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-09580-508-0	08	1	9107-		●
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	08	1	9002-	●		●
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47169-034-0	08	1	9002-		●
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-47169-039-0	08	1	9002-		●
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	08	1	9002-	●	●	●
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	08	1	9002-	●	●	●
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	08	1	9002-	●	●	●
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	08	1	9002-	●	●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-682-0	02	1	9002-	●
94	CYLINDER; WHEEL,RR BRK REARWARD	1-47600-686-0	02	1	9002-	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-47600-683-0	04	1	9002-		●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47600-684-0	04	1	9002-		●	●
95	CUP SET; RR WHEEL CYL FORWARD	1-87830-528-0	02	1	9002-	●
95	CUP SET; RR WHEEL CYL REARWARD	1-87830-529-0	02	1	9002-	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM HEAVY DUTY(J55)	1-87830-528-0	04	1	9002-		●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-87830-527-0	04	1	9002-		●	●
96	SCREW; BLEEDER,RR BRK CXM;FORWARD L=66.5	1-47615-005-0	02	1	9002-9412	●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD L=66.5	1-47615-005-0	02	1	9002-9412		●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD L=66.5	1-47615-005-0	02	1	9002-9412		●
96	SCREW; BLEEDER,RR BRK CXM;FORWARD L=66.5	1-47615-005-0	02	1	9501-	●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD L=66.5	1-47615-005-0	02	1	9501-		●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM;REARWARD	1-47615-002-0	02	1	9002-	●		●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-47615-002-0	02	1	9002-		●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-47615-002-0	02	1	9002-		●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM;REARWARD	1-47615-002-0	02	1	9002-			●
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	04	1	9002-	●	●	●
98	SPRING; RR WHEEL CYL CXM;FORWARD	1-09580-019-0	02	1	9002-	●
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM;FORWARD	1-09580-019-0	02	1	9002-		●	●
98	SPRING; RR WHEEL CYL CXM;FORWARD	1-09580-019-0	02	1	9002-		●	●
98	SPRING; RR WHEEL CYL REARWARD	9-09940-435-0	02	1	9002-	●
99	PISTON; RR WHEEL CYL CXM; FORWARD	1-47624-044-0	04	1	9002-	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47624-044-0	04	1	9002-		●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47624-044-0	04	1	9002-		●
99	PISTON; RR WHEEL CYL REARWARD	9-47624-208-0	04	1	9002-	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47624-043-0	08	1	9002-		●	●
100	ROD; PUSH,RR WHEEL CYL CXM; FORWARD	1-47621-009-0	04	1	9002-	●
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM; FORWARD	1-47621-009-0	04	1	9002-		●	●
100	ROD; PUSH,RR WHEEL CYL CXM; FORWARD	1-47621-009-0	04	1	9002-		●	●
100	ROD; PUSH,RR WHEEL CYL REARWARD	1-47621-010-0	04	1	9002-	●
112	BOLT; WHEEL CYL SETTING REARWARD M12X32 W/LK WASHER	0-50051-232-0	04	1	9002-	●
112	BOLT; WHEEL CYL SETTING M8X16 W/LK WASHER	9-01900-816-0	06	1	9002-9204	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	9-01900-816-0	06	1	9002-9204		●	●
112	BOLT; WHEEL CYL SETTING M8X16 W/LK WASHER	9-01900-816-0	06	1	9002-9204		●	●
112	BOLT; WHEEL CYL SETTING M8X16 W/LK WASHER	0-50040-816-0	06	1	9205-	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	06	1	9205-		●	●
112	BOLT; WHEEL CYL SETTING M8X16 W/LK WASHER	0-50040-816-0	06	1	9205-		●	●
112	BOLT; WHEEL CYL SETTING CXM; FORWARD M14X35	9-92051-435-0	04	1	9002-9005	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM; FORWARD M14X35	9-92051-435-0	04	1	9002-9005		●	●
112	BOLT; WHEEL CYL SETTING CXM; FORWARD M14X35	9-92051-435-0	04	1	9002-9005		●	●
112	BOLT; WHEEL CYL SETTING CXM; FORWARD M14X35	0-20801-435-0	04	1	9006-	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM; FORWARD M14X35	0-20801-435-0	04	1	9006-		●	●
112	BOLT; WHEEL CYL SETTING CXM; FORWARD M14X35	0-20801-435-0	04	1	9006-		●	●

6 5 6 5 6 5 6 5 7 6 5 6 5 6 5 6 5 7 60 73 88 75 27 25 5 7 8 13 10 9 1 11 12 5 14 1 4 8 10 50 9 53 54 52 55 48 47 46 45 34 49 87 86 50 80 80 82 83 79 79 84 65 65 64 195 70 66 91 92 69 71 90 93 198 72 74 63 85 78 32 81 3 2 3 2 34 68 67 93 92 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR REARWARD	1-47110-853-0	04	1	9002-	●
1	SHOE; BRK,RR CXM; FORWARD	1-47110-893-0	04	1	9002-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47110-893-0	04	1	9002-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47110-893-0	04	1	9002-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55)	1-47110-928-0	04	1	9307-		●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-969-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-970-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-967-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LRADING	1-47110-967-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-968-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-117-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-118-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-115-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-116-0	02	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD REARWARD	1-88302-923-0	02	1	9002-	●
2	LINING SET; RR BRK,STANDARD CXM;FORWARD	1-88302-925-0	02	1	9002-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-88302-925-0	02	1	9002-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-88302-925-0	02	1	9002-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM HEAVY DUTY(J55)	1-88302-951-0	04	1	9002-		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-925-0	01	1	9307-9412		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-933-0	01	1	9307-9412		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-059-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-061-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-929-0	02	1	9002-9306		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-937-0	02	1	9002-9306		●	●
3	LINING SET; RR BRK,OVER SIZE REARWARD	1-88302-924-0	02	1	9002-	●
3	LINING SET; RR BRK,OVER SIZE CXM;REARWARD	1-88302-926-0	02	1	9002-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-88302-926-0	02	1	9002-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-88302-926-0	02	1	9002-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55)	1-88302-952-0	04	1	9002-		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADIND	1-88302-926-0	01	1	9307-9412		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-934-0	01	1	9307-9412		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-060-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-062-0	01	1	9501-		●	●
4	BUSHING; BRK SHOE,RR WHEEL REARWARD	1-47112-011-0	04	1	9002-	●
4	BUSHING; BRK SHOE,RR WHEEL FORWARD	1-47112-012-0	04	1	9002-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD	1-47115-771-0	08	1	9002-	●
5	LINING; RR BRK SHOE,STANDARD CXM; FORWARD	1-47115-773-0	08	1	9002-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-773-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-773-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM HEAVY DUTY(J55)	1-47115-775-0	16	1	9002-		●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-773-0	08	1	9002-9412		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-817-0	08	1	9002-9412		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-075-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-081-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD	1-47115-772-0	08	1	9002-	●
6	LINING; RR BRK SHOE,OVER SIZE CXM; FORWARD	1-47115-774-0	08	1	9002-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-774-0	08	1	9002-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-774-0	08	1	9002-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55)	1-47115-776-0	16	1	9002-		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-774-0	08	1	9002-9412		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-818-0	08	1	9002-9412		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-076-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-082-0	08	1	9501-		●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-	●		●
7	RIVET; LINING,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=18.5	1-09732-034-0	AR	1	9002-		●
7	RIVET; LINING,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) L=19.5	1-09732-035-0	AR	1	9002-		●
8	PIN; RETURN SPRING,RR BRK SHOE (A) CXM; FORWARD	1-09744-051-0	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) CXM; FORWARD	1-09744-051-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) CXM; FORWARD	1-09744-051-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (C) REARWARD	1-47119-017-1	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) CXM; FORWARD	1-47119-025-0	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) CXM; FORWARD	1-47119-025-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) CXM; FORWARD	1-47119-025-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	08	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	08	1	9002-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) REARWARD	1-09583-175-0	02	1	9002-	●		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (C) REARWARD	1-09583-175-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A),(B) FORWARD	1-09583-210-0	04	1	9002-9412	●		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9002-9412		●
9	SPRING; RETURN,BRK SHOE (A),(B) FORWARD	1-09583-210-0	04	1	9501-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9501-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9501-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (C) REARWARD	1-09583-185-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (A) FORWARD	1-09583-210-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09583-277-2	04	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09583-175-0	04	1	9002-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	04	1	9002-		●	●
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	9-09185-410-0	16	1	9002-		●	●
11	PIN; ANCHOR,RR WHEEL BRK REARWARD L=106.5	1-47131-038-0	04	1	9002-	●
11	PIN; ANCHOR,RR WHEEL BRK CXM; FORWARD L=121.5	1-47131-039-0	04	1	9002-	●	●	●
11	PIN; ANCHOR,RR WHEEL BRK CXM; FORWARD L=121.5	1-47131-039-0	04	1	9002-		●	●
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-005-0	08	1	9002-		●	●
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	08	1	9002-		●	●
14	PIN; CAM ROLLER,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-061-0	08	1	9002-		●	●
25	COVER SET; RR BRK DRUM REARWARD	1-47151-458-1	02	1	9002-	●
25	COVER SET; RR BRK DRUM CXM;FORWARD	1-47151-526-1	02	1	9002-	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-47151-526-1	02	1	9002-		●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM;FORWARD	1-47151-526-1	02	1	9002-			●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM HEAVY DUTY(J55)	1-47151-527-1	04	1	9002-		●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	04	1	9002-		●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9002-9501	●	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9502-	●	●	●
32	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	9-09150-510-0	04	1	9002-		●	●
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	9002-		●	●
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-		●	●
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-47137-120-2	02	1	9002-		●	●
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-47137-128-1	02	1	9002-		●	●
46	RING; SPACER,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-005-0	04	1	9002-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK REARWARD	1-47137-112-3	02	1	9002-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK CXM; FORWARD	1-47137-151-0	02	1	9002-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM; FORWARD	1-47137-151-0	02	1	9002-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK CXM; FORWARD	1-47137-151-0	02	1	9002-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-153-0	02	1	9002-		●	●
48	SEAL; OIL,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09625-228-0	04	1	9002-		●	●
49	BUSHING; CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) FORWARD	1-47146-003-1	02	1	9002-		●	●
49	BUSHING; CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD	1-47146-009-0	02	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD	1-47141-053-0	01	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) REARWARD	1-47141-065-1	01	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD	1-47141-066-0	01	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD	1-47141-054-0	01	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD	1-47141-063-0	01	1	9002-		●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9002-	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM HEAVY DUTY(J55) M14X50	1-09040-066-0	02	1	9002-		●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM HEAVY DUTY(J55) M14X50	1-09040-066-0	02	1	9002-		●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M14X43	1-09040-045-0	04	1	9002-		●	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X43	1-09040-045-0	01	1	9002-		●	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X50	1-09040-066-0	03	1	9002-		●	●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	9002-9204	●	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	9002-9109	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-	●	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9002-	●	●	●
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	08	1	9002-	●	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LH; FORWARD & RH; REARWARD	1-48270-045-0	02	1	9002-		●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-48270-050-1	01	1	9002-		●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-48270-046-0	01	1	9002-		●	●
64	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-47149-022-0	02	1	9002-		●	●
64	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-47149-040-0	02	1	9002-		●	●
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47143-004-0	04	1	9002-		●	●
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) REARWARD	1-47143-007-0	02	1	9002-		●	●
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD	9-09180-038-0	01	1	9002-		●	●
66	PIN; JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	04	1	9002-		●	●
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16	9-99110-416-0	16	1	9002-		●	●
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16	9-99110-416-0	08	1	9002-9306		●	●
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16.2	9-09150-516-0	16	1	9002-		●	●
68	WASHER; LK,CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16.2	9-09150-516-0	08	1	9002-9306		●	●
69	JOINT; JAW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09768-060-0	04	1	9002-		●	●
70	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	04	1	9002-		●	●
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17	9-09160-516-0	04	1	9002-9401		●	●
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32	9-09160-616-0	04	1	9402-		●	●
72	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	04	1	9002-		●	●
73	COLLAR; FELT RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-47143-003-0	02	1	9002-		●	●
73	COLLAR; FELT RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-47143-006-0	02	1	9002-		●	●
74	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09330-041-0	04	1	9002-		●	●
75	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-009-0	04	1	9002-		●	●
78	BUSHING; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-008-0	02	1	9002-		●	●
79	BRACKET; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47145-013-0	04	1	9002-		●	●
80	GASKET; BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=39.7	9-09561-340-0	04	1	9002-		●	●
81	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	04	1	9002-		●	●
82	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	5-09000-430-0	04	1	9002-		●	●
82	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=12.2	9-09150-612-0	04	1	9002-		●	●
82	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12	9-99110-512-0	04	1	9002-		●	●
82	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	9-99110-516-0	04	1	9002-		●	●
83	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09851-672-2	08	1	9002-		●	●
84	BOLT; BRKT TO CASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16X40	9-92061-640-0	04	1	9002-		●	●
85	BOLT; CM/SHF BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20	9-02041-020-0	04	1	9002-9204		●	●
85	BOLT; CM/SHF BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20	0-20801-020-0	04	1	9205-		●	●
86	NUT; FLANGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD LH	1-09440-020-0	01	1	9002-		●	●
87	FLANGE; SHAFT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD LH	1-47149-041-0	01	1	9002-		●	●
88	CLIP; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09589-014-0	02	1	9002-9403		●	●
88	CLIP; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09589-018-0	02	1	9404-		●	●
90	BRACKET; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42129-046-3	01	1	9002-		●	●
90	BRACKET; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42129-045-3	01	1	9002-		●	●
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	9-92351-635-0	08	1	9002-9005		●	●
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16X35	0-23801-635-0	08	1	9006-		●	●
91	BOLT; CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	9-92351-635-0	04	1	9002-9005		●	●
91	BOLT; CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16X35	0-23801-635-0	04	1	9006-9306		●	●
92	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16.2	9-09150-516-0	08	1	9002-		●	●
92	WASHER; LK,CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16.2	9-09150-516-0	02	1	9002-9306		●	●
92	WASHER; LK,CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=17 OD=32	9-09160-616-0	02	1	9002-9306		●	●
93	WASHER; PL,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=17 OD=32	9-09160-616-0	08	1	9002-		●	●
93	WASHER; PL,CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=17 OD=32	9-09160-616-0	02	1	9002-9306		●	●
195	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	9-09180-038-0	01	1	9002-		●	●
195	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	9-09180-038-0	02	1	9002-		●	●
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9002-		●	●

6 5 6 5 6 5 6 5 6 5 6 5 6 5 6 5 7 7 3 2 3 2 34 30 75 27 25 7 1 5 4 11 10 9 1 13 8 12 14 5 10 8 9 52 48 46 50 47 45 49 55 54 56 34 73 88 80 80 81 82 32 85 65 198 63 74 65 64 195 71 70 84 72 83 79 79 82 78 90 69 66 67 68 93 92 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR REARWARD	1-47110-853-0	04	1	9002-	●
1	SHOE; BRK,RR CXM; FORWARD	1-47110-893-0	04	1	9002-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47110-893-0	04	1	9002-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47110-893-0	04	1	9002-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55)	1-47110-928-0	04	1	9307-		●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-969-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-970-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-967-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LRADING	1-47110-967-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-968-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-117-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-118-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-115-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-116-0	02	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD REARWARD	1-88302-923-0	02	1	9002-	●
2	LINING SET; RR BRK,STANDARD CXM;FORWARD	1-88302-925-0	02	1	9002-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-88302-925-0	02	1	9002-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-88302-925-0	02	1	9002-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM HEAVY DUTY(J55)	1-88302-951-0	04	1	9002-		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-925-0	01	1	9307-9412		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-933-0	01	1	9307-9412		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-059-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-061-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-929-0	02	1	9002-9306		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-937-0	02	1	9002-9306		●	●
3	LINING SET; RR BRK,OVER SIZE REARWARD	1-88302-924-0	02	1	9002-	●
3	LINING SET; RR BRK,OVER SIZE CXM;REARWARD	1-88302-926-0	02	1	9002-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-88302-926-0	02	1	9002-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-88302-926-0	02	1	9002-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55)	1-88302-952-0	04	1	9002-		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADIND	1-88302-926-0	01	1	9307-9412		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-934-0	01	1	9307-9412		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-060-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-062-0	01	1	9501-		●	●
4	BUSHING; BRK SHOE,RR WHEEL REARWARD	1-47112-011-0	04	1	9002-	●
4	BUSHING; BRK SHOE,RR WHEEL FORWARD	1-47112-012-0	04	1	9002-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD	1-47115-771-0	08	1	9002-	●
5	LINING; RR BRK SHOE,STANDARD CXM; FORWARD	1-47115-773-0	08	1	9002-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-773-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-773-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM HEAVY DUTY(J55)	1-47115-775-0	16	1	9002-		●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-773-0	08	1	9002-9412		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-817-0	08	1	9002-9412		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-075-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-081-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD	1-47115-772-0	08	1	9002-	●
6	LINING; RR BRK SHOE,OVER SIZE CXM; FORWARD	1-47115-774-0	08	1	9002-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-774-0	08	1	9002-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-774-0	08	1	9002-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55)	1-47115-776-0	16	1	9002-		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-774-0	08	1	9002-9412		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-818-0	08	1	9002-9412		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-076-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-082-0	08	1	9501-		●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-	●		●
7	RIVET; LINING,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=18.5	1-09732-034-0	AR	1	9002-		●
7	RIVET; LINING,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) L=19.5	1-09732-035-0	AR	1	9002-		●
8	PIN; RETURN SPRING,RR BRK SHOE (A) CXM; FORWARD	1-09744-051-0	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) CXM; FORWARD	1-09744-051-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) CXM; FORWARD	1-09744-051-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (C) REARWARD	1-47119-017-1	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) CXM; FORWARD	1-47119-025-0	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) CXM; FORWARD	1-47119-025-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) CXM; FORWARD	1-47119-025-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	08	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	08	1	9002-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) REARWARD	1-09583-175-0	02	1	9002-	●		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (C) REARWARD	1-09583-175-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A),(B) FORWARD	1-09583-210-0	04	1	9002-9412	●		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9002-9412		●
9	SPRING; RETURN,BRK SHOE (A),(B) FORWARD	1-09583-210-0	04	1	9501-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9501-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9501-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (C) REARWARD	1-09583-185-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (A) FORWARD	1-09583-210-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09583-277-2	04	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09583-175-0	04	1	9002-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	04	1	9002-		●	●
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	9-09185-410-0	16	1	9002-		●	●
11	PIN; ANCHOR,RR WHEEL BRK REARWARD L=106.5	1-47131-038-0	04	1	9002-	●
11	PIN; ANCHOR,RR WHEEL BRK CXM; FORWARD L=121.5	1-47131-039-0	04	1	9002-	●	●	●
11	PIN; ANCHOR,RR WHEEL BRK CXM; FORWARD L=121.5	1-47131-039-0	04	1	9002-		●	●
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-005-0	08	1	9002-		●	●
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	08	1	9002-		●	●
14	PIN; CAM ROLLER,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-061-0	08	1	9002-		●	●
25	COVER SET; RR BRK DRUM REARWARD	1-47151-458-1	02	1	9002-	●
25	COVER SET; RR BRK DRUM CXM;FORWARD	1-47151-526-1	02	1	9002-	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-47151-526-1	02	1	9002-		●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM;FORWARD	1-47151-526-1	02	1	9002-			●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM HEAVY DUTY(J55)	1-47151-527-1	04	1	9002-		●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	04	1	9002-		●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9002-9501	●	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9502-	●	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9002-9204	●	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-	●	●	●
32	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	9-09150-510-0	04	1	9002-		●	●
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	9002-		●	●
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-		●	●
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-47137-120-2	02	1	9002-		●	●
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-47137-128-1	02	1	9002-		●	●
46	RING; SPACER,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-005-0	04	1	9002-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK REARWARD	1-47137-112-3	02	1	9002-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK CXM; FORWARD	1-47137-151-0	02	1	9002-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM; FORWARD	1-47137-151-0	02	1	9002-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK CXM; FORWARD	1-47137-151-0	02	1	9002-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-153-0	02	1	9002-		●	●
48	SEAL; OIL,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09625-228-0	04	1	9002-		●	●
49	BUSHING; CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) FORWARD	1-47146-003-1	02	1	9002-		●	●
49	BUSHING; CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD	1-47146-009-0	02	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD	1-47141-053-0	01	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) REARWARD	1-47141-065-1	01	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD	1-47141-066-0	01	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD	1-47141-054-0	01	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD	1-47141-063-0	01	1	9002-		●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9002-	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM HEAVY DUTY(J55) M14X50	1-09040-066-0	02	1	9002-		●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM HEAVY DUTY(J55) M14X50	1-09040-066-0	02	1	9002-		●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M14X43	1-09040-045-0	04	1	9002-		●	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X43	1-09040-045-0	01	1	9002-		●	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X50	1-09040-066-0	03	1	9002-		●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	9002-9109	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-	●	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9002-	●	●	●
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	08	1	9002-	●	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LH; FORWARD & RH; REARWARD	1-48270-045-0	02	1	9002-		●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-48270-050-1	01	1	9002-		●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-48270-046-0	01	1	9002-		●	●
64	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-47149-022-0	02	1	9002-		●	●
64	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-47149-040-0	02	1	9002-		●	●
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47143-004-0	04	1	9002-		●	●
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) REARWARD	1-47143-007-0	02	1	9002-		●	●
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD	9-09180-038-0	01	1	9002-		●	●
66	PIN; JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	04	1	9002-		●	●
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16	9-99110-416-0	16	1	9002-		●	●
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16	9-99110-416-0	08	1	9002-9306		●	●
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16.2	9-09150-516-0	16	1	9002-		●	●
68	WASHER; LK,CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16.2	9-09150-516-0	08	1	9002-9306		●	●
69	JOINT; JAW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09768-060-0	04	1	9002-		●	●
70	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	04	1	9002-		●	●
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17	9-09160-516-0	04	1	9002-9401		●	●
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32	9-09160-616-0	04	1	9402-		●	●
72	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	04	1	9002-		●	●
73	COLLAR; FELT RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-47143-003-0	02	1	9002-		●	●
73	COLLAR; FELT RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-47143-006-0	02	1	9002-		●	●
74	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09330-041-0	04	1	9002-		●	●
75	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-009-0	04	1	9002-		●	●
78	BUSHING; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-008-0	02	1	9002-		●	●
79	BRACKET; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47145-013-0	04	1	9002-		●	●
80	GASKET; BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=39.7	9-09561-340-0	04	1	9002-		●	●
81	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	04	1	9002-		●	●
82	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	5-09000-430-0	04	1	9002-		●	●
82	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=12.2	9-09150-612-0	04	1	9002-		●	●
82	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12	9-99110-512-0	04	1	9002-		●	●
82	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	9-99110-516-0	04	1	9002-		●	●
83	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09851-672-2	08	1	9002-		●	●
84	BOLT; BRKT TO CASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16X40	9-92061-640-0	04	1	9002-		●	●
85	BOLT; CM/SHF BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20	9-02041-020-0	04	1	9002-9204		●	●
85	BOLT; CM/SHF BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20	0-20801-020-0	04	1	9205-		●	●
88	CLIP; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09589-014-0	02	1	9002-9403		●	●
88	CLIP; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09589-018-0	02	1	9404-		●	●
90	BRACKET; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42129-046-3	01	1	9002-		●	●
90	BRACKET; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42129-045-3	01	1	9002-		●	●
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	9-92351-635-0	08	1	9002-9005		●	●
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16X35	0-23801-635-0	08	1	9006-		●	●
91	BOLT; CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	9-92351-635-0	04	1	9002-9005		●	●
91	BOLT; CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16X35	0-23801-635-0	04	1	9006-9306		●	●
92	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16.2	9-09150-516-0	08	1	9002-		●	●
92	WASHER; LK,CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16.2	9-09150-516-0	02	1	9002-9306		●	●
92	WASHER; LK,CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=17 OD=32	9-09160-616-0	02	1	9002-9306		●	●
93	WASHER; PL,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=17 OD=32	9-09160-616-0	08	1	9002-		●	●
93	WASHER; PL,CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=17 OD=32	9-09160-616-0	02	1	9002-9306		●	●
195	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	9-09180-038-0	01	1	9002-		●	●
195	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	9-09180-038-0	02	1	9002-		●	●
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9002-		●	●

6 5 7 6 5 6 5 6 5 6 5 6 5 6 5 6 5 3 2 195 65 64 65 76 198 75 77 63 74 73 30 3 2 66 34 27 25 70 72 69 71 67 8 53 55 10 5 7 5 4 11 10 9 1 13 8 12 14 54 8 50 46 48 9 52 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR REARWARD	1-47110-853-0	04	1	9002-	●
1	SHOE; BRK,RR CXM; FORWARD	1-47110-893-0	04	1	9002-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47110-893-0	04	1	9002-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47110-893-0	04	1	9002-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55)	1-47110-928-0	04	1	9307-		●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-969-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-970-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-967-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LRADING	1-47110-967-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-968-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-117-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-118-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-115-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-116-0	02	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD REARWARD	1-88302-923-0	02	1	9002-	●
2	LINING SET; RR BRK,STANDARD CXM;FORWARD	1-88302-925-0	02	1	9002-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-88302-925-0	02	1	9002-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-88302-925-0	02	1	9002-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM HEAVY DUTY(J55)	1-88302-951-0	04	1	9002-		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-925-0	01	1	9307-9412		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-933-0	01	1	9307-9412		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-059-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-061-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-929-0	02	1	9002-9306		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-937-0	02	1	9002-9306		●	●
3	LINING SET; RR BRK,OVER SIZE REARWARD	1-88302-924-0	02	1	9002-	●
3	LINING SET; RR BRK,OVER SIZE CXM;REARWARD	1-88302-926-0	02	1	9002-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-88302-926-0	02	1	9002-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-88302-926-0	02	1	9002-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55)	1-88302-952-0	04	1	9002-		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADIND	1-88302-926-0	01	1	9307-9412		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-934-0	01	1	9307-9412		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-060-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-062-0	01	1	9501-		●	●
4	BUSHING; BRK SHOE,RR WHEEL REARWARD	1-47112-011-0	04	1	9002-	●
4	BUSHING; BRK SHOE,RR WHEEL FORWARD	1-47112-012-0	04	1	9002-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD	1-47115-771-0	08	1	9002-	●
5	LINING; RR BRK SHOE,STANDARD CXM; FORWARD	1-47115-773-0	08	1	9002-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-773-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-773-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM HEAVY DUTY(J55)	1-47115-775-0	16	1	9002-		●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-773-0	08	1	9002-9412		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-817-0	08	1	9002-9412		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-075-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-081-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD	1-47115-772-0	08	1	9002-	●
6	LINING; RR BRK SHOE,OVER SIZE CXM; FORWARD	1-47115-774-0	08	1	9002-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-774-0	08	1	9002-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-774-0	08	1	9002-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55)	1-47115-776-0	16	1	9002-		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-774-0	08	1	9002-9412		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-818-0	08	1	9002-9412		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-076-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-082-0	08	1	9501-		●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-	●		●
7	RIVET; LINING,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=18.5	1-09732-034-0	AR	1	9002-		●
7	RIVET; LINING,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) L=19.5	1-09732-035-0	AR	1	9002-		●
8	PIN; RETURN SPRING,RR BRK SHOE (A) CXM; FORWARD	1-09744-051-0	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) CXM; FORWARD	1-09744-051-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) CXM; FORWARD	1-09744-051-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (C) REARWARD	1-47119-017-1	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) CXM; FORWARD	1-47119-025-0	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) CXM; FORWARD	1-47119-025-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) CXM; FORWARD	1-47119-025-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	08	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	08	1	9002-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) REARWARD	1-09583-175-0	02	1	9002-	●		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (C) REARWARD	1-09583-175-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A),(B) FORWARD	1-09583-210-0	04	1	9002-9412	●		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9002-9412		●
9	SPRING; RETURN,BRK SHOE (A),(B) FORWARD	1-09583-210-0	04	1	9501-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9501-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9501-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (C) REARWARD	1-09583-185-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (A) FORWARD	1-09583-210-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09583-277-2	04	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09583-175-0	04	1	9002-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	04	1	9002-		●	●
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	9-09185-410-0	16	1	9002-		●	●
11	PIN; ANCHOR,RR WHEEL BRK REARWARD L=106.5	1-47131-038-0	04	1	9002-	●
11	PIN; ANCHOR,RR WHEEL BRK CXM; FORWARD L=121.5	1-47131-039-0	04	1	9002-	●	●	●
11	PIN; ANCHOR,RR WHEEL BRK CXM; FORWARD L=121.5	1-47131-039-0	04	1	9002-		●	●
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-005-0	08	1	9002-		●	●
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	08	1	9002-		●	●
14	PIN; CAM ROLLER,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-061-0	08	1	9002-		●	●
25	COVER SET; RR BRK DRUM REARWARD	1-47151-458-1	02	1	9002-	●
25	COVER SET; RR BRK DRUM CXM;FORWARD	1-47151-526-1	02	1	9002-	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-47151-526-1	02	1	9002-		●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM;FORWARD	1-47151-526-1	02	1	9002-			●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM HEAVY DUTY(J55)	1-47151-527-1	04	1	9002-		●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	04	1	9002-		●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9002-9501	●	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9502-	●	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9002-9204	●	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-	●	●	●
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	9002-		●	●
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-		●	●
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-47137-120-2	02	1	9002-		●	●
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-47137-128-1	02	1	9002-		●	●
46	RING; SPACER,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-005-0	04	1	9002-		●	●
48	SEAL; OIL,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09625-228-0	04	1	9002-		●	●
49	BUSHING; CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) FORWARD	1-47146-003-1	02	1	9002-		●	●
49	BUSHING; CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD	1-47146-009-0	02	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD	1-47141-053-0	01	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) REARWARD	1-47141-065-1	01	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD	1-47141-066-0	01	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD	1-47141-054-0	01	1	9002-		●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD	1-47141-063-0	01	1	9002-		●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9002-	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM HEAVY DUTY(J55) M14X50	1-09040-066-0	02	1	9002-		●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM HEAVY DUTY(J55) M14X50	1-09040-066-0	02	1	9002-		●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M14X43	1-09040-045-0	04	1	9002-		●	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X43	1-09040-045-0	01	1	9002-		●	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X50	1-09040-066-0	03	1	9002-		●	●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	9002-9204	●	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	9002-9109	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-	●	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9002-	●	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LH; FORWARD & RH; REARWARD	1-48270-045-0	02	1	9002-		●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-48270-050-1	01	1	9002-		●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-48270-046-0	01	1	9002-		●	●
64	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-47149-022-0	02	1	9002-		●	●
64	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-47149-040-0	02	1	9002-		●	●
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47143-004-0	04	1	9002-		●	●
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) REARWARD	1-47143-007-0	02	1	9002-		●	●
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD	9-09180-038-0	01	1	9002-		●	●
66	PIN; JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	04	1	9002-		●	●
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16	9-99110-416-0	16	1	9002-		●	●
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16	9-99110-416-0	08	1	9002-9306		●	●
69	JOINT; JAW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09768-060-0	04	1	9002-		●	●
70	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	04	1	9002-		●	●
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17	9-09160-516-0	04	1	9002-9401		●	●
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32	9-09160-616-0	04	1	9402-		●	●
72	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	04	1	9002-		●	●
73	COLLAR; FELT RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-47143-003-0	02	1	9002-		●	●
73	COLLAR; FELT RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-47143-006-0	02	1	9002-		●	●
74	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09330-041-0	04	1	9002-		●	●
75	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-009-0	04	1	9002-		●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-48258-083-0	01	1	9002-		●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-48258-084-0	01	1	9002-		●	●
77	BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	02	1	9002-		●	●
195	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	9-09180-038-0	01	1	9002-		●	●
195	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	9-09180-038-0	02	1	9002-		●	●
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9002-		●	●

7 149 5 9 15 1 5 7 1 5 4 4 149 8 8 8 8 9 9 11 112 111 112 94 97 99 100 96 98 99 100 111 51 52 55 54 53 47 51 56 61 60 58 57 62 95 30 27 25 2 3 5 6 7 6 5 6 5 6 5 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR REARWARD	1-47110-853-0	04	1	9002-	●
1	SHOE; BRK,RR CXM; FORWARD	1-47110-893-0	04	1	9002-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47110-893-0	04	1	9002-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47110-893-0	04	1	9002-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55)	1-47110-928-0	04	1	9307-		●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-969-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-970-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-967-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LRADING	1-47110-967-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-968-0	02	1	9002-9412		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-117-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-118-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-115-0	02	1	9501-		●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-116-0	02	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD REARWARD	1-88302-923-0	02	1	9002-	●
2	LINING SET; RR BRK,STANDARD CXM;FORWARD	1-88302-925-0	02	1	9002-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-88302-925-0	02	1	9002-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-88302-925-0	02	1	9002-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM HEAVY DUTY(J55)	1-88302-951-0	04	1	9002-		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-925-0	01	1	9307-9412		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-933-0	01	1	9307-9412		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-059-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-061-0	01	1	9501-		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-929-0	02	1	9002-9306		●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-937-0	02	1	9002-9306		●	●
3	LINING SET; RR BRK,OVER SIZE REARWARD	1-88302-924-0	02	1	9002-	●
3	LINING SET; RR BRK,OVER SIZE CXM;REARWARD	1-88302-926-0	02	1	9002-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-88302-926-0	02	1	9002-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-88302-926-0	02	1	9002-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55)	1-88302-952-0	04	1	9002-		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADIND	1-88302-926-0	01	1	9307-9412		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-934-0	01	1	9307-9412		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-060-0	01	1	9501-		●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-062-0	01	1	9501-		●	●
4	BUSHING; BRK SHOE,RR WHEEL REARWARD	1-47112-011-0	04	1	9002-	●
4	BUSHING; BRK SHOE,RR WHEEL FORWARD	1-47112-012-0	04	1	9002-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD REARWARD	1-47115-771-0	08	1	9002-	●
5	LINING; RR BRK SHOE,STANDARD CXM; FORWARD	1-47115-773-0	08	1	9002-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-773-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-773-0	08	1	9002-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM HEAVY DUTY(J55)	1-47115-775-0	16	1	9002-		●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-773-0	08	1	9002-9412		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-817-0	08	1	9002-9412		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-075-0	08	1	9501-		●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-081-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE REARWARD	1-47115-772-0	08	1	9002-	●
6	LINING; RR BRK SHOE,OVER SIZE CXM; FORWARD	1-47115-774-0	08	1	9002-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-774-0	08	1	9002-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47115-774-0	08	1	9002-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55)	1-47115-776-0	16	1	9002-		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-774-0	08	1	9002-9412		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-818-0	08	1	9002-9412		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-076-0	08	1	9501-		●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-082-0	08	1	9501-		●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-	●		●
7	RIVET; LINING,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=18.5	1-09732-034-0	AR	1	9002-		●
7	RIVET; LINING,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) L=19.5	1-09732-035-0	AR	1	9002-		●
8	PIN; RETURN SPRING,RR BRK SHOE (A) CXM; FORWARD	1-09744-051-0	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) CXM; FORWARD	1-09744-051-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) CXM; FORWARD	1-09744-051-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (C) REARWARD	1-47119-017-1	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) CXM; FORWARD	1-47119-025-0	04	1	9002-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) CXM; FORWARD	1-47119-025-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) CXM; FORWARD	1-47119-025-0	04	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	08	1	9002-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	08	1	9002-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) REARWARD	1-09583-175-0	02	1	9002-	●		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (C) REARWARD	1-09583-175-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A),(B) FORWARD	1-09583-210-0	04	1	9002-9412	●		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9002-9412		●
9	SPRING; RETURN,BRK SHOE (A),(B) FORWARD	1-09583-210-0	04	1	9501-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9501-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A),(B) FORWARD	1-09583-210-0	04	1	9501-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (C) REARWARD	1-09583-185-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (A) FORWARD	1-09583-210-0	02	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09583-277-2	04	1	9002-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09583-175-0	04	1	9002-		●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	04	1	9002-		●	●
11	PIN; ANCHOR,RR WHEEL BRK REARWARD L=106.5	1-47131-038-0	04	1	9002-	●
11	PIN; ANCHOR,RR WHEEL BRK CXM; FORWARD L=121.5	1-47131-039-0	04	1	9002-	●	●	●
11	PIN; ANCHOR,RR WHEEL BRK CXM; FORWARD L=121.5	1-47131-039-0	04	1	9002-		●	●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	08	1	9002-	●		●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47116-002-0	08	1	9002-		●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-47116-005-0	08	1	9002-		●
25	COVER SET; RR BRK DRUM REARWARD	1-47151-458-1	02	1	9002-	●
25	COVER SET; RR BRK DRUM CXM;FORWARD	1-47151-526-1	02	1	9002-	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-47151-526-1	02	1	9002-		●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM;FORWARD	1-47151-526-1	02	1	9002-			●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM HEAVY DUTY(J55)	1-47151-527-1	04	1	9002-		●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	04	1	9002-		●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9002-9501	●	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9502-	●	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9002-9204	●	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-	●	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK REARWARD	1-47137-112-3	02	1	9002-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK CXM; FORWARD	1-47137-151-0	02	1	9002-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM; FORWARD	1-47137-151-0	02	1	9002-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK CXM; FORWARD	1-47137-151-0	02	1	9002-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-153-0	02	1	9002-		●	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47165-058-1	04	1	9002-	●		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-47165-058-1	04	1	9002-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47165-059-1	04	1	9002-	●		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-47165-059-1	04	1	9002-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-47165-076-0	04	1	9002-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-47165-077-0	04	1	9002-		●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9002-	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM HEAVY DUTY(J55) M14X50	1-09040-066-0	02	1	9002-		●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM HEAVY DUTY(J55) M14X50	1-09040-066-0	02	1	9002-		●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M14X43	1-09040-045-0	04	1	9002-		●	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X43	1-09040-045-0	01	1	9002-		●	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X50	1-09040-066-0	03	1	9002-		●	●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	9002-9204	●	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	9002-9109	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-	●	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9002-	●	●	●
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	08	1	9002-	●	●	●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09941-293-0	08	1	9002-9506	●		●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	9-09941-293-0	08	1	9002-9506		●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	9507-	●		●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47169-046-0	04	1	9507-		●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-09580-471-0	08	1	9002-9106		●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-09580-508-0	08	1	9107-		●
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	08	1	9002-	●		●
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47169-034-0	08	1	9002-		●
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-47169-039-0	08	1	9002-		●
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	08	1	9002-	●	●	●
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	08	1	9002-	●	●	●
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	08	1	9002-	●	●	●
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	08	1	9002-	●	●	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-682-0	02	1	9002-	●
94	CYLINDER; WHEEL,RR BRK REARWARD	1-47600-686-0	02	1	9002-	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-47600-683-0	04	1	9002-		●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47600-684-0	04	1	9002-		●	●
95	CUP SET; RR WHEEL CYL FORWARD	1-87830-528-0	02	1	9002-	●
95	CUP SET; RR WHEEL CYL REARWARD	1-87830-529-0	02	1	9002-	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM HEAVY DUTY(J55)	1-87830-528-0	04	1	9002-		●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-87830-527-0	04	1	9002-		●	●
96	SCREW; BLEEDER,RR BRK CXM;FORWARD L=66.5	1-47615-005-0	02	1	9002-9412	●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD L=66.5	1-47615-005-0	02	1	9002-9412		●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD L=66.5	1-47615-005-0	02	1	9002-9412		●
96	SCREW; BLEEDER,RR BRK CXM;FORWARD L=66.5	1-47615-005-0	02	1	9501-	●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD L=66.5	1-47615-005-0	02	1	9501-		●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM;REARWARD	1-47615-002-0	02	1	9002-	●		●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-47615-002-0	02	1	9002-		●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;REARWARD	1-47615-002-0	02	1	9002-		●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM;REARWARD	1-47615-002-0	02	1	9002-			●
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	04	1	9002-	●	●	●
98	SPRING; RR WHEEL CYL CXM;FORWARD	1-09580-019-0	02	1	9002-	●
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM;FORWARD	1-09580-019-0	02	1	9002-		●	●
98	SPRING; RR WHEEL CYL CXM;FORWARD	1-09580-019-0	02	1	9002-		●	●
98	SPRING; RR WHEEL CYL REARWARD	9-09940-435-0	02	1	9002-	●
99	PISTON; RR WHEEL CYL CXM; FORWARD	1-47624-044-0	04	1	9002-	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47624-044-0	04	1	9002-		●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM HEAVY DUTY(J55) CXM; FORWARD	1-47624-044-0	04	1	9002-		●
99	PISTON; RR WHEEL CYL REARWARD	9-47624-208-0	04	1	9002-	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47624-043-0	08	1	9002-		●	●
100	ROD; PUSH,RR WHEEL CYL CXM; FORWARD	1-47621-009-0	04	1	9002-	●
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM; FORWARD	1-47621-009-0	04	1	9002-		●	●
100	ROD; PUSH,RR WHEEL CYL CXM; FORWARD	1-47621-009-0	04	1	9002-		●	●
100	ROD; PUSH,RR WHEEL CYL REARWARD	1-47621-010-0	04	1	9002-	●
111	COVER; WHEEL CYL REARWARD	1-47159-080-0	02	1	9002-	●
111	COVER; WHEEL CYL UPPER CXM; FORWARD	1-47159-089-0	02	1	9002-	●
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) UPPER CXM; FORWARD	1-47159-089-0	02	1	9002-		●	●
111	COVER; WHEEL CYL UPPER CXM; FORWARD	1-47159-089-0	02	1	9002-		●	●
111	COVER; WHEEL CYL LOWER CXM; FORWARD	1-47159-118-0	02	1	9002-	●
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LOWER CXM; FORWARD	1-47159-118-0	02	1	9002-		●	●
111	COVER; WHEEL CYL LOWER CXM; FORWARD	1-47159-118-0	02	1	9002-		●	●
112	BOLT; WHEEL CYL SETTING REARWARD M12X32 W/LK WASHER	0-50051-232-0	04	1	9002-	●
112	BOLT; WHEEL CYL SETTING M8X16 W/LK WASHER	9-01900-816-0	06	1	9002-9204	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	9-01900-816-0	06	1	9002-9204		●	●
112	BOLT; WHEEL CYL SETTING M8X16 W/LK WASHER	9-01900-816-0	06	1	9002-9204		●	●
112	BOLT; WHEEL CYL SETTING M8X16 W/LK WASHER	0-50040-816-0	06	1	9205-	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	06	1	9205-		●	●
112	BOLT; WHEEL CYL SETTING M8X16 W/LK WASHER	0-50040-816-0	06	1	9205-		●	●
112	BOLT; WHEEL CYL SETTING CXM; FORWARD M14X35	9-92051-435-0	04	1	9002-9005	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM; FORWARD M14X35	9-92051-435-0	04	1	9002-9005		●	●
112	BOLT; WHEEL CYL SETTING CXM; FORWARD M14X35	9-92051-435-0	04	1	9002-9005		●	●
112	BOLT; WHEEL CYL SETTING CXM; FORWARD M14X35	0-20801-435-0	04	1	9006-	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CXM; FORWARD M14X35	0-20801-435-0	04	1	9006-		●	●
112	BOLT; WHEEL CYL SETTING CXM; FORWARD M14X35	0-20801-435-0	04	1	9006-		●	●
149	PIN; GUIDE RETURN	1-47119-024-0	04	1	9002-	●
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-024-0	04	1	9002-		●	●
149	PIN; GUIDE RETURN	1-47119-024-0	04	1	9002-		●	●

204 204 204 204 204 230 230 230 204 230 230 230 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) FORWARD SERVICE,REARWARD	1-09660-570-0	02	1	9307-	●	●
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) FORWARD EMERGENCY	1-09660-574-0	01	1	9307-	●	●
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-697-1	01	1	9307-	●	●
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-47815-006-1	03	1	9002-9306	●	●
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) M16 PT3/8X2 3WAY	1-09656-418-1	01	1	9002-9306	●	●
230	NIPPLE; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-178-0	02	1	9002-9306	●	●
230	NIPPLE; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-	●	●
230	NIPPLE; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09660-572-0	01	1	9307-	●	●
230	NIPPLE; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-569-0	01	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
