Isuzu WW
▶
TRUCKS
▶
NHR
▶
50693 - NHR
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#33666) — 13 parça
Tümü
A - NHB5WF
B - NHB6WF
C - NHB5SF
D - NHB6SF
E - NHN5SF
F - NHN6SF
◀
[515A] DOUBLE CAB (6 parça)
[515A] TORSION BAR (3 parça)

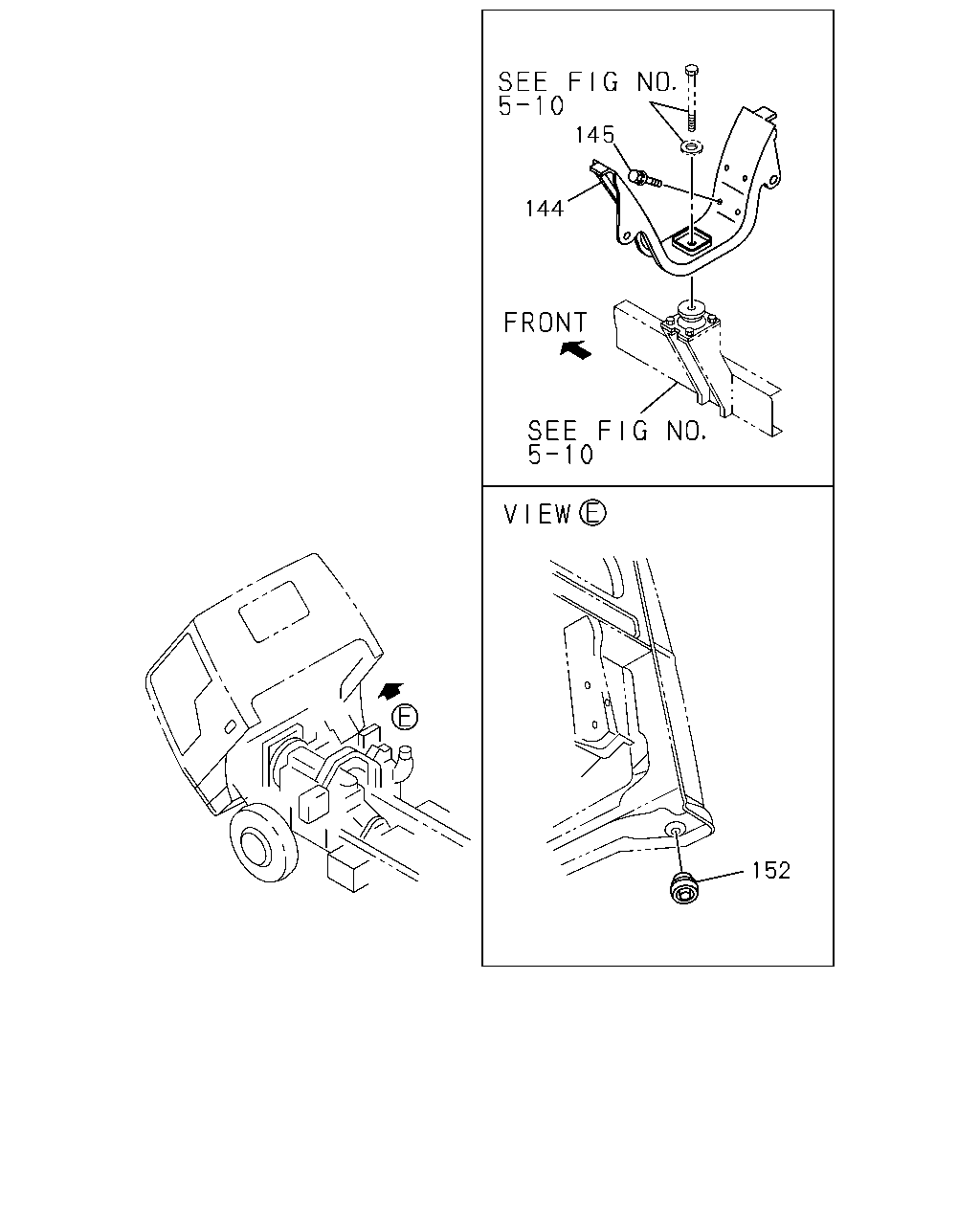

[515A] SINGLE CAB (4 parça)
▶
145
14
14
308
14
144
14
308
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
14
09.009 COVER; MTG,CAB
(A) BLACK L=125
8-94273-738-3
02
1
9312-
●
●
14
09.009 COVER; MTG,CAB
(B) BLACK L=124
8-94273-857-3
02
1
9312-
●
●
144
09.009 BRACKET ASM; CAB RR MTG
8-97853-066-4
02
1
9312-
●
●
●
●
144
09.009 BRACKET ASM; CAB RR MTG
8-97853-060-4
02
1
9312-
●
●
145
09.008 BOLT; CAB RR MTG BRKT
04.634 M8X24.5 W/LK&PL WASHER
8-94279-208-0
12
1
9312-
●
●
●
●
●
●
308
09.003 RIVET; COVER
03.602 D6X12.5
8-94146-425-0
06
1
9312-
●
●
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
09.003 LEVER; TORSION BAR
8-97061-483-9
01
1
9312-9405
●
●
●
●
●
●
1
09.003 LEVER; TORSION BAR
8-97114-082-0
01
1
9406-
●
●
●
●
●
●
3
09.003 BOLT; LEVER
M12X50
8-94401-729-1
04
1
9312-
●
●
●
●
●
●
145
144
152
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
144
09.009 BRACKET ASM; CAB RR MTG
8-97853-066-4
02
1
9312-
●
●
●
●
144
09.009 BRACKET ASM; CAB RR MTG
8-97853-060-4
02
1
9312-
●
●
145
09.008 BOLT; CAB RR MTG BRKT
04.634 M8X24.5 W/LK&PL WASHER
8-94279-208-0
12
1
9312-
●
●
●
●
●
●
152
09.003 GROMMET; DUMMY HOLE,CAB TILT LOC
OD=19
8-94279-055-0
02
1
9312-
●
●
●
●
