5-10 — CAB MOUNTING; FRAME SIDE (#33665) — 104 parça

1 7 20 2 1 2 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.003 BRACKET; CAB MTG	8-97033-350-3	01	1	9312-	●	●	●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-348-5	01	1	9312-	●	●	●	●	●	●
2	09.009 BUSHING; TORSION BAR	8-97061-514-0	02	1	9312-	●	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	8-97036-581-1	08	1	9312-9704	●	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	9705-	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97093-741-1	02	1	9312-9510	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97093-741-1	02	1	9511-9711				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	9312-	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9312-9505	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	9506-	●	●	●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-2	02	1	9312-	●	●	●	●	●	●

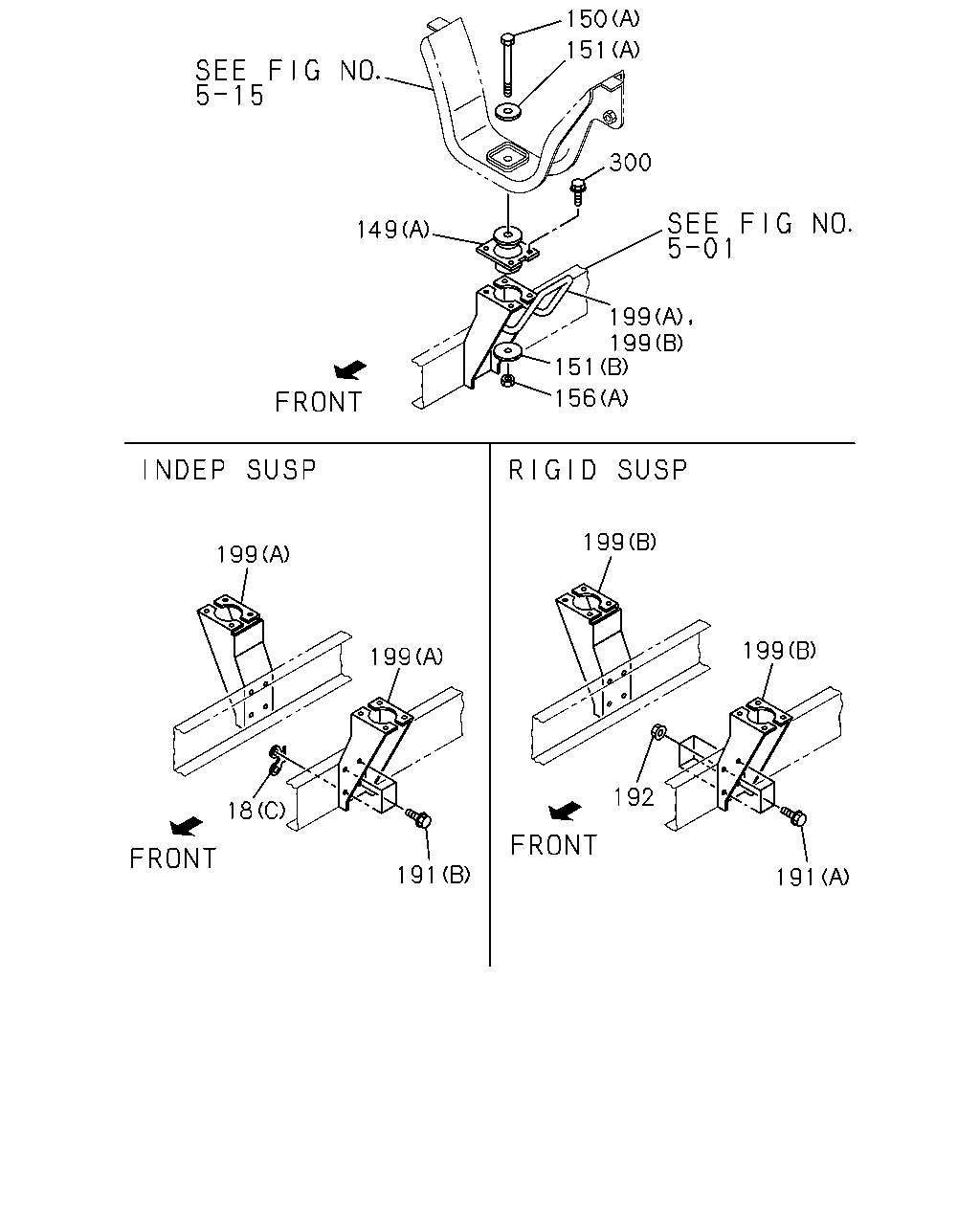

150 151 300 149 199 199 151 156 199 199 199 199 192 18 191 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97093-741-1	02	1	9312-9510	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97093-741-1	02	1	9511-9711				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	9312-	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9312-9505	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	9506-	●	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (A)	8-97086-442-3	02	1	9312-	●		●		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=26.5	5-53459-041-0	02	1	9312-		●		●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=30.6	8-94128-501-0	02	1	9312-		●		●
149	09.023 RUBBER; MTG,CAB,UPR RR (D)	8-97086-440-1	02	1	9312-		●		●
150	09.011 BOLT; CAB MTG RR 05.387 (A)	0-10806-690-0	02	1	9312-9705	●	●	●	●	●	●
150	09.011 BOLT; CAB MTG RR (A)	0-28881-690-0	02	1	9706-	●	●	●	●	●	●
150	09.011 BOLT; CAB MTG RR (B) M10X105	8-94128-717-1	02	1	9312-		●		●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	9312-	●	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97034-383-1	02	1	9312-	●	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9312-		●		●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	9312-		●		●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	9312-	●		●		●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	9312-		●		●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	9312-		●		●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 00.669 (B) M12X30 FLANGE	0-28081-230-0	10	1	9312-9510	●	●	●	●	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 00.669 (B) M12X30 FLANGE	0-28081-230-0	10	1	9511-9704				●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 07.632 (B) M12X35 FLANGE	0-28681-235-0	10	1	9705-9711				●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.669 (A) M12X30 FLANGE	0-28081-230-0	08	1	9312-9510	●	●	●	●	●	●
191	09.003 BOLT; BRKT FIX 00.669 (A) M12X30 FLANGE	0-28081-230-0	08	1	9511-9704	●	●	●		●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.669 (A) M12X30 FLANGE	0-28081-230-0	08	1	9511-9704				●
191	09.003 BOLT; BRKT FIX 07.632 (A) M12X35 FLANGE	0-28681-235-0	08	1	9705-9711	●	●	●		●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.632 (A) M12X35 FLANGE	0-28681-235-0	08	1	9705-9711				●
191	09.003 BOLT; BRKT FIX 07.632 (A) M12X35 FLANGE	0-28681-235-0	08	1	9712-	●		●		●	●
192	09.003 NUT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.586 M12 FLANGE	0-91150-112-0	08	1	9312-9510	●	●	●	●	●	●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	9511-9711	●	●	●		●	●
192	09.003 NUT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.586 M12 FLANGE	0-91150-112-0	08	1	9511-9711				●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	9712-	●		●		●	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-446-1	01	1	9312-9510	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-446-1	01	1	9511-9711				●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-448-1	01	1	9312-9510	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-448-1	01	1	9511-9711				●
199	09.003 BRACKET; CAB RR MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-445-2	01	1	9312-9510	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97086-445-2	01	1	9511-9711	●	●	●		●	●
199	09.003 BRACKET; CAB RR MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-445-2	01	1	9511-9711				●
199	09.003 BRACKET; CAB RR MTG (B)	8-97086-445-2	01	1	9712-	●		●		●	●
199	09.003 BRACKET; CAB RR MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-447-1	01	1	9312-9510	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97086-447-1	01	1	9511-9711	●	●	●		●	●
199	09.003 BRACKET; CAB RR MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-447-1	01	1	9511-9711				●
199	09.003 BRACKET; CAB RR MTG (B)	8-97086-447-1	01	1	9712-	●		●		●	●
300	09.003 BOLT; MTG RUBBER 09.008 M10X20 FLANGE	0-28081-020-0	08	1	9312-9704	●	●	●	●	●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	9705-	●	●	●	●	●	●

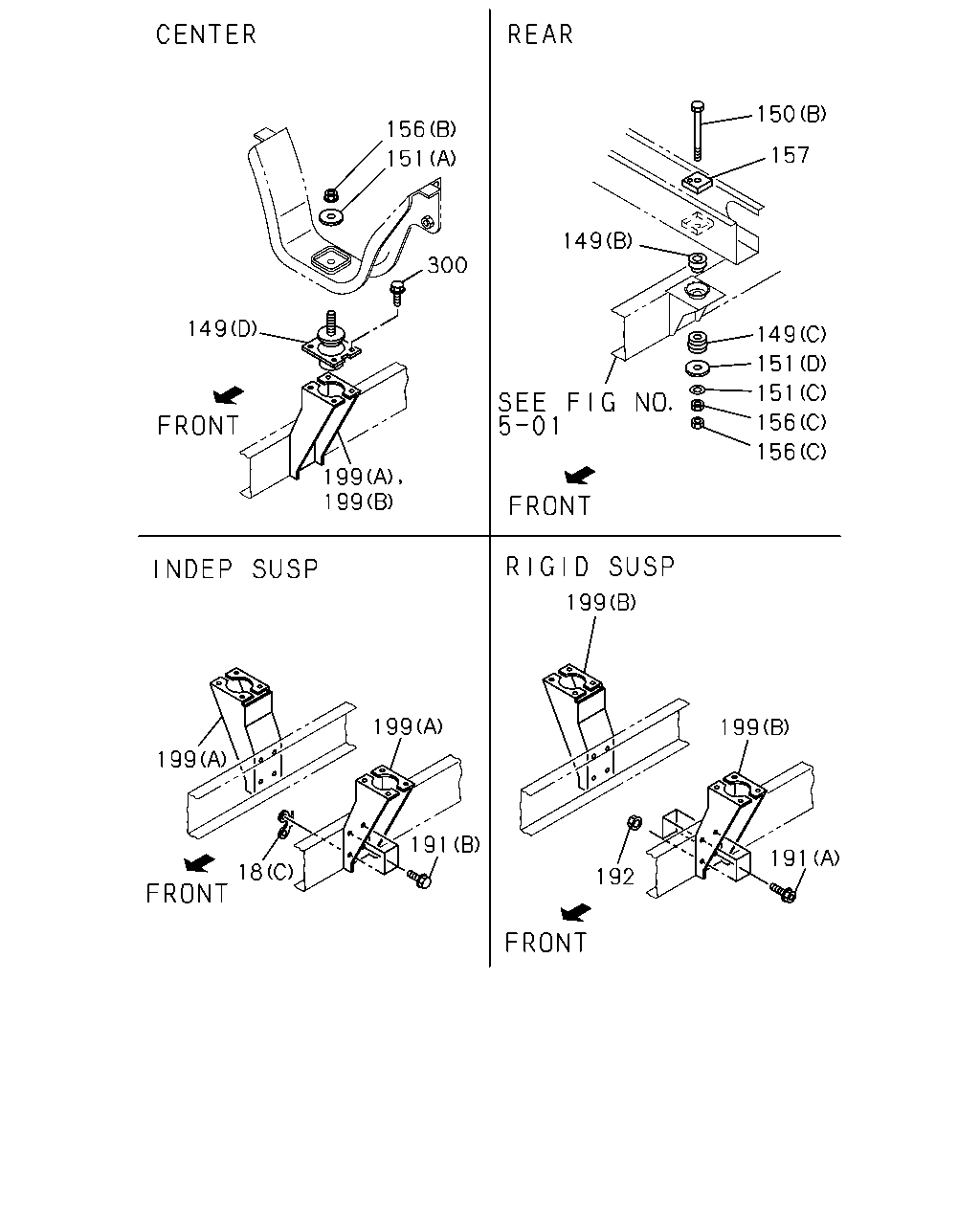

150 156 151 157 149 300 149 149 151 151 156 156 199 199 199 199 199 191 18 192 199 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97093-741-1	02	1	9312-9510	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97093-741-1	02	1	9511-9711				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	9312-	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9312-9505	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	9506-	●	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (A)	8-97086-442-3	02	1	9312-	●		●		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=26.5	5-53459-041-0	02	1	9312-		●		●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=30.6	8-94128-501-0	02	1	9312-		●		●
149	09.023 RUBBER; MTG,CAB,UPR RR (D)	8-97086-440-1	02	1	9312-		●		●
150	09.011 BOLT; CAB MTG RR 05.387 (A)	0-10806-690-0	02	1	9312-9705	●	●	●	●	●	●
150	09.011 BOLT; CAB MTG RR (A)	0-28881-690-0	02	1	9706-	●	●	●	●	●	●
150	09.011 BOLT; CAB MTG RR (B) M10X105	8-94128-717-1	02	1	9312-		●		●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	9312-	●	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97034-383-1	02	1	9312-	●	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9312-		●		●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	9312-		●		●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	9312-	●		●		●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	9312-		●		●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	9312-		●		●
157	09.023 RUBBER; MTG,CAB,TOP RR	9-53459-603-0	02	1	9312-		●		●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 00.669 (B) M12X30 FLANGE	0-28081-230-0	10	1	9312-9510	●	●	●	●	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 00.669 (B) M12X30 FLANGE	0-28081-230-0	10	1	9511-9704				●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 07.632 (B) M12X35 FLANGE	0-28681-235-0	10	1	9705-9711				●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.669 (A) M12X30 FLANGE	0-28081-230-0	08	1	9312-9510	●	●	●	●	●	●
191	09.003 BOLT; BRKT FIX 00.669 (A) M12X30 FLANGE	0-28081-230-0	08	1	9511-9704	●	●	●		●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.669 (A) M12X30 FLANGE	0-28081-230-0	08	1	9511-9704				●
191	09.003 BOLT; BRKT FIX 07.632 (A) M12X35 FLANGE	0-28681-235-0	08	1	9705-9711	●	●	●		●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.632 (A) M12X35 FLANGE	0-28681-235-0	08	1	9705-9711				●
191	09.003 BOLT; BRKT FIX 07.632 (A) M12X35 FLANGE	0-28681-235-0	08	1	9712-	●		●		●	●
192	09.003 NUT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.586 M12 FLANGE	0-91150-112-0	08	1	9312-9510	●	●	●	●	●	●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	9511-9711	●	●	●		●	●
192	09.003 NUT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.586 M12 FLANGE	0-91150-112-0	08	1	9511-9711				●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	9712-	●		●		●	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-446-1	01	1	9312-9510	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-446-1	01	1	9511-9711				●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-448-1	01	1	9312-9510	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-448-1	01	1	9511-9711				●
199	09.003 BRACKET; CAB RR MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-445-2	01	1	9312-9510	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97086-445-2	01	1	9511-9711	●	●	●		●	●
199	09.003 BRACKET; CAB RR MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-445-2	01	1	9511-9711				●
199	09.003 BRACKET; CAB RR MTG (B)	8-97086-445-2	01	1	9712-	●		●		●	●
199	09.003 BRACKET; CAB RR MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-447-1	01	1	9312-9510	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97086-447-1	01	1	9511-9711	●	●	●		●	●
199	09.003 BRACKET; CAB RR MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-447-1	01	1	9511-9711				●
199	09.003 BRACKET; CAB RR MTG (B)	8-97086-447-1	01	1	9712-	●		●		●	●
300	09.003 BOLT; MTG RUBBER 09.008 M10X20 FLANGE	0-28081-020-0	08	1	9312-9704	●	●	●	●	●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	9705-	●	●	●	●	●	●
