◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#33664) — 182 parça

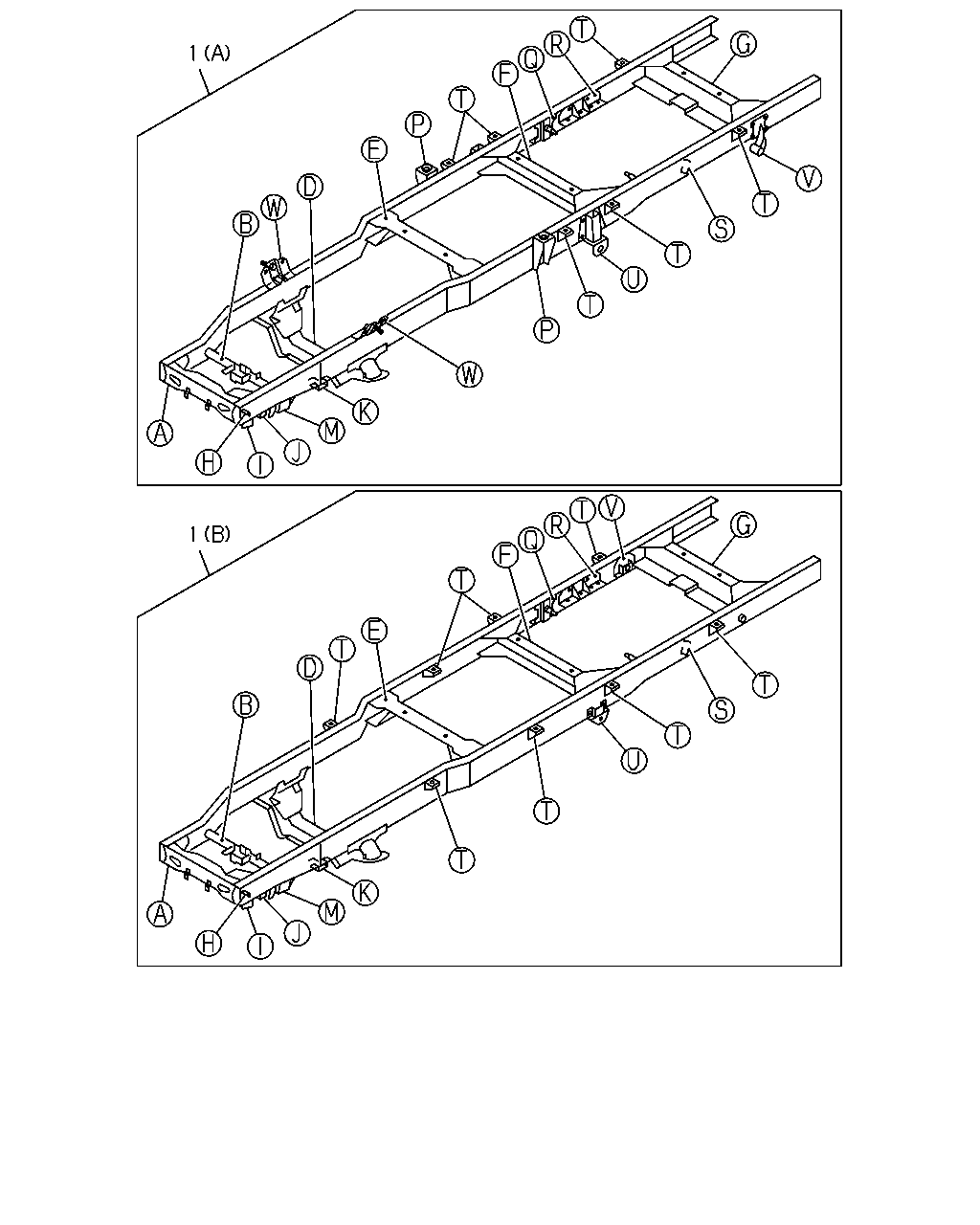

çizim 16435
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97089-869-2 01 1 9312-9510 ●
1 07.003 FRAME ASM
HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97127-802-0 01 1 9502-9510 ●
1 07.003 FRAME ASM
HONG KONG EQUIPMENT(PQ1) (C) 		8-97127-802-0 01 1 9511- ●
1 07.003 FRAME ASM
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97047-352-1 01 1 9312-9404 ●
1 07.003 FRAME ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97047-352-1 01 1 9405-9501 ●
1 07.003 FRAME ASM
EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97047-352-1 01 1 9502-9510 ●
1 07.003 FRAME ASM
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-97047-352-1 01 1 9511-9804 ●
1 07.003 FRAME ASM
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-97203-041-0 01 1 9805- ●
1 07.003 FRAME ASM
EXC. POWER STEERING<N40>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97089-868-1 01 1 9312-9404 ●
1 07.003 FRAME ASM
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97089-875-2 01 1 9312-9510 ●
1 07.003 FRAME ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97089-873-0 01 1 9312-9510 ●
1 07.003 FRAME ASM
(C) 		8-97089-873-0 01 1 9511- ●
1 07.003 FRAME ASM
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97069-949-2 01 1 9312-9510 ●
1 07.003 FRAME ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97089-876-0 01 1 9312-9510 ●
1 07.003 FRAME ASM
(C) 		8-97089-876-0 01 1 9511- ●
1 07.003 FRAME ASM
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97069-950-3 01 1 9312-9711 ●
1 07.003 FRAME ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97089-878-0 01 1 9312-9711 ●
1 07.003 FRAME ASM
(C) 		8-97089-878-0 01 1 9712- ●
1 07.003 FRAME ASM
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97089-872-2 01 1 9312-9510 ●
1 07.003 FRAME ASM
HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97127-805-0 01 1 9502-9510 ●
1 07.003 FRAME ASM
HONG KONG EQUIPMENT(PQ1) (D) 		8-97127-805-0 01 1 9511- ●
1 07.003 FRAME ASM
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97034-342-1 01 1 9312-9404 ●
1 07.003 FRAME ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97034-342-1 01 1 9405-9501 ●
1 07.003 FRAME ASM
EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97034-342-1 01 1 9502-9510 ●
1 07.003 FRAME ASM
EXC. HONG KONG EQUIPMENT(PQ1) (D) 		8-97034-342-1 01 1 9511-9804 ●
1 07.003 FRAME ASM
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97203-045-0 01 1 9805- ●
1 07.003 FRAME ASM
EXC. POWER STEERING<N40>,FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97089-870-1 01 1 9312-9404 ●
1 07.003 FRAME ASM
(D) 		8-97089-877-0 01 1 9312- ●
çizim 68002
376 376 376 376 376 376 376 376 376 16 176 221 81 338 4 82 376
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 07.039 NUT; 1ST C/MBR TO S/MBR
FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE 		0-91150-208-0 02 1 9312-9510 ● ● ● ● ●
4 07.039 NUT; 1ST C/MBR TO S/MBR
FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE 		0-91150-208-0 02 1 9511-9711 ●
16 07.039 BOLT; 1ST C/MBR TO S/MBR
FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 9312-9412 ● ● ● ● ●
16 07.039 BOLT; 1ST C/MBR TO S/MBR
FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9501-9510 ● ● ● ● ●
16 07.039 BOLT; 1ST C/MBR TO S/MBR
FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9511-9711 ●
81 07.039 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 9312-9510 ●
82 07.039 NUT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE 		0-91150-210-0 02 1 9312-9510 ●
176 04.085 BOLT; C/MBR,ENG MTG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE 		0-28081-025-0 08 1 9312-9711 ● ● ● ● ● ●
176 04.085 BOLT; C/MBR,ENG MTG
03.417 M10X25 FLANGE 		0-28081-025-0 08 1 9712- ● ● ● ● ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 9312-9510 ● ● ● ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 9511-9711 ●
338 04.085 BOLT; C/MBR,SUSPENSION
FRT INDEPENDENT SUSPENSION(6PP) 07.874 M12X30 W/LK&PL WASHER 		0-50141-230-0 12 1 9312-9510 ● ● ● ● ●
338 04.085 BOLT; C/MBR,SUSPENSION
FRT INDEPENDENT SUSPENSION(6PP) 07.874 M12X30 W/LK&PL WASHER 		0-50141-230-0 12 1 9511-9711 ●
376 07.039 RIVET; FRAME
(A) D8X20 TAPER END 		9-06750-820-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.011 (B) D8X22 TAPER END 		9-06750-822-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.395 (C) D8X28 TAPER END 		9-06750-828-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(D) D10X24 TAPER END 		9-06751-024-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(E) D10X26 TAPER END 		9-06751-026-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(F) D10X28 TAPER END 		9-06751-028-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(G) D10X30 TAPER END 		9-06751-030-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(H) D10X32 TAPER END 		9-06751-032-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(I) D10X36 TAPER END 		9-06751-036-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.105 (J) D12X30 TAPER END 		9-06751-230-0 AR 1 9312- ● ● ● ● ● ●

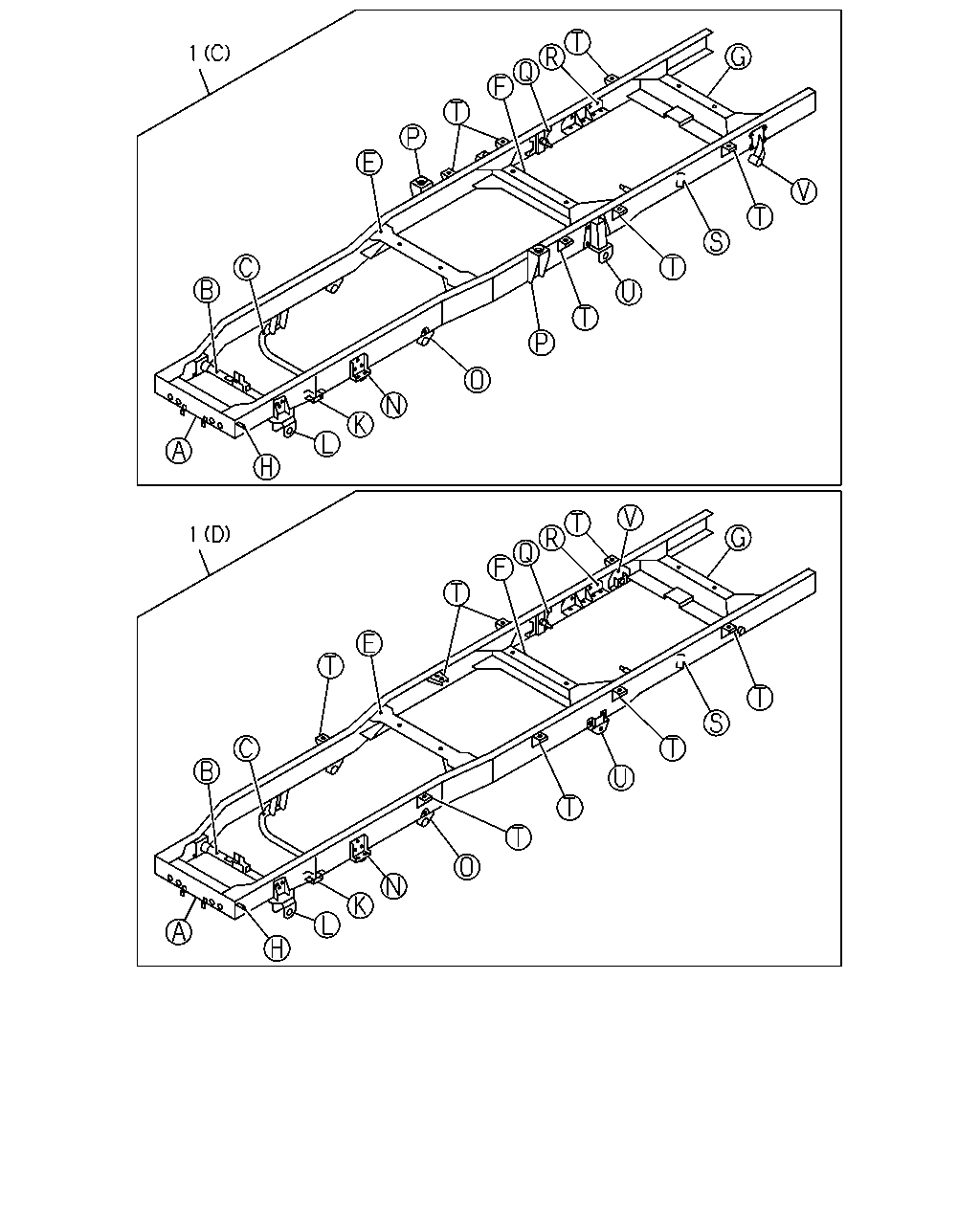

çizim 68027
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97089-869-2 01 1 9312-9510 ●
1 07.003 FRAME ASM
HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97127-802-0 01 1 9502-9510 ●
1 07.003 FRAME ASM
HONG KONG EQUIPMENT(PQ1) (C) 		8-97127-802-0 01 1 9511- ●
1 07.003 FRAME ASM
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97047-352-1 01 1 9312-9404 ●
1 07.003 FRAME ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97047-352-1 01 1 9405-9501 ●
1 07.003 FRAME ASM
EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97047-352-1 01 1 9502-9510 ●
1 07.003 FRAME ASM
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-97047-352-1 01 1 9511-9804 ●
1 07.003 FRAME ASM
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-97203-041-0 01 1 9805- ●
1 07.003 FRAME ASM
EXC. POWER STEERING<N40>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97089-868-1 01 1 9312-9404 ●
1 07.003 FRAME ASM
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97089-875-2 01 1 9312-9510 ●
1 07.003 FRAME ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97089-873-0 01 1 9312-9510 ●
1 07.003 FRAME ASM
(C) 		8-97089-873-0 01 1 9511- ●
1 07.003 FRAME ASM
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97069-949-2 01 1 9312-9510 ●
1 07.003 FRAME ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97089-876-0 01 1 9312-9510 ●
1 07.003 FRAME ASM
(C) 		8-97089-876-0 01 1 9511- ●
1 07.003 FRAME ASM
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97069-950-3 01 1 9312-9711 ●
1 07.003 FRAME ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97089-878-0 01 1 9312-9711 ●
1 07.003 FRAME ASM
(C) 		8-97089-878-0 01 1 9712- ●
1 07.003 FRAME ASM
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97089-872-2 01 1 9312-9510 ●
1 07.003 FRAME ASM
HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97127-805-0 01 1 9502-9510 ●
1 07.003 FRAME ASM
HONG KONG EQUIPMENT(PQ1) (D) 		8-97127-805-0 01 1 9511- ●
1 07.003 FRAME ASM
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97034-342-1 01 1 9312-9404 ●
1 07.003 FRAME ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97034-342-1 01 1 9405-9501 ●
1 07.003 FRAME ASM
EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97034-342-1 01 1 9502-9510 ●
1 07.003 FRAME ASM
EXC. HONG KONG EQUIPMENT(PQ1) (D) 		8-97034-342-1 01 1 9511-9804 ●
1 07.003 FRAME ASM
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97203-045-0 01 1 9805- ●
1 07.003 FRAME ASM
EXC. POWER STEERING<N40>,FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97089-870-1 01 1 9312-9404 ●
1 07.003 FRAME ASM
(D) 		8-97089-877-0 01 1 9312- ●
çizim 69206
369 368 358 24 63 63 39 51 328 140 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 07.105 BRACKET; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97065-789-0 01 1 9312-9711 ● ● ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-97065-789-1 01 1 9712- ● ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94366-818-0 01 1 9312-9711 ● ● ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-94366-818-1 01 1 9712- ● ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97065-788-0 01 1 9312-9510 ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-97065-788-1 01 1 9511- ● ●
24 07.105 BRACKET; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94366-816-0 01 1 9312-9510 ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-94366-816-1 01 1 9511- ● ●
39 07.112 BRACKET; FRT SPR,RR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-091-0 02 1 9312-9711 ● ● ● ● ● ●
39 07.112 BRACKET; FRT SPR,RR 8-94258-091-0 02 1 9712- ● ● ● ● ● ●
43 09.003 BRACKET; CAB MTG,RR 8-97042-541-0 01 1 9312- ● ●
43 09.003 BRACKET; CAB MTG,RR 8-97042-540-0 01 1 9312- ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.029 		8-94258-086-1 02 1 9312-9711 ● ● ● ● ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
00.029 		8-94258-086-1 02 1 9712- ● ● ● ● ● ●
63 01.270 BRACKET; RAD MTG
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97072-648-0 01 1 9312-9510 ● ● ● ● ●
63 01.270 BRACKET; RAD MTG
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97072-648-0 01 1 9511-9711 ●
63 01.270 BRACKET; RAD MTG
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94257-950-1 01 1 9312-9711 ● ● ● ● ● ●
63 01.270 BRACKET; RAD MTG
(B) 		8-94257-950-1 01 1 9712- ● ● ● ● ● ●
140 07.112 BRACKET; S/ABS,RR 8-94258-104-1 01 1 9312- ● ● ● ● ● ●
140 07.112 BRACKET; S/ABS,RR 8-94258-103-1 01 1 9312- ● ● ● ● ● ●
328 07.039 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-944-2 01 1 9312-9510 ● ● ● ● ●
328 07.039 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-944-2 01 1 9511-9711 ●
328 07.039 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-650-2 01 1 9312-9510 ● ● ● ● ●
328 07.039 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-650-3 01 1 9511-9711 ●
358 07.039 BRACKET; CAB EARTH 8-97065-790-3 01 1 9312- ● ● ● ● ● ●
368 07.039 SEAT; TORSION BAR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-363-3 01 1 9312-9510 ● ● ● ● ●
368 07.039 SEAT; TORSION BAR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-363-3 01 1 9511-9711 ●
368 07.039 SEAT; TORSION BAR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-362-1 01 1 9312-9510 ● ● ● ● ●
368 07.039 SEAT; TORSION BAR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-362-1 01 1 9511-9711 ●
369 07.039 STOPPER; STEERING
FRT INDEPENDENT SUSPENSION(6PP) 		8-97031-399-0 01 1 9312-9510 ● ● ●
369 07.039 STOPPER; STEERING
FRT INDEPENDENT SUSPENSION(6PP) 		8-97092-869-0 01 1 9312-9510 ● ●
369 07.039 STOPPER; STEERING
FRT INDEPENDENT SUSPENSION(6PP) 		8-97092-869-0 01 1 9511-9711 ●
çizim 69213
226 142 226 156 156 156 101 101 256 105 105 156
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
101 07.112 BRACKET; RR SPR,FRT
(A) 		8-94258-093-1 02 1 9312- ● ● ● ●
101 07.112 BRACKET; RR SPR,FRT
(B) 		8-94376-080-0 02 1 9312- ● ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94126-621-1 01 1 9312- ● ● ● ●
105 07.112 BRACKET; RR SPR,RR
(A) 		8-94126-620-1 01 1 9312- ● ● ● ●
105 07.112 BRACKET; RR SPR,RR
(B) 		8-94109-312-0 02 1 9312- ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE 8-97047-775-1 01 1 9312- ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(C) 		8-94101-398-1 06 1 9312- ● ●
156 07.330 BRACKET; RR BODY MTG
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97091-294-0 01 1 9312-9510 ●
156 07.330 BRACKET; RR BODY MTG
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97015-358-1 01 1 9312-9510 ●
156 07.330 BRACKET; RR BODY MTG
(C) 		8-94101-398-1 04 1 9312- ● ●
156 07.330 BRACKET; RR BODY MTG
(B) 		8-94258-111-0 01 1 9312- ● ●
156 07.330 BRACKET; RR BODY MTG
(C) 		8-94258-112-0 01 1 9312- ● ●
156 07.330 BRACKET; RR BODY MTG
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97091-293-0 01 1 9312-9510 ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-97091-293-0 01 1 9511- ● ●
156 07.330 BRACKET; RR BODY MTG
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-94122-891-2 01 1 9312-9510 ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-94122-891-2 01 1 9511- ● ●
226 07.112 STIFFENER; HELPER RUBBER
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94169-791-1 01 1 9312-9510 ● ● ● ●
226 07.112 STIFFENER; HELPER RUBBER
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94169-791-1 01 1 9511-9711 ●
226 07.112 STIFFENER; HELPER RUBBER
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94111-942-1 01 1 9312-9510 ● ● ● ●
226 07.112 STIFFENER; HELPER RUBBER
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94111-942-1 01 1 9511-9711 ●
226 07.112 STIFFENER; HELPER RUBBER
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97040-625-1 01 1 9312-9510 ●
226 07.112 STIFFENER; HELPER RUBBER
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97040-624-1 01 1 9312-9510 ●
256 07.395 BRACKET; S/ABS
FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-160-0 02 1 9511-9711 ●

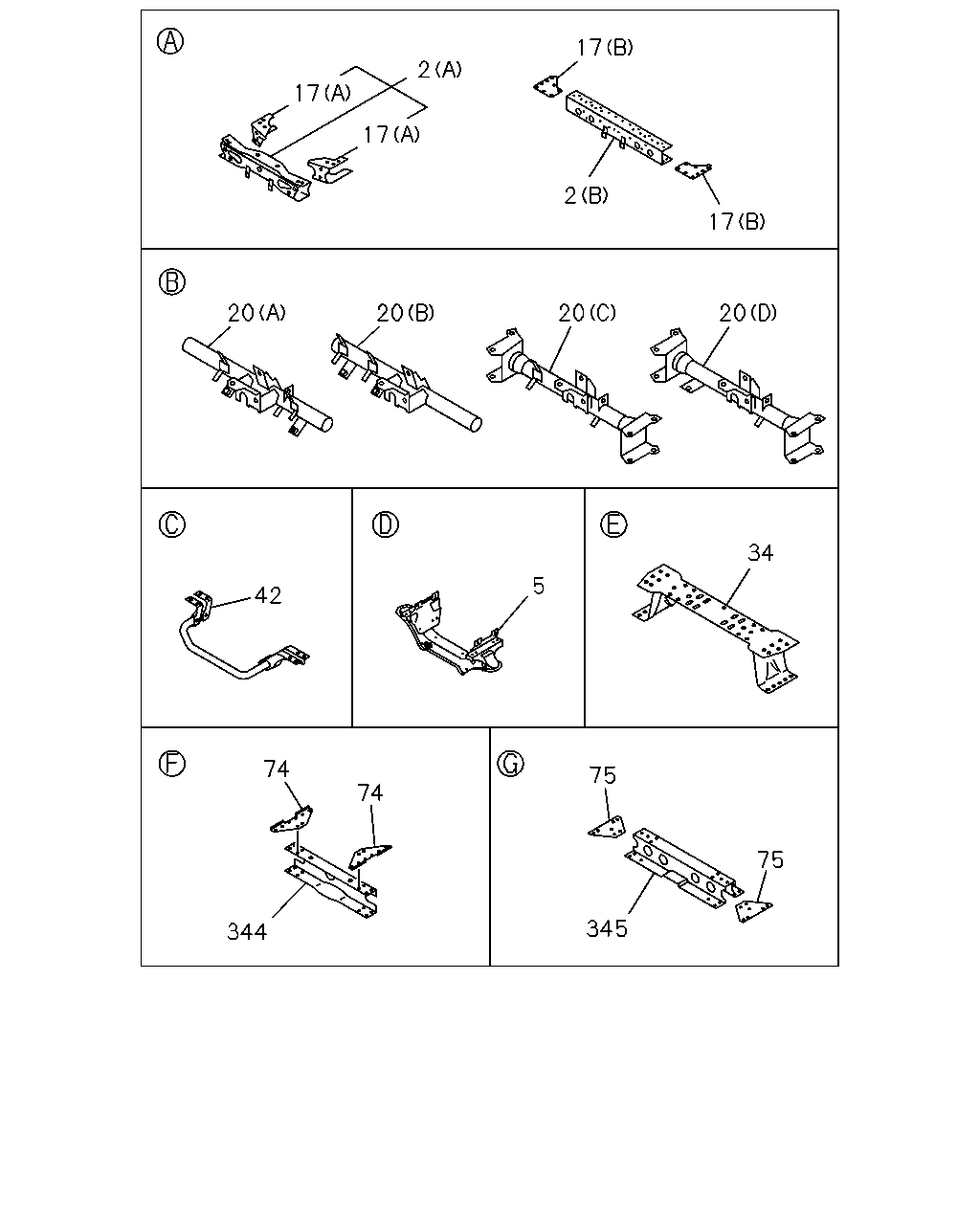

çizim 70447
17 2 17 17 2 17 20 20 20 20 34 5 42 74 75 74 75 345 344
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 07.010 MEMBER; CROSS,1ST
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97034-332-2 01 1 9312-9711 ● ● ● ● ● ●
2 07.010 MEMBER; CROSS,1ST
(B) 		8-97034-332-2 01 1 9712- ● ● ● ● ● ●
2 07.010 MEMBER; CROSS,1ST
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97036-000-3 01 1 9312-9510 ● ● ●
2 07.010 MEMBER; CROSS,1ST
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97078-469-2 01 1 9312-9510 ● ●
2 07.010 MEMBER; CROSS,1ST
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97078-469-2 01 1 9511-9711 ●
5 07.010 MEMBER; CROSS,SUSPENSION
FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-220-2 01 1 9312-9510 ● ● ● ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-220-2 01 1 9511-9711 ●
17 07.039 GUSSET; 1ST C/MBR
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97035-998-1 01 1 9501-9510 ● ● ● ● ●
17 07.039 GUSSET; 1ST C/MBR
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97035-998-1 01 1 9511-9711 ●
17 07.039 GUSSET; 1ST C/MBR
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-568-1 01 1 9501-9510 ● ● ● ● ●
17 07.039 GUSSET; 1ST C/MBR
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-568-1 01 1 9511-9711 ●
17 07.039 GUSSET; 1ST C/MBR
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97088-205-1 02 1 9312-9711 ● ● ● ● ● ●
17 07.039 GUSSET; 1ST C/MBR
(B) 		8-97088-205-1 02 1 9712- ● ● ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97034-499-0 01 1 9312-9510 ● ● ●
20 07.012 MEMBER; CROSS,2ND
(C) 		8-97042-980-1 01 1 9511-9603 ● ● ●
20 07.012 MEMBER; CROSS,2ND
(C) 		8-97145-718-0 01 1 9604- ● ● ●
20 07.012 MEMBER; CROSS,2ND
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97042-980-1 01 1 9312-9510 ● ● ●
20 07.012 MEMBER; CROSS,2ND
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-002-3 01 1 9312-9510 ● ●
20 07.012 MEMBER; CROSS,2ND
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-002-3 01 1 9511-9711 ●
20 07.012 MEMBER; CROSS,2ND
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97078-581-1 01 1 9312-9711 ● ● ●
20 07.012 MEMBER; CROSS,2ND
(D) 		8-97078-581-1 01 1 9712- ● ● ●
34 07.012 MEMBER; CROSS,3RD
FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-667-1 01 1 9312-9510 ● ● ● ● ●
34 07.012 MEMBER; CROSS,3RD
FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-667-1 01 1 9511-9711 ●
34 07.012 MEMBER; CROSS,3RD
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-670-1 01 1 9312-9711 ● ● ● ● ● ●
34 07.012 MEMBER; CROSS,3RD 8-97039-670-1 01 1 9712- ● ● ● ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94246-127-7 01 1 9312-9711 ● ● ● ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG 8-94246-127-7 01 1 9712- ● ● ● ● ● ●
74 07.039 GUSSET; 4TH C/MBR 8-97062-499-0 02 1 9312- ● ● ● ● ● ●
74 07.039 GUSSET; 4TH C/MBR 8-97062-500-0 02 1 9312- ● ● ● ● ● ●
75 07.039 GUSSET; 5TH C/MBR 8-94258-081-1 02 1 9312- ● ● ● ● ● ●
344 07.012 MEMBER; CROSS,4TH
EXC. POWER STEERING<N40>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-793-2 01 1 9404-9404 ●
344 07.012 MEMBER; CROSS,4TH
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-793-2 01 1 9404-9404 ●
344 07.012 MEMBER; CROSS,4TH
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-793-2 01 1 9405-9407 ●
344 07.012 MEMBER; CROSS,4TH
FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-793-2 01 1 9408-9510 ● ● ● ●
344 07.012 MEMBER; CROSS,4TH 8-97076-793-2 01 1 9408-9510 ●
344 07.012 MEMBER; CROSS,4TH 8-97076-793-2 01 1 9511-9601 ●
344 07.012 MEMBER; CROSS,4TH
FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-793-2 01 1 9511-9601 ●
344 07.012 MEMBER; CROSS,4TH 8-97076-793-2 01 1 9602-9804 ● ● ● ● ● ●
344 07.012 MEMBER; CROSS,4TH
HONG KONG EQUIPMENT(PQ1) 		8-97076-793-2 01 1 9805- ● ●
344 07.012 MEMBER; CROSS,4TH 8-97076-793-2 01 1 9805- ● ● ● ●
344 07.012 MEMBER; CROSS,4TH 8-97062-502-2 01 1 9312-9403 ● ● ● ● ● ●
344 07.012 MEMBER; CROSS,4TH
FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-502-2 01 1 9404-9404 ● ●
344 07.012 MEMBER; CROSS,4TH
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-502-2 01 1 9404-9404 ●
344 07.012 MEMBER; CROSS,4TH 8-97062-502-2 01 1 9404-9404 ● ● ● ●
344 07.012 MEMBER; CROSS,4TH 8-97062-502-2 01 1 9405-9407 ● ● ● ● ●
344 07.012 MEMBER; CROSS,4TH
FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-502-2 01 1 9405-9407 ●
344 07.012 MEMBER; CROSS,4TH
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-502-2 01 1 9408-9601 ● ● ● ● ●
345 07.012 MEMBER; CROSS,5TH 8-97045-542-2 01 1 9312- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
