4-80 — ROAD WHEEL (#33663) — 176 parça

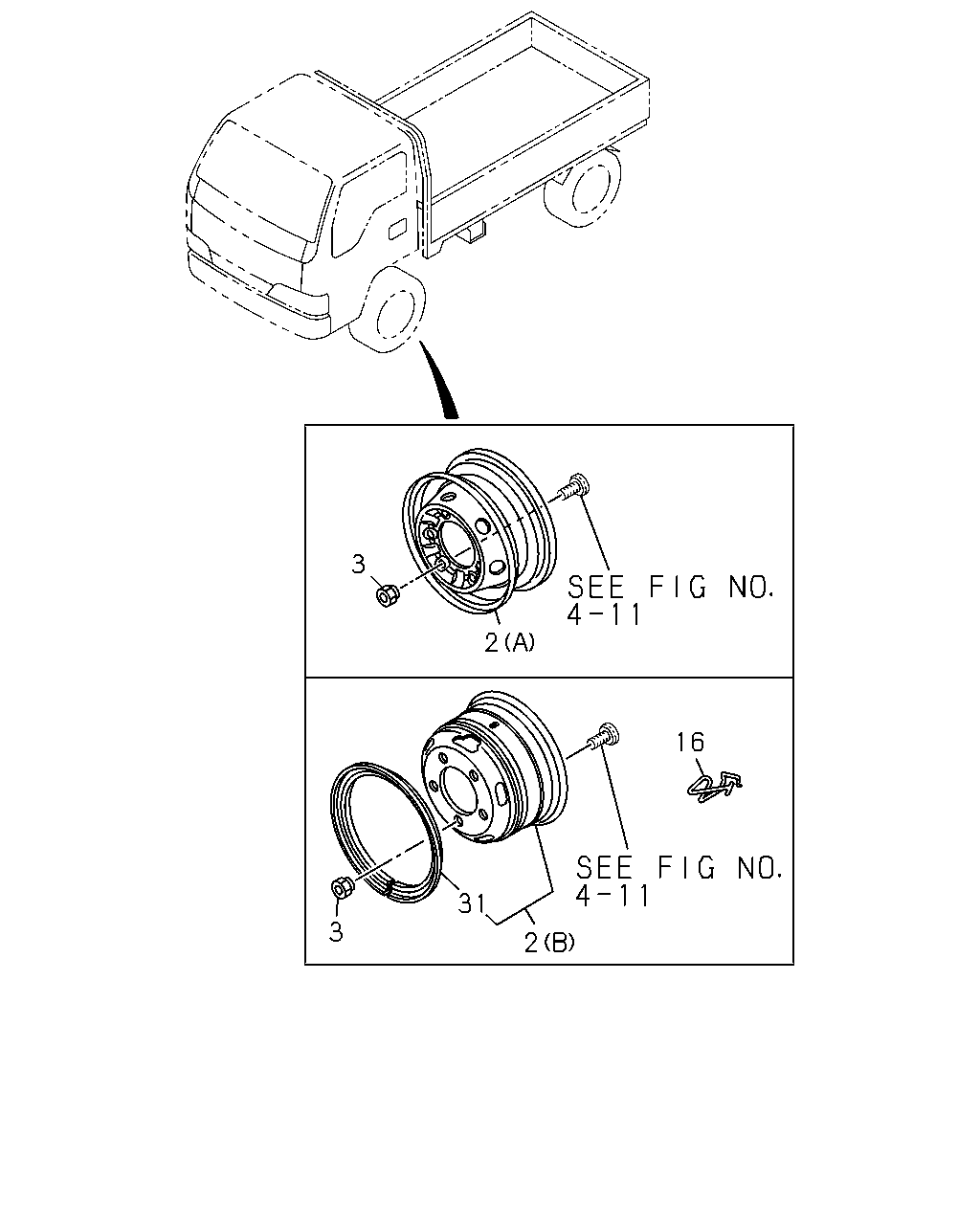

3 2 16 31 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	05.803 WHEEL; DISC (35V),(37V) (B) FRONT 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	02	1	9312-	●	●
2	05.803 WHEEL; DISC (35V),(37V),(38V) (B) REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	03	1	9312-	●	●
2	05.803 WHEEL; DISC (43V),(44V) (B) REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	03	1	9312-			●	●
2	05.803 WHEEL; DISC (36V) (B) FRONT,REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	05	1	9312-9809	●	●
2	05.803 WHEEL; DISC (36V) (B) FRONT,REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	05	1	9810-	●
2	05.803 WHEEL; DISC (BPJ),(36V) (B) FRONT,REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	05	1	9810-		●
2	05.803 WHEEL; DISC (38V) (A) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	02	1	9312-	●	●
2	05.803 WHEEL; DISC (9HV) (B) FRONT AND REAR 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	04	1	9312-9510	●	●
2	05.803 WHEEL; DISC (9YN),(9YP) (B) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	02	1	9312-9510	●	●
2	05.803 WHEEL; DISC (9YQ),(9YR) (B) REAR AND SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	03	1	9511-9711				●
2	05.803 WHEEL; DISC (9YN),(9YP),(9ZZ) (B) REAR AND SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	03	1	9312-9510	●	●
2	05.803 WHEEL; DISC (9YQ),(9YR) (B) REAR AND SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	03	1	9312-9510			●	●
2	05.803 WHEEL; DISC (9ZZ) (A) FRONT 4.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-430-0	02	1	9312-9510	●	●
2	05.803 WHEEL; DISC (43V),(44V) (A) FRONT 5.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-016-0	02	1	9312-			●	●
2	05.803 WHEEL; DISC (9YQ),(9YR) (A) FRONT 5.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-431-1	02	1	9312-9510			●	●
2	05.803 WHEEL; DISC (9YQ),(9YR) (A) FRONT 5.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-431-1	02	1	9511-9711				●
2	05.803 WHEEL; DISC (22V),(9CE),(9CR),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9312-9510					●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9312-9510						●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9511-9809					●	●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9810-					●
2	05.803 WHEEL; DISC (BPH),(22V),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9810-						●
2	05.803 WHEEL; DISC (22V),(9CE),(9CR),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9312-9510					●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9312-9510						●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9511-9809					●	●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9810-					●
2	05.803 WHEEL; DISC (BPH),(22V),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9810-						●
2	05.803 WHEEL; DISC (9CE) (A) FRONT AND SPARE 4.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-430-0	03	1	9312-9510					●
2	05.803 WHEEL; DISC (9CR) (A) FRONT AND SPARE 5.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-431-1	03	1	9312-9510					●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) FRONT AND SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	03	1	9312-9809					●	●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) FRONT AND SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	03	1	9810-					●
2	05.803 WHEEL; DISC (BPH),(22V),(9ZX) (A) FRONT AND SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	03	1	9810-						●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	9312-	●	●	●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	9312-	●	●	●	●	●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9HV)	8-97017-494-1	05	1	9312-	●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9YN),(9YP)	8-97017-494-1	02	1	9312-9510	●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9YN),(9YP),(9ZZ)	8-97017-494-1	03	1	9312-9510	●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9YQ),(9YR)	8-97017-494-1	03	1	9312-9510			●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9YQ),(9YR)	8-97017-494-1	03	1	9511-9711				●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V),(9YN),(9YP),(9ZZ) 15X5.50F STAMP, BLACK	8-94135-599-0	03	1	9312-9510	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V),(9YQ),(9YR) 15X5.50F STAMP, BLACK	8-94135-599-0	03	1	9312-9510			●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9511-9711	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9511-9711			●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V),(9YQ),(9YR) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9511-9711				●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9712-	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9712-			●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(9YN),(9YP) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9312-9507	●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V),(9YN),(9YP) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9508-9510	●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9511-9711	●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9511-9711	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9511-9711			●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V),(9YQ),(9YR) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9511-9711				●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9712-	●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9712-	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9712-			●	●
31	05.839 RING; SIDE,DISC WHEEL (36V),(9HV) 15X5.50F STAMP, BLACK	8-94135-599-0	05	1	9312-9510	●	●
31	05.839 RING; SIDE,DISC WHEEL (36V) 15X5.50F STAMP, BLACK	8-94135-599-0	05	1	9511-9809	●	●
31	05.839 RING; SIDE,DISC WHEEL (36V) 15X5.50F STAMP, BLACK	8-94135-599-0	05	1	9810-	●
31	05.839 RING; SIDE,DISC WHEEL (BPJ),(36V) 15X5.50F STAMP, BLACK	8-94135-599-0	05	1	9810-		●

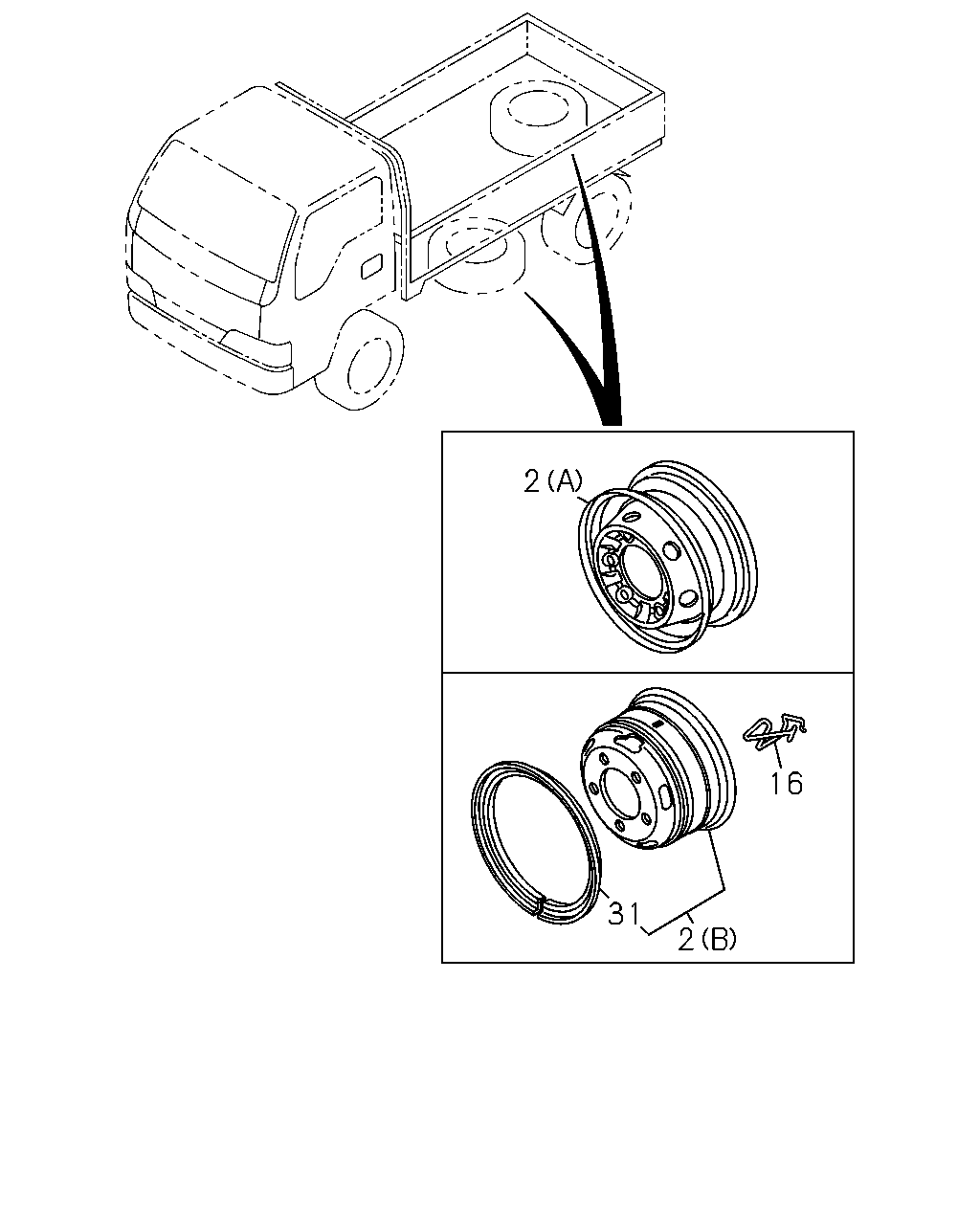

2 16 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	05.803 WHEEL; DISC (35V),(37V) (B) FRONT 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	02	1	9312-	●	●
2	05.803 WHEEL; DISC (35V),(37V),(38V) (B) REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	03	1	9312-	●	●
2	05.803 WHEEL; DISC (43V),(44V) (B) REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	03	1	9312-			●	●
2	05.803 WHEEL; DISC (36V) (B) FRONT,REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	05	1	9312-9809	●	●
2	05.803 WHEEL; DISC (36V) (B) FRONT,REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	05	1	9810-	●
2	05.803 WHEEL; DISC (BPJ),(36V) (B) FRONT,REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	05	1	9810-		●
2	05.803 WHEEL; DISC (38V) (A) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	02	1	9312-	●	●
2	05.803 WHEEL; DISC (9HV) (B) FRONT AND REAR 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	04	1	9312-9510	●	●
2	05.803 WHEEL; DISC (9YN),(9YP) (B) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	02	1	9312-9510	●	●
2	05.803 WHEEL; DISC (9YQ),(9YR) (B) REAR AND SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	03	1	9511-9711				●
2	05.803 WHEEL; DISC (9YN),(9YP),(9ZZ) (B) REAR AND SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	03	1	9312-9510	●	●
2	05.803 WHEEL; DISC (9YQ),(9YR) (B) REAR AND SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	03	1	9312-9510			●	●
2	05.803 WHEEL; DISC (9ZZ) (A) FRONT 4.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-430-0	02	1	9312-9510	●	●
2	05.803 WHEEL; DISC (43V),(44V) (A) FRONT 5.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-016-0	02	1	9312-			●	●
2	05.803 WHEEL; DISC (9YQ),(9YR) (A) FRONT 5.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-431-1	02	1	9312-9510			●	●
2	05.803 WHEEL; DISC (9YQ),(9YR) (A) FRONT 5.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-431-1	02	1	9511-9711				●
2	05.803 WHEEL; DISC (22V),(9CE),(9CR),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9312-9510					●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9312-9510						●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9511-9809					●	●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9810-					●
2	05.803 WHEEL; DISC (BPH),(22V),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9810-						●
2	05.803 WHEEL; DISC (22V),(9CE),(9CR),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9312-9510					●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9312-9510						●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9511-9809					●	●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9810-					●
2	05.803 WHEEL; DISC (BPH),(22V),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9810-						●
2	05.803 WHEEL; DISC (9CE) (A) FRONT AND SPARE 4.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-430-0	03	1	9312-9510					●
2	05.803 WHEEL; DISC (9CR) (A) FRONT AND SPARE 5.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-431-1	03	1	9312-9510					●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) FRONT AND SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	03	1	9312-9809					●	●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) FRONT AND SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	03	1	9810-					●
2	05.803 WHEEL; DISC (BPH),(22V),(9ZX) (A) FRONT AND SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	03	1	9810-						●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9HV)	8-97017-494-1	05	1	9312-	●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9YN),(9YP)	8-97017-494-1	02	1	9312-9510	●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9YN),(9YP),(9ZZ)	8-97017-494-1	03	1	9312-9510	●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9YQ),(9YR)	8-97017-494-1	03	1	9312-9510			●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9YQ),(9YR)	8-97017-494-1	03	1	9511-9711				●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V),(9YN),(9YP),(9ZZ) 15X5.50F STAMP, BLACK	8-94135-599-0	03	1	9312-9510	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V),(9YQ),(9YR) 15X5.50F STAMP, BLACK	8-94135-599-0	03	1	9312-9510			●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9511-9711	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9511-9711			●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V),(9YQ),(9YR) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9511-9711				●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9712-	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9712-			●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(9YN),(9YP) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9312-9507	●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V),(9YN),(9YP) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9508-9510	●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9511-9711	●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9511-9711	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9511-9711			●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V),(9YQ),(9YR) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9511-9711				●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9712-	●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9712-	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9712-			●	●
31	05.839 RING; SIDE,DISC WHEEL (36V),(9HV) 15X5.50F STAMP, BLACK	8-94135-599-0	05	1	9312-9510	●	●
31	05.839 RING; SIDE,DISC WHEEL (36V) 15X5.50F STAMP, BLACK	8-94135-599-0	05	1	9511-9809	●	●
31	05.839 RING; SIDE,DISC WHEEL (36V) 15X5.50F STAMP, BLACK	8-94135-599-0	05	1	9810-	●
31	05.839 RING; SIDE,DISC WHEEL (BPJ),(36V) 15X5.50F STAMP, BLACK	8-94135-599-0	05	1	9810-		●

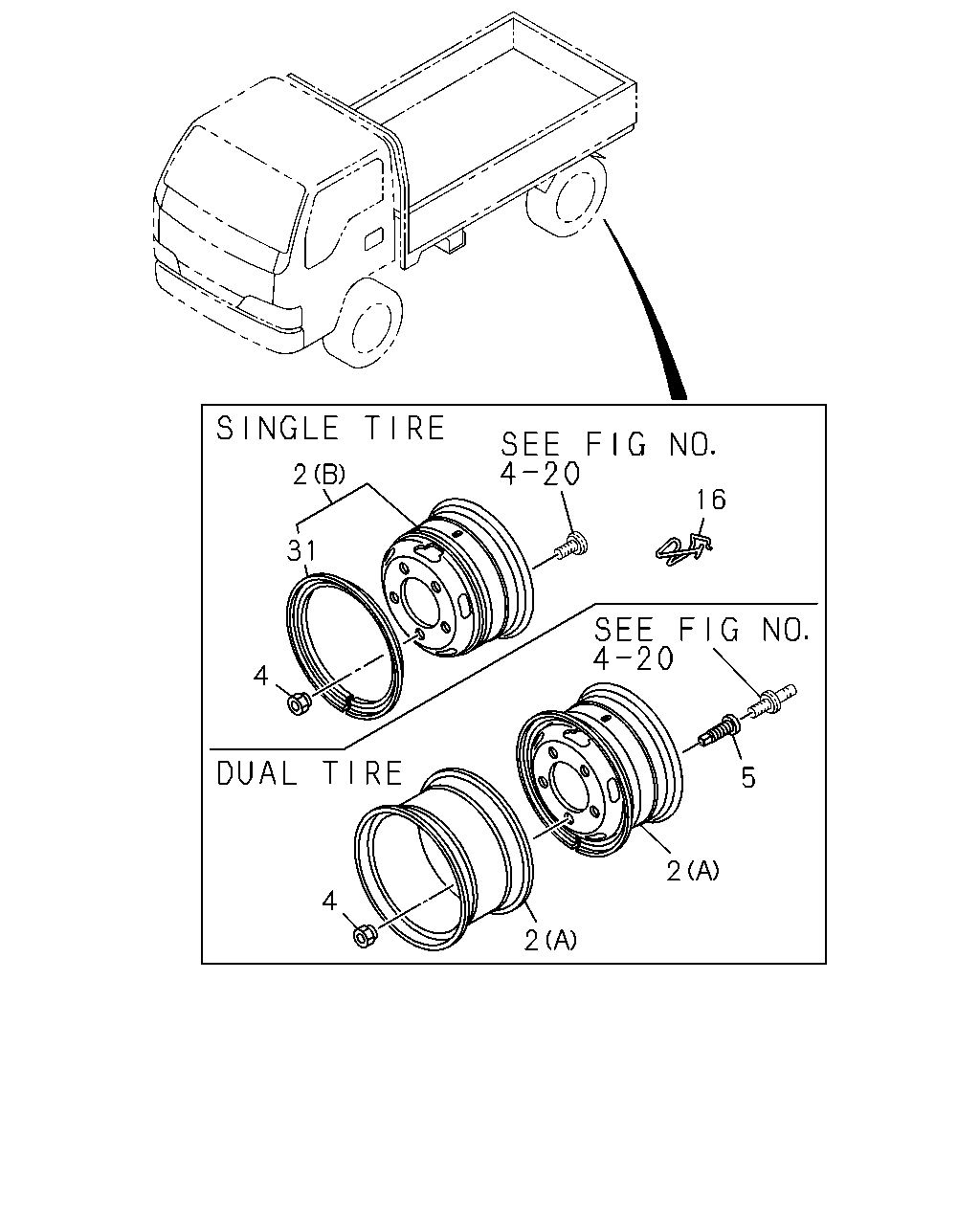

2 16 31 4 5 2 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	05.803 WHEEL; DISC (35V),(37V) (B) FRONT 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	02	1	9312-	●	●
2	05.803 WHEEL; DISC (35V),(37V),(38V) (B) REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	03	1	9312-	●	●
2	05.803 WHEEL; DISC (43V),(44V) (B) REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	03	1	9312-			●	●
2	05.803 WHEEL; DISC (36V) (B) FRONT,REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	05	1	9312-9809	●	●
2	05.803 WHEEL; DISC (36V) (B) FRONT,REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	05	1	9810-	●
2	05.803 WHEEL; DISC (BPJ),(36V) (B) FRONT,REAR AND SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	05	1	9810-		●
2	05.803 WHEEL; DISC (38V) (A) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	02	1	9312-	●	●
2	05.803 WHEEL; DISC (9HV) (B) FRONT AND REAR 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	04	1	9312-9510	●	●
2	05.803 WHEEL; DISC (9YN),(9YP) (B) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	02	1	9312-9510	●	●
2	05.803 WHEEL; DISC (9YQ),(9YR) (B) REAR AND SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	03	1	9511-9711				●
2	05.803 WHEEL; DISC (9YN),(9YP),(9ZZ) (B) REAR AND SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	03	1	9312-9510	●	●
2	05.803 WHEEL; DISC (9YQ),(9YR) (B) REAR AND SPARE 5.5FX15 OFFSET=85 BLACK 6-HOLE	8-94336-432-0	03	1	9312-9510			●	●
2	05.803 WHEEL; DISC (9ZZ) (A) FRONT 4.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-430-0	02	1	9312-9510	●	●
2	05.803 WHEEL; DISC (43V),(44V) (A) FRONT 5.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-016-0	02	1	9312-			●	●
2	05.803 WHEEL; DISC (9YQ),(9YR) (A) FRONT 5.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-431-1	02	1	9312-9510			●	●
2	05.803 WHEEL; DISC (9YQ),(9YR) (A) FRONT 5.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-431-1	02	1	9511-9711				●
2	05.803 WHEEL; DISC (22V),(9CE),(9CR),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9312-9510					●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9312-9510						●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9511-9809					●	●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9810-					●
2	05.803 WHEEL; DISC (BPH),(22V),(9ZX) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	01	1	9810-						●
2	05.803 WHEEL; DISC (22V),(9CE),(9CR),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9312-9510					●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9312-9510						●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9511-9809					●	●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9810-					●
2	05.803 WHEEL; DISC (BPH),(22V),(9ZX) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-1	04	1	9810-						●
2	05.803 WHEEL; DISC (9CE) (A) FRONT AND SPARE 4.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-430-0	03	1	9312-9510					●
2	05.803 WHEEL; DISC (9CR) (A) FRONT AND SPARE 5.5KX15 OFFSET=85 BLACK 6-HOLE	8-94336-431-1	03	1	9312-9510					●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) FRONT AND SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	03	1	9312-9809					●	●
2	05.803 WHEEL; DISC (22V),(9ZX) (A) FRONT AND SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	03	1	9810-					●
2	05.803 WHEEL; DISC (BPH),(22V),(9ZX) (A) FRONT AND SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	03	1	9810-						●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	5-42334-002-0	06	1	9312-	●	●	●	●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	5-42333-008-0	06	1	9312-	●	●	●	●
4	05.813 NUT; WHEEL,RR AXLE M25 LH THREAD	9-42334-009-0	06	1	9312-					●	●
4	05.813 NUT; WHEEL,RR AXLE M25 RH THREAD	9-42333-015-0	06	1	9312-					●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 LH THREAD	5-42336-001-1	06	1	9312-					●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 RH THREAD	5-42335-001-1	06	1	9312-					●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9HV)	8-97017-494-1	05	1	9312-	●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9YN),(9YP)	8-97017-494-1	02	1	9312-9510	●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9YN),(9YP),(9ZZ)	8-97017-494-1	03	1	9312-9510	●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9YQ),(9YR)	8-97017-494-1	03	1	9312-9510			●	●
16	05.875 HOLDER; TIRE VALVE,DISC WHEEL (9YQ),(9YR)	8-97017-494-1	03	1	9511-9711				●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V),(9YN),(9YP),(9ZZ) 15X5.50F STAMP, BLACK	8-94135-599-0	03	1	9312-9510	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V),(9YQ),(9YR) 15X5.50F STAMP, BLACK	8-94135-599-0	03	1	9312-9510			●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9511-9711	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9511-9711			●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V),(9YQ),(9YR) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9511-9711				●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9712-	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V) 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9712-			●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(9YN),(9YP) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9312-9507	●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V),(9YN),(9YP) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9508-9510	●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9511-9711	●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9511-9711	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9511-9711			●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V),(9YQ),(9YR) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9511-9711				●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9712-	●	●
31	05.839 RING; SIDE,DISC WHEEL (35V),(37V),(38V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9712-	●	●
31	05.839 RING; SIDE,DISC WHEEL (43V),(44V) 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	9712-			●	●
31	05.839 RING; SIDE,DISC WHEEL (36V),(9HV) 15X5.50F STAMP, BLACK	8-94135-599-0	05	1	9312-9510	●	●
31	05.839 RING; SIDE,DISC WHEEL (36V) 15X5.50F STAMP, BLACK	8-94135-599-0	05	1	9511-9809	●	●
31	05.839 RING; SIDE,DISC WHEEL (36V) 15X5.50F STAMP, BLACK	8-94135-599-0	05	1	9810-	●
31	05.839 RING; SIDE,DISC WHEEL (BPJ),(36V) 15X5.50F STAMP, BLACK	8-94135-599-0	05	1	9810-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
